Model Maytag JFC2290VEP10 REFRIGERATOR – Common Parts & Diagrams

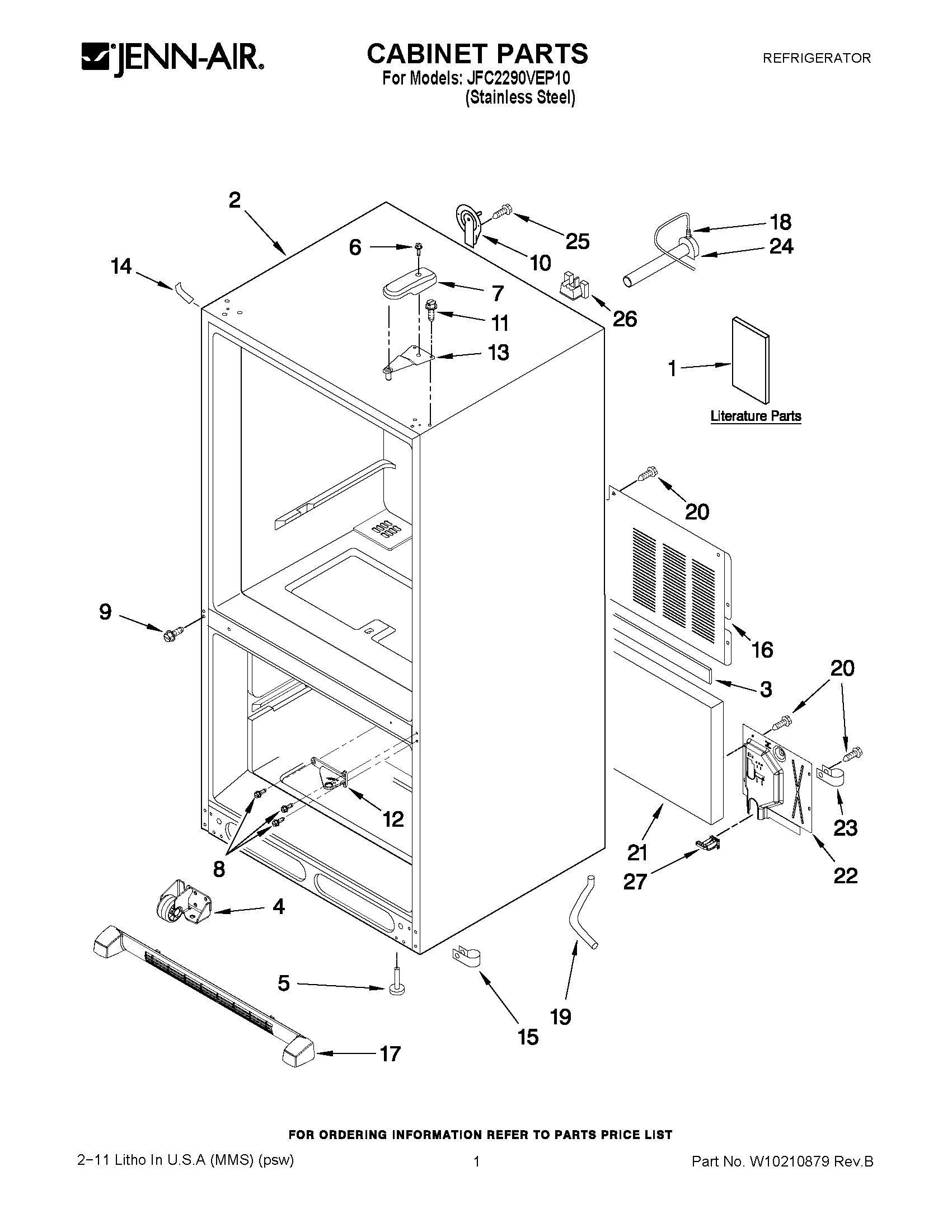

01 - CABINET PARTS

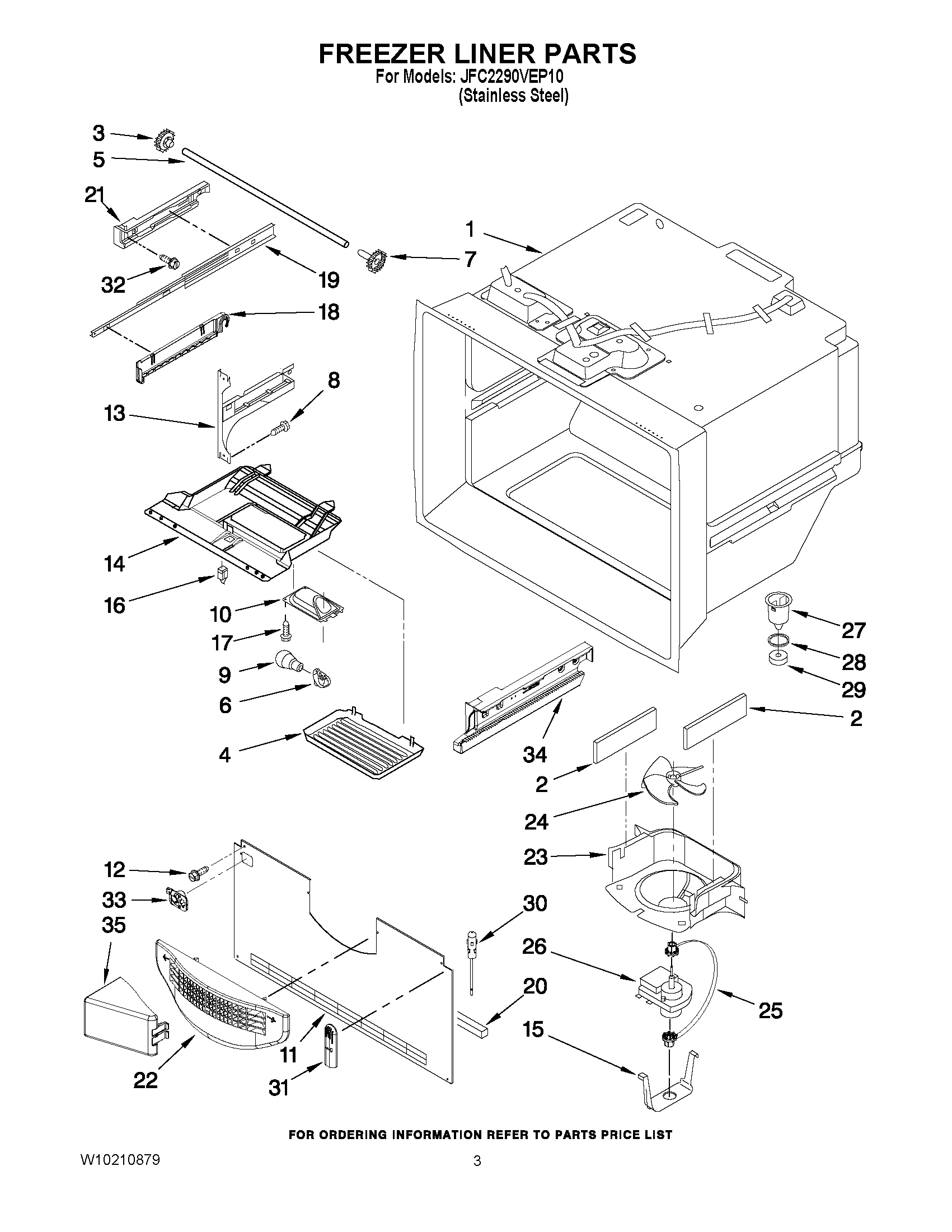

02 - FREEZER LINER PARTS
03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - UNIT PARTS
06 - SHELF PARTS
07 - ICEMAKER PARTS
08 - FREEZER DOOR PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JFC2290VEP10 REFRIGERATOR
1
Door, Refrigerator (Stainless, LH) MAY 13094708SQ Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
MAY 13094904SQ MAY 13094904SQ Contact Us For Availability
2
MAY W10203323 MAY W10203323 Contact Us For Availability
2
MAY W10156818 MAY W10156818 Contact Us For Availability
2
MAY 67003729 MAY 67003729 Contact Us For Availability
2
Handle, Door (Stainless) MAY W10210625 Contact Us For Availability
3
MAY 67005889 MAY 67005889 Contact Us For Availability
3
MAY 12656822 MAY 12656822 Contact Us For Availability
3
MAY 67003932 MAY 67003932 Contact Us For Availability
3
Gasket, Door (Apollo Grey) MAY W10164042 Contact Us For Availability
4
MAY 67003905 MAY 67003905 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
Module, Control MAY W10185585 Contact Us For Availability
4
MAY W10119222 MAY W10119222 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY W10116216 MAY W10116216 Contact Us For Availability
5
SCREW MAY 67006901 Contact Us For Availability
5
MAY W10119841 MAY W10119841 Contact Us For Availability
5
MAY 67005491 MAY 67005491 Contact Us For Availability
6
MAY W10134293 MAY W10134293 Contact Us For Availability
6
Roller, Basket MAY 2204542 Contact Us For Availability
7
MAY W10196196 MAY W10196196 Contact Us For Availability
7
MAY W10119854 MAY W10119854 Contact Us For Availability
7
MAY W10153710 MAY W10153710 Contact Us For Availability
8
Screw (8) MAY 67006473 Contact Us For Availability
8
Gasket, Door (Apollo Grey) MAY W10163997 Contact Us For Availability
8
MAY W10132468 MAY W10132468 Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Handle, Door (Stainless) MAY W10210624 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Socket, Light (2) MAY Y12570701 Contact Us For Availability
10
MAY W10203111 MAY W10203111 Contact Us For Availability
10
MAY 67005625 MAY 67005625 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY W10203139 MAY W10203139 Contact Us For Availability
11
MAY W10191100 MAY W10191100 Contact Us For Availability
11
MAY 2255199 MAY 2255199 Contact Us For Availability
11
MAY W10156631 MAY W10156631 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
Screw (2) MAY 67006602 Contact Us For Availability
12
MAY W10128791 MAY W10128791 Contact Us For Availability
12
MAY 67003793 MAY 67003793 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
MAY W10119064 MAY W10119064 Contact Us For Availability
13
MAY W10119295 MAY W10119295 Contact Us For Availability
13
Gasket MAY 67003731 Contact Us For Availability
13
Nut, Basket Roller MAY 2207415 Contact Us For Availability
13
Housing, Support MAY 2194712 Contact Us For Availability
14
MAY W10119832 MAY W10119832 Contact Us For Availability
14
MAY 67006604 MAY 67006604 Contact Us For Availability
14
MAY W10165425 MAY W10165425 Contact Us For Availability
14
MAY W10132652 MAY W10132652 Contact Us For Availability
14
MAY W10132653 MAY W10132653 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY W10127431 MAY W10127431 Contact Us For Availability
15
Thermostat (Order 542369 Cement Alumilastic) MAY 627985 Contact Us For Availability
16
MAY 67005653 MAY 67005653 Contact Us For Availability
16
MAY 12791416 MAY 12791416 Contact Us For Availability
16
MAY 67006573 MAY 67006573 Contact Us For Availability
16
MAY W10121977 MAY W10121977 Contact Us For Availability
16
MAY W10122078 MAY W10122078 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
Bracket, Filter MAY 67006325 Contact Us For Availability
17
Stop, Door (Apollo Grey) MAY W10120097 Contact Us For Availability
17
MAY W10169124 MAY W10169124 Contact Us For Availability
17
MAY W10119219 MAY W10119219 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY W10119848 MAY W10119848 Contact Us For Availability
18
MAY W10119849 MAY W10119849 Contact Us For Availability
18
MAY W10204043 MAY W10204043 Contact Us For Availability
18
MAY W10119846 MAY W10119846 Contact Us For Availability
18
Brace, Crisper MAY W10119258 Contact Us For Availability
18
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
19
MAY W10165841 MAY W10165841 Contact Us For Availability
19
Mullion, Door (Apollo Grey) MAY 12732508AP Contact Us For Availability
19
MAY 67006432 MAY 67006432 Contact Us For Availability
19
MAY W10170836 MAY W10170836 Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
MAY 67001776 MAY 67001776 Contact Us For Availability
20
MAY 67006786 MAY 67006786 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
20
MAY W10119215 MAY W10119215 Contact Us For Availability
20
Module Assembly (Includes Items 21& 22) MAY 626678 Contact Us For Availability
21
MAY W10163084 MAY W10163084 Contact Us For Availability
21
MAY W10163087 MAY W10163087 Contact Us For Availability
21
MAY 13094707SQ MAY 13094707SQ Contact Us For Availability
21
SCREW MAY 67006737 Contact Us For Availability
21
MAY 12204827 MAY 12204827 Contact Us For Availability
21
MAY 626684 MAY 626684 Contact Us For Availability
22
MAY W10175909 MAY W10175909 Contact Us For Availability
22
Facade, Disp. MAY W10204292 Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP FAN MAY W10167023 Contact Us For Availability
23
MAY 12575502 MAY 12575502 Contact Us For Availability
23
MAY W10203108 MAY W10203108 Contact Us For Availability
23
MAY W10203109 MAY W10203109 Contact Us For Availability
23
Ladder, L/R Side MAY 67001302 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY W10117324 MAY W10117324 Contact Us For Availability
24
MAY 67006400 MAY 67006400 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
25
Grommet MAY W10150583 Contact Us For Availability
25
MAY W10153959 MAY W10153959 Contact Us For Availability
26
MAY 67006662 MAY 67006662 Contact Us For Availability
26
Motor, Evaporator MAY W10199049 Contact Us For Availability
26
MAY W10137210 MAY W10137210 Contact Us For Availability
26
MAY W10120003 MAY W10120003 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
MAY 67003146 MAY 67003146 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY W10119217 MAY W10119217 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27,29) MAY W10134623 Contact Us For Availability
28
Bar, Temperature Control MAY 67003794 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
Slide, Crisper (Left) MAY 2302952 Contact Us For Availability
29
Slide, Crisper (Right Vent) MAY 2302953 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
29
MAY 12655703 MAY 12655703 Contact Us For Availability
30
MAY W10203133 MAY W10203133 Contact Us For Availability
30
MAY W10182881 MAY W10182881 Contact Us For Availability
31
MAY 12575309 MAY 12575309 Contact Us For Availability
31
MAY W10120005 MAY W10120005 Contact Us For Availability
32
Screw (6) MAY 67006406 Contact Us For Availability
32
MAY 67004953 MAY 67004953 Contact Us For Availability
32
MAY W10120008 MAY W10120008 Contact Us For Availability
33
Guide, Fill Tube MAY W10201550 Contact Us For Availability
33
MAY W10184030 MAY W10184030 Contact Us For Availability
34
MAY W10203148 MAY W10203148 Contact Us For Availability
34
MAY W10203149 MAY W10203149 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
34
MAY W10131252 MAY W10131252 Contact Us For Availability
35
MAY W10157765 MAY W10157765 Contact Us For Availability
35
MAY W10174720 MAY W10174720 Contact Us For Availability
36
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
36
MAY W10170835 MAY W10170835 Contact Us For Availability
37
Clip, Evaporator MAY 13058002 Contact Us For Availability
37
MAY W10120014 MAY W10120014 Contact Us For Availability
38
MAY W10119790 MAY W10119790 Contact Us For Availability
38
MAY W10184358 MAY W10184358 Contact Us For Availability
39
MAY W10203258 MAY W10203258 Contact Us For Availability
39
MAY W10212414 MAY W10212414 Contact Us For Availability
40
Control, Electronic,15W,PS MAY W10120821 Contact Us For Availability
41
MAY W10120827 MAY W10120827 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.0 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY W10196195 MAY W10196195 Contact Us For Availability
NI
MAY W10119821 MAY W10119821 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
