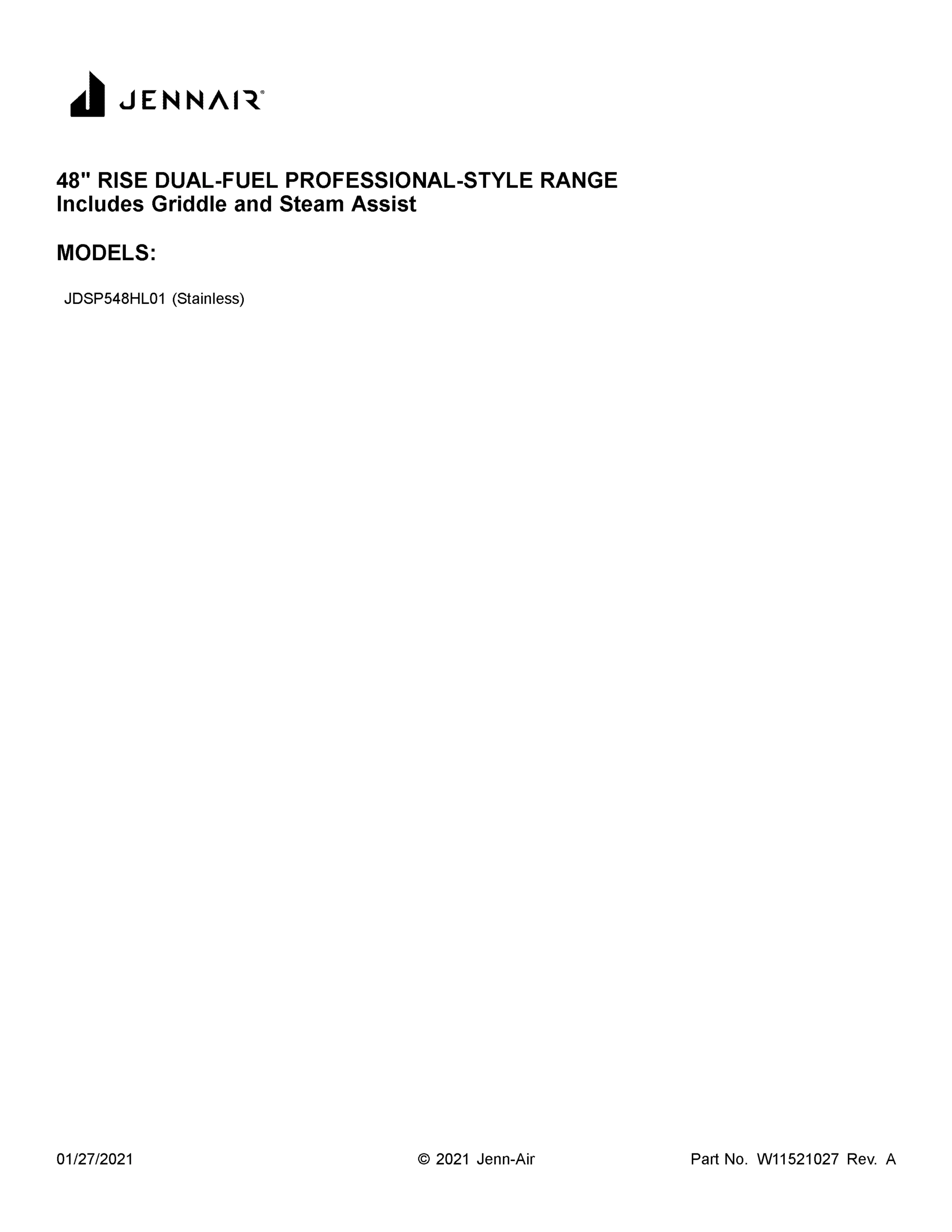

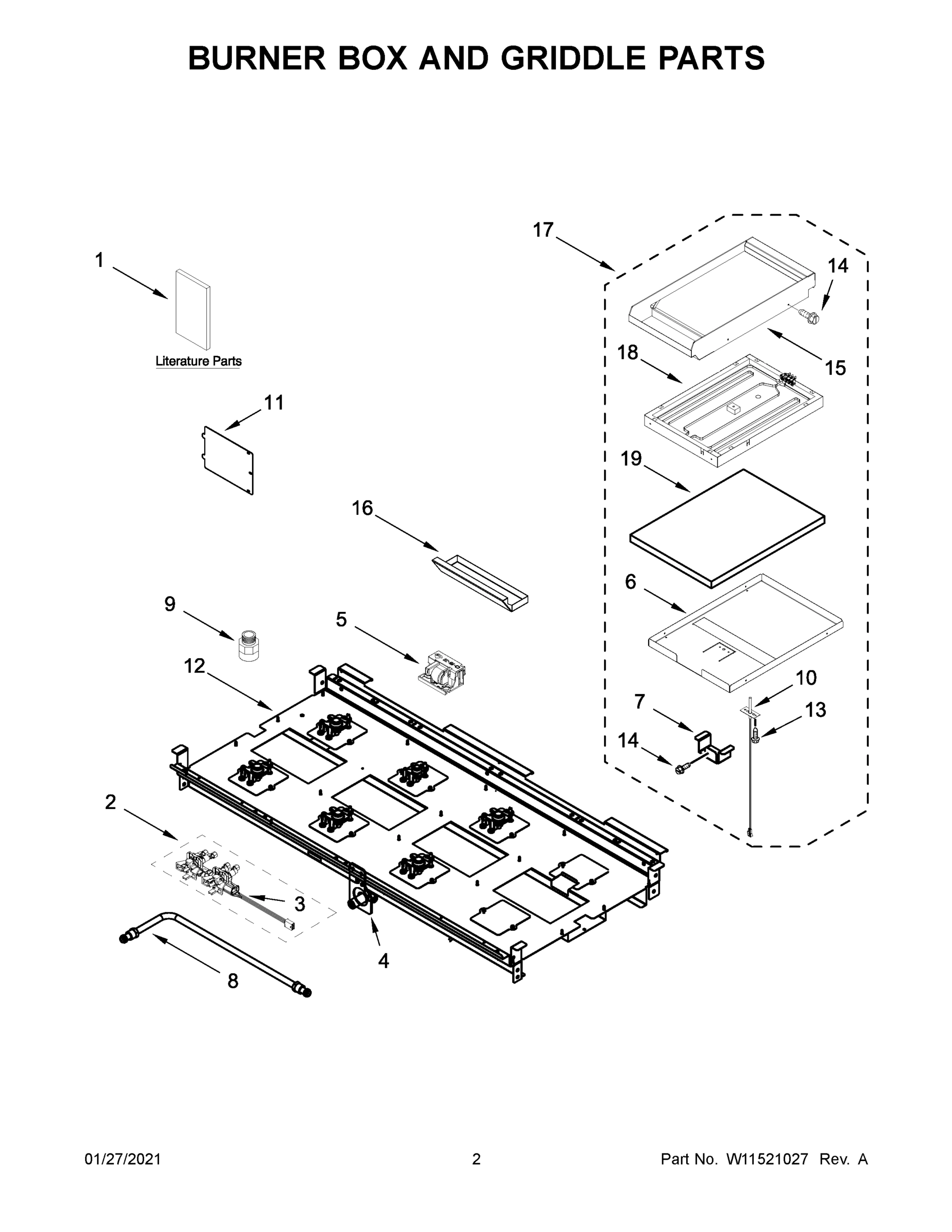

Model Whirlpool JDSP548HL01 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH – Common Parts &amp; Diagrams

1

W11318335 Whirlpool Glass Frame Backorder WPL W11318335 $122.09

1

W11318831 Whirlpool Glass Frame Backorder WPL W11318831 $122.09

1

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

1

SEAL, CHIMNEY WPL W10270396 Contact Us For Availability

1

BRACKET, BROIL FRONT WPL W11112336 Contact Us For Availability

2

W10160855 Whirlpool Heat Shield Backorder WPL W10160855 $55.93

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $109.81

2

W11688507 Whirlpool Insulation Backorder WPL W11688507 $9.10

2

BACK, CHASSIS WPL W11324987 Contact Us For Availability

2

VENT, COOLING TOP (30 IN) WPL W11105223 Contact Us For Availability

2

INSULATION, DOOR (30 IN) WPL W11413190 Contact Us For Availability

2

INSULATION, DOOR WPL W10884821 Contact Us For Availability

2A

VENT, COOLING TOP (18 IN) WPL W11113380 Contact Us For Availability

3

W11111351 Whirlpool Oven Rack Backorder WPL W11111351 $77.02

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $120.33

3

W11317951 Whirlpool Glass Door Backorder WPL W11317951 $57.67

3

W11318341 Whirlpool Meat Probe Backorder WPL W11318341 $107.66

3

W11318823 Whirlpool Door Glass Backorder WPL W11318823 $57.67

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

3

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $3.70

3D

W10892429 Whirlpool Orifice Spud Backorder WPL W10892429 $37.39

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

4

W11320536 Whirlpool Duct Backorder WPL W11320536 $116.89

4

W11563568 Whirlpool Oven Rack Backorder WPL W11563568 $228.80

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $7.61

4

VENT, COOLING BOTTOM (30 IN) WPL W11105222 Contact Us For Availability

4

RETAINER, GLASS WPL W11194821 Contact Us For Availability

4

RETAINER, GLASS WPL W11194818 Contact Us For Availability

4A

W11580024 Whirlpool Surface Igniter In Stock WPL W11580024 $7.61

4A

VENT, COOLING BOTTOM (18 IN) WPL W11113378 Contact Us For Availability

4B

W11238756 Whirlpool Surface Igniter Backorder WPL W11238756 $23.46

5

W11320150 Whirlpool Convection Fan Backorder WPL W11320150 $120.93

5

W11643630 Whirlpool Door Hinge Backorder WPL W11643630 $75.77

5

W11643896 Whirlpool Appliance Door Hinge Backorder WPL W11643896 $70.61

5

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $29.99

5

TUBE, VENT WPL W11290663 Contact Us For Availability

5

TUBE, VENT WPL W10288078 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W11109518 Contact Us For Availability

5

BRACKET, BROIL TOP WPL W11158843 Contact Us For Availability

6

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $43.97

6

W11232487 Whirlpool Convection Baffle Backorder WPL W11232487 $76.07

6

W11233684 Whirlpool Oven Light Assembly Backorder WPL W11233684 $34.99

6

W11643898 Whirlpool Door Hinge Backorder WPL W11643898 $46.26

6

W11643900 Whirlpool Door Hinge Backorder WPL W11643900 $46.26

6

COVER, FAN WPL W11368180 Contact Us For Availability

6A

W10270402 Whirlpool Seal Assembly Backorder WPL W10270402 $33.93

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

7

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $75.57

7

W11685616 Whirlpool Fan Motor Backorder WPL W11685616 $91.80

7

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

7

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $66.39

7

SCREW WPL 7101P42660 Contact Us For Availability

8

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

8

BRACKET, BLOWER MOUNT WPL W11047754 Contact Us For Availability

9

4453116 Whirlpool Oven Adapter Backorder WPL 4453116 $68.92

9

W10116010 Whirlpool Broil Element Backorder WPL W10116010 $53.11

9

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $60.62

9

RECEIVER, HINGE (LEFT) WPL W11096294 Contact Us For Availability

9

BOX, TERMINAL WPL W11353392 Contact Us For Availability

9

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $41.50

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $26.21

W11315557 Whirlpool Door Glass In Stock WPL W11315557 $610.63

W11315559 Whirlpool Door Glass Backorder WPL W11315559 $445.72

W11643125 Whirlpool Element Backorder WPL W11643125 $44.43

SLOPE, EXHAUST VENT (30 IN) WPL W10818234 Contact Us For Availability

10A

SLOPE, EXHAUST VENT (18 IN) WPL W10818235 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $32.08

W10116434 Whirlpool Element Backorder WPL W10116434 $128.37

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

W11317501 Whirlpool Door Handle Backorder WPL W11317501 $222.89

COVER, CHANNEL WPL W11106956 Contact Us For Availability

HANDLE, DOOR WPL W11102824 Contact Us For Availability

489504 Whirlpool Oven Ring Backorder WPL 489504 $4.85

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

W11320145 Whirlpool Cabinet Panel Backorder WPL W11320145 $118.44

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

RECEIVER, HINGE (RIGHT) WPL W11096293 Contact Us For Availability

BLOCK, TERMINAL WPL W11030753 Contact Us For Availability

COVER, BROIL TERMINAL WPL W11111391 Contact Us For Availability

12A

CHASSIS, SIDE (RIGHT) WPL W11102296 Contact Us For Availability

W10261523 Whirlpool Plate Backorder WPL W10261523 $25.82

W11193480 Whirlpool Screw Backorder WPL W11193480 $9.59

W11317500 Whirlpool Nameplate Backorder WPL W11317500 $57.83

W11320154 Whirlpool Range Gas Tubing Backorder WPL W11320154 $63.60

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.70

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

W11175143 Whirlpool Gasket In Stock WPL W11175143 $8.86

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

SUPPORT, CHANNEL WPL W11369238 Contact Us For Availability

SCREW WPL W10739592 Contact Us For Availability

15

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

COVER, BOILER ORIFICE WPL W11177696 Contact Us For Availability

15A

W11115326 Whirlpool Gasket Backorder WPL W11115326 $108.27

8186352 Whirlpool Boiler Backorder WPL 8186352 $207.38

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $58.75

ELEMENT, HIDDEN BAKE WPL W11045324 Contact Us For Availability

17

W10115819 Whirlpool Brace Backorder WPL W10115819 $26.21

17

W10194453 Whirlpool Switch Backorder WPL W10194453 $107.83

17

TRAY, HIDDEN BAKE WPL W11110223 Contact Us For Availability

18

W11362015 Whirlpool Retainer Backorder WPL W11362015 $57.47

18

HOSE, SILICONE (TRANSLUCENT) WPL W10076930 Contact Us For Availability

18

COVER PLATE, TERMINAL HOLE WPL W11170823 Contact Us For Availability

18A

W10116067 Whirlpool Hose Backorder WPL W10116067 $27.34

19

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

19

W11210530 Whirlpool Broil Element Backorder WPL W11210530 $247.19

19

TOP, CHASSIS WPL W11324984 Contact Us For Availability

19A

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

20

WPL W11156418 WPL W11156418 Contact Us For Availability

20

CHASSIS, BOTTOM WPL W11040800 Contact Us For Availability

20

BRACKET, STEAM MOUNT WPL W10331561 Contact Us For Availability

ELEMENT, HIDDEN BAKE WPL W10115995 No Longer Available

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $26.21

WPW10049700 Whirlpool Filter Backorder WPL WPW10049700 $120.76

PANEL, BACK TOP WPL W11103335 Contact Us For Availability

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $26.21

W11509770 Whirlpool Screw In Stock WPL W11509770 $9.59

PANEL, BACK BOTTOM WPL W11034123 Contact Us For Availability

ENCLOSURE, STEAM VALVE WPL W10160877 Contact Us For Availability

TRAY, HIDDEN BAKE WPL W11109421 Contact Us For Availability

W11289593 Whirlpool Control Panel Backorder WPL W11289593 $423.91

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $39.36

VALVE, SOLENOID WPL W10111418 Contact Us For Availability

GLASS, BROIL ELEMENT WPL W11193191 Contact Us For Availability

24

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $108.40

24

W11574368 Whirlpool Knob Backorder WPL W11574368 $55.82

24

WPW10076760 Whirlpool Sensor Backorder WPL WPW10076760 $74.25

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

25

TUBE, COPPER STEAM WPL W11334757 Contact Us For Availability

26

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

26

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

W11317499 Whirlpool Knob Bezel In Stock WPL W11317499 $54.30

27

ORIFICE, BOILER SLIP FIT WPL W11092978 Contact Us For Availability

28

CABINET, APPLIANCE MANAGER WPL W11369237 Contact Us For Availability

29

WPL W11205794 WPL W11205794 Contact Us For Availability

29

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

30

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

30

W11318834 Whirlpool Infinite Heat Switch Backorder WPL W11318834 $116.16

31

W10116114 Whirlpool Indicator Light Backorder WPL W10116114 $31.66

31

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $57.11

34

W10294500 Whirlpool Light Lens Backorder WPL W10294500 $4.85

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

W11319196 Whirlpool Push Button Backorder WPL W11319196 $9.94

37

WPL 7101P33860 WPL 7101P33860 Contact Us For Availability

38

W11318857 Whirlpool Push Button Backorder WPL W11318857 $9.30

39

WPL W10896369 WPL W10896369 Contact Us For Availability

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $107.97

41

W11317495 Whirlpool Knob Bezel Backorder WPL W11317495 $54.30

42

W11388048-includeCORE Whirlpool W11388048 Ref Backorder WPL W11388048-includeCORE $237.68

43

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

44

WPL W10884943 WPL W10884943 Contact Us For Availability

45

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

46

W11574369 Whirlpool Range Knob Backorder WPL W11574369 $71.77

47

WPL 7101P30960 WPL 7101P30960 Contact Us For Availability

48

W11123146 Whirlpool Speaker Backorder WPL W11123146 $29.81

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10160195 Whirlpool Cover Backorder WPL W10160195 $160.20

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $22.05

W10282812 Whirlpool Insulation Assembly Backorder WPL W10282812 $41.69

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $484.00

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11316873 Whirlpool Knob Bezel Backorder WPL W11316873 $54.30

W11323012 Whirlpool Burner Cap Backorder WPL W11323012 $99.57

W11323014 Whirlpool Range Burner Cap Backorder WPL W11323014 $332.64

W11323015 Whirlpool Range Burner Cap Backorder WPL W11323015 $90.57

W11323024 Whirlpool Range Knob Bezel Backorder WPL W11323024 $54.30

W11323061 Whirlpool Knob Bezel Backorder WPL W11323061 $54.30

W11323062 Whirlpool Range Bezel Knob Backorder WPL W11323062 $208.00

W11323068 Whirlpool Knob Bezel Backorder WPL W11323068 $211.20

W11428599 Whirlpool Conversion Kit In Stock WPL W11428599 $19.22

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

INSULATION, WRAP (30 IN) WPL W10282810 Contact Us For Availability

INSULATION, BACK (30 IN) WPL W10282816 Contact Us For Availability

INSULATION, WRAP, 18 IN WPL W10282820 Contact Us For Availability

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

ACCESSORIES, KIT, HIGH ALTITUDE WPL W11238043 Contact Us For Availability

ACCESSORY PARTS, BRASS, OVEN WPL W11323067 Contact Us For Availability
