Model Whirlpool JDSP536HL01 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 36 INCH – Common Parts &amp; Diagrams

1

W11210530 Whirlpool Broil Element Backorder WPL W11210530 $247.19

1

W11333399 Whirlpool Range Cover Plate Backorder WPL W11333399 $153.40

1

W11334152 Whirlpool Glass Frame In Stock WPL W11334152 $122.09

1

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $76.71

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

COVER-REAR Backorder WPL W11324988 $101.60

2

W11688331 Whirlpool Insulation Backorder WPL W11688331 $16.85

2

W11688507 Whirlpool Insulation In Stock WPL W11688507 $9.10

2

VENT, COOLING TOP (30 IN) WPL W11105223 Contact Us For Availability

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $120.33

3

W11318341 Whirlpool Meat Probe Backorder WPL W11318341 $107.66

3

W11334153 Whirlpool Door Glass Backorder WPL W11334153 $60.54

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

3

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $3.70

3D

W10892429 Whirlpool Orifice Spud Backorder WPL W10892429 $39.25

4

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $116.09

4

W11095572 Whirlpool Duct Backorder WPL W11095572 $95.12

4

W11194820 Whirlpool Retainer In Stock WPL W11194820 $60.35

4

W11545292 Whirlpool Range Rack In Stock WPL W11545292 $219.38

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $8.44

4

VENT, COOLING BOTTOM (30 IN) WPL W11105222 Contact Us For Availability

4A

W11238756 Whirlpool Surface Igniter Backorder WPL W11238756 $24.63

5

W11568941 Whirlpool Door Hinge Assembly In Stock WPL W11568941 $62.39

5

TUBE, VENT WPL W11290663 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W11109518 Contact Us For Availability

5

GLASS, BROIL ELEMENT WPL W11193191 Contact Us For Availability

6

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

6

W11232487 Whirlpool Convection Baffle Backorder WPL W11232487 $79.88

6

W11568813 Whirlpool Door Hinge In Stock WPL W11568813 $46.65

6

BOX, TERMINAL WPL W11353392 Contact Us For Availability

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $79.35

7

W11194814 Whirlpool Window Frame Backorder WPL W11194814 $122.09

7

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $36.75

7

W11685616 Whirlpool Fan Motor In Stock WPL W11685616 $96.40

7

SCREW WPL 7101P42660 Contact Us For Availability

8

W11320150 Whirlpool Convection Fan In Stock WPL W11320150 $120.93

8

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.94

8

BRACKET, BLOWER MOUNT WPL W11047754 Contact Us For Availability

9

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

9

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

9

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

9

COVER-CNTL Backorder WPL W11369237 $55.78

9

RECEIVER, HINGE (LEFT) WPL W11096294 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

SEAL-FOAM Backorder WPL W10270396 $29.48

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

W11315585 Whirlpool Door Glass Backorder WPL W11315585 $604.49

COVER, WIFI OUTER WPL W11205795 Contact Us For Availability

RECEIVER, HINGE (RIGHT) WPL W11096293 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

W10116434 Whirlpool Element Backorder WPL W10116434 $128.37

W11316873 Whirlpool Knob Bezel Backorder WPL W11316873 $54.30

BLOCK, TERMINAL WPL W11030753 Contact Us For Availability

HANDLE, DOOR WPL W11102828 Contact Us For Availability

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

W11106922 Whirlpool Dishwasher Bake Tray Backorder WPL W11106922 $56.74

W11320145 Whirlpool Cabinet Panel Backorder WPL W11320145 $124.37

W11574368 Whirlpool Knob Backorder WPL W11574368 $58.61

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $4.52

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

12A

CHASSIS, SIDE (RIGHT) WPL W11102296 Contact Us For Availability

W11320154 Whirlpool Range Gas Tubing Backorder WPL W11320154 $66.79

W11328971 Whirlpool Burner Cap Backorder WPL W11328971 $84.22

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

COVER, CHANNEL WPL W11106956 Contact Us For Availability

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $27.52

SUPPORT Backorder WPL W11087493 $49.10

W11317500 Whirlpool Nameplate Backorder WPL W11317500 $60.73

W11319683 Whirlpool Burner Head In Stock WPL W11319683 $121.95

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

14A

W11319673 Whirlpool Burner Head In Stock WPL W11319673 $110.43

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $64.26

COVER-VENT Backorder WPL W11177696 $79.59

W11193480 Whirlpool Screw In Stock WPL W11193480 $9.59

W11318857 Whirlpool Push Button Backorder WPL W11318857 $9.30

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $26.72

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

8186352 Whirlpool Boiler Backorder WPL 8186352 $207.38

KNOB Backorder WPL W10891873 $54.20

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $61.68

W11175143 Whirlpool Gasket In Stock WPL W11175143 $9.68

W11231343 Whirlpool Lock Nut In Stock WPL W11231343 $9.59

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

SCREW Backorder WPL W10739592 $6.28

W11317499 Whirlpool Knob Bezel In Stock WPL W11317499 $55.11

SWITCH, PRESSURE WPL W10194453 Contact Us For Availability

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

W10860270 Whirlpool Bake Element Assembly Backorder WPL W10860270 $71.02

W11362015 Whirlpool Retainer Backorder WPL W11362015 $60.35

W11574369 Whirlpool Range Knob Backorder WPL W11574369 $75.35

HOSE, SILICONE (TRANSLUCENT) WPL W10076930 Contact Us For Availability

18A

W10116067 Whirlpool Hose Backorder WPL W10116067 $28.71

19

BRKT-BROIL Backorder WPL W11112336 $41.34

19

KNOB, GRIDDLE (STAINLESS) WPL W10884943 Contact Us For Availability

19

TOP, CHASSIS WPL W11324985 Contact Us For Availability

19A

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

BRKT-MNTG Backorder WPL W10331561 $17.20

BOTTM-MAIN Backorder WPL W11040801 $113.48

W11317495 Whirlpool Knob Bezel Backorder WPL W11317495 $54.30

BRACKET, BROIL TOP WPL W11158843 Contact Us For Availability

W11103333 Whirlpool Rear Cover Backorder WPL W11103333 $55.10

WP3400015 Whirlpool Screw Backorder WPL WP3400015 $2.51

SCREW WPL 7101P30960 Contact Us For Availability

COVER, BROIL TERMINAL WPL W11111392 Contact Us For Availability

COVER-REAR Backorder WPL W11034133 $66.48

W11509770 Whirlpool Screw In Stock WPL W11509770 $10.41

ENCLOSURE, STEAM VALVE WPL W10160877 Contact Us For Availability

COVER PLATE, TERMINAL HOLE WPL W11170823 Contact Us For Availability

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $41.34

W11333179 Whirlpool Side Assembly Backorder WPL W11333179 $188.78

VALVE, SOLENOID WPL W10111418 Contact Us For Availability

23A

W11333303 Whirlpool Side Complete Assembly Backorder WPL W11333303 $188.78

24

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $112.73

24

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

24

WPW10076760 Whirlpool Sensor Backorder WPL WPW10076760 $77.96

25

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

25

W11334756 Whirlpool Tubing Assembly Backorder WPL W11334756 $12.55

25

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

26

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

26

WPL 7101P33860 WPL 7101P33860 Contact Us For Availability

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

ORIFICE Backorder WPL W11092978 $34.61

27

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

27

W11602621 Whirlpool Module Backorder WPL W11602621 $865.88

28

W11316696 Whirlpool Cooktop Backorder WPL W11316696 $171.65

28

WPW10049700 Whirlpool Filter Backorder WPL WPW10049700 $120.76

28A

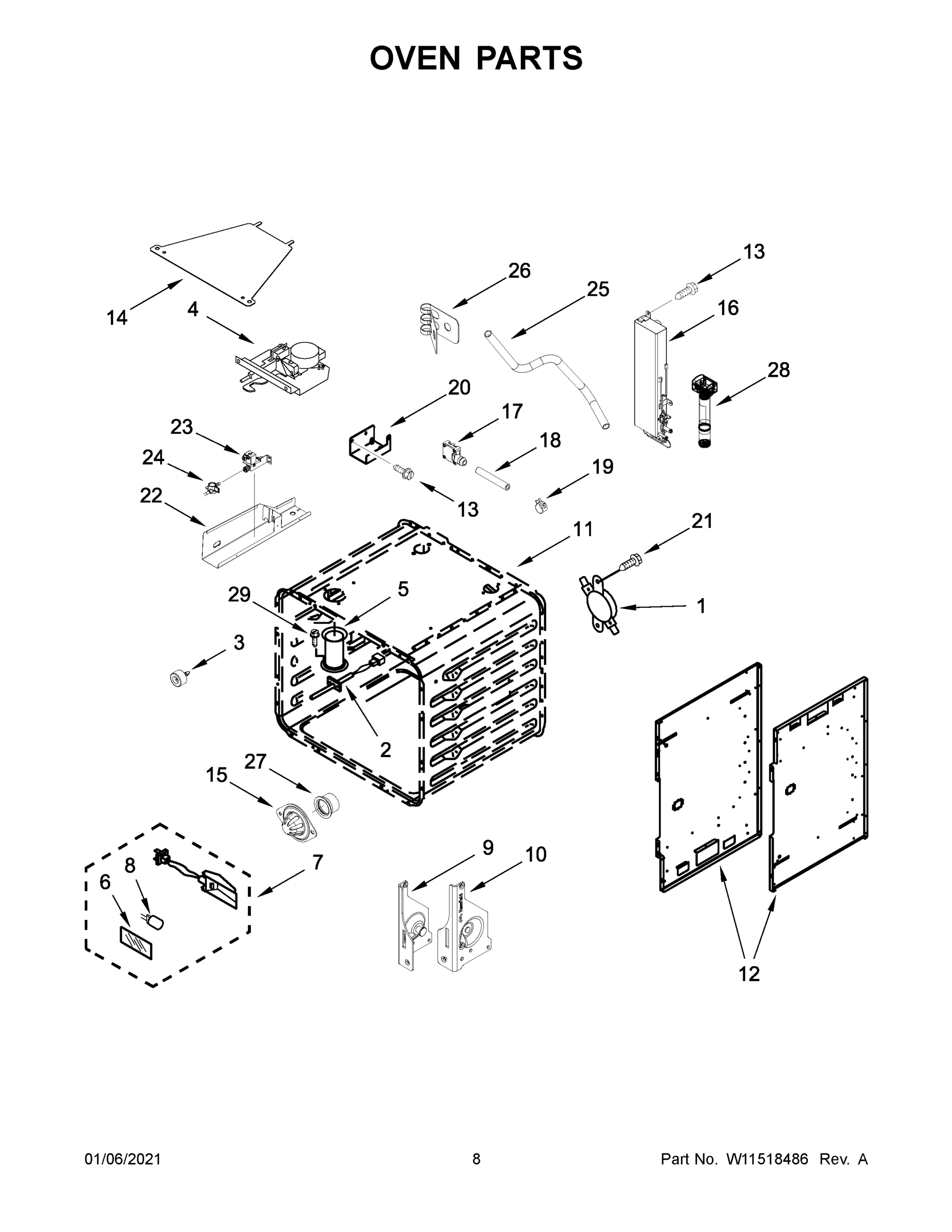

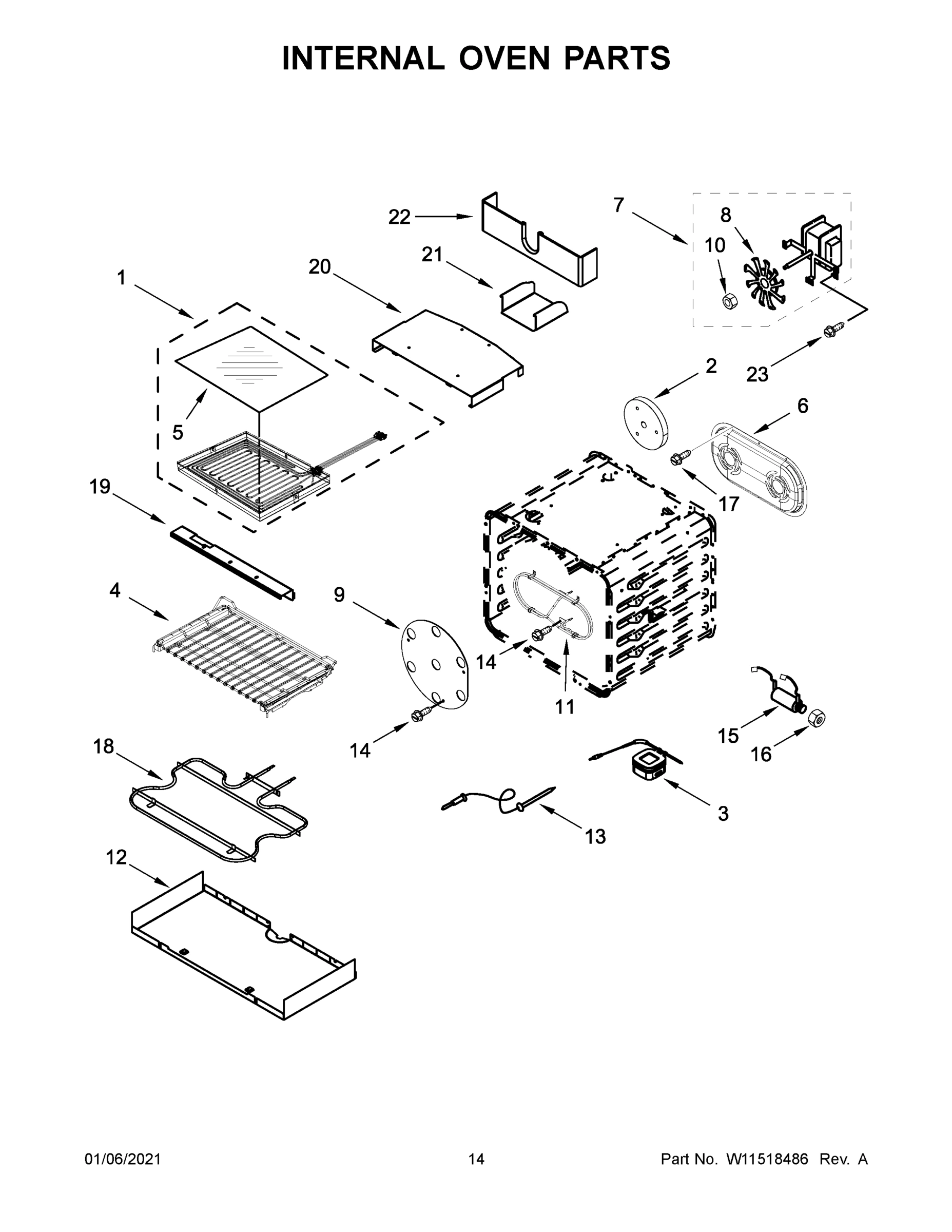

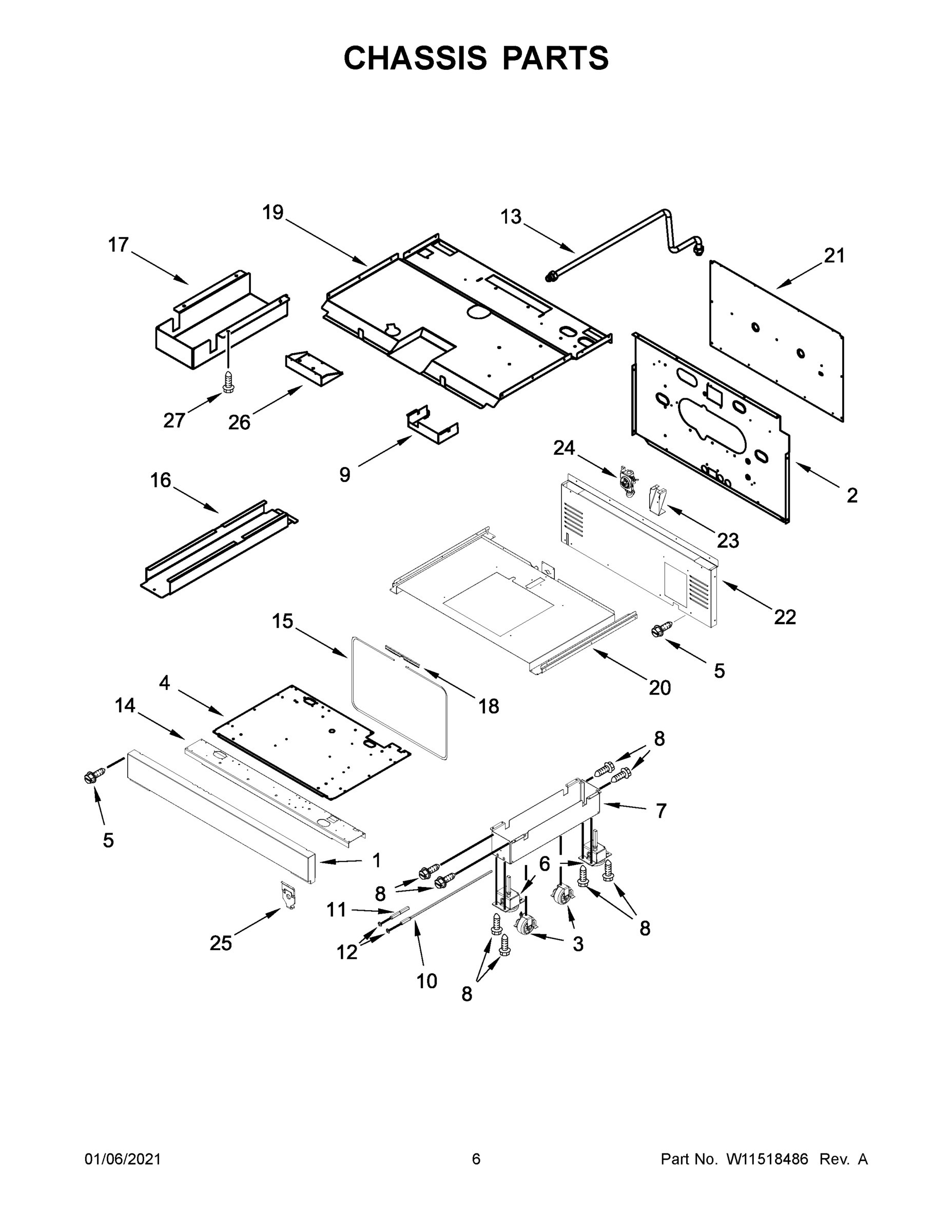

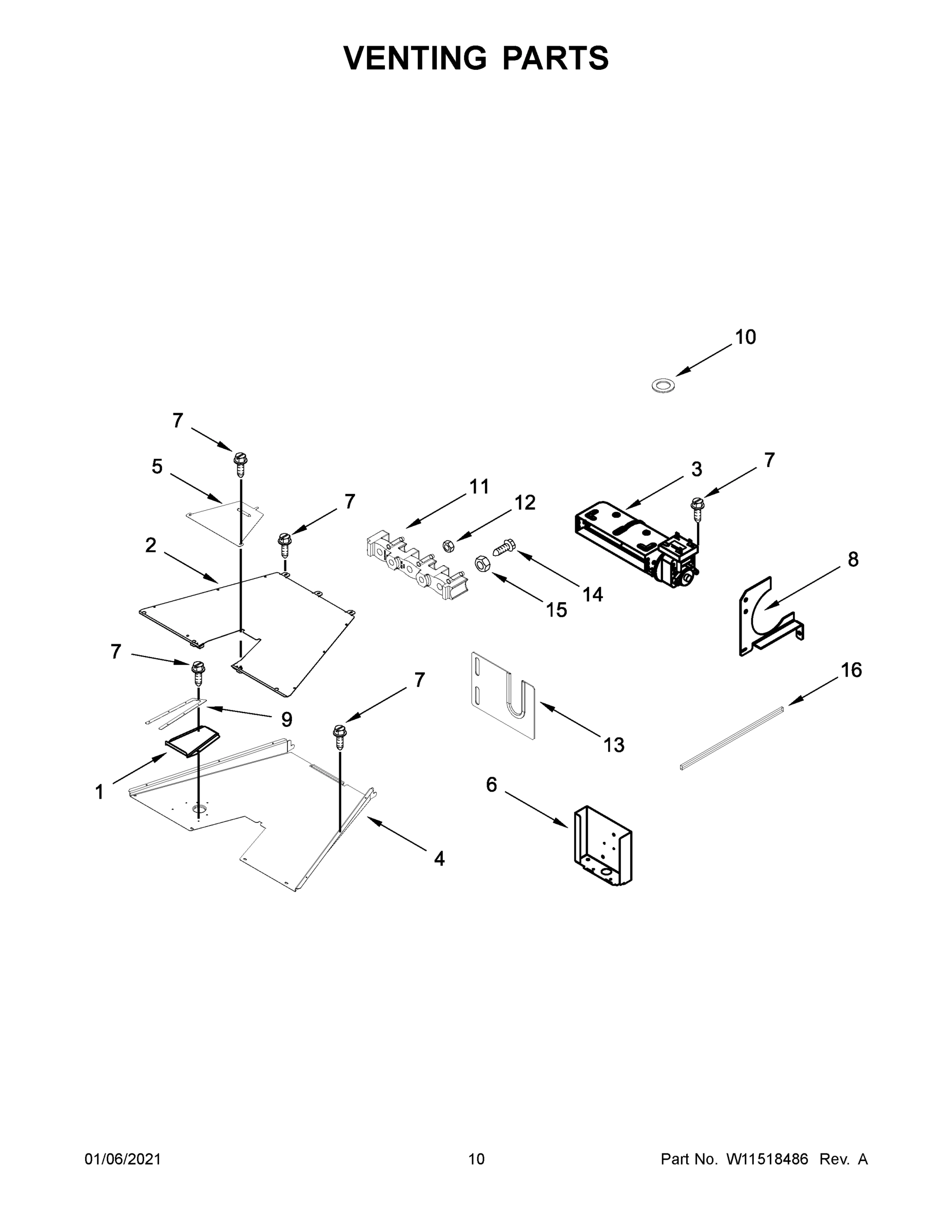

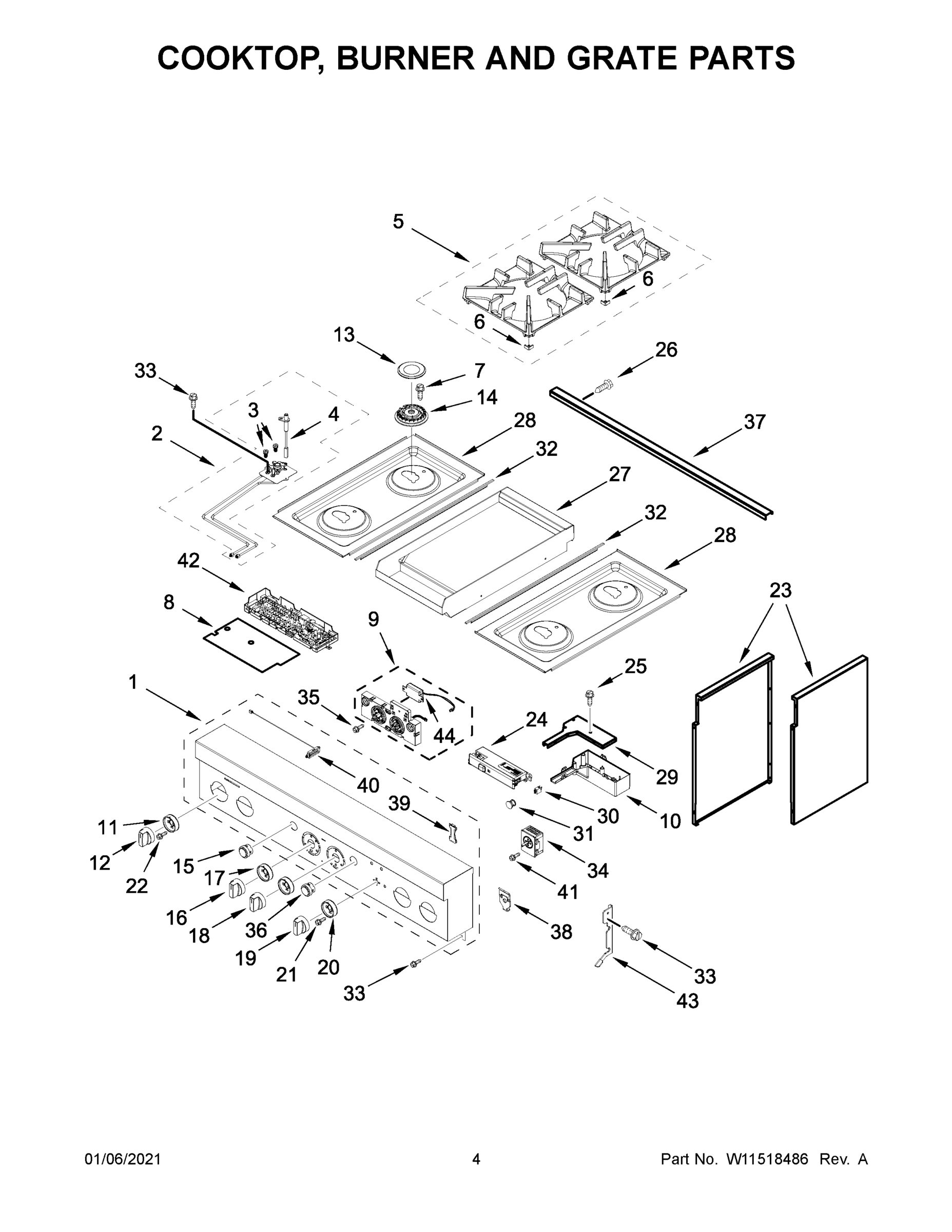

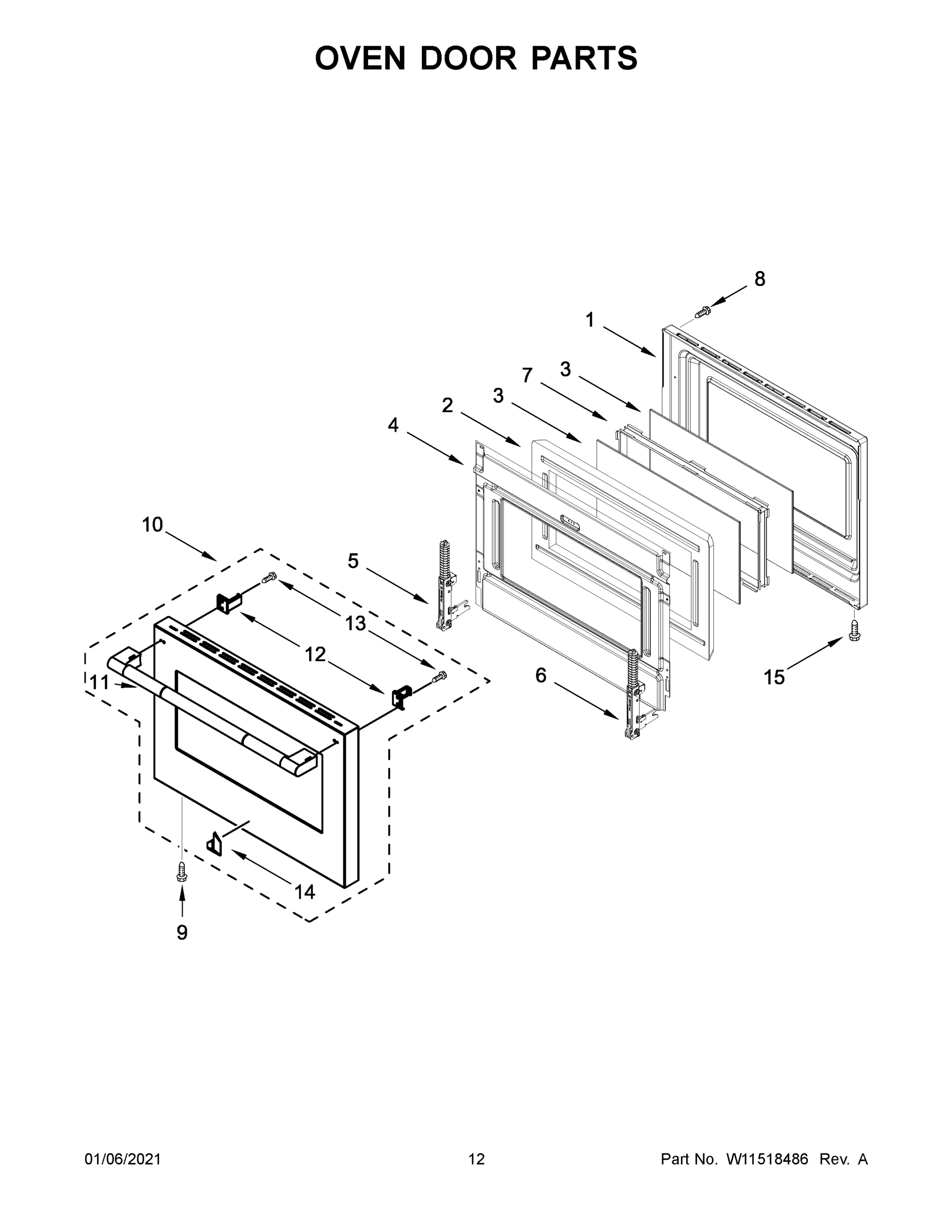

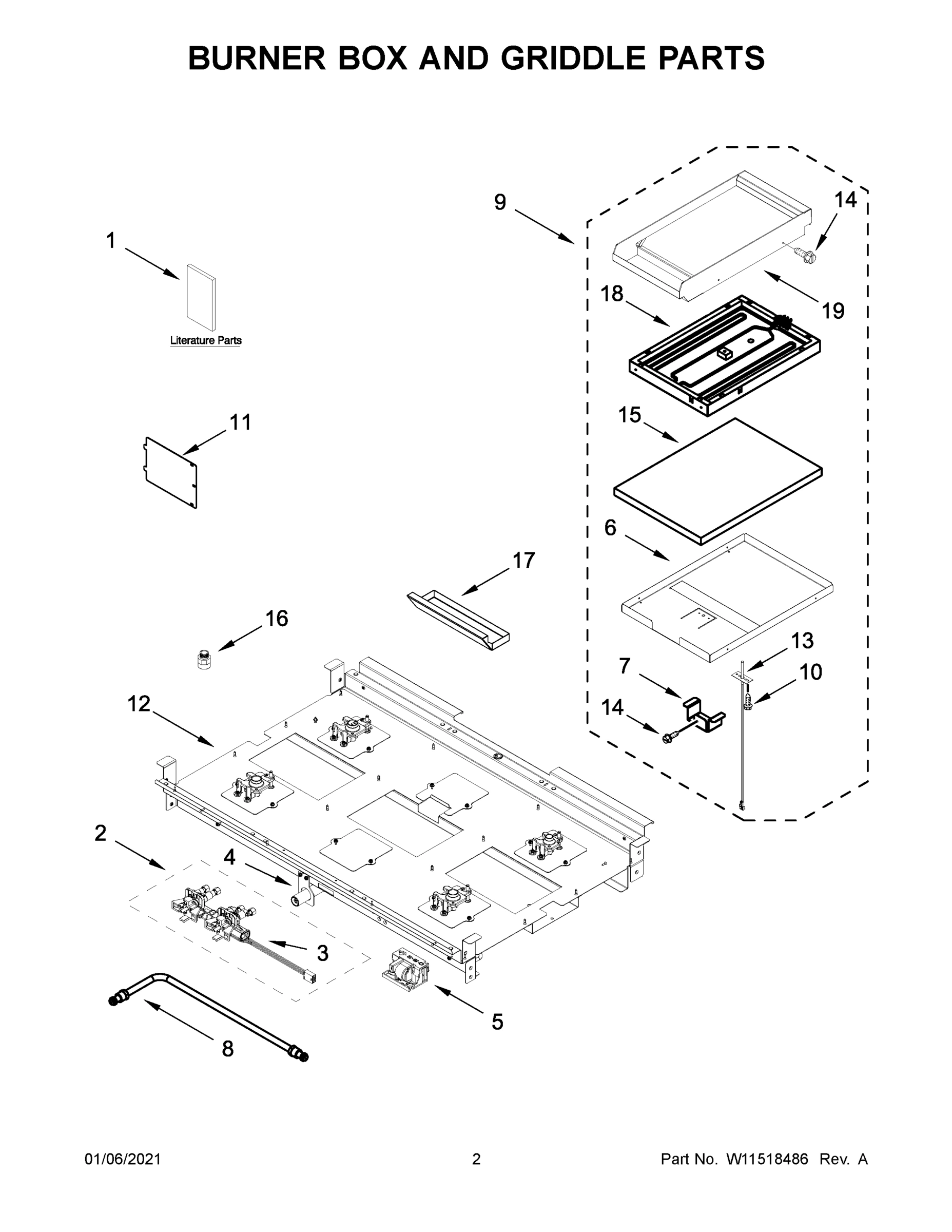

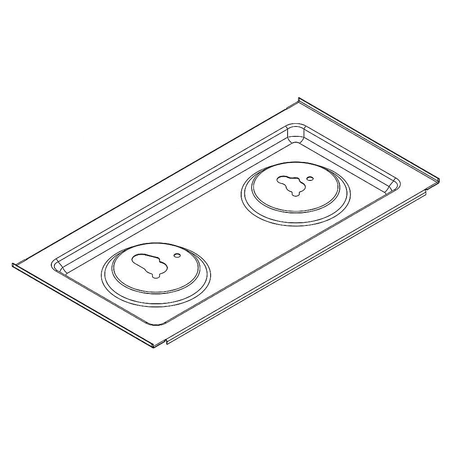

W11334155 Whirlpool Cooktop Backorder WPL W11334155 $171.65

29

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

29

WPL W11205794 WPL W11205794 Contact Us For Availability

30

W10116114 Whirlpool Indicator Light Backorder WPL W10116114 $33.25

31

W10294500 Whirlpool Light Lens Backorder WPL W10294500 $4.85

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $57.11

34

W11318834 Whirlpool Infinite Heat Switch Backorder WPL W11318834 $116.16

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

W11319196 Whirlpool Push Button Backorder WPL W11319196 $9.94

37

W11156416 Whirlpool Top Trim Backorder WPL W11156416 $92.47

39

WPL W10896369 WPL W10896369 Contact Us For Availability

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $113.37

41

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

42

W11371064-includeCORE Whirlpool W11371064 Ran Backorder WPL W11371064-includeCORE $274.60

43

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

43A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

44

W11123146 Whirlpool Speaker Backorder WPL W11123146 $31.29

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10160195 Whirlpool Cover Backorder WPL W10160195 $160.20

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $26.90

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $484.00

W11323012 Whirlpool Burner Cap Backorder WPL W11323012 $99.57

W11323014 Whirlpool Range Burner Cap Backorder WPL W11323014 $332.64

W11323015 Whirlpool Range Burner Cap Backorder WPL W11323015 $90.57

W11323024 Whirlpool Range Knob Bezel Backorder WPL W11323024 $54.30

W11323061 Whirlpool Knob Bezel Backorder WPL W11323061 $54.30

W11323062 Whirlpool Range Bezel Knob Backorder WPL W11323062 $201.60

BEZEL-KNOB Backorder WPL W11323067 $54.30

W11323068 Whirlpool Knob Bezel Backorder WPL W11323068 $201.60

W11428599 Whirlpool Conversion Kit In Stock WPL W11428599 $20.04

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

W11688743 Whirlpool Insulation Backorder WPL W11688743 $88.44

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

ACCESSORIES, CLEANER, COOKTOP WPL 31464 Contact Us For Availability

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

INSULATION, BACK WPL W10282815 Contact Us For Availability

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

ACCESSORIES, KIT, HIGH ALTITUDE WPL W11238043 Contact Us For Availability
