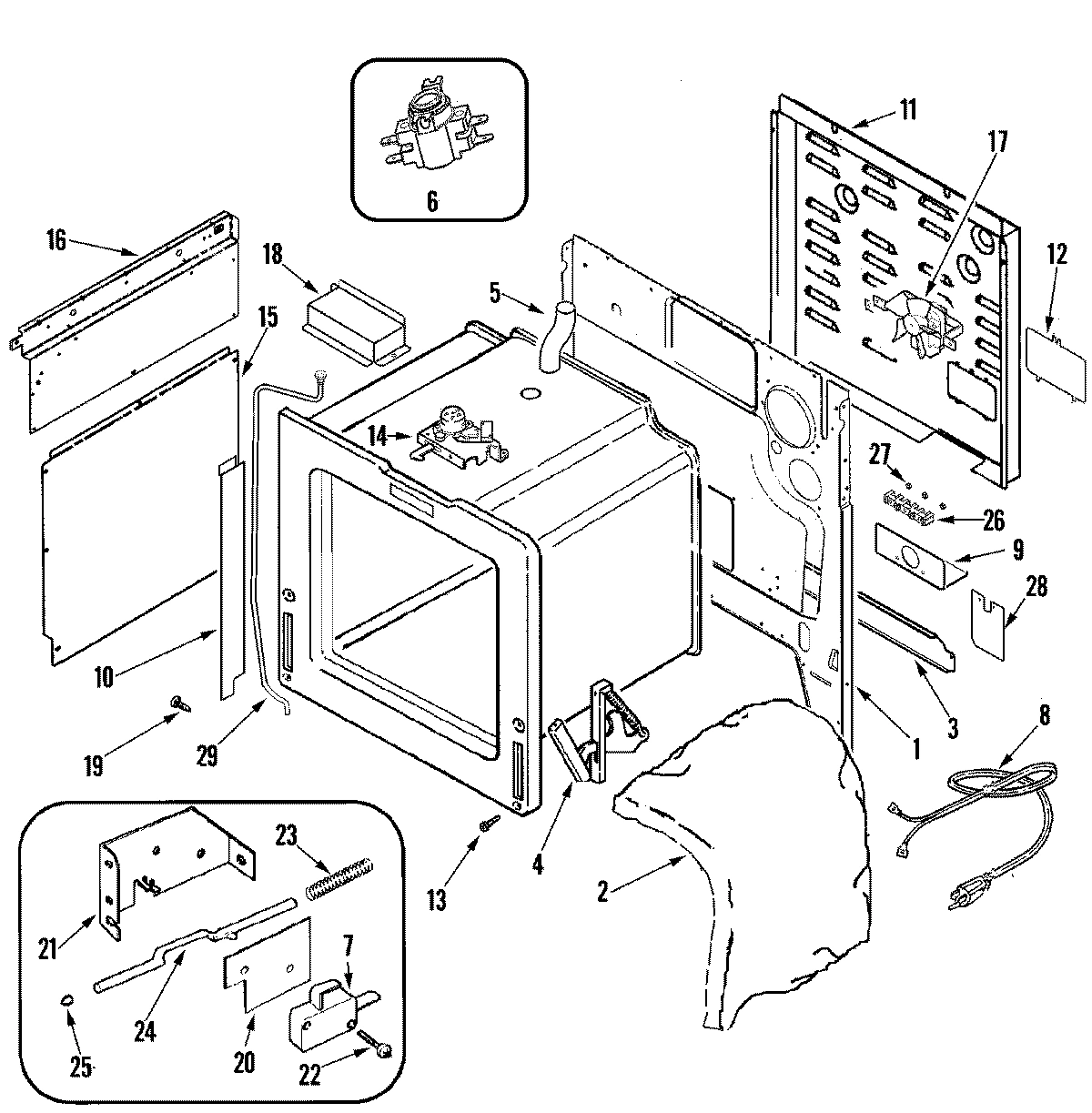

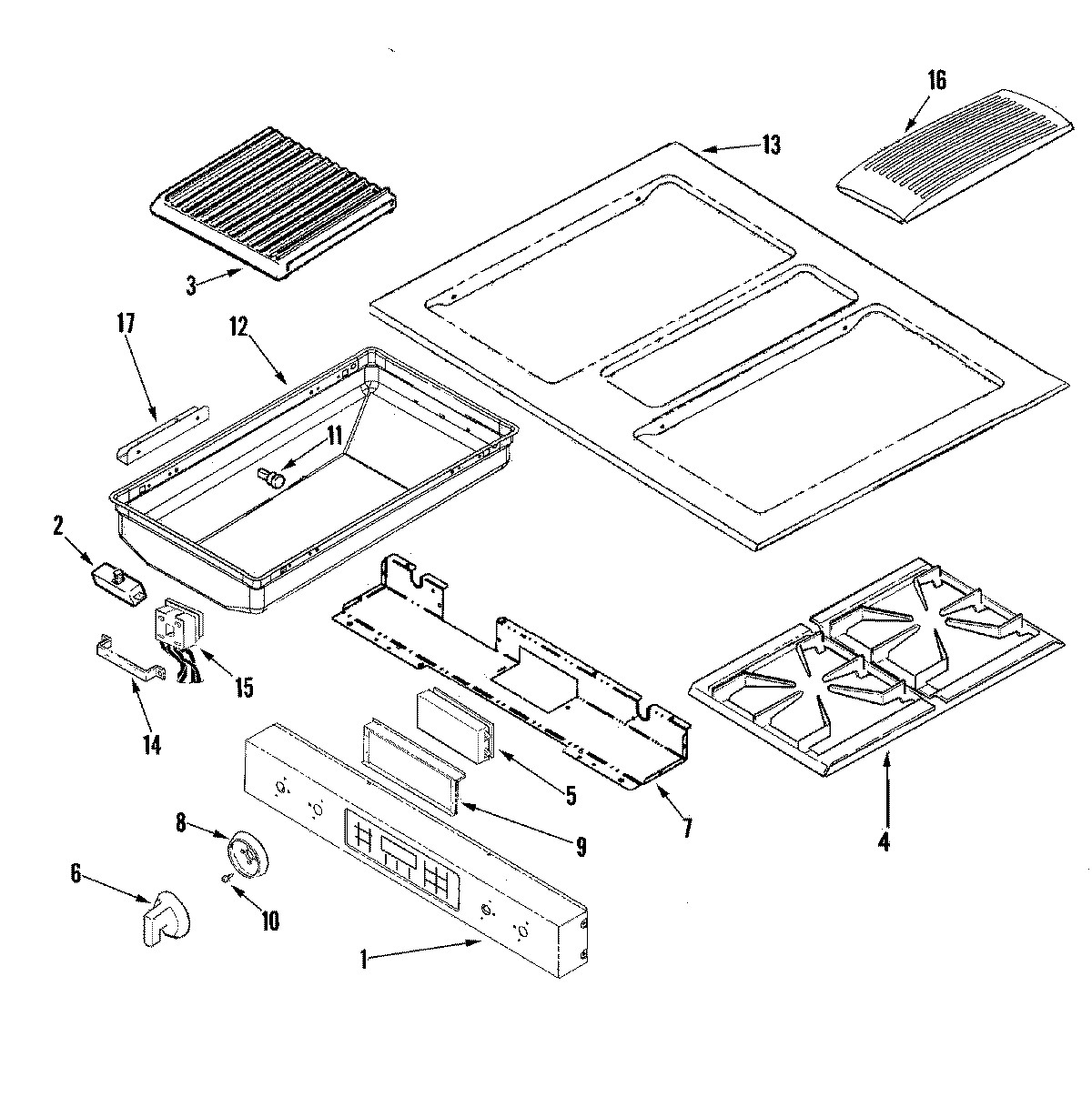

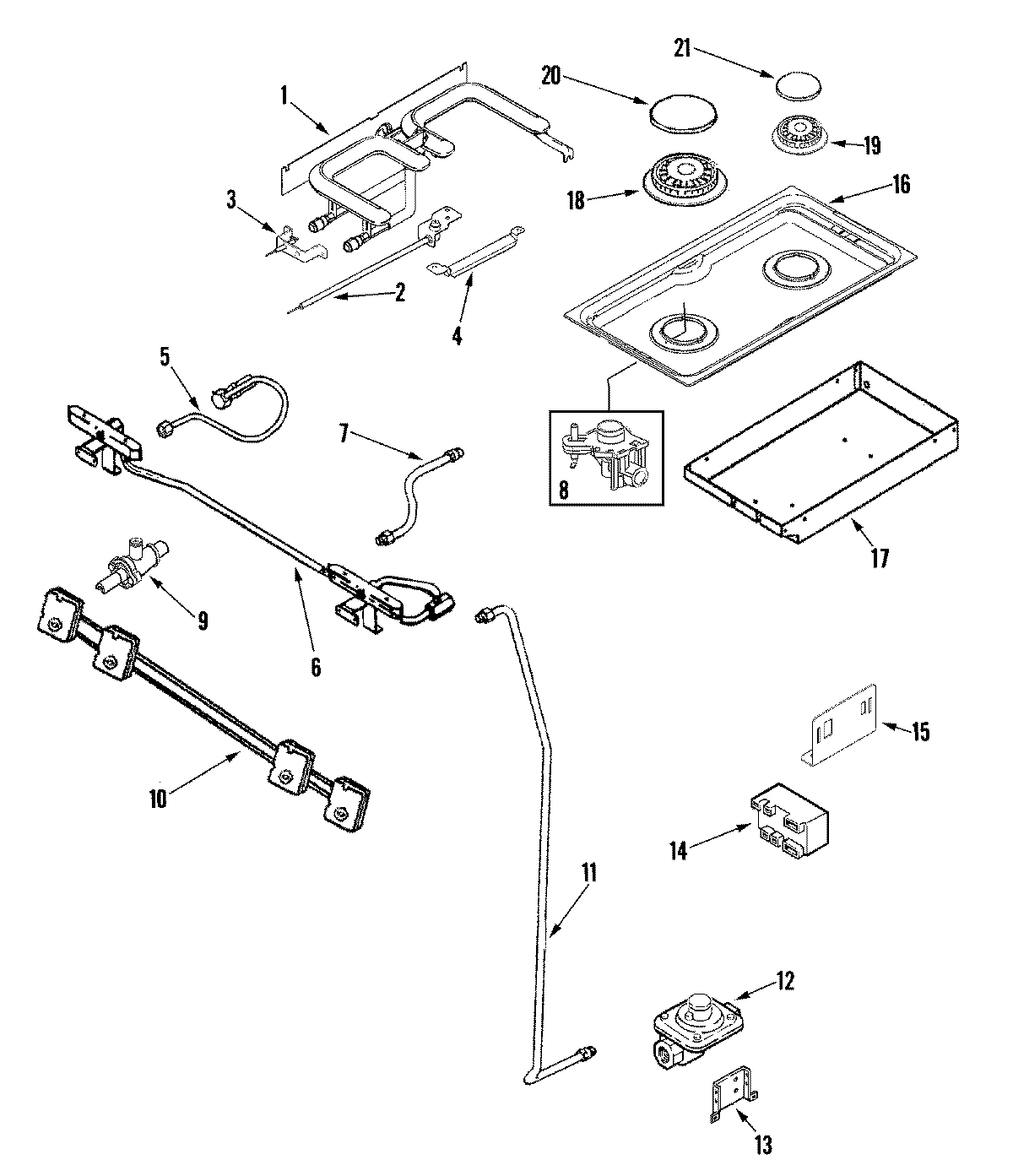

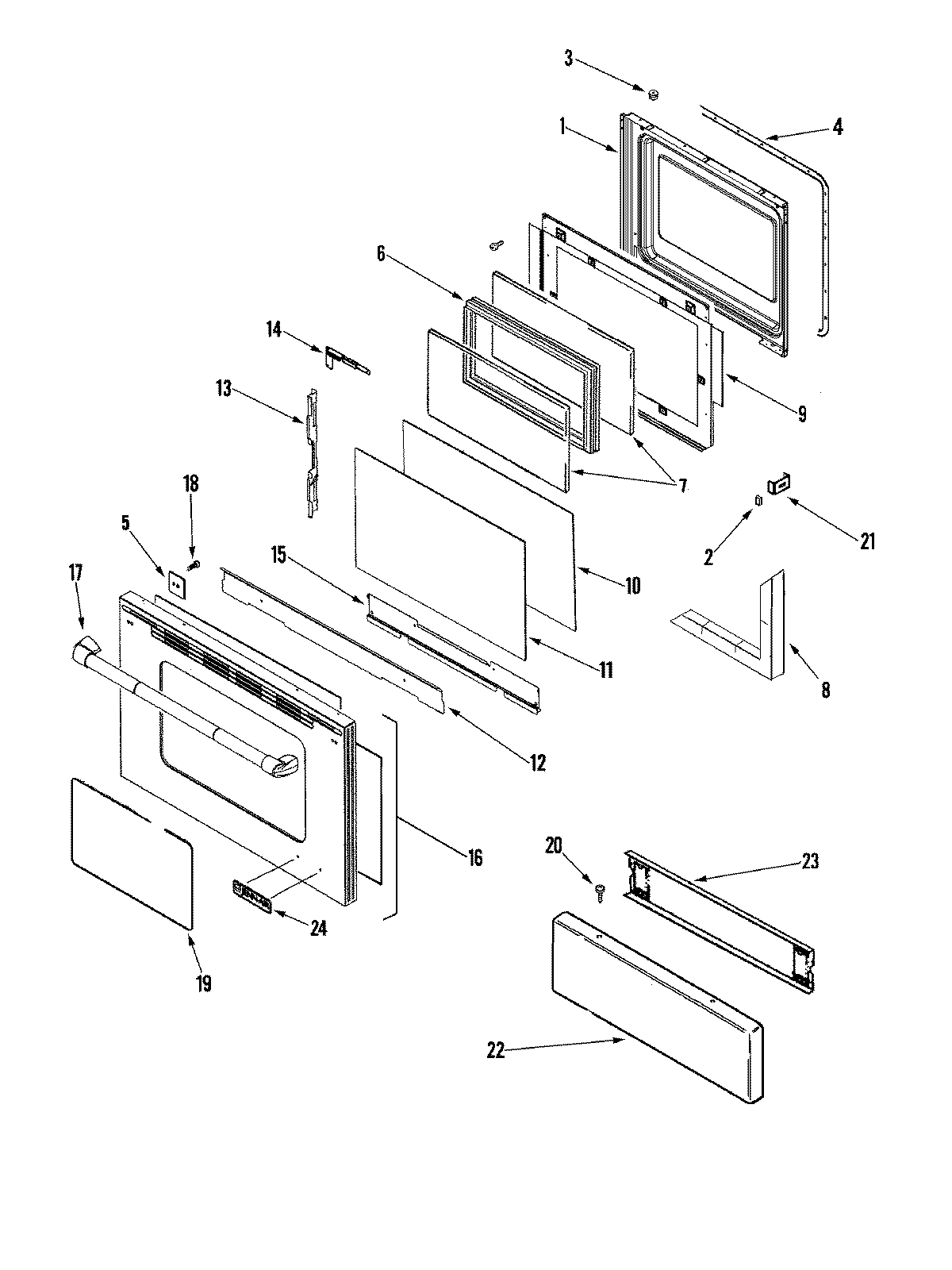

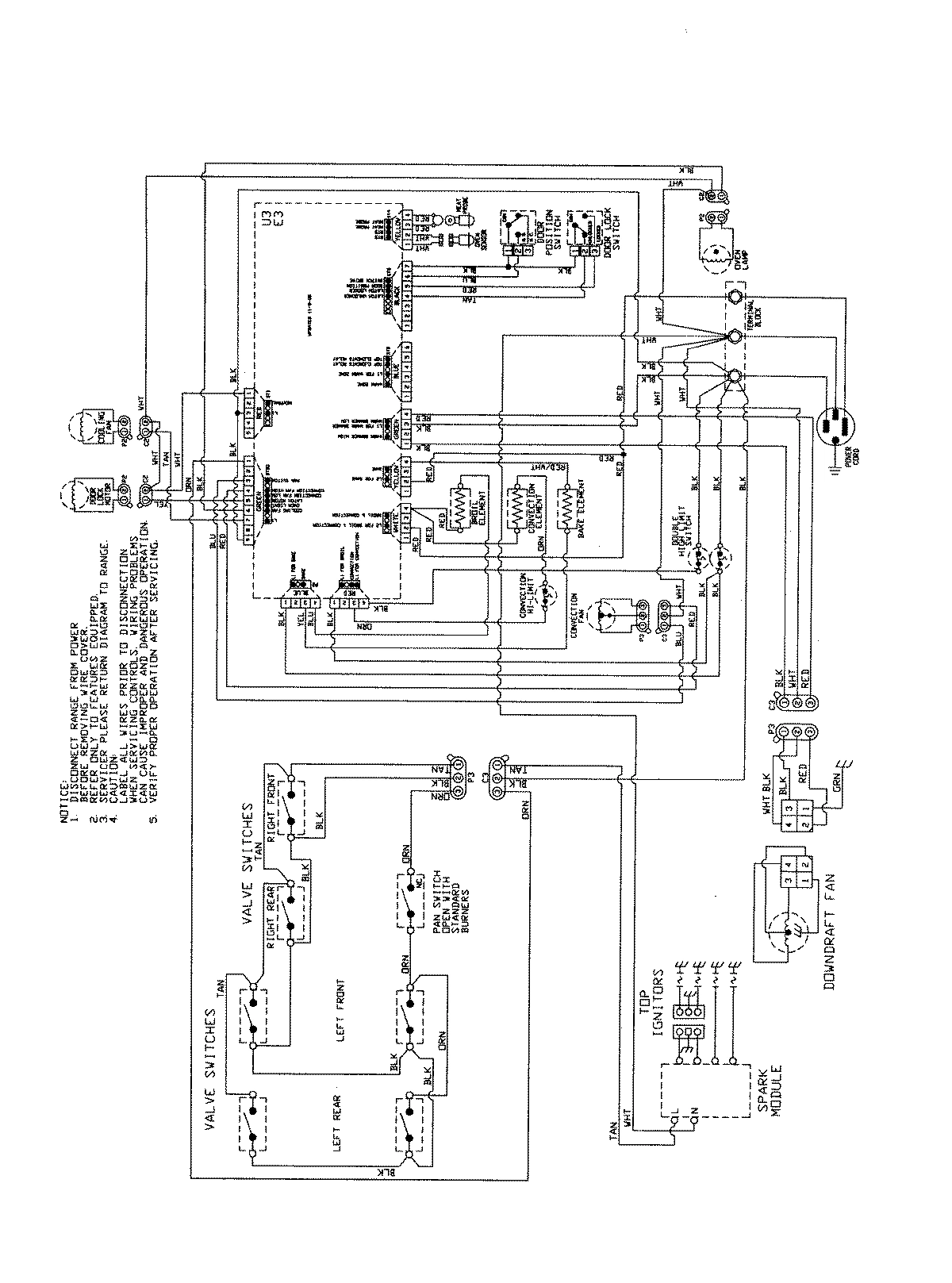

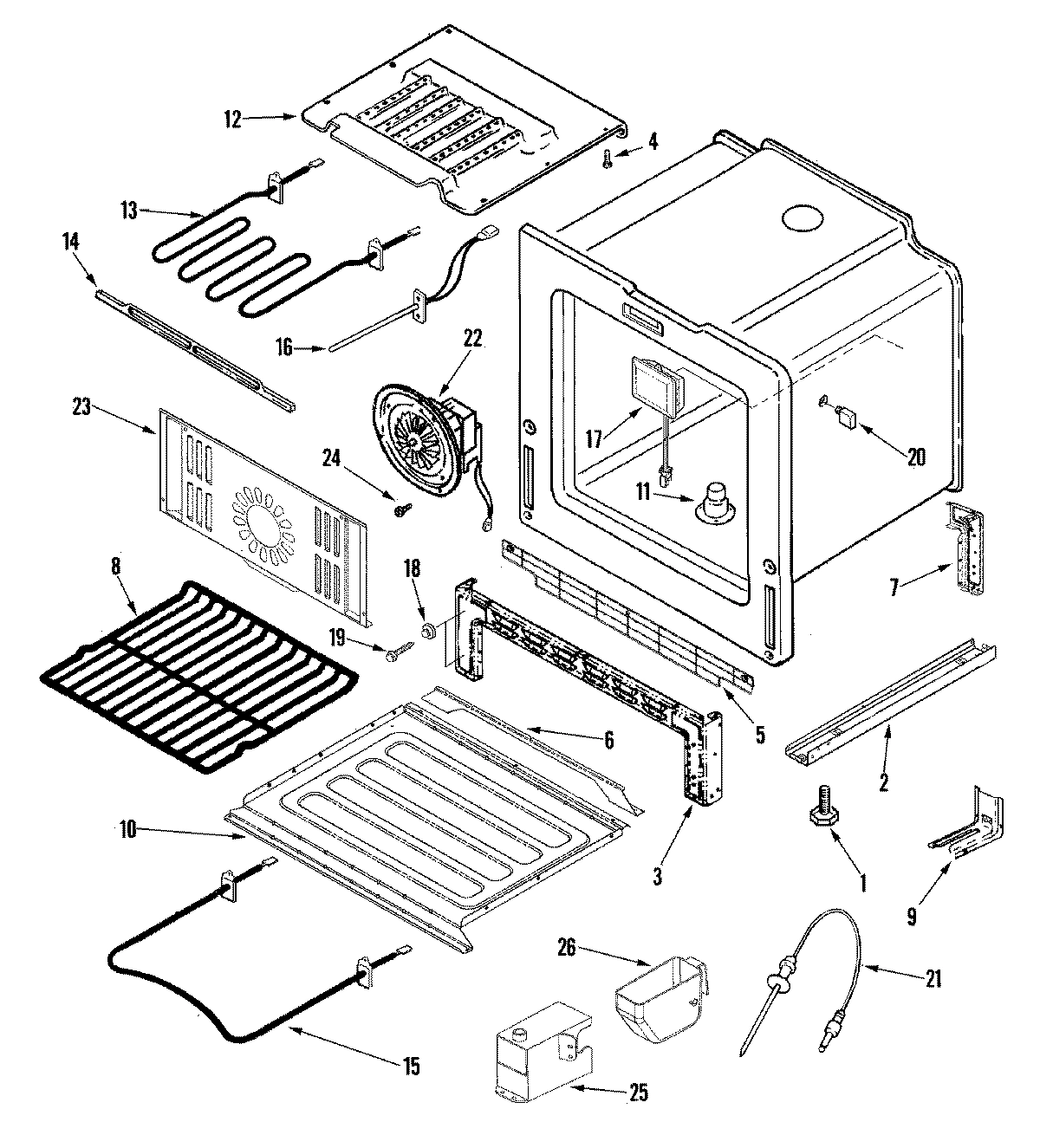

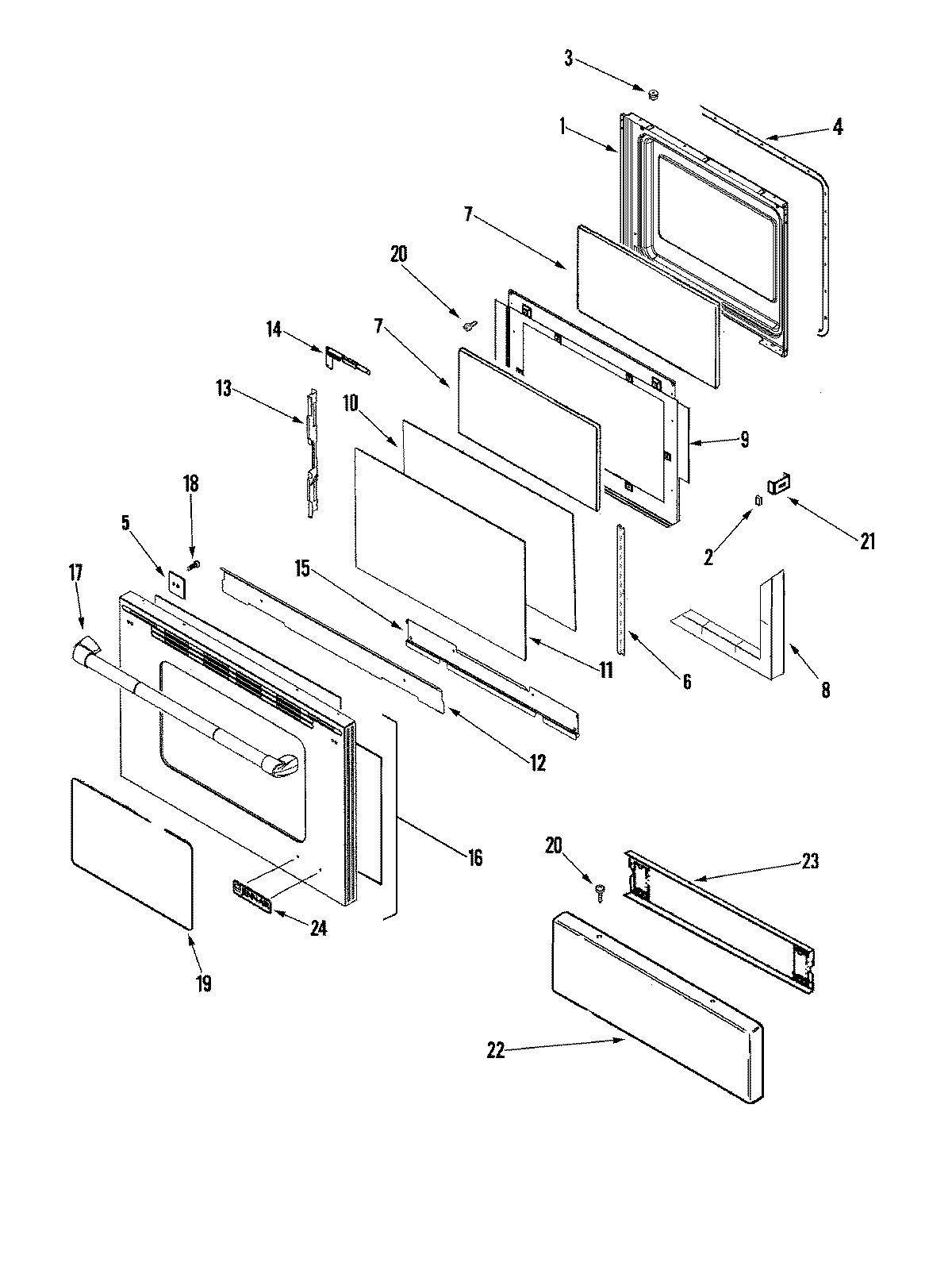

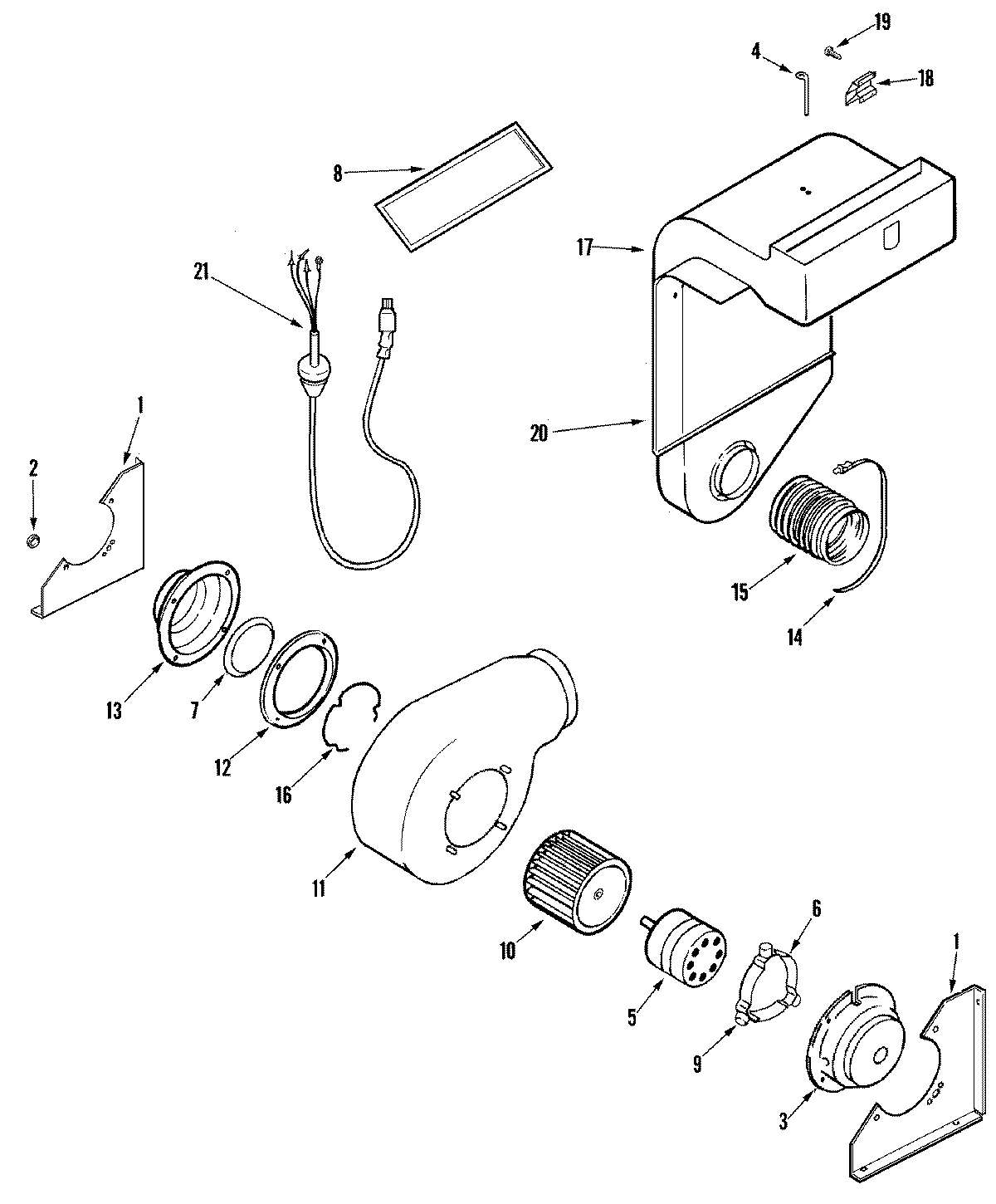

Model Maytag JDS9865BDP DUEL FUEL RANGE – Common Parts &amp; Diagrams

1

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $3.70

1

MAY 74010760 MAY 74010760 Contact Us For Availability

1

MAY 74003642 MAY 74003642 Contact Us For Availability

1

LINING, DOOR MAY 74011456 Contact Us For Availability

1

MAY 74011139 MAY 74011139 Contact Us For Availability

1

MAY 8113P531-60 MAY 8113P531-60 Contact Us For Availability

1

MAY 8113P754-60 MAY 8113P754-60 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

2

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $3.82

2

WP74006072 Whirlpool Spark Electrode Backorder WPL WP74006072 $64.06

2

WP7450P012-60 Whirlpool Burner Top Backorder WPL WP7450P012-60 $54.41

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.51

2

MAY 74011529 MAY 74011529 Contact Us For Availability

3

5171P537-60 Whirlpool Wire Harness Backorder WPL 5171P537-60 $60.98

3

WP74006073 Whirlpool Oven Igniter Backorder WPL WP74006073 $66.21

3

MAY 71003267 MAY 71003267 Contact Us For Availability

3

NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability

3

PEDESTAL, FRONT MAY 74010882 Contact Us For Availability

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $69.65

4

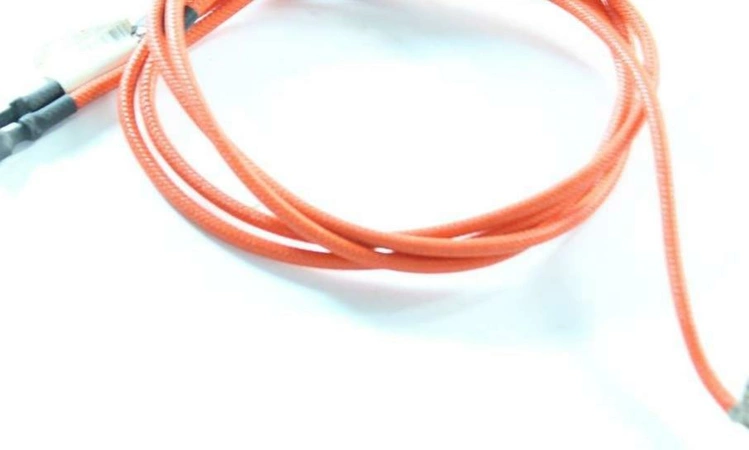

W10173470 Whirlpool Wire Harness Backorder WPL W10173470 $28.80

4

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $54.35

4

MAY 74006071 MAY 74006071 Contact Us For Availability

4

MAY 74010505 MAY 74010505 Contact Us For Availability

5

WP59002061 Whirlpool Microwave Screw In Stock WPL WP59002061 $2.51

5

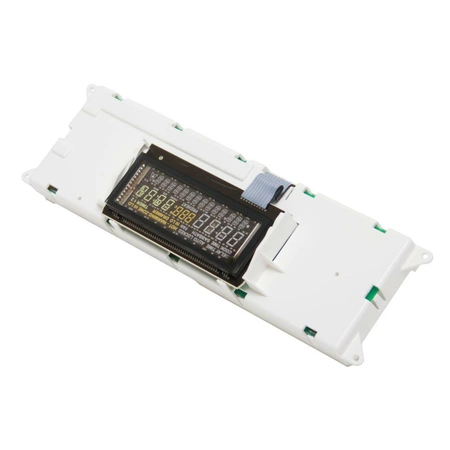

WP8507P232-60 Whirlpool Electronic Control Bo In Stock WPL WP8507P232-60 $254.48

5

MAY 74011524 MAY 74011524 Contact Us For Availability

5

MAY W10202531 MAY W10202531 Contact Us For Availability

5

MAY 74010785 MAY 74010785 Contact Us For Availability

5

MAY 74011467 MAY 74011467 Contact Us For Availability

5

MAY 74011482 MAY 74011482 Contact Us For Availability

6

3801F886-51 Whirlpool Mounting Bracket Backorder WPL 3801F886-51 $14.59

6

WPW10175695 Whirlpool Burner Knob In Stock WPL WPW10175695 $13.82

6

FRAME, GLASS MAY 74003644 Contact Us For Availability

6

MAY 74011528 MAY 74011528 Contact Us For Availability

6

MAY W10165142 MAY W10165142 Contact Us For Availability

6

MAY 74005825 MAY 74005825 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $86.34

7

WP4020F033-80 Whirlpool Pedestal Backorder WPL WP4020F033-80 $32.13

7

WP74008263 Whirlpool Door Switch Backorder WPL WP74008263 $56.02

7

MAY 74011531 MAY 74011531 Contact Us For Availability

7

SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability

7

MAY 74011469 MAY 74011469 Contact Us For Availability

7

MAY 74011470 MAY 74011470 Contact Us For Availability

7

MAY 74011515 MAY 74011515 Contact Us For Availability

7

MAY 74011881 MAY 74011881 Contact Us For Availability

8

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $10.87

8

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

8

WPW10282492 Whirlpool Oven Rack In Stock WPL WPW10282492 $39.71

8

WPW10407678 Whirlpool Orifice Holder Backorder WPL WPW10407678 $44.43

8

WPW10407680 Whirlpool Orifice Holder Backorder WPL WPW10407680 $39.36

8

MAY 74011533 MAY 74011533 Contact Us For Availability

8

MAY 74011534 MAY 74011534 Contact Us For Availability

8

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

9

12002270 Whirlpool Valve Kit and Screw 16K Backorder WPL 12002270 $108.49

9

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $103.03

9

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

9

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.62

9

SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability

9

MAY 74006129 MAY 74006129 Contact Us For Availability

9

MAY 74011339 MAY 74011339 Contact Us For Availability

9

MAY 74009416 MAY 74009416 Contact Us For Availability

9

MAY 74009451 MAY 74009451 Contact Us For Availability

9

MAY W10171161 MAY W10171161 Contact Us For Availability

9

MAY W10171165 MAY W10171165 Contact Us For Availability

9

MAY W10185517 MAY W10185517 Contact Us For Availability

WP74008212 Whirlpool Seal Switch Backorder WPL WP74008212 $2.51

WPY707985 Whirlpool Wheel Assembly In Stock WPL WPY707985 $74.57

MAY 74011527 MAY 74011527 Contact Us For Availability

SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability

GLASS, DOOR (INNER/COATED) MAY 74010231 Contact Us For Availability

MAY W10183582 MAY W10183582 Contact Us For Availability

MAY 74005824 MAY 74005824 Contact Us For Availability

71001764 Whirlpool Locator PIN Backorder WPL 71001764 $5.03

MAY Y704553 MAY Y704553 Contact Us For Availability

GLASS, DOOR MAY 74003649 Contact Us For Availability

MAY 74011471 MAY 74011471 Contact Us For Availability

MAY W10224724 MAY W10224724 Contact Us For Availability

MAY 74010808 MAY 74010808 Contact Us For Availability

PLATE, VENT COVER MAY 74010809 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

MAY Y04100249 MAY Y04100249 Contact Us For Availability

MAY 74006090 MAY 74006090 Contact Us For Availability

MAY Y704947 MAY Y704947 Contact Us For Availability

MAY 74011049 MAY 74011049 Contact Us For Availability

MAY 74008408 MAY 74008408 Contact Us For Availability

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $2.91

MAY 74011474 MAY 74011474 Contact Us For Availability

RETAINER, GLASS SUPPORT MAY 74011050 Contact Us For Availability

MAY Y04100845 MAY Y04100845 Contact Us For Availability

MAY 74011479 MAY 74011479 Contact Us For Availability

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $147.05

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $77.78

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

MAY 74006093 MAY 74006093 Contact Us For Availability

MAY 74011503 MAY 74011503 Contact Us For Availability

MAY 74011504 MAY 74011504 Contact Us For Availability

MAY 74011463 MAY 74011463 Contact Us For Availability

MAY 74011797 MAY 74011797 Contact Us For Availability

Module, Spark (4+0) MAY 8215557 Contact Us For Availability

MAY 74003563 MAY 74003563 Contact Us For Availability

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $69.76

MAY Y702326 MAY Y702326 Contact Us For Availability

MAY 74011519 MAY 74011519 Contact Us For Availability

SHEILD, LOWER SIDE MAY 74010905 Contact Us For Availability

MAY 74007215 MAY 74007215 Contact Us For Availability

MAY 74011464 MAY 74011464 Contact Us For Availability

Support, Spark Module MAY 3807F752-45 Contact Us For Availability

SUPPORT, SPARK MODULE MAY 74007020 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

2618F206-51 Whirlpool Panel Backorder WPL 2618F206-51 $48.82

MAY 74006061 MAY 74006061 Contact Us For Availability

MAY 74011484 MAY 74011484 Contact Us For Availability

INSULATION, DOOR (FOIL) MAY 74010043 Contact Us For Availability

INSULATION, FOIL MAY 74011048 Contact Us For Availability

MAY 74011536 MAY 74011536 Contact Us For Availability

MAY 74011472 MAY 74011472 Contact Us For Availability

W10828565 Whirlpool Screw Backorder WPL W10828565 $3.02

WP7701P475-60 Whirlpool Door Handle Backorder WPL WP7701P475-60 $158.54

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $128.64

MAY 74011599 MAY 74011599 Contact Us For Availability

MAY 74011466 MAY 74011466 Contact Us For Availability

MAY 74011220 MAY 74011220 Contact Us For Availability

MAY 74011473 MAY 74011473 Contact Us For Availability

COVER, DOOR LATCH MAY 74010845 Contact Us For Availability

MAY 74011751 MAY 74011751 Contact Us For Availability

MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability

19

74008916 Whirlpool Window Gasket Backorder WPL 74008916 $52.25

19

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $14.18

19

MAY 74007476 MAY 74007476 Contact Us For Availability

20

WP7408P086-60 Whirlpool Receptacle Backorder WPL WP7408P086-60 $28.97

20

MAY 74007750 MAY 74007750 Contact Us For Availability

20

MAY 74008264 MAY 74008264 Contact Us For Availability

WP7430P038-60 Whirlpool Meat Probe Sensor In Stock WPL WP7430P038-60 $82.21

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $25.81

BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability

CLIP, DOOR MAY 7112P034-60 Contact Us For Availability

22

MAY 22002368 MAY 22002368 Contact Us For Availability

22

MAY 74007081 MAY 74007081 Contact Us For Availability

22

MAY 74011517 MAY 74011517 Contact Us For Availability

23

WPW10186795 Whirlpool Convection Baffle Backorder WPL WPW10186795 $28.22

23

MAY 74011554 MAY 74011554 Contact Us For Availability

7103P166-60 Whirlpool Nut Backorder WPL 7103P166-60 $7.05

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

MAY 74006889 MAY 74006889 Contact Us For Availability

ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability

25

MAY 74001631 MAY 74001631 Contact Us For Availability

25

MAY 74005826 MAY 74005826 Contact Us For Availability

26

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $13.45

26

MAY 74005827 MAY 74005827 Contact Us For Availability

27

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $2.51

28

INSULATOR, POWER CORD MAY 74006364 Contact Us For Availability

29

MAY 74005855 MAY 74005855 Contact Us For Availability

NI

MAY 15003900 MAY 15003900 Contact Us For Availability
