Model GE JDS26BD1CT Electric Range – Common Parts & Diagrams

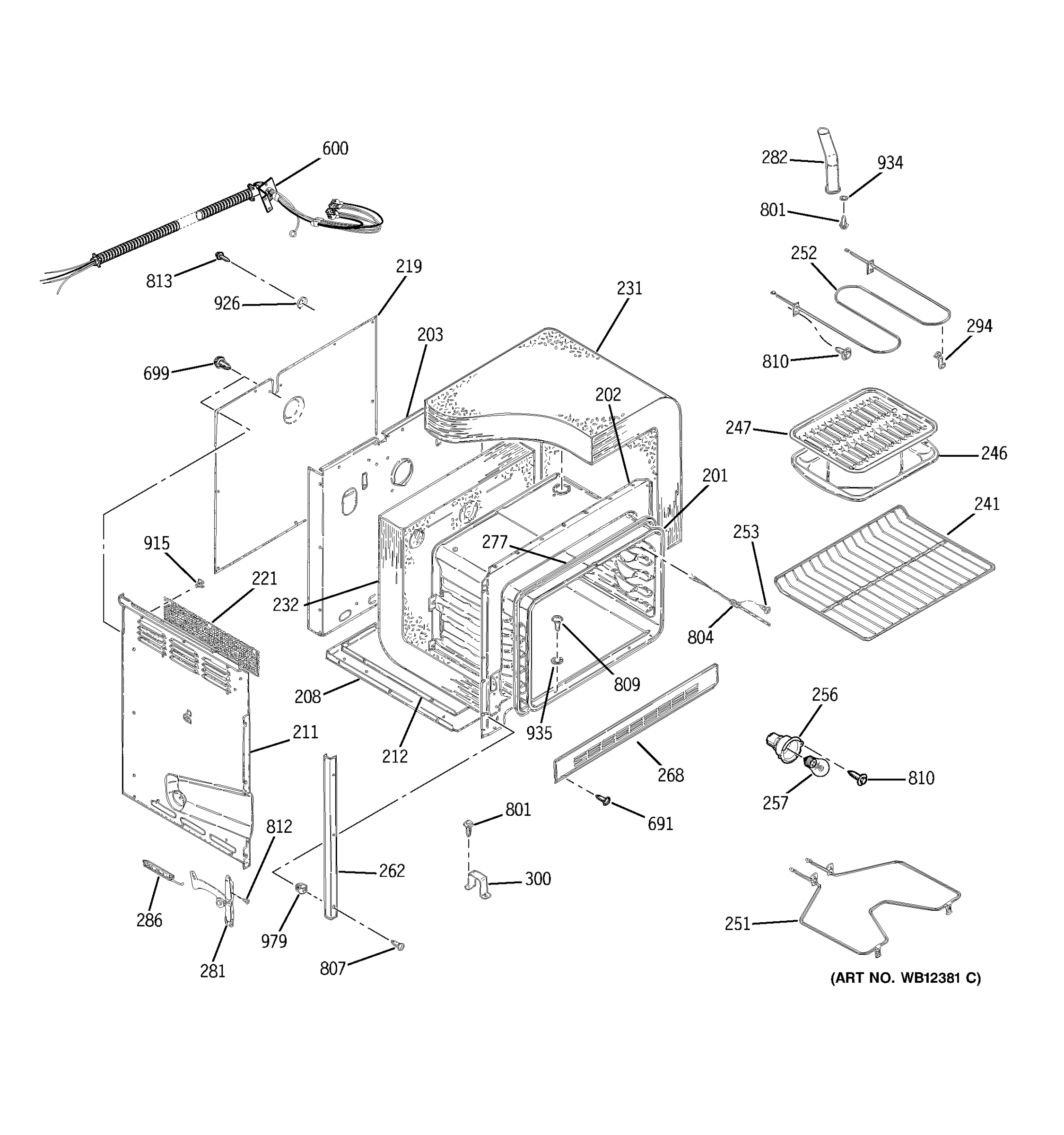

BODY PARTS

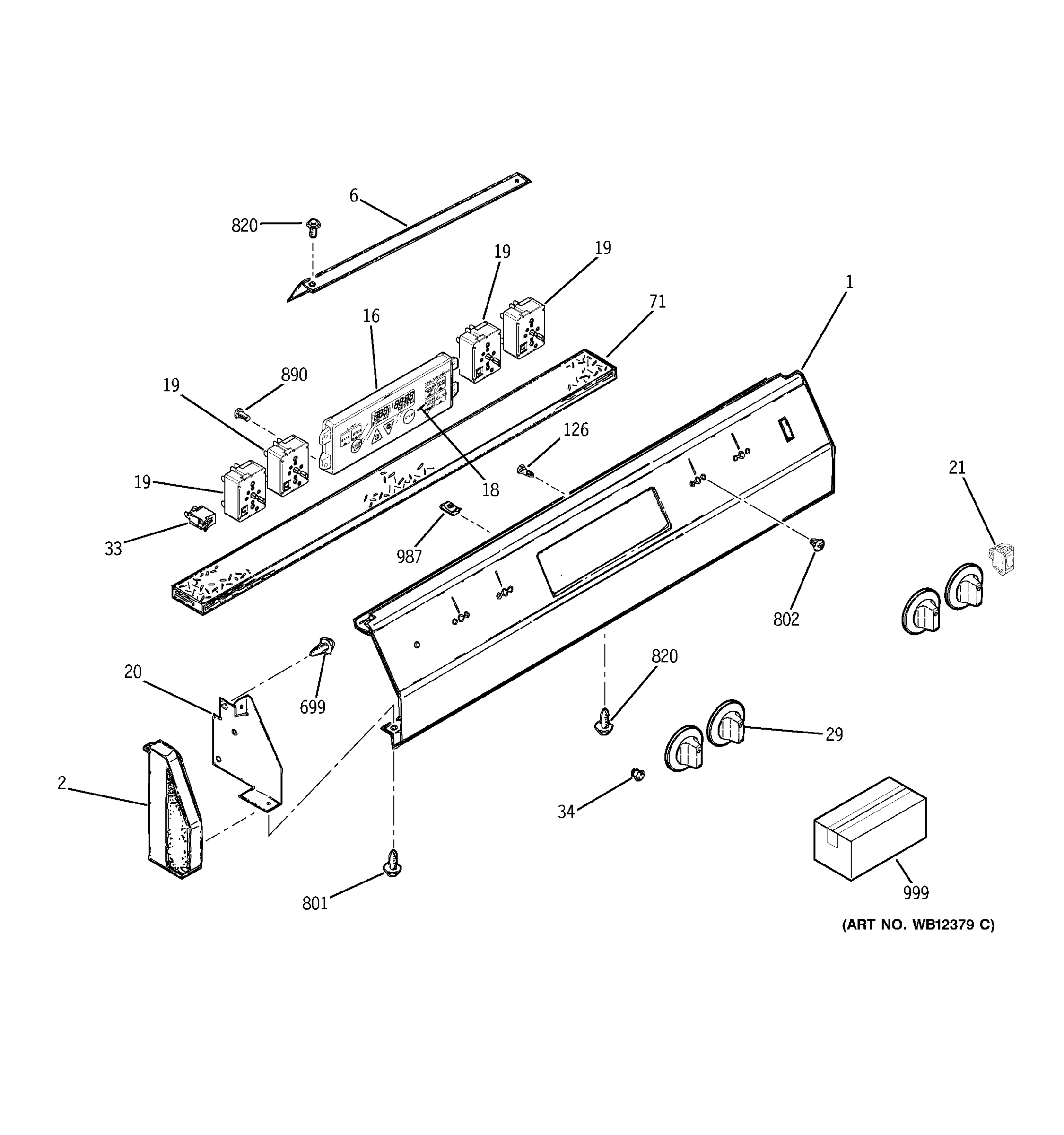

CONTROL PANEL
COOKTOP

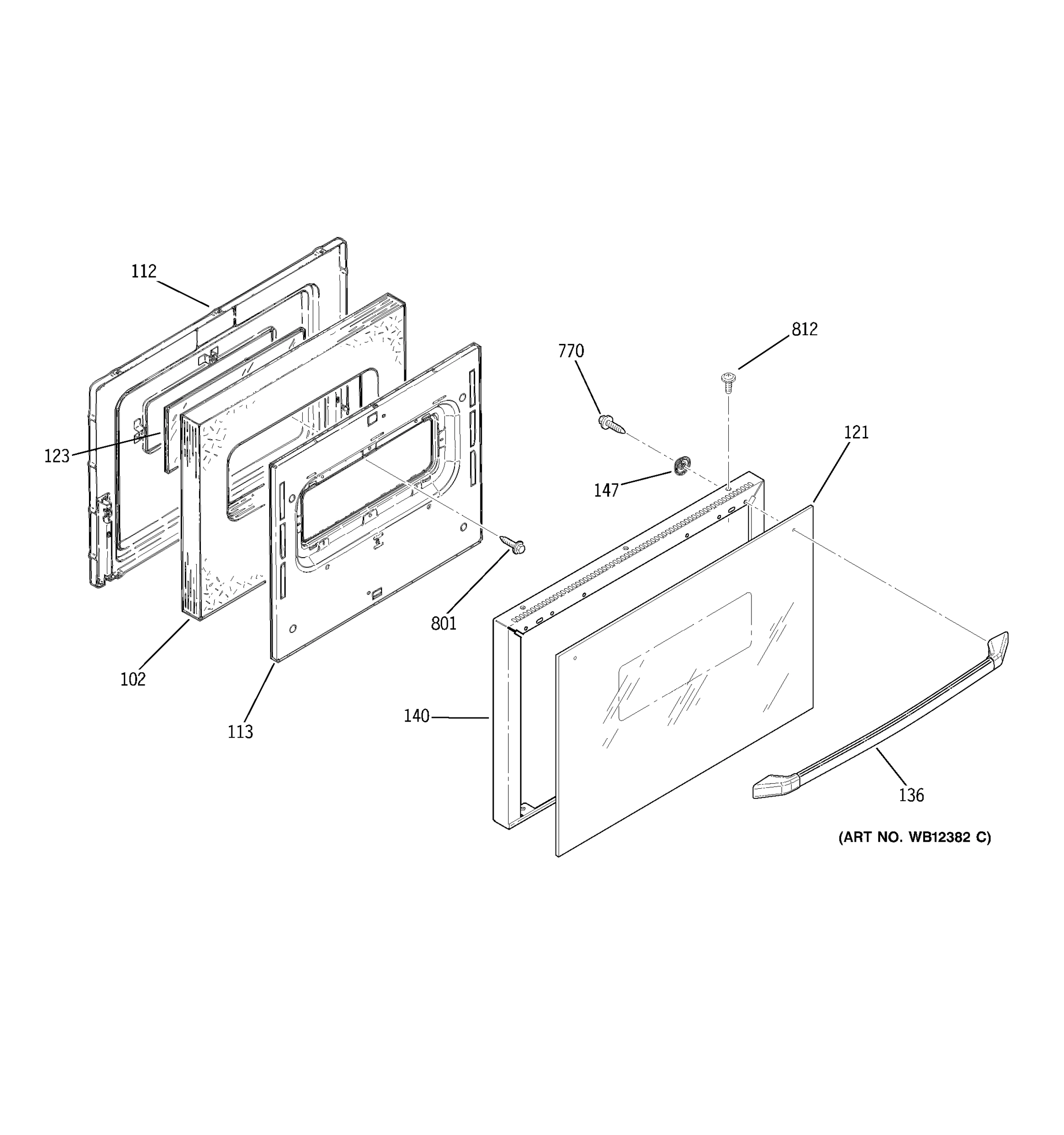

DOOR
Common parts from model GE JDS26BD1CT Electric Range
1
GEN WB36K5671 GEN WB36K5671 Contact Us For Availability
2
GEN WB36K5420 GEN WB36K5420 Contact Us For Availability
2
GEN WB36K5421 GEN WB36K5421 Contact Us For Availability
6
COVER CONTROL FILLER LT GEN WB34K5152 Contact Us For Availability
11
EXTENSION BURN BOX BTTM GEN WB07K5181 Contact Us For Availability
16
GEN WB27T10358 GEN WB27T10358 Contact Us For Availability
18
GEN WB27K5340 GEN WB27K5340 Contact Us For Availability
20
GEN WB37K5018 GEN WB37K5018 Contact Us For Availability
20
GEN WB37K5019 GEN WB37K5019 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
51
GEN WB62T10219 GEN WB62T10219 Contact Us For Availability
55
GEN WB04X0122 GEN WB04X0122 Contact Us For Availability
56
ELEMENT SURF 6" (1500W) GEN WB30T10089 Contact Us For Availability
57
ELEMENT SURF 8" (2600W) GEN WB30T10090 Contact Us For Availability
71
BURN BOX EXT INSULATION GEN WB02X9888 Contact Us For Availability
73
BARRIER INSULATOR GEN WB35K5079 Contact Us For Availability
75
GEN WB63T10026 GEN WB63T10026 Contact Us For Availability
77
GEN WB02X9895 GEN WB02X9895 Contact Us For Availability
80
SHIELD REAR GEN WB02X9570 Contact Us For Availability
83
GEN WB01T10014 GEN WB01T10014 Contact Us For Availability
90
GEN WB02M0084 GEN WB02M0084 Contact Us For Availability
91
GEN WB14X0136 GEN WB14X0136 Contact Us For Availability
93
WIRE COVER UPPER GEN WB02X9569 Contact Us For Availability
95
HINGE MTG BRACKET GEN WB02X9568 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
GEN WB55T10002 GEN WB55T10002 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X1910 Contact Us For Availability
121
GEN WB57T10110 GEN WB57T10110 Contact Us For Availability
123
GEN WB57K5038 GEN WB57K5038 Contact Us For Availability
126
PLUG BUTTON GEN WB02X1125 Contact Us For Availability
140
FRAME OVN DR (BLK) GEN WB56K5144 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
233
GEN WB34K5168 GEN WB34K5168 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08T10001 GEN WB08T10001 Contact Us For Availability
262
GEN WB07K5291 GEN WB07K5291 Contact Us For Availability
262
GEN WB07K5292 GEN WB07K5292 Contact Us For Availability
268
GEN WB07K5293 GEN WB07K5293 Contact Us For Availability
277
SEAL OV DR GEN WB32K5051 Contact Us For Availability
281
GEN WB10K5017 GEN WB10K5017 Contact Us For Availability
281
GEN WB10K5018 GEN WB10K5018 Contact Us For Availability
282
GEN WB38M0006 GEN WB38M0006 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0277 Contact Us For Availability
300
GEN WB02M0086 GEN WB02M0086 Contact Us For Availability
600
GEN WB18K5368 GEN WB18K5368 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
812
SCREW TC 10-32X.625(BLK) GEN WB01K5160 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
915
RIVET ACCORDIAN GEN WB01M0024 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
987
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
999
GEN 31-10418 GEN 31-10418 Contact Us For Availability
999
GEN 31-13771 GEN 31-13771 Contact Us For Availability
999
GEN 49-80120 GEN 49-80120 Contact Us For Availability
× ![]()
