Model Maytag JDRP648HM00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - BURNER BOX AND GRILL PARTS

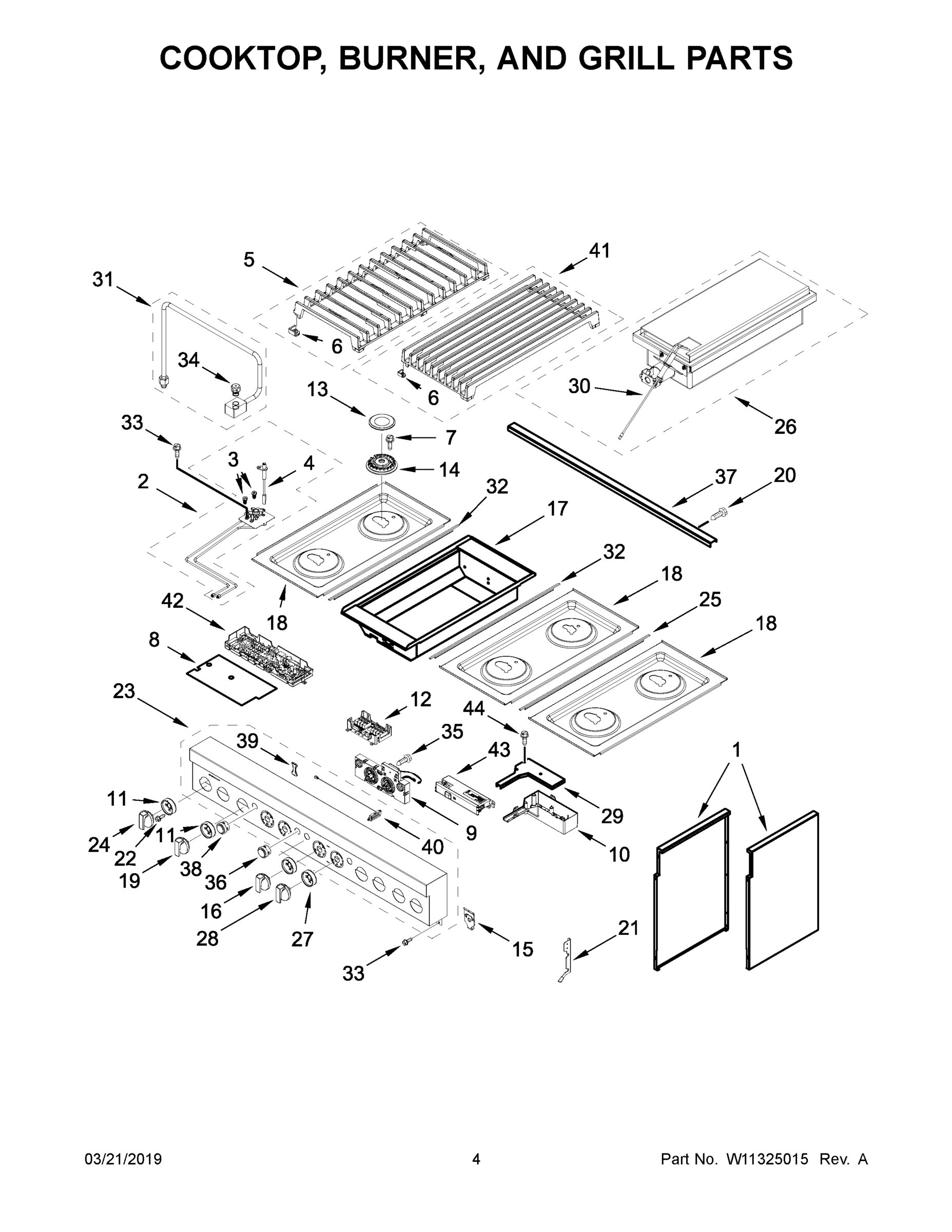

03 - COOKTOP, BURNER, AND GRILL PARTS

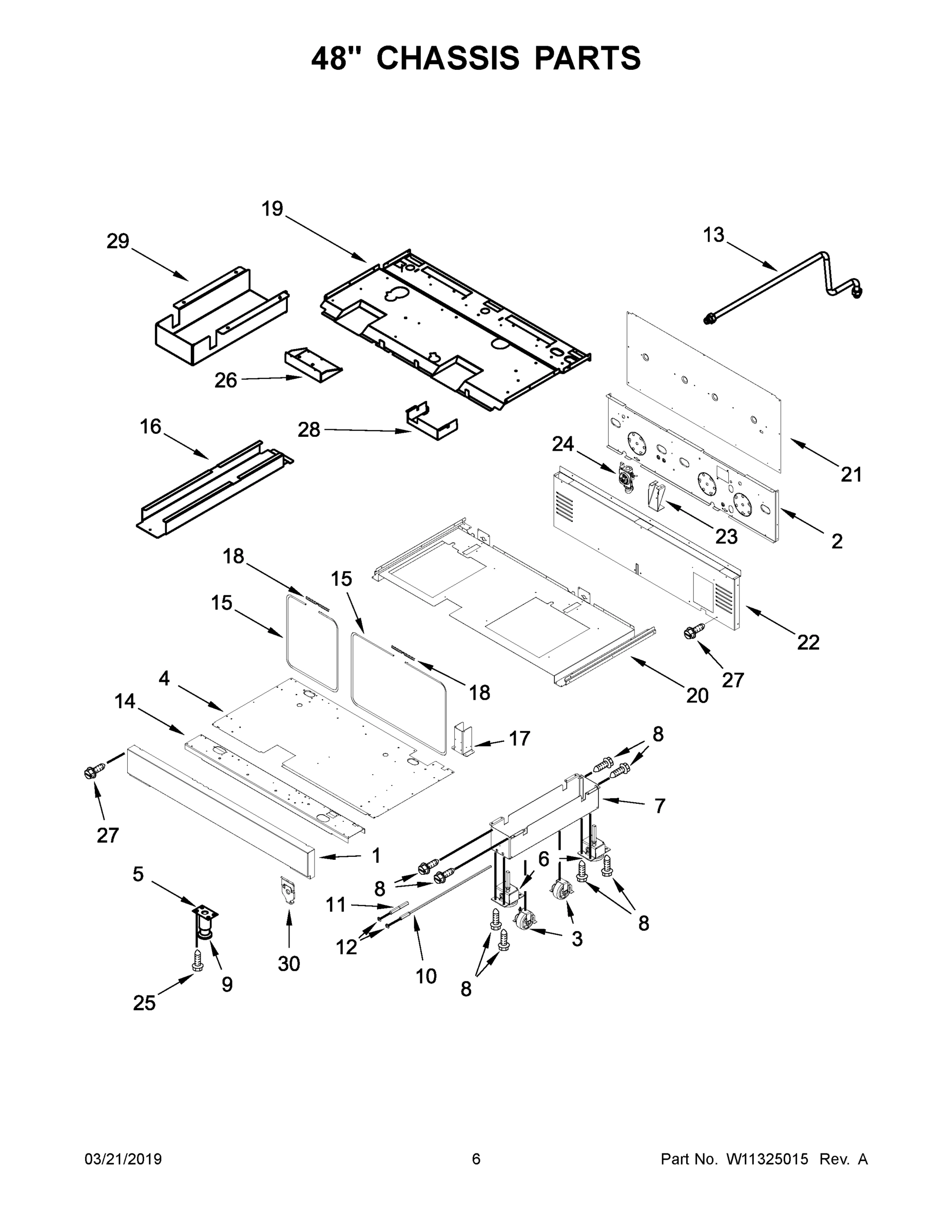

04 - 48" CHASSIS PARTS

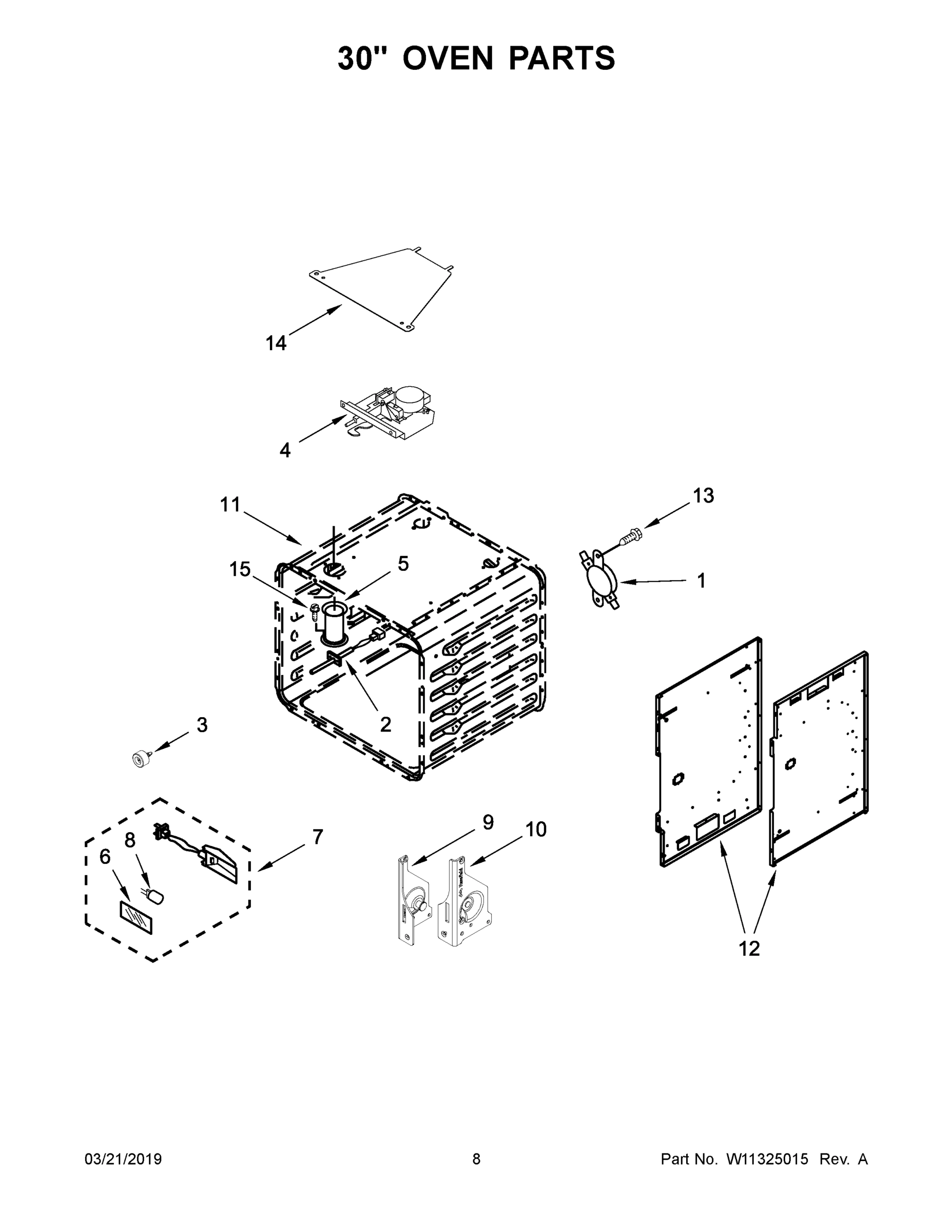

05 - 30" OVEN PARTS

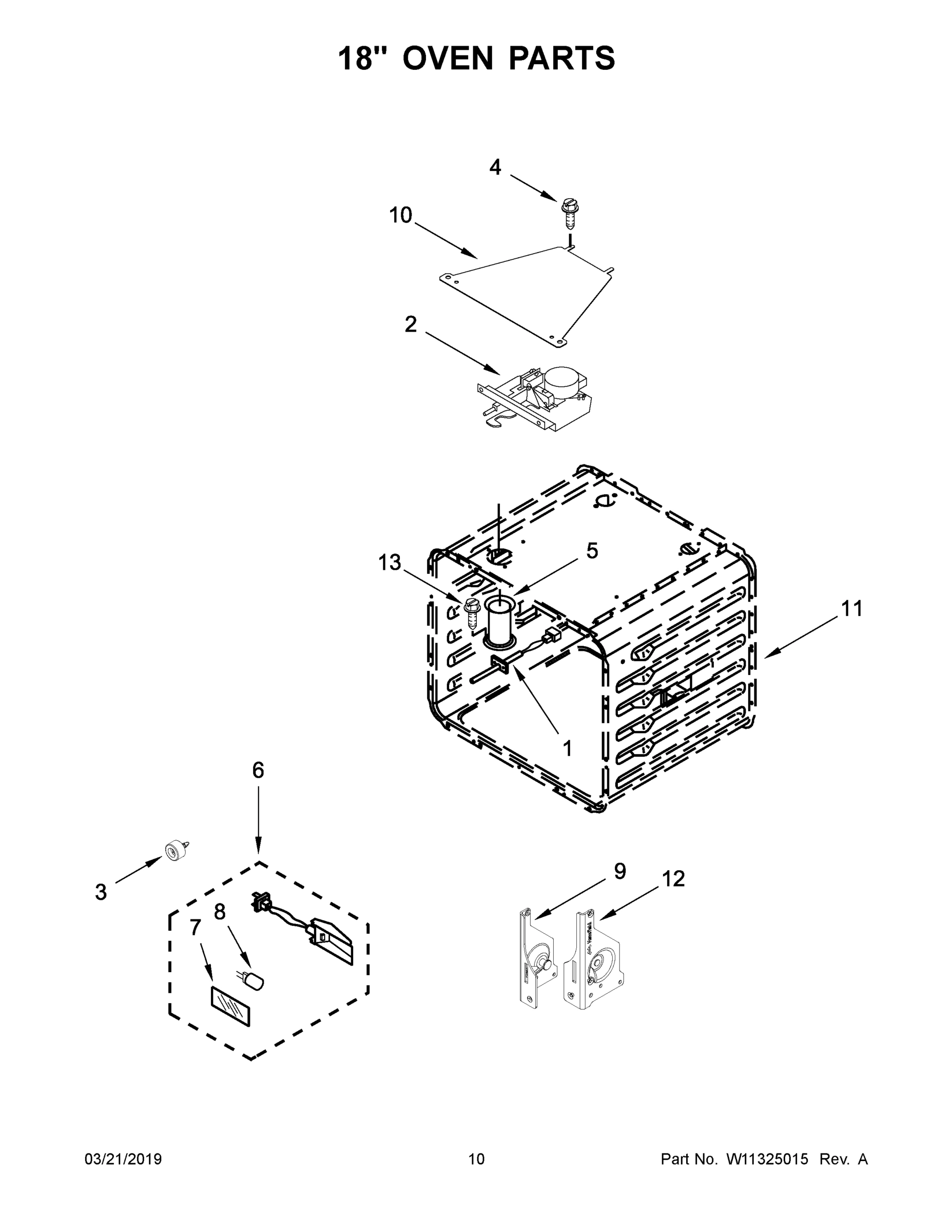

06 - 18" OVEN PARTS

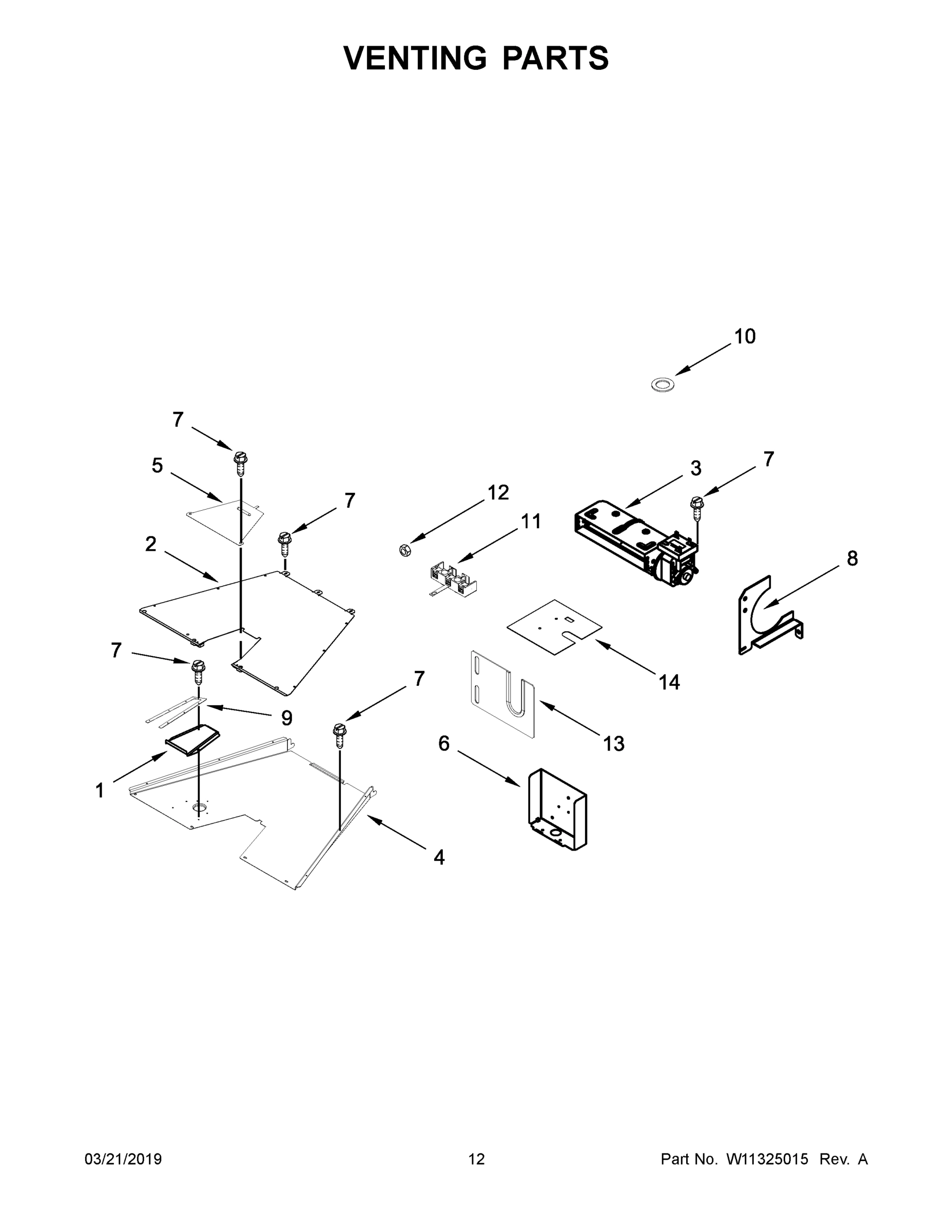

07 - VENTING PARTS

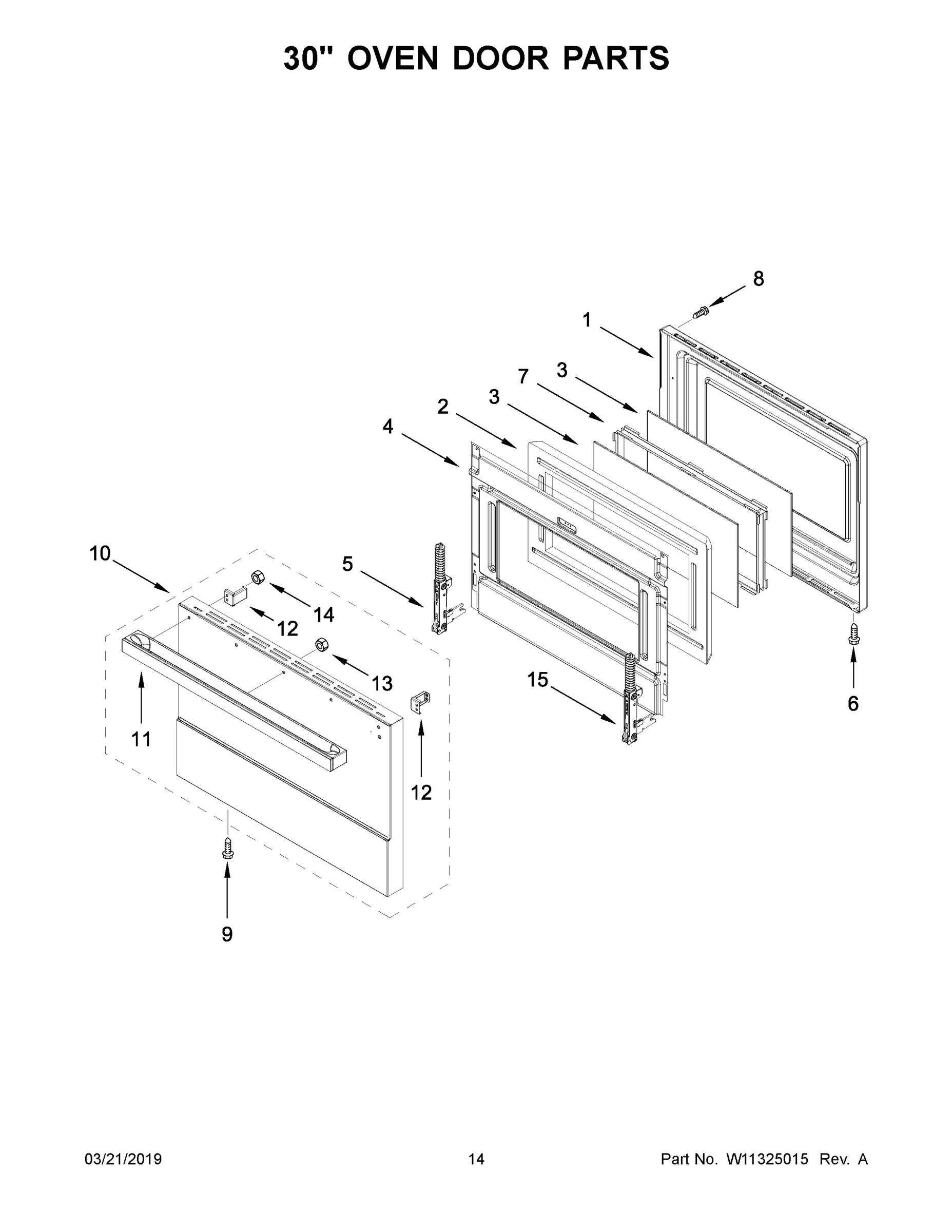

08 - 30" OVEN DOOR PARTS

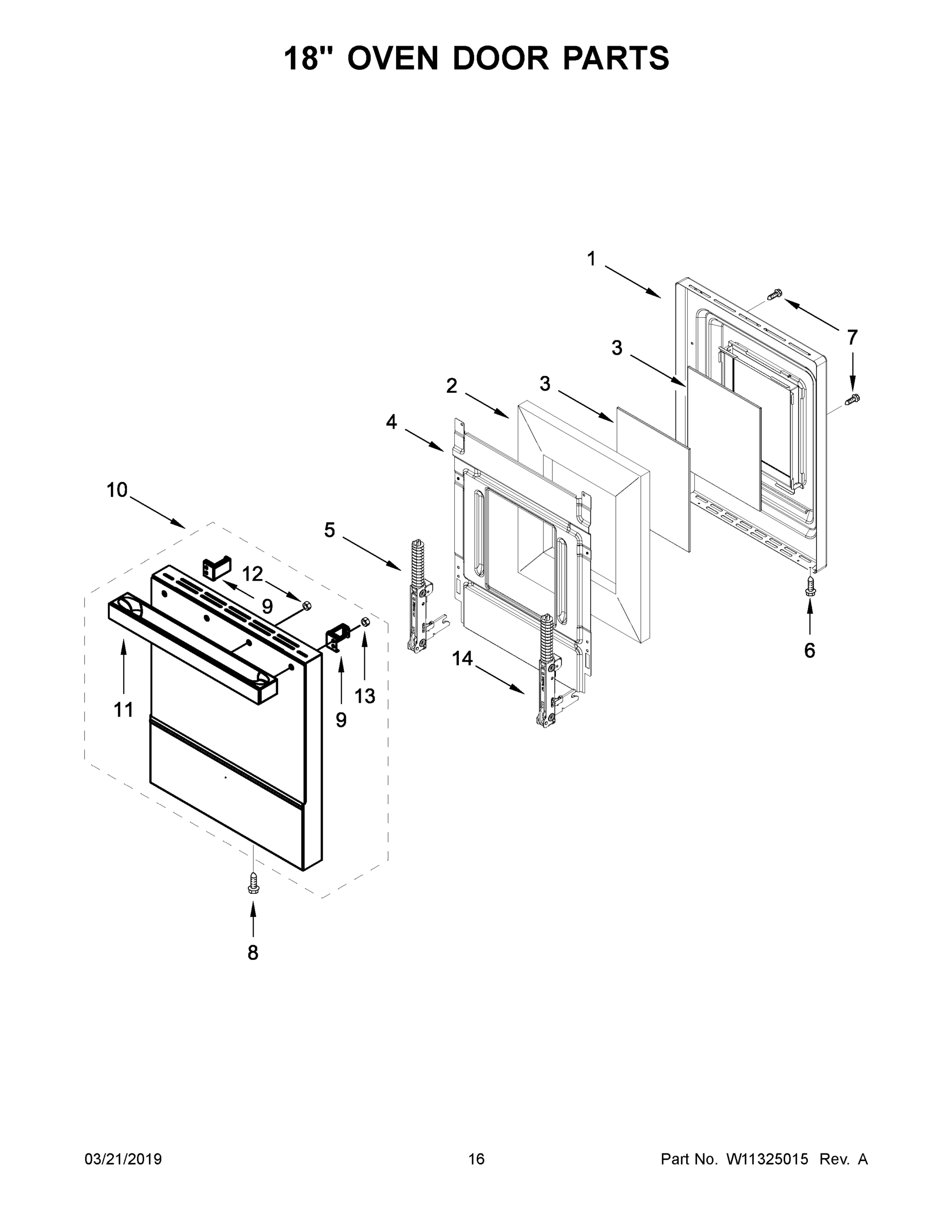

09 - 18" OVEN DOOR PARTS

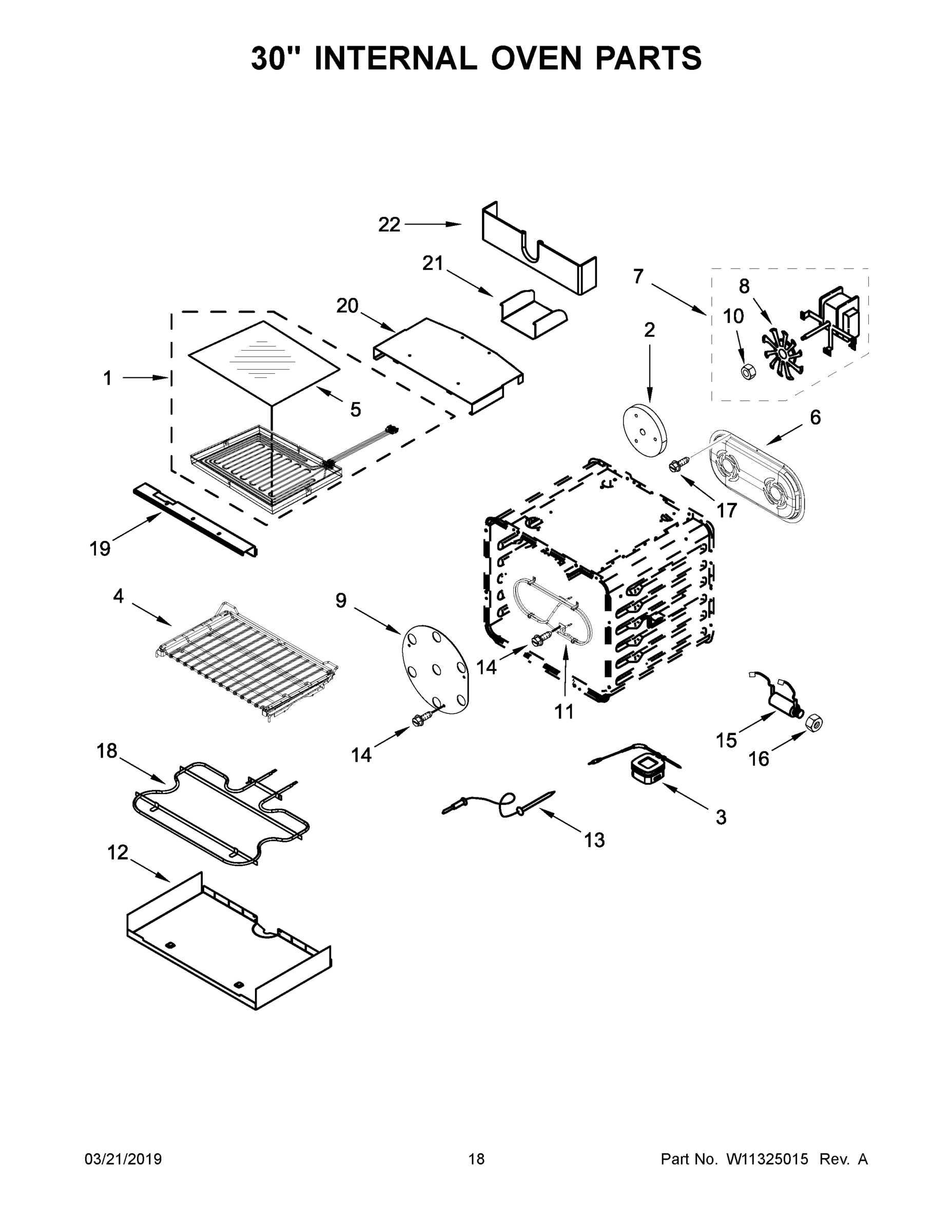

10 - 30" INTERNAL OVEN PARTS

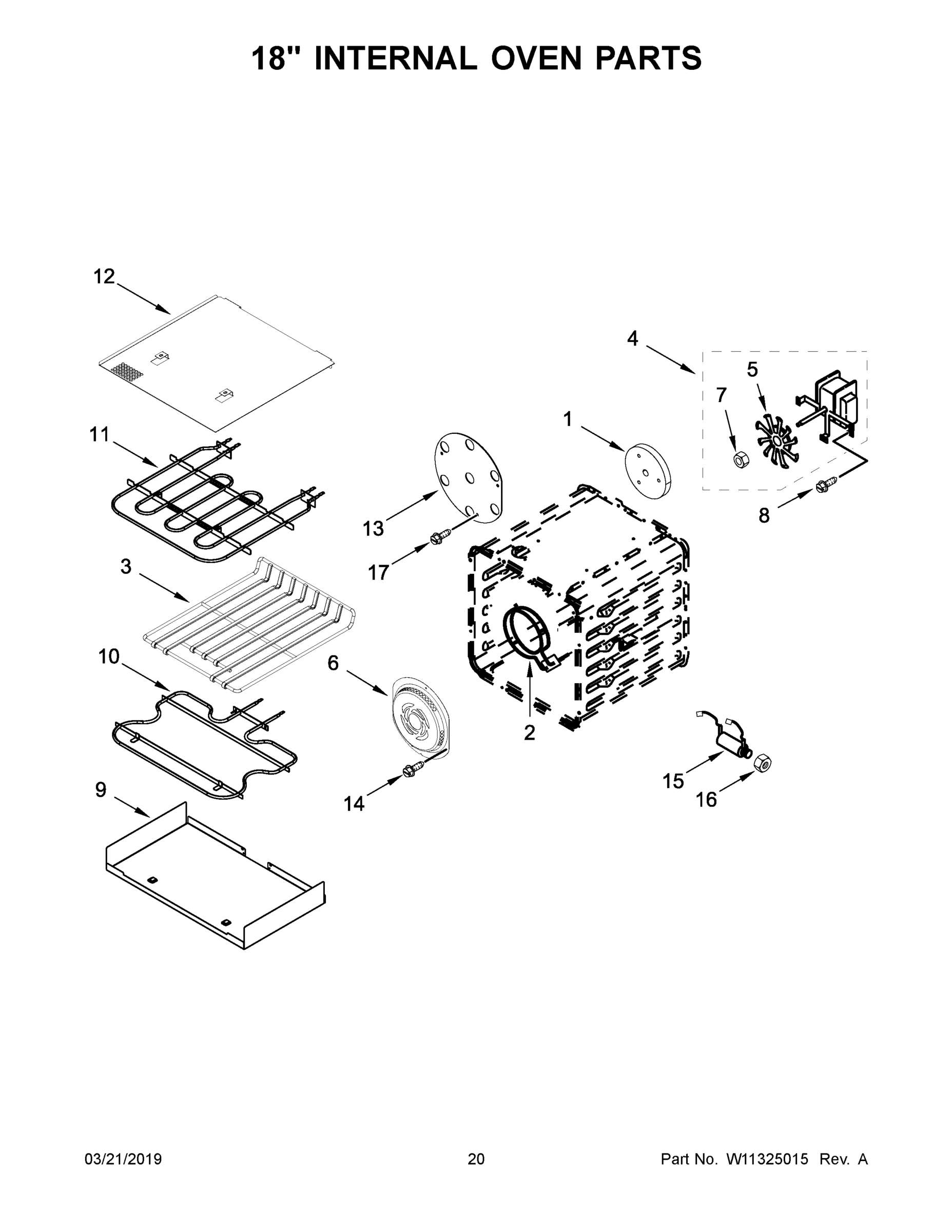

11 - 18" INTERNAL OVEN PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDRP648HM00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH
1
GUIDE, USE AND CARE MAY W11114330 Contact Us For Availability
1
PANEL, CABINET SIDE (LEFT) MAY W11111429 Contact Us For Availability
1
KICKPLATE MAY W10883797 Contact Us For Availability
1
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
1
PROBE, SENSOR MAY W10622170 Contact Us For Availability
1
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
1
LINER, DOOR MAY W11036771 Contact Us For Availability
1
LINER, DOOR MAY W11036770 Contact Us For Availability
1
ELEMENT, BROIL MAY W11210530 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11114333 Contact Us For Availability
1A
PANEL, CABINET SIDE (RIGHT) MAY W11111428 Contact Us For Availability
1A
SLOPE, EXHAUST VENT (18") MAY W10818235 Contact Us For Availability
1B
GUIDE, INTERNET CONNECTIVITY MAY W11184746 Contact Us For Availability
1C
DIAGRAM, WIRING (COOKTOP) MAY W11266584 Contact Us For Availability
1D
DIAGRAM, WIRING (OVEN) MAY W11202370 Contact Us For Availability
1E
SHEET, TECH MAY W11202265 Contact Us For Availability
2
MAY W10893054 MAY W10893054 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT) MAY W10892807 Contact Us For Availability
2
BACK, CHASSIS MAY W11105913 Contact Us For Availability
2
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W11105223 Contact Us For Availability
2
INSULATION, DOOR MAY W10321285 Contact Us For Availability
2
INSULATION, DOOR MAY W10884821 Contact Us For Availability
2
ELEMENT, CONVECTION STEAM MAY 9762242 Contact Us For Availability
2A
ASSEMBLY, VALVE MANIFOLD (RIGHT CENTER FRONT MAY W10893058 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (LEFT REAR) MAY W10892495 Contact Us For Availability
2A
VENT, COOLING TOP (18") MAY W11113380 Contact Us For Availability
2B
ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIG MAY W11183722 Contact Us For Availability
2B
MAY W10892471 MAY W10892471 Contact Us For Availability
2C
MAY W10892724 MAY W10892724 Contact Us For Availability
2D
MAY W10892726 MAY W10892726 Contact Us For Availability
2E
MAY W10892474 MAY W10892474 Contact Us For Availability
3
SWITCH, HARNESS (LEFT FRONT, LEFT REAR, AND G MAY W11106302 Contact Us For Availability
3
ORIFICE, MAIN (17.4K) (LEFT FRONT AND RIGHT F MAY W10892422 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER MAY W11200129 Contact Us For Availability
3
GLASS, INNER MAY W11184409 Contact Us For Availability
3
GLASS, INNER MAY W11036789 Contact Us For Availability
3
PROBE, WIRELESS MEAT MAY W11186918 Contact Us For Availability
3
RACK, OVEN (18") MAY W11111351 Contact Us For Availability
3A
SWITCH, HARNESS (RIGHT CENTER FRONT, RIGHT CE MAY W11106300 Contact Us For Availability
3A
ORIFICE, MAIN (15.4K) (LEFT REAR, RIGHT CENTE MAY W10892418 Contact Us For Availability
3B
ORIFICE, MAIN (7.2K) (RIGHT CENTER REAR) MAY W10892440 Contact Us For Availability
3C
ORIFICE, SIMMER (2.6K) (ALL BUT RIGHT CENTER MAY W10892435 Contact Us For Availability
3D
ORIFICE, SIMMER (2.0K) (RIGHT CENTER REAR) MAY W10892429 Contact Us For Availability
4
BRACKET, MANIFOLD MAY W11121194 Contact Us For Availability
4
IGNITER (ALL BUT RIGHT CENTER REAR) MAY W11238757 Contact Us For Availability
4
DUCT, BOTTOM (48") MAY W11110260 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W11105222 Contact Us For Availability
4
RETAINER, GLASS MAY W11194821 Contact Us For Availability
4
RETAINER, GLASS MAY W11194818 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W11111342 Contact Us For Availability
4
FAN, CONVECTION MAY W11121400 Contact Us For Availability
4A
IGNITER (RIGHT CENTER REAR) MAY W11238756 Contact Us For Availability
4A
VENT, COOLING BOTTOM (18") MAY W11113378 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK (LEFT)) MAY W11172289 Contact Us For Availability
5
PLATE, MOUNTING MAY 9759118 Contact Us For Availability
5
TUBE, VENT MAY W11290663 Contact Us For Availability
5
TUBE, VENT MAY W10288078 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W11109518 Contact Us For Availability
5
HINGE, DOOR (LEFT) MAY W11096980 Contact Us For Availability
5
HINGE, DOOR (LEFT) MAY W11096982 Contact Us For Availability
5
GLASS, BROIL ELEMENT MAY W11193191 Contact Us For Availability
5
BLADE, FAN MAY W11108376 Contact Us For Availability
5A
ASSEMBLY, GRATE (BLACK (RIGHT CENTER)) MAY W11172654 Contact Us For Availability
5B
ASSEMBLY, GRATE (BLACK (RIGHT)) MAY W11172625 Contact Us For Availability
6
MAY W11120957 MAY W11120957 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
ASSEMBLY, OVEN LIGHT MAY W11223932 Contact Us For Availability
6
BOX, TERMINAL MAY W11284049 Contact Us For Availability
6
SCREW MAY W10607120 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W11232487 Contact Us For Availability
6
COVER, FAN MAY W11113808 Contact Us For Availability
7
MAY W11174414 MAY W11174414 Contact Us For Availability
7
SCREW MAY 7101P426-60 Contact Us For Availability
7
SCREW MAY W11196257 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10908710 Contact Us For Availability
7
LENS, LIGHT MAY W10169756 Contact Us For Availability
7
FRAME, GLASS MAY W10272594 Contact Us For Availability
7
SCREW WITH WASHER MAY W10284411 Contact Us For Availability
7
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
8
MAY W10892803 MAY W10892803 Contact Us For Availability
8
BARRIER, APPLIANCE MANAGER MAY W11281269 Contact Us For Availability
8
SCREW MAY 4449743 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER MOUNT MAY W11047754 Contact Us For Availability
8
SCREW MAY W10162096 Contact Us For Availability
8
SCREW MAY 4449154 Contact Us For Availability
8A
MAY W10892801 MAY W10892801 Contact Us For Availability
8B
MAY W10892802 MAY W10892802 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
INTERFACE, USER MAY W11292568 Contact Us For Availability
9
FOOT, DUAL FUEL MAY 9759117 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY W11096294 Contact Us For Availability
9
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
9
BRACKET, HANDLE MAY W11194816 Contact Us For Availability
9
TRAY, HIDDEN BAKE MAY W11110223 Contact Us For Availability
9A
SEAL, VENT SLOPE (18") MAY W10270402 Contact Us For Availability
10
MAY W11120965 MAY W11120965 Contact Us For Availability
10
COVER, WIFI OUTER MAY W11205795 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
COVER, LATCH MAY W10160858 Contact Us For Availability
10
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
10
ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) MAY W10870221 Contact Us For Availability
10
ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) MAY W10870212 Contact Us For Availability
10
ELEMENT, HIDDEN BAKE MAY W11045324 Contact Us For Availability
11
COVER, IGNITION MAY W10115843 Contact Us For Availability
11
BEZEL, COOKTOP (FOR 6 COOKTOP BURNERS AND GRI MAY W11090284 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
11
HANDLE, DOOR MAY W11125541 Contact Us For Availability
11
HANDLE, DOOR MAY W11125539 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
11
ELEMENT, BROIL MAY W10116010 Contact Us For Availability
12
MANAGER, APPLIANCE (EXPANSION) MAY W10890116 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
RECEIVER, HINGE (RIGHT) MAY W11096293 Contact Us For Availability
12
CHASSIS, SIDE (LEFT) MAY W11102297 Contact Us For Availability
12
NUT, HEX MAY 112432 Contact Us For Availability
12
NUT MAY W11198435 Contact Us For Availability
12
TRAY, HIDDEN BAKE MAY W11109421 Contact Us For Availability
12
SHIELD, ELEMENT BROIL MAY W10160855 Contact Us For Availability
12A
CHASSIS, SIDE (RIGHT) MAY W11102296 Contact Us For Availability
13
MAY W11174418 MAY W11174418 Contact Us For Availability
13
CAP, BURNER (BLACK (INCLUDES 6)) MAY W11121392 Contact Us For Availability
13
TUBE, PRESSURE REGULATOR MAY W11106963 Contact Us For Availability
13
SCREW MAY 3196176 Contact Us For Availability
13
COVER, CHANNEL MAY W11106956 Contact Us For Availability
13
NUT MAY 999299 Contact Us For Availability
13
PLATE, FAN MAY W10261523 Contact Us For Availability
13
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (ALL BUT RIGHT CENTER MAY W10891987 Contact Us For Availability
14
SUPPORT, CHANNEL MAY W11087494 Contact Us For Availability
14
INSULATOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
14
HINGE, DOOR (RIGHT) MAY W11096981 Contact Us For Availability
14
SCREW MAY W10739592 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (RIGHT CENTER REAR) MAY W10892022 Contact Us For Availability
15
ADAPTER, MALE MAY 4453116 Contact Us For Availability
15
GASKET, OVEN (30") MAY W11115328 Contact Us For Availability
15
HINGE, DOOR (RIGHT) MAY W11096979 Contact Us For Availability
15
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
15A
GASKET, OVEN (18") MAY W11115326 Contact Us For Availability
16
MAY W11285353 MAY W11285353 Contact Us For Availability
16
KNOB, OVEN MODE (STAINLESS) MAY W10891869 Contact Us For Availability
16
DUCT-CHASSIS, REAR MAY W11050145 Contact Us For Availability
16
NUT, LOCKING MAY W11033111 Contact Us For Availability
17
MAY W11174429 MAY W11174429 Contact Us For Availability
17
COLUMN, CENTRAL MAY W10115819 Contact Us For Availability
17
SCREW MAY W10720084 Contact Us For Availability
18
PANEL, COOKTOP (BLACK (LEFT)) MAY W11038237 Contact Us For Availability
18
RETAINER, GASKET (9" LONG) MAY W10216520 Contact Us For Availability
18
ELEMENT, HIDDEN BAKE MAY W10115995 Contact Us For Availability
18A
PANEL, COOKTOP (BLACK (RIGHT CENTER)) MAY W11038241 Contact Us For Availability
18B
MAY W11038254 MAY W11038254 Contact Us For Availability
19
MAY W10894926 MAY W10894926 Contact Us For Availability
19
TOP, CHASSIS MAY W11037132 Contact Us For Availability
19
BRACKET, BROIL FRONT MAY W11112336 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
20
CHASSIS, BOTTOM MAY W11040800 Contact Us For Availability
20
BRACKET, BROIL TOP MAY W11158843 Contact Us For Availability
21
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
21
PANEL, BACK TOP MAY W11103335 Contact Us For Availability
21
COVER, BROIL TERMINAL MAY W11111391 Contact Us For Availability
21A
BRACKET, MOVING CONSOLE (RIGHT MAY W10130759 Contact Us For Availability
22
MAY W10919387 MAY W10919387 Contact Us For Availability
22
PANEL, BACK BOTTOM MAY W11034123 Contact Us For Availability
22
COVER PLATE, TERMINAL HOLE MAY W11170823 Contact Us For Availability
23
MAY W11253771 MAY W11253771 Contact Us For Availability
23
BRACKET, PRESSURE REGULATOR MAY W11096823 Contact Us For Availability
24
MAY W10887596 MAY W10887596 Contact Us For Availability
24
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
25
MAY W10271524 MAY W10271524 Contact Us For Availability
25
SCREW MAY 3400518 Contact Us For Availability
26
MAY W11120976 MAY W11120976 Contact Us For Availability
26
DRAWER, APPLIANCE MANAGER MAY W11106341 Contact Us For Availability
27
MAY W11042375 MAY W11042375 Contact Us For Availability
28
MAY W10891868 MAY W10891868 Contact Us For Availability
28
CABINET, APPLIANCE MANAGER MAY W11106335 Contact Us For Availability
29
MAY W11205794 MAY W11205794 Contact Us For Availability
29
CHANNEL, WIRE MAY W11084360 Contact Us For Availability
30
SPRING CLIP, RANGE MAY W11036559 Contact Us For Availability
30
MAY W11174598 MAY W11174598 Contact Us For Availability
31
MAY W11197929 MAY W11197929 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
34
MAY W10892423 MAY W10892423 Contact Us For Availability
35
MAY 3400814 MAY 3400814 Contact Us For Availability
36
MAY W11090650 MAY W11090650 Contact Us For Availability
37
MAY W11156418 MAY W11156418 Contact Us For Availability
38
MAY W11090651 MAY W11090651 Contact Us For Availability
39
MAY W10896369 MAY W10896369 Contact Us For Availability
40
MAY W11130078 MAY W11130078 Contact Us For Availability
41
MAY W11172682 MAY W11172682 Contact Us For Availability
42
MAY W11100272 MAY W11100272 Contact Us For Availability
43
MAY W11110768 MAY W11110768 Contact Us For Availability
44
MAY 7101P624-60 MAY 7101P624-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
NI
BUSHING, SNAP SPLIT MAY 9757778 Contact Us For Availability
NI
RETAINER, STRAIN RELIEF MAY 9759877 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
HARNESS, DOOR LOCK MAY W10780278 Contact Us For Availability
NI
HARNESS, MAIN (18") MAY W11200311 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W11200318 Contact Us For Availability
NI
MAY W11200330 MAY W11200330 Contact Us For Availability
NI
CORD, POWER MAY W11212216 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
HARNESS, WIFI MAY W11242785 Contact Us For Availability
NI
MAY W11297779 MAY W11297779 Contact Us For Availability
NI
NUT MAY 3400968 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10299350 Contact Us For Availability
NI
INSULATION, BACK, 18" MAY W10282812 Contact Us For Availability
NI
INSULATION, WRAP, 18" MAY W10282820 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK BACKSPLASH MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, 48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE KIT, BURN MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
