Model GE JDP36GV1WH – Common Parts & Diagrams

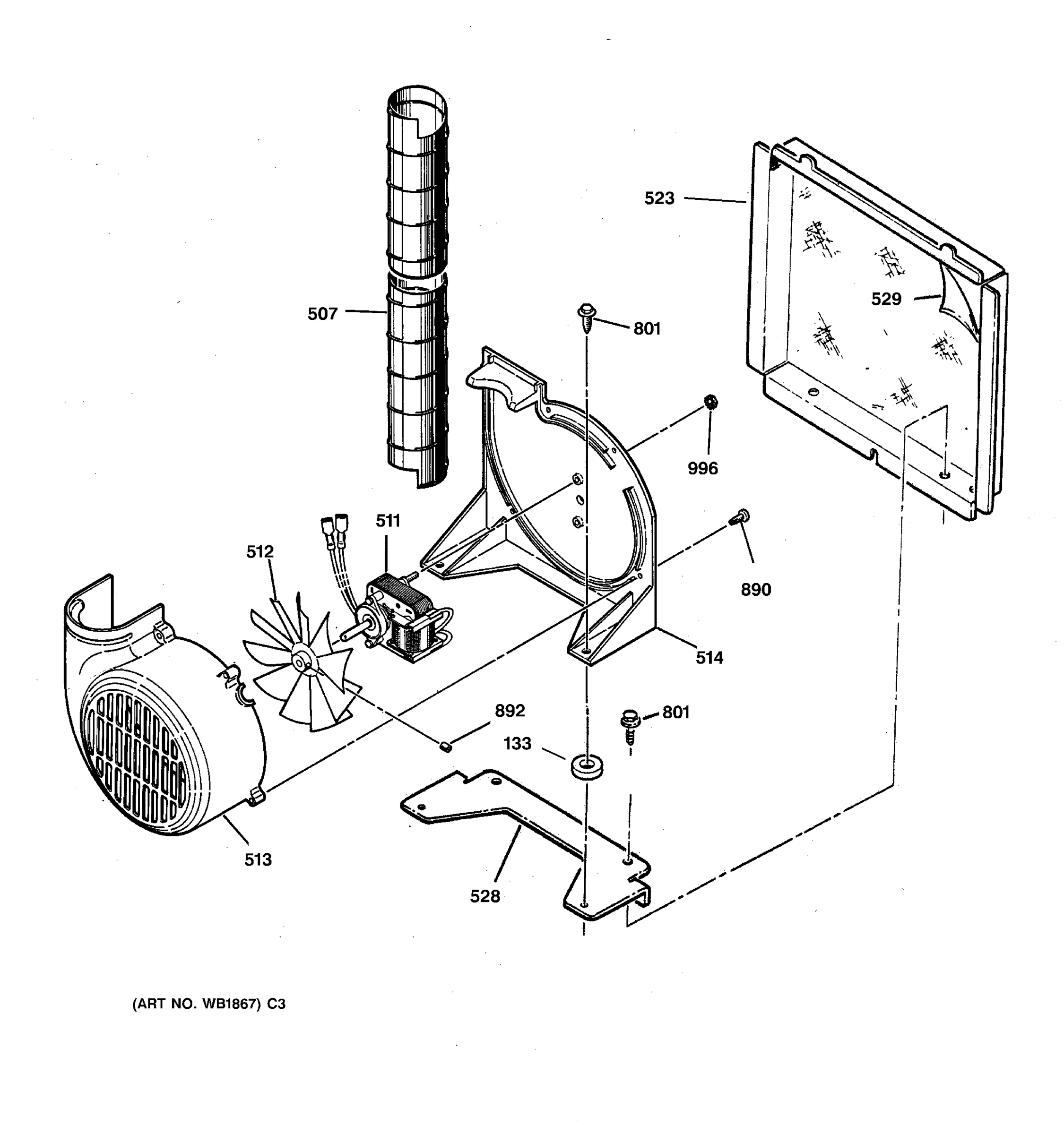

BLOWER

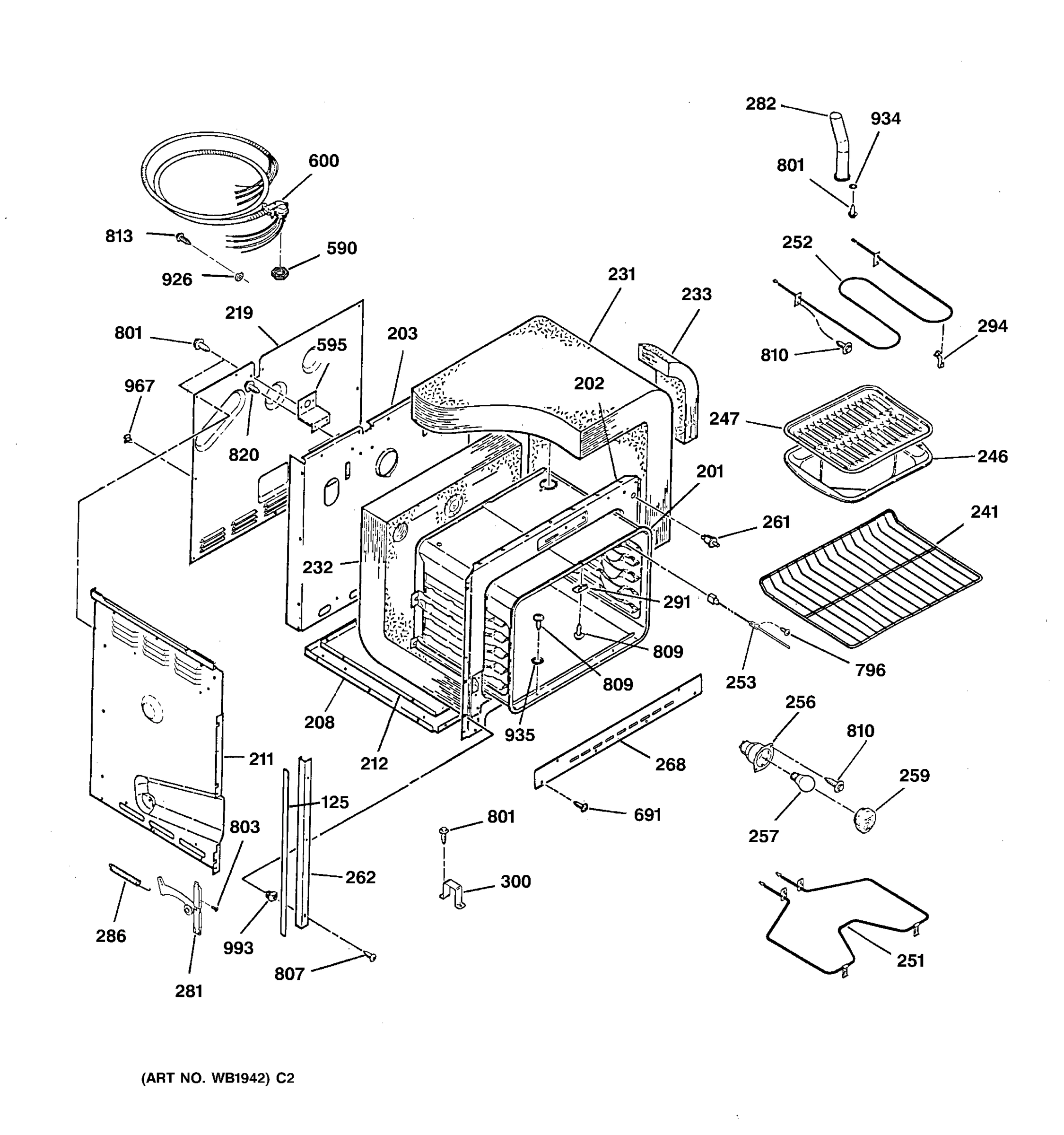

BODY PARTS

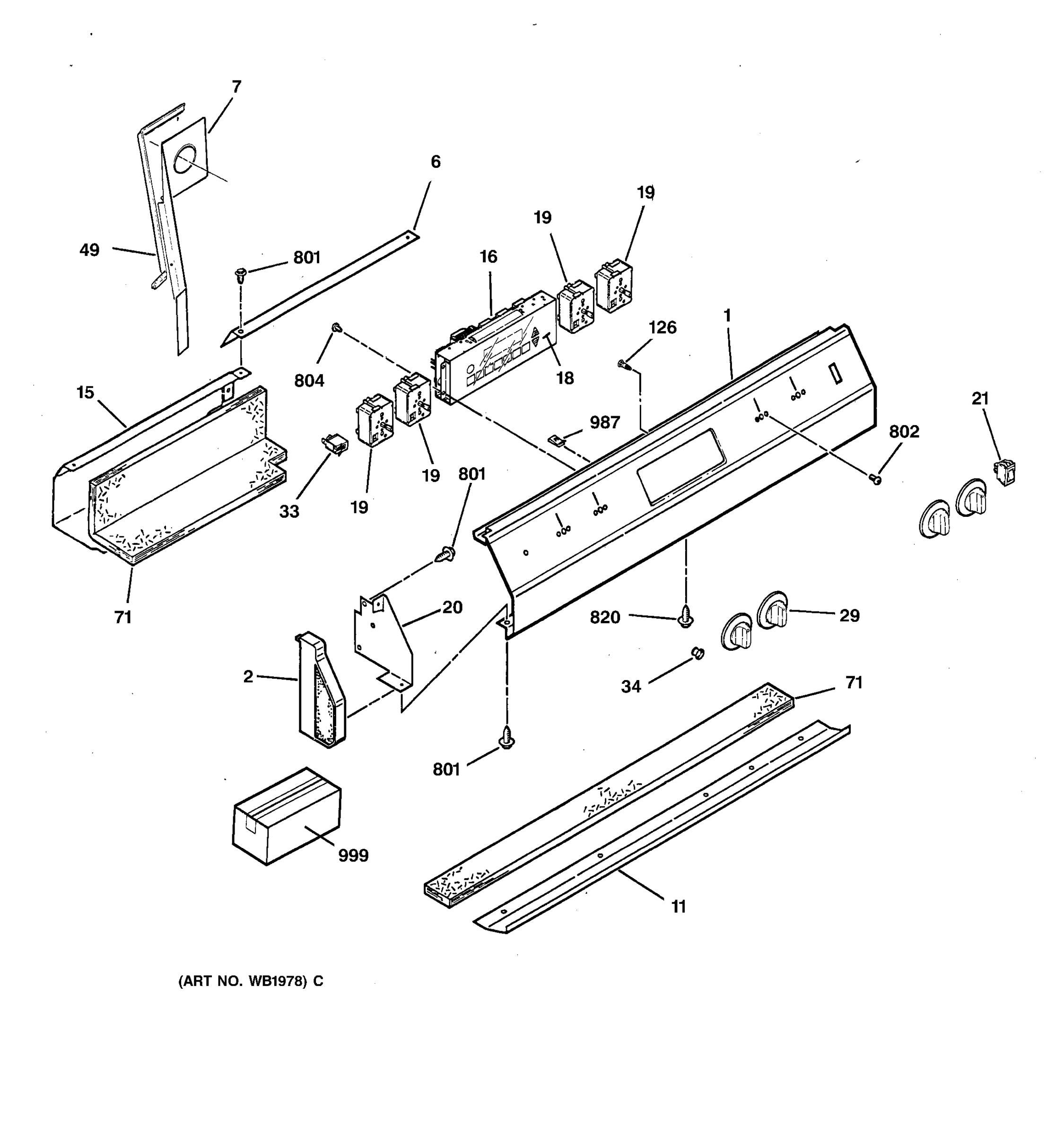

CONTROL PANEL

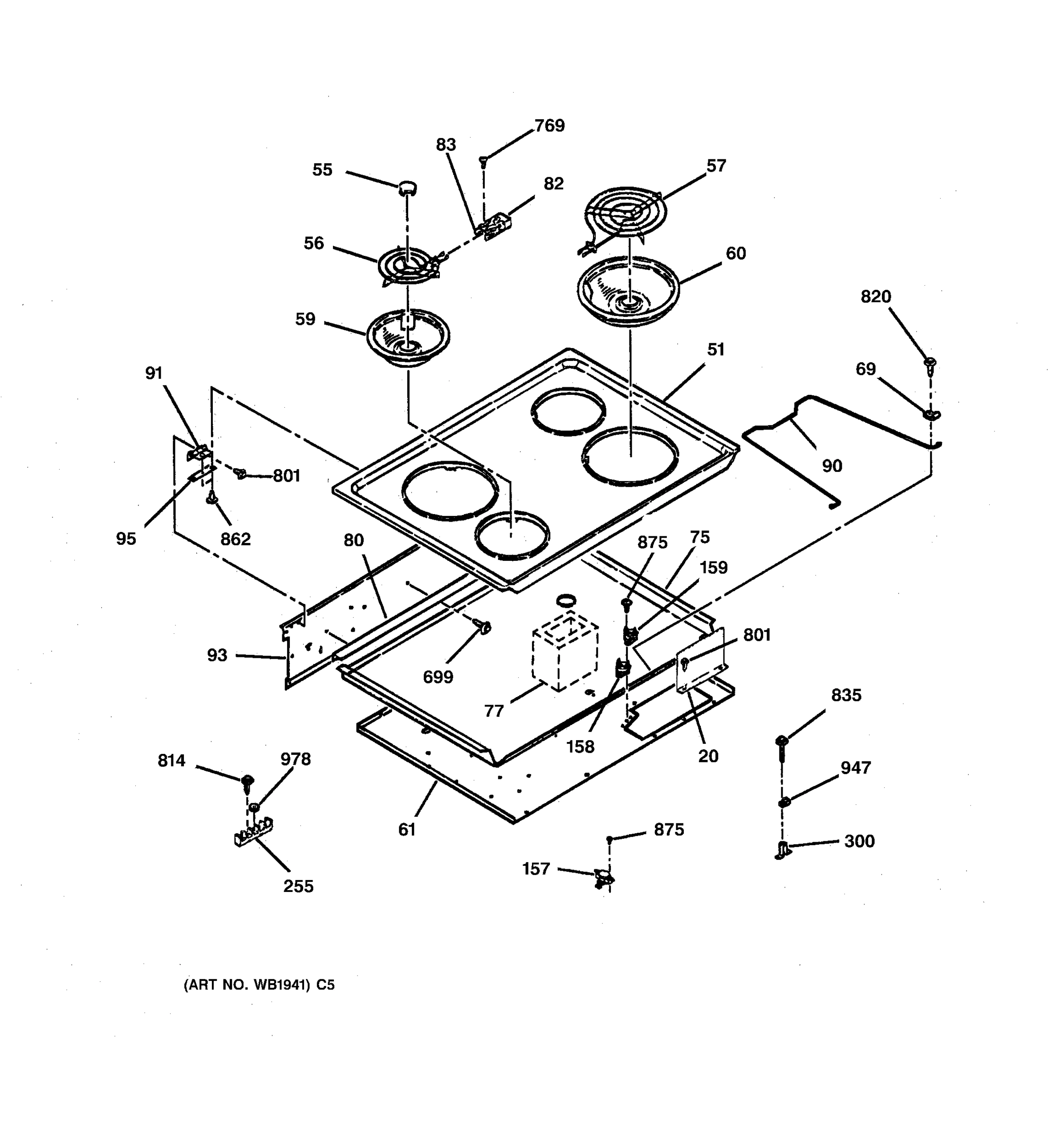

COOKTOP

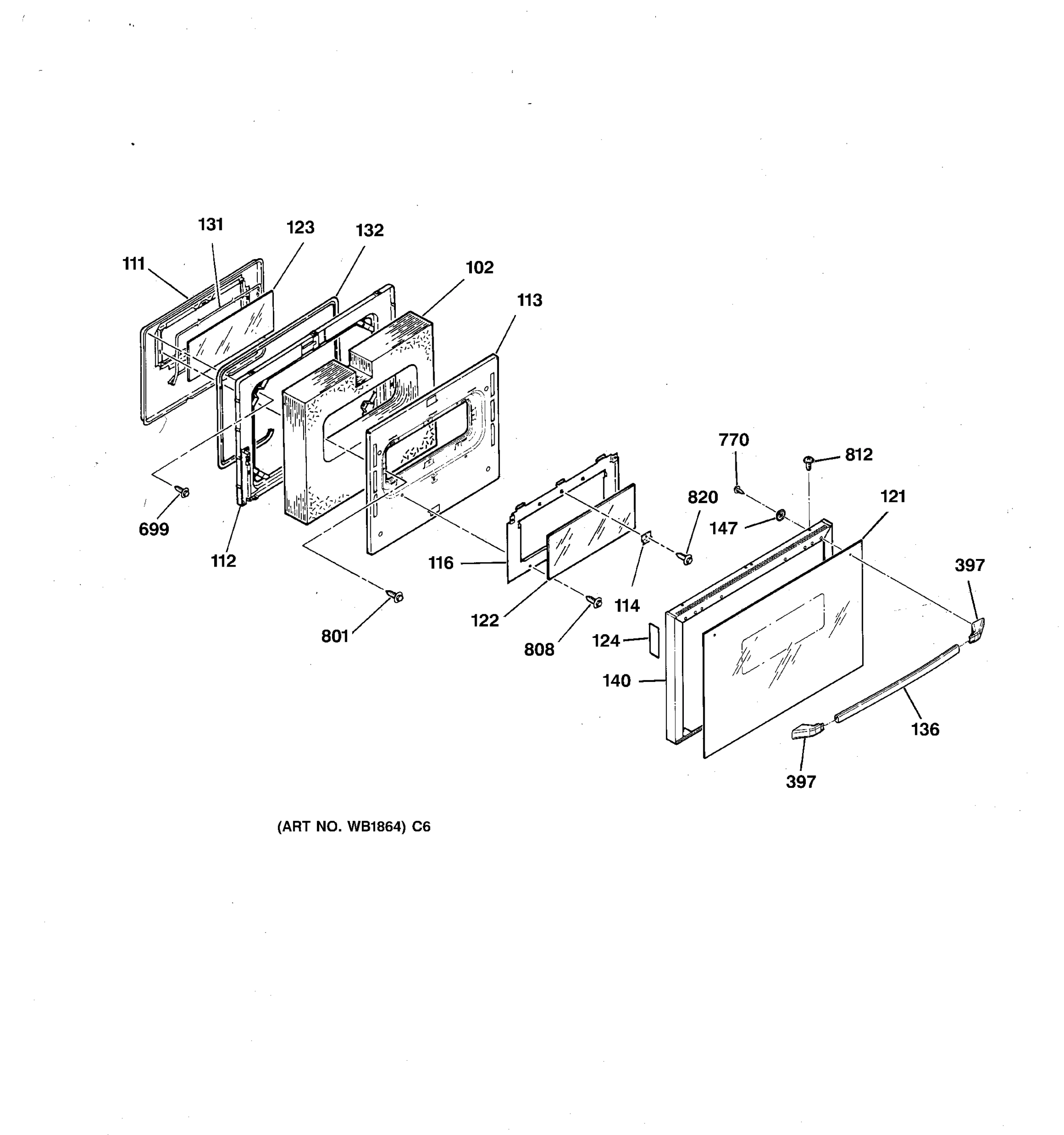

DOOR

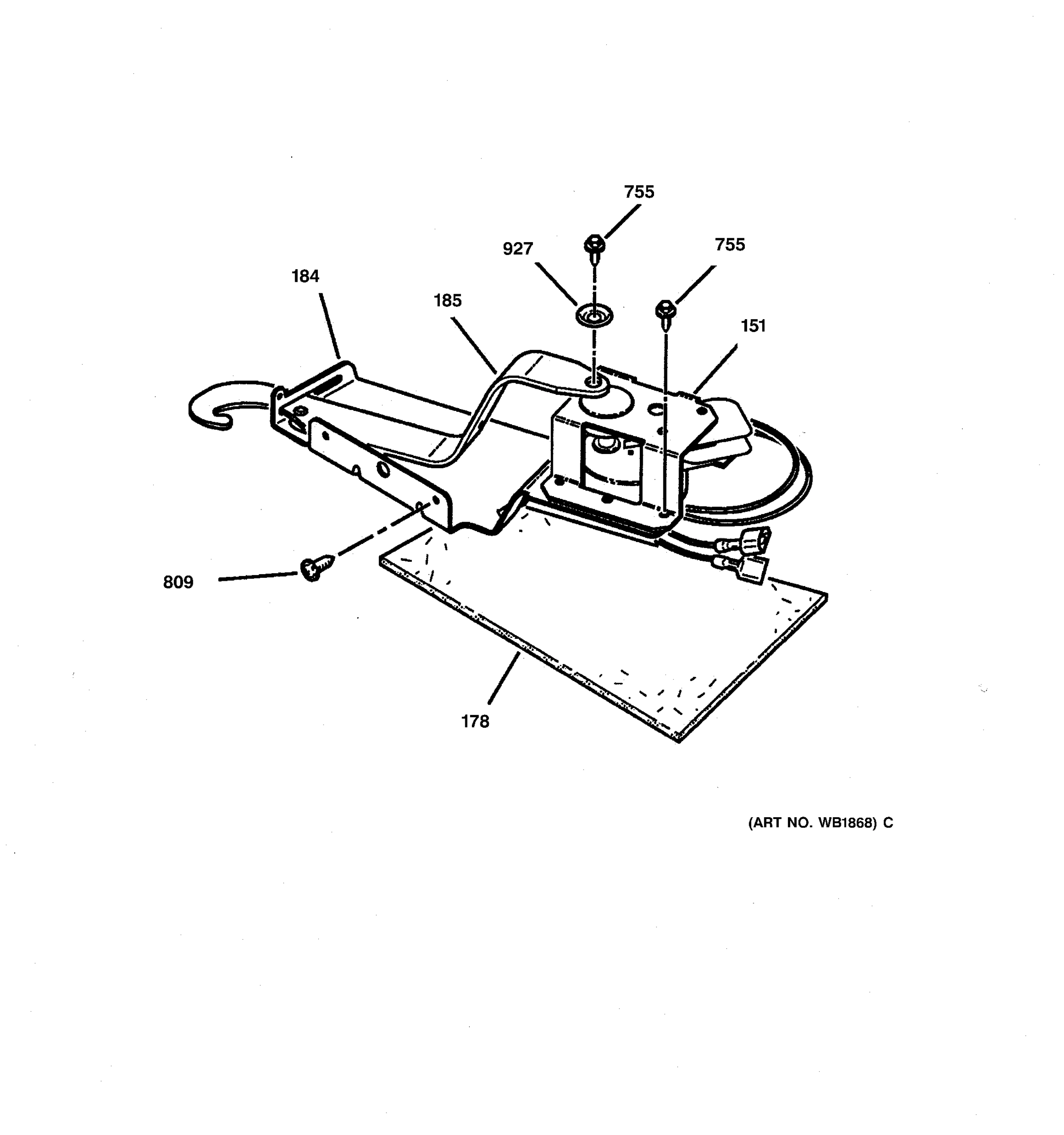

DOOR LOCK
Common parts from model GE JDP36GV1WH
1
GEN WB36K5544 GEN WB36K5544 Contact Us For Availability
2
GEN WB36K5420 GEN WB36K5420 Contact Us For Availability
2
GEN WB36K5421 GEN WB36K5421 Contact Us For Availability
6
GEN WB34K5152 GEN WB34K5152 Contact Us For Availability
7
GEN WB26K5038 GEN WB26K5038 Contact Us For Availability
11
GEN WB07K5181 GEN WB07K5181 Contact Us For Availability
15
GEN WB02X9563 GEN WB02X9563 Contact Us For Availability
16
GEN WB27K5140 GEN WB27K5140 Contact Us For Availability
18
GEN WB27K5218 GEN WB27K5218 Contact Us For Availability
20
GEN WB02K5239 GEN WB02K5239 Contact Us For Availability
20
BRACKET CAP PNL MTG RT GEN WB37K5018 Contact Us For Availability
20
BRACKET CAP PNL MTG LT GEN WB37K5019 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
49
GEN WB32K5018 GEN WB32K5018 Contact Us For Availability
51
GEN WB62K5051 GEN WB62K5051 Contact Us For Availability
56
ELEMENT SURF 6" (1500W) GEN WB30K5034 Contact Us For Availability
61
GEN WB64K5042 GEN WB64K5042 Contact Us For Availability
71
BURN BOX EXT INSULATION GEN WB02X9888 Contact Us For Availability
71
GEN WB06X0006 GEN WB06X0006 Contact Us For Availability
75
TOP BURN BOX 335 GEN WB63X0421 Contact Us For Availability
77
GEN WB02X9895 GEN WB02X9895 Contact Us For Availability
80
GEN WB02X9570 GEN WB02X9570 Contact Us For Availability
90
GEN WB02M0084 GEN WB02M0084 Contact Us For Availability
91
HINGE MAINTOP GEN WB14X0136 Contact Us For Availability
93
WIRE COVER UPPER GEN WB02X9569 Contact Us For Availability
95
BRACKET HGE MTG GEN WB02X9568 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5037 GEN WB55K5037 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
RETAINER OV DR INS GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
PLATE GLASS MTG GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5235 GEN WB57K5235 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
GLASS OV DR INNER GEN WB56X1907 Contact Us For Availability
125
GEN WB35K5099 GEN WB35K5099 Contact Us For Availability
126
PLUG BUTTON GEN WB02X1125 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
147
SPACER DR HDL (BLK) GEN WB02K5312 Contact Us For Availability
158
GEN WB24K5086 GEN WB24K5086 Contact Us For Availability
159
SWITCH LIMIT GEN WB24M0015 Contact Us For Availability
178
GEN WB35M0023 GEN WB35M0023 Contact Us For Availability
201
WRAPPER OV CAV ASM GEN WB63K5109 Contact Us For Availability
202
GEN WB63K5121 GEN WB63K5121 Contact Us For Availability
203
GEN WB63K5077 GEN WB63K5077 Contact Us For Availability
208
GEN WB63K5139 GEN WB63K5139 Contact Us For Availability
211
GEN WB02K5195 GEN WB02K5195 Contact Us For Availability
211
GEN WB02K5196 GEN WB02K5196 Contact Us For Availability
212
GEN WB02K5122 GEN WB02K5122 Contact Us For Availability
219
GEN WB34K5134 GEN WB34K5134 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
INSULATION-OV BTM/BACK GEN WB35K5029 Contact Us For Availability
233
INSULATION TOP&SDS FRT GEN WB02X9718 Contact Us For Availability
241
RACK OVN GEN WB48X0208 Contact Us For Availability
255
GEN WB17X0215 GEN WB17X0215 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
262
GEN WB07K5291 GEN WB07K5291 Contact Us For Availability
262
GEN WB07K5292 GEN WB07K5292 Contact Us For Availability
268
GEN WB07K5293 GEN WB07K5293 Contact Us For Availability
281
GEN WB10K5017 GEN WB10K5017 Contact Us For Availability
281
GEN WB10K5018 GEN WB10K5018 Contact Us For Availability
282
TUBE VENT ASM GEN WB38X0124 Contact Us For Availability
286
GEN WB09M0001 GEN WB09M0001 Contact Us For Availability
291
COVER ENAM WIPE GEN WB02X9152 Contact Us For Availability
300
GEN WB02M0049 GEN WB02M0049 Contact Us For Availability
300
GEN WB02M0086 GEN WB02M0086 Contact Us For Availability
590
NUT LOCK GEN WB01X1299 Contact Us For Availability
595
GEN WB02K5216 GEN WB02K5216 Contact Us For Availability
600
GEN WB18K5368 GEN WB18K5368 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
803
GEN WB01X1176 GEN WB01X1176 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
881
GEN WB01X1271 GEN WB01X1271 Contact Us For Availability
892
SET SCREW GEN WB01K5056 Contact Us For Availability
926
WASHER GROUND GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
947
GEN WB01K5043 GEN WB01K5043 Contact Us For Availability
967
GEN WB02X9894 GEN WB02X9894 Contact Us For Availability
987
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
993
GEN WB02X9575 GEN WB02X9575 Contact Us For Availability
996
GEN WB01M0041 GEN WB01M0041 Contact Us For Availability
999
GEN 31-13214 GEN 31-13214 Contact Us For Availability
999
GEN 49-8575 GEN 49-8575 Contact Us For Availability
999
GEN SR10183 GEN SR10183 Contact Us For Availability
999
GEN WB18K5369 GEN WB18K5369 Contact Us For Availability
999
GEN WB18K5378 GEN WB18K5378 Contact Us For Availability
999
GEN WB18K5439 GEN WB18K5439 Contact Us For Availability
× ![]()
