Model Whirlpool JDE3000W ELECTRIC DRYER – Common Parts & Diagrams

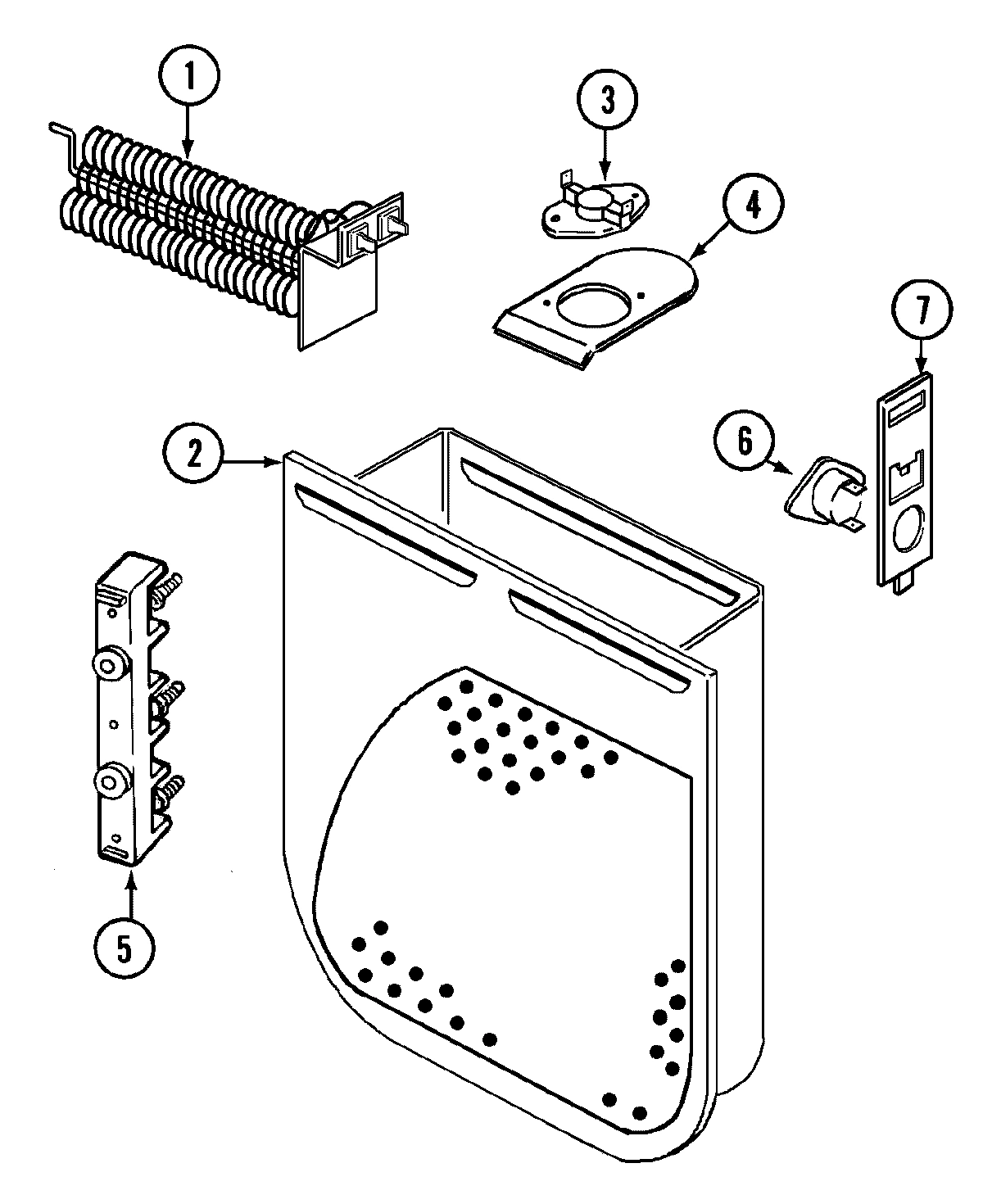

03 - HEATER

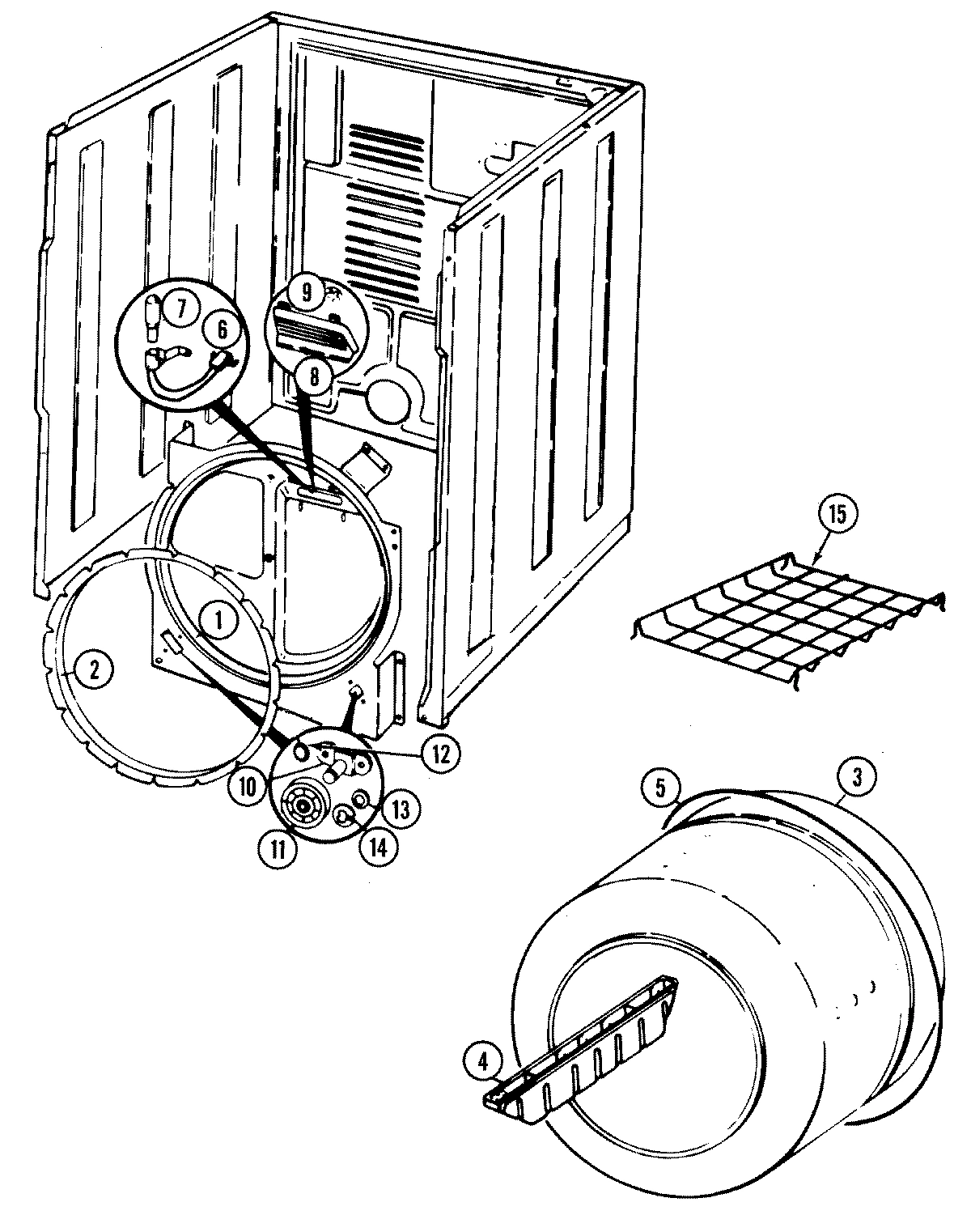

05 - TUMBLER
01 - CABINET

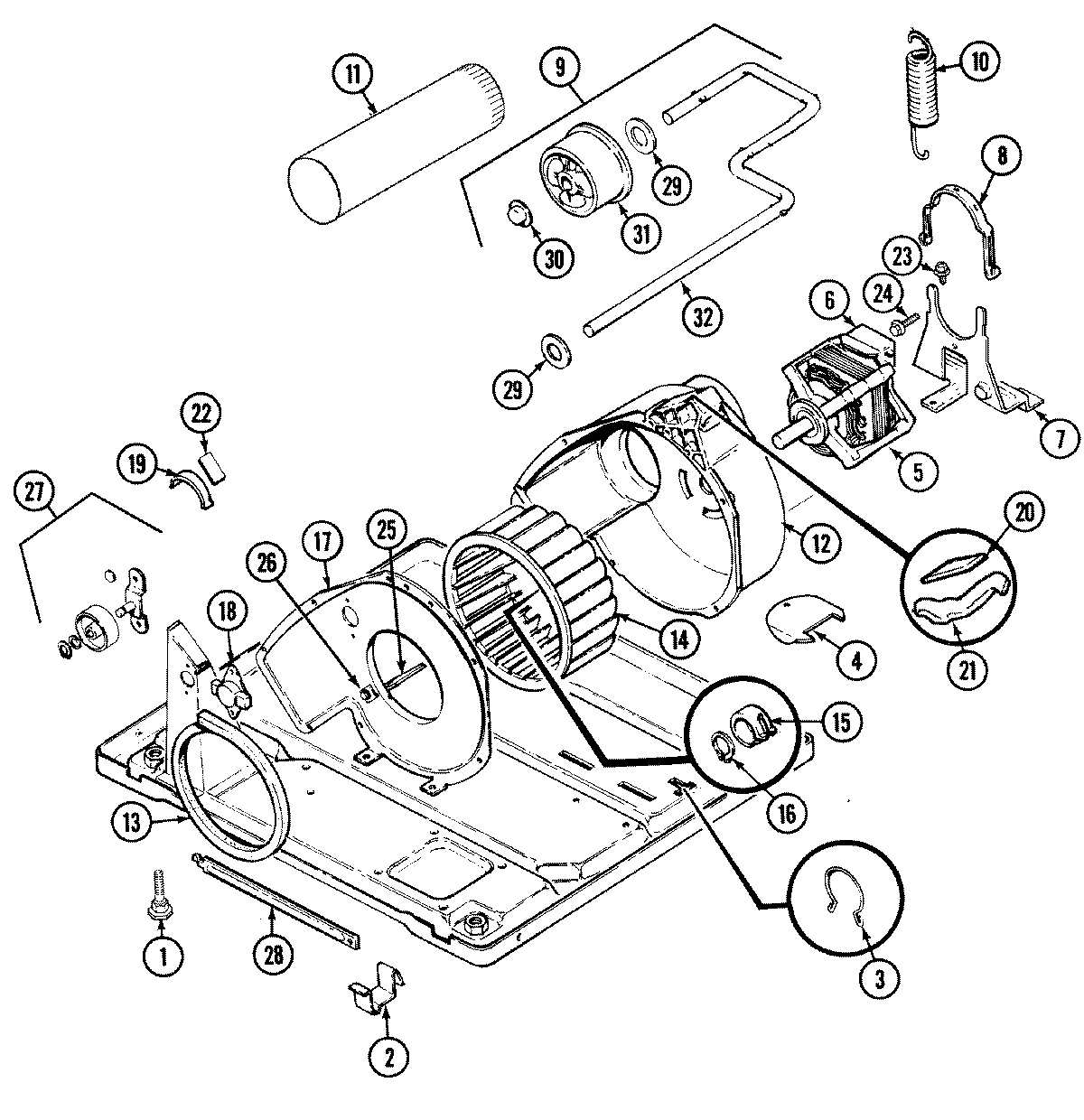

04 - MOTOR & DRIVE
02 - DOOR
Common parts from model Whirlpool JDE3000W ELECTRIC DRYER
1
ELEMENT, HEATER WPL 531641 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
1
TOP, CABINET WPL 532435 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
CABINET & BASE ASM (WHT) WPL 532559 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
CLIP, U-TYPE WPL 257817 Contact Us For Availability
2
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE, WHITE WPL 531249 Contact Us For Availability
4
SCREW WPL 253092 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
PIN, LOCATOR WPL 530643 Contact Us For Availability
4
SHIELD, WIRING WPL 531921 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
5
STRAP, GROUND WPL 530965 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
5
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
6
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
6
BLADE-FAN WPL 531580 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
COLLECTOR DUCT WPL 531299 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
CYL LIGHT BULB WPL 530570 Contact Us For Availability
7
SCREW WPL 257732 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
8
LENS, BULB WPL 530174 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
8
CLIP WPL 530123 Contact Us For Availability
9
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
9
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
9
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
10
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
10
SCREW WPL 257101 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
10
SCREW WPL 257857 Contact Us For Availability
10
COVER, TERMINAL WPL 530284 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
11
CYL ROLLER WPL 531578 Contact Us For Availability
11
SHIELD, HEAT WPL 530133 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
12
SPACER WPL 257813 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
12
PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
14
DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability
14
DOOR PAD WPL 531490 Contact Us For Availability
15
RACK, DRYING WPL 530772 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
DOOR PAD WPL 531491 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
16
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
16
DOOR SEAL WPL 530648 Contact Us For Availability
17
SCREW WPL 257435 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
17
PLUG BUTTON WPL 257889 Contact Us For Availability
18
SCREW WPL 252134 Contact Us For Availability
18
THERMOSTAT WPL 532259 Contact Us For Availability
18
THERMISTER WPL 532260 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability
19
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DRYER DOOR WPL 531492 Contact Us For Availability
20
RH GLD CUSHION WPL 530724 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
21
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
21
STRIKE, DOOR WPL 532364 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
23
SCREW WPL 257963 Contact Us For Availability
23
SWITCH, DOOR WPL 530148 Contact Us For Availability
23
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
24
SCREW WPL 257674 Contact Us For Availability
24
CLIP, SWITCH WPL 635990 Contact Us For Availability
25
BUMPER, CABINET WPL 332653 Contact Us For Availability
25
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
26
SCREW, SEMS WPL 253457 Contact Us For Availability
26
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
27
ROLLER WPL LA1008 Contact Us For Availability
28
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
× ![]()
