Model GE JDC27GL4 – Common Parts & Diagrams
0
1
2

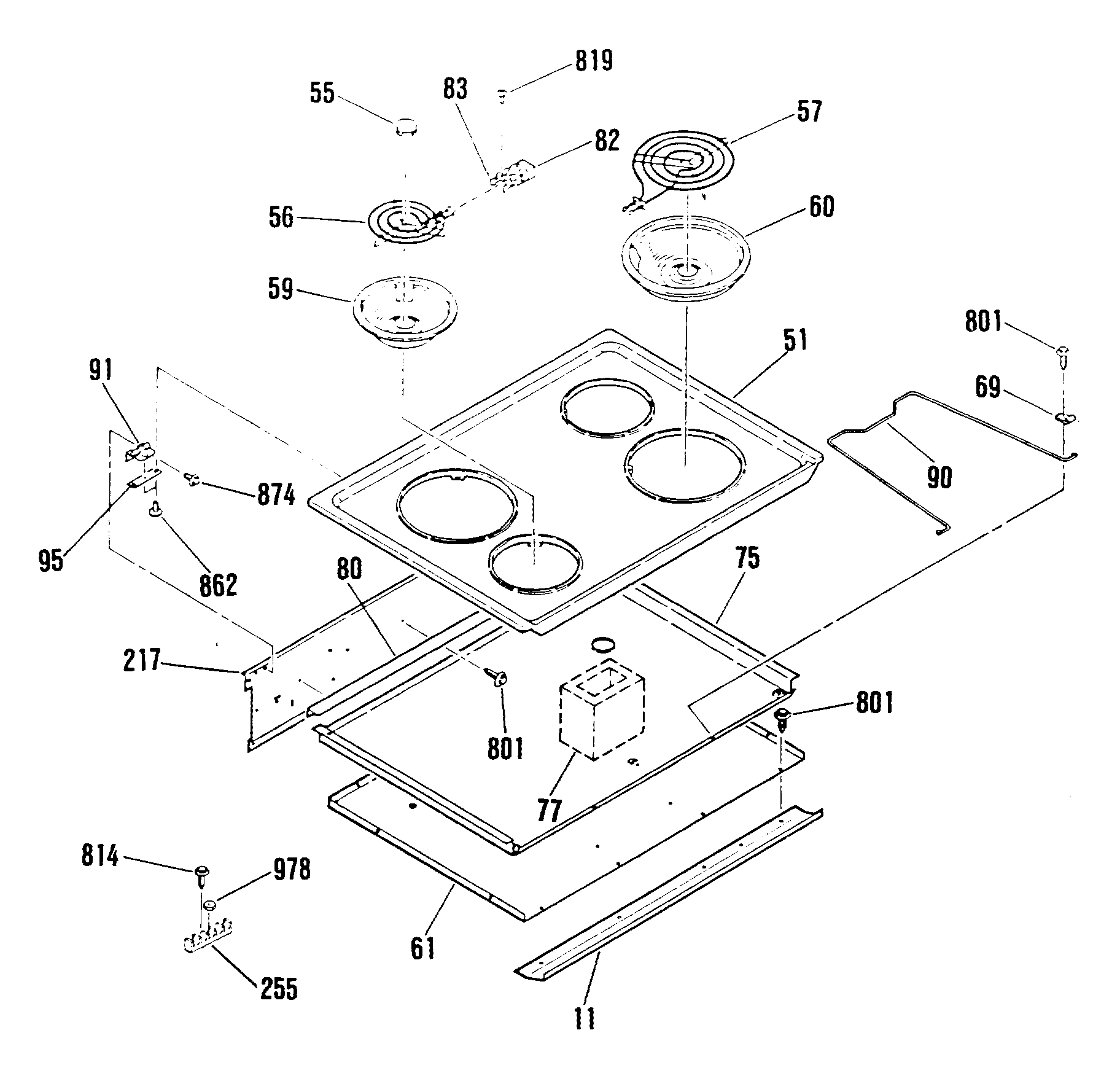

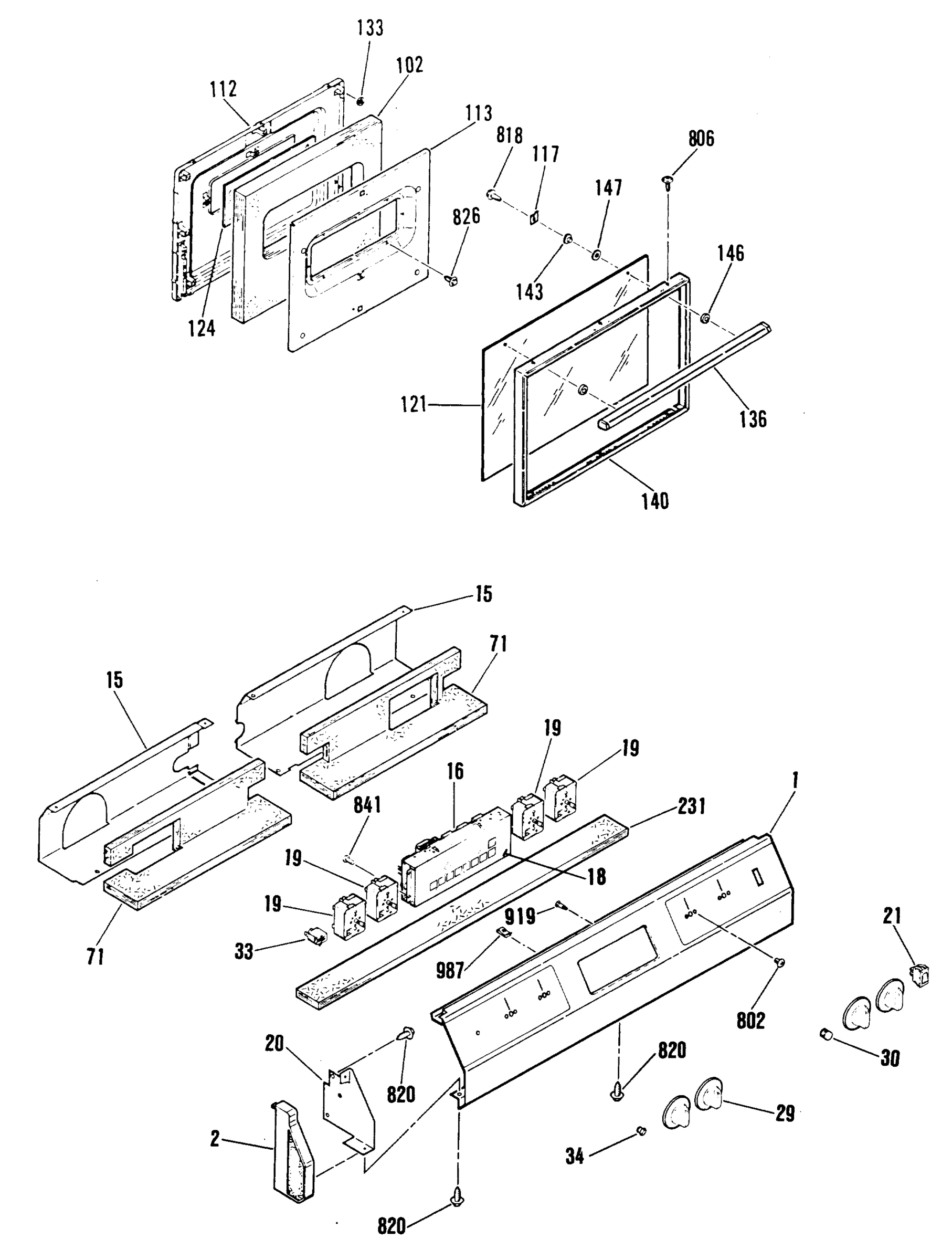

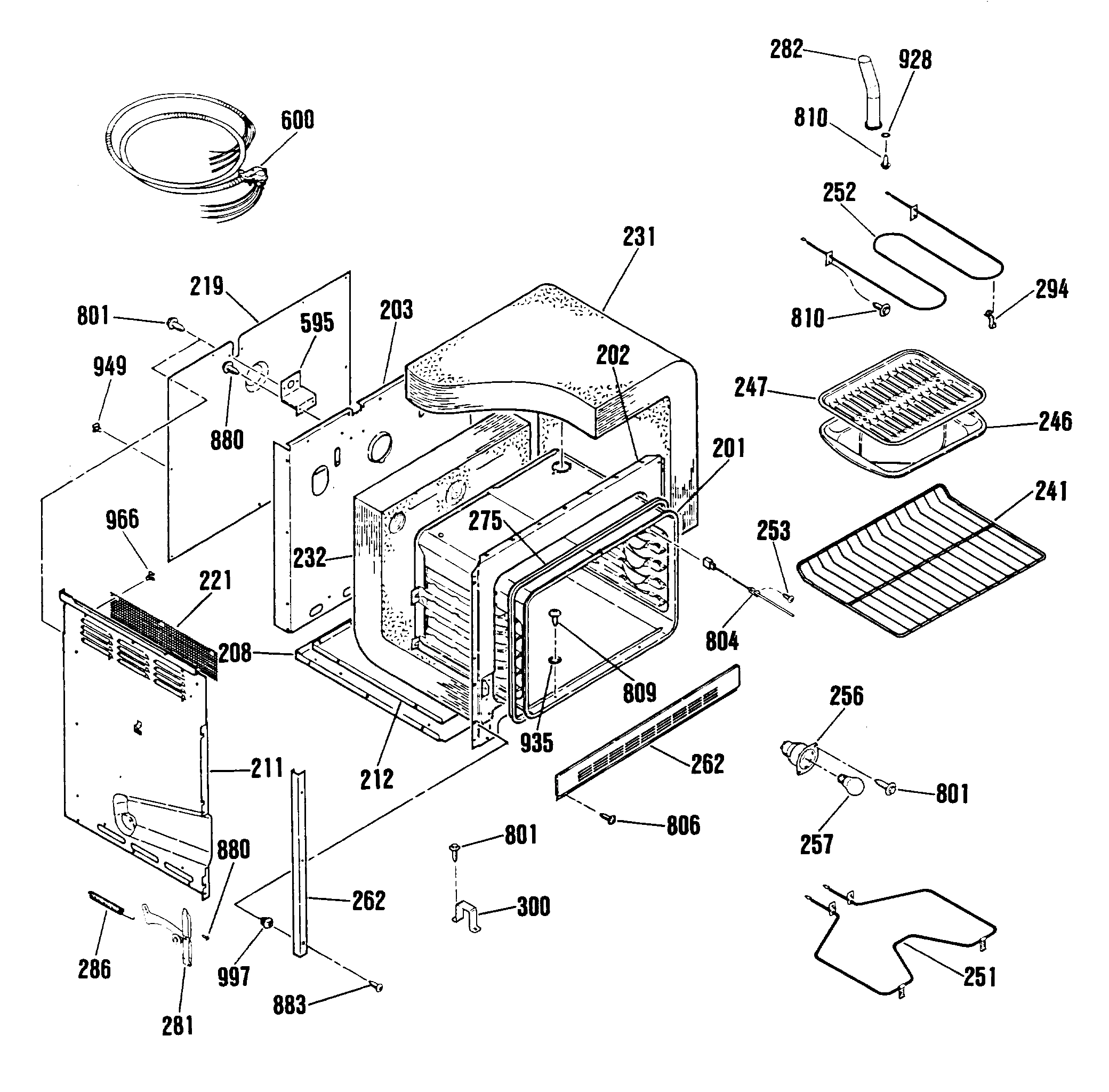

Common parts from model GE JDC27GL4
2
END CAP RT GEN WB07X1676 Contact Us For Availability
11
BURNER BOX BTM EXTENSION GEN WB02X9889 Contact Us For Availability
15
CONTROL WIRE COVER LT GEN WB02X9926 Contact Us For Availability
15
CONTROL WIRE COVER RT GEN WB02X9927 Contact Us For Availability
16
GEN WB19X0262 GEN WB19X0262 Contact Us For Availability
20
END CAP BRACKET-LT GEN WB02X9565 Contact Us For Availability
20
END CAP BRACKET-RT GEN WB02X9566 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
29
GEN WB03X0804 GEN WB03X0804 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0780 Contact Us For Availability
51
MAIN TOP GEN WB62X1709 Contact Us For Availability
55
GEN WB04X0122 GEN WB04X0122 Contact Us For Availability
61
GEN WB64M0009 GEN WB64M0009 Contact Us For Availability
71
CNTL COVER INSULATION LT GEN WB02X9928 Contact Us For Availability
71
CNTL COVER INSULATION RT GEN WB02X9929 Contact Us For Availability
75
BURNER BOX TOP GEN WB63X0373 Contact Us For Availability
77
GEN WB02X9895 GEN WB02X9895 Contact Us For Availability
80
GEN WB02X9570 GEN WB02X9570 Contact Us For Availability
90
GEN WB02M0084 GEN WB02M0084 Contact Us For Availability
91
MAIN TOP HINGE GEN WB14X0136 Contact Us For Availability
95
HINGE MTG BRACKET GEN WB02X9568 Contact Us For Availability
102
OV DOOR INSULATION GEN WB02X9123 Contact Us For Availability
112
GEN WB55M0005 GEN WB55M0005 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X1910 Contact Us For Availability
117
OV DOOR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OV DOOR GLASS GEN WB56X1901 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0272 Contact Us For Availability
140
OV DOOR FRAME GEN WB07X1585 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
WASHER GEN WB01X1138 Contact Us For Availability
201
GEN WB63M0063 GEN WB63M0063 Contact Us For Availability
202
GEN WB63X0423 GEN WB63X0423 Contact Us For Availability
203
GEN WB63M0059 GEN WB63M0059 Contact Us For Availability
207
GEN WB63X0365 GEN WB63X0365 Contact Us For Availability
211
SIDE INS RETAINER LT GEN WB63X0367 Contact Us For Availability
211
SIDE INS RETAINER RT GEN WB63X0368 Contact Us For Availability
212
GEN WB02K5122 GEN WB02K5122 Contact Us For Availability
217
WIRE COVER UPPER GEN WB02X9569 Contact Us For Availability
220
WIRE COVER REAR GEN WB02X9572 Contact Us For Availability
221
GEN WB02X9574 GEN WB02X9574 Contact Us For Availability
231
INSULATION TOP & SIDES GEN WB02X9676 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9436 Contact Us For Availability
233
BURN BOX EXT INSULATION GEN WB02X9888 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
254
GEN WB17X0215 GEN WB17X0215 Contact Us For Availability
256
OV LAMP HOLDER GEN WB08M0003 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
BOTTOM TRIM GEN WB02X9901 Contact Us For Availability
262
SIDE TRIM LT GEN WB07X1678 Contact Us For Availability
262
SIDE TRIM RT GEN WB07X1679 Contact Us For Availability
275
OV DOOR SEAL GEN WB02X9437 Contact Us For Availability
281
HINGE ASM LT GEN WB14X0134 Contact Us For Availability
281
HINGE ASM RT GEN WB14X0135 Contact Us For Availability
282
GEN WB38M0006 GEN WB38M0006 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0277 Contact Us For Availability
300
GEN WB02M0086 GEN WB02M0086 Contact Us For Availability
595
MOUNTING BRACKET GEN WB02X9577 Contact Us For Availability
600
CONDUIT HARNESS ASM GEN WB18X0369 Contact Us For Availability
802
GEN WB01X1265 GEN WB01X1265 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
874
GEN WB01X1162 GEN WB01X1162 Contact Us For Availability
915
GEN WB01M0024 GEN WB01M0024 Contact Us For Availability
919
GEN WB02X9158 GEN WB02X9158 Contact Us For Availability
928
GEN WB01X1310 GEN WB01X1310 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
987
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
993
SPACER GEN WB02X9575 Contact Us For Availability
999
GEN 31-0718 GEN 31-0718 Contact Us For Availability
999
GEN 31-0832 GEN 31-0832 Contact Us For Availability
999
GEN 49-8146 GEN 49-8146 Contact Us For Availability
999
GEN WB18M0057 GEN WB18M0057 Contact Us For Availability
999
GEN WB18M0058 GEN WB18M0058 Contact Us For Availability
999
GEN WB18M0059 GEN WB18M0059 Contact Us For Availability
× ![]()
