Model Whirlpool JDB1255AWW0 DISHWASHER – Common Parts &amp; Diagrams

1

WP99003083 Whirlpool Dishwasher Wash Cap Backorder WPL WP99003083 $3.94

1

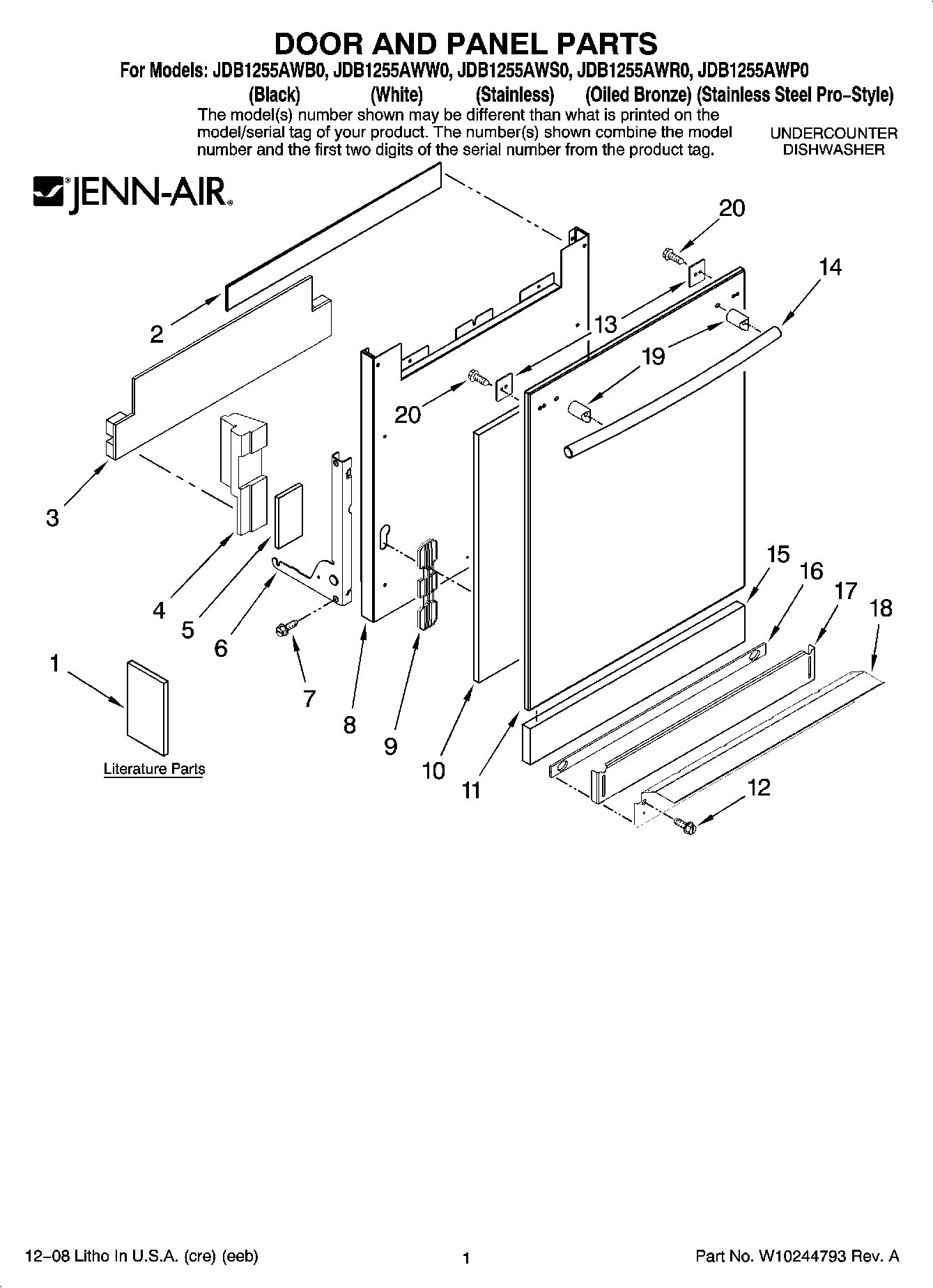

Strike, Door WPL W10119337 Contact Us For Availability

1

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

1

Guide, Use & Care WPL W10157785 Contact Us For Availability

1

Instructions, Installation WPL W10158012 Contact Us For Availability

1

Energy Guide WPL W10208028 Contact Us For Availability

1

SCREW WPL 99002666 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

Board, Control WPL W10218836 Contact Us For Availability

2

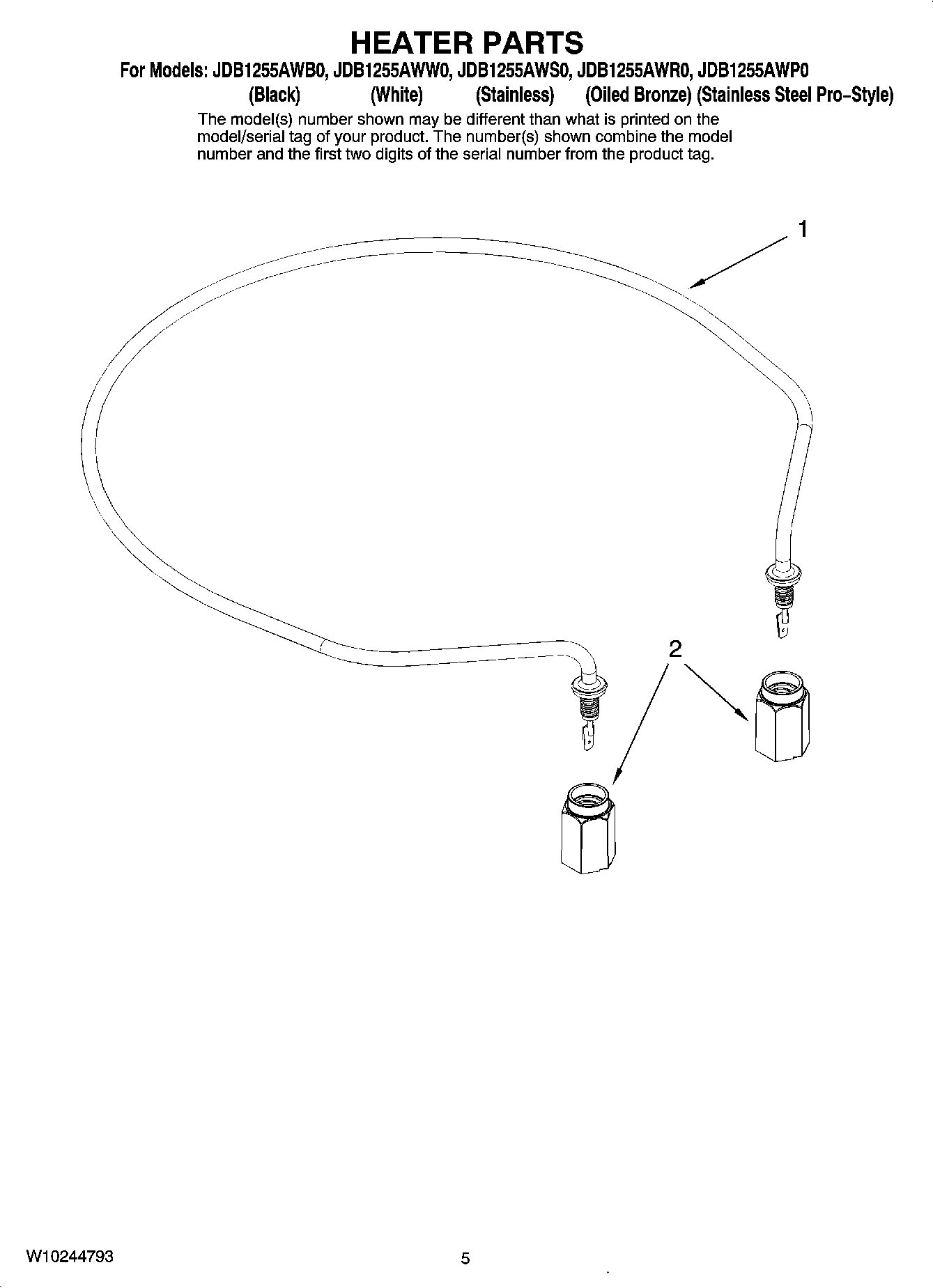

NUT, HEATER WPL 99003033 Contact Us For Availability

2

NOTE: If heater element is removed, it must b WPL ARI3218A36 Contact Us For Availability

2

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

2

Insulation, Door WPL 99002693 Contact Us For Availability

2

Guard, Filter WPL W10166790 Contact Us For Availability

3

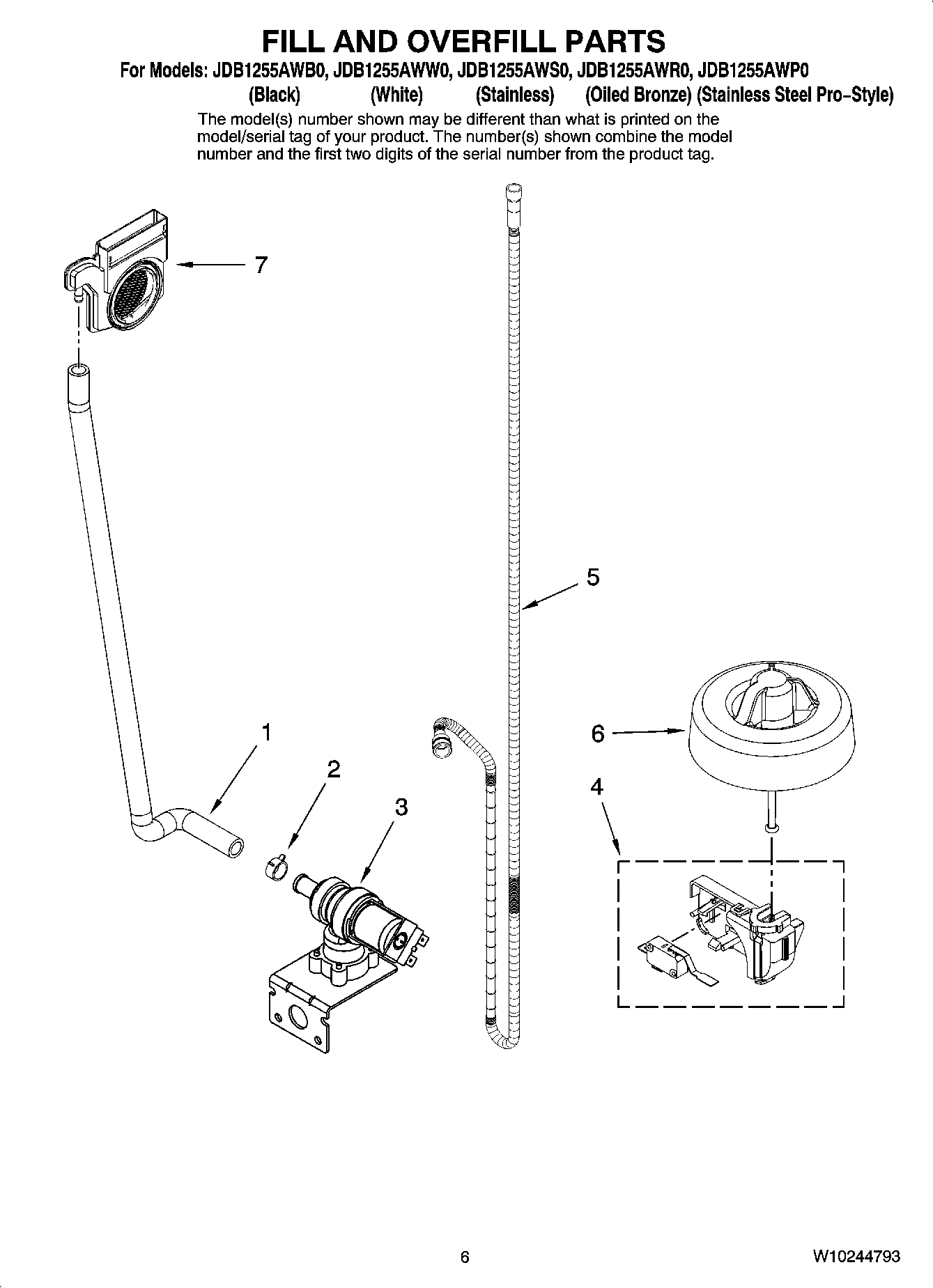

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $74.54

3

Shield, Radiant WPL W10218606 Contact Us For Availability

3

Clamp, Rear Support WPL W10167916 Contact Us For Availability

3

BARRIER, FOAM WPL 99003048 Contact Us For Availability

3

Screw WPL 99002668 Contact Us For Availability

4

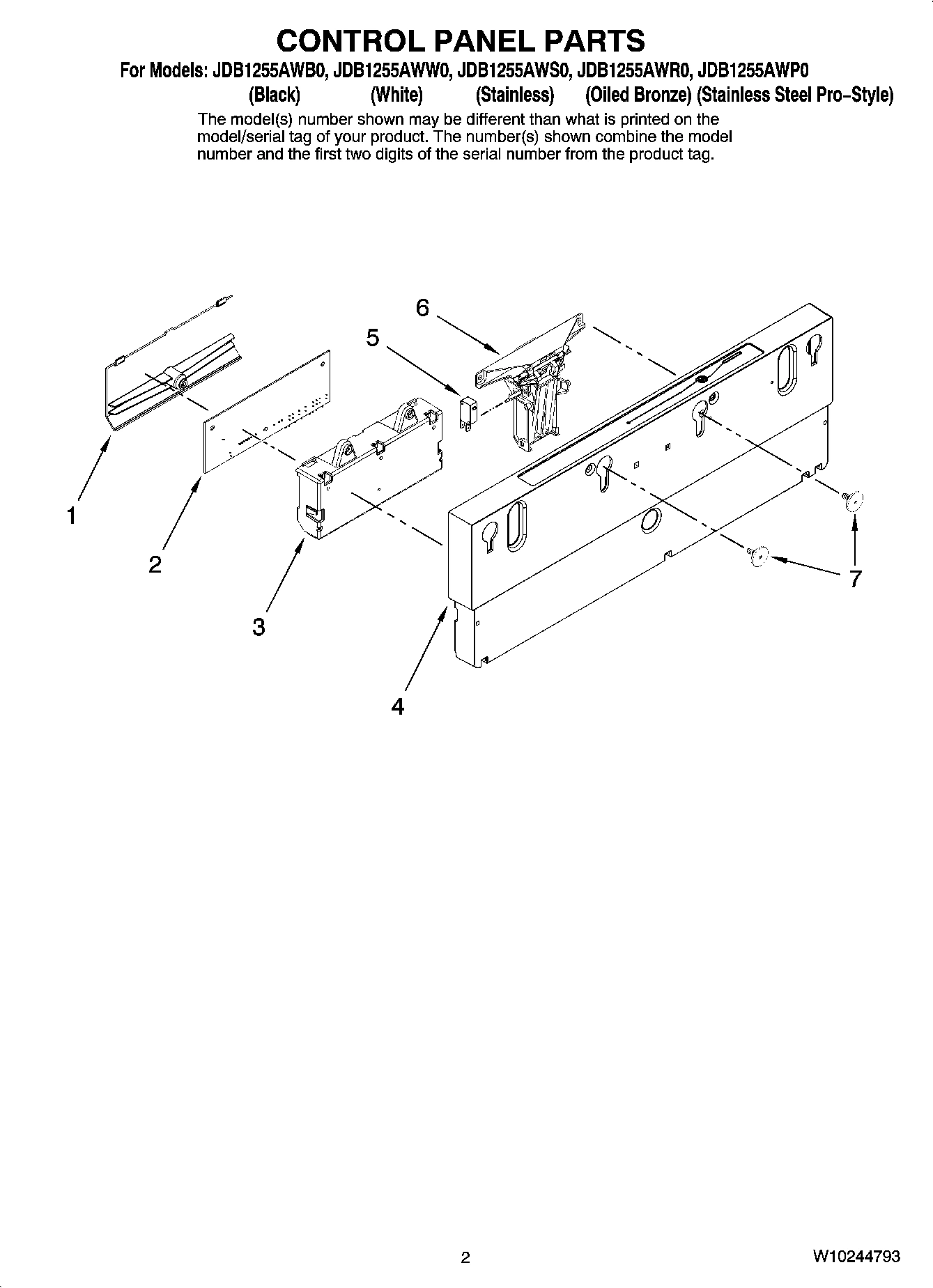

Panel, Control WPL W10161783 Contact Us For Availability

4

Switch, Float WPL W10205539 Contact Us For Availability

4

Stop, Rail WPL W10169391 Contact Us For Availability

4

Block, Foam (Left) WPL 99003046 Contact Us For Availability

4

Block, Foam (Right) WPL 99003047 Contact Us For Availability

4

Discharge, Housing Assembly WPL 99003145 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $72.65

5

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $32.87

5

Bracket, Support WPL 99002636 Contact Us For Availability

5

SWITCH, DOOR WPL 99002751 Contact Us For Availability

5

WRAP, FOAM WPL 99003049 Contact Us For Availability

6

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $101.02

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $130.44

6

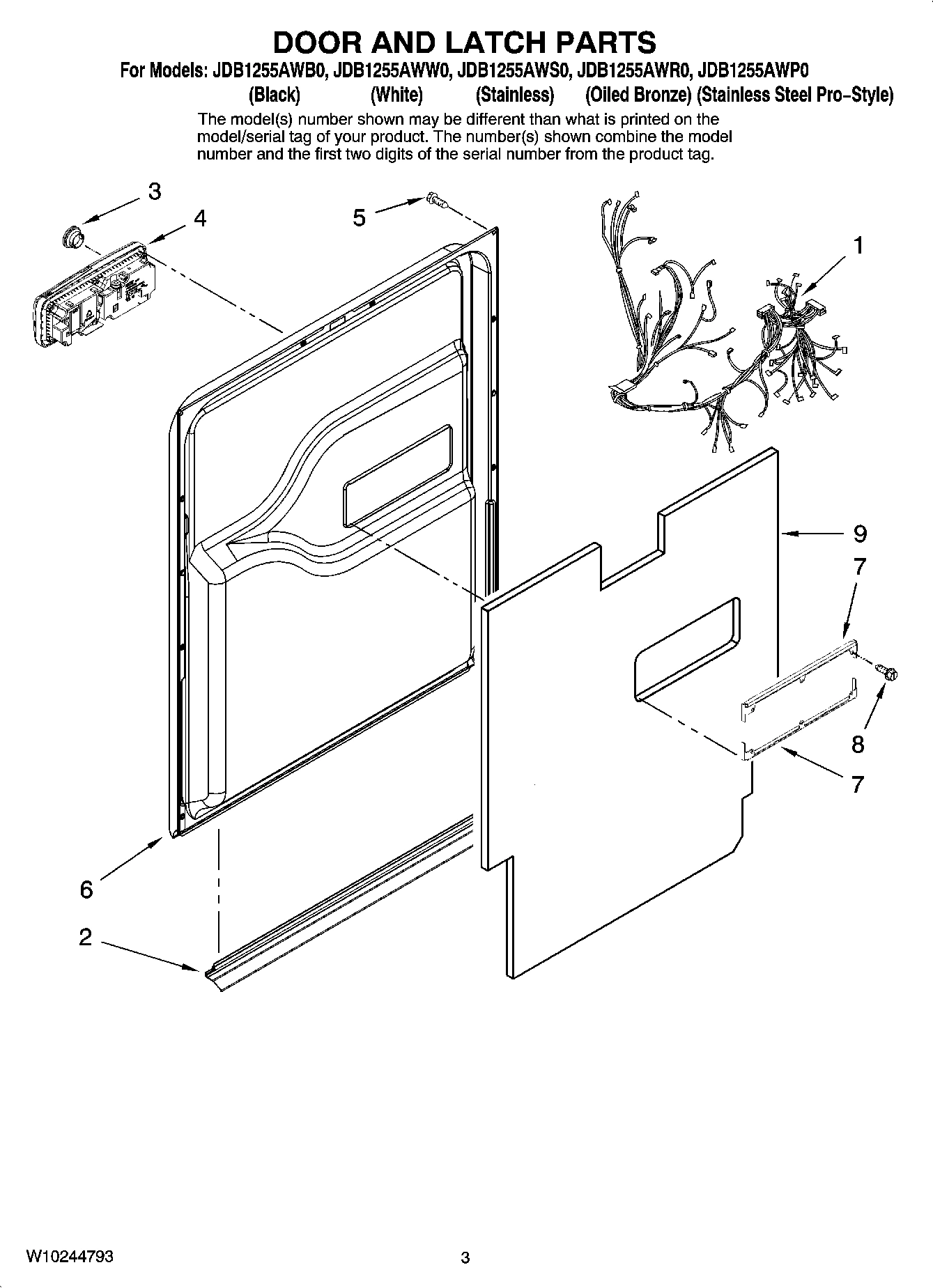

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $34.89

6

FLOAT WPL W10202536 Contact Us For Availability

6

Bracket, Hinge (Left) WPL W10118638 Contact Us For Availability

6

Trim, Corner Edge (Left) WPL 99003038 Contact Us For Availability

7

Basket, Auxillary WPL W10171451 Contact Us For Availability

7

INLET, AIR/WATER WPL 99003028 Contact Us For Availability

7

Nut WPL 99003688 Contact Us For Availability

7

FASTENER, PANEL WPL 99003096 Contact Us For Availability

7

SCREW WPL 99001075 Contact Us For Availability

7

GASKET, MOTOR MOUNT WPL 99003055 Contact Us For Availability

8

Rail, Inner Slide WPL W10144736 Contact Us For Availability

8

LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability

8

Bracket, Cable WPL W10173920 Contact Us For Availability

8

Support, Inner Door WPL 99003094 Contact Us For Availability

9

ANCHOR, PANEL FASTENER WPL 99003095 Contact Us For Availability

9

PLUNGER, MOTOR MOUNT WPL 99003057 Contact Us For Availability

10

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $10.94

10

Bolt, Shoulder WPL 99003687 Contact Us For Availability

10

PAD, FOAM WPL 99003093 Contact Us For Availability

WP99003118 Whirlpool Door Spring Backorder WPL WP99003118 $12.33

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $145.78

Panel, Front (Black) WPL 99003090 Contact Us For Availability

Panel, Front (White) WPL 99003092 Contact Us For Availability

Panel, Front (S.Steel(Pro-Style)) WPL 99003486 Contact Us For Availability

Panel, Front (Oiled Bronze) WPL W10111560 Contact Us For Availability

Panel, Front (Stainless) WPL W10166535 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $2.55

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $3.88

Screw (White) WPL 99001194 Contact Us For Availability

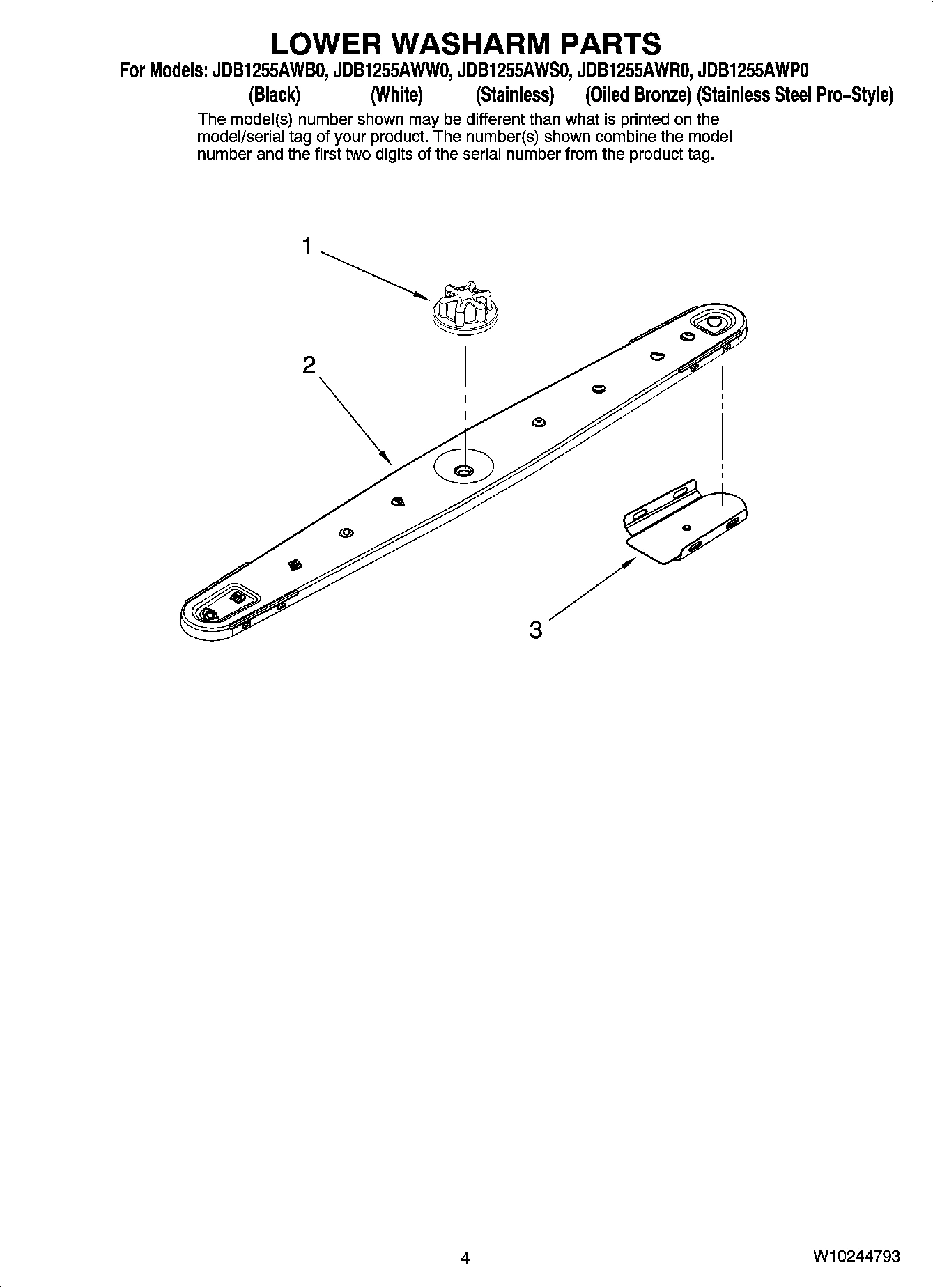

Pivot, Wash Arm WPL 99003697 Contact Us For Availability

W10167659 Whirlpool Dishwasher Plate Backorder WPL W10167659 $10.42

Screw WPL 99002664 Contact Us For Availability

Gap Seal, Toe Kick (Black) WPL 99002701 Contact Us For Availability

Gap Seal, Toe Kick (White) WPL 99002703 Contact Us For Availability

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $45.42

Handle, Door (S.Steel (Pro- Style Assy)) WPL 99003125 Contact Us For Availability

Handle, Door (S.Steel) WPL W10191101 Contact Us For Availability

CHOPPER WPL 99003427 Contact Us For Availability

15

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $2.42

15

WP99003337 Whirlpool Door Seal Backorder WPL WP99003337 $106.28

15

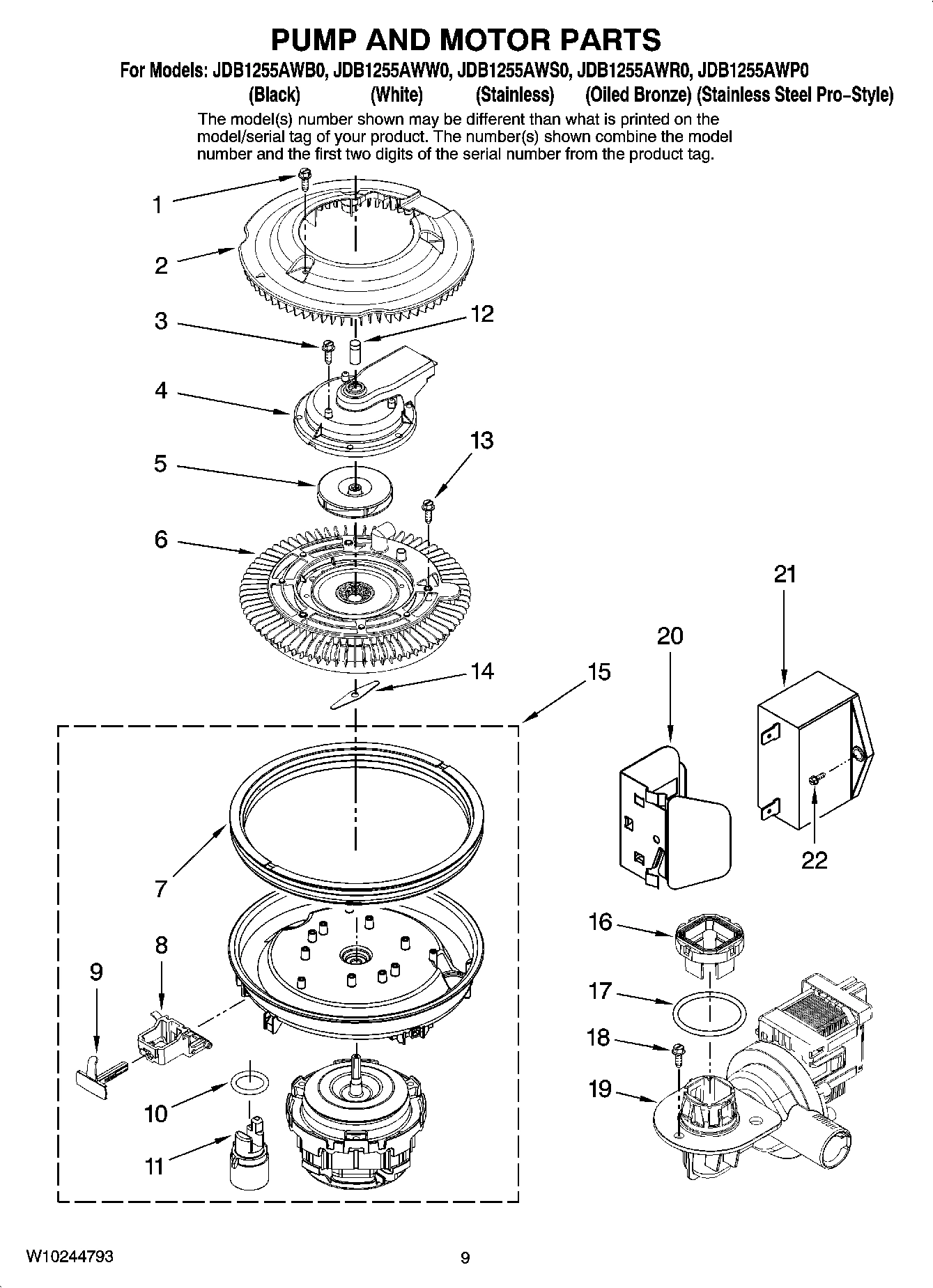

Wash Motor Assy. WPL 6919962 Contact Us For Availability

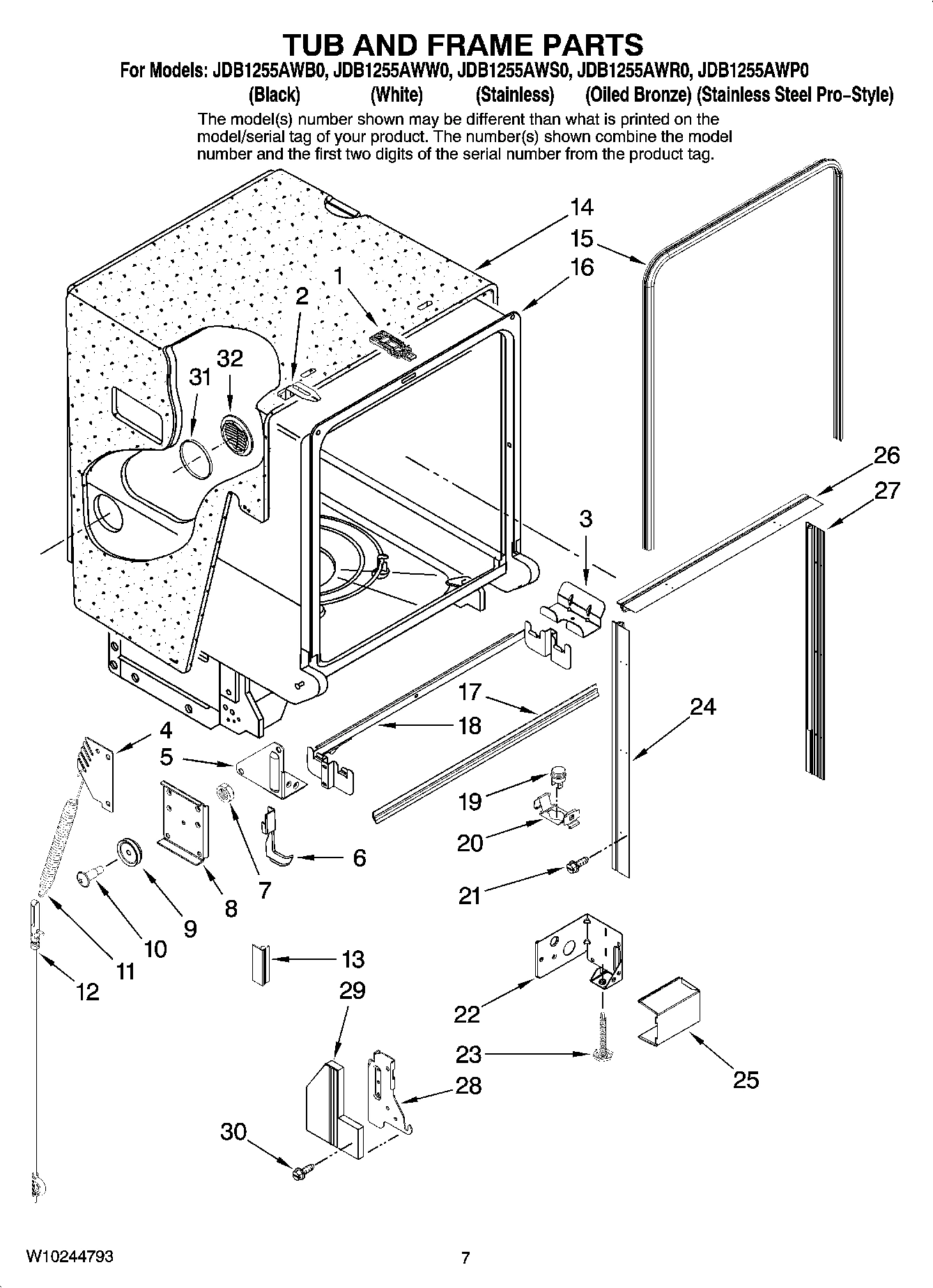

Tub Assembly (Not Serviced) WPL W10142298 Contact Us For Availability

Damper, Toe Panel (Black) WPL 99002694 Contact Us For Availability

Damper, Toe Panel (White) WPL 99002698 Contact Us For Availability

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $51.50

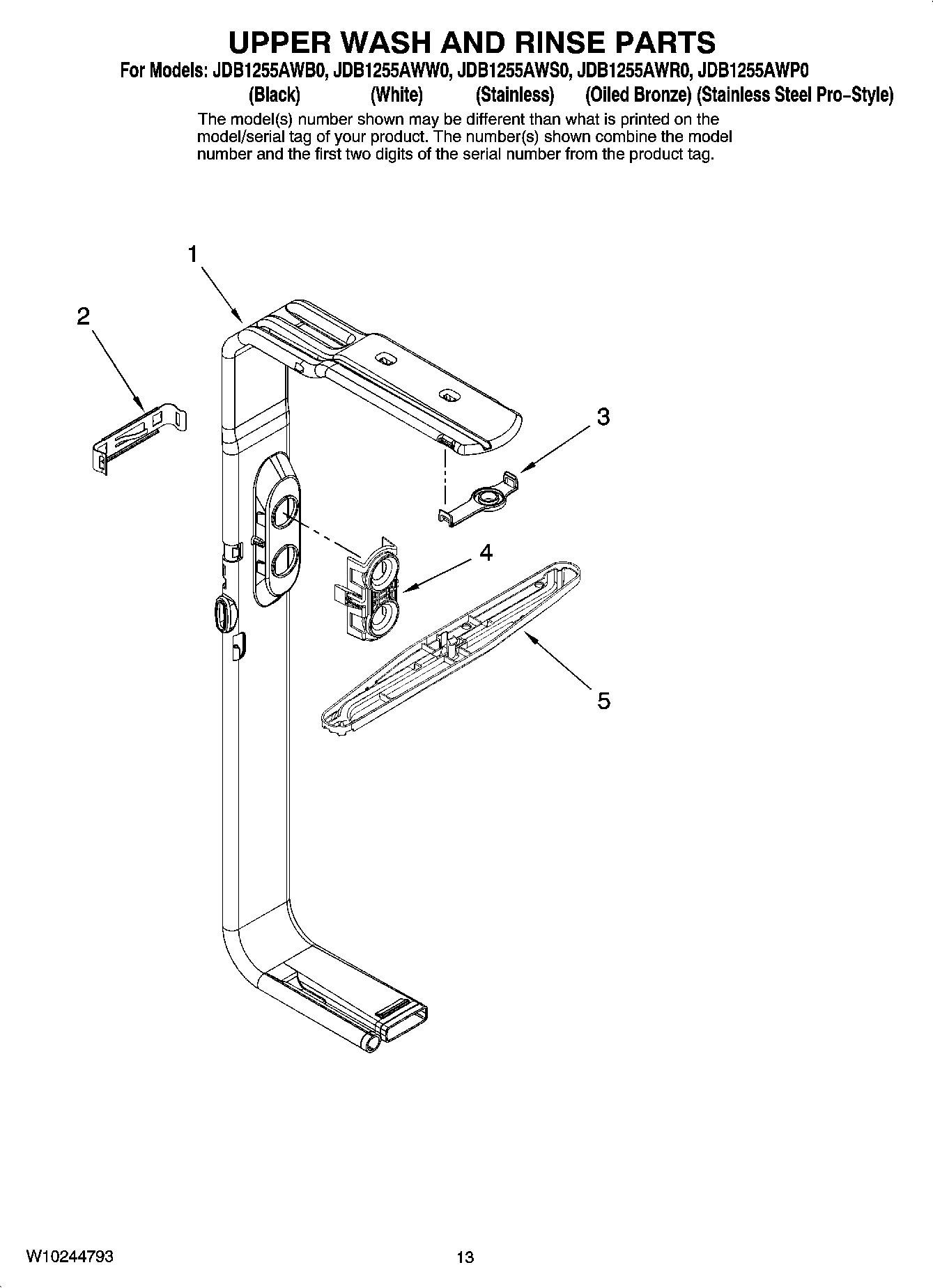

Wash Manifold Assembly WPL 99003142 Contact Us For Availability

Panel, Toe (Includes Item 16) (Black) WPL 99002765 Contact Us For Availability

Panel, Toe (Includes Item 16) (White) WPL 99002766 Contact Us For Availability

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

Bracket, Support (Rear) WPL W10167660 Contact Us For Availability

Clip, Manifold (Back) WPL 99003071 Contact Us For Availability

Support, Front (Black) WPL 99002591 Contact Us For Availability

Support, Front (White) WPL 99002593 Contact Us For Availability

Screw WPL 99002740 Contact Us For Availability

Clip, Manifold (Front) WPL 99003072 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

Stud, Handle WPL Y6918667 Contact Us For Availability

Drain Pump Assy. WPL 99003141 Contact Us For Availability

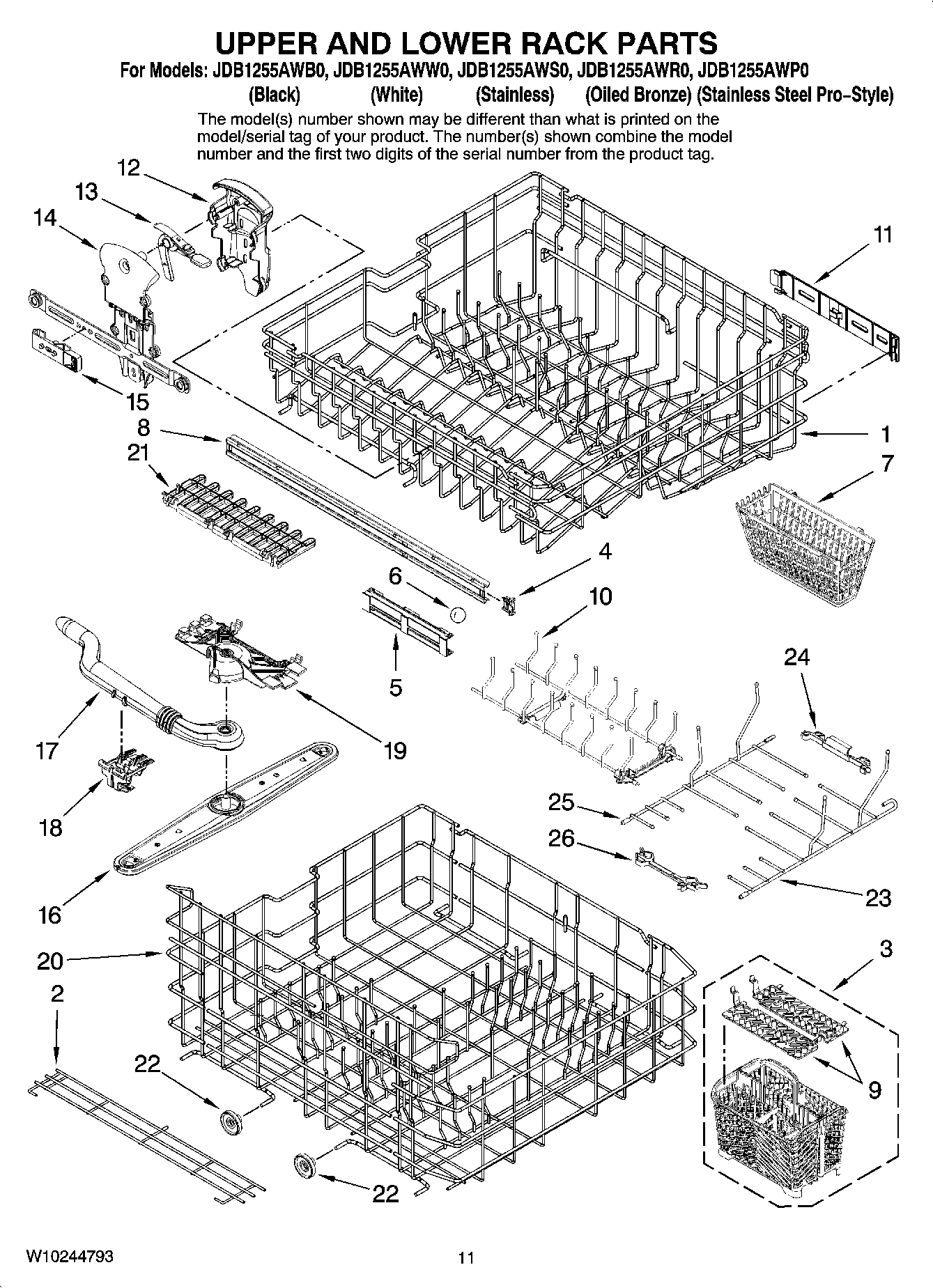

Dishrack, Lower (Includes 21 & 22) WPL W10203856 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

Screw WPL 99003154 Contact Us For Availability

Shield, Capacitor WPL W10167912 Contact Us For Availability

21

Shelf, Cup (Lower) WPL 99003252 Contact Us For Availability

21

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

21

Capacitor WPL 99002665 Contact Us For Availability

22

Wheel Assembly WPL 6918869 Contact Us For Availability

22

Bracket, Junction Box WPL 99002637 Contact Us For Availability

22

Screw WPL 99002601 Contact Us For Availability

23

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.45

23

Tine, Convertible WPL W10191632 Contact Us For Availability

24

Pivot, Tine WPL 6918856 Contact Us For Availability

24

STRIP, TRIM LEFT WPL W10164700 Contact Us For Availability

25

Tine, Convertible (Rear) WPL W10191635 Contact Us For Availability

25

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

26

Latch, Convertible Tine WPL W10191636 Contact Us For Availability

26

STRIP, TRIM TOP WPL W10164702 Contact Us For Availability

27

STRIP, TRIM RIGHT WPL W10164701 Contact Us For Availability

28

Support, Hinge (Right) WPL W10117484 Contact Us For Availability

28

Support, Hinge (Left) WPL W10117485 Contact Us For Availability

29

Backer, Hinge (Left) WPL W10174569 Contact Us For Availability

29

Backer, Hinge (Right) WPL W10174581 Contact Us For Availability

30

Screw WPL 99003155 Contact Us For Availability

32

GRILL,AIR/WATER INLET WPL 99003078 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.52

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.95

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $22.42

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.52

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $38.43

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $42.48
