Model JDB1255AWR10 – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS

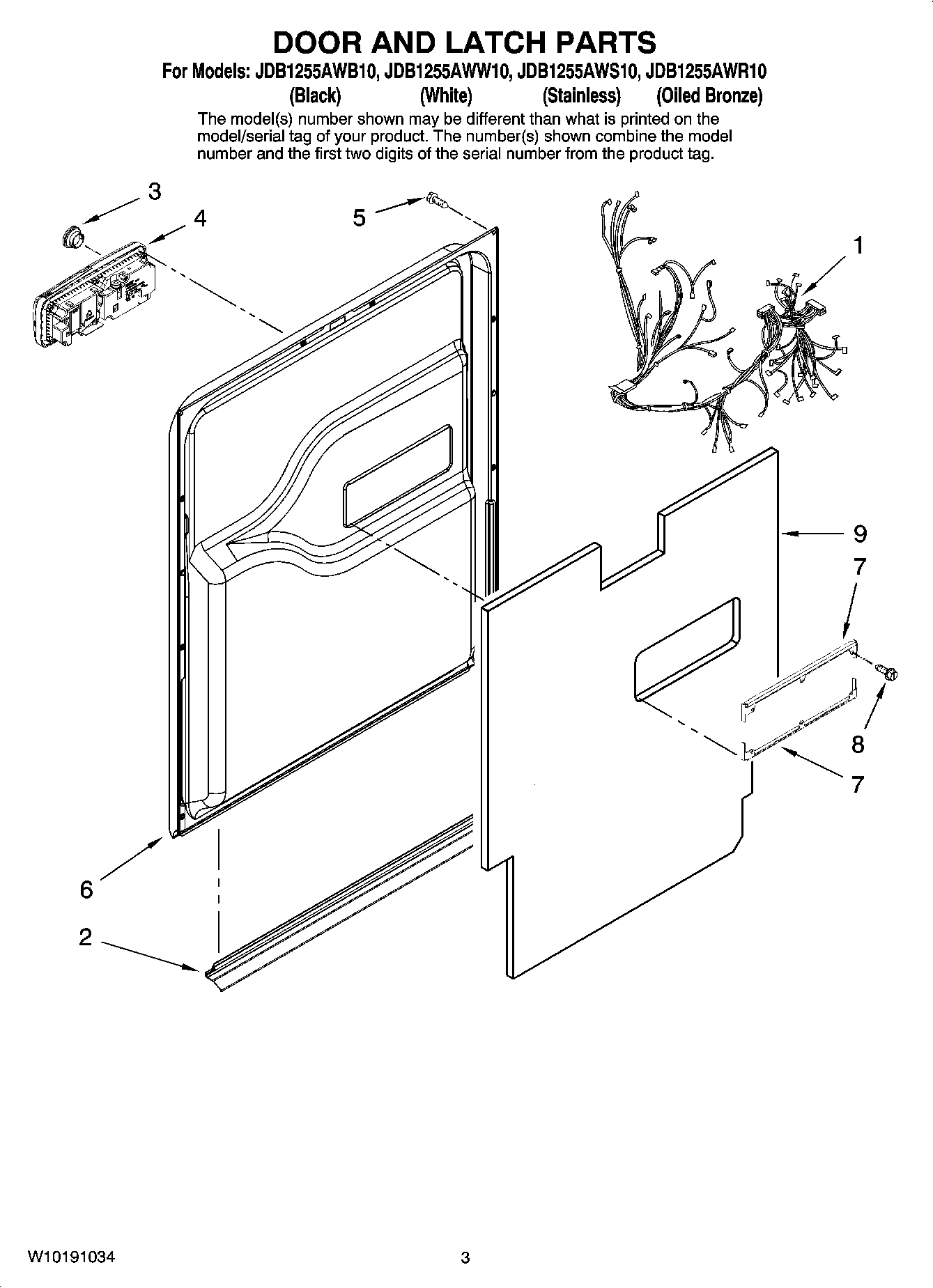

03 - DOOR AND LATCH PARTS

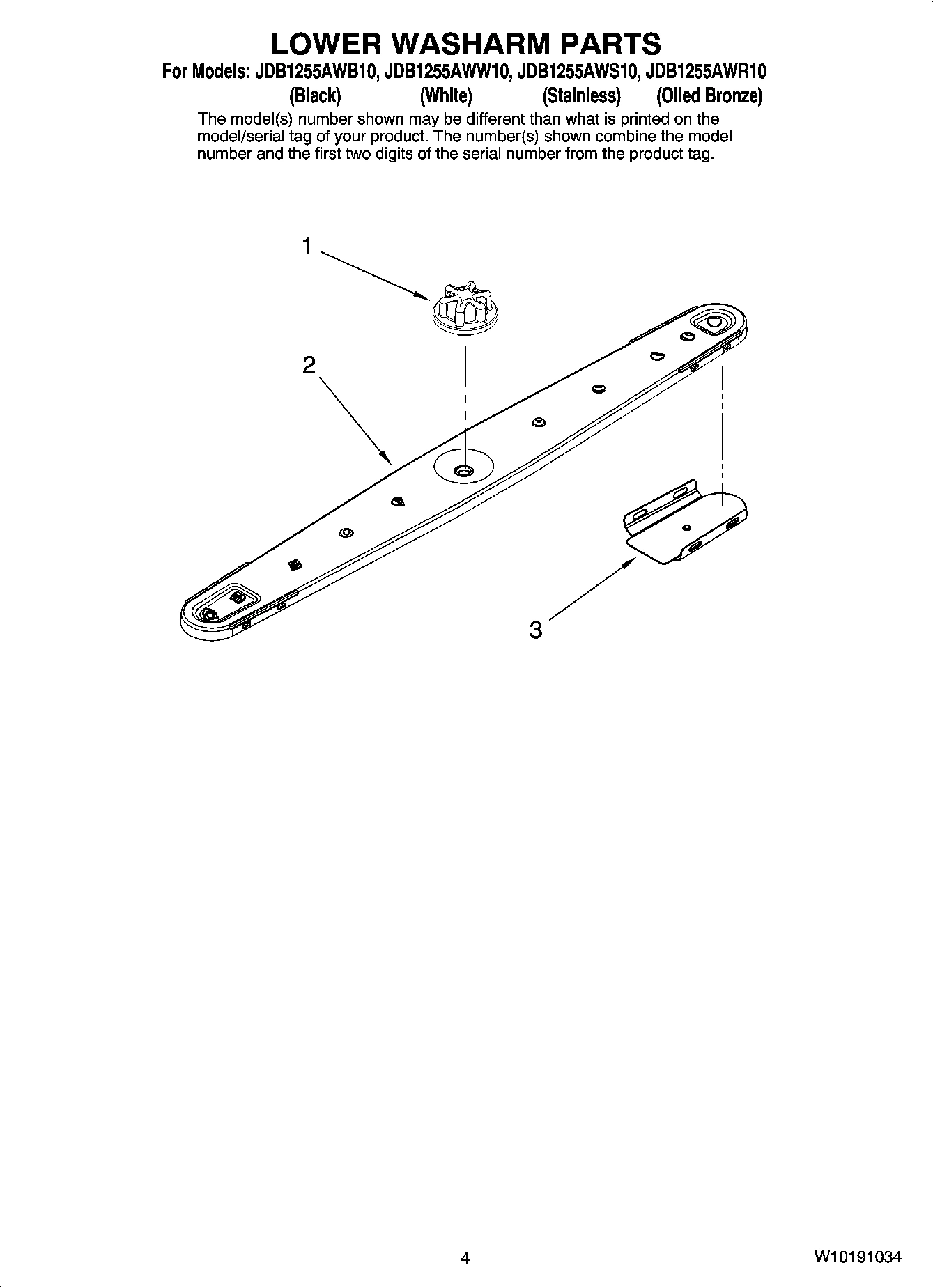

04 - LOWER WASHARM PARTS

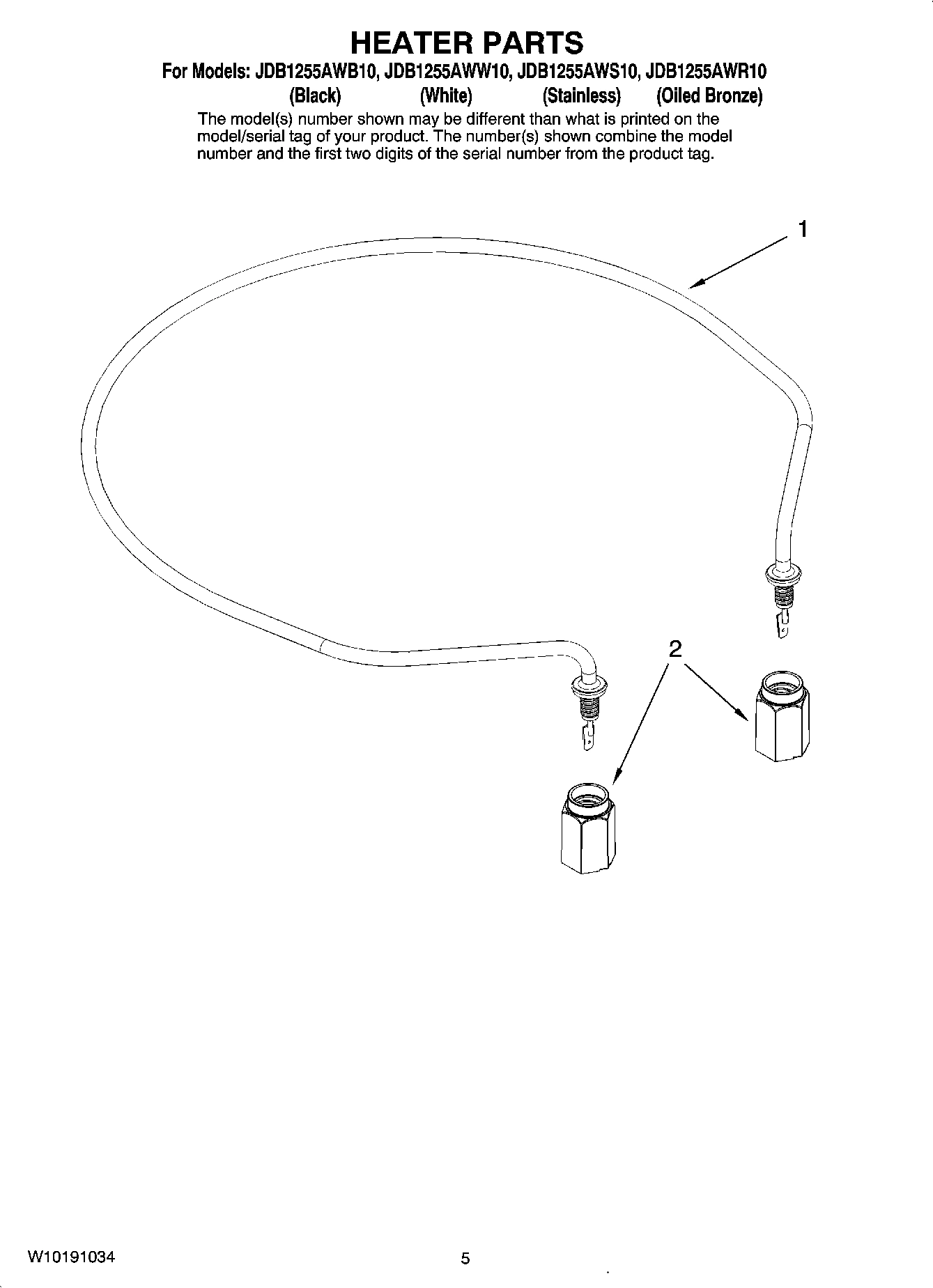

05 - HEATER PARTS

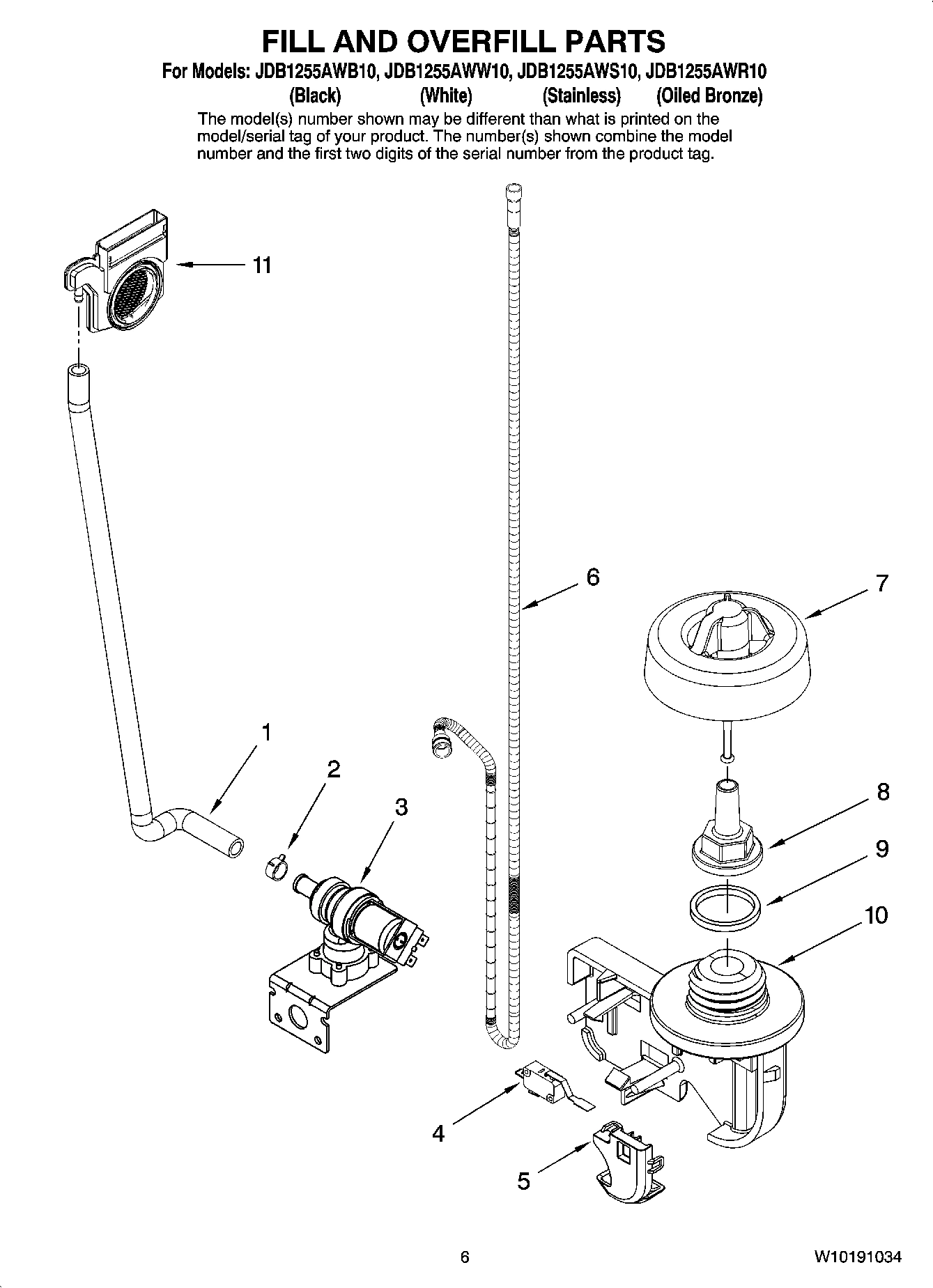

06 - FILL AND OVERFILL PARTS

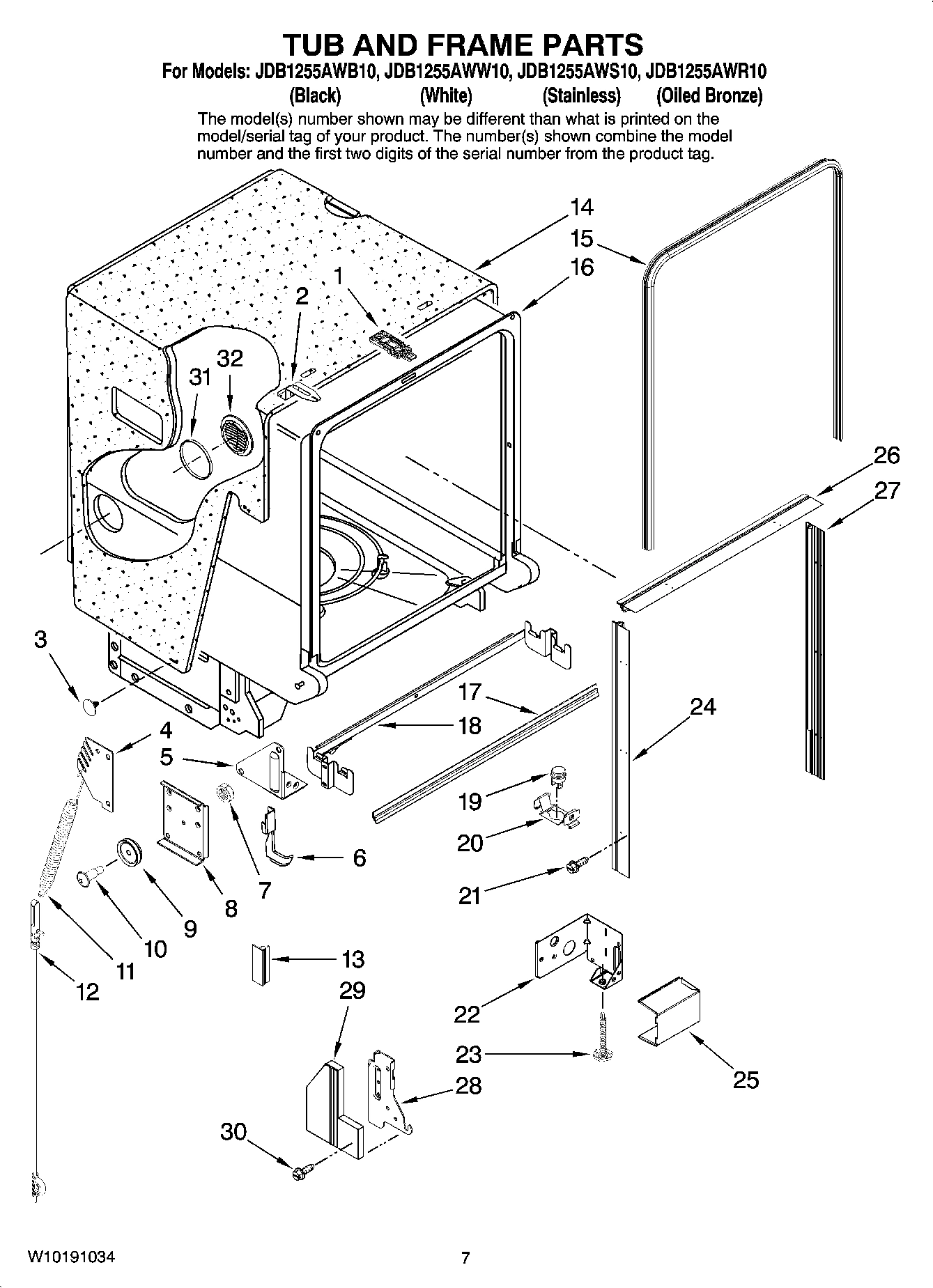

07 - TUB AND FRAME PARTS

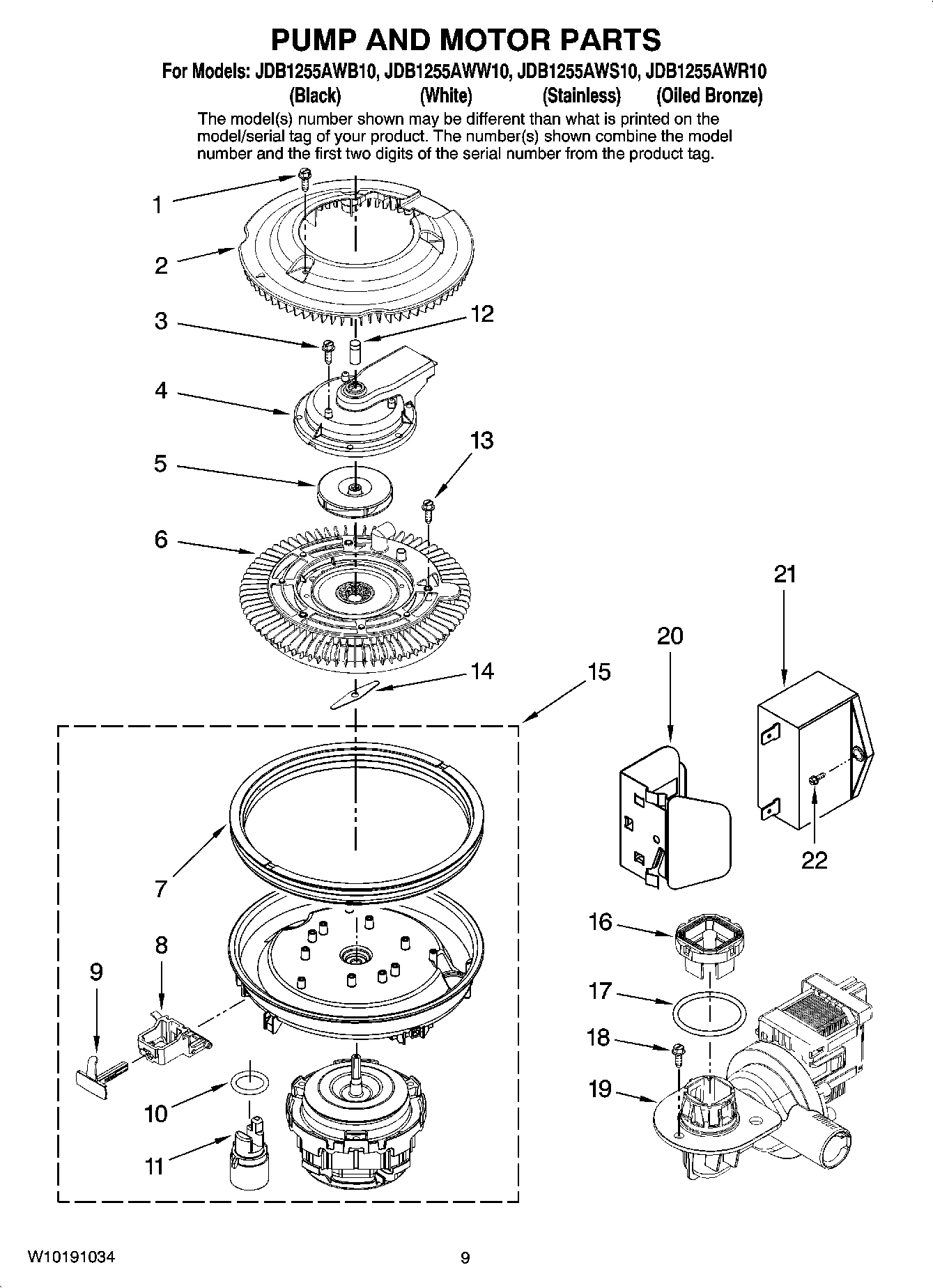

08 - PUMP AND MOTOR PARTS

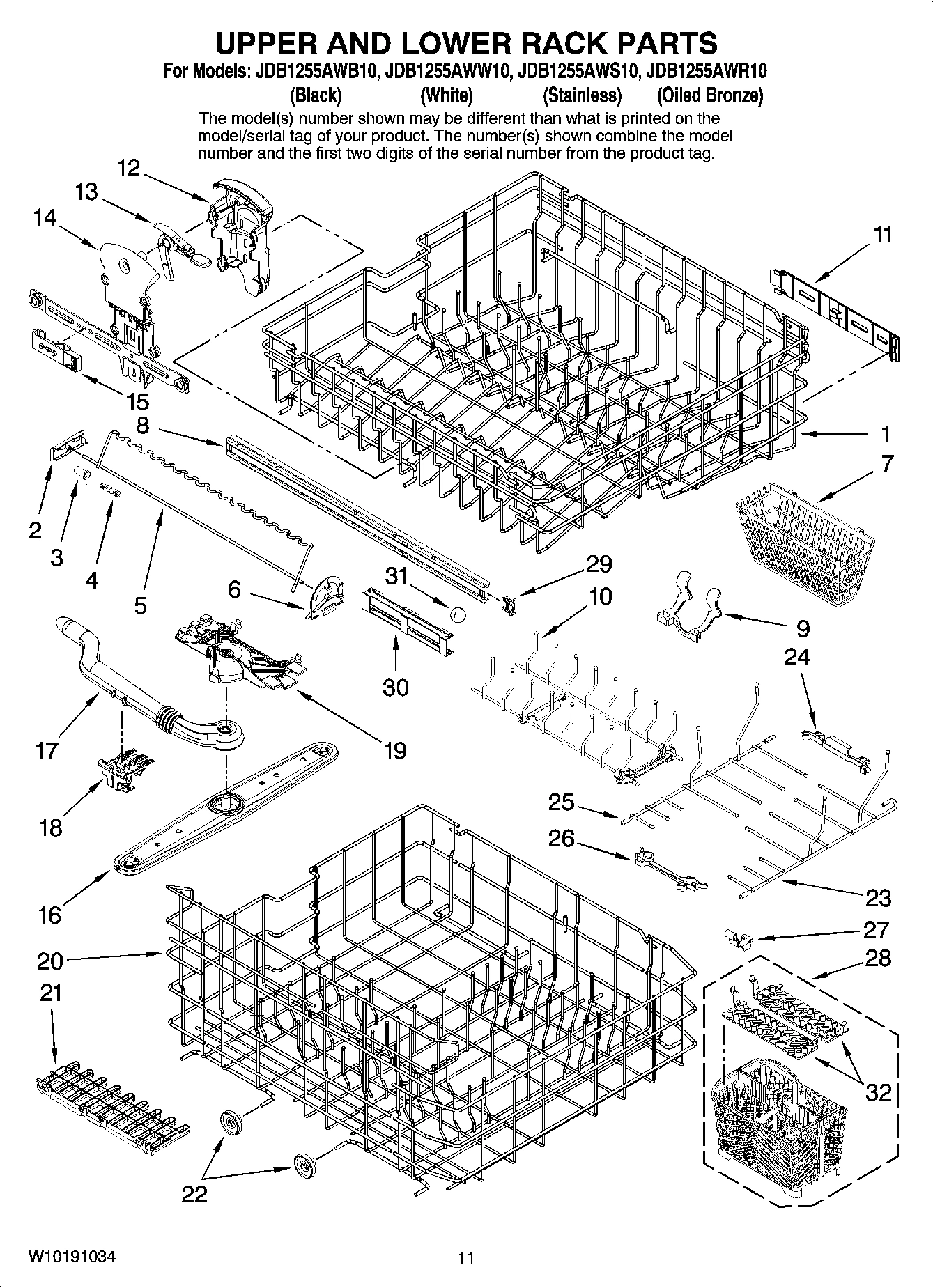

09 - UPPER AND LOWER RACK PARTS
10 - UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)
