Model Maytag JDB1095AWB1 DISHWASHER – Common Parts & Diagrams

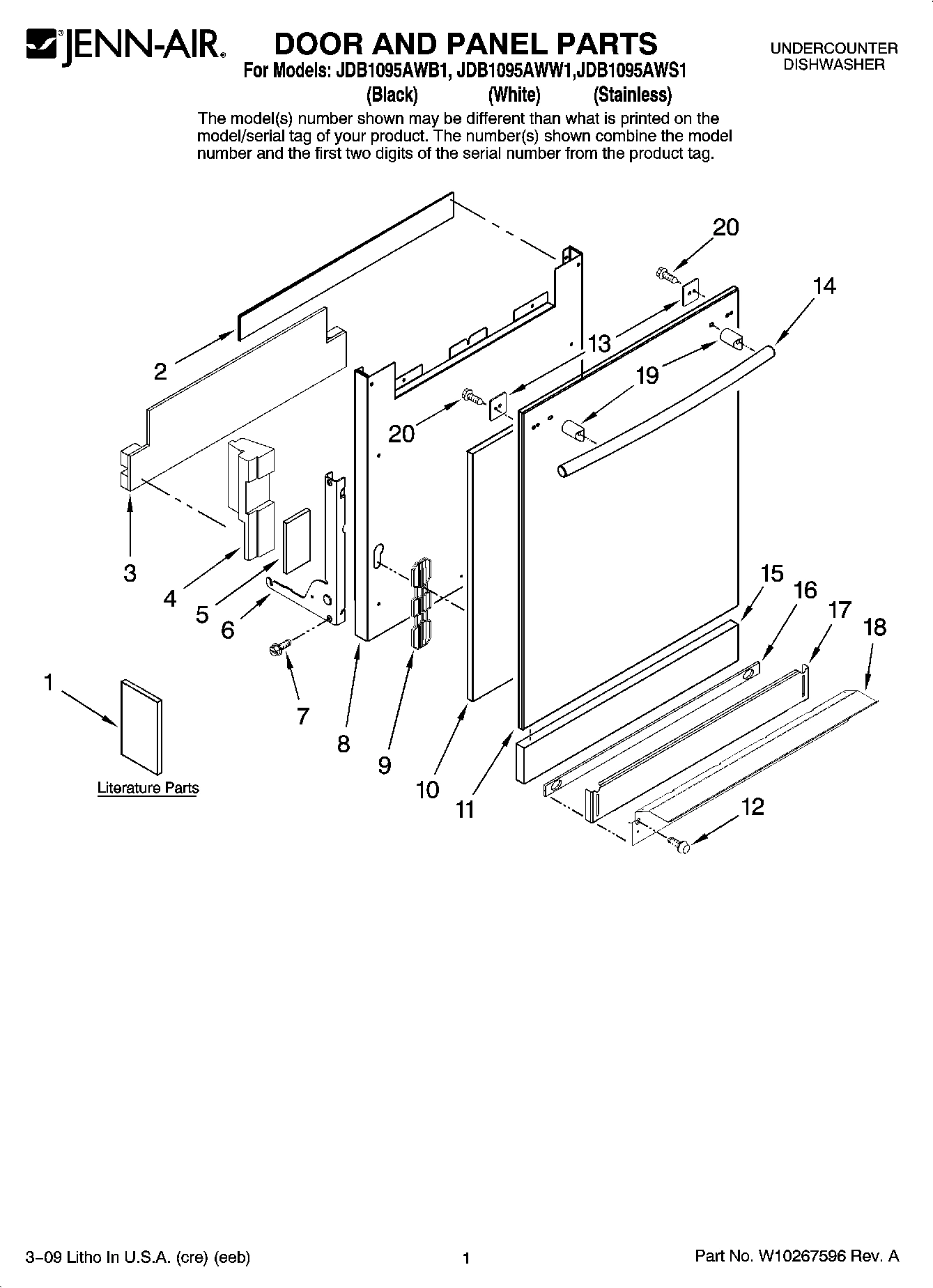

01 - DOOR AND PANEL PARTS

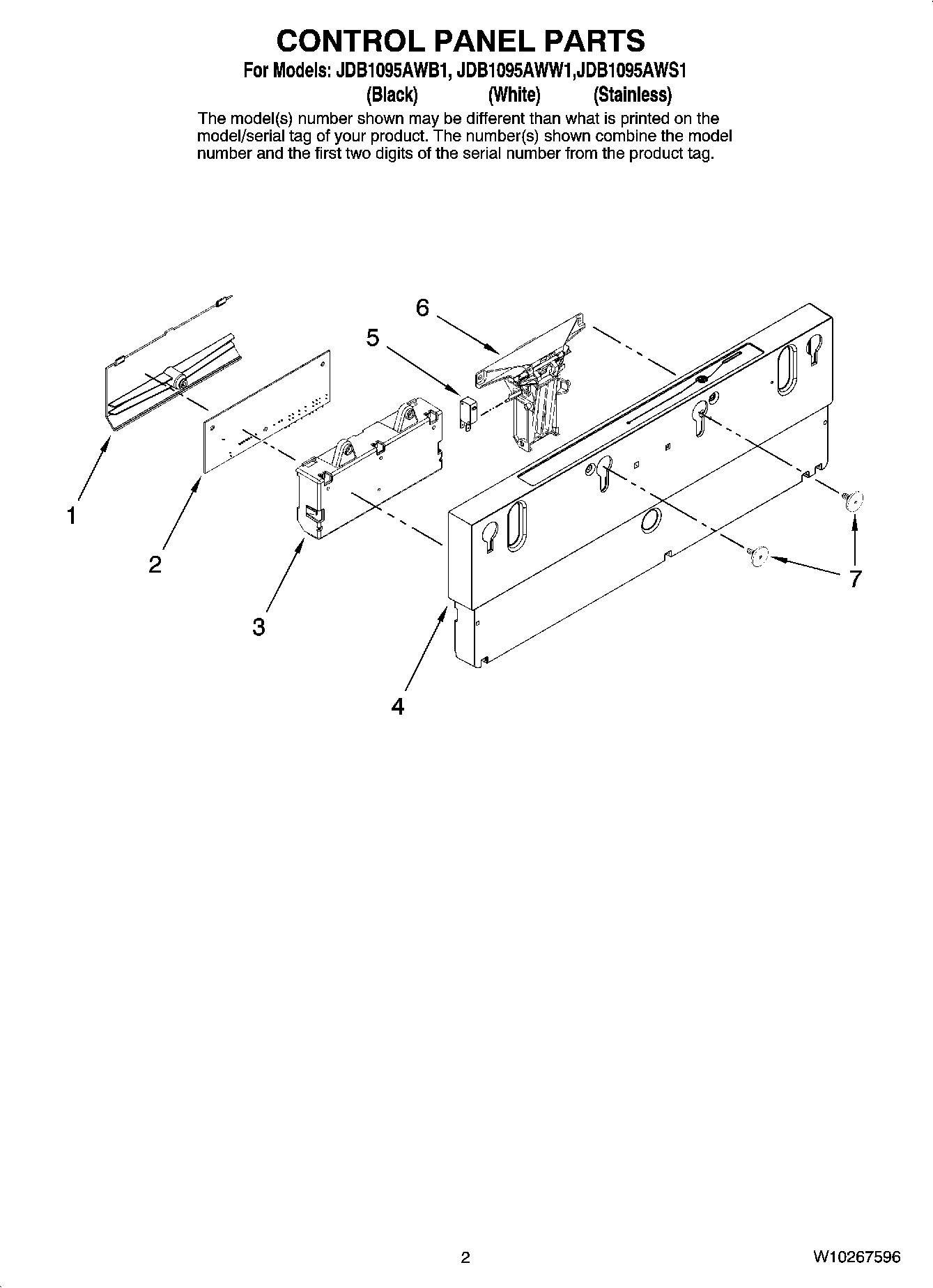

02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
04 - LOWER WASHARM PARTS
05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS
07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS
09 - UPPER AND LOWER RACK PARTS
10 - UPPER WASH AND RINSE PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB1095AWB1 DISHWASHER
1
MAY 99002852 MAY 99002852 Contact Us For Availability
1
MAY 99003083 MAY 99003083 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
MAY W10214026 MAY W10214026 Contact Us For Availability
1
Feed Tube Assembly MAY 99003081 Contact Us For Availability
2
Seal, Door (Bottom) MAY 99003045 Contact Us For Availability
2
MAY 99003033 MAY 99003033 Contact Us For Availability
2
MAY 99002648 MAY 99002648 Contact Us For Availability
2
MAY W10166790 MAY W10166790 Contact Us For Availability
2
MAY W10144736 MAY W10144736 Contact Us For Availability
3
MAY 99002753 MAY 99002753 Contact Us For Availability
3
MAY 99002576 MAY 99002576 Contact Us For Availability
3
MAY W10218606 MAY W10218606 Contact Us For Availability
3
MAY 99003032 MAY 99003032 Contact Us For Availability
3
MAY 6-912799 MAY 6-912799 Contact Us For Availability
3
MAY 99002668 MAY 99002668 Contact Us For Availability
4
Switch, Float MAY W10205539 Contact Us For Availability
4
MAY W10212444 MAY W10212444 Contact Us For Availability
4
MAY 99003252 MAY 99003252 Contact Us For Availability
4
Station, Docking (with Flapper) MAY 99003143 Contact Us For Availability
5
MAY 99002751 MAY 99002751 Contact Us For Availability
5
Bracket, Support MAY 99002636 Contact Us For Availability
5
MAY W10141603 MAY W10141603 Contact Us For Availability
5
Wash Arm, Top (with Retainer) MAY 99002911 Contact Us For Availability
6
Trim, Corner Edge (Left) MAY 99003038 Contact Us For Availability
6
Trim, Corner Edge (Right) MAY 99003039 Contact Us For Availability
6
MAY W10120976 MAY W10120976 Contact Us For Availability
6
MAY W10130099 MAY W10130099 Contact Us For Availability
6
MAY W10192800 MAY W10192800 Contact Us For Availability
6
MAY W10169391 MAY W10169391 Contact Us For Availability
7
MAY 99003028 MAY 99003028 Contact Us For Availability
7
MAY 99002465 MAY 99002465 Contact Us For Availability
7
MAY 99003688 MAY 99003688 Contact Us For Availability
8
MAY 912615 MAY 912615 Contact Us For Availability
8
MAY W10173920 MAY W10173920 Contact Us For Availability
8
MAY 99003056 MAY 99003056 Contact Us For Availability
8
Wash Manifold Assembly MAY 99003142 Contact Us For Availability
9
MAY 99002608 MAY 99002608 Contact Us For Availability
9
MAY 99003057 MAY 99003057 Contact Us For Availability
9
MAY 99003044 MAY 99003044 Contact Us For Availability
9
MAY 99003040 MAY 99003040 Contact Us For Availability
10
MAY W10130109 MAY W10130109 Contact Us For Availability
10
MAY 99003687 MAY 99003687 Contact Us For Availability
10
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
11
MAY W10120019 MAY W10120019 Contact Us For Availability
11
MAY W10203870 MAY W10203870 Contact Us For Availability
12
MAY 99001194 MAY 99001194 Contact Us For Availability
12
MAY 99003697 MAY 99003697 Contact Us For Availability
12
MAY 6-918869 MAY 6-918869 Contact Us For Availability
13
Gap Seal, Toe Kick (Black) MAY 99002701 Contact Us For Availability
13
Gap Seal, Toe Kick (White) MAY 99002703 Contact Us For Availability
13
MAY 99002664 MAY 99002664 Contact Us For Availability
13
MAY W10171736 MAY W10171736 Contact Us For Availability
14
MAY 99003069 MAY 99003069 Contact Us For Availability
14
MAY 99003427 MAY 99003427 Contact Us For Availability
15
MAY 99003068 MAY 99003068 Contact Us For Availability
15
MAY W10118627 MAY W10118627 Contact Us For Availability
16
Damper, Toe Panel (Black) MAY 99002694 Contact Us For Availability
16
Tub Assembly (Not Serviced) MAY W10142298 Contact Us For Availability
16
MAY 99003309 MAY 99003309 Contact Us For Availability
17
MAY 99002857 MAY 99002857 Contact Us For Availability
18
MAY 99002740 MAY 99002740 Contact Us For Availability
18
MAY W10167660 MAY W10167660 Contact Us For Availability
19
MAY 99002633 MAY 99002633 Contact Us For Availability
19
MAY W10200518 MAY W10200518 Contact Us For Availability
20
MAY W10167658 MAY W10167658 Contact Us For Availability
20
MAY W10167912 MAY W10167912 Contact Us For Availability
21
MAY 99002665 MAY 99002665 Contact Us For Availability
21
MAY 99002692 MAY 99002692 Contact Us For Availability
22
MAY 99002637 MAY 99002637 Contact Us For Availability
22
MAY 99002601 MAY 99002601 Contact Us For Availability
23
MAY W10143258 MAY W10143258 Contact Us For Availability
24
STRIP, TRIM LEFT MAY W10164700 Contact Us For Availability
25
MAY 99002638 MAY 99002638 Contact Us For Availability
26
MAY W10164702 MAY W10164702 Contact Us For Availability
27
STRIP, TRIM RIGHT MAY W10164701 Contact Us For Availability
28
MAY W10117484 MAY W10117484 Contact Us For Availability
28
MAY W10117485 MAY W10117485 Contact Us For Availability
29
Backer, Hinge (Left) MAY W10174569 Contact Us For Availability
29
Backer, Hinge (Right) MAY W10174581 Contact Us For Availability
30
MAY 99003155 MAY 99003155 Contact Us For Availability
32
MAY 6-918397 MAY 6-918397 Contact Us For Availability
33
MAY W10167916 MAY W10167916 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4396277 MAY 4396277 Contact Us For Availability
NI
MAY 4396897RP MAY 4396897RP Contact Us For Availability
NI
MAY 4396897RW MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 8212486 MAY 8212486 Contact Us For Availability
NI
MAY 8212488RC MAY 8212488RC Contact Us For Availability
× ![]()
