Model GE JCSP39WW1WW – Common Parts & Diagrams
BLOWER
BODY PARTS

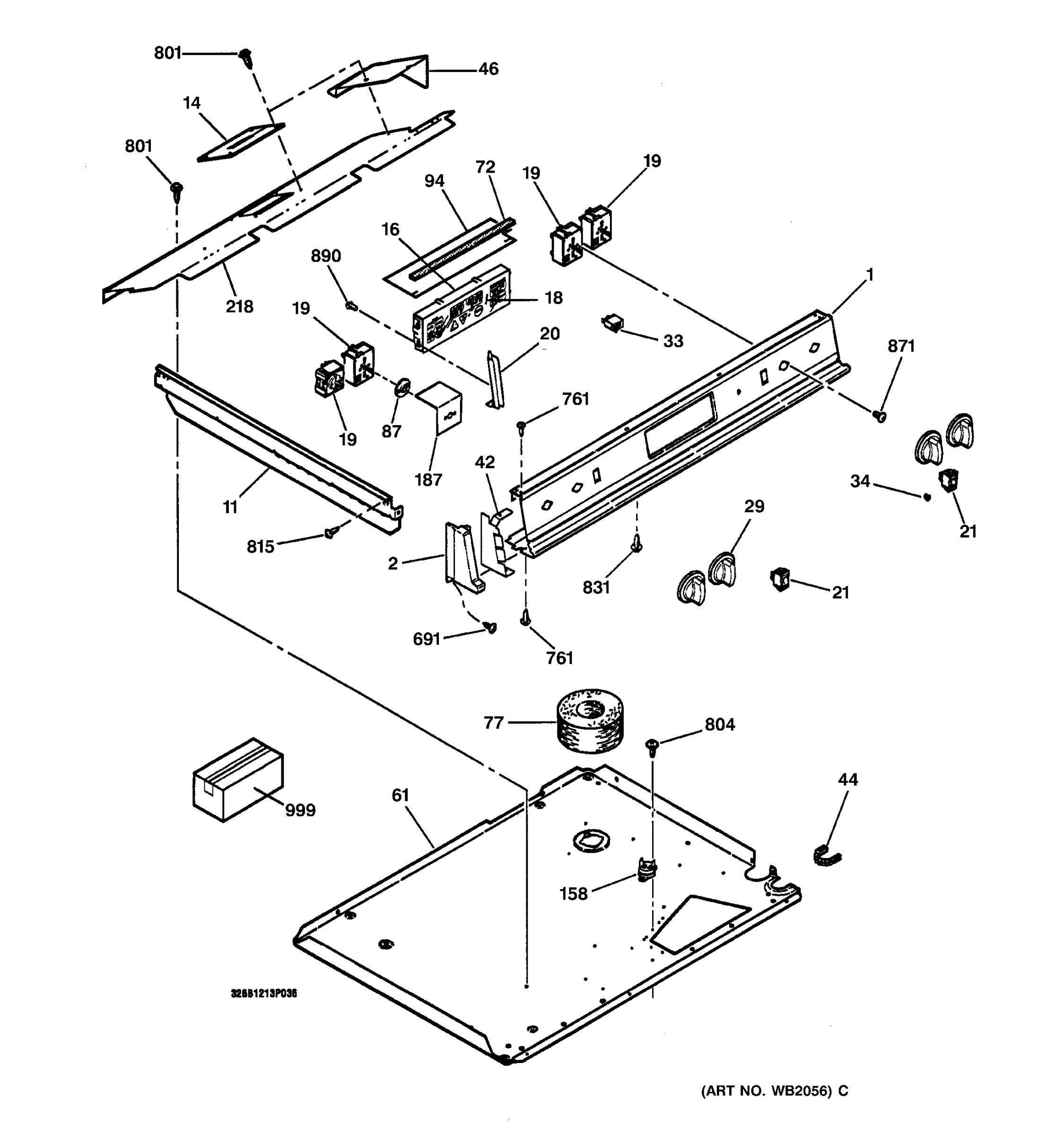

CONTROL PANEL

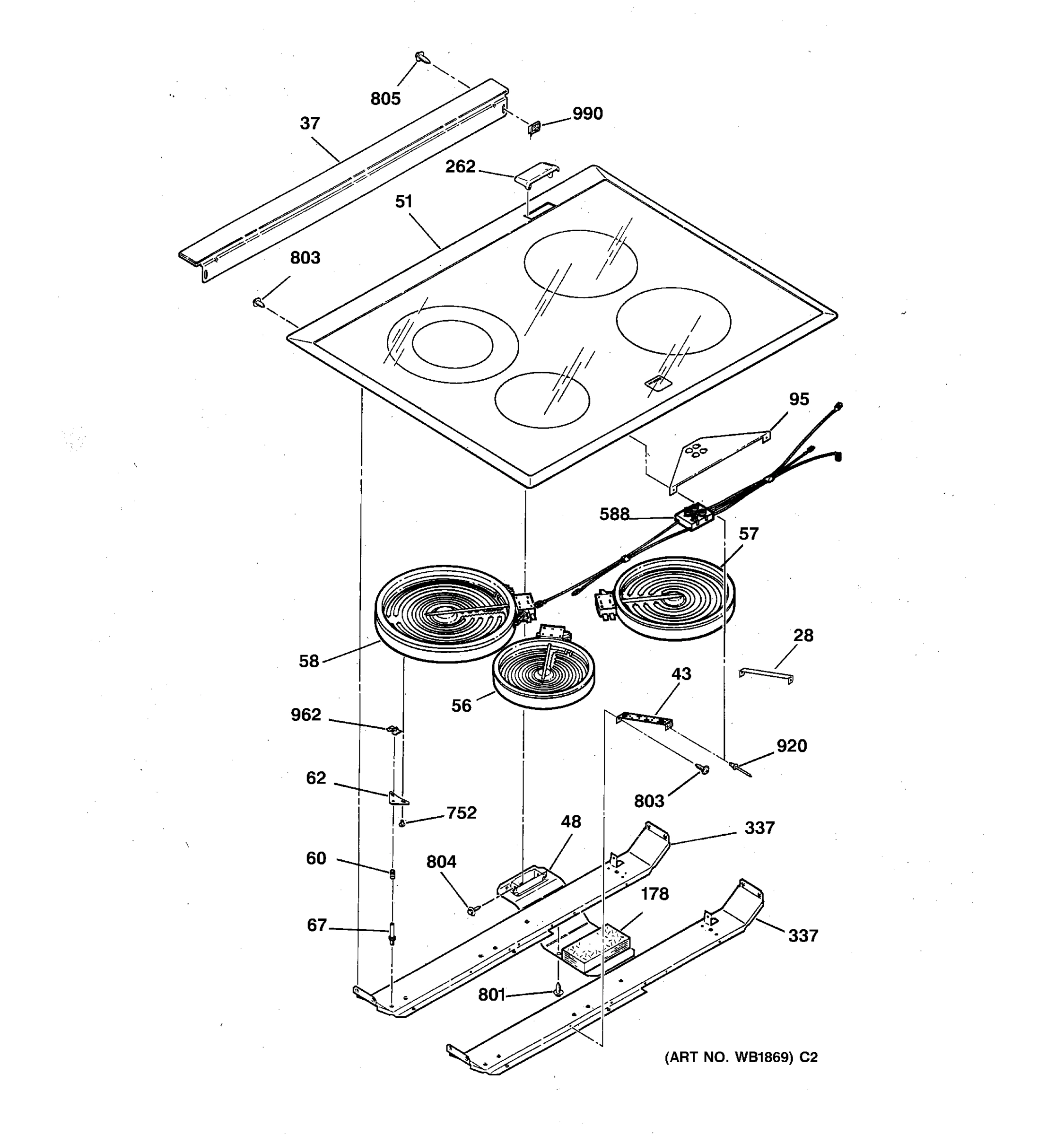

COOKTOP
DOOR

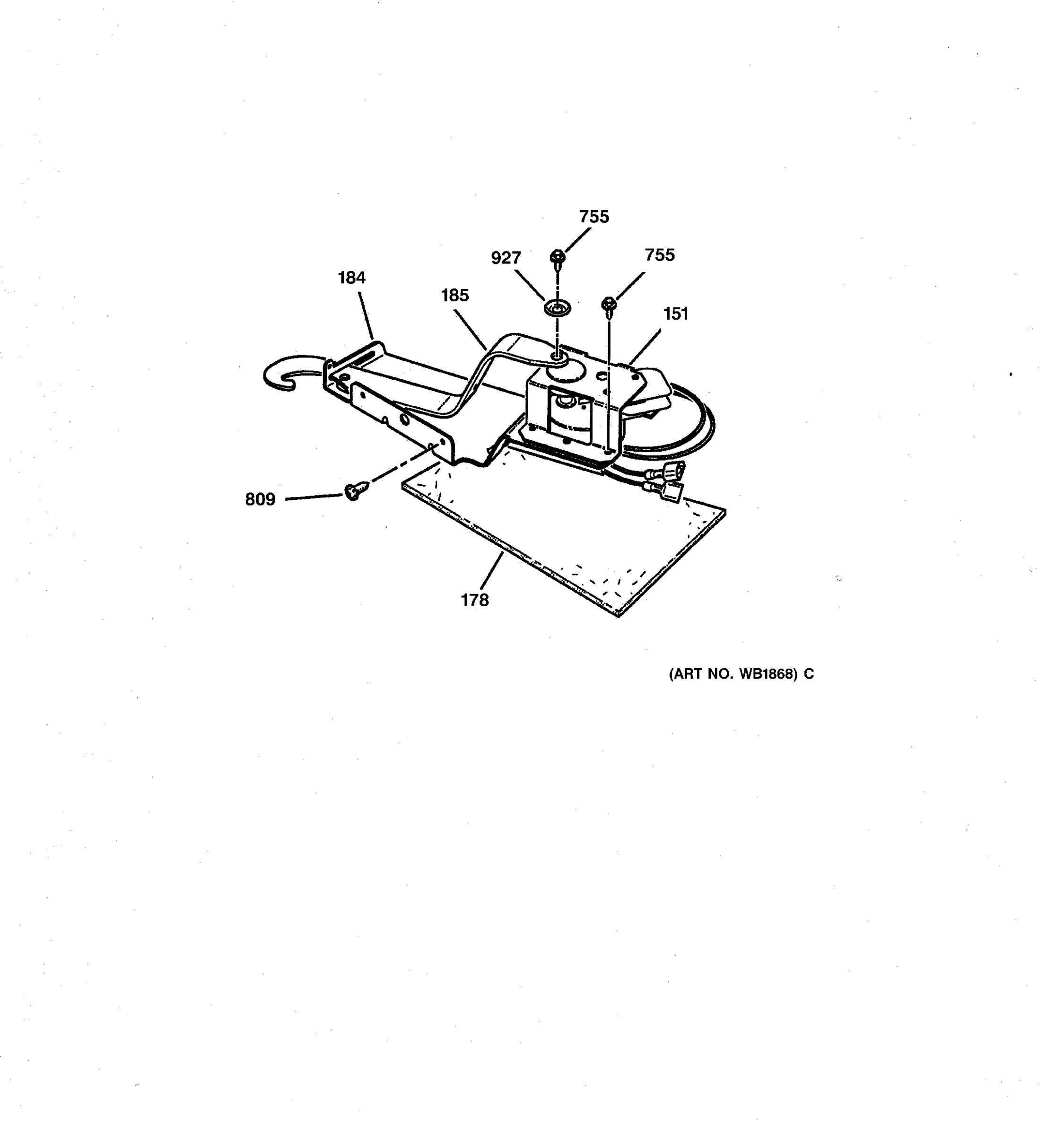

LOCK
Common parts from model GE JCSP39WW1WW
1
GEN WB36K5677 GEN WB36K5677 Contact Us For Availability
2
GEN WB36K5411 GEN WB36K5411 Contact Us For Availability
2
GEN WB36K5410 GEN WB36K5410 Contact Us For Availability
11
SIDE EXTENSION GEN WB64K5038 Contact Us For Availability
14
GEN WB34K5120 GEN WB34K5120 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB27K5328 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
19
CONTROL ELEMENT 2400W GEN WB24M0025 Contact Us For Availability
20
GEN WB02M0075 GEN WB02M0075 Contact Us For Availability
21
GEN WB24K5064 GEN WB24K5064 Contact Us For Availability
28
GEN WB02K5280 GEN WB02K5280 Contact Us For Availability
29
GEN WB03K5258 GEN WB03K5258 Contact Us For Availability
37
GEN WB36K5579 GEN WB36K5579 Contact Us For Availability
42
GEN WB34K5128 GEN WB34K5128 Contact Us For Availability
42
GEN WB34K5250 GEN WB34K5250 Contact Us For Availability
42
GEN WB34K5251 GEN WB34K5251 Contact Us For Availability
43
GEN WB35K5131 GEN WB35K5131 Contact Us For Availability
44
GROMMET STRIP GEN WB02X9725 Contact Us For Availability
46
GEN WB34K5111 GEN WB34K5111 Contact Us For Availability
48
GEN WB38K5031 GEN WB38K5031 Contact Us For Availability
51
GEN WB61K5018 GEN WB61K5018 Contact Us For Availability
60
GEN WB09K5014 GEN WB09K5014 Contact Us For Availability
61
GEN WB61K5101 GEN WB61K5101 Contact Us For Availability
62
GEN WB02K5318 GEN WB02K5318 Contact Us For Availability
62
GEN WB02M0083 GEN WB02M0083 Contact Us For Availability
72
GEN WB06K5014 GEN WB06K5014 Contact Us For Availability
77
GEN WB32M0016 GEN WB32M0016 Contact Us For Availability
94
GEN WB34K5153 GEN WB34K5153 Contact Us For Availability
95
GEN WB02K5407 GEN WB02K5407 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
105
GEN WB07K5476 GEN WB07K5476 Contact Us For Availability
111
GEN WB55K5037 GEN WB55K5037 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5234 GEN WB57K5234 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
GEN WB35K5104 GEN WB35K5104 Contact Us For Availability
136
HANDLE HYDROFORM WHITE GEN WB15X5226 Contact Us For Availability
140
GEN WB55K5053 GEN WB55K5053 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
158
LIMIT SWITCH GEN WB24M0015 Contact Us For Availability
178
GEN WB35M0015 GEN WB35M0015 Contact Us For Availability
178
GEN WB35M0023 GEN WB35M0023 Contact Us For Availability
187
GEN WB34M0036 GEN WB34M0036 Contact Us For Availability
202
GEN WB63M0057 GEN WB63M0057 Contact Us For Availability
203
GEN WB63M0056 GEN WB63M0056 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0038 GEN WB02M0038 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
GEN WB34M0041 GEN WB34M0041 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
218
GEN WB34K5133 GEN WB34K5133 Contact Us For Availability
219
GEN WB34K5221 GEN WB34K5221 Contact Us For Availability
220
GEN WB34K5262 GEN WB34K5262 Contact Us For Availability
221
GEN WB63K5192 GEN WB63K5192 Contact Us For Availability
221
GEN WB63K5195 GEN WB63K5195 Contact Us For Availability
222
GEN WB56K5017 GEN WB56K5017 Contact Us For Availability
226
DRAWER HANDLE-WHITE GEN WB15K5082 Contact Us For Availability
228
GEN WB35K5122 GEN WB35K5122 Contact Us For Availability
229
GEN WB35K5136 GEN WB35K5136 Contact Us For Availability
230
GEN WB35M0014 GEN WB35M0014 Contact Us For Availability
231
GEN WB02X9676 GEN WB02X9676 Contact Us For Availability
232
GEN WB35K5113 GEN WB35K5113 Contact Us For Availability
233
GEN WB35M0024 GEN WB35M0024 Contact Us For Availability
234
GEN WB35M0017 GEN WB35M0017 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
262
GEN WB07K5301 GEN WB07K5301 Contact Us For Availability
262
GEN WB07K5302 GEN WB07K5302 Contact Us For Availability
262
GEN WB07K5514 GEN WB07K5514 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
GEN WB02M0080 GEN WB02M0080 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
271
GEN W02X9749 GEN W02X9749 Contact Us For Availability
273
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
282
GEN WB38M0014 GEN WB38M0014 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
290
GEN WB63M0021 GEN WB63M0021 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
337
GEN WB02K5374 GEN WB02K5374 Contact Us For Availability
554
GEN WB08X5034 GEN WB08X5034 Contact Us For Availability
588
GEN WB18K5639 GEN WB18K5639 Contact Us For Availability
691
GEN WB01K5192 GEN WB01K5192 Contact Us For Availability
761
GEN WB01K5185 GEN WB01K5185 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
GEN WB01K5179 GEN WB01K5179 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
871
GEN WB01K5122 GEN WB01K5122 Contact Us For Availability
936
GEN WB02M0021 GEN WB02M0021 Contact Us For Availability
962
PUSH ON CLIP GEN WB17M0004 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
999
OWNER'S MANUAL GEN 31-10210 Contact Us For Availability
999
GEN 31-10213 GEN 31-10213 Contact Us For Availability
999
GEN 31-13414 GEN 31-13414 Contact Us For Availability
999
GEN WB18K5318 GEN WB18K5318 Contact Us For Availability
999
GEN WB18K5319 GEN WB18K5319 Contact Us For Availability
999
GEN WB18K5595 GEN WB18K5595 Contact Us For Availability
999
GEN WB18K5640 GEN WB18K5640 Contact Us For Availability
999
GEN WB18K5661 GEN WB18K5661 Contact Us For Availability
× ![]()
