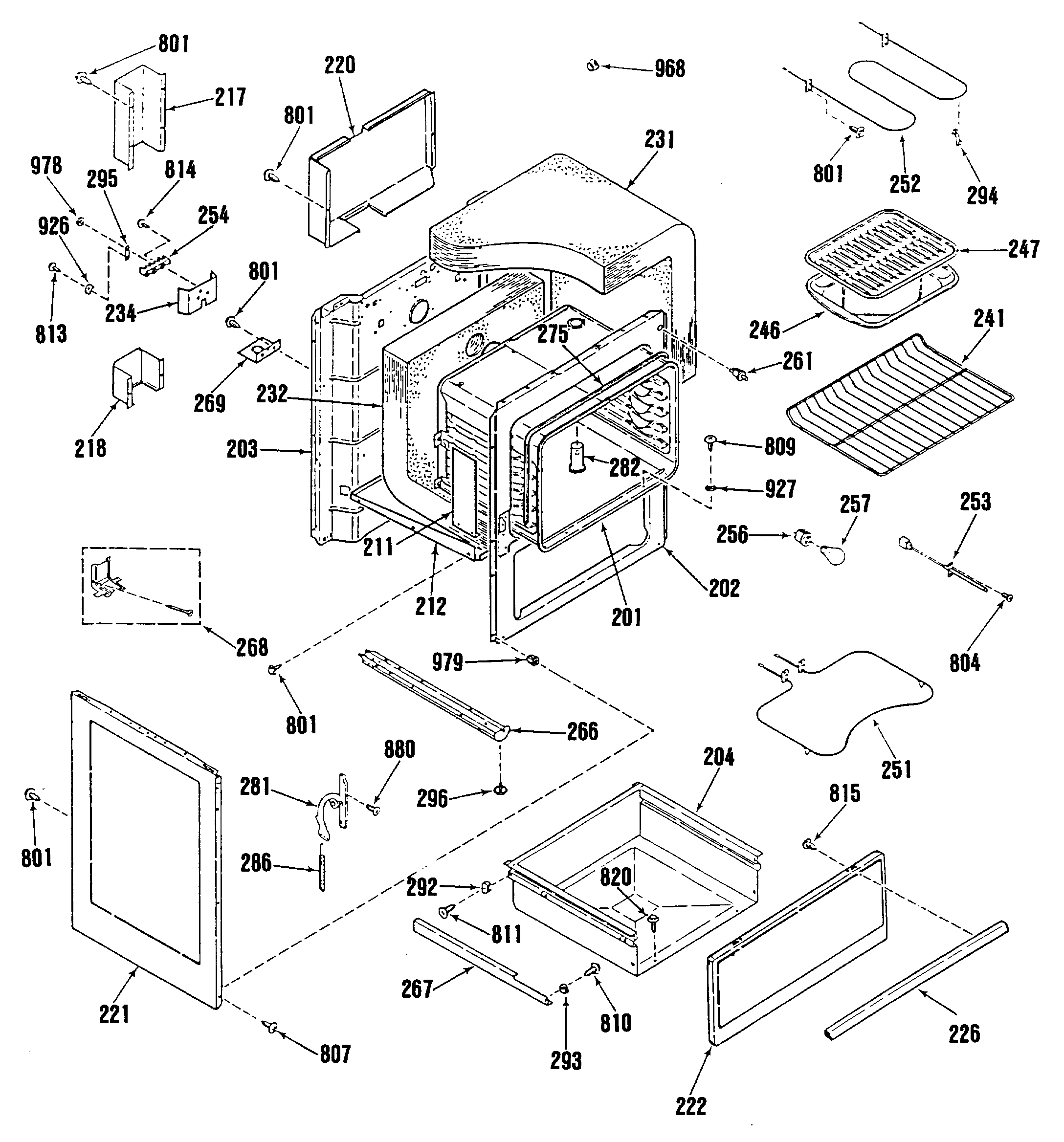

Model GE JBS29GM1 Electric Range – Common Parts & Diagrams
0
1
2
Common parts from model GE JBS29GM1 Electric Range
2
GEN WB07X1844 GEN WB07X1844 Contact Us For Availability
6
BODY BACKGUARD GEN WB37M0001 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT-LT GEN WB06X0128 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
GEN WB06X0134 GEN WB06X0134 Contact Us For Availability
16
GEN WB19X0262 GEN WB19X0262 Contact Us For Availability
21
GEN WB24X0479 GEN WB24X0479 Contact Us For Availability
29
GEN WB03X0804 GEN WB03X0804 Contact Us For Availability
30
GEN WB03X0770 GEN WB03X0770 Contact Us For Availability
44
GEN WB06X0125 GEN WB06X0125 Contact Us For Availability
51
WHITE MAIN TOP GEN WB62M0008 Contact Us For Availability
51
ALMOND MAIN TOP GEN WB62M0009 Contact Us For Availability
56
HOB ELEMENT-SMALL GEN WB30X0261 Contact Us For Availability
57
HOB ELEMENT-LARGE GEN WB30X0260 Contact Us For Availability
61
GEN WB63M0003 GEN WB63M0003 Contact Us For Availability
62
HOB ELEMENT CLAMP-SMALL GEN WB02X9520 Contact Us For Availability
63
HOB ELEMENT CLAMP-LARGE GEN WB02X9519 Contact Us For Availability
65
BBB BAFFLE GEN WB02X9524 Contact Us For Availability
66
GEN WB02X9523 GEN WB02X9523 Contact Us For Availability
71
GEN WB02X9525 GEN WB02X9525 Contact Us For Availability
76
GEN WB02X9526 GEN WB02X9526 Contact Us For Availability
77
GEN WB06X0130 GEN WB06X0130 Contact Us For Availability
91
MT HINGE-LT GEN WB14X0126 Contact Us For Availability
91
MT HINGE-RT GEN WB14X0127 Contact Us For Availability
92
GEN WB02X9521 GEN WB02X9521 Contact Us For Availability
96
REINFORCEMENT PLATE GEN WB02X9418 Contact Us For Availability
97
OVAL EYELET GEN WB06X0131 Contact Us For Availability
102
GEN WB02X9439 GEN WB02X9439 Contact Us For Availability
112
GEN WB56M0002 GEN WB56M0002 Contact Us For Availability
113
GEN WB02X9191 GEN WB02X9191 Contact Us For Availability
117
OV DOOR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OV DOOR GLASS-INNER GEN WB56X1901 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0272 Contact Us For Availability
140
OV DOOR FRAME GEN WB07X1585 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
SPACER GEN WB02X9037 Contact Us For Availability
147
WASHER GEN WB01X1138 Contact Us For Availability
201
GEN WB63M0020 GEN WB63M0020 Contact Us For Availability
202
GEN WB63M0035 GEN WB63M0035 Contact Us For Availability
203
GEN WB63M0001 GEN WB63M0001 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
212
INSULATON RETAINER-LO GEN WB02X9429 Contact Us For Availability
216
GEN WB34M0001 GEN WB34M0001 Contact Us For Availability
217
WIRE SHIELD-UPPER GEN WB02X9527 Contact Us For Availability
218
WIRE SHIELD LO GEN WB02X9426 Contact Us For Availability
221
BODY SIDE-WHITE GEN WB63X0326 Contact Us For Availability
221
BODY SIDE-ALMOND GEN WB63X0352 Contact Us For Availability
222
LOWER FRONT PANEL WHITE GEN WB56X1959 Contact Us For Availability
222
GEN WB56X1973 GEN WB56X1973 Contact Us For Availability
226
GEN WB15X0270 GEN WB15X0270 Contact Us For Availability
231
OV BODY INSULATON GEN WB02X9031 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9021 Contact Us For Availability
234
SERVICE CORD INSULATOR GEN WB02X9425 Contact Us For Availability
241
OV RACK GEN WB48X0210 Contact Us For Availability
252
BROIL ELEMENT 208 VOLT GEN WB44X0233 Contact Us For Availability
254
GEN WB17X0215 GEN WB17X0215 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
261
SWITCH GEN WB24K5030 Contact Us For Availability
266
BASE ASM W/LEVELER GEN WB02X9187 Contact Us For Availability
267
DRAWER SUPPORT LT & RT GEN WB56M0003 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38X0113 GEN WB38X0113 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0253 Contact Us For Availability
292
SLIDE BLOCK REAR GEN WB02X9146 Contact Us For Availability
293
SLIDE BLOCK FRONT GEN WB02X9148 Contact Us For Availability
295
GEN WB02X9424 GEN WB02X9424 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
825
GEN WB01M0002 GEN WB01M0002 Contact Us For Availability
926
GEN WB01X1260 GEN WB01X1260 Contact Us For Availability
950
GEN WB01M0003 GEN WB01M0003 Contact Us For Availability
951
BACKGUARD CLIP GEN WB02X9443 Contact Us For Availability
968
GEN WB02X9447 GEN WB02X9447 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
977
"M6" PW NUT GEN WB01X1305 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
999
GEN 31-0744 GEN 31-0744 Contact Us For Availability
999
GEN 31-0845 GEN 31-0845 Contact Us For Availability
999
GEN 49-8008 GEN 49-8008 Contact Us For Availability
999
GEN WB06M0001 GEN WB06M0001 Contact Us For Availability
999
MAINTOP WIRE HARNESS-LT GEN WB18K5191 Contact Us For Availability
999
GEN WB18M0044 GEN WB18M0044 Contact Us For Availability
999
GEN WB18M0056 GEN WB18M0056 Contact Us For Availability
999
LITE SWITCH WIRE HARNESS GEN WB18X0411 Contact Us For Availability
999
BACKGUARD WIRE HARNESS GEN WB18X0415 Contact Us For Availability
999
MAIN WIRE HARNESS GEN WB18X0416 Contact Us For Availability
× ![]()
