Model GE JBS26W5 Electric Range – Common Parts & Diagrams

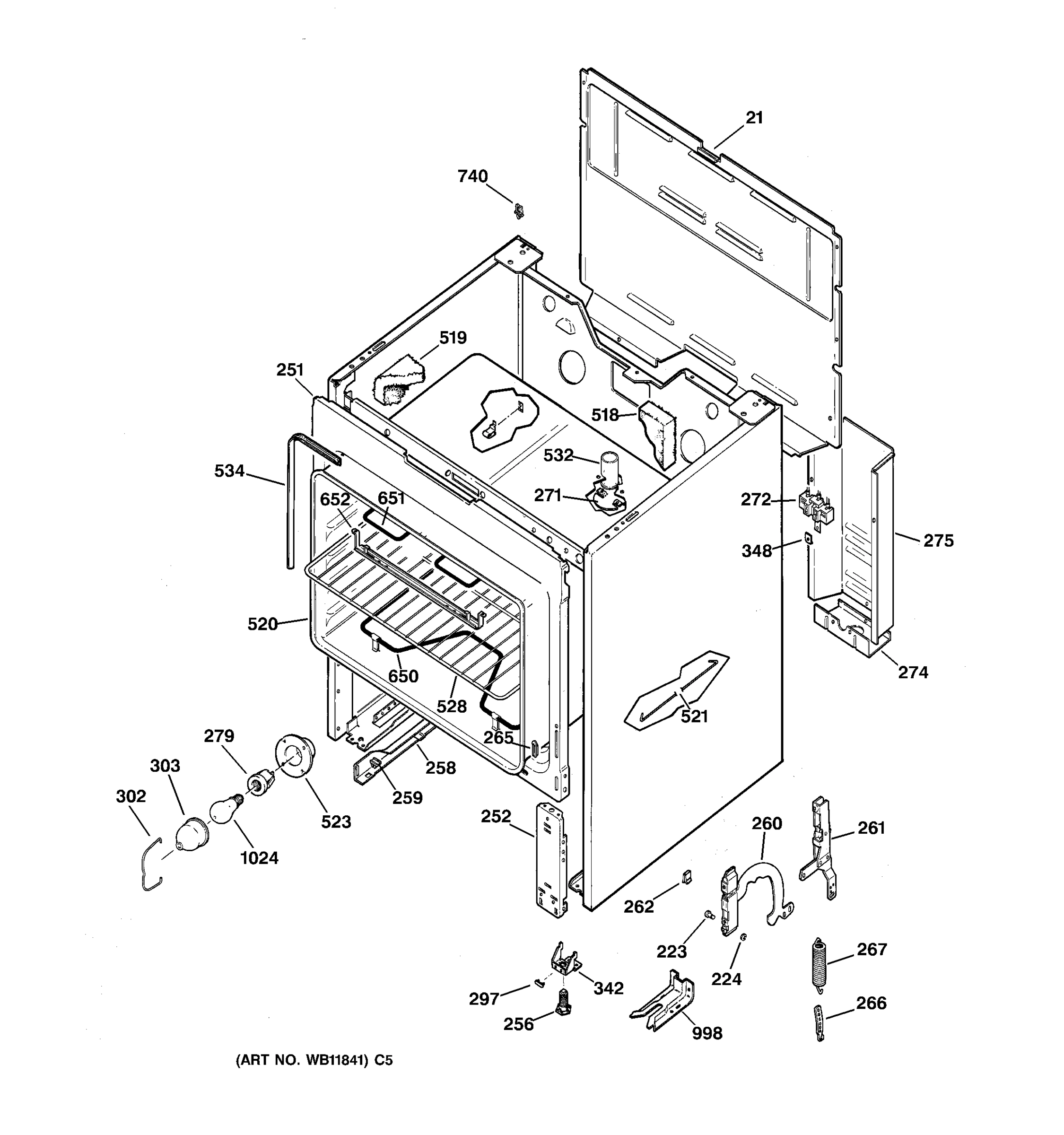

BODY PARTS

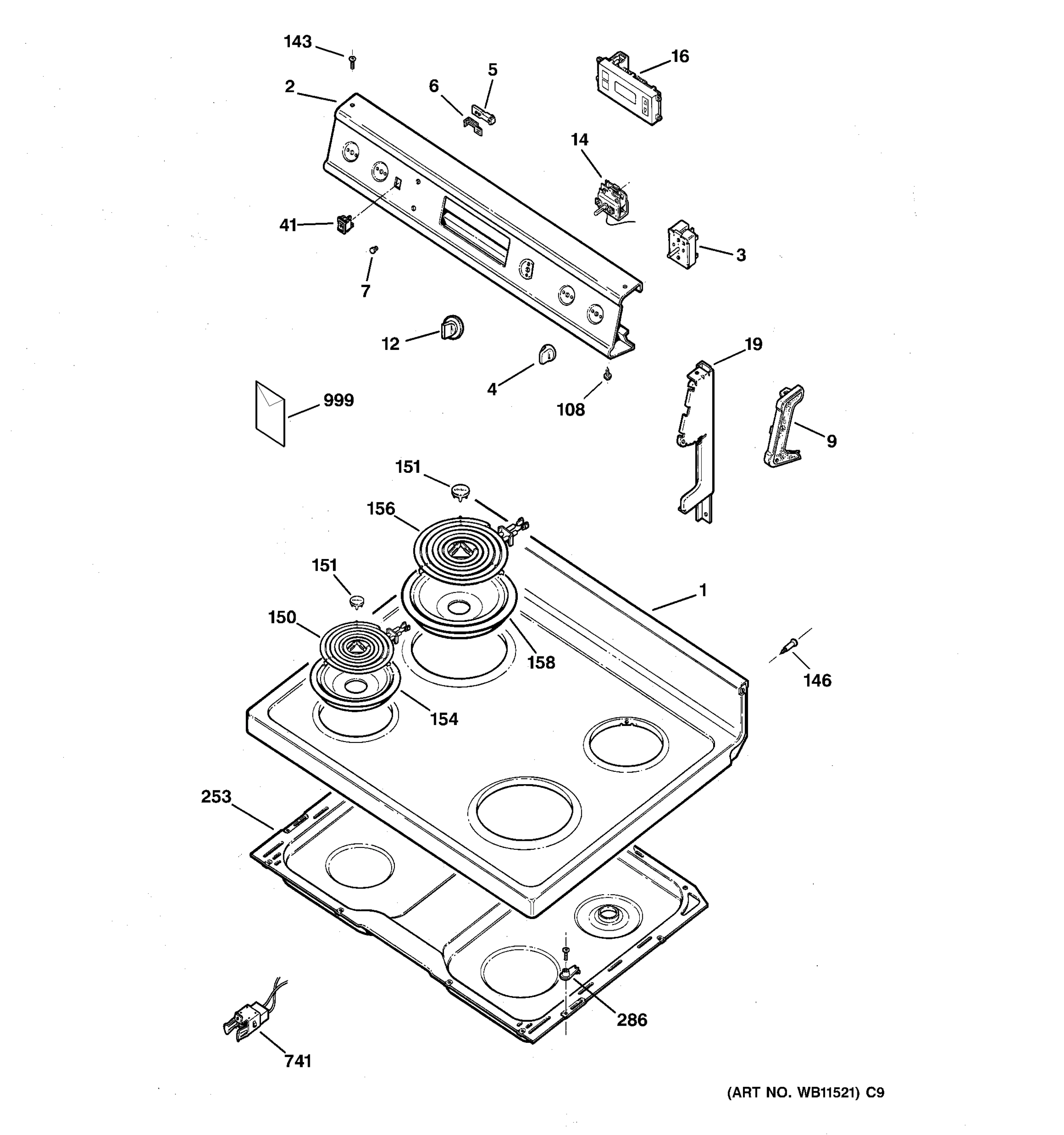

CONTROL PANEL & COOKTOP

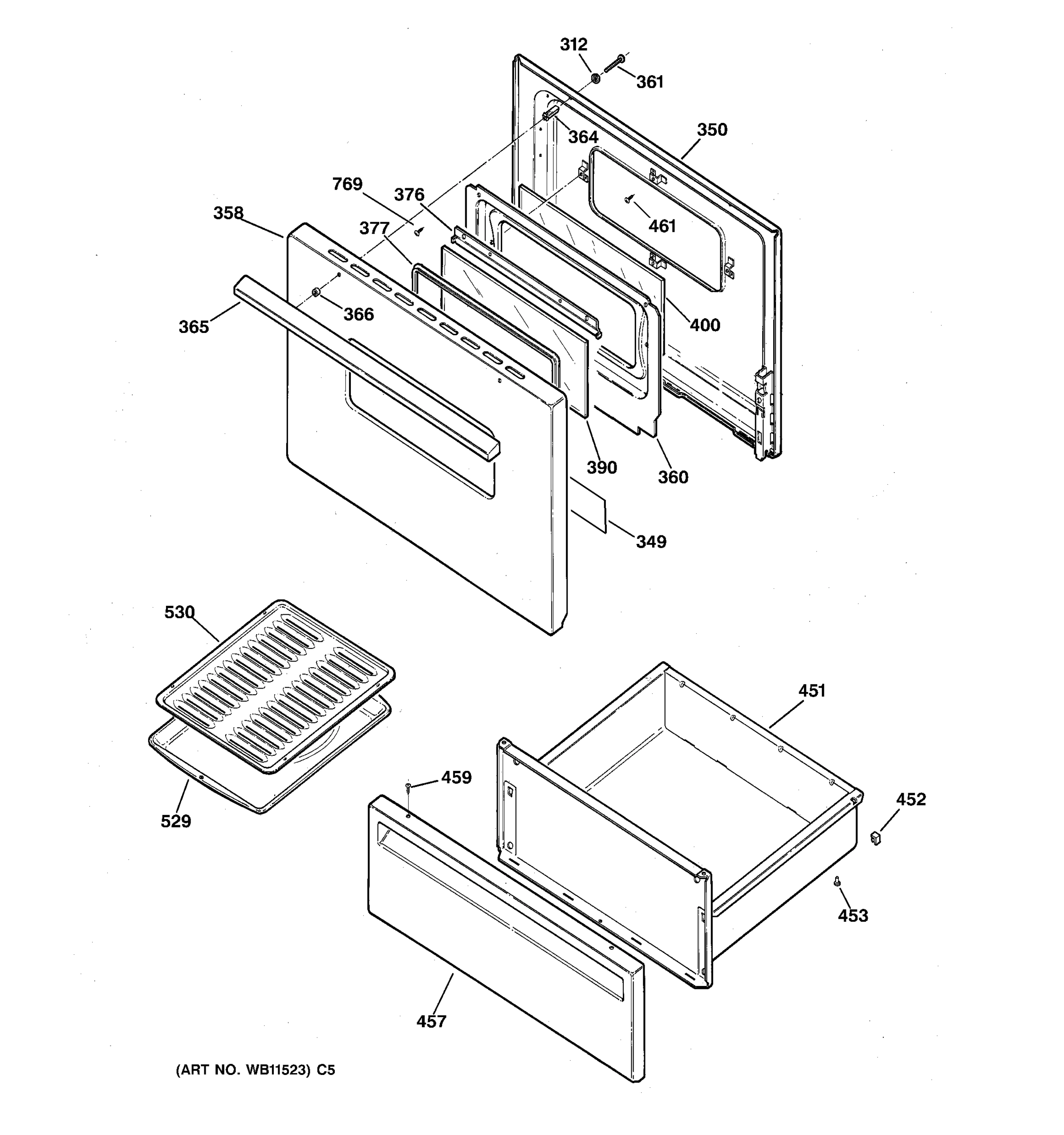

DOOR & DRAWER PARTS
Common parts from model GE JBS26W5 Electric Range
1
WELD ASM RANGETOP AD GEN WB62X5454 Contact Us For Availability
1
GEN WB62X5455 GEN WB62X5455 Contact Us For Availability
2
GEN WB36X10027 GEN WB36X10027 Contact Us For Availability
4
GEN WB03X5834 GEN WB03X5834 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
6
CLIP LAMP GEN WB02X1185 Contact Us For Availability
9
GEN WB07X7136 GEN WB07X7136 Contact Us For Availability
9
GEN WB07X7137 GEN WB07X7137 Contact Us For Availability
12
GEN WB03X5839 GEN WB03X5839 Contact Us For Availability
16
TIMER TOD LED ASM GEN WB27X5595 Contact Us For Availability
19
PLATE END RH WH GEN WB07X7268 Contact Us For Availability
19
PLATE END LH WH GEN WB07X7269 Contact Us For Availability
19
GEN WB07X7270 GEN WB07X7270 Contact Us For Availability
19
GEN WB07X7271 GEN WB07X7271 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
146
GEN WB01X5832 GEN WB01X5832 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
259
GEN WB02X10562 GEN WB02X10562 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
267
GEN WB09X0146 GEN WB09X0146 Contact Us For Availability
271
BAFFLE GEN WB02X1626 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
297
GEN WB02X10522 GEN WB02X10522 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
342
GEN WB02X10520 GEN WB02X10520 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5533 GEN WB49X5533 Contact Us For Availability
350
GEN WB55X5373 GEN WB55X5373 Contact Us For Availability
358
PANEL DR ASM AD GEN WB56X7058 Contact Us For Availability
358
GEN WB56X7068 GEN WB56X7068 Contact Us For Availability
360
GEN WB49X5522 GEN WB49X5522 Contact Us For Availability
361
GEN WB01X5873 GEN WB01X5873 Contact Us For Availability
364
GEN WB02X8443 GEN WB02X8443 Contact Us For Availability
366
GEN WB02X3241 GEN WB02X3241 Contact Us For Availability
376
GEN WB02X2978 GEN WB02X2978 Contact Us For Availability
377
GEN WB07X7069 GEN WB07X7069 Contact Us For Availability
390
GEN WB36X5679 GEN WB36X5679 Contact Us For Availability
400
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X10091 GEN WB56X10091 Contact Us For Availability
457
GEN WB56X10090 GEN WB56X10090 Contact Us For Availability
518
GEN WB02X8120 GEN WB02X8120 Contact Us For Availability
519
GEN WB02X8121 GEN WB02X8121 Contact Us For Availability
520
CLIP THERMOMSTAT GEN WB02X8441 Contact Us For Availability
520
LINER ASM WELD OVEN 23IN GEN WB53X5149 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
999
GEN 31-20701 GEN 31-20701 Contact Us For Availability
999
GEN 49-8896 GEN 49-8896 Contact Us For Availability
999
GEN 49-8918 GEN 49-8918 Contact Us For Availability
× ![]()
