Model GE JBS23BB1 Electric Range – Common Parts & Diagrams

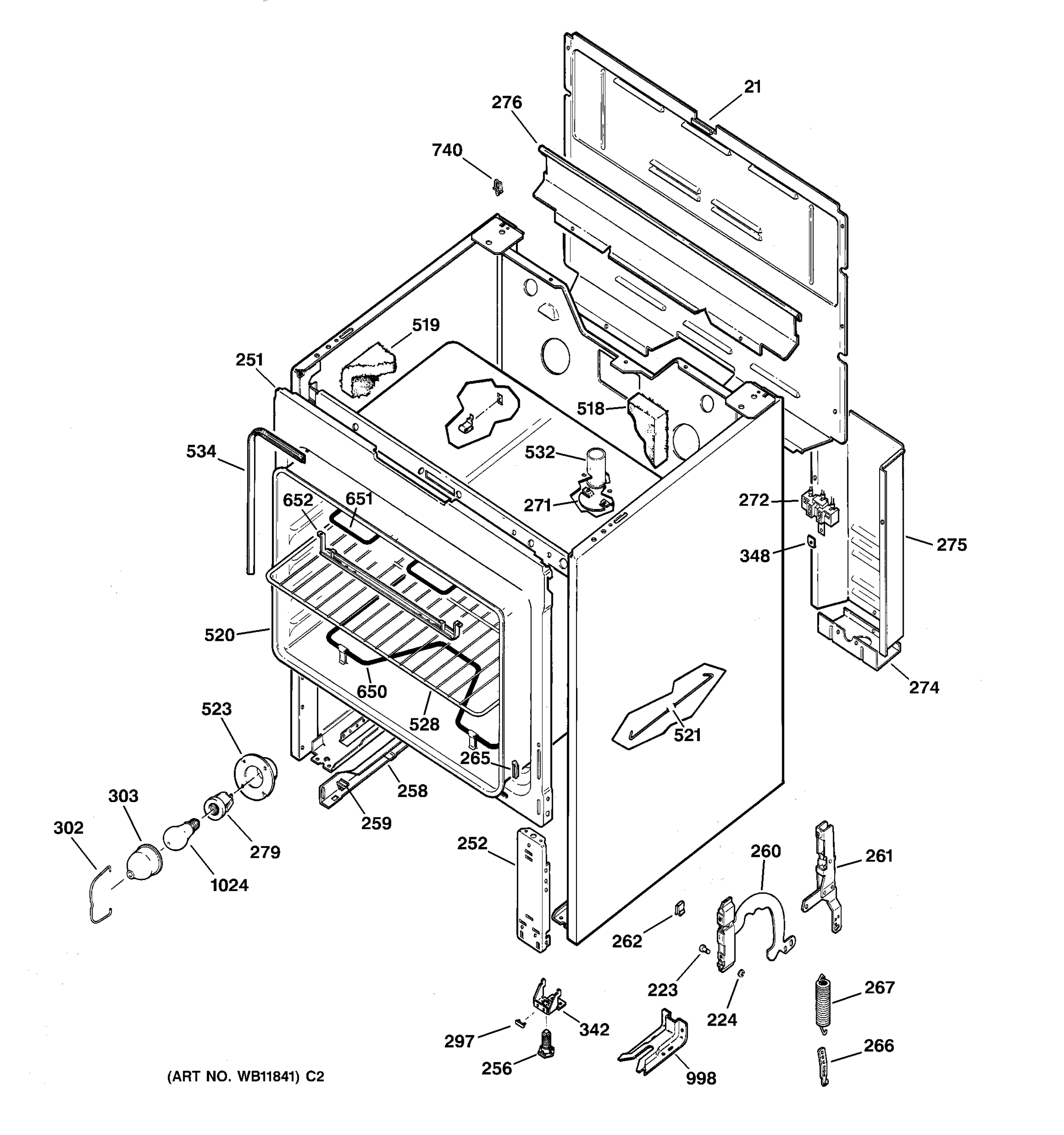

BODY PARTS

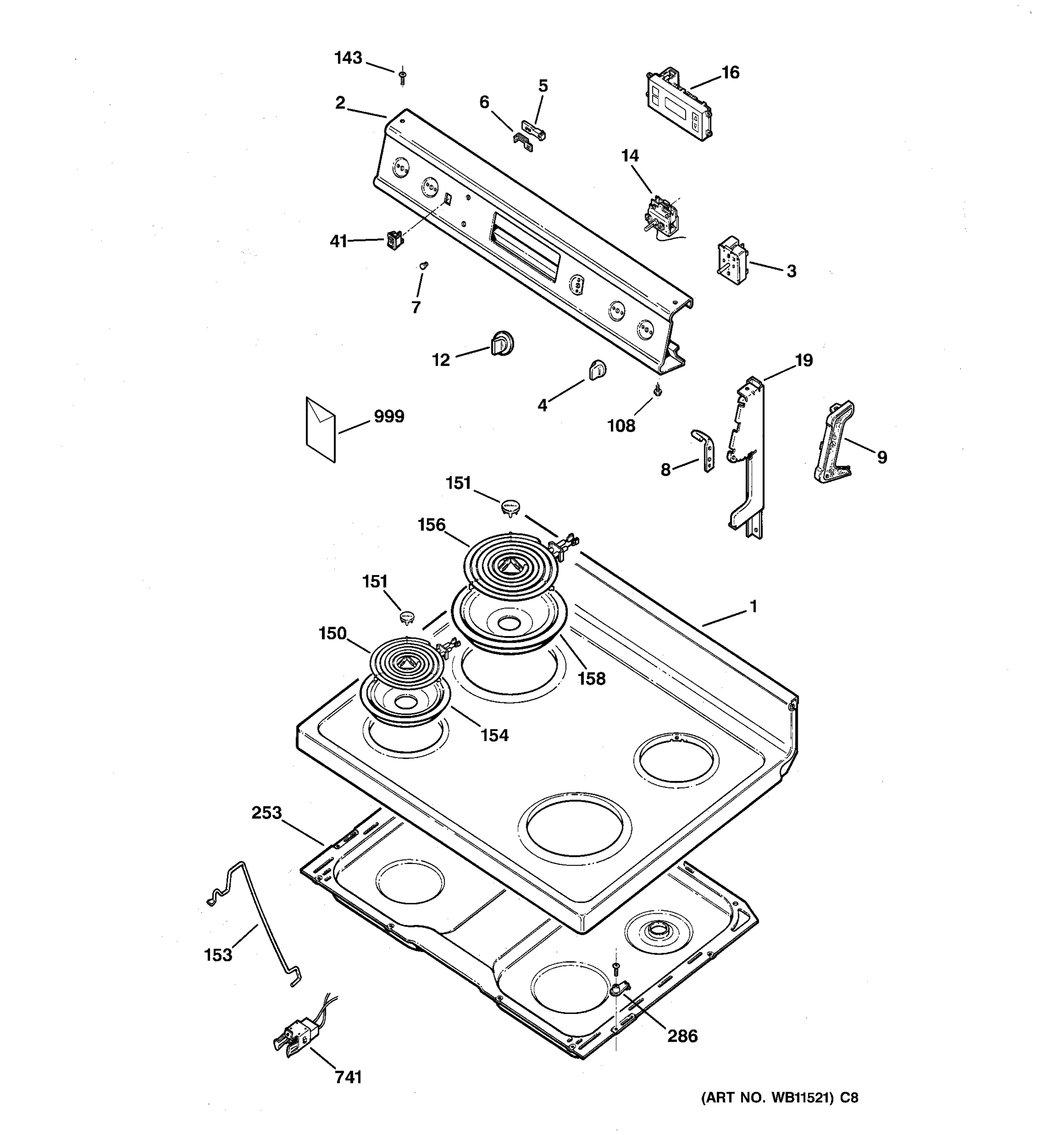

CONTROL PANEL & COOKTOP

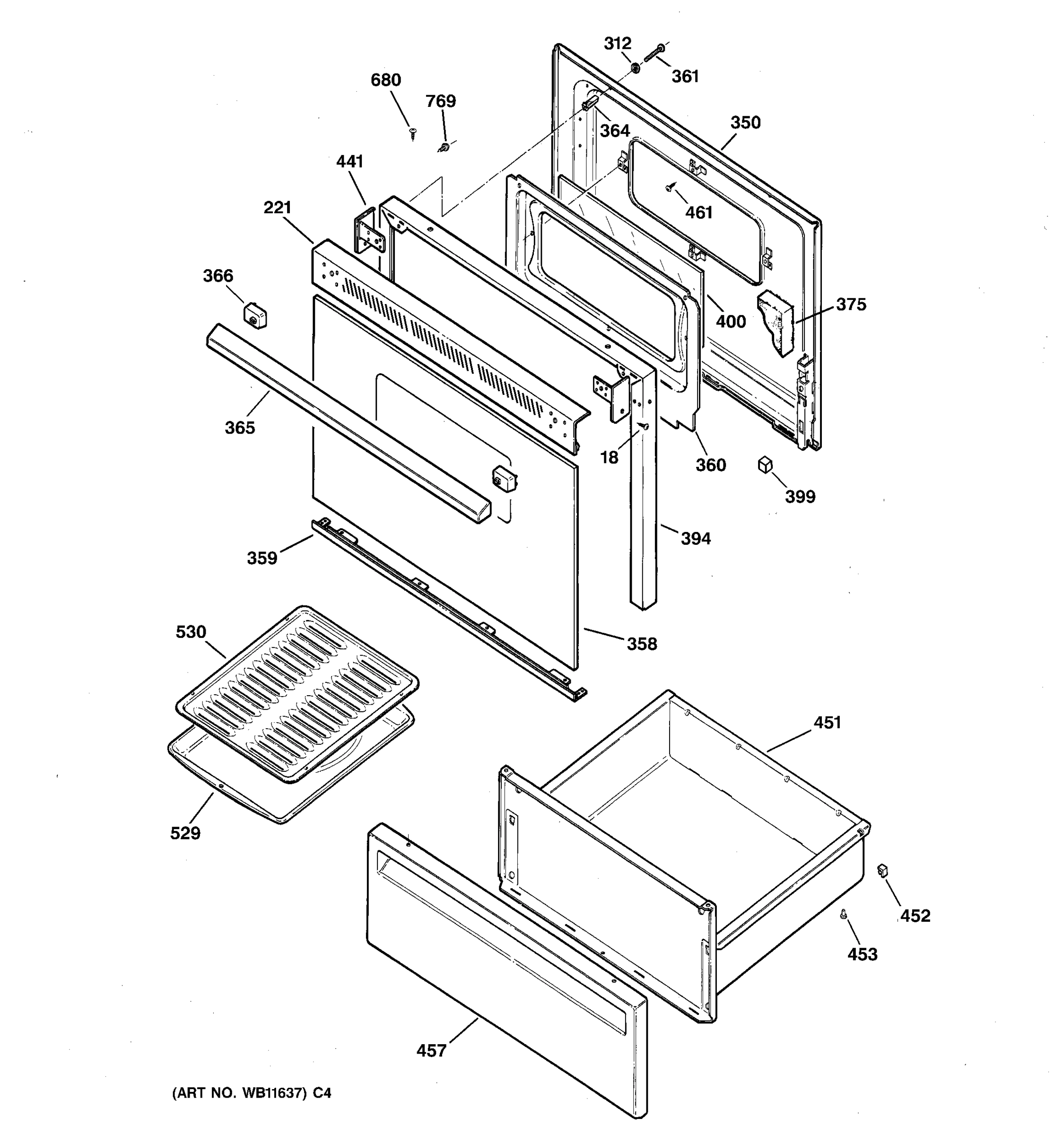

DOOR & DRAWER PARTS
Common parts from model GE JBS23BB1 Electric Range
1
WELD ASM RANGETOP WH GEN WB62X5451 Contact Us For Availability
2
GEN WB36X10016 GEN WB36X10016 Contact Us For Availability
4
KNOB SURFACE UNIT BK GEN WB03X10011 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
6
CLIP LAMP GEN WB02X1185 Contact Us For Availability
8
PIN HINGE RH GEN WB02X10485 Contact Us For Availability
8
PIN HINGE LH GEN WB02X10486 Contact Us For Availability
9
END CAP RIGHT BK GEN WB07X7136 Contact Us For Availability
9
END CAP LEFT BK GEN WB07X7137 Contact Us For Availability
12
GEN WB03X10012 GEN WB03X10012 Contact Us For Availability
16
GEN WB27T10090 GEN WB27T10090 Contact Us For Availability
18
SCR 6-20 AB FHT 3/8 S BK GEN WR01X1768 Contact Us For Availability
19
PLATE END RH WH GEN WB07X7268 Contact Us For Availability
19
PLATE END LH WH GEN WB07X7269 Contact Us For Availability
19
END PLATE AD RH GEN WB07X7270 Contact Us For Availability
41
SWITCH ROCKER BK GEN WB24X5290 Contact Us For Availability
143
SCREW BK GEN WB01X5860 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
221
TRIM VENT & CLIP BK GEN WB07X10169 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
258
GEN WB39X10004 GEN WB39X10004 Contact Us For Availability
259
GEN WB02X10562 GEN WB02X10562 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
276
GEN WB02X8105 GEN WB02X8105 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
297
GEN WB02X10522 GEN WB02X10522 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
342
GEN WB02X10520 GEN WB02X10520 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
350
GEN WB55X5373 GEN WB55X5373 Contact Us For Availability
358
GEN WB36X5691 GEN WB36X5691 Contact Us For Availability
360
GEN WB49X5522 GEN WB49X5522 Contact Us For Availability
361
GEN WB01X5873 GEN WB01X5873 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
366
GEN WB02X8245 GEN WB02X8245 Contact Us For Availability
375
GEN WB02X8411 GEN WB02X8411 Contact Us For Availability
394
TRIM DOOR LH BK GEN WB07X7340 Contact Us For Availability
394
TRIM DOOR RH BK GEN WB07X7341 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
441
END CAP DOOR RH BK GEN WB07X7289 Contact Us For Availability
441
END CAP DOOR LH BK GEN WB07X7290 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
PANEL DRAWER WH GEN WB56X10091 Contact Us For Availability
457
PANEL DRAWER AD GEN WB56X10090 Contact Us For Availability
518
GEN WB02X8120 GEN WB02X8120 Contact Us For Availability
519
GEN WB02X8121 GEN WB02X8121 Contact Us For Availability
520
CLIP THERMOMSTAT GEN WB02X8441 Contact Us For Availability
520
LINER ASM WELD OVEN 23IN GEN WB53X5149 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
740
CLIP WIRE BK GEN WB02X7226 Contact Us For Availability
999
GEN 31-20749 GEN 31-20749 Contact Us For Availability
999
GEN 49-8927 GEN 49-8927 Contact Us For Availability
999
GEN 49-8939 GEN 49-8939 Contact Us For Availability
× ![]()
