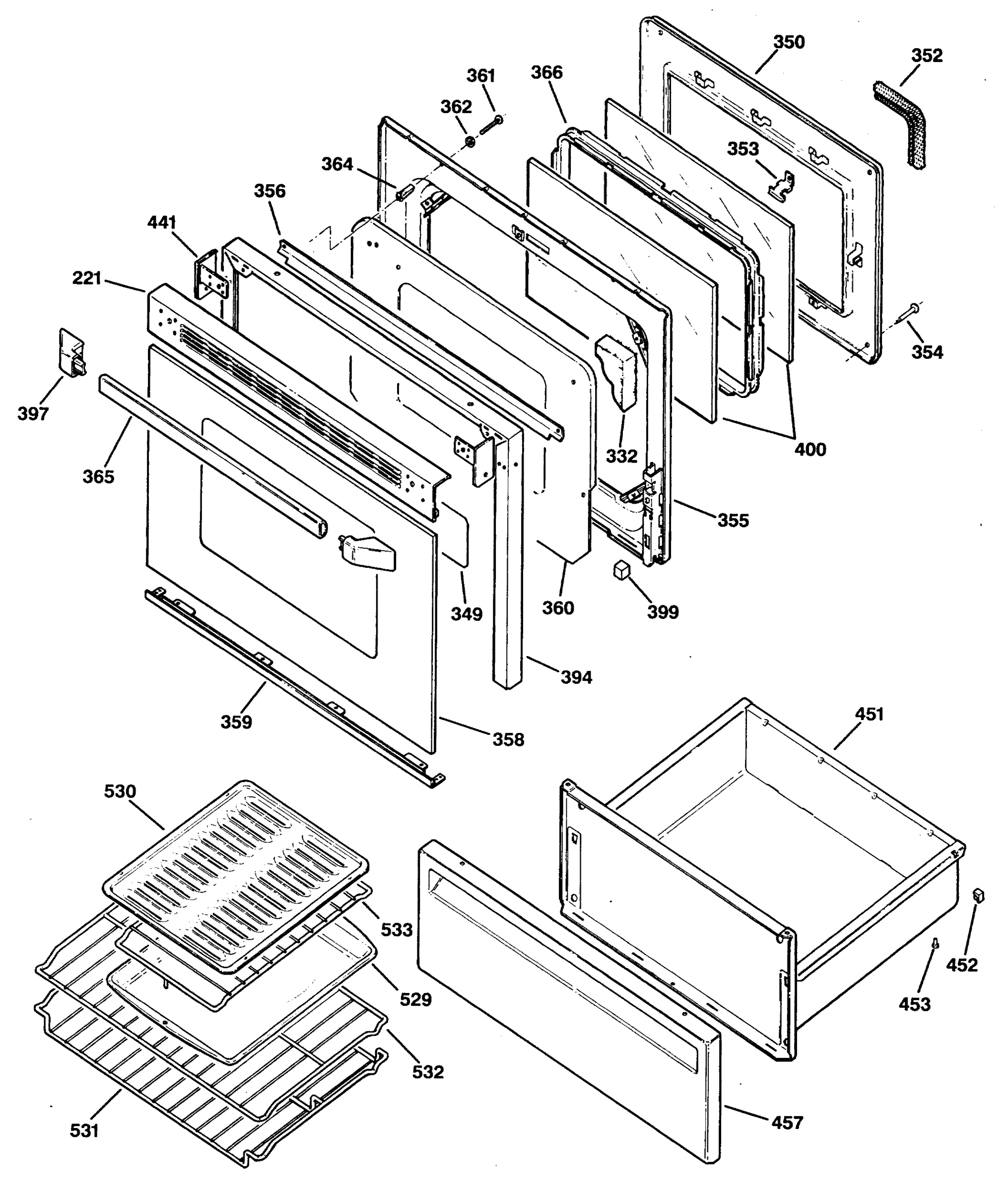

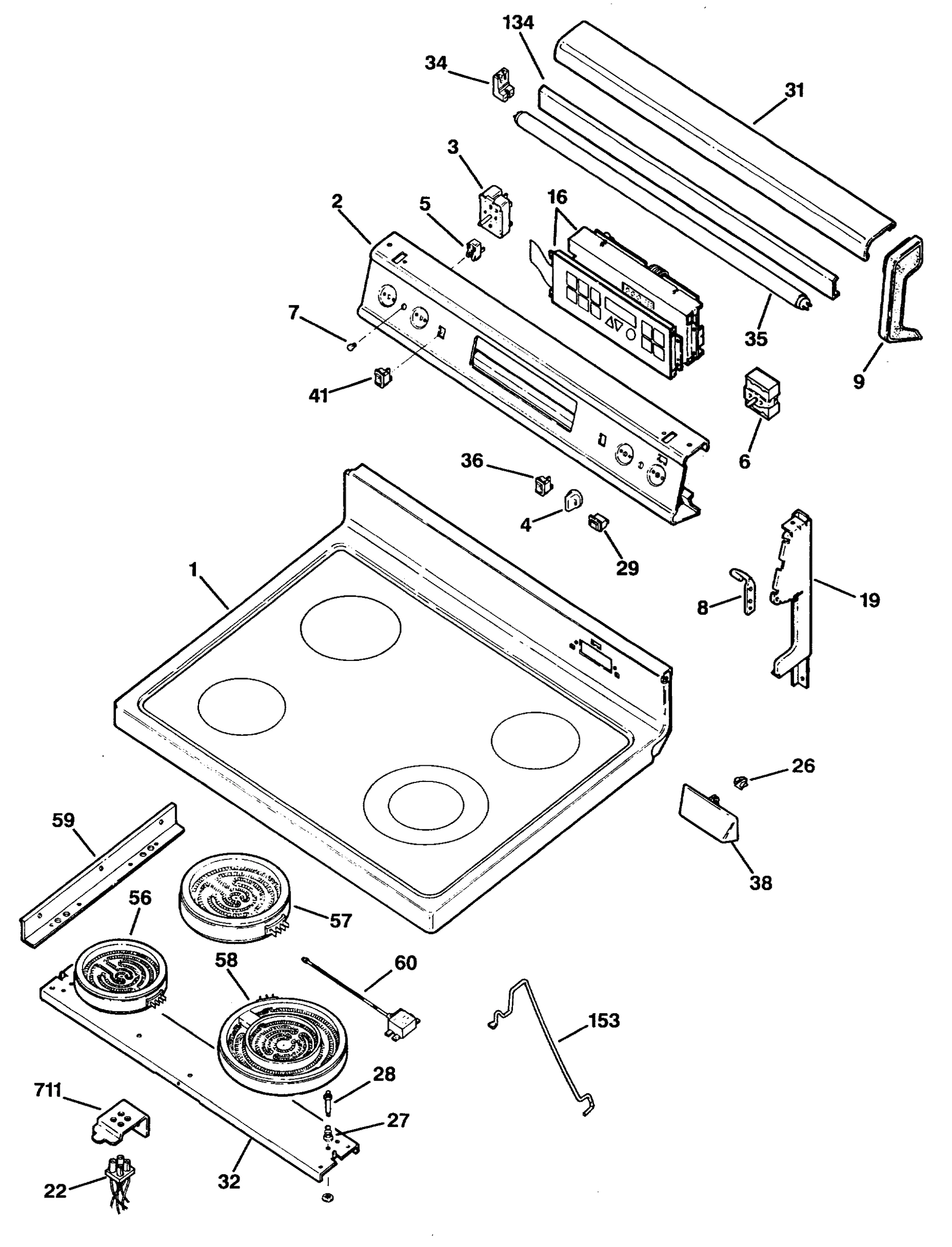

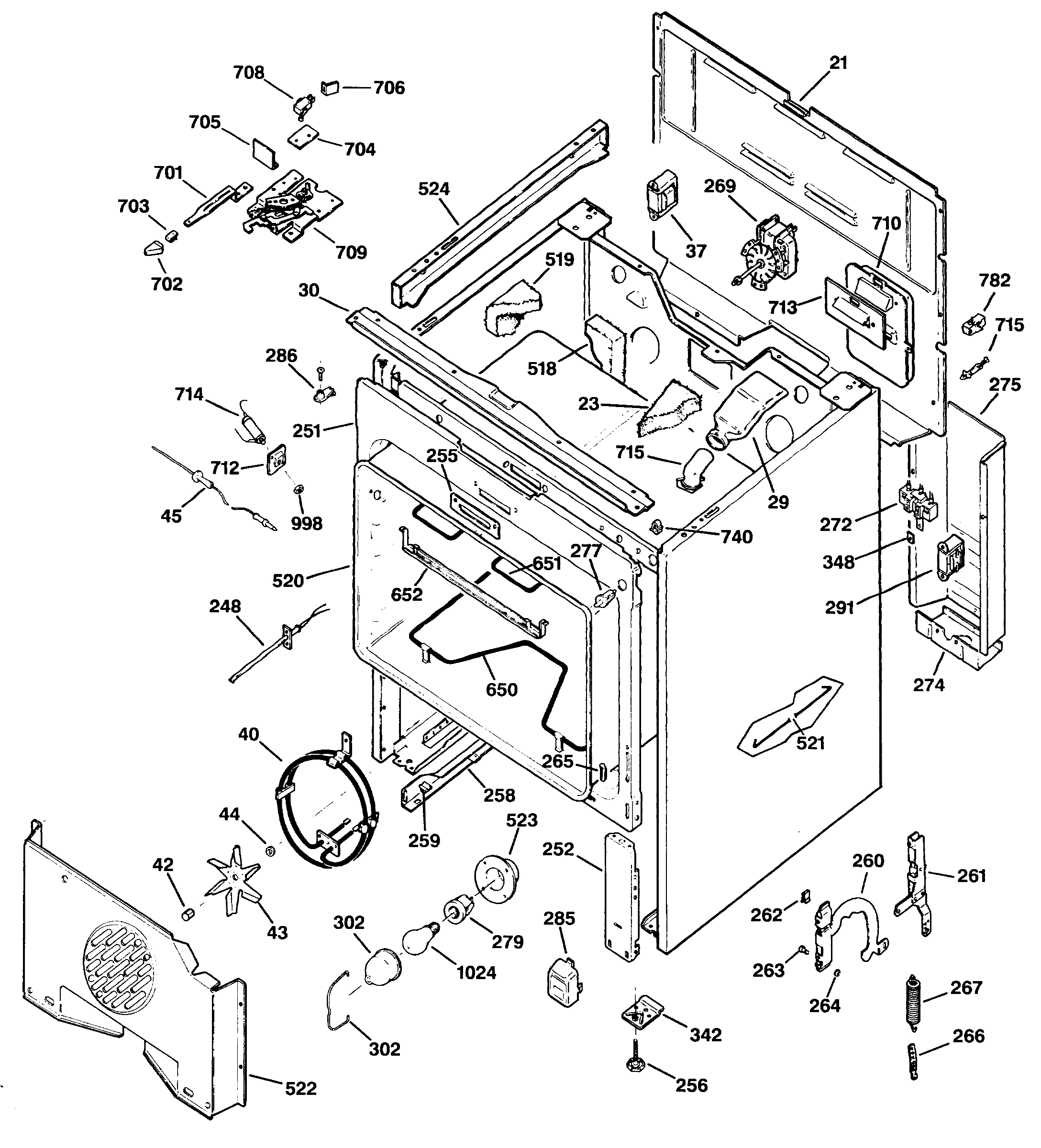

Model GE JBP90WS1 Electric Range – Common Parts & Diagrams
0
1
2
Common parts from model GE JBP90WS1 Electric Range
7
JEWEL GEN WB25X5054 Contact Us For Availability
16
GEN WB27X5544 GEN WB27X5544 Contact Us For Availability
19
PLATE END AD GEN WB07X7161 Contact Us For Availability
19
PLATE END AD GEN WB07X7164 Contact Us For Availability
21
GEN WB49X5521 GEN WB49X5521 Contact Us For Availability
22
HOT LIGHT INDICATOR GEN WB08X5106 Contact Us For Availability
23
GEN WB02X8315 GEN WB02X8315 Contact Us For Availability
24
GEN WB02X8316 GEN WB02X8316 Contact Us For Availability
26
GEN WB02X8312 GEN WB02X8312 Contact Us For Availability
27
GEN WB09X5119 GEN WB09X5119 Contact Us For Availability
28
GEN WB02X8377 GEN WB02X8377 Contact Us For Availability
30
GEN WB02X8310 GEN WB02X8310 Contact Us For Availability
31
GEN WB07X7134 GEN WB07X7134 Contact Us For Availability
32
GEN WB02X8318 GEN WB02X8318 Contact Us For Availability
34
GEN WB08X5098 GEN WB08X5098 Contact Us For Availability
35
FUSTAT 15AMP TYPE S GEN WB02X4666 Contact Us For Availability
36
GEN WB24X5263 GEN WB24X5263 Contact Us For Availability
37
GEN WB20X5065 GEN WB20X5065 Contact Us For Availability
38
VENT TRIM & CLIP ASM GEN WB07X7219 Contact Us For Availability
40
GEN WB44X5100 GEN WB44X5100 Contact Us For Availability
41
GEN WB24X5323 GEN WB24X5323 Contact Us For Availability
43
"E" CLIP GEN WB02X8356 Contact Us For Availability
56
GEN WB23M0026 GEN WB23M0026 Contact Us For Availability
57
GEN WB23M0012 GEN WB23M0012 Contact Us For Availability
59
GEN WB02X8321 GEN WB02X8321 Contact Us For Availability
60
GEN WB21X0497 GEN WB21X0497 Contact Us For Availability
60
GEN WB24K5066 GEN WB24K5066 Contact Us For Availability
60
THERMAL SWITCH-1400W GEN WB24M0016 Contact Us For Availability
134
GEN WB07K0040 GEN WB07K0040 Contact Us For Availability
161
GEN WB02X8115 GEN WB02X8115 Contact Us For Availability
221
GEN WB07X7193 GEN WB07X7193 Contact Us For Availability
251
GEN WB56X7049 GEN WB56X7049 Contact Us For Availability
256
GLIDER ADJ GEN WB02X8248 Contact Us For Availability
258
GEN WB39X0051 GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
260
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
263
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
264
RING RETAINING GEN WB02X1082 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
291
GEN WB08X5102 GEN WB08X5102 Contact Us For Availability
332
GEN WB02X8251 GEN WB02X8251 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5527 GEN WB49X5527 Contact Us For Availability
349
GEN WB49X5534 GEN WB49X5534 Contact Us For Availability
350
INNER PANEL GEN WB55X5382 Contact Us For Availability
355
GEN WB55X5381 GEN WB55X5381 Contact Us For Availability
358
GEN WB36X5715 GEN WB36X5715 Contact Us For Availability
360
GEN WB55X5380 GEN WB55X5380 Contact Us For Availability
365
HANDLE SOFT TOUCH GEN WB15K5079 Contact Us For Availability
366
GEN WB02X8319 GEN WB02X8319 Contact Us For Availability
394
GEN WB07X7192 GEN WB07X7192 Contact Us For Availability
397
TRIM HANDLE GEN WB07K5323 Contact Us For Availability
397
END CAP DOOR GEN WB07X7187 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X5712 GEN WB36X5712 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
457
GEN WB56X7069 GEN WB56X7069 Contact Us For Availability
519
GEN WB02X8250 GEN WB02X8250 Contact Us For Availability
520
GEN WB53X5156 GEN WB53X5156 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
522
GEN WB02X8308 GEN WB02X8308 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
530
GEN WB48X5093 GEN WB48X5093 Contact Us For Availability
531
GEN WB48X5102 GEN WB48X5102 Contact Us For Availability
532
GEN WB48X5103 GEN WB48X5103 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5198 GEN WB15X5198 Contact Us For Availability
702
GEN WB03X5805 GEN WB03X5805 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X8220 GEN WB02X8220 Contact Us For Availability
705
GEN WB02X8314 GEN WB02X8314 Contact Us For Availability
706
GEN WB02X8222 GEN WB02X8222 Contact Us For Availability
708
GEN WB24X5291 GEN WB24X5291 Contact Us For Availability
709
GEN WB14X5040 GEN WB14X5040 Contact Us For Availability
710
GEN WB38X5064 GEN WB38X5064 Contact Us For Availability
710
GEN WB38X5065 GEN WB38X5065 Contact Us For Availability
711
GEN WB02X8307 GEN WB02X8307 Contact Us For Availability
712
COVER PROBE GEN WB02X8309 Contact Us For Availability
713
GEN WB02X8311 GEN WB02X8311 Contact Us For Availability
715
GEN WB02X8323 GEN WB02X8323 Contact Us For Availability
715
GEN WB38X5066 GEN WB38X5066 Contact Us For Availability
716
GEN WB38X5068 GEN WB38X5068 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
741
GEN WZ06X0038 GEN WZ06X0038 Contact Us For Availability
1458
TERMINAL BLK ASM (1 PIN) GEN WB17X5073 Contact Us For Availability
× ![]()
