Model GE JBP78GD1SB Electric Range – Common Parts &amp; Diagrams

19

WB24T10011 GE Range Infinite Switch In Stock GEN WB24T10011 $83.75

19

WB24T10029 GE Oven Infinite Burner Switch In Stock GEN WB24T10029 $42.40

19

WB24T10058 GE Range Surface Element Switch In Stock GEN WB24T10058 $80.65

21

WB24T10042 GE Range Rocker Switch Backorder GEN WB24T10042 $15.96

29

WB03T10072 GE Range Burner Knob Backorder GEN WB03T10072 $50.69

34

GEN WB25X5054 GEN WB25X5054 Contact Us For Availability

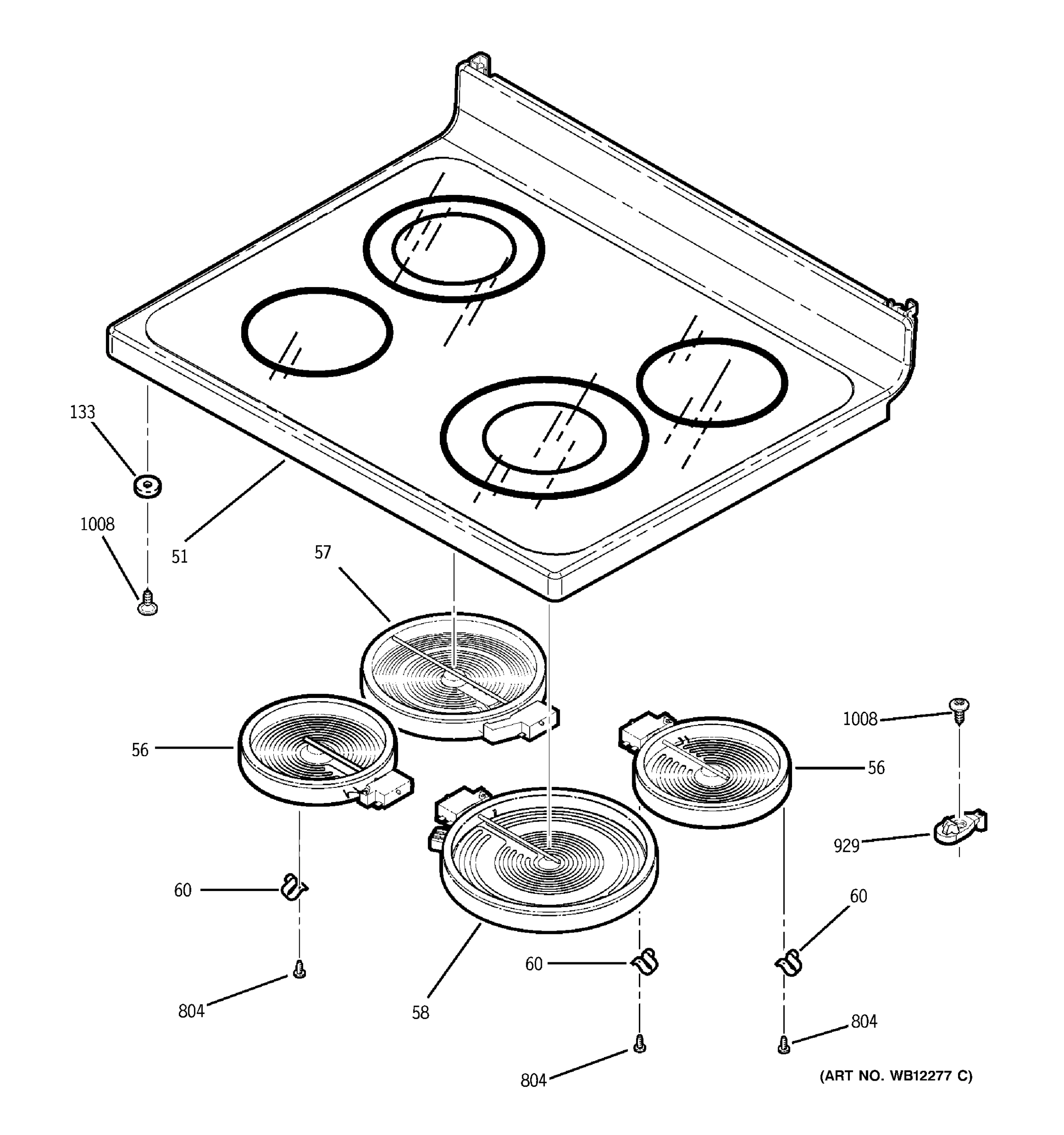

51

GEN WB62T10026 GEN WB62T10026 Contact Us For Availability

56

WB30X44826 GE 6 Inch Heating Element Kit Backorder GEN WB30X44826 $121.81

57

WB30T10068 GE Range Dual Halogen Element Backorder GEN WB30T10068 $233.22

58

WB30T10099 GE Oven Radiant Surface Element In Stock GEN WB30T10099 $120.19

60

GEN WB09T10002 GEN WB09T10002 Contact Us For Availability

88

GEN WB03T10071 GEN WB03T10071 Contact Us For Availability

92

GROUND STRAP GEN WB02T10067 Contact Us For Availability

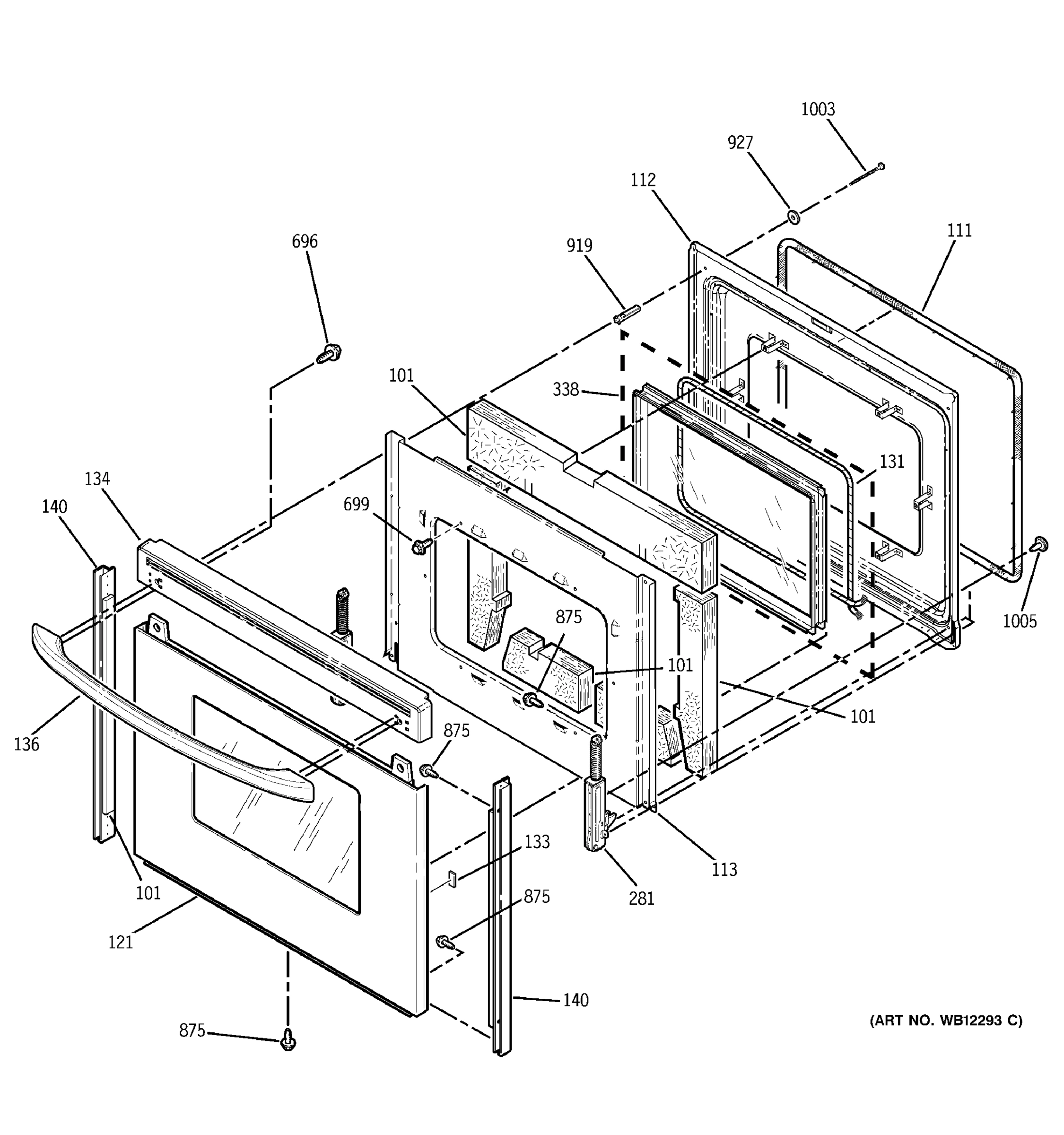

WB35T10077 GE Oven Door Insulation Backorder GEN WB35T10077 $5.20

GEN WB35T10018 GEN WB35T10018 Contact Us For Availability

GEN WB35T10019 GEN WB35T10019 Contact Us For Availability

GEN WB35T10027 GEN WB35T10027 Contact Us For Availability

111

WB04T10086 GE Oven Door Gasket In Stock GEN WB04T10086 $37.09

112

GEN WB55T10050 GEN WB55T10050 Contact Us For Availability

113

GEN WB56T10027 GEN WB56T10027 Contact Us For Availability

121

GEN WB56T10090 GEN WB56T10090 Contact Us For Availability

131

DOOR WINDOW SEAL GEN WB04T10002 Contact Us For Availability

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $5.20

133

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $5.20

133

WB02X29562 GE Range Top Bumper Backorder GEN WB02X29562 $5.20

134

GEN WB07T10119 GEN WB07T10119 Contact Us For Availability

136

WB15X10047 GE Range Oven Black Door Handle Backorder GEN WB15X10047 $80.20

140

GEN WB56T10046 GEN WB56T10046 Contact Us For Availability

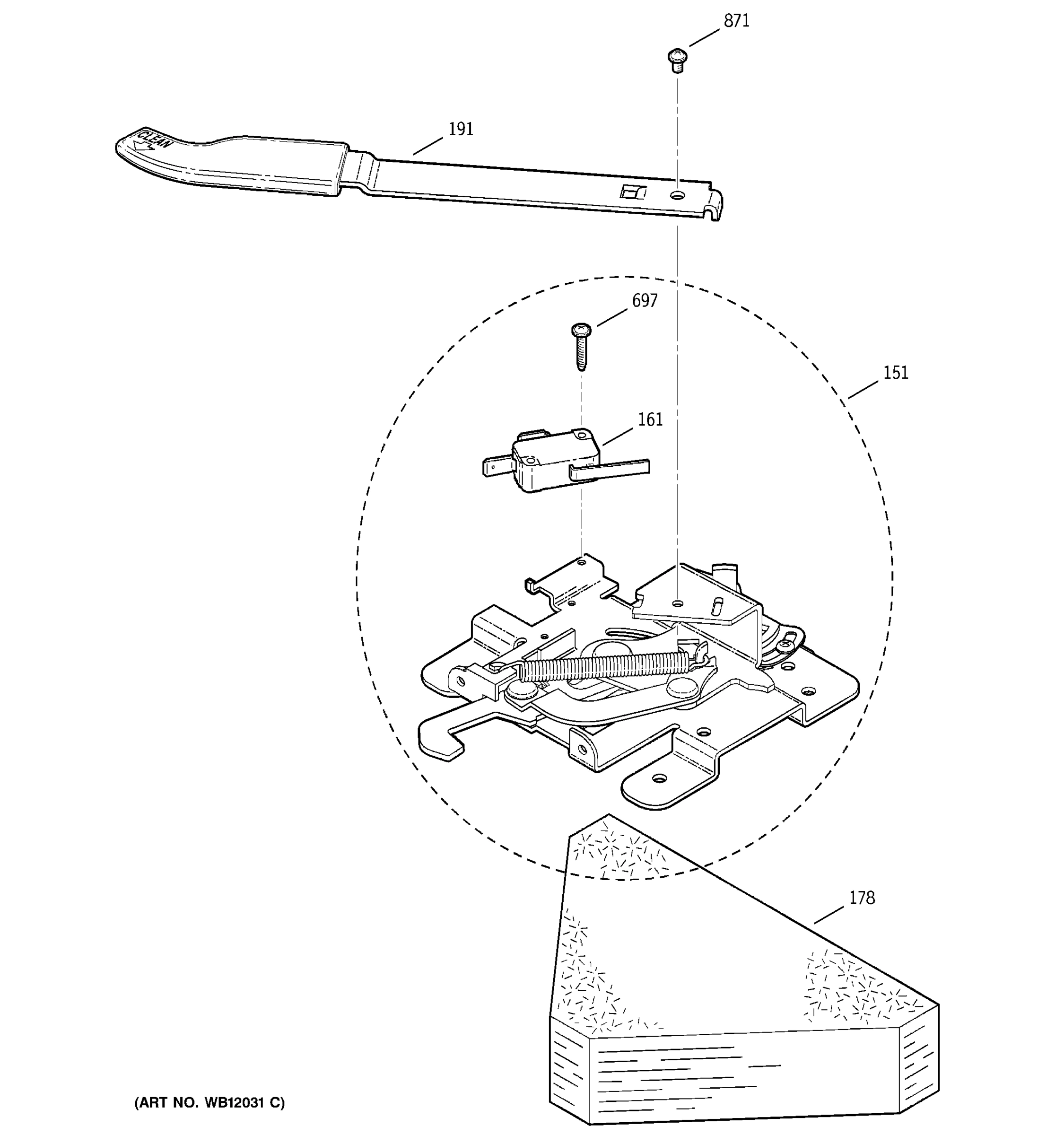

151

GEN WB14T10001 GEN WB14T10001 Contact Us For Availability

161

GEN WB24T10055 GEN WB24T10055 Contact Us For Availability

178

GEN WB35T10020 GEN WB35T10020 Contact Us For Availability

191

GEN WB15T10017 GEN WB15T10017 Contact Us For Availability

229

WB35T10017 GE Oven Vent Tube Insulation Backorder GEN WB35T10017 $5.20

241

WB48T10011 GE Range Shelf Rack In Stock GEN WB48T10011 $44.84

242

WB48T10068 GE Oven Wedge Drawer Backorder GEN WB48T10068 $16.91

251

WB44T10011 GE Range Bake Element In Stock GEN WB44T10011 $31.29

252

WB44T10009 GE Range Broil Element In Stock GEN WB44T10009 $26.90

252

GEN WB10T10005 GEN WB10T10005 Contact Us For Availability

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $14.04

255

GEN WB17T10003 GEN WB17T10003 Contact Us For Availability

256

WB08T10026 GE Range Push-In Receptacle In Stock GEN WB08T10026 $6.15

258

WB02T10027 GE Range Gasket Backorder GEN WB02T10027 $5.20

258

WB02T10037 GE Oven Light Cup Backorder GEN WB02T10037 $5.20

272

WB02T10034 GE Oven Body Side Support Backorder GEN WB02T10034 $5.20

281

WB10T10007 GE Range Hinge Assembly Backorder GEN WB10T10007 $58.73

282

WB38X33648 GE Vent Tube Backorder GEN WB38X33648 $10.96

292

WB02X33180 GE Oven Drawer Glide In Stock GEN WB02X33180 $5.20

292

WB48T10013 GE Oven Drawer Support In Stock GEN WB48T10013 $5.20

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.04

338

WB55T10067 GE Range Inner Door Glass Backorder GEN WB55T10067 $218.63

644

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $5.20

696

GEN WB01T10013 GEN WB01T10013 Contact Us For Availability

697

GEN WB01X1170 GEN WB01X1170 Contact Us For Availability

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.00

804

WB1X681 GE Oven Screw Backorder GEN WB1X681 $5.20

806

WH02X10002 GE Screw In Stock GEN WH02X10002 $5.20

871

GEN WB01M0013 GEN WB01M0013 Contact Us For Availability

875

WH2X930 GE Screw In Stock GEN WH2X930 $5.20

875

WZ4X245D GE Screw Package Backorder GEN WZ4X245D $17.62

919

GEN WB02T10035 GEN WB02T10035 Contact Us For Availability

927

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $9.42

929

WB02T10026 GE Oven Strike Maintop Backorder GEN WB02T10026 $5.20

INSTALLATION INSTRUCTION GEN 31-10414 Contact Us For Availability

GEN 31-10463 GEN 31-10463 Contact Us For Availability

GEN 31-13670 GEN 31-13670 Contact Us For Availability

GEN 49-80091 GEN 49-80091 Contact Us For Availability

GEN WB02T10043 GEN WB02T10043 Contact Us For Availability

1000

WB01T10016 GE Oven Screw 8-18 AB Hex Backorder GEN WB01T10016 $5.20

1003

GEN WB01T10018 GEN WB01T10018 Contact Us For Availability

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.20

1006

WB01X23501 GE Oven Screw 8-32 Tapping Flat He Backorder GEN WB01X23501 $5.20

1008

WB1X5904 GE Oven Screw 8-18 BA In Stock GEN WB1X5904 $5.20
