Model GE JBP76GV3 Electric Range – Common Parts & Diagrams

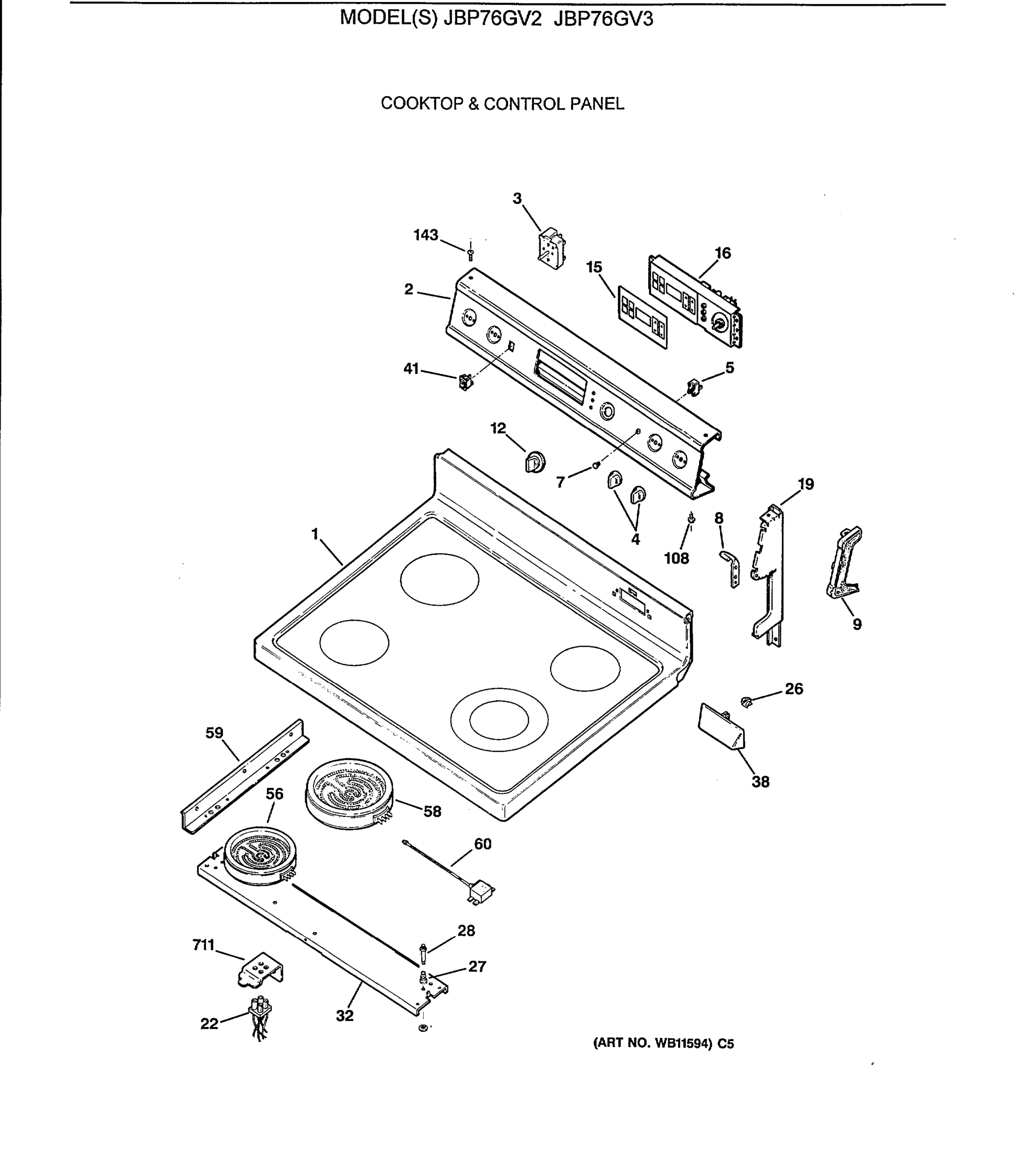

COOKTOP & CONTROL PANEL

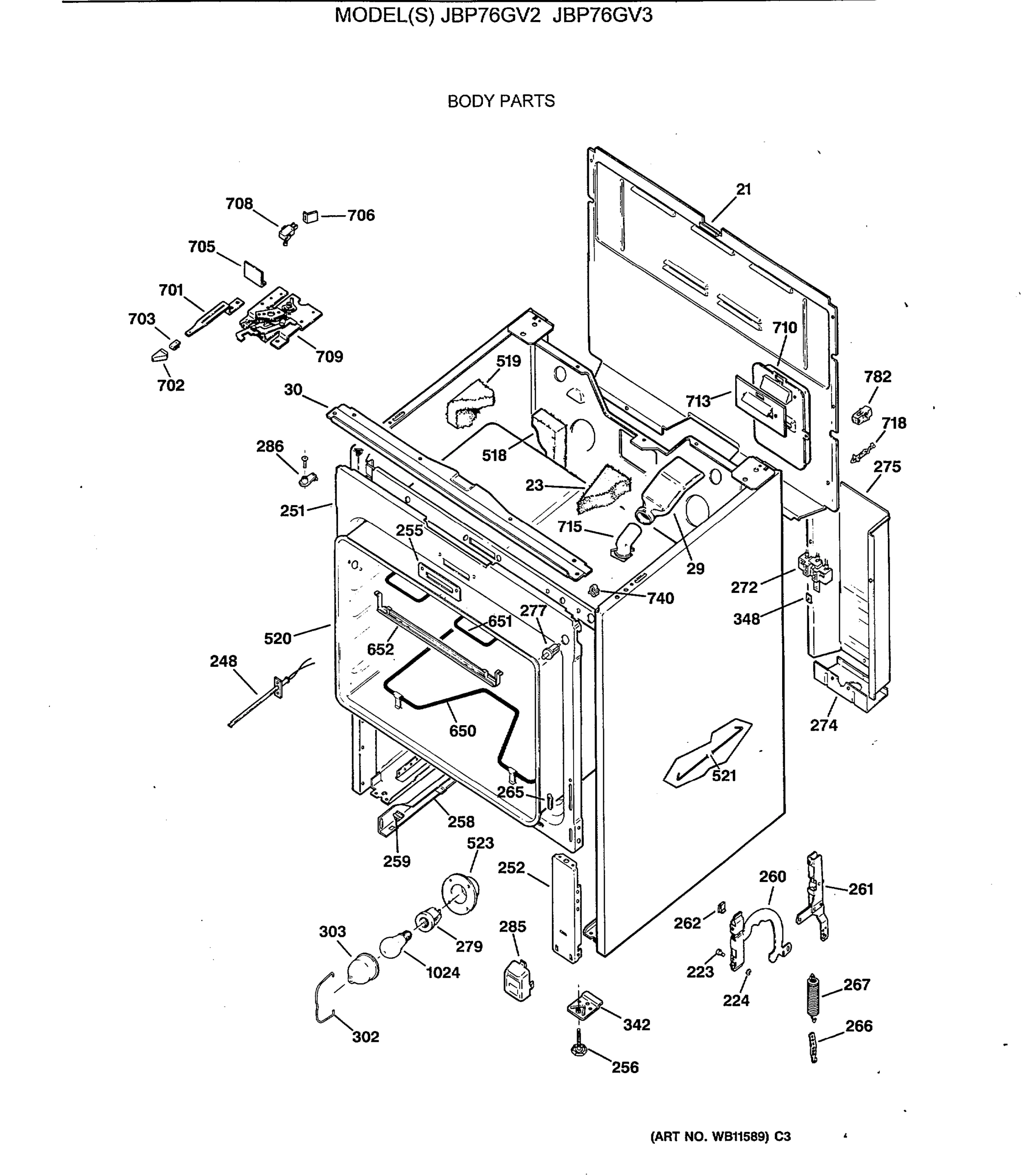

BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE JBP76GV3 Electric Range
7
INDICATOR LIGHT LENS GEN WB25X5054 Contact Us For Availability
16
SPRING DETENT GEN WB09X5121 Contact Us For Availability
16
FACEPLATE GEN WB27X5565 Contact Us For Availability
16
CONTROL T08 GEN WB27X5581 Contact Us For Availability
18
SCR 6-20 AB FHT 3/8 S WH GEN WB01X5906 Contact Us For Availability
19
PLATE END WH RH GEN WB07X7268 Contact Us For Availability
19
PLATE END WH LH GEN WB07X7269 Contact Us For Availability
21
COVER BACK GEN WB49X5567 Contact Us For Availability
22
INDICATOR HOT SURFACE GEN WB08X5118 Contact Us For Availability
23
INSULATION VENT COVER GEN WB02X8315 Contact Us For Availability
23
INSULATION VENT TUBE GEN WB02X8316 Contact Us For Availability
26
CLIP VENT TRIM GEN WB02X8312 Contact Us For Availability
27
SPRING HEATER MTG GEN WB09X5119 Contact Us For Availability
28
STUD HEATER MOUNT GEN WB02X8377 Contact Us For Availability
29
TUBE VENT ELBOW GEN WB38X5066 Contact Us For Availability
30
COOKTOP BRACKET FRONT GEN WB02X8310 Contact Us For Availability
32
SUPPORT RADIANT HEATER GEN WB02X8556 Contact Us For Availability
38
VENT TRIM CLIP ASM WH GEN WB07X7219 Contact Us For Availability
41
SWITCH GEN WB24X5323 Contact Us For Availability
59
BRACE BODY GEN WB02X8321 Contact Us For Availability
136
OVEN DOOR HANDLE-WHT GEN WB15K5078 Contact Us For Availability
143
SCREW WH GEN WB01X5874 Contact Us For Availability
221
TRIM VENT WHITE GEN WB07X7347 Contact Us For Availability
223
PIN HINGE DOOR GEN WB02X6195 Contact Us For Availability
224
RING RETAINING GEN WB02X1082 Contact Us For Availability
251
FRAME FRONT GEN WB56X7049 Contact Us For Availability
252
PANEL FILLER GEN WB49X5565 Contact Us For Availability
256
GLIDER ADJ GEN WB02X8248 Contact Us For Availability
258
DRAWER GUIDE RH & LH GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
HINGE LEVER GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
CLIP SHIM GEN WB02X3193 Contact Us For Availability
265
GUIDE HINGE LEVER GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
SPRING DOOR GEN WB09X5117 Contact Us For Availability
274
KNOCKOUT PLATE GEN WB02X8247 Contact Us For Availability
275
GUARD TERMINAL GEN WB02X8249 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
COVER FOOT GEN WB02X8106 Contact Us For Availability
286
STRIKE COOKTOP GEN WB02X8107 Contact Us For Availability
302
LIGHT LENS BAIL GEN WB02X7694 Contact Us For Availability
332
INSULATION GEN WB02X8557 Contact Us For Availability
342
FOOT EXTENSION GEN WB02X8241 Contact Us For Availability
347
SHIELD HEAT GEN WB49X5527 Contact Us For Availability
348
PLATE-GROUND GEN WB02X0646 Contact Us For Availability
349
REFLECTOR GEN WB49X5562 Contact Us For Availability
350
INNER PANEL GEN WB55X5382 Contact Us For Availability
355
LINER ASM DOOR GEN WB55X5381 Contact Us For Availability
358
CRYSTAL F.G. WH GEN WB36X5793 Contact Us For Availability
360
GUARD INSULATION GEN WB55X5403 Contact Us For Availability
364
SPACER GEN WB02X8558 Contact Us For Availability
366
SPACER WINDOW GEN WB02X8559 Contact Us For Availability
394
TRIM DOOR LH WH GEN WB07X7345 Contact Us For Availability
394
TRIM DOOR RH WH GEN WB07X7346 Contact Us For Availability
396
SCR 10-16 PL PNP 2.5S GEN WB01X5872 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
CRYSTAL WINDOW GEN WB36X5712 Contact Us For Availability
441
END CAP DOOR RH WH GEN WB07X7343 Contact Us For Availability
441
END CAP DOOR LH WH GEN WB07X7344 Contact Us For Availability
451
DRAWER ASM GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
PLUG BUTTON GEN WB02X3394 Contact Us For Availability
457
PANEL DRAWER WH GEN WB56X7069 Contact Us For Availability
518
INSULATION GEN WB02X8412 Contact Us For Availability
519
INSULATION-OVEN WRAP GEN WB02X8219 Contact Us For Availability
520
OVEN LINER ASM GEN WB53X5157 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
HOOK ASM GEN WB09X5118 Contact Us For Availability
523
OVEN LIGHT CUP GEN WB02X7693 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
684
SCREW GEN WZ04X0417 Contact Us For Availability
701
HANDLE LATCH GEN WB15X5219 Contact Us For Availability
702
KNOB LATCH "GRAY" GEN WB03X5805 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
BARRIER LATCH GEN WB02X8485 Contact Us For Availability
706
BARRIER SWITCH GEN WB02X8222 Contact Us For Availability
708
SWITCH LOGIC 6 AMP. GEN WB24X5326 Contact Us For Availability
709
LATCH GEN WB14X5043 Contact Us For Availability
710
BODY VENT GEN WB38X5064 Contact Us For Availability
710
COLLAR GEN WB38X5065 Contact Us For Availability
711
BRACKET HOT LIGHT GEN WB02X8555 Contact Us For Availability
713
GASKET VENT GEN WB02X8311 Contact Us For Availability
715
TUBE VENT GEN WB38X5067 Contact Us For Availability
718
CLIP PUSHON GEN WB02X8323 Contact Us For Availability
740
CLIP WIRE GEN WB02X7226 Contact Us For Availability
752
SCREW GEN WB00X6542 Contact Us For Availability
758
SCREW GEN WB01K5050 Contact Us For Availability
782
TERMINAL BLOCK ASSY (2 P GEN WB17X5060 Contact Us For Availability
1458
TERMINAL BLK ASM (1 PIN) GEN WB17X5073 Contact Us For Availability
32767
INSTALL INSTR (ANTI-TIP) GEN 310824 Contact Us For Availability
32767
PM MANUAL MINI GEN 3120240 Contact Us For Availability
32767
PM MANUAL USE & CARE GEN 498723 Contact Us For Availability
× ![]()
