Model GE JBP24DW1 – Common Parts & Diagrams

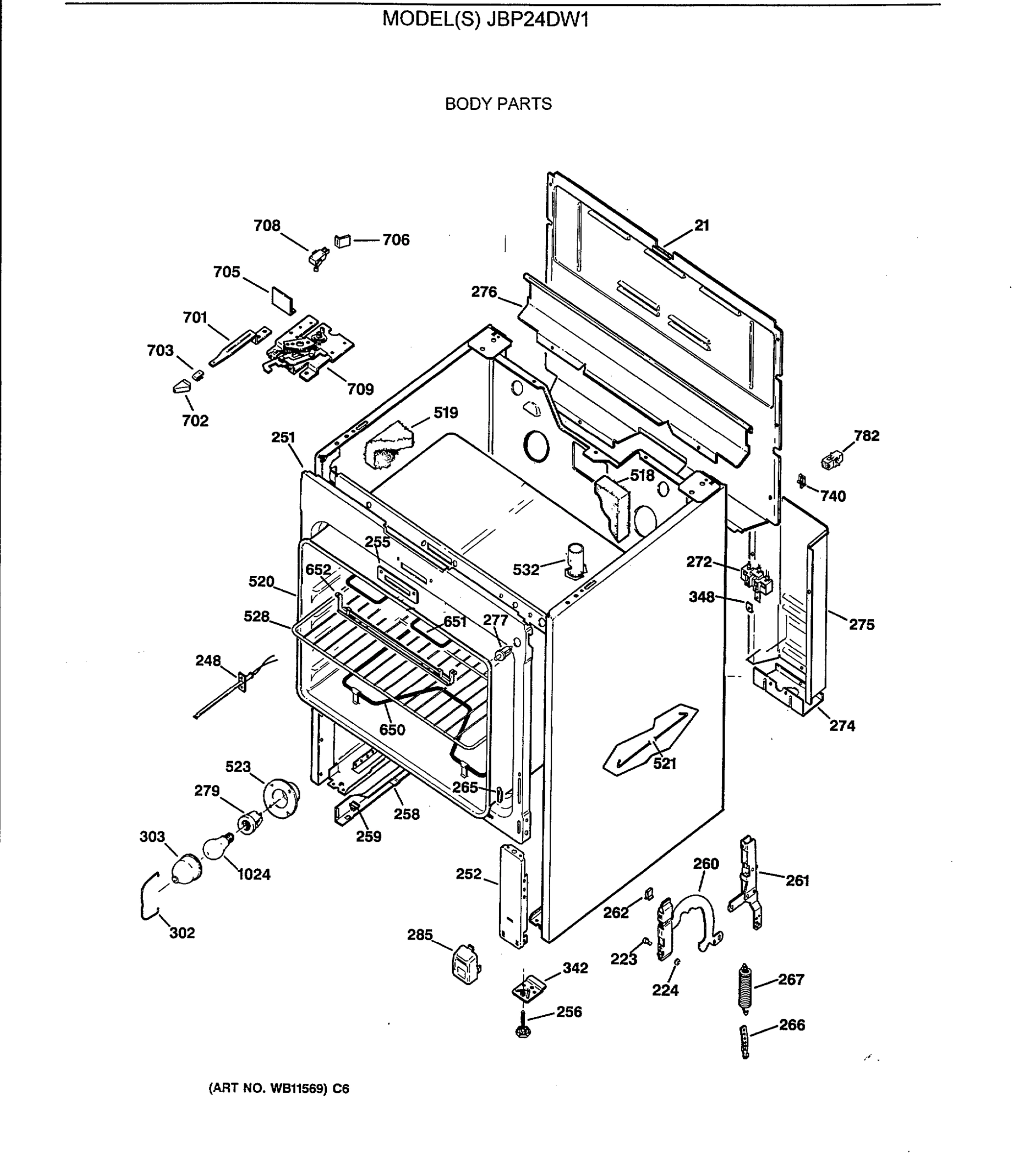

BODY PARTS

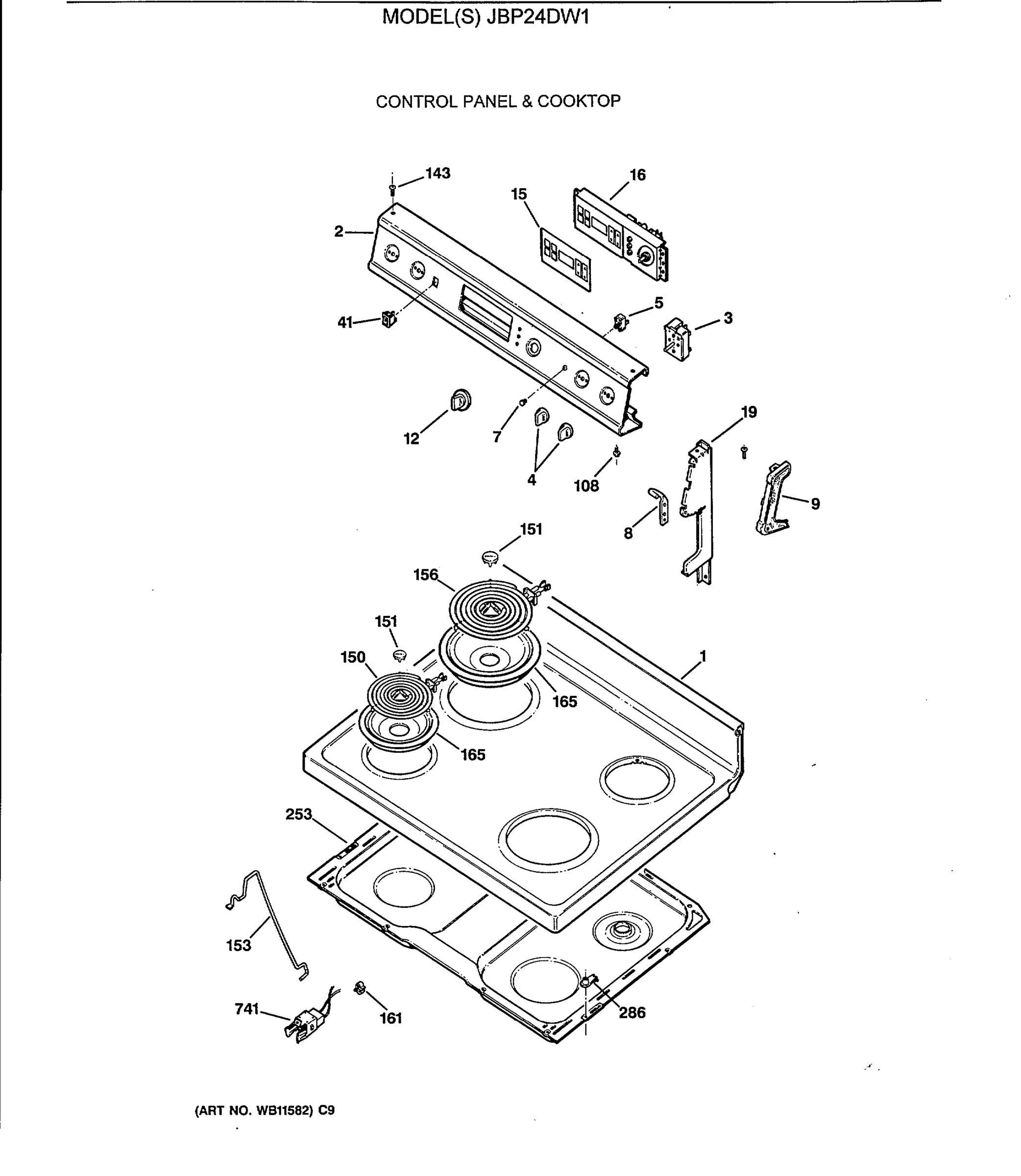

CONTROL PANEL & COOKTOP
DOOR & DRAWER PARTS
Common parts from model GE JBP24DW1
1
RANGE TOP ASM - WHITE GEN WB62X5402 Contact Us For Availability
1
RANGE TOP ASM - ALMOND GEN WB62X5406 Contact Us For Availability
2
GEN WB36X5782 GEN WB36X5782 Contact Us For Availability
4
GEN WB03X5834 GEN WB03X5834 Contact Us For Availability
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
8
GEN WB02X8126 GEN WB02X8126 Contact Us For Availability
8
GEN WB02X8127 GEN WB02X8127 Contact Us For Availability
9
GEN WB07X7130 GEN WB07X7130 Contact Us For Availability
9
GEN WB07X7131 GEN WB07X7131 Contact Us For Availability
12
GEN WB03X5829 GEN WB03X5829 Contact Us For Availability
15
GEN WB27X5563 GEN WB27X5563 Contact Us For Availability
16
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
16
GEN WB02X8297 GEN WB02X8297 Contact Us For Availability
16
GEN WB09X5121 GEN WB09X5121 Contact Us For Availability
16
GEN WB27X5580 GEN WB27X5580 Contact Us For Availability
18
GEN WR01X1768 GEN WR01X1768 Contact Us For Availability
19
PLATE END GEN WB07X7268 Contact Us For Availability
19
PLATE END GEN WB07X7269 Contact Us For Availability
19
END PLATE AD RH GEN WB07X7270 Contact Us For Availability
19
END PLATE AD LH GEN WB07X7271 Contact Us For Availability
41
GEN WB24X5290 GEN WB24X5290 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
161
GEN WB02X8115 GEN WB02X8115 Contact Us For Availability
221
GEN WB07X7342 GEN WB07X7342 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
276
GEN WB2X8105 GEN WB2X8105 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
332
GEN WB02X8445 GEN WB02X8445 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5562 GEN WB49X5562 Contact Us For Availability
350
GEN WB55X5359 GEN WB55X5359 Contact Us For Availability
355
LINER ASM WELD DOOR GEN WB55X5379 Contact Us For Availability
358
GEN WB36X5691 GEN WB36X5691 Contact Us For Availability
360
GEN WB55X0378 GEN WB55X0378 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
394
GEN WB07X7340 GEN WB07X7340 Contact Us For Availability
394
GEN WB07X7341 GEN WB07X7341 Contact Us For Availability
396
GEN WB01X5872 GEN WB01X5872 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X5679 GEN WB36X5679 Contact Us For Availability
441
GEN WB07X7289 GEN WB07X7289 Contact Us For Availability
441
GEN WB07X7290 GEN WB07X7290 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7031 GEN WB56X7031 Contact Us For Availability
518
GEN WB02X8412 GEN WB02X8412 Contact Us For Availability
519
GEN WB02X8219 GEN WB02X8219 Contact Us For Availability
520
LINER ASM WELD OVEN 23IN GEN WB53X5157 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
SMOKE ELM & TUBE ASM GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5219 GEN WB15X5219 Contact Us For Availability
702
GEN WB03X5774 GEN WB03X5774 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
GEN WB02X8485 GEN WB02X8485 Contact Us For Availability
706
GEN WB02X8222 GEN WB02X8222 Contact Us For Availability
708
GEN WB24X5326 GEN WB24X5326 Contact Us For Availability
709
GEN WB14X5043 GEN WB14X5043 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
758
GEN WB01K5050 GEN WB01K5050 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
× ![]()
