Model GE JBP19BY2 Electric Range – Common Parts & Diagrams

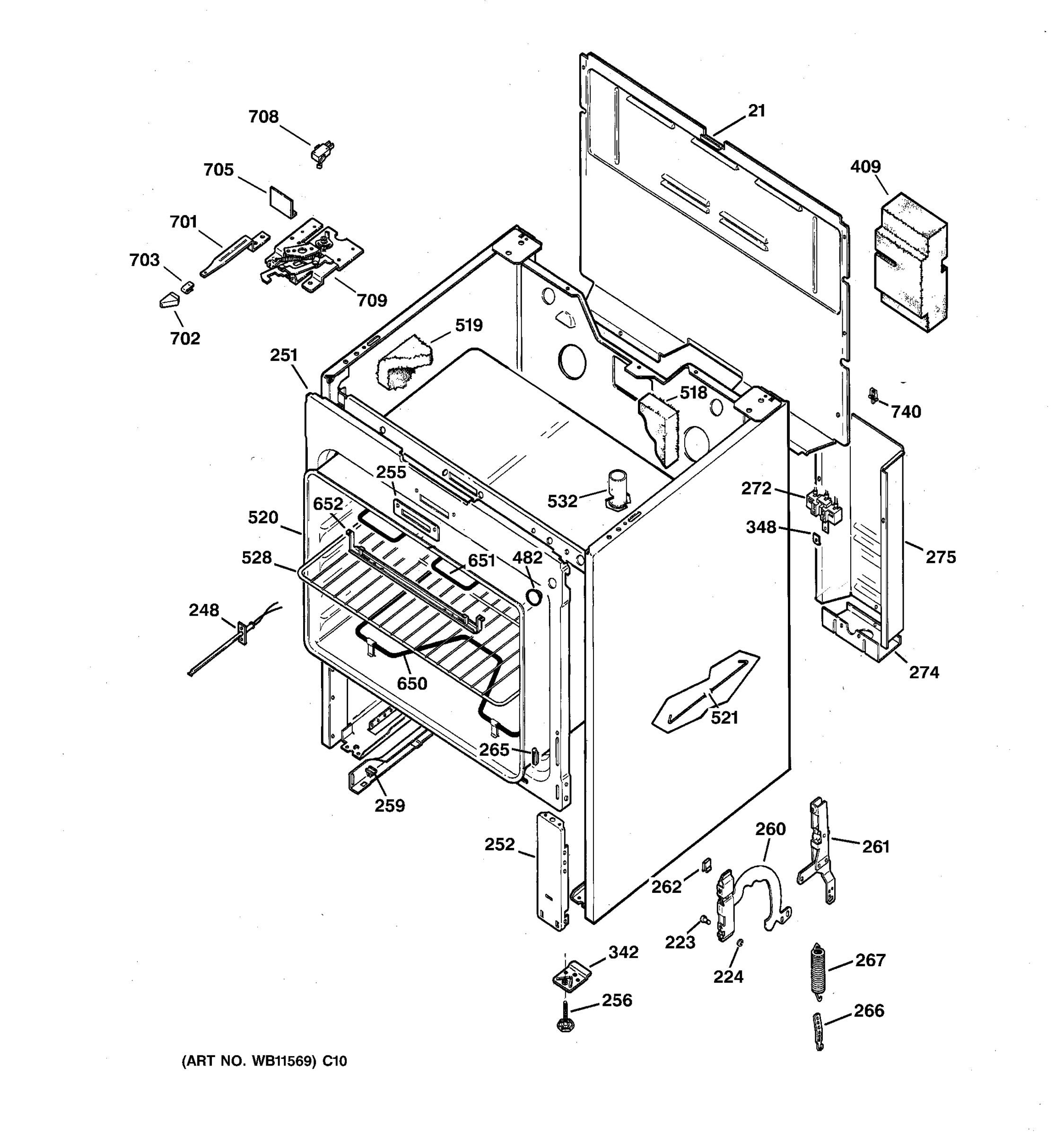

BODY PARTS

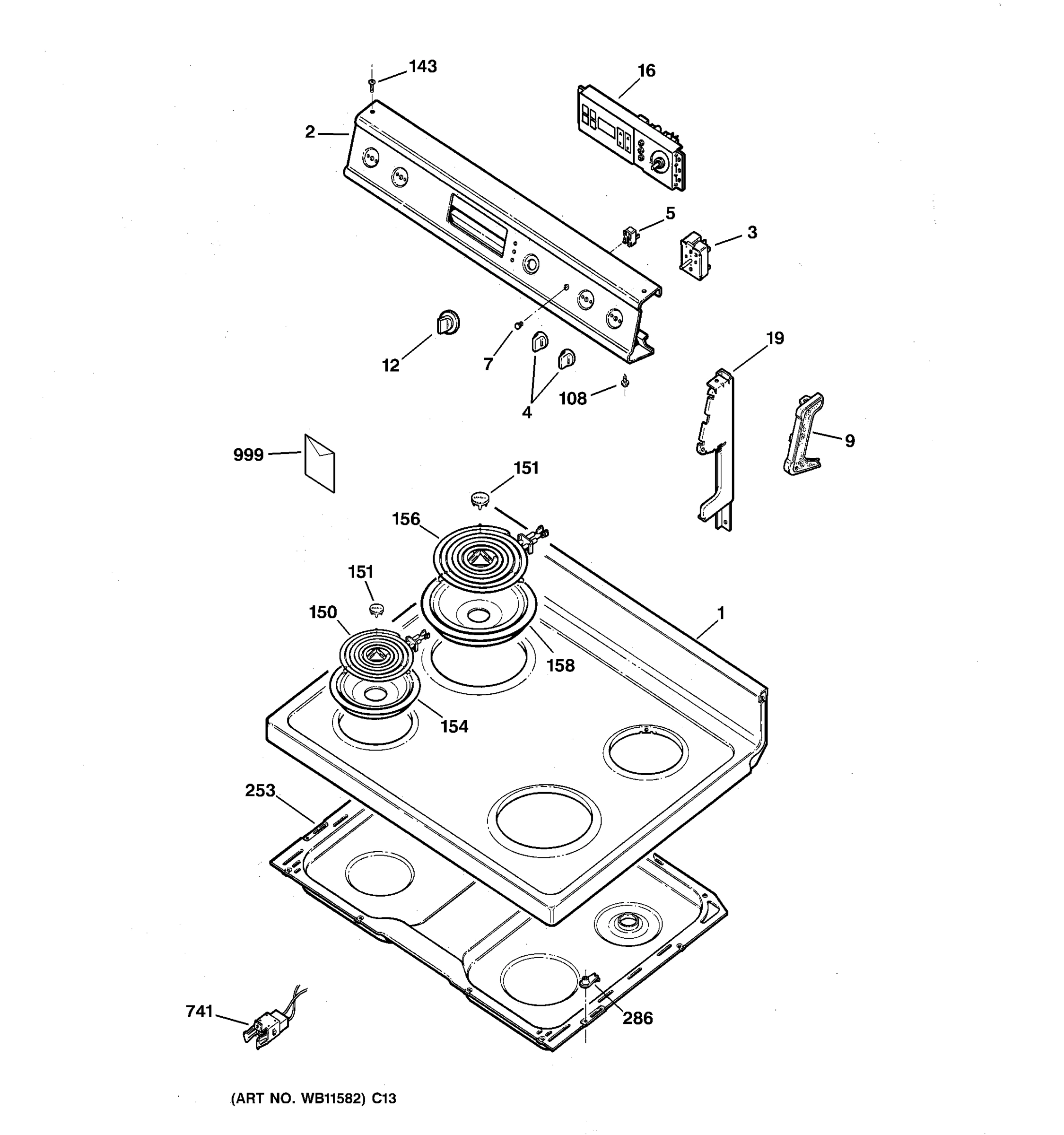

CONTROL PANEL & COOKTOP

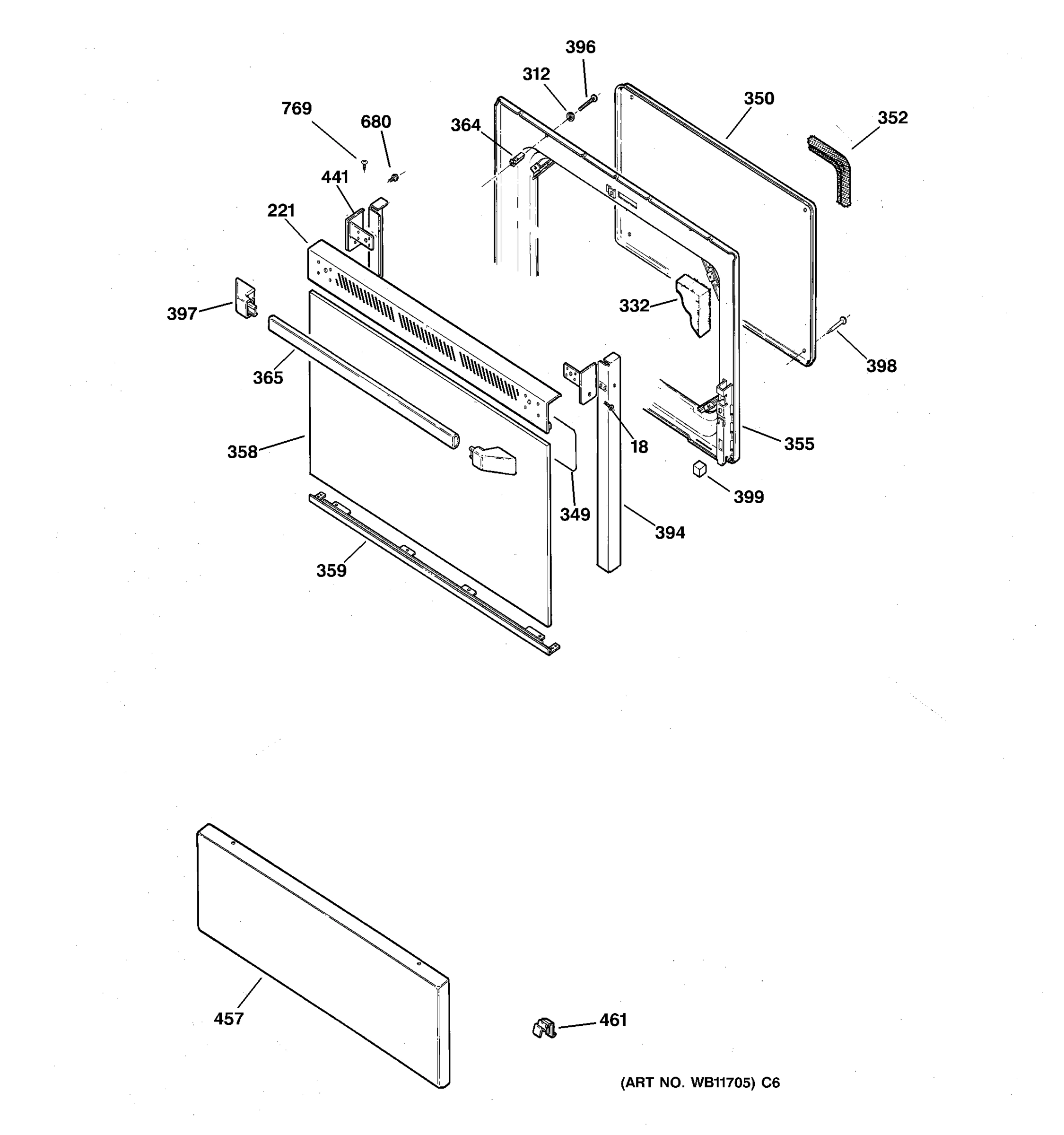

DOOR & DRAWER PARTS
Common parts from model GE JBP19BY2 Electric Range
1
GEN WB62X5455 GEN WB62X5455 Contact Us For Availability
2
GEN WB36X10032 GEN WB36X10032 Contact Us For Availability
4
GEN WB03X10011 GEN WB03X10011 Contact Us For Availability
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
9
GEN WB07X7136 GEN WB07X7136 Contact Us For Availability
9
GEN WB07X7137 GEN WB07X7137 Contact Us For Availability
12
GEN WB03X10030 GEN WB03X10030 Contact Us For Availability
16
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
16
GEN WB27X5527 GEN WB27X5527 Contact Us For Availability
18
GEN WR01X1768 GEN WR01X1768 Contact Us For Availability
19
PLATE END WH GEN WB07X7268 Contact Us For Availability
19
PLATE END WH GEN WB07X7269 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
221
GEN WB07X10169 GEN WB07X10169 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
332
GEN WB02X8445 GEN WB02X8445 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5562 GEN WB49X5562 Contact Us For Availability
350
GEN WB55X5361 GEN WB55X5361 Contact Us For Availability
355
LINER DOOR GEN WB55X5377 Contact Us For Availability
358
GEN WB36X5684 GEN WB36X5684 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
394
GEN WB07X7340 GEN WB07X7340 Contact Us For Availability
394
GEN WB07X7341 GEN WB07X7341 Contact Us For Availability
396
GEN WB01X5872 GEN WB01X5872 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
409
GEN WB02X3470 GEN WB02X3470 Contact Us For Availability
441
GEN WB07X7289 GEN WB07X7289 Contact Us For Availability
441
GEN WB07X7290 GEN WB07X7290 Contact Us For Availability
457
PANEL ASM WELD WH GEN WB56X7040 Contact Us For Availability
461
GEN WB02X8124 GEN WB02X8124 Contact Us For Availability
482
GEN WB02X1126 GEN WB02X1126 Contact Us For Availability
518
GEN WB02X8412 GEN WB02X8412 Contact Us For Availability
519
GEN WB02X8219 GEN WB02X8219 Contact Us For Availability
520
GEN WB53X5159 GEN WB53X5159 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5219 GEN WB15X5219 Contact Us For Availability
702
GEN WB03X5774 GEN WB03X5774 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
GEN WB02X8485 GEN WB02X8485 Contact Us For Availability
708
GEN WB24X5326 GEN WB24X5326 Contact Us For Availability
709
GEN WB14X5040 GEN WB14X5040 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
999
GEN 31-0824 GEN 31-0824 Contact Us For Availability
999
GEN 31-20710 GEN 31-20710 Contact Us For Availability
999
GEN 49-8828 GEN 49-8828 Contact Us For Availability
× ![]()
