Model GE JB571GM4 – Common Parts & Diagrams
0
1
2
3
4
Common parts from model GE JB571GM4
1
GEN WB36M0013 GEN WB36M0013 Contact Us For Availability
2
END CAP-LT GEN WB36M0011 Contact Us For Availability
2
END CAP-RT GEN WB36M0012 Contact Us For Availability
5
HOB ELEMENT THERMOSTAT GEN WB21X0517 Contact Us For Availability
6
GEN WB36M0001 GEN WB36M0001 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT-LT GEN WB06X0128 Contact Us For Availability
8
CLOCK LENS STIFFENER GEN WB02X9884 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
GEN WB06X0134 GEN WB06X0134 Contact Us For Availability
14
GEN WB02X9873 GEN WB02X9873 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB19X0268 Contact Us For Availability
17
GEN WB37M0008 GEN WB37M0008 Contact Us For Availability
18
GEN WB02X9663 GEN WB02X9663 Contact Us For Availability
24
THMST HOB BRACKET GEN WB02X9874 Contact Us For Availability
25
CANOPY PANEL-WHITE GEN WB07X1815 Contact Us For Availability
26
GEN WB02X9756 GEN WB02X9756 Contact Us For Availability
30
GEN WB03X0808 GEN WB03X0808 Contact Us For Availability
31
GEN WB27X0609 GEN WB27X0609 Contact Us For Availability
36
FLUORESCENT LAMP GEN WB08M0002 Contact Us For Availability
37
GEN WB02X9390 GEN WB02X9390 Contact Us For Availability
38
GEN WB08X0291 GEN WB08X0291 Contact Us For Availability
39
STARTER BASE ASM GEN WB08X0290 Contact Us For Availability
42
GEN WB34K5092 GEN WB34K5092 Contact Us For Availability
43
PC BOARD SPACER GEN WB02X9158 Contact Us For Availability
44
GEN WB06X0125 GEN WB06X0125 Contact Us For Availability
47
GEN WB38M0005 GEN WB38M0005 Contact Us For Availability
48
GEN WB38X0122 GEN WB38X0122 Contact Us For Availability

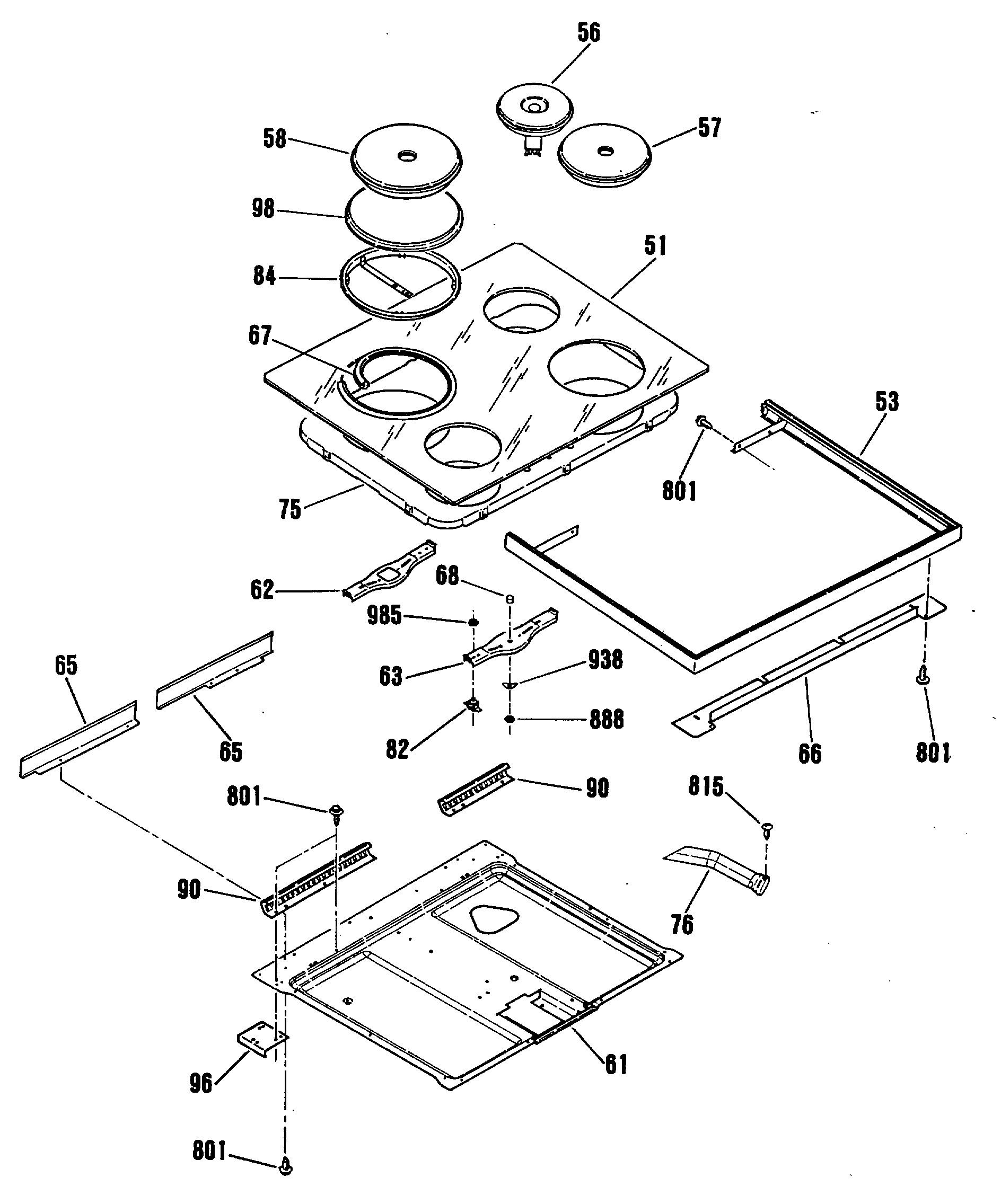

51
GEN WB57M0012 GEN WB57M0012 Contact Us For Availability
53
MAINTOP FRAME GEN WB07X1752 Contact Us For Availability
56
HOB ELEMENT-SMALL GEN WB30X0261 Contact Us For Availability
57
7" HOB ELEMENT GEN WB30X0263 Contact Us For Availability
58
9" HOB ELEMENT GEN WB30X0262 Contact Us For Availability
61
GEN WB64M0017 GEN WB64M0017 Contact Us For Availability
62
GEN WB02X9864 GEN WB02X9864 Contact Us For Availability
63
GEN WB02X9865 GEN WB02X9865 Contact Us For Availability
66
GEN WB34M0019 GEN WB34M0019 Contact Us For Availability
67
6" ELEMENT SEAL-GRAY GEN WB02X9861 Contact Us For Availability
67
7" ELEMENT SEAL-GRAY GEN WB02X9862 Contact Us For Availability
67
GEN WB02X9863 GEN WB02X9863 Contact Us For Availability
68
GEN WB02X9872 GEN WB02X9872 Contact Us For Availability
71
GEN WB35M0004 GEN WB35M0004 Contact Us For Availability
75
GEN WB63X0419 GEN WB63X0419 Contact Us For Availability
76
GEN WB02X9526 GEN WB02X9526 Contact Us For Availability
79
BBB BAFFLE-RT GEN WB34M0046 Contact Us For Availability
80
DUCT INSULATION COVER GEN WB34M0016 Contact Us For Availability
82
GEN WB21X0498 GEN WB21X0498 Contact Us For Availability
84
6" GASKET RING GEN WB02X9507 Contact Us For Availability
84
7" GASKET RING GEN WB02X9508 Contact Us For Availability
84
9" GASKET RING GEN WB02X9509 Contact Us For Availability
86
GEN WB20X0116 GEN WB20X0116 Contact Us For Availability
90
MAINTOP GLASS SUPPORT-RT GEN WB02X9876 Contact Us For Availability
90
MAINTOP GLASS SUPPORT-LT GEN WB02X9877 Contact Us For Availability
93
GEN WB34K5058 GEN WB34K5058 Contact Us For Availability
96
REINFORCEMENT PLATE GEN WB02X9418 Contact Us For Availability
98
6" TRIM RING GEN WB32X0117 Contact Us For Availability
98
7" TRIM RING GEN WB32X0118 Contact Us For Availability
98
9" TRIM RING GEN WB32X0119 Contact Us For Availability
102
OV DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
OV DOOR LINING PLUG GEN WB55M0010 Contact Us For Availability
112
OVEN DOOR LINING GEN WB56M0001 Contact Us For Availability
113
OV DR INS RETAINER GEN WB02X9175 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MTG PLATE GEN WB02X9178 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
121
GEN WB57K5036 GEN WB57K5036 Contact Us For Availability
122
OV DR INTERMEDIATE GLASS GEN WB56X1906 Contact Us For Availability
123
OV DR CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
GEN WB57K5063 GEN WB57K5063 Contact Us For Availability
133
GEN WB01K5115 GEN WB01K5115 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0292 Contact Us For Availability
140
OVEN DOOR FRAME GEN WB07X1622 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
GEN WB02X9640 GEN WB02X9640 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability

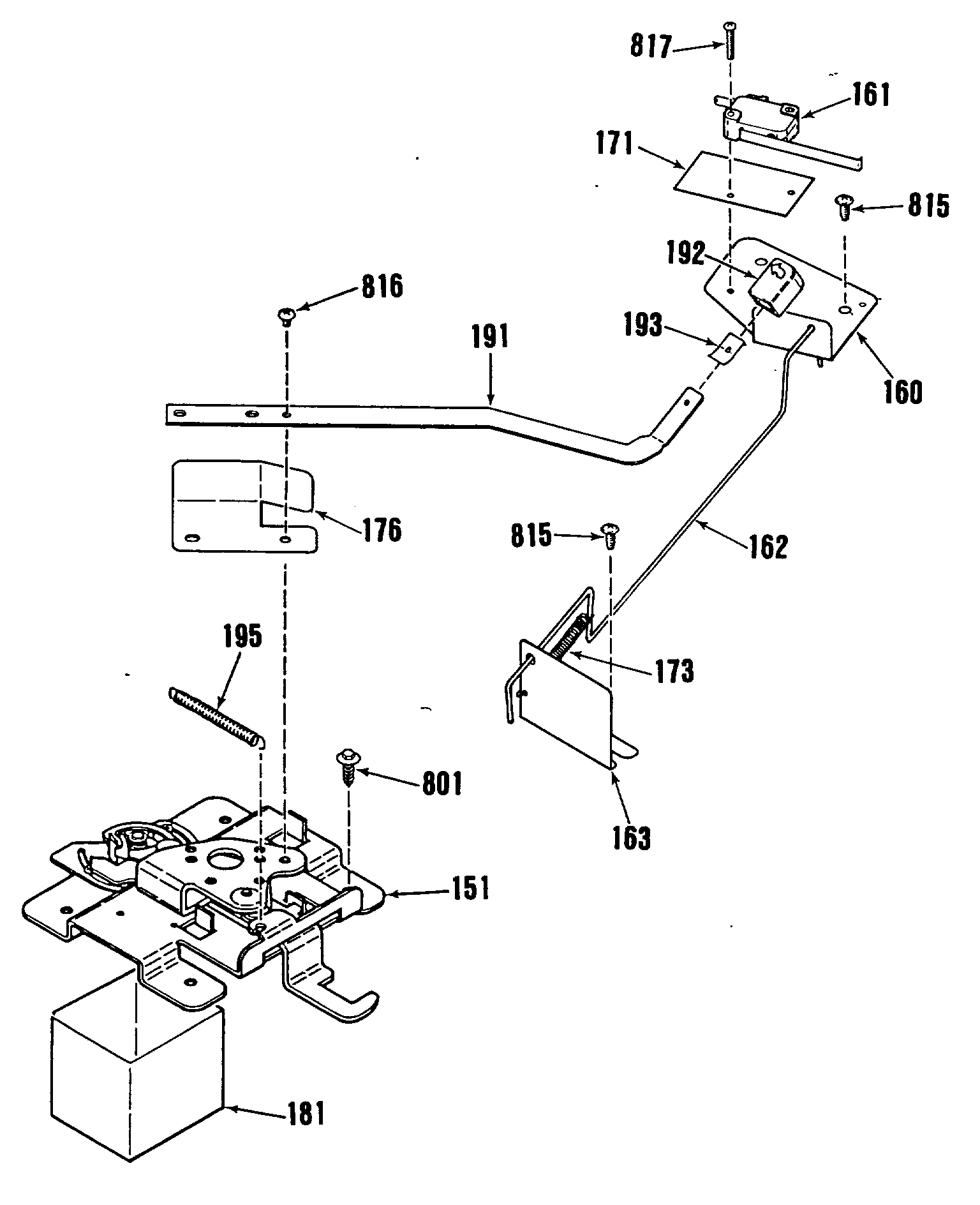

151
LATCH ASM GEN WB14X0128 Contact Us For Availability
160
SWITCH MTG BRACKET GEN WB02M0027 Contact Us For Availability
161
GEN WB24X0454 GEN WB24X0454 Contact Us For Availability
162
GEN WB02M0028 GEN WB02M0028 Contact Us For Availability
163
GEN WB03M0029 GEN WB03M0029 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
173
LOCK EXTENSION SPRING GEN WB09M0003 Contact Us For Availability
176
GEN WB15M0002 GEN WB15M0002 Contact Us For Availability
181
LATCH INS RETAINER GEN WB02K5097 Contact Us For Availability
191
GEN WB02X9720 GEN WB02X9720 Contact Us For Availability
192
GEN WB03X0831 GEN WB03X0831 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB63M0040 GEN WB63M0040 Contact Us For Availability
202
GEN WB63M0026 GEN WB63M0026 Contact Us For Availability
203
GEN WB63K5134 GEN WB63K5134 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0038 GEN WB02M0038 Contact Us For Availability
212
GEN WB02K5093 GEN WB02K5093 Contact Us For Availability
216
GEN WB34M0020 GEN WB34M0020 Contact Us For Availability
217
GEN WB34K5093 GEN WB34K5093 Contact Us For Availability
221
BODY SIDE GEN WB63X0351 Contact Us For Availability
222
LOWER FRONT PANEL GEN WB56X1959 Contact Us For Availability
226
GEN WB15X0291 GEN WB15X0291 Contact Us For Availability
231
INSULATION TOP & SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35M0005 GEN WB35M0005 Contact Us For Availability
233
INSULATION TOP & SIDES GEN WB02X9718 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
256
GEN WB08M0003 GEN WB08M0003 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
259
OV LIGHT LENS GEN WB25M0010 Contact Us For Availability
261
SWITCH GEN WB24K5030 Contact Us For Availability
266
BASE ASM W/LEVELER GEN WB02X9187 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
RANGE SERVICE MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38M0001 GEN WB38M0001 Contact Us For Availability
286
OVEN DOOR SPRING GEN WB09X0273 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
794
GEN WB01K5108 GEN WB01K5108 Contact Us For Availability
802
GEN WB01M0013 GEN WB01M0013 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
827
GEN WB01X1395 GEN WB01X1395 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
848
GEN WB01X1394 GEN WB01X1394 Contact Us For Availability
854
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
888
"M6" NUT-STANDARD HOB GEN WB01X1305 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
928
GEN WB01X1310 GEN WB01X1310 Contact Us For Availability
936
GEN WB02X9447 GEN WB02X9447 Contact Us For Availability
938
SPRING WASHER GEN WB01X1306 Contact Us For Availability
950
GEN WB01M0003 GEN WB01M0003 Contact Us For Availability
951
BACKGUARD CLIP GEN WB02X9443 Contact Us For Availability
957
GEN WB02X9875 GEN WB02X9875 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
NUT SPACER GEN WB01X1177 Contact Us For Availability
985
"M4" NUT GEN WB01X1304 Contact Us For Availability
999
GEN 31-0926 GEN 31-0926 Contact Us For Availability
999
GEN 31-13012 GEN 31-13012 Contact Us For Availability
999
GEN 49-8148 GEN 49-8148 Contact Us For Availability
999
GEN WB06M0001 GEN WB06M0001 Contact Us For Availability
999
LIGHT SWITCH W HARNESS GEN WB18K5232 Contact Us For Availability
999
GEN WB18K5292 GEN WB18K5292 Contact Us For Availability
999
GEN WB18M0027 GEN WB18M0027 Contact Us For Availability
999
MAINTOP WIRE HARNESS-LT GEN WB18M0028 Contact Us For Availability
999
LOCK SWITCH HARNESS GEN WB18M0030 Contact Us For Availability
999
MAINTOP WIRE HARNESS-RT GEN WB18M0031 Contact Us For Availability
999
GEN WB18X0414 GEN WB18X0414 Contact Us For Availability
999
GEN WB18X0417 GEN WB18X0417 Contact Us For Availability
× ![]()
