Model GE JB570GM1 Electric Range – Common Parts & Diagrams
0
1
2
3

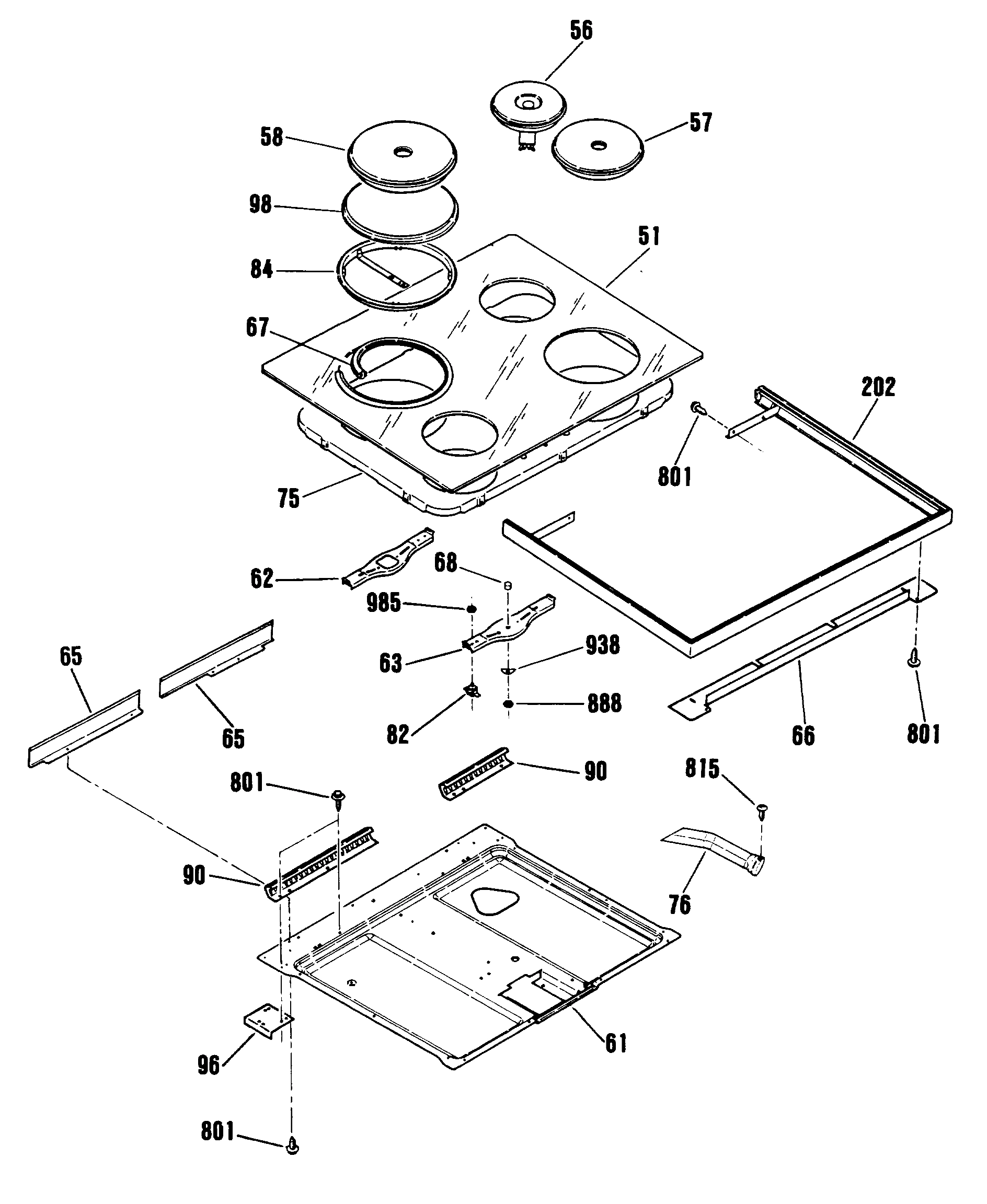

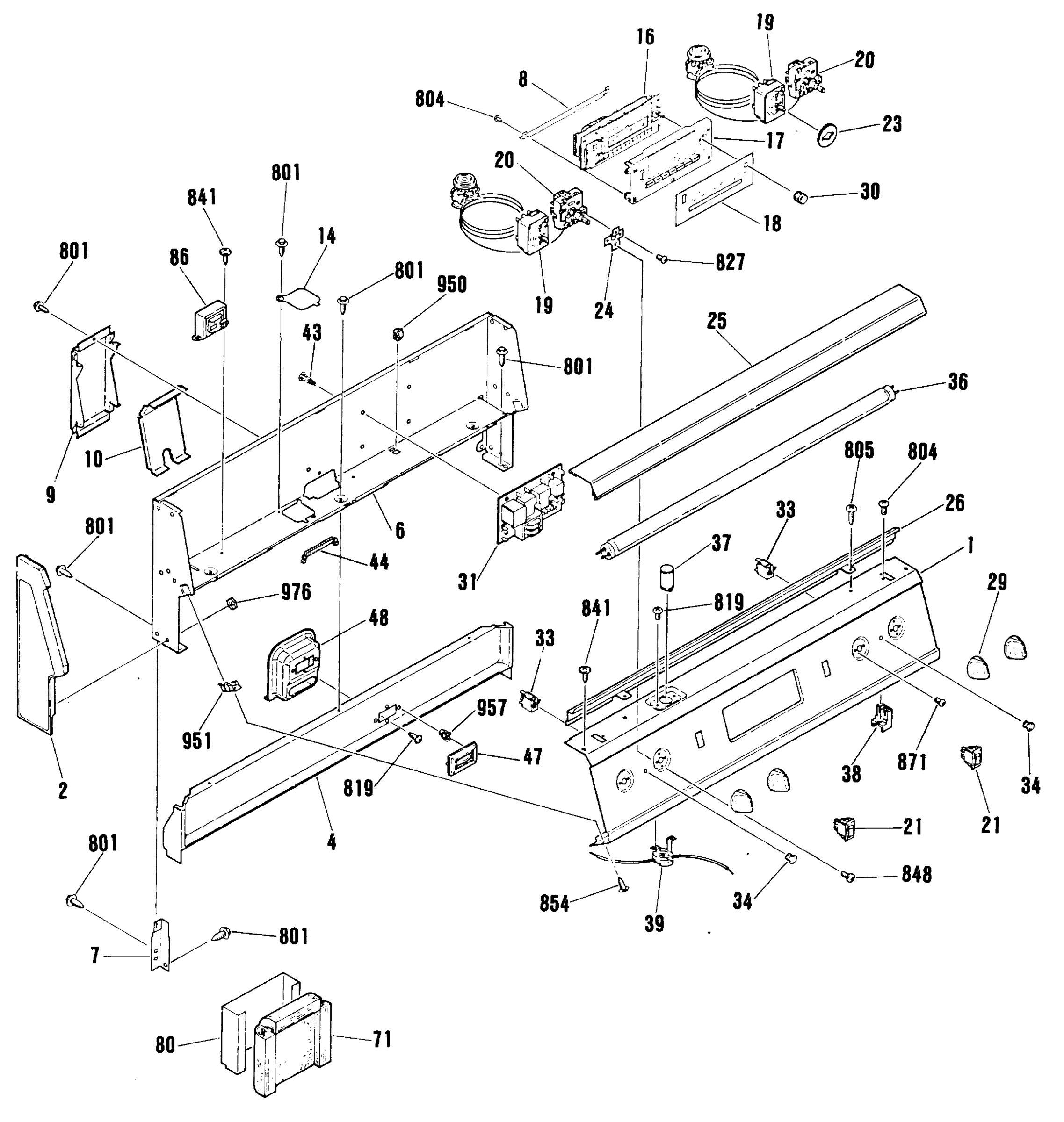

Common parts from model GE JB570GM1 Electric Range
2
GEN WB07X1839 GEN WB07X1839 Contact Us For Availability
4
GEN WB37M0003 GEN WB37M0003 Contact Us For Availability
6
GEN WB36M0001 GEN WB36M0001 Contact Us For Availability
7
BACKGUARD SUPPORT RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT LT GEN WB06X0128 Contact Us For Availability
8
GEN WB02X9884 GEN WB02X9884 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
GEN WB06X0134 GEN WB06X0134 Contact Us For Availability
14
GEN WB02X9873 GEN WB02X9873 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB19X0268 Contact Us For Availability
17
GEN WB12M0001 GEN WB12M0001 Contact Us For Availability
18
CLOCK PLATE BLACK GEN WB02X9664 Contact Us For Availability
20
HOB ELEMENT THERMOSTAT GEN WB21X0517 Contact Us For Availability
21
GEN WB24X0479 GEN WB24X0479 Contact Us For Availability
23
GEN WB02M0003 GEN WB02M0003 Contact Us For Availability
24
HOB THERMOSTAT BRACKET GEN WB02X9874 Contact Us For Availability
25
GEN WB07X1790 GEN WB07X1790 Contact Us For Availability
26
GEN WB02X9756 GEN WB02X9756 Contact Us For Availability
29
GEN WB03M0002 GEN WB03M0002 Contact Us For Availability
30
GEN WB03X0770 GEN WB03X0770 Contact Us For Availability
31
GEN WB27X0609 GEN WB27X0609 Contact Us For Availability
34
GEN WB24X0094 GEN WB24X0094 Contact Us For Availability
36
FLUOR LAMP GEN WB08M0002 Contact Us For Availability
38
GEN WB08X0291 GEN WB08X0291 Contact Us For Availability
39
GEN WB02X9390 GEN WB02X9390 Contact Us For Availability
39
STARTER BASE ASM GEN WB08X0290 Contact Us For Availability
43
PC BOARD SPACER GEN WB02X9158 Contact Us For Availability
44
GEN WB06X0125 GEN WB06X0125 Contact Us For Availability
47
GEN WB38M0005 GEN WB38M0005 Contact Us For Availability
48
GEN WB38X0122 GEN WB38X0122 Contact Us For Availability
51
GEN WB62X1708 GEN WB62X1708 Contact Us For Availability
53
GEN WB07X1752 GEN WB07X1752 Contact Us For Availability
56
HOB ELEMENT 6" GEN WB30X0261 Contact Us For Availability
57
GEN WB30X0263 GEN WB30X0263 Contact Us For Availability
58
HOB ELEMENT 9" GEN WB30X0262 Contact Us For Availability
61
GEN WB63M0003 GEN WB63M0003 Contact Us For Availability
62
GEN WB02X9864 GEN WB02X9864 Contact Us For Availability
63
GEN WB02X9865 GEN WB02X9865 Contact Us For Availability
65
GEN WB34M0045 GEN WB34M0045 Contact Us For Availability
65
GEN WB34M0046 GEN WB34M0046 Contact Us For Availability
66
GEN WB34M0019 GEN WB34M0019 Contact Us For Availability
67
BLACK ELEMENT SEAL 6" GEN WB02X9510 Contact Us For Availability
67
BLACK ELEMENT SEAL 7" GEN WB02X9511 Contact Us For Availability
67
BLACK ELEMENT SEAL 9" GEN WB02X9512 Contact Us For Availability
68
GEN WB02X9872 GEN WB02X9872 Contact Us For Availability
71
GEN WB35M0004 GEN WB35M0004 Contact Us For Availability
75
GEN WB63X0419 GEN WB63X0419 Contact Us For Availability
76
GEN WB02X9526 GEN WB02X9526 Contact Us For Availability
80
GEN WB34M0016 GEN WB34M0016 Contact Us For Availability
82
GEN WB21X0498 GEN WB21X0498 Contact Us For Availability
84
GEN WB32X0110 GEN WB32X0110 Contact Us For Availability
84
GEN WB32X0111 GEN WB32X0111 Contact Us For Availability
84
GEN WB32X0112 GEN WB32X0112 Contact Us For Availability
86
GEN WB20X0116 GEN WB20X0116 Contact Us For Availability
90
GEN WB02X9876 GEN WB02X9876 Contact Us For Availability
90
GEN WB02X9877 GEN WB02X9877 Contact Us For Availability
96
REINFORCEMENT PLATE GEN WB02X9418 Contact Us For Availability
98
GEN WB02X9507 GEN WB02X9507 Contact Us For Availability
98
GASKET RING 7" GEN WB02X9508 Contact Us For Availability
98
GASKET RING 9" GEN WB02X9509 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9169 Contact Us For Availability
111
GEN WB55M0010 GEN WB55M0010 Contact Us For Availability
112
OVEN DOOR LINING GEN WB56M0001 Contact Us For Availability
113
OV DR INS RETAINER ASM GEN WB02X9175 Contact Us For Availability
116
GLASS MTG PLATE GEN WB02X9178 Contact Us For Availability
117
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
122
INTERMEDIATE GLASS GEN WB56X1906 Contact Us For Availability
123
OV DR INNER GLASS GEN WB56X1907 Contact Us For Availability
124
OV DR INNER GLASS GEN WB57M0001 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0272 Contact Us For Availability
140
GEN WB56M0004 GEN WB56M0004 Contact Us For Availability
143
SPACER GEN WB02X9039 Contact Us For Availability
146
OV DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
151
LATCH ASM GEN WB14X0128 Contact Us For Availability
160
GEN WB02M0027 GEN WB02M0027 Contact Us For Availability
161
GEN WB24X0454 GEN WB24X0454 Contact Us For Availability
162
GEN WB02M0028 GEN WB02M0028 Contact Us For Availability
163
GEN WB02M0029 GEN WB02M0029 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
173
GEN WB09M0003 GEN WB09M0003 Contact Us For Availability
176
GEN WB15M0002 GEN WB15M0002 Contact Us For Availability
181
INS RETAINER-DR LATCH GEN WB02X9448 Contact Us For Availability
191
GEN WB02X9720 GEN WB02X9720 Contact Us For Availability
192
LOCK KNOB GEN WB03X0782 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK HANDLE SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB53X0281 GEN WB53X0281 Contact Us For Availability
202
GEN WB63M0026 GEN WB63M0026 Contact Us For Availability
203
GEN WB63M0001 GEN WB63M0001 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0004 GEN WB02M0004 Contact Us For Availability
212
INSULATION RETAINER GEN WB02X9429 Contact Us For Availability
217
WIRE SHIELD UPPER GEN WB02X9421 Contact Us For Availability
218
WIRE SHIELD LO GEN WB02X9426 Contact Us For Availability
221
BODY SIDE ALMOND GEN WB63X0357 Contact Us For Availability
222
LOWER FRONT PANEL ASM GEN WB56X1969 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
226
OVEN DOOR HANDLE GEN WB15X0270 Contact Us For Availability
231
INSULATION GEN WB02X9423 Contact Us For Availability
232
INSULATION OV BTM & BACK GEN WB02X9428 Contact Us For Availability
233
INSULATION TOP & SIDE FT GEN WB02X9718 Contact Us For Availability
234
SERVICE CORD INSULATOR GEN WB02X9425 Contact Us For Availability
236
SPRING OVEN DOOR GEN WB09X0273 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
252
BROIL ELEMENT 208V GEN WB44X0233 Contact Us For Availability
254
GEN WB17X0215 GEN WB17X0215 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LITE LENS RETAINER GEN WB02X9150 Contact Us For Availability
261
SWITCH GEN WB24X0795 Contact Us For Availability
266
GEN WB02X9187 GEN WB02X9187 Contact Us For Availability
267
DRAWER SUPPORT RT & LT GEN WB56M0003 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38M0001 GEN WB38M0001 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
SLIDE BLOCK REAR GEN WB02X9146 Contact Us For Availability
293
SLIDE BLOCK FRONT GEN WB02X9148 Contact Us For Availability
295
GEN WB02X9424 GEN WB02X9424 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
827
GEN WB01X1395 GEN WB01X1395 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
848
GEN WB01X1394 GEN WB01X1394 Contact Us For Availability
854
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
871
GEN WB01M0013 GEN WB01M0013 Contact Us For Availability
888
M6 NUT 6" GEN WB01X1305 Contact Us For Availability
926
GEN WB01X1260 GEN WB01X1260 Contact Us For Availability
936
GEN WB02X9447 GEN WB02X9447 Contact Us For Availability
938
GEN WB01X1306 GEN WB01X1306 Contact Us For Availability
950
GEN WB01M0003 GEN WB01M0003 Contact Us For Availability
951
BACKGUARD CLIP GEN WB02X9443 Contact Us For Availability
957
GEN WB02X9875 GEN WB02X9875 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
985
NUT GEN WB01X1304 Contact Us For Availability
999
GEN 31-0845 GEN 31-0845 Contact Us For Availability
999
GEN 49-8009 GEN 49-8009 Contact Us For Availability
999
GEN WB06M0001 GEN WB06M0001 Contact Us For Availability
999
GEN WB18M0027 GEN WB18M0027 Contact Us For Availability
999
GEN WB18M0028 GEN WB18M0028 Contact Us For Availability
999
GEN WB18M0029 GEN WB18M0029 Contact Us For Availability
999
GEN WB18M0030 GEN WB18M0030 Contact Us For Availability
999
GEN WB18M0031 GEN WB18M0031 Contact Us For Availability
999
LITE SWITCH WIRE HARNESS GEN WB18X0411 Contact Us For Availability
999
GEN WB18X0414 GEN WB18X0414 Contact Us For Availability
999
GEN WB18X0417 GEN WB18X0417 Contact Us For Availability
× ![]()
