Model GE JB450DF1BB – Common Parts & Diagrams
CONTROL PANEL & COOKTOP
BODY PARTS

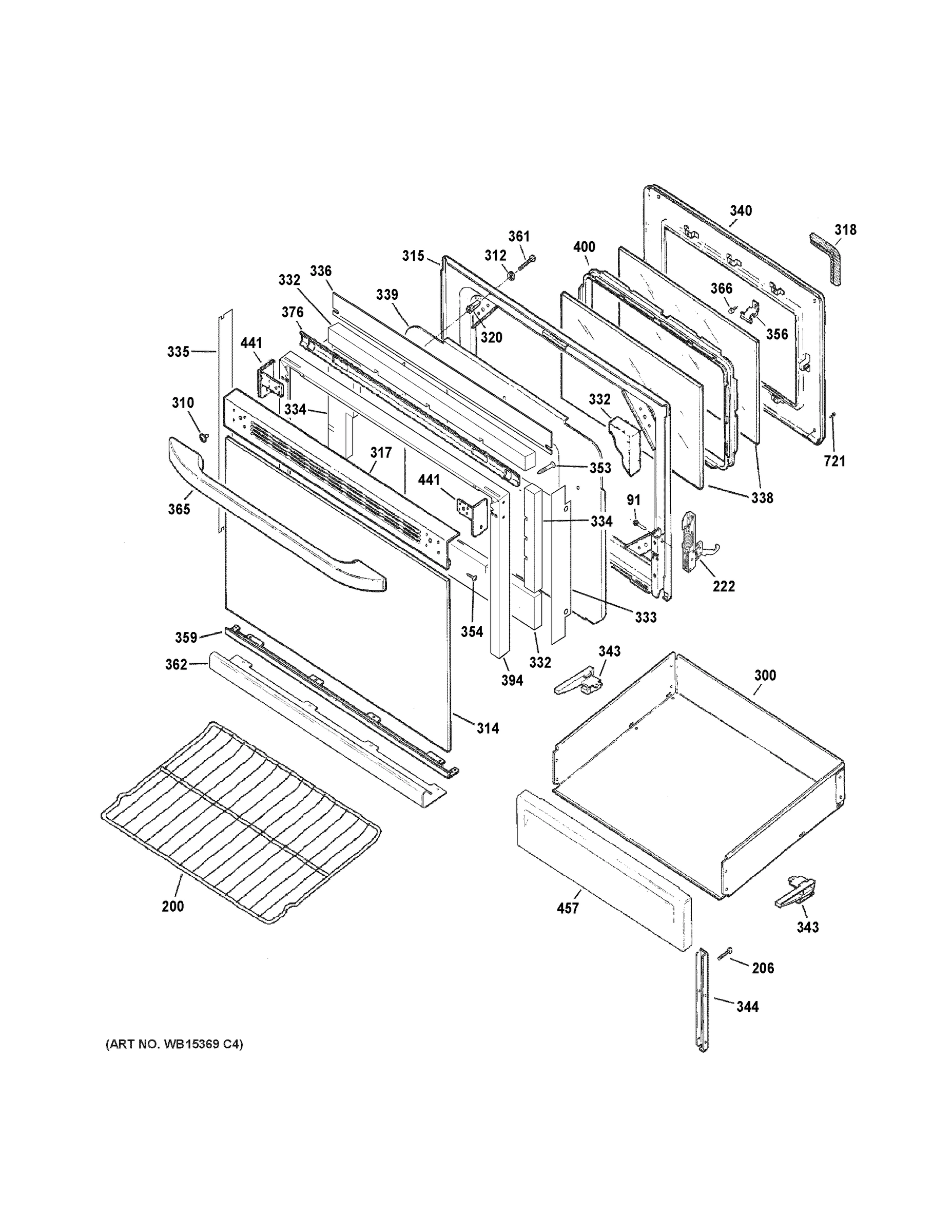

DOOR & DRAWER PARTS
Common parts from model GE JB450DF1BB
1
RANGE TOP GEN WB62X21354 Contact Us For Availability
2
KNOB VALVE GEN WB03X21356 Contact Us For Availability
25
SWITCH ROCKER SEALED GEN WB24X20458 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
100
END SUPPORT RT GEN WB07X20194 Contact Us For Availability
103
BRACKET CONTROL GEN WB02K10150 Contact Us For Availability
104
TRIM CONTROL GEN WB36X21588 Contact Us For Availability
108
SCREW GEN WB01K10091 Contact Us For Availability
117
PIN LOCATOR REAR GEN WB02K10075 Contact Us For Availability
121
SCR 8-18 AB IHW 3/8 SN GEN WB01K10042 Contact Us For Availability
150
SURFACE UNIT ASM 6 GEN WB30K10016 Contact Us For Availability
153
ROD SUPPORT GEN WB02K10026 Contact Us For Availability
154
6 INCH BLACK PORCELAIN B GEN WB31T10014 Contact Us For Availability
156
SURFACE UNIT ASM 8 GEN WB30K10018 Contact Us For Availability
158
8 INCH BLACK PORCELAIN B GEN WB31T10015 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
205
GUARD TERMINAL GEN WB34X21584 Contact Us For Availability
222
HINGE DOOR GEN WB10X21982 Contact Us For Availability
230
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
231
BRACKET ASM ANTI-TIP GEN WB02X27862 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
252
VENT COVER GEN WB04K10002 Contact Us For Availability
253
BOX COOKTOP GEN WB64K10011 Contact Us For Availability
255
DRAWER SUPPORT GEN WB02K10163 Contact Us For Availability
278
DIVIDER WIRING GEN WB34X21602 Contact Us For Availability
279
LATCH ASSEMBLY GEN WB02K10149 Contact Us For Availability
300
DRAWER BODY GEN WB58K10015 Contact Us For Availability
314
GLASS OVEN DOOR GEN WB56X21358 Contact Us For Availability
315
LINER ASM WELD DOOR GEN WB56X21344 Contact Us For Availability
320
SPACER GEN WB02K10161 Contact Us For Availability
332
INSULATION BOTTOM DOOR GEN WB35K10102 Contact Us For Availability
333
REFLECTOR 9.5 INCH GEN WB35K0022 Contact Us For Availability
334
INSULATION SIDE DOOR GEN WB35K10101 Contact Us For Availability
335
REFLECTOR GEN WB35K10041 Contact Us For Availability
336
INSULATION DOOR GEN WB35K10084 Contact Us For Availability
338
CRYSTAL WINDOW GEN WB56X23809 Contact Us For Availability
356
CLIP WINDOW GEN WB02K0056 Contact Us For Availability
359
TRIM BOTTOM ASM GEN WB07K10232 Contact Us For Availability
362
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
365
HANDLE GEN WB15K10099 Contact Us For Availability
394
TRIM DOOR GEN WB07X20355 Contact Us For Availability
400
WINDOW SPACER ASM GEN WB34K10087 Contact Us For Availability
441
END CAP DOOR RT (BK) GEN WB07X7181 Contact Us For Availability
441
END CAP DOOR LF (BK) GEN WB07X7182 Contact Us For Availability
457
PANEL DRAWER (BLACK) GEN WB55K10001 Contact Us For Availability
711
THERMOSTAT KNOB ASM GEN WB03X21357 Contact Us For Availability
1120
BUMPER GEN WB02K10178 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X20220 Contact Us For Availability
1331
SCREW MTG HINGE (TORX) GEN WB01K0053 Contact Us For Availability
9999
HINGE SERVICE KIT GEN WB49X21392 Contact Us For Availability
× ![]()
