Model Ipso IT120T Dryer – Common Parts & Diagrams
Exterior Control Box - RT Control Suffix (Drawing 1 of 2)
Exterior Control Box - RT Control Suffix (Drawing 2 of 2)
Exterior Control Box - RM Control Suffix
Exterior Control Box - RQ Control Suffix (Drawing 1 of 2)
Exterior Control Box - RQ Control Suffix (Drawing 2 of 2)
Interior Control Box - RM and RT Control Suffixes
Interior Control Box - RQ Control Suffix
DMP Control Box - C and I Models with RD Control Suffix
DX4 Control Box - B Models with R3 Control Suffix
Fire Suppression System Control Box
Cabinet Front Components (Drawing 1 of 2)
Cabinet Front Components (Drawing 2 of 2)
Door and Hinge Components - G, H, K, L, P, S, U, W,
X and Y Models
Door and Hinge Components - B, C and I Models
Lint Panel Components
Lint Panel Switch Assembly
Lint Screen and Drive Guard - 120 Pound Models
Lint Screen and Drive Guard - 170 Pound Models
Cylinder and Trunnion Assembly
Trunnion Bearings
Drive Sheave, Step Pulley and Belts
Cylinder Drive Motor
Fan Assembly - 120 Pound 50 Hertz Models
Fan Motor Assembly - 120 Pound 50 Hertz Models
Fan and Fan Motor Assembly - 120 Pound 60 Hertz Models
Fan Assembly - 170 Pound Models
Fan Motor Assembly - 170 Pound Models
Airflow Switch Assembly
Gas Heater Components - 120 Pound Models
Gas Heater Components - Non-CE 170 Pound Models
Gas Heater Components - CE 170 Pound Models (Drawing 1 of 2)
Steam Heater Components - 120 Pound Models Through
Serial No. 0412012320 Except B, C, I and L Models
Steam Heater Components - 120 Pound Models Starting
Serial No. 0412012321 Except B, C, and I Models
Steam Heater Components - 120 Pound B, C and I Models
Steam Heater Components - 170 Pound Models Through
Serial No. 0412012320 Except B, C, I and L Models
Steam Heater Components - 170 Pound Models
Starting Serial No. 0412012321 Except B, C and I Models
Steam Heater Components - 170 Pound B, C and I Models

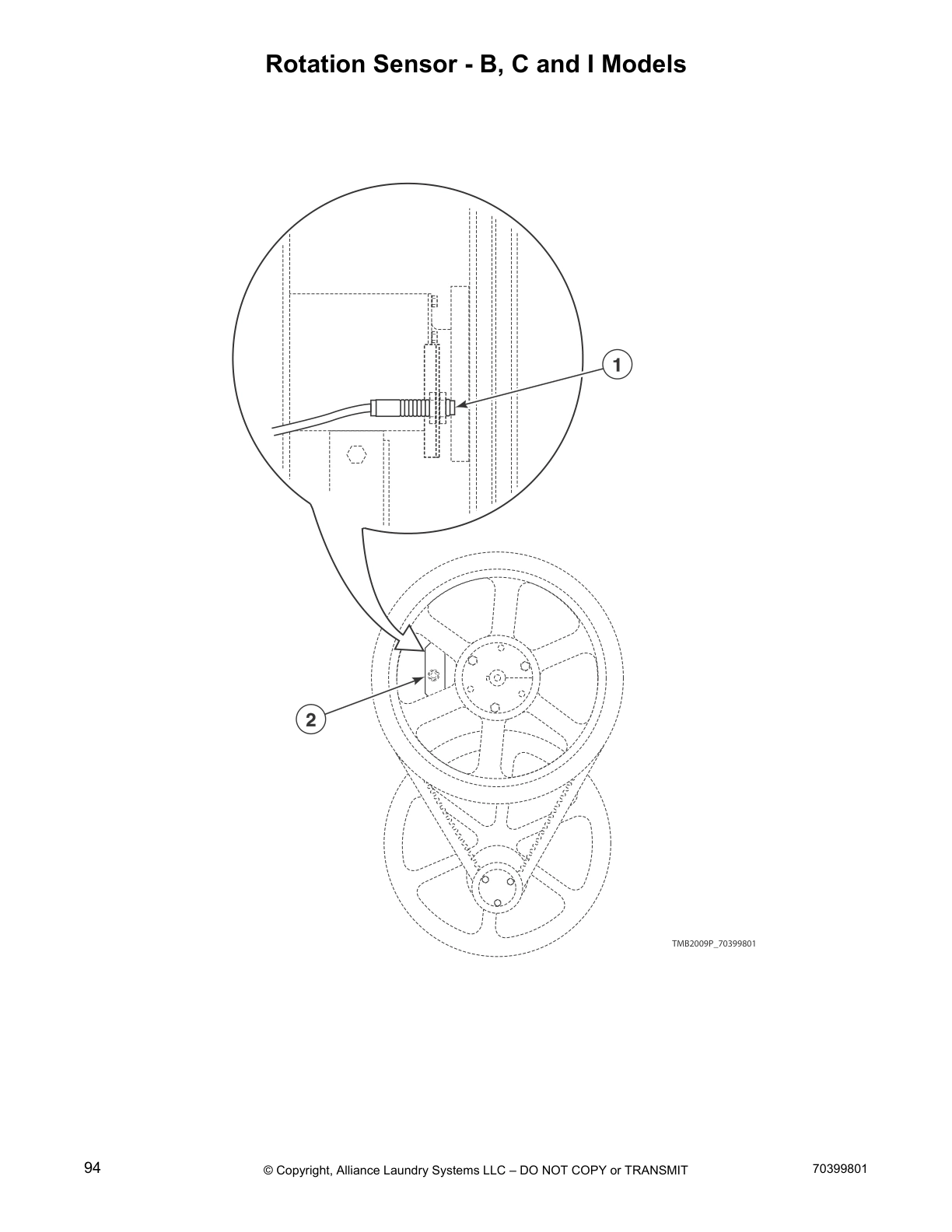

Rotation Sensor - B, C and I Models
Contactor Box Assembly (Drawing 1 of 2)
Contactor Box Assembly (Drawing 2 of 2)
Junction Box Assembly
Junction Box Harnesses
Common parts from model Ipso IT120T Dryer
SPQ M413760 SPQ M413760 Contact Us For Availability
SPQ M413862 SPQ M413862 Contact Us For Availability
1
Front Access Panel SPQ 44012608 Contact Us For Availability
1
Door Assembly SPQ 44112101 Contact Us For Availability
1
Handle and Caps Assembly SPQ 44049901 Contact Us For Availability
1
Lint Panel Switch Harness SPQ 44019701P Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44054802 Contact Us For Availability
1
Washer SPQ 56552 Contact Us For Availability
1
Screw SPQ M401938 Contact Us For Availability
1
Steam Filter Top Hinge Assembly SPQ 44088101 Contact Us For Availability
1
Rotation Sensor Kit SPQ 7010P Contact Us For Availability
1
Fuse SPQ M413118 Contact Us For Availability
1
Fuse Holder SPQ M413544P Contact Us For Availability
2
Door Hinge SPQ 44008201P Contact Us For Availability
2
Switch Plate SPQ 44099601 Contact Us For Availability
2
Nut SPQ M400977 Contact Us For Availability
2
Pop Rivet SPQ 70126301 Contact Us For Availability
2
Roller Catch SPQ 44051301 Contact Us For Availability
2
Cylinder Assembly SPQ 44054801 Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Damper Assembly SPQ H8800901H Contact Us For Availability
2
Lever Arm Switch SPQ 44021701 Contact Us For Availability
2
Steam Cover SPQ H96382106 Contact Us For Availability
2
Rotation Sensor Bracket SPQ 44111101 Contact Us For Availability
2
Jumper Configuration Assembly SPQ 91024P Contact Us For Availability
3
SPQ M411403 SPQ M411403 Contact Us For Availability
3
Nameplate SPQ 70348601 Contact Us For Availability
3
Pop Rivet SPQ 430725 Contact Us For Availability
3
SPQ M402144 SPQ M402144 Contact Us For Availability
3
SPQ 44319902P SPQ 44319902P Contact Us For Availability
3
Trunnion Assembly SPQ M409788 Contact Us For Availability
3
Jumper Harness Assembly SPQ M413509 Contact Us For Availability
4
Door Glass Installation Tool SPQ 70115902 Contact Us For Availability
4
Roller Catch Mounting Bracket SPQ 44014001 Contact Us For Availability
4
Nut SPQ H96427513 Contact Us For Availability
4
SPQ H88412101 SPQ H88412101 Contact Us For Availability
4
SPQ H87520466 SPQ H87520466 Contact Us For Availability
4
Steam Coil Housing End SPQ 44114501 Contact Us For Availability
4
Insulator SPQ M413575 Contact Us For Availability
5
SPQ 44075207B SPQ 44075207B Contact Us For Availability
5
Lint Panel Switch Cover SPQ 44026801 Contact Us For Availability
5
SPQ B12308601 SPQ B12308601 Contact Us For Availability
5
Washer SPQ 44055501 Contact Us For Availability
5
SPQ H88412093 SPQ H88412093 Contact Us For Availability
5
SPQ H87529111P SPQ H87529111P Contact Us For Availability
5
Nut SPQ 430370 Contact Us For Availability
6
Pushbutton Switch SPQ 70413301 Contact Us For Availability
6
SPQ H88213996 SPQ H88213996 Contact Us For Availability
6
SPQ H96428628 SPQ H96428628 Contact Us For Availability
6
Damper Bracket SPQ 44114901 Contact Us For Availability
6
Fan Contactor SPQ 51778 Contact Us For Availability
7
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
7
Lint Panel Switch Bracket SPQ 44013401 Contact Us For Availability
7
SPQ M411165 SPQ M411165 Contact Us For Availability
7
SPQ 44053001P SPQ 44053001P Contact Us For Availability
7
Cotter Pin SPQ M413042P Contact Us For Availability
7
SPQ 02422 SPQ 02422 Contact Us For Availability
7
Drive Rivet SPQ M413863 Contact Us For Availability
7
SPQ M413576 SPQ M413576 Contact Us For Availability
8
SPQ 430642 SPQ 430642 Contact Us For Availability
8
SPQ M411187 SPQ M411187 Contact Us For Availability
8
SPQ 44048301P SPQ 44048301P Contact Us For Availability
8
SPQ 44052901P SPQ 44052901P Contact Us For Availability
8
Airflow Switch Vane SPQ 02470 Contact Us For Availability
8
SPQ H96388087 SPQ H96388087 Contact Us For Availability
8
SPQ M400713 SPQ M400713 Contact Us For Availability
9
SPQ 70033504 SPQ 70033504 Contact Us For Availability
9
SPQ 44012202 SPQ 44012202 Contact Us For Availability
9
SPQ M400984 SPQ M400984 Contact Us For Availability
9
SPQ H96428008 SPQ H96428008 Contact Us For Availability
9
SPQ 44048501 SPQ 44048501 Contact Us For Availability
9
SPQ H96428487 SPQ H96428487 Contact Us For Availability
9
SPQ M409967 SPQ M409967 Contact Us For Availability
9
SPQ 70502301 SPQ 70502301 Contact Us For Availability
9
SPQ M413684P SPQ M413684P Contact Us For Availability
10
Washer SPQ 70261401 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Nut SPQ 44087101 Contact Us For Availability
10
Thermistor Bracket Assembly SPQ M411072 Contact Us For Availability
10
Spacer SPQ M401402 Contact Us For Availability
11
Temperature Knob SPQ 44104601 Contact Us For Availability
11
Key SPQ 70155601 Contact Us For Availability
11
Lint Panel Clip SPQ 44017801 Contact Us For Availability
11
Screw SPQ H88012034 Contact Us For Availability
11
Retaining Ring SPQ H96357751 Contact Us For Availability
11
Fan and Bushing Assembly SPQ M414546 Contact Us For Availability
11
Steam Coil Support SPQ M411550 Contact Us For Availability
12
Door Seal Kit SPQ 70211902P Contact Us For Availability
12
Screw SPQ 44035002 Contact Us For Availability
12
Bolt SPQ 44017901 Contact Us For Availability
12
Plug SPQ M400985 Contact Us For Availability
12
Blower Cover SPQ H96358007 Contact Us For Availability
12
Belt SPQ H8753170H Contact Us For Availability
13
Door Glass SPQ 44008401P Contact Us For Availability
13
Kickplate SPQ 70117609 Contact Us For Availability
13
Belt SPQ H88603477 Contact Us For Availability
13
Thermostat SPQ H8900530H Contact Us For Availability
13
Screw SPQ 44079301 Contact Us For Availability
14
Door Ring and Handle Assembly SPQ 44112001 Contact Us For Availability
14
Pop Rivet SPQ 70126401 Contact Us For Availability
14
Vent Elbow SPQ M411223P Contact Us For Availability
14
Step Pulley and Bearing Kit SPQ H87672374 Contact Us For Availability
14
Steam Coil Filter SPQ 44114701P Contact Us For Availability
14
Contactor Box End SPQ M413758 Contact Us For Availability
15
Cable Tie SPQ H87494019 Contact Us For Availability
15
Base Bracket SPQ 22688 Contact Us For Availability
15
Bushing SPQ M412917P Contact Us For Availability
16
Bushing SPQ M4696P3 Contact Us For Availability
16
Door Latch SPQ M400072 Contact Us For Availability
16
Nut SPQ M400661 Contact Us For Availability
16
Sensor Cable Harness SPQ M405829 Contact Us For Availability
16
Motor SPQ H608P3 Contact Us For Availability
16
Sheave SPQ 44022401 Contact Us For Availability
16
Interlock Contactor SPQ F330186P Contact Us For Availability
17
Panel Locator SPQ D512218P Contact Us For Availability
17
Front Panel SPQ 44166601 Contact Us For Availability
17
Door Ring Gasket SPQ M414215 Contact Us For Availability
17
Fan Motor SPQ H87520334 Contact Us For Availability
17
Sheave SPQ M414367 Contact Us For Availability
18
Nut SPQ M401223 Contact Us For Availability
18
Temperature Sensor Assembly SPQ 70030401 Contact Us For Availability
18
Bearing Mounting Flangette SPQ H8752006H Contact Us For Availability
18
Motor Base SPQ 44046401P Contact Us For Availability
18
End Stop SPQ 70121001 Contact Us For Availability
19
Washer SPQ 44012402 Contact Us For Availability
19
Sheave SPQ M400063 Contact Us For Availability
19
Rod End SPQ H96428693 Contact Us For Availability
19
Blower Shaft SPQ H8768212H Contact Us For Availability
19
Reversing Contactor Jumper Assembly SPQ M413624 Contact Us For Availability
20
Bushing SPQ M411537 Contact Us For Availability
20
Screw SPQ H8752985HP Contact Us For Availability
20
SPQ M413171 SPQ M413171 Contact Us For Availability
20
Sheave SPQ H8768302H Contact Us For Availability
21
Belt Adjustment Tube SPQ H8752251H Contact Us For Availability
21
Limit Thermostat SPQ M412000 Contact Us For Availability
21
Washer SPQ M402917 Contact Us For Availability
22
SPQ 44046301P SPQ 44046301P Contact Us For Availability
22
Bushing SPQ H96418413 Contact Us For Availability
22
Plug SPQ 44104801 Contact Us For Availability
23
Hinge Cam Kit SPQ 44007901 Contact Us For Availability
23
Front Panel Baffle Seal SPQ 44077702P Contact Us For Availability
23
Reversing Timer Harness SPQ M413506 Contact Us For Availability
24
Felt Pad SPQ 44063602 Contact Us For Availability
24
Jumper Harness Assembly SPQ M400044 Contact Us For Availability
24
SPQ M400013 SPQ M400013 Contact Us For Availability
25
Temperature Sensor Assembly SPQ H87020202 Contact Us For Availability
25
Transformer SPQ M414229P Contact Us For Availability
26
SPQ H88001565 SPQ H88001565 Contact Us For Availability
26
Network Capacitor Assembly SPQ 44074401 Contact Us For Availability
27
Clip SPQ M411593 Contact Us For Availability
27
SPQ 70142 SPQ 70142 Contact Us For Availability
27
SPQ 44048901 SPQ 44048901 Contact Us For Availability
28
SPQ H87520284 SPQ H87520284 Contact Us For Availability
28
Fuse Holder Bracket SPQ M414228P Contact Us For Availability
29
SPQ 70017301 SPQ 70017301 Contact Us For Availability
29
Fuse Holder Bracket SPQ M413510 Contact Us For Availability
33
Insulator SPQ 44008001 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 297P4 SPQ 297P4 Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ 70409801 SPQ 70409801 Contact Us For Availability
NI
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
NI
SPQ 44012201WP SPQ 44012201WP Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ H8830143H SPQ H8830143H Contact Us For Availability
NI
SPQ M414534 SPQ M414534 Contact Us For Availability
NI
SPQ M405364 SPQ M405364 Contact Us For Availability
NI
SPQ M414276 SPQ M414276 Contact Us For Availability
NI
SPQ M413614P SPQ M413614P Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
× ![]()
