Model Ipso IT075S Dryer – Common Parts & Diagrams
Control Box
Fire Suppression System Control Box

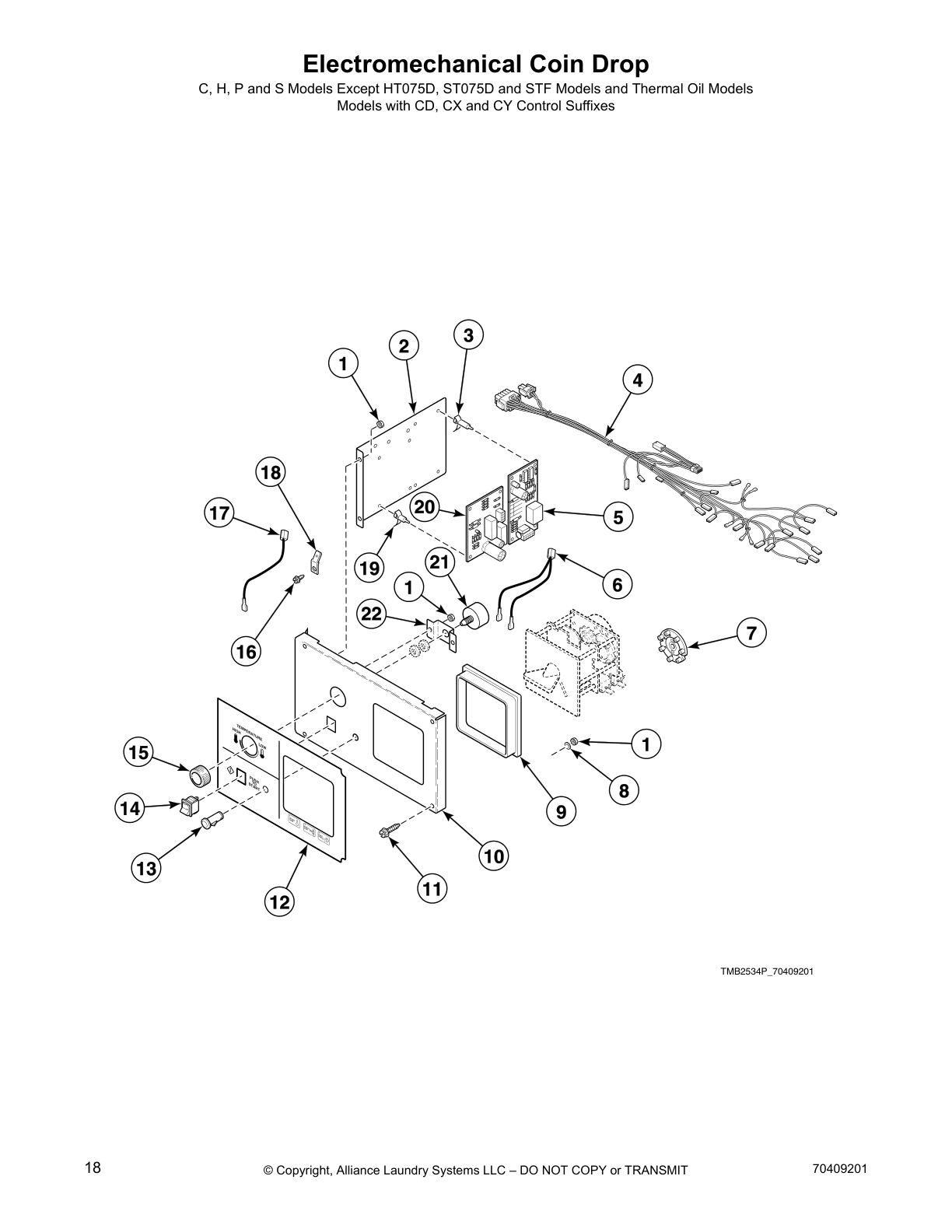

Electromechanical Coin Drop

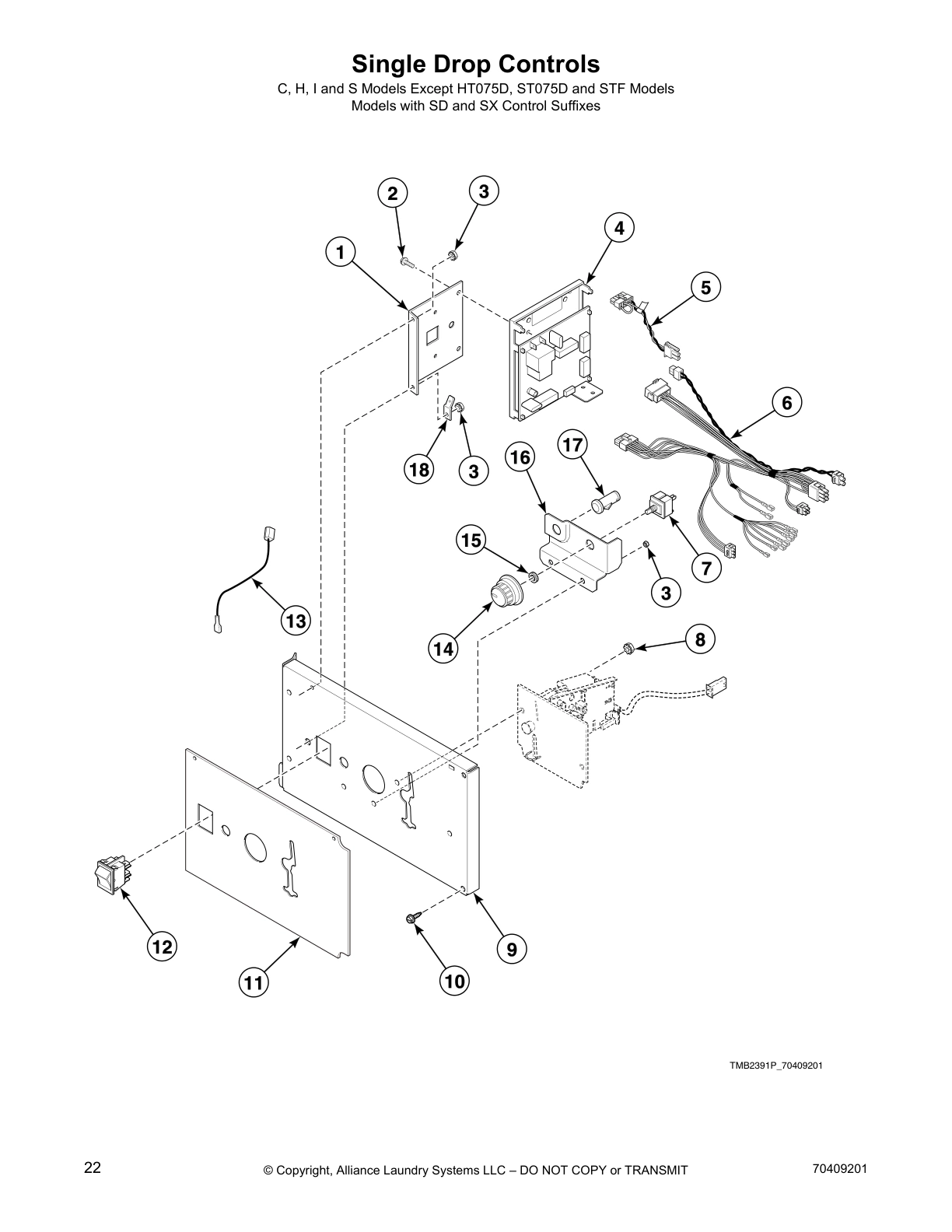

Single Drop Controls
Manual Dual Timer Controls (Drawing 1 of 2)

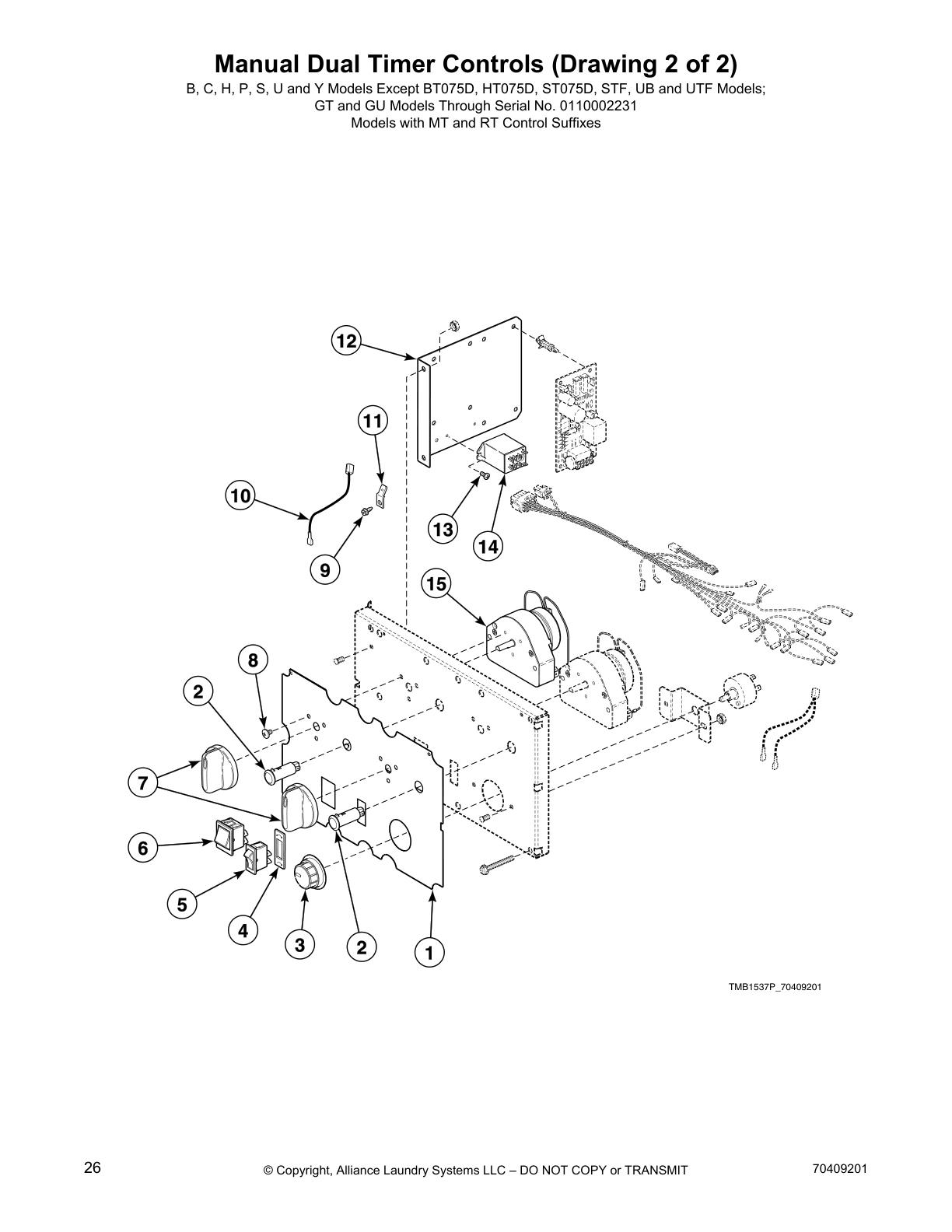

Manual Dual Timer Controls (Drawing 2 of 2)

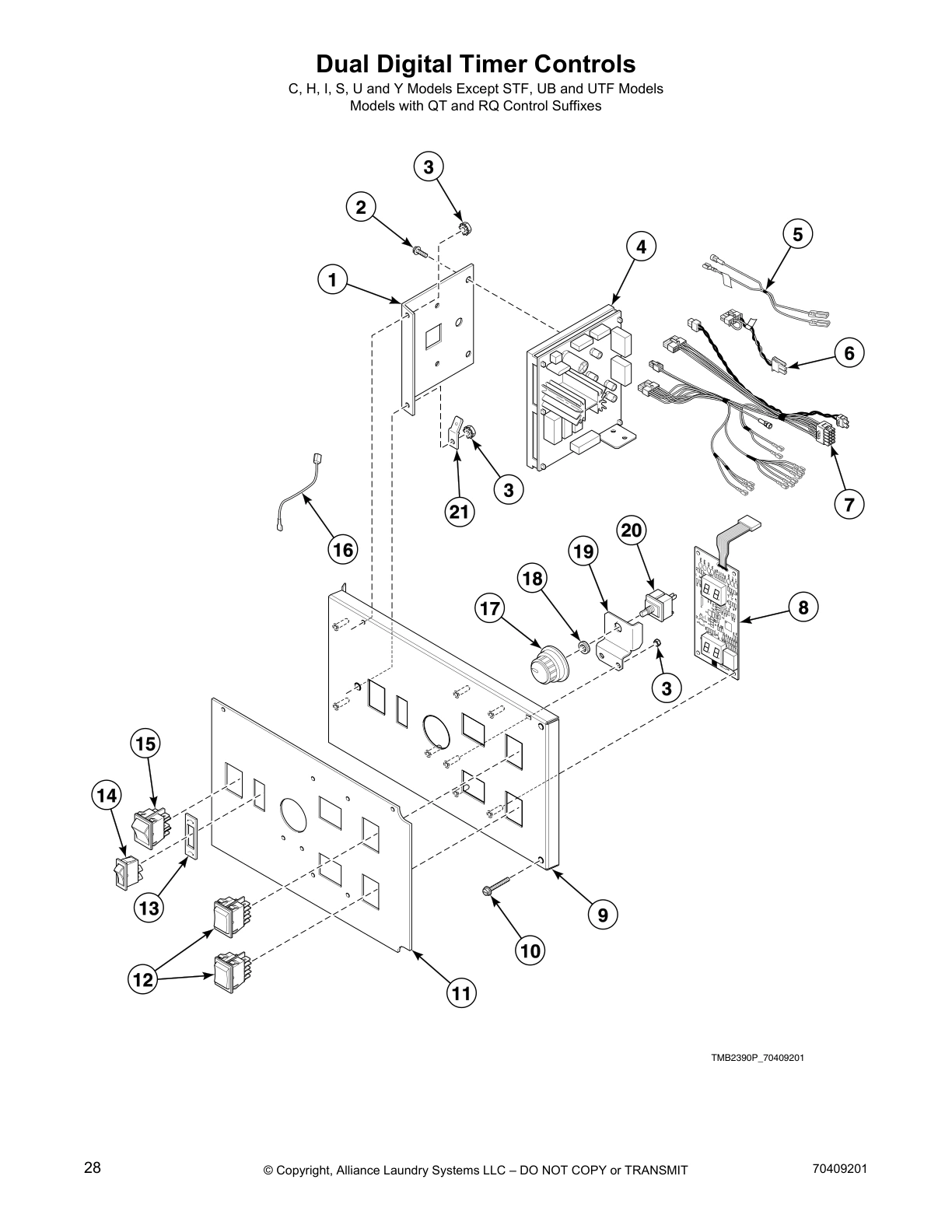

Dual Digital Timer Controls

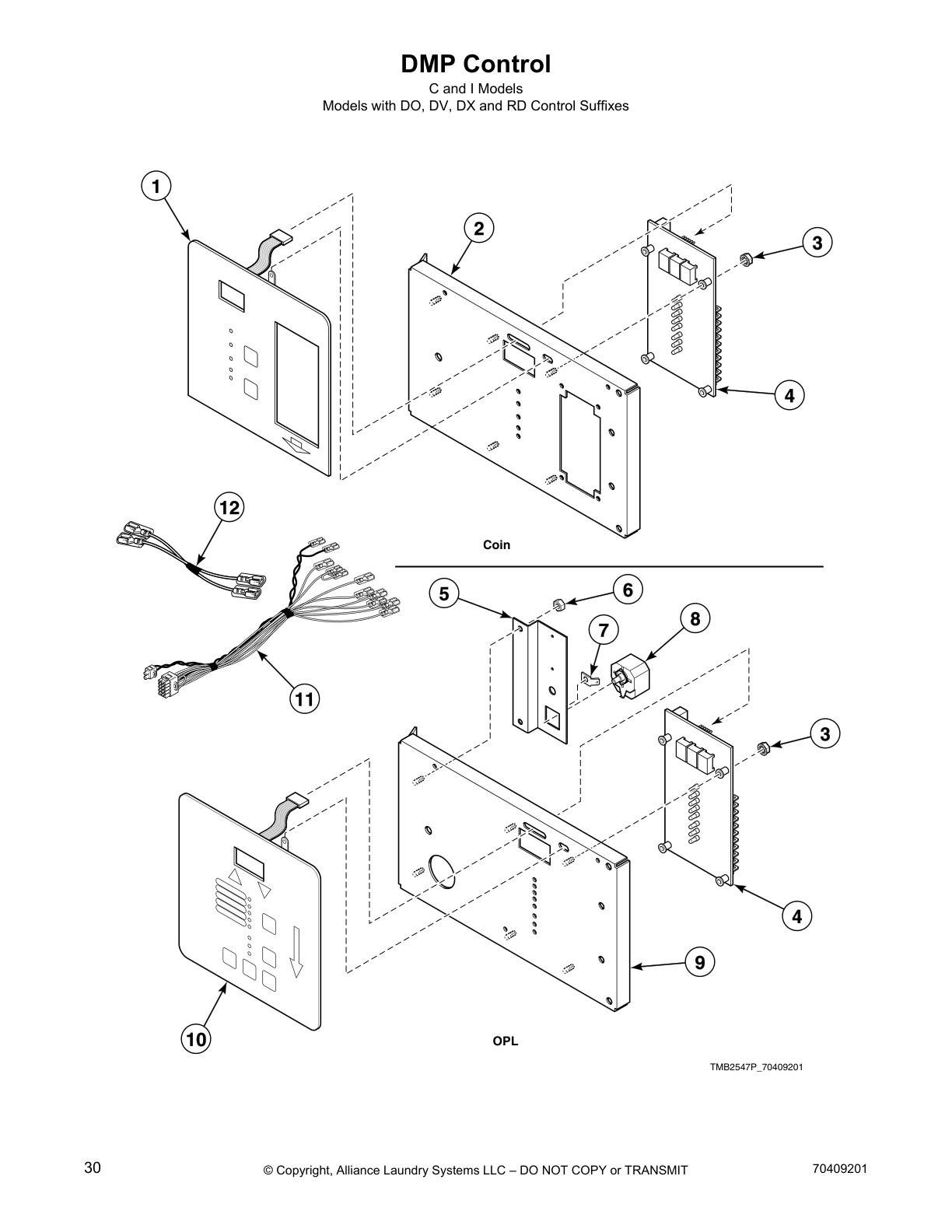

DMP Control

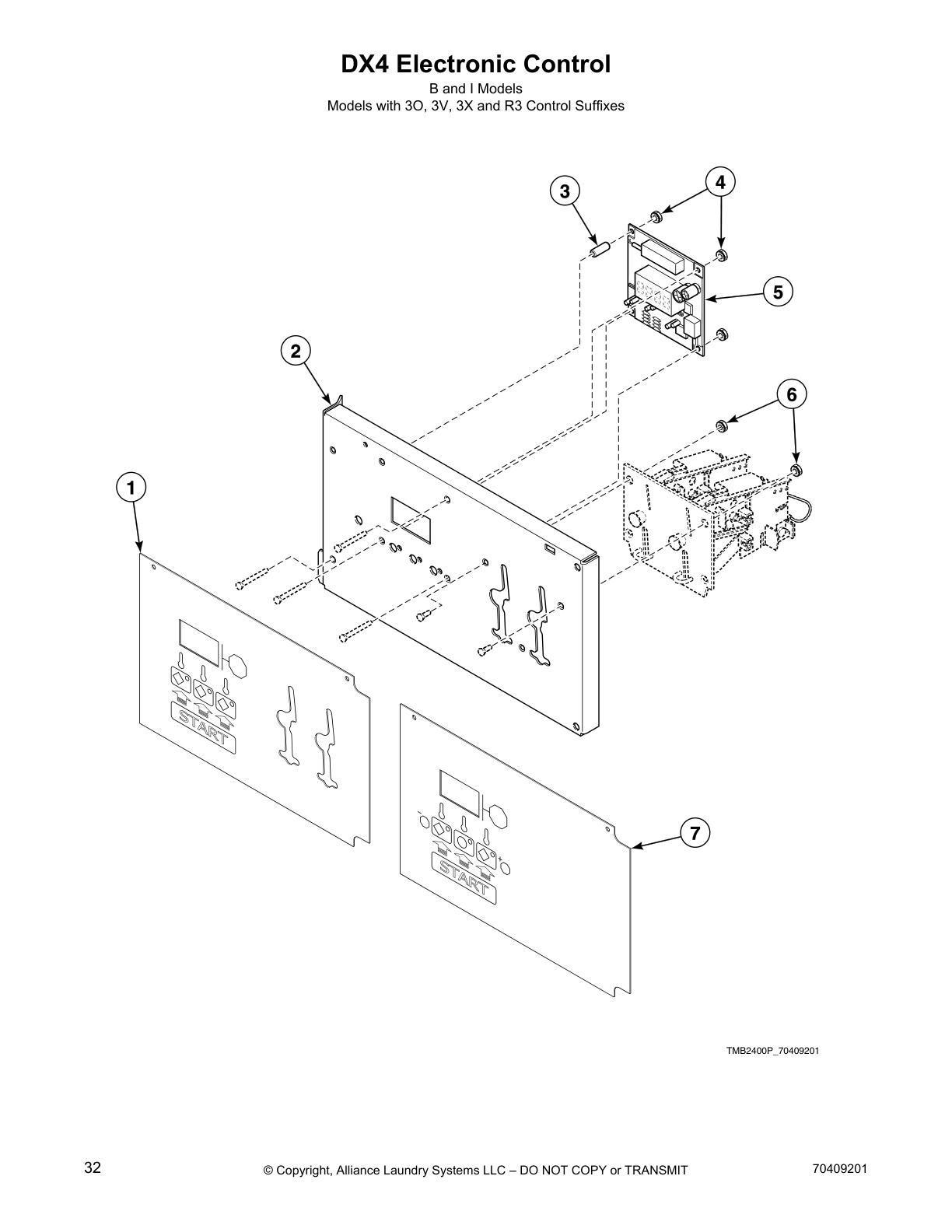

DX4 Electronic Control

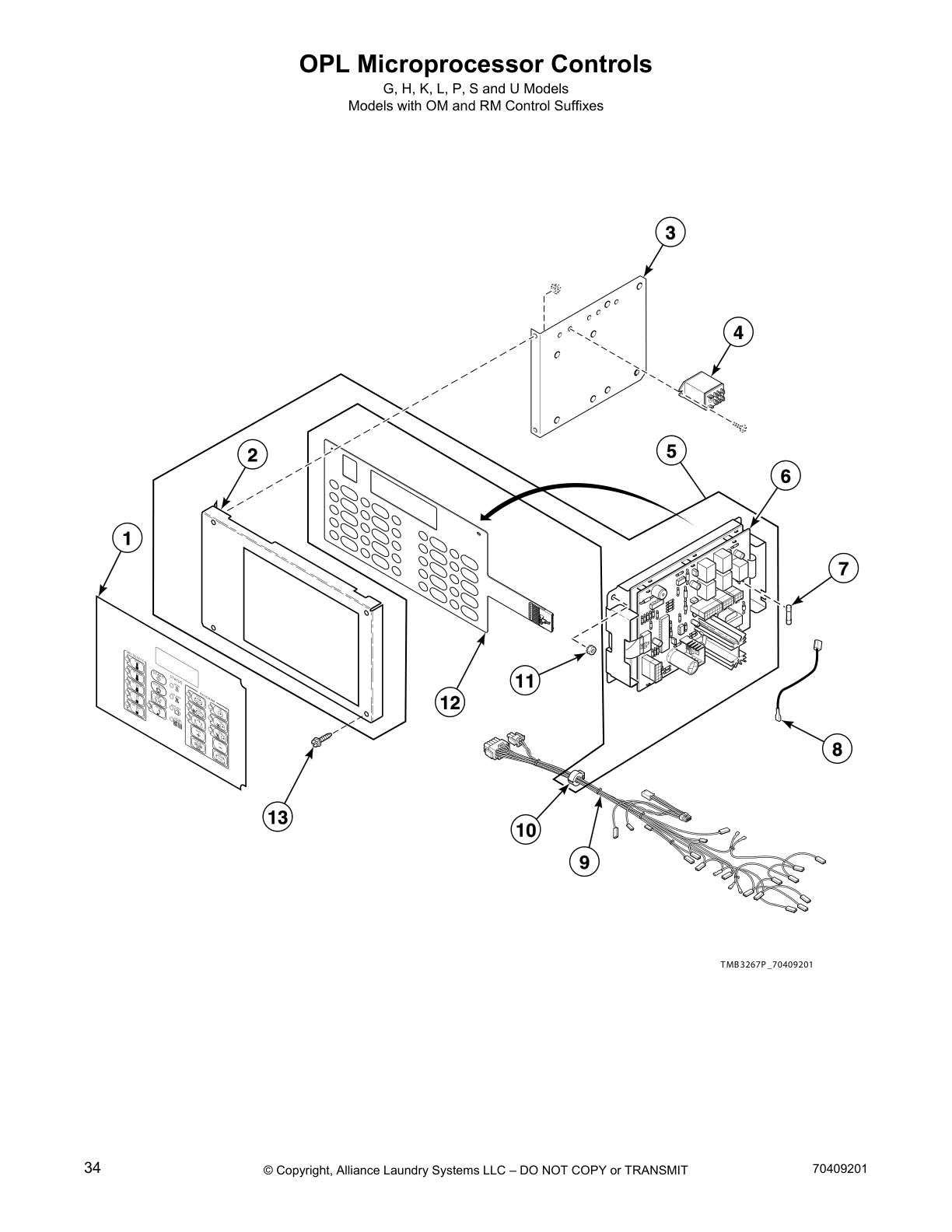

OPL Microprocessor Controls

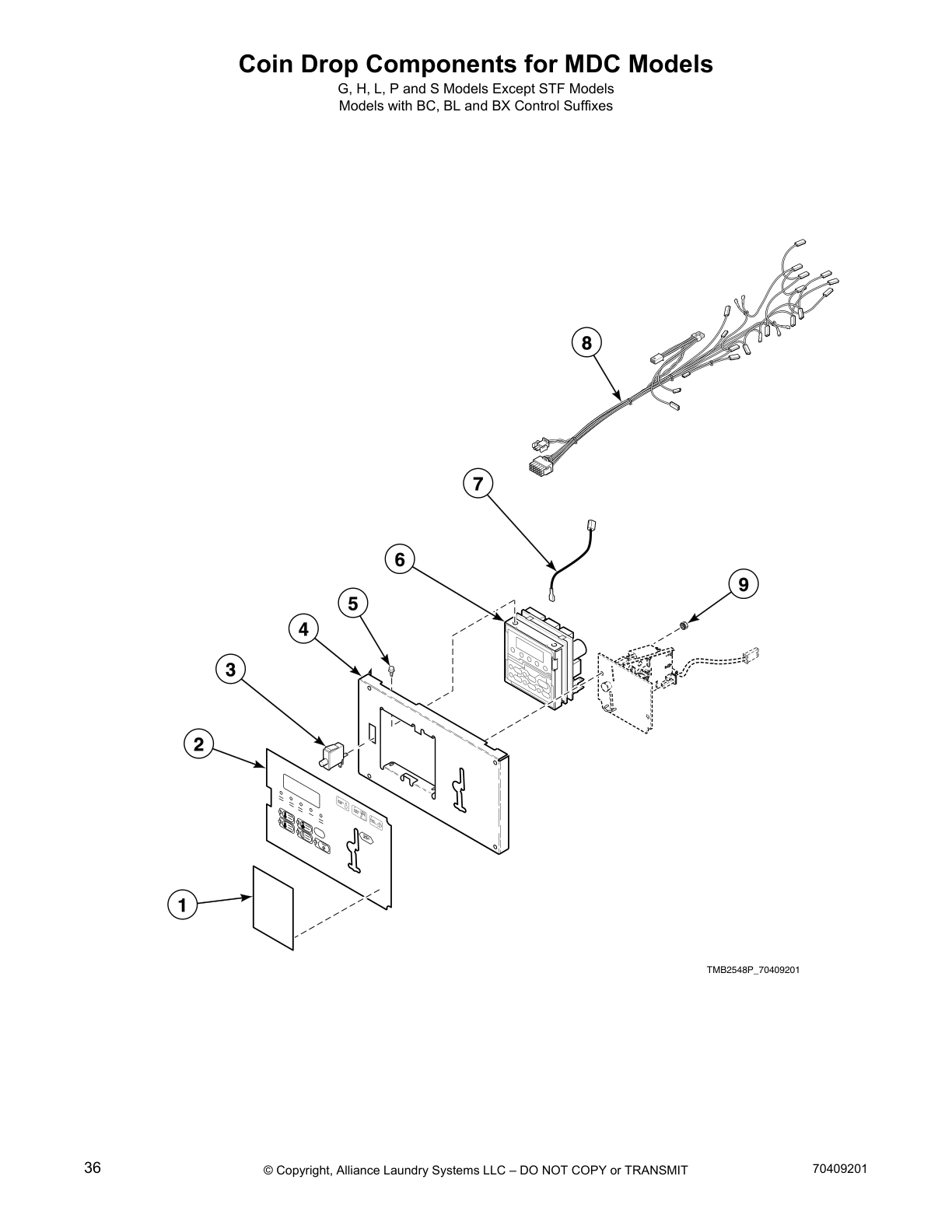

Coin Drop Components for MDC Models

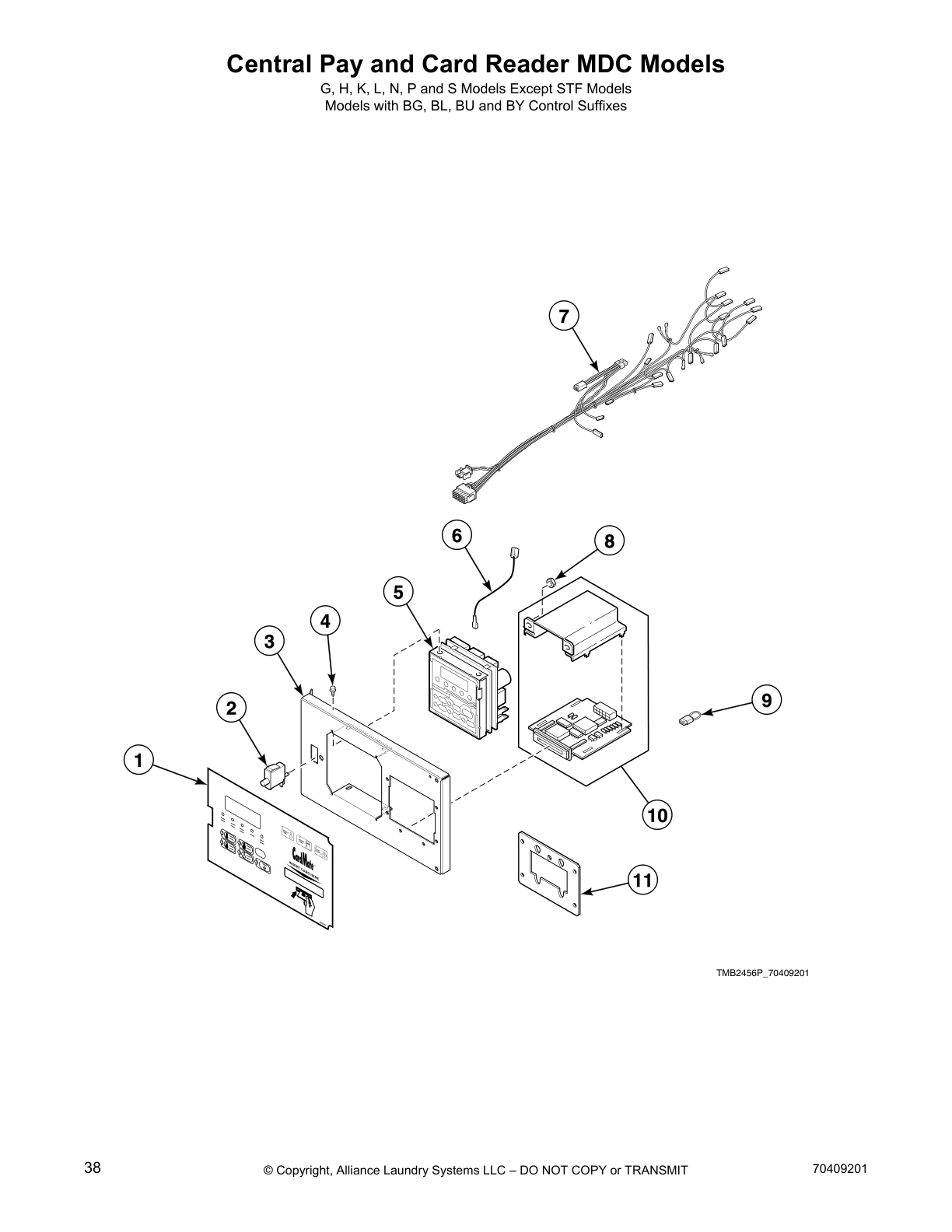

Central Pay and Card Reader MDC Models

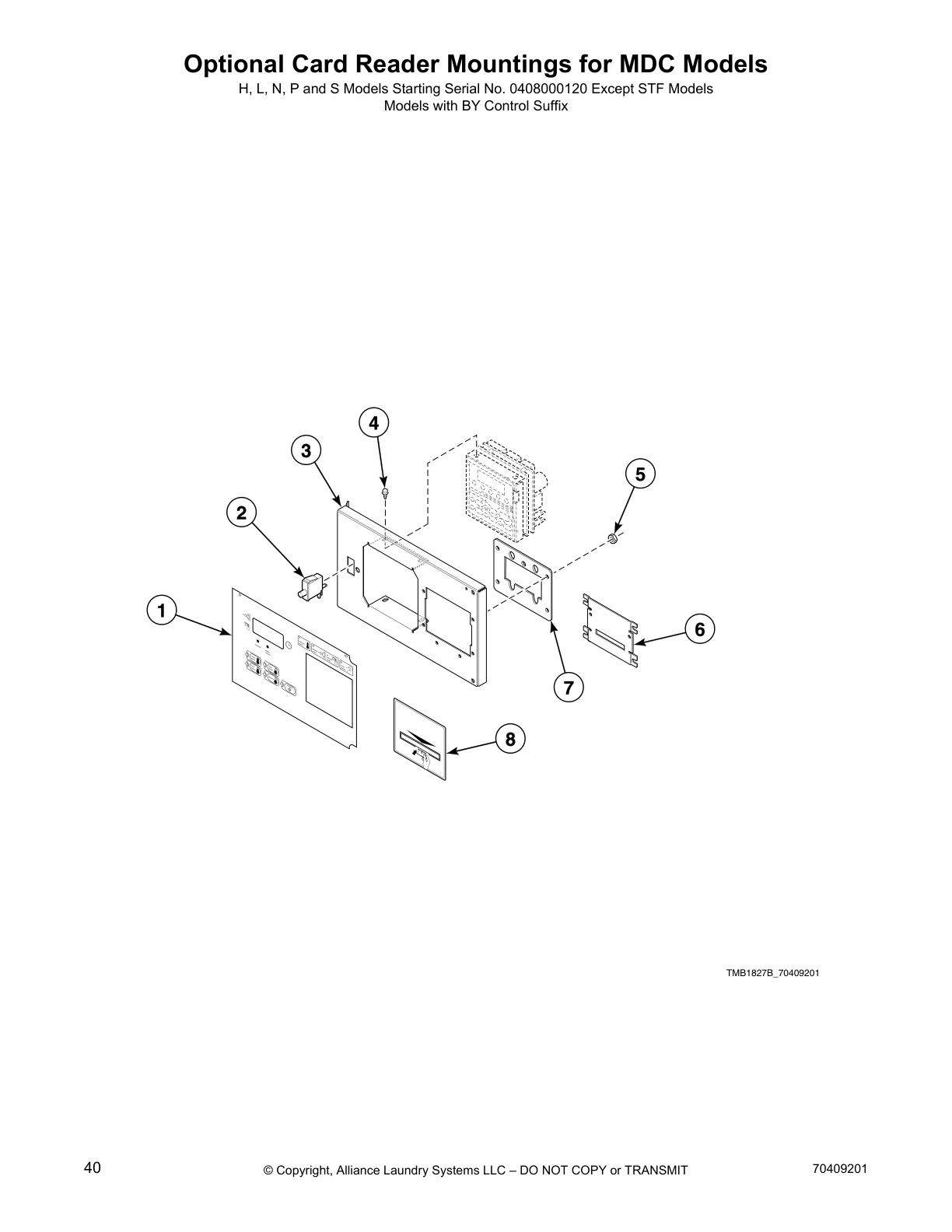

Optional Card Reader Mountings for MDC Models

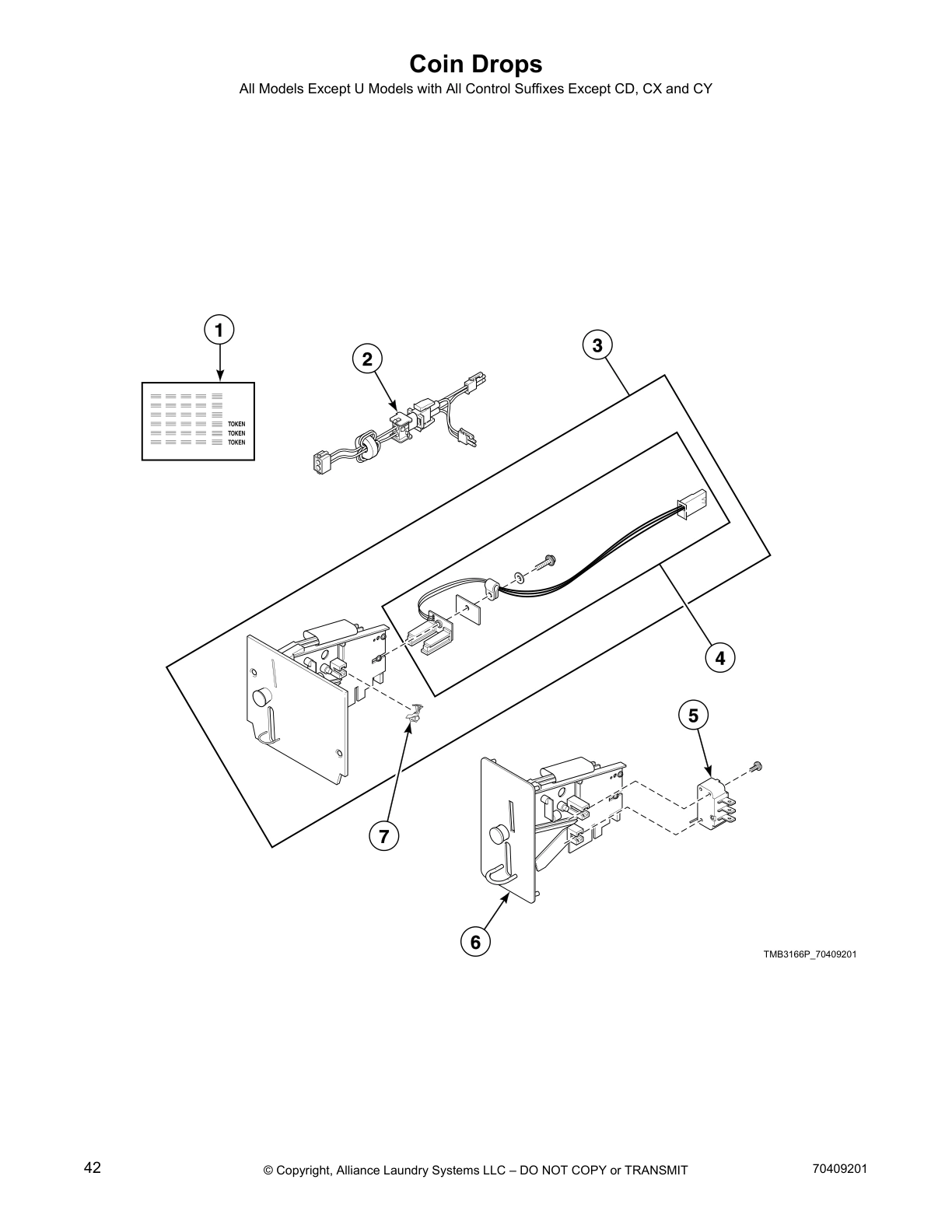

Coin Drops

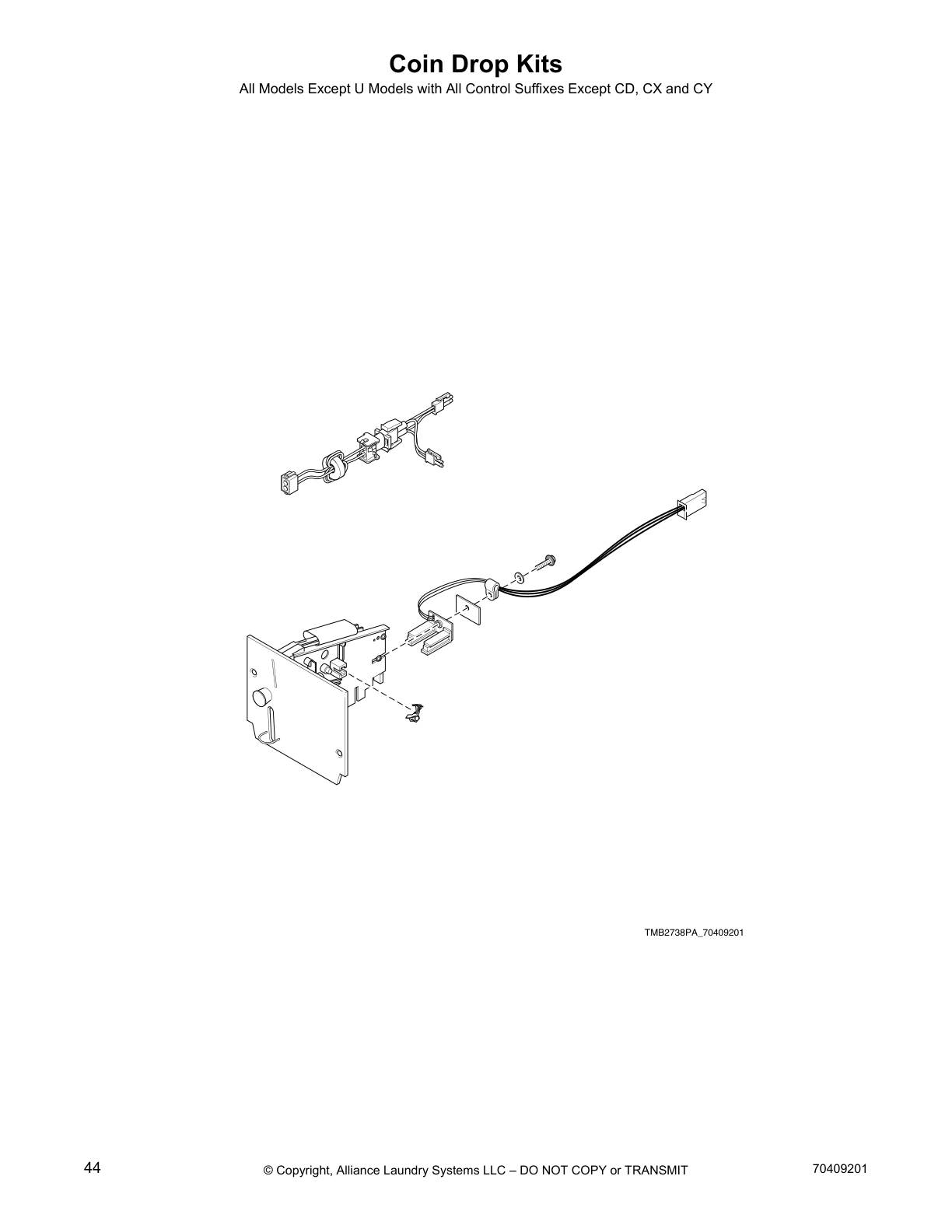

Coin Drop Kits

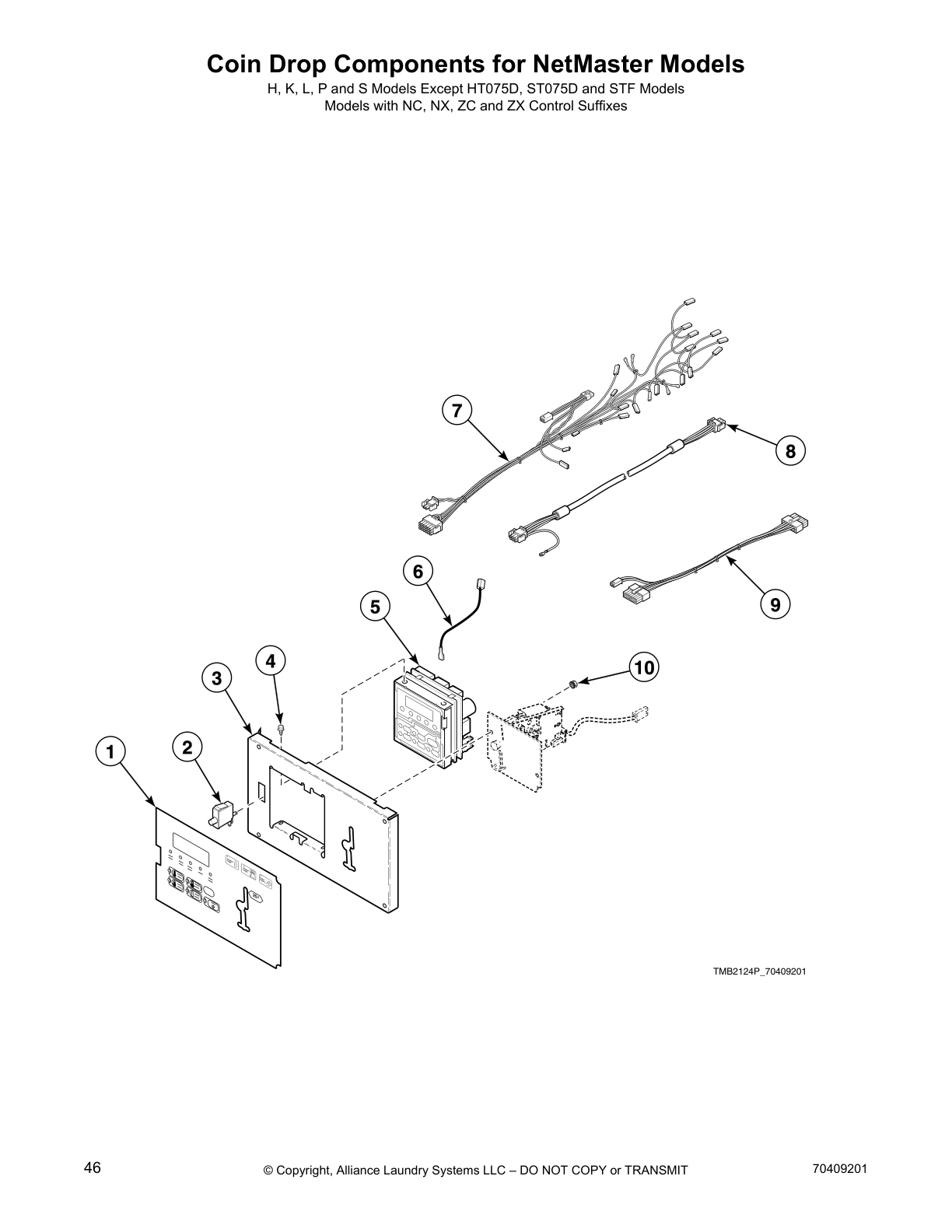

Coin Drop Components for NetMaster Models

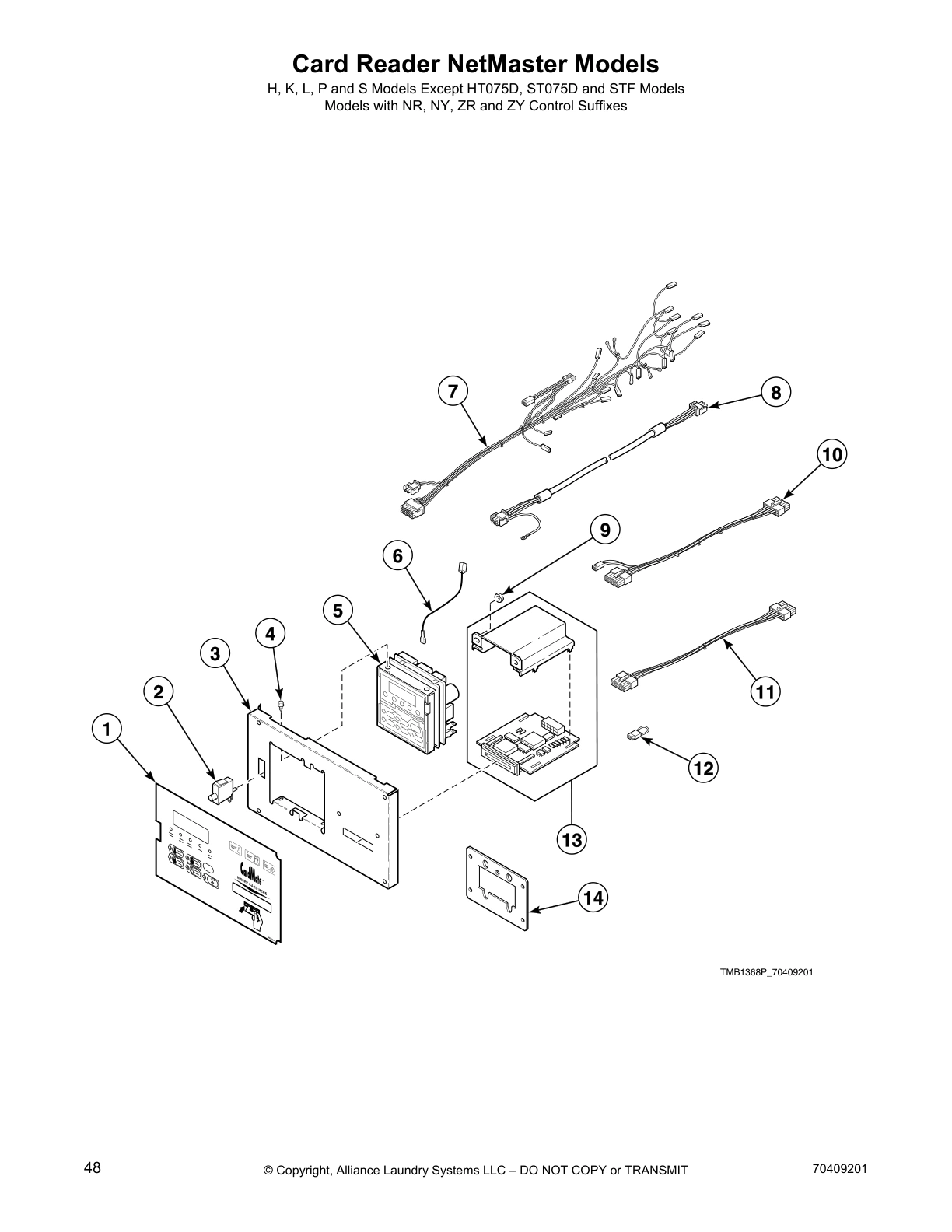

Card Reader NetMaster Models

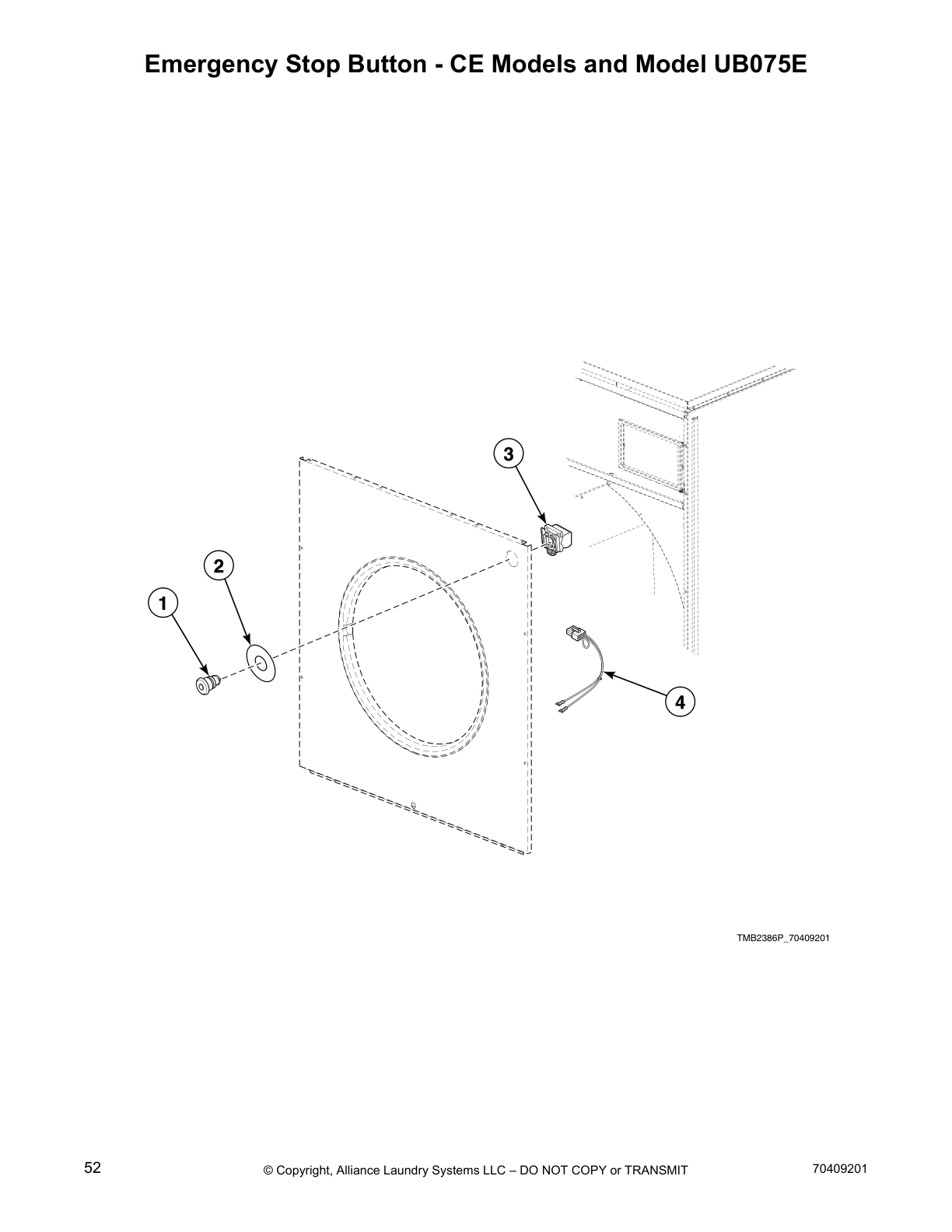

Emergency Stop Button - CE Models and Model UB075E

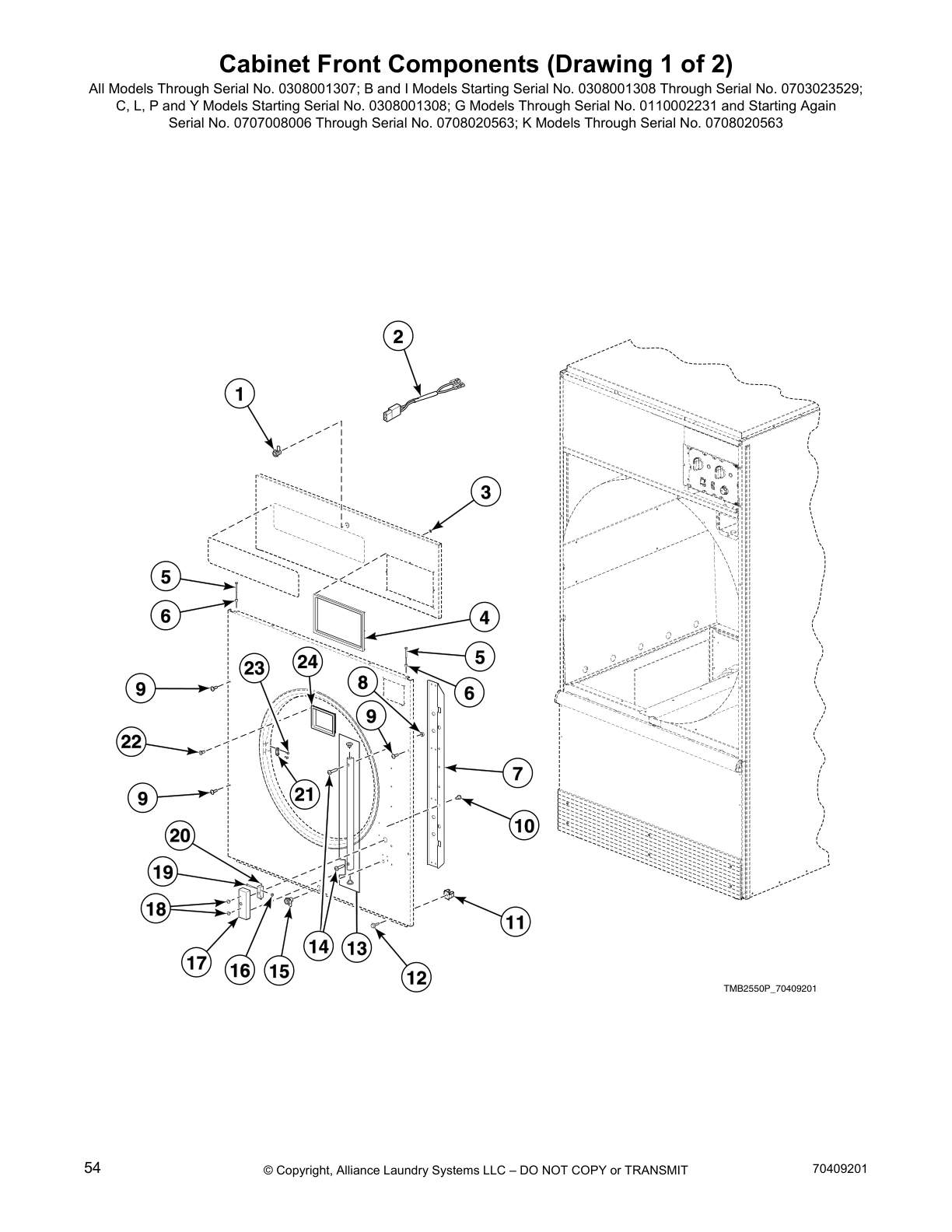

Cabinet Front Components (Drawing 1 of 2)

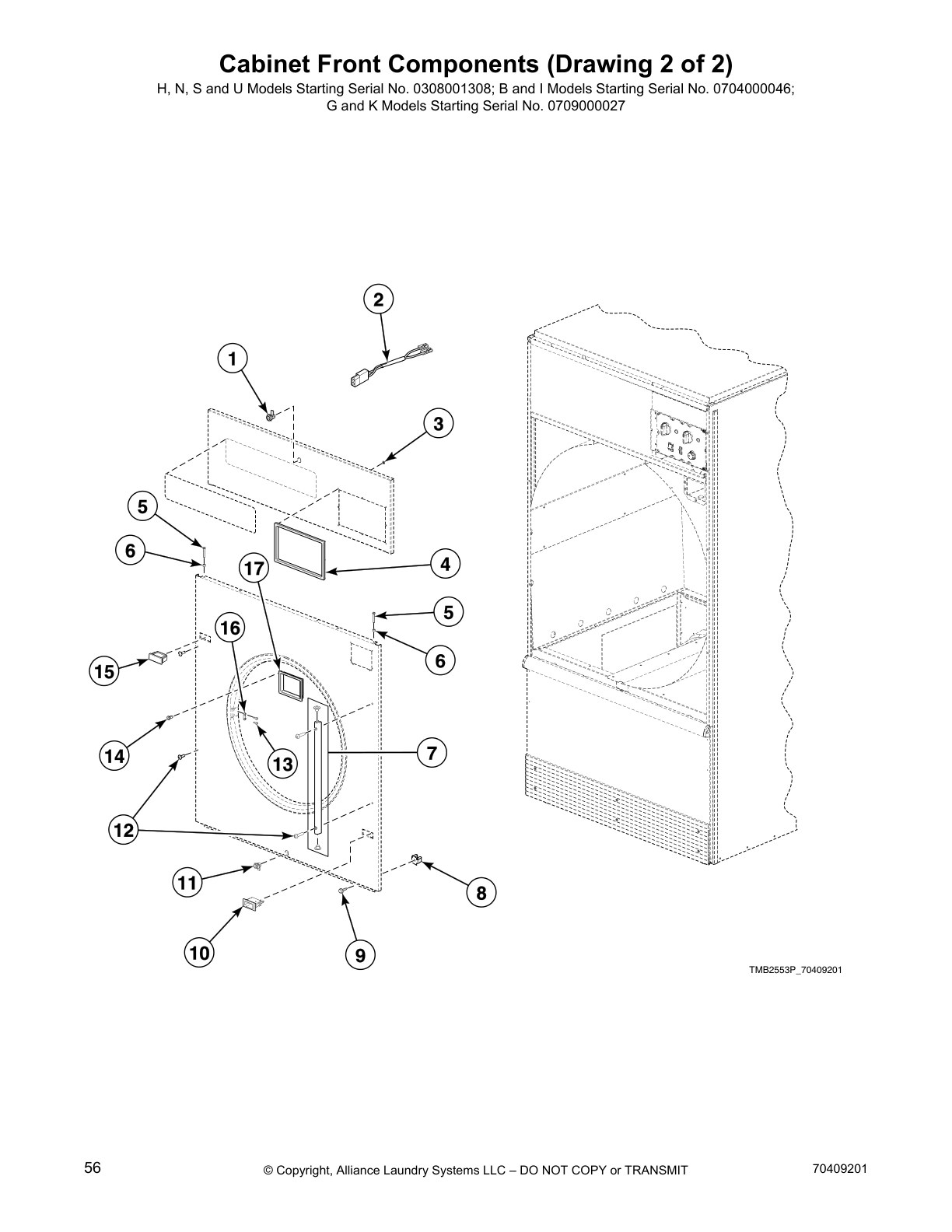

Cabinet Front Components (Drawing 2 of 2)

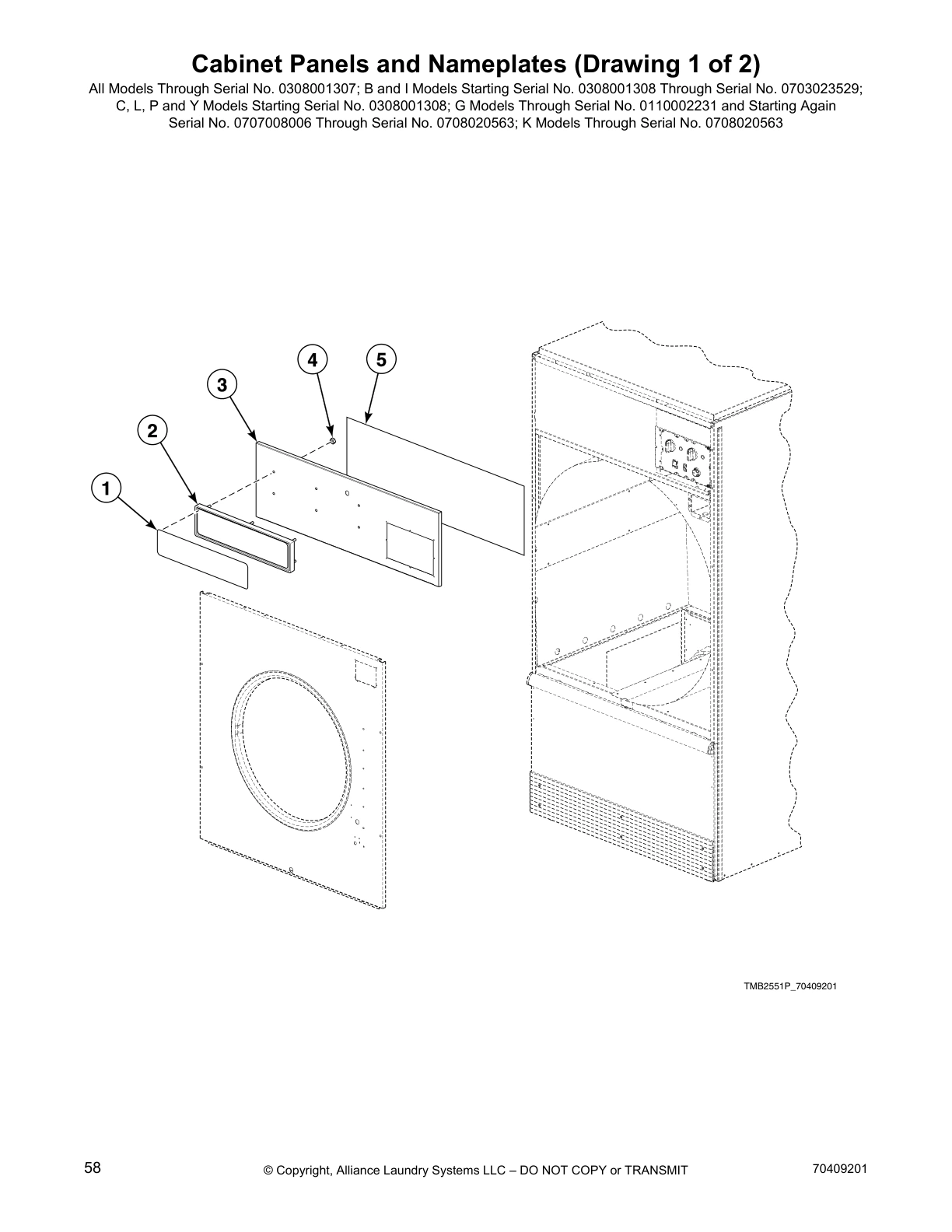

Cabinet Panels and Nameplates (Drawing 1 of 2)

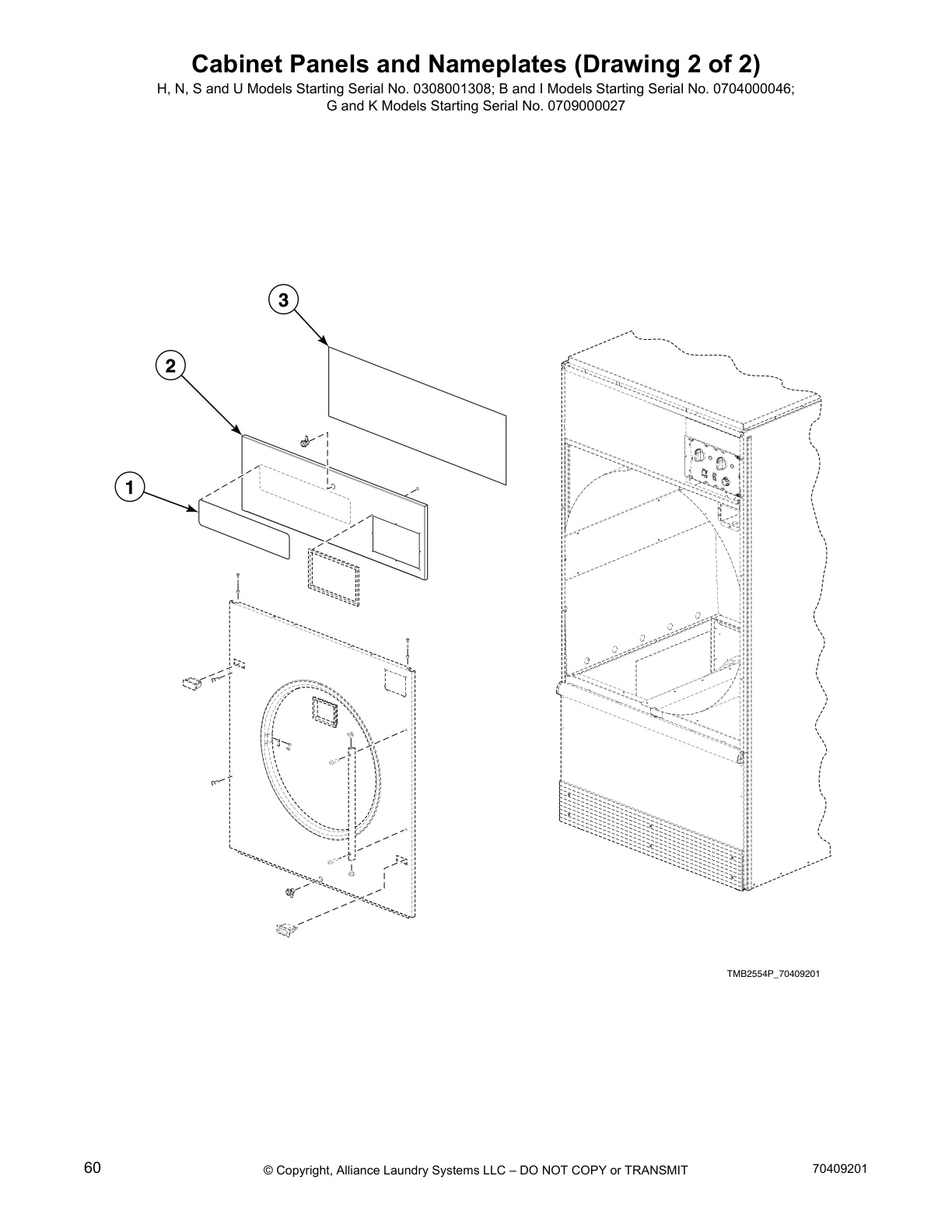

Cabinet Panels and Nameplates (Drawing 2 of 2)

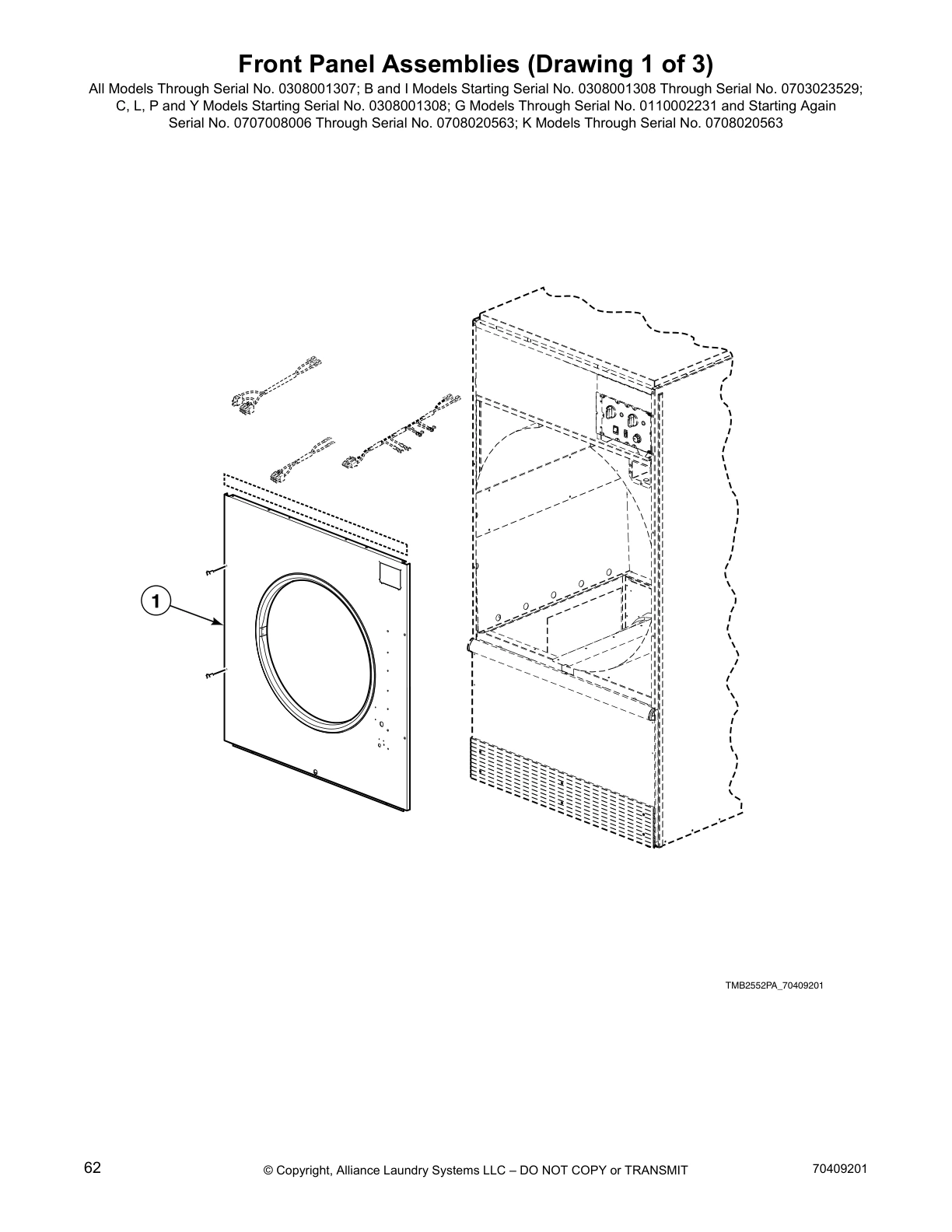

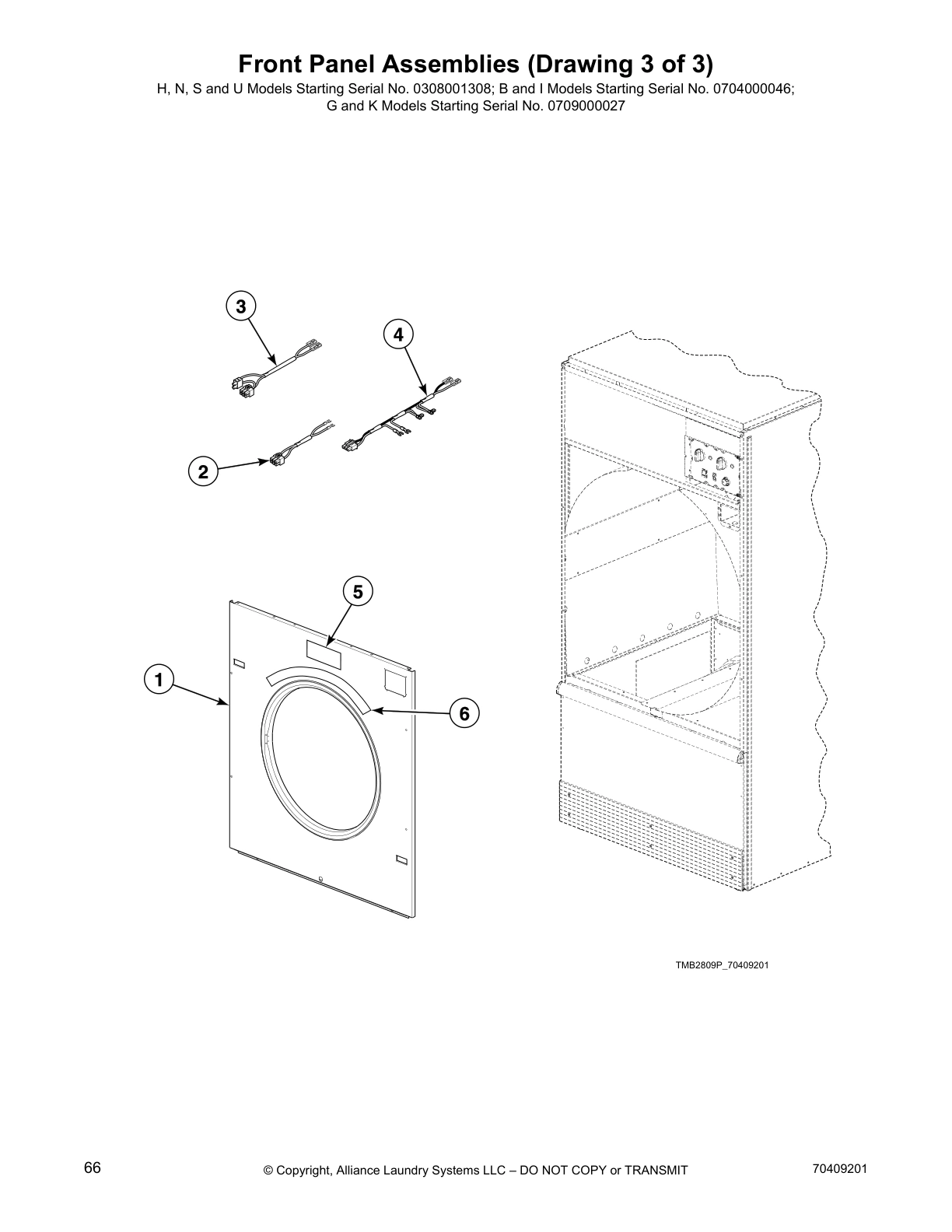

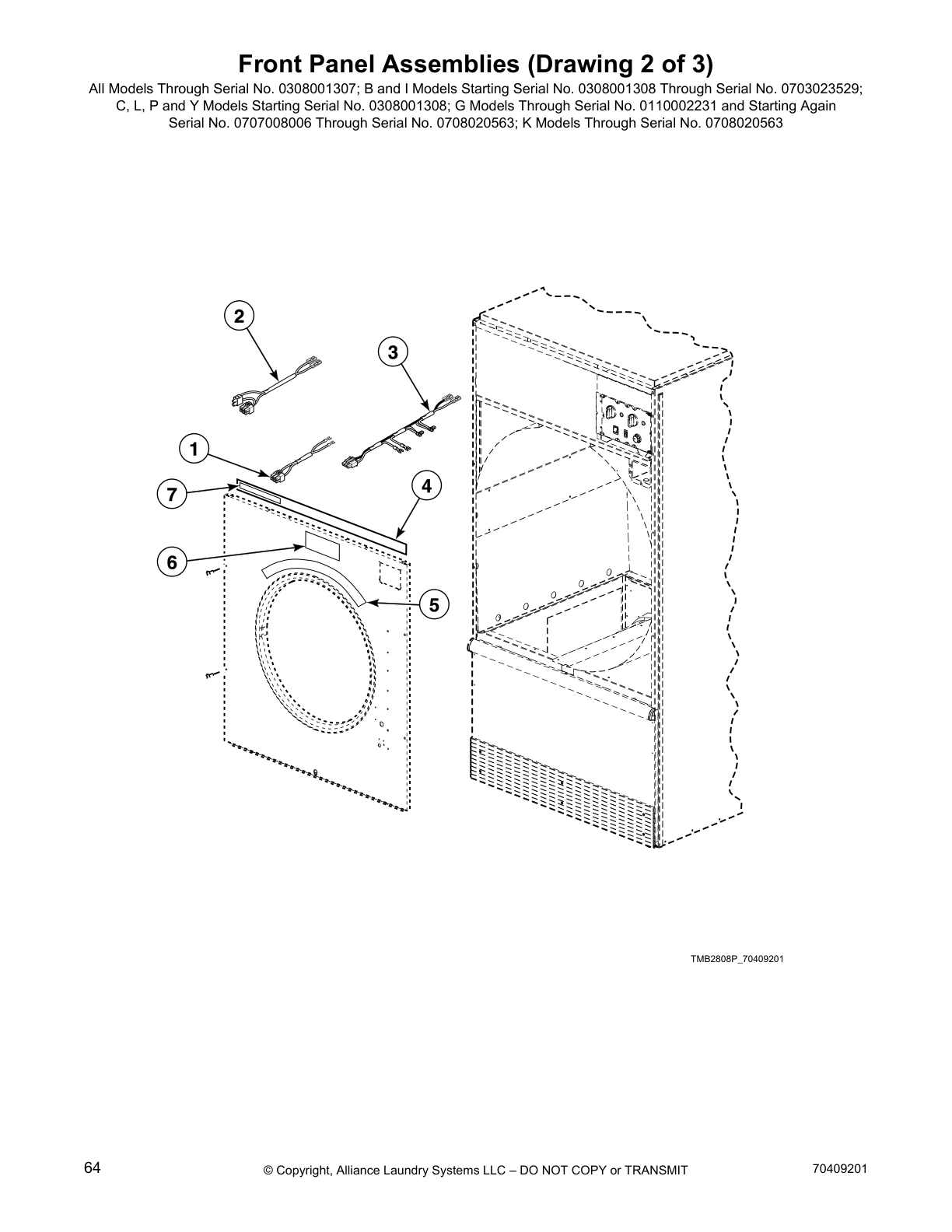

Front Panel Assemblies (Drawing 1 of 3)
Front Panel Assemblies (Drawing 2 of 3)
Front Panel Assemblies (Drawing 3 of 3)

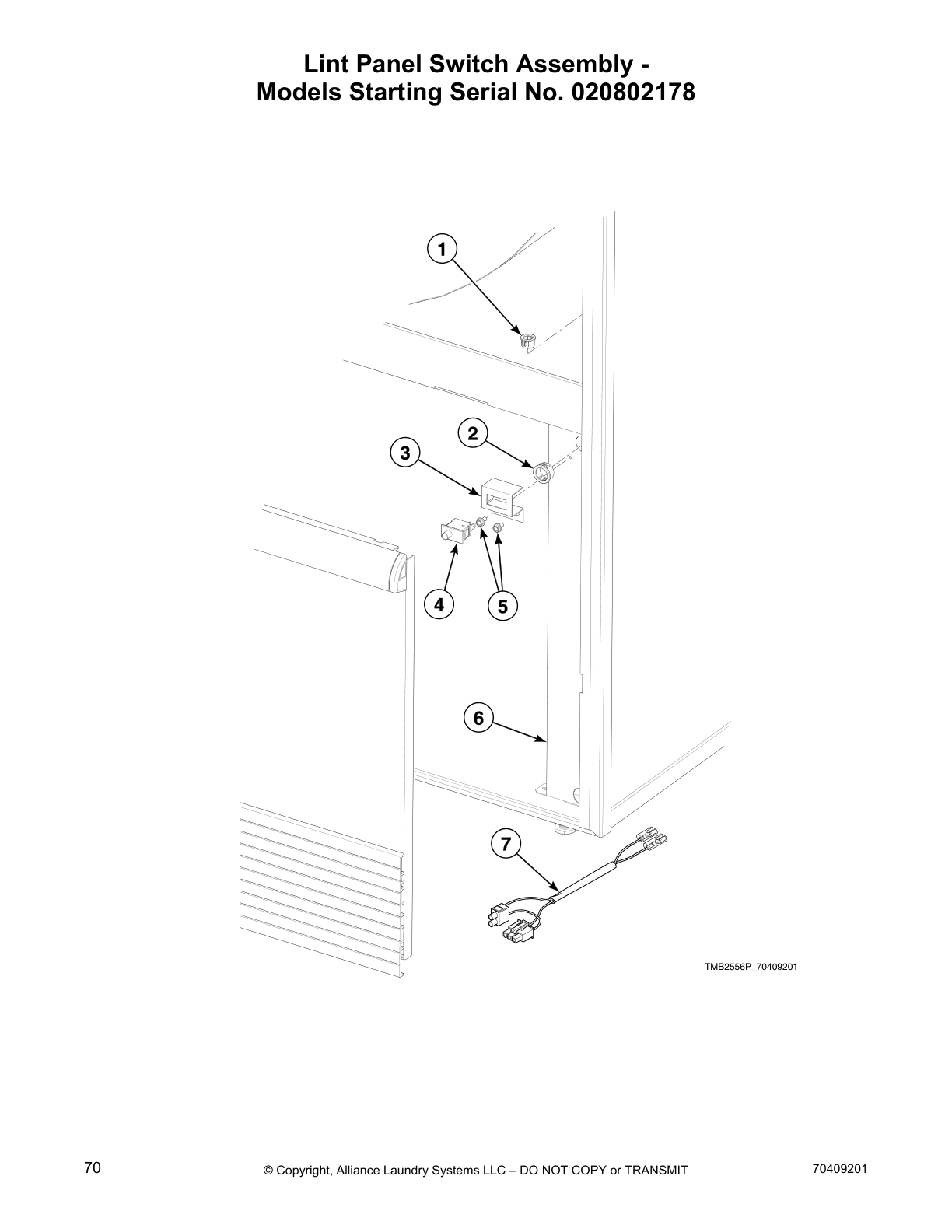

Lint Panel Switch Assembly -
Models Starting Serial No. 020802178

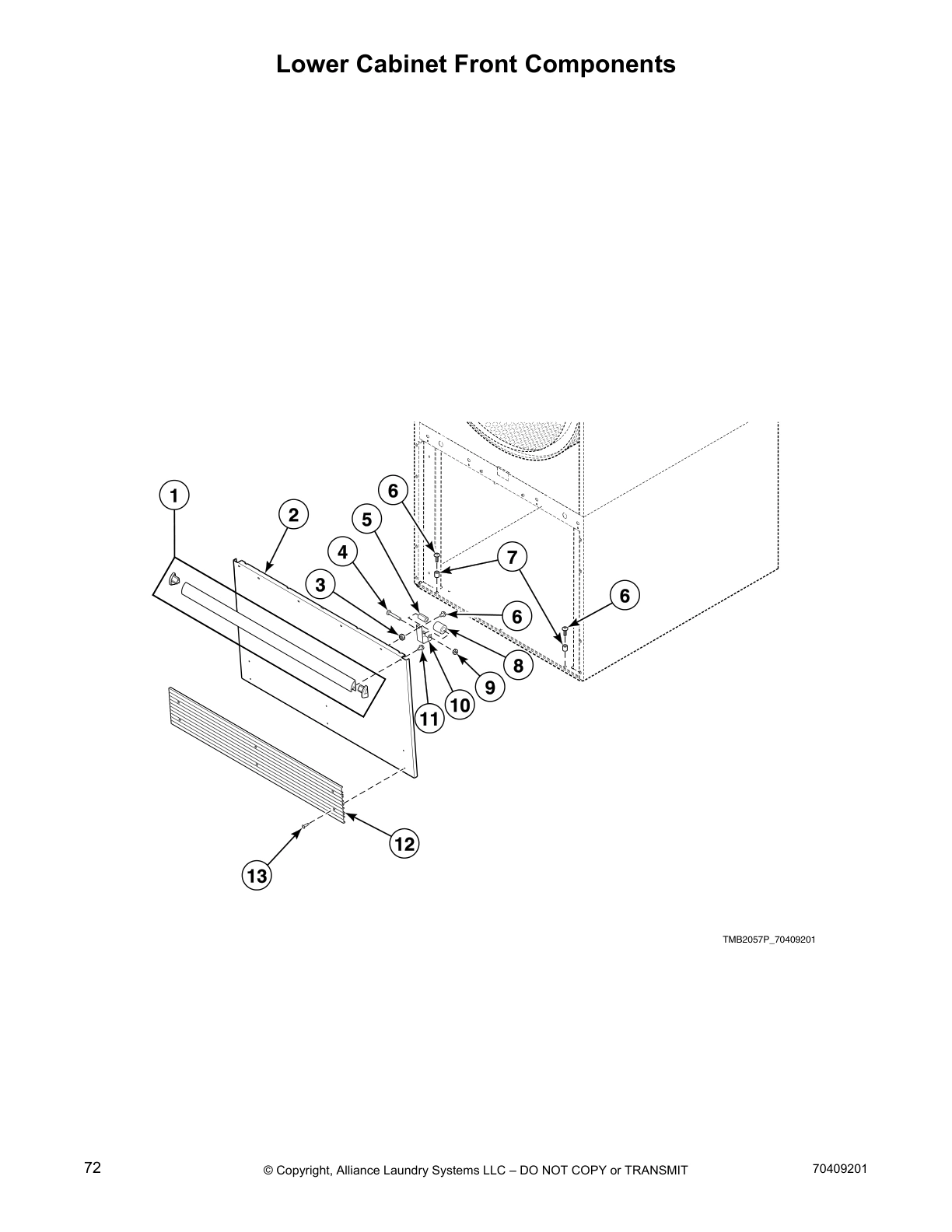

Lower Cabinet Front Components

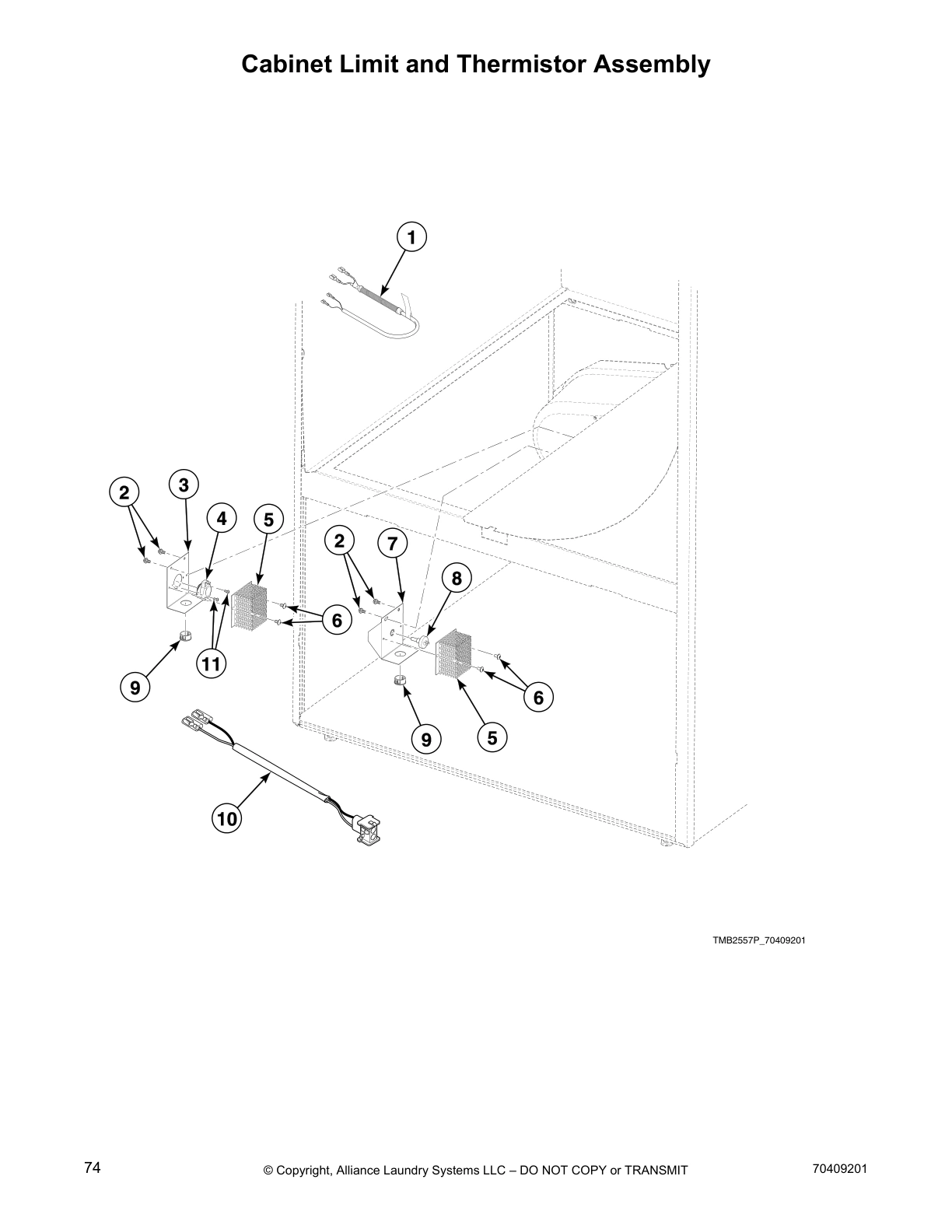

Cabinet Limit and Thermistor Assembly

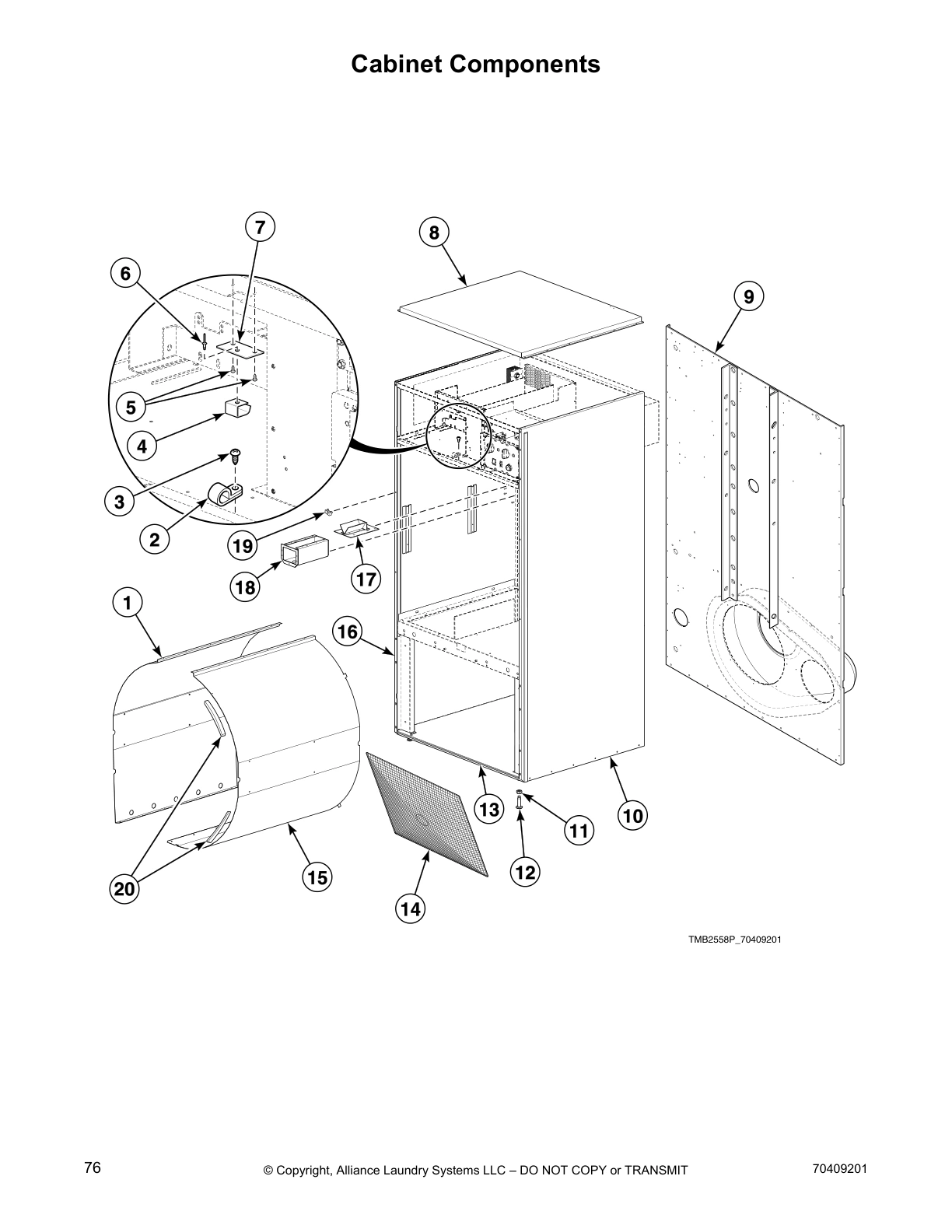

Cabinet Components

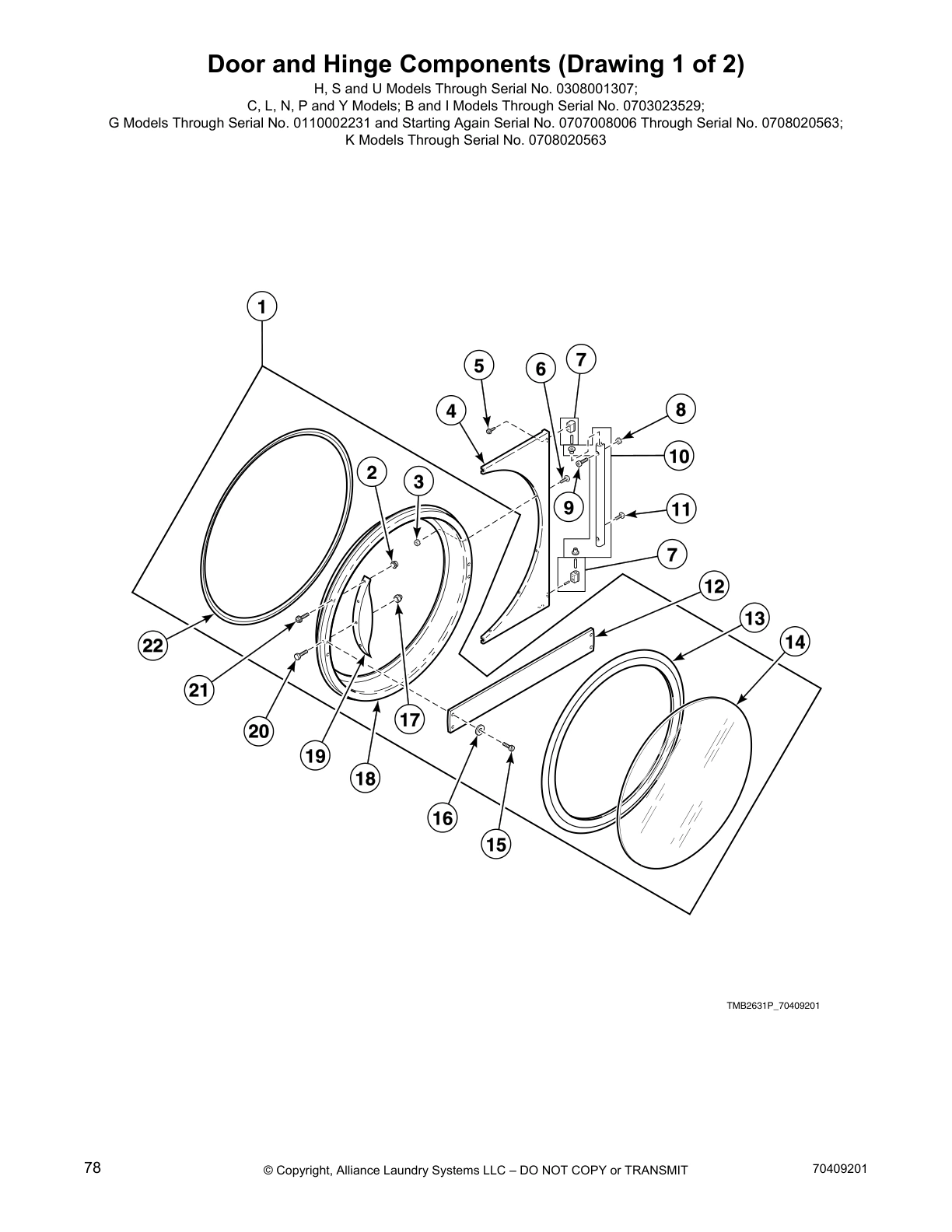

Door and Hinge Components (Drawing 1 of 2)

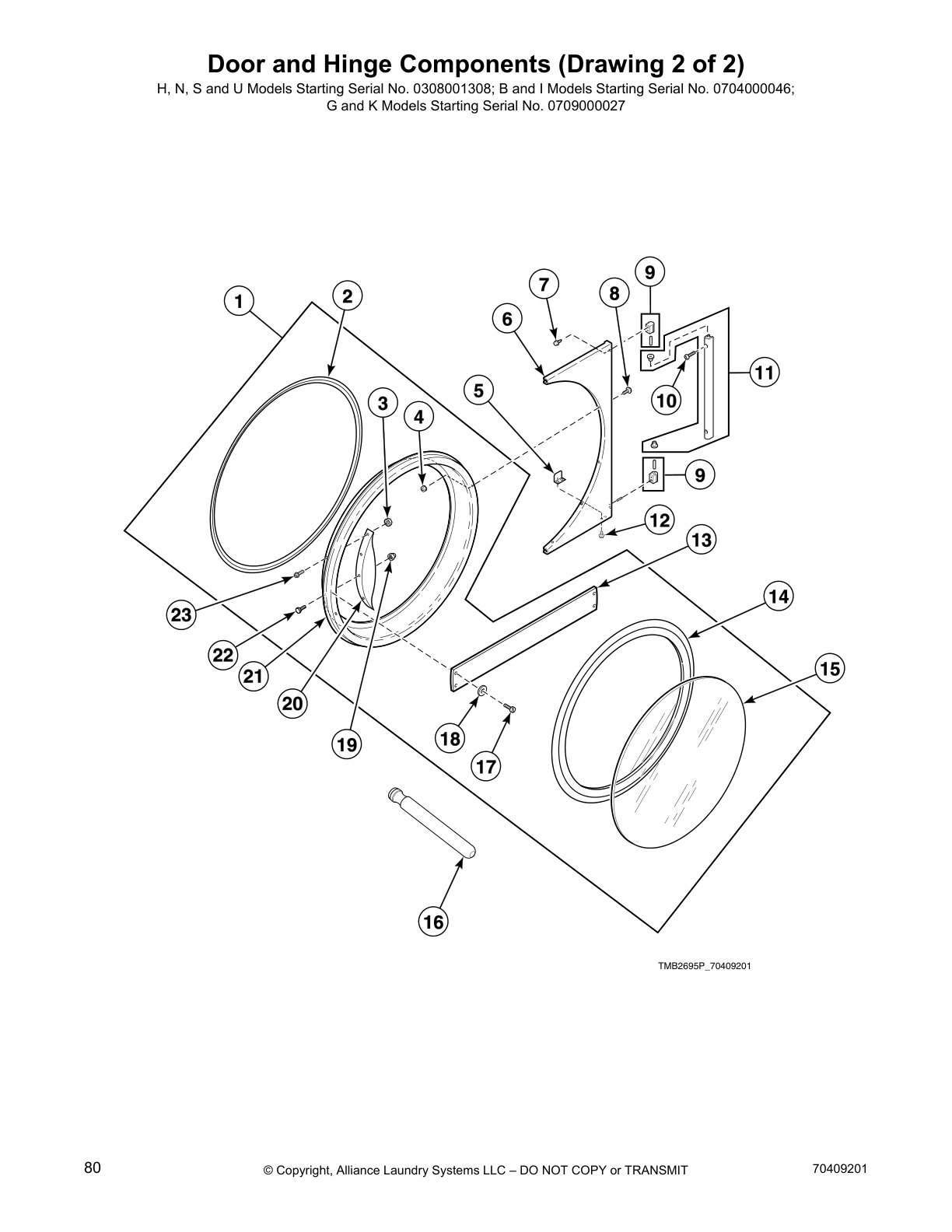

Door and Hinge Components (Drawing 2 of 2)

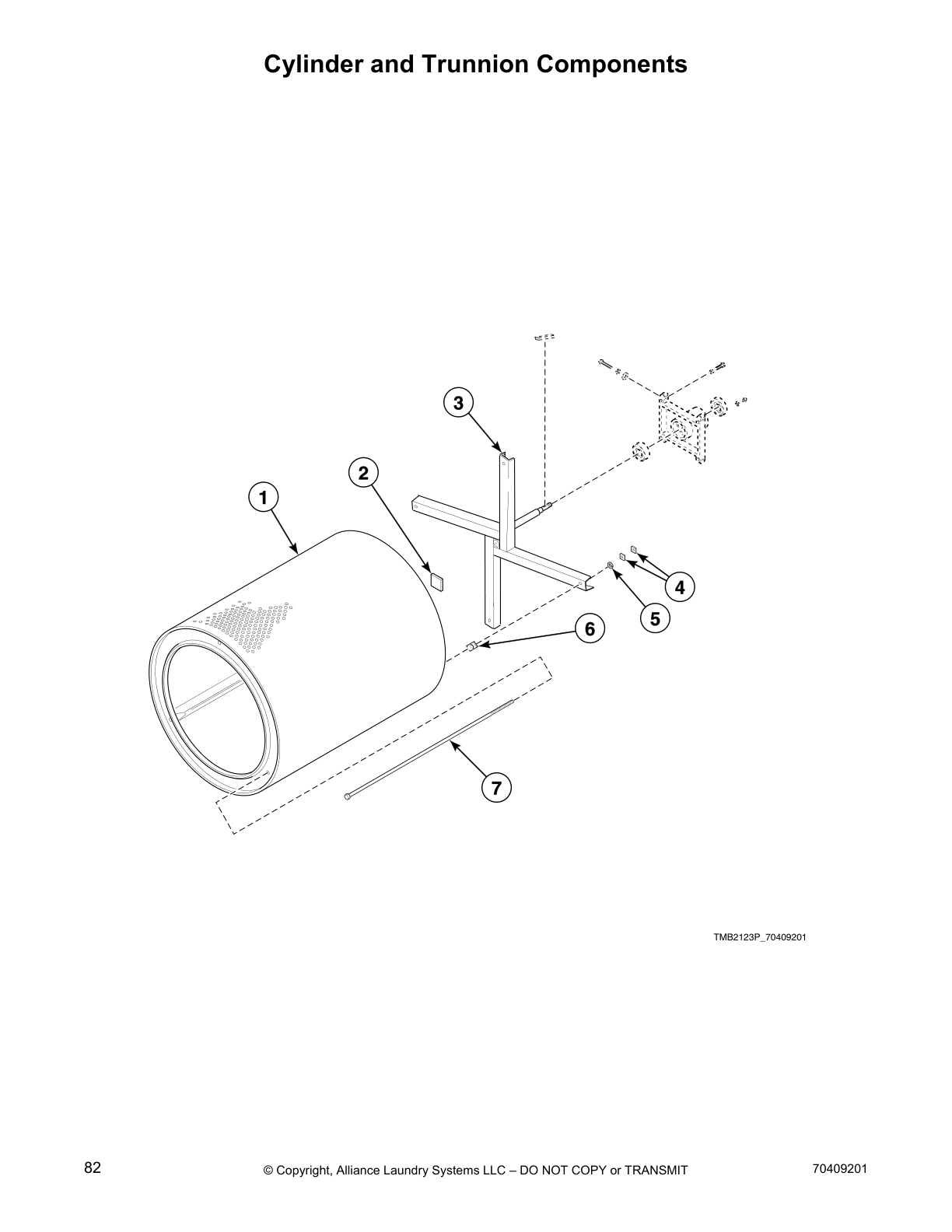

Cylinder and Trunnion Components

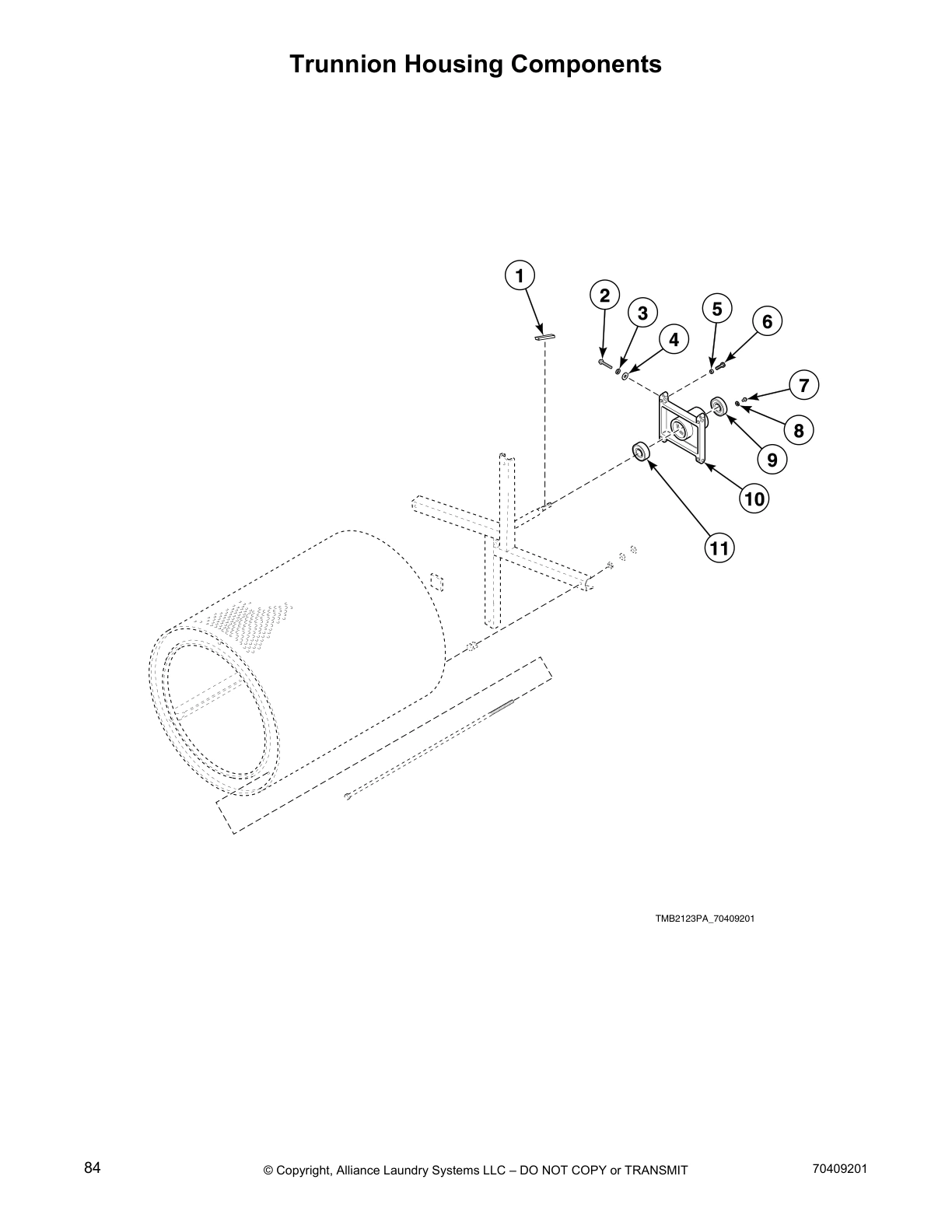

Trunnion Housing Components

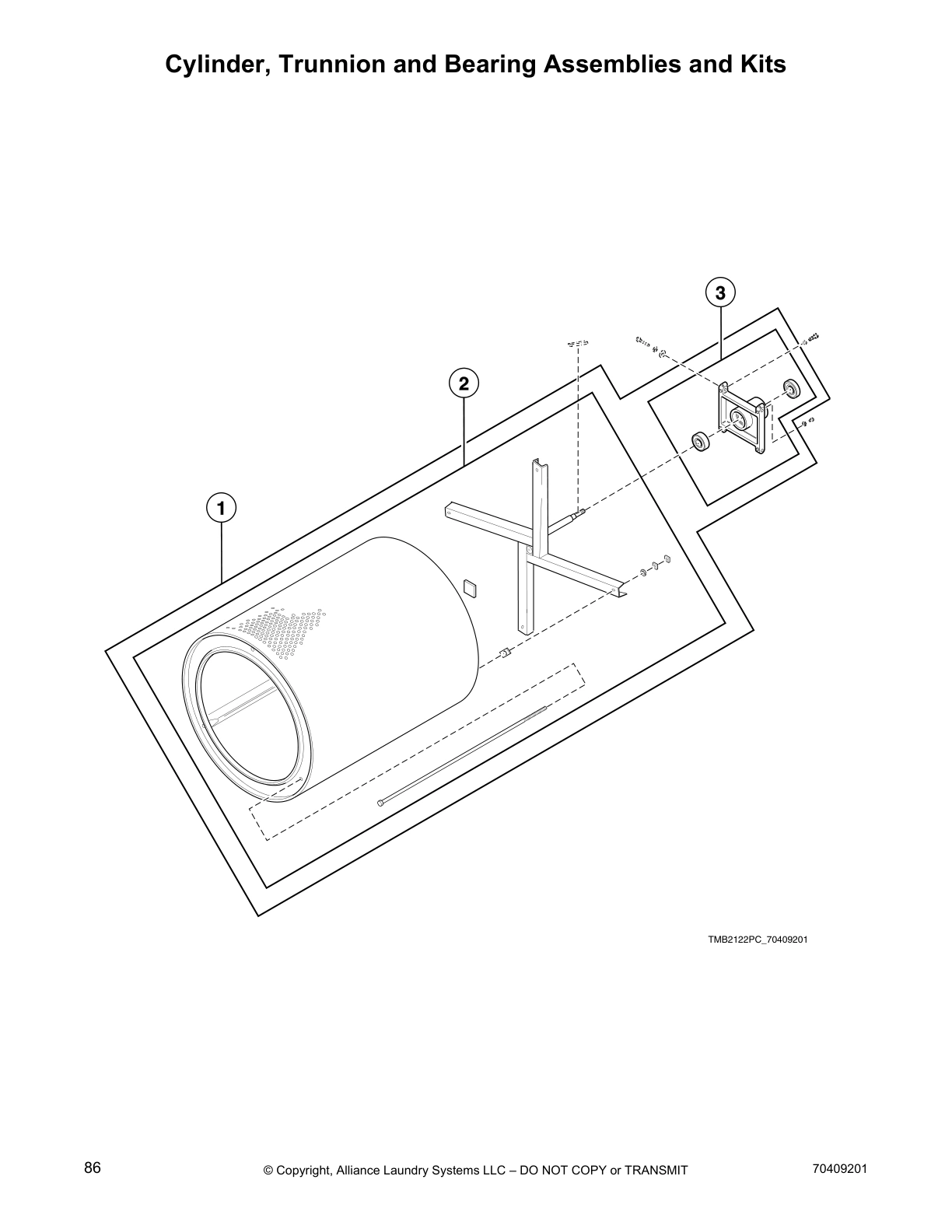

Cylinder, Trunnion and Bearing Assemblies and Kits

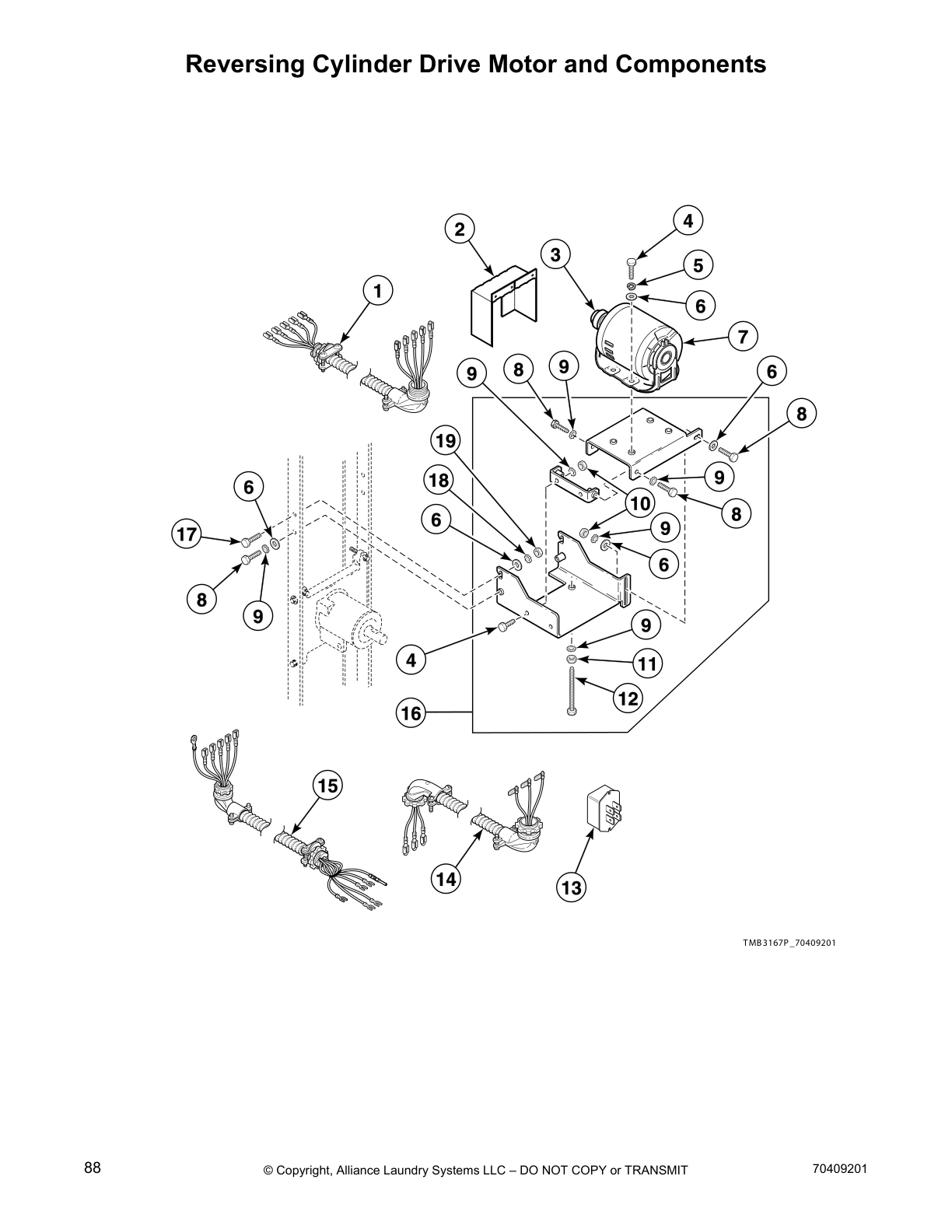

Reversing Cylinder Drive Motor and Components

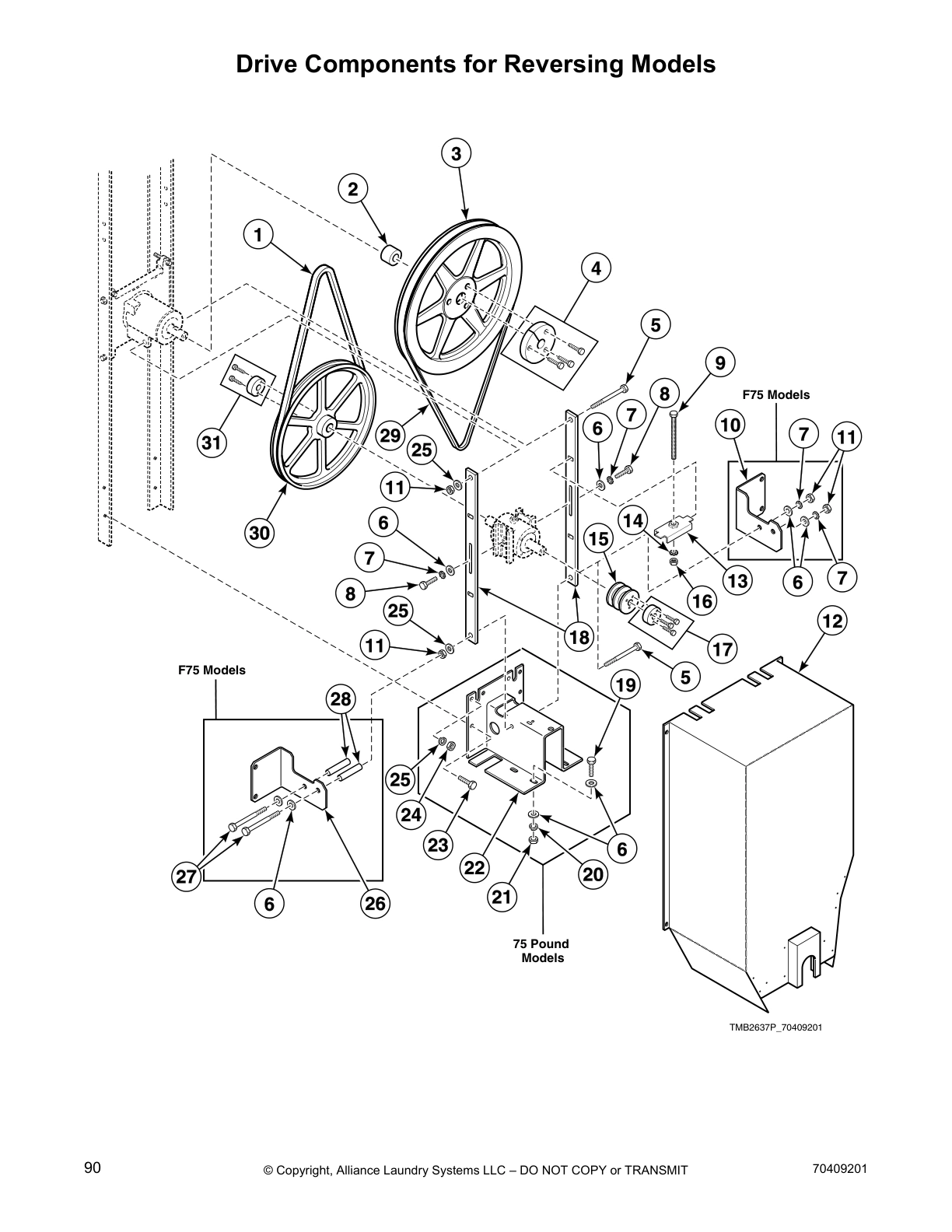

Drive Components for Reversing Models

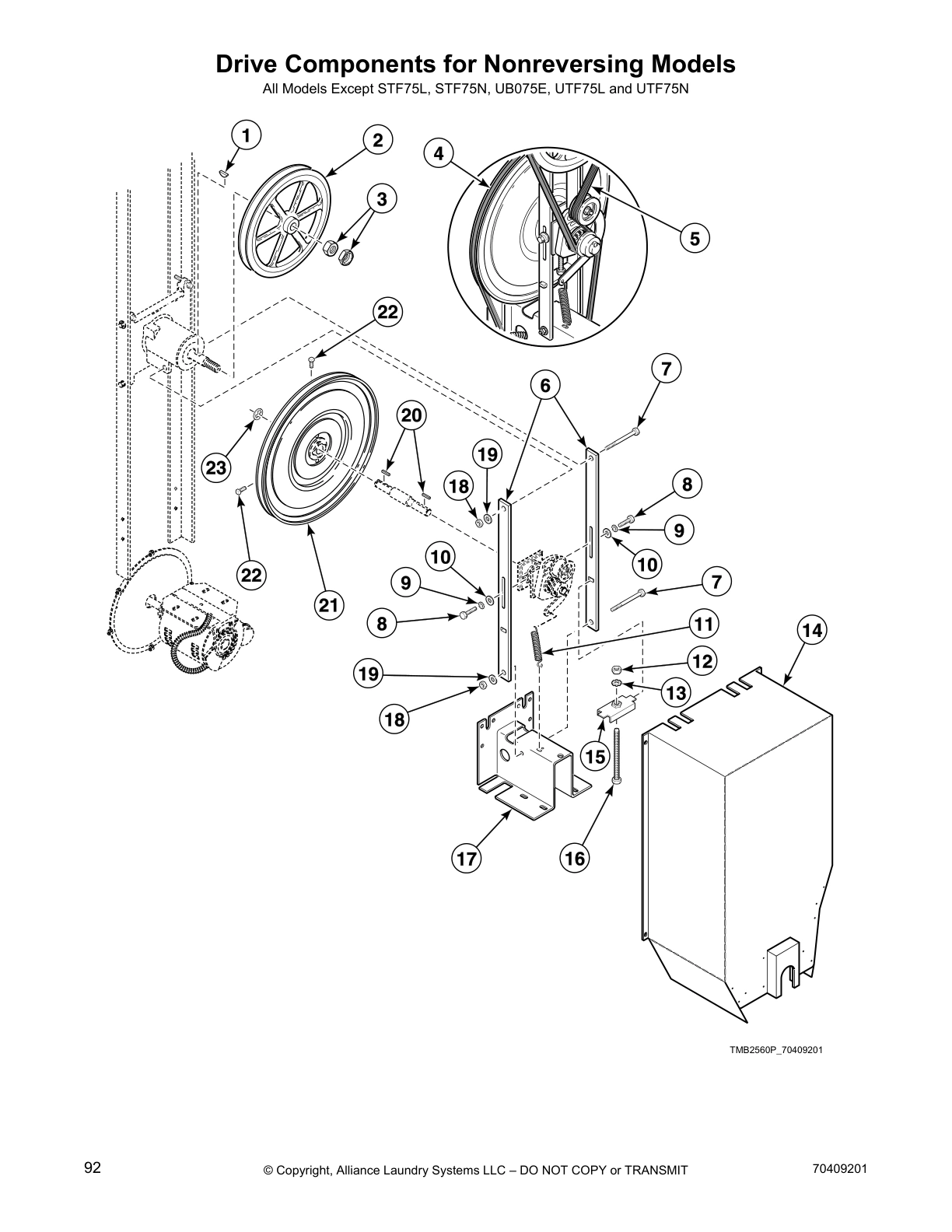

Drive Components for Nonreversing Models

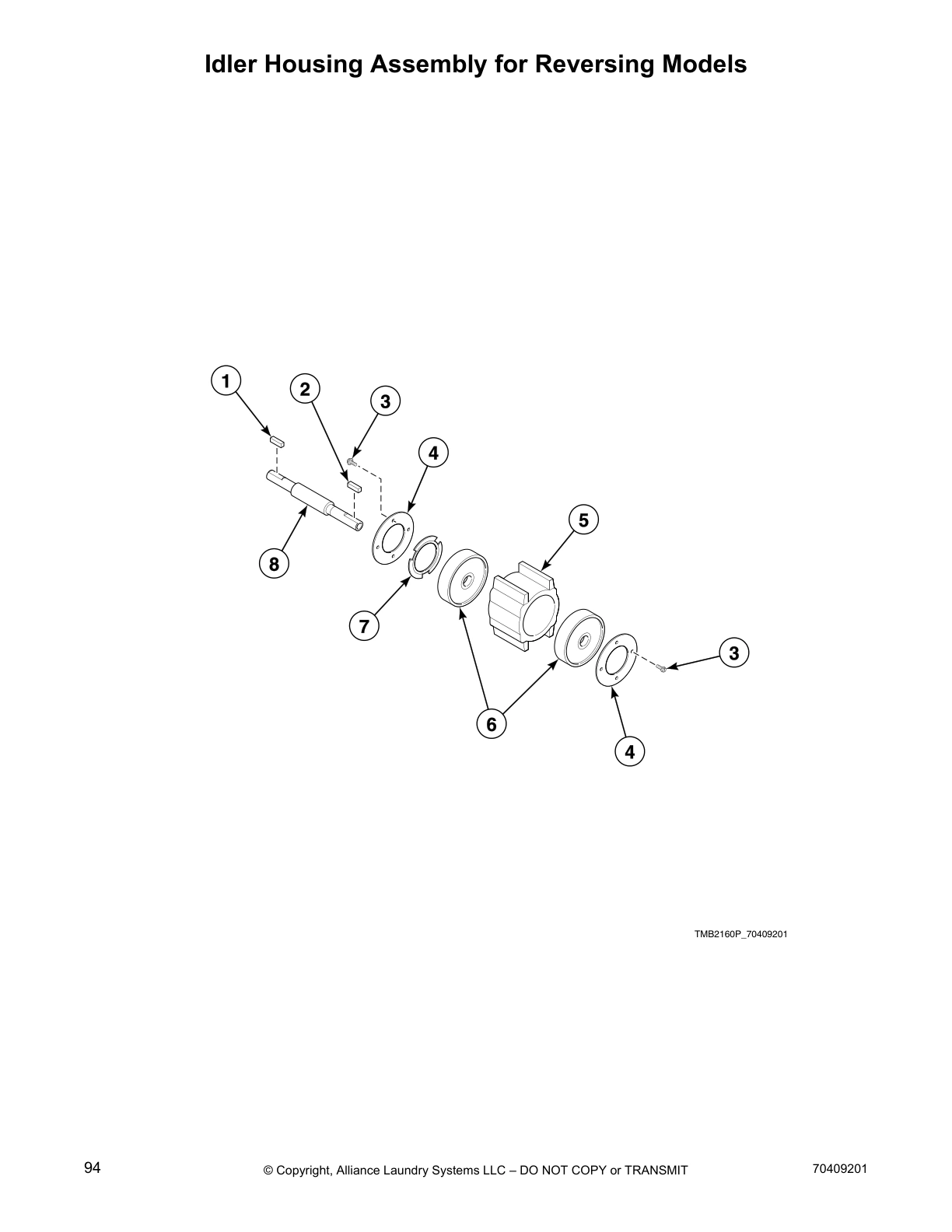

Idler Housing Assembly for Reversing Models

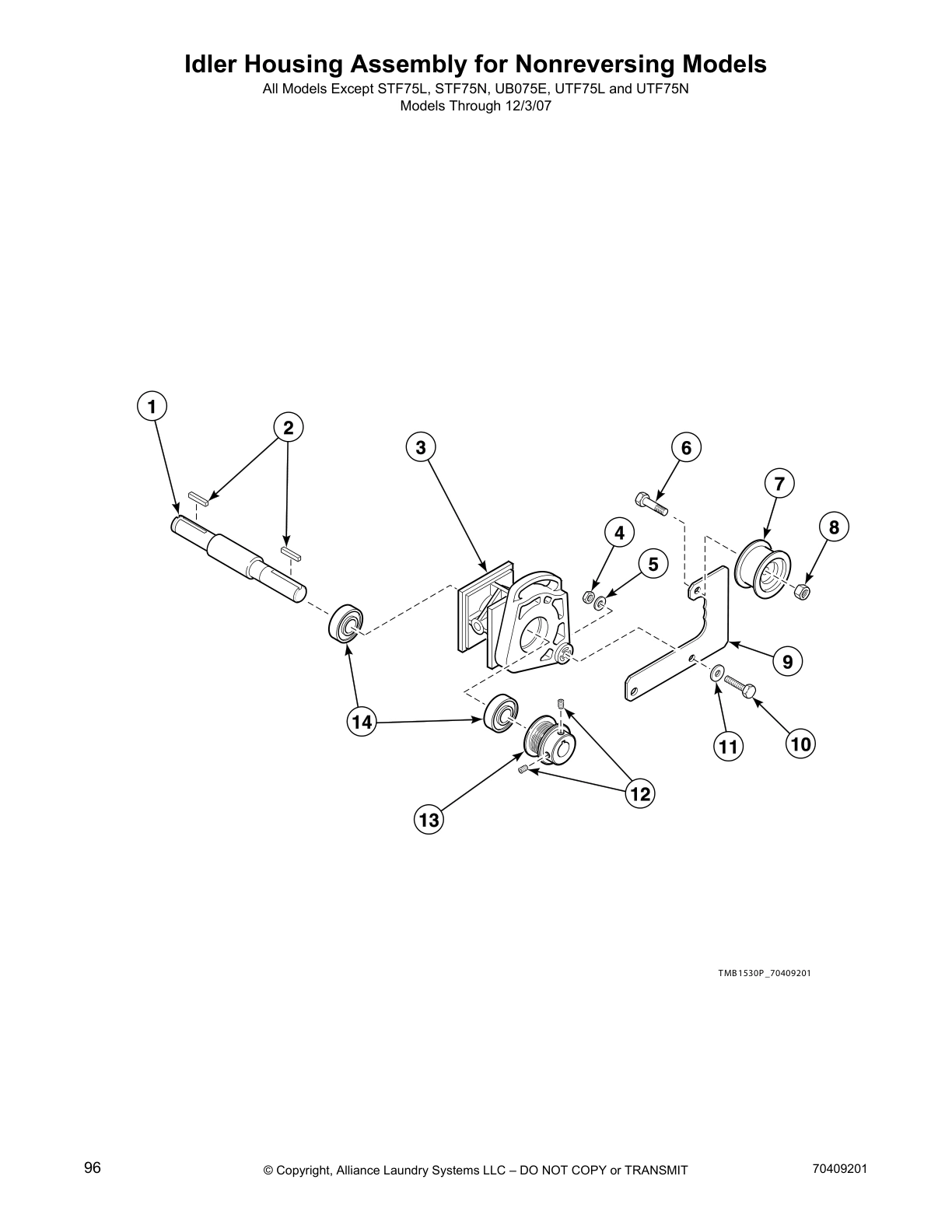

Idler Housing Assembly for Nonreversing Models

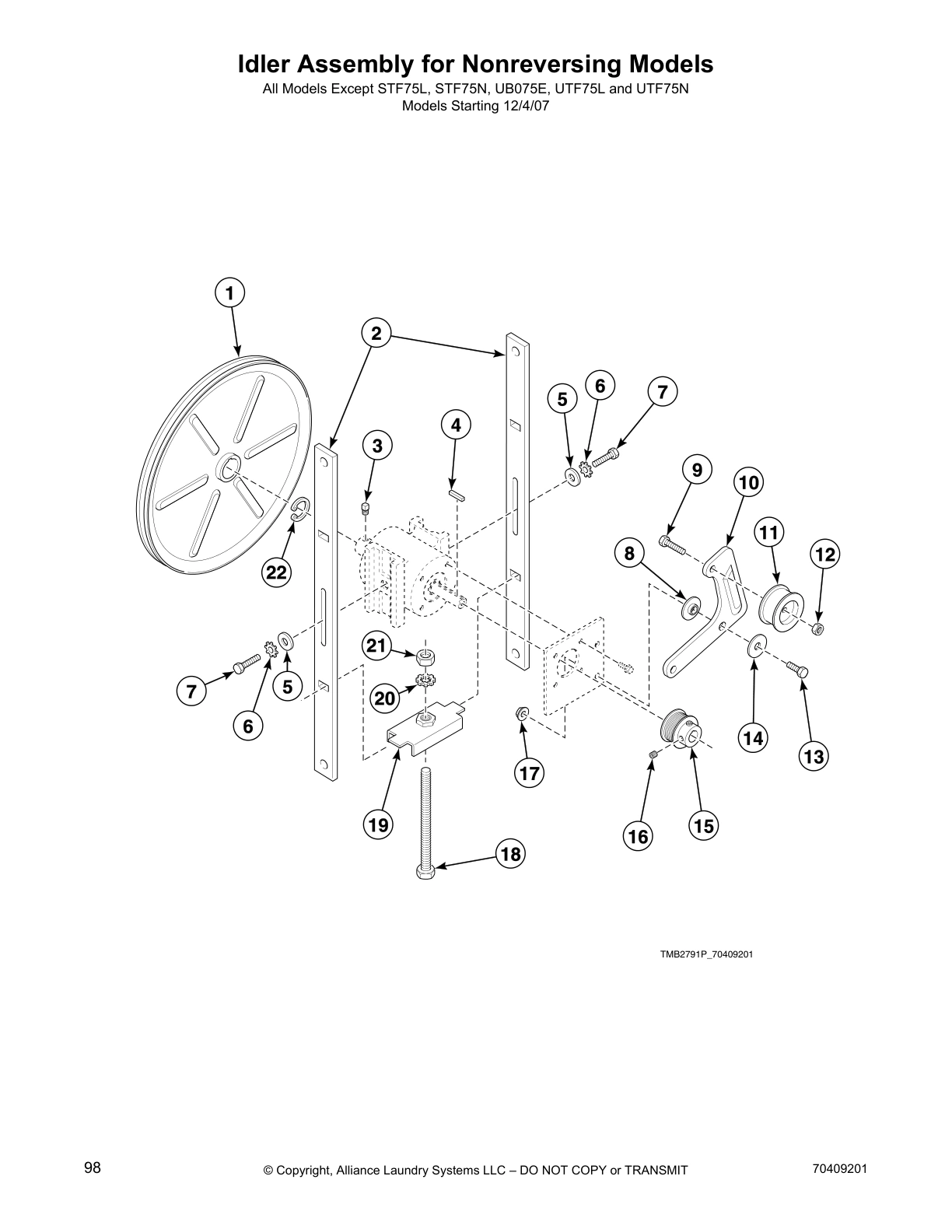

Idler Assembly for Nonreversing Models

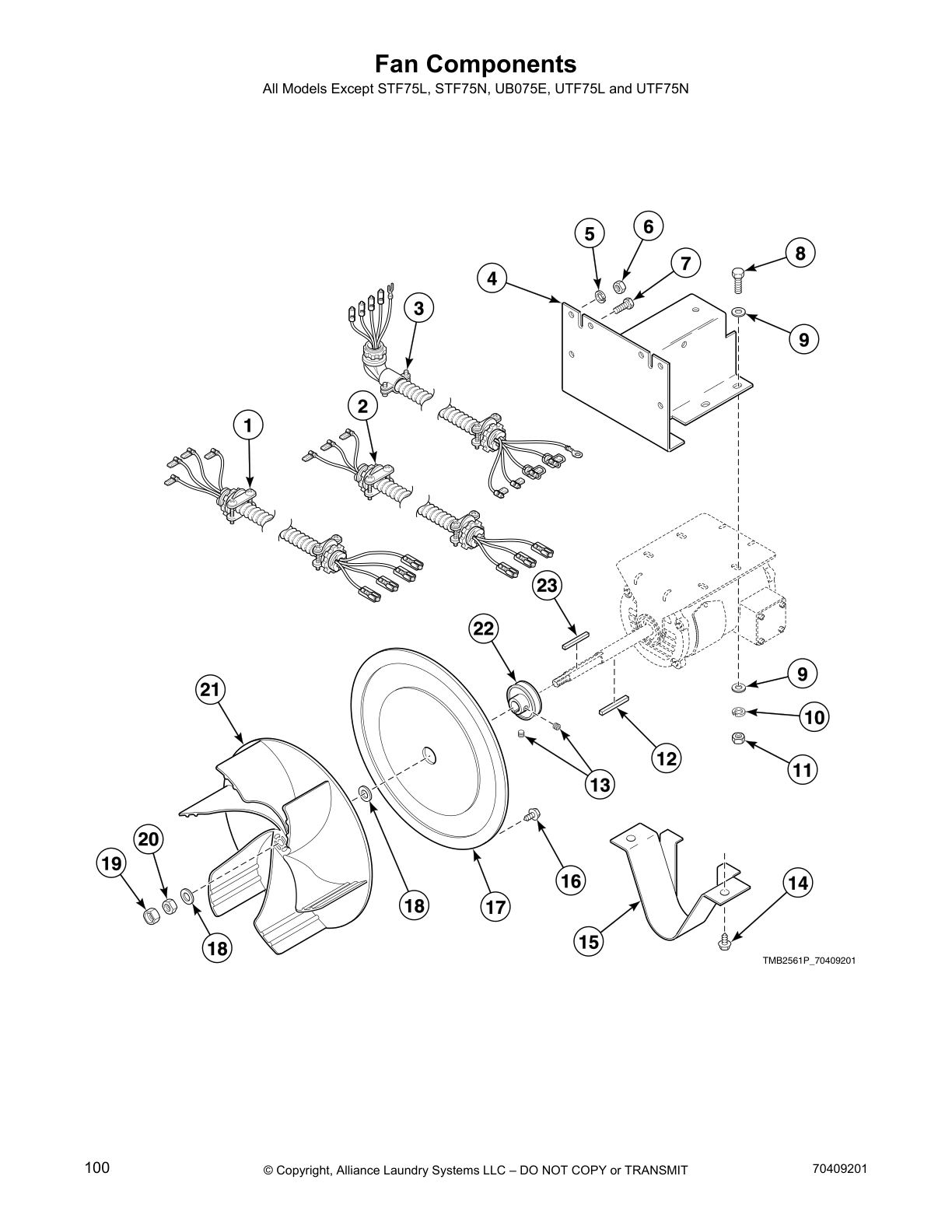

Fan Components

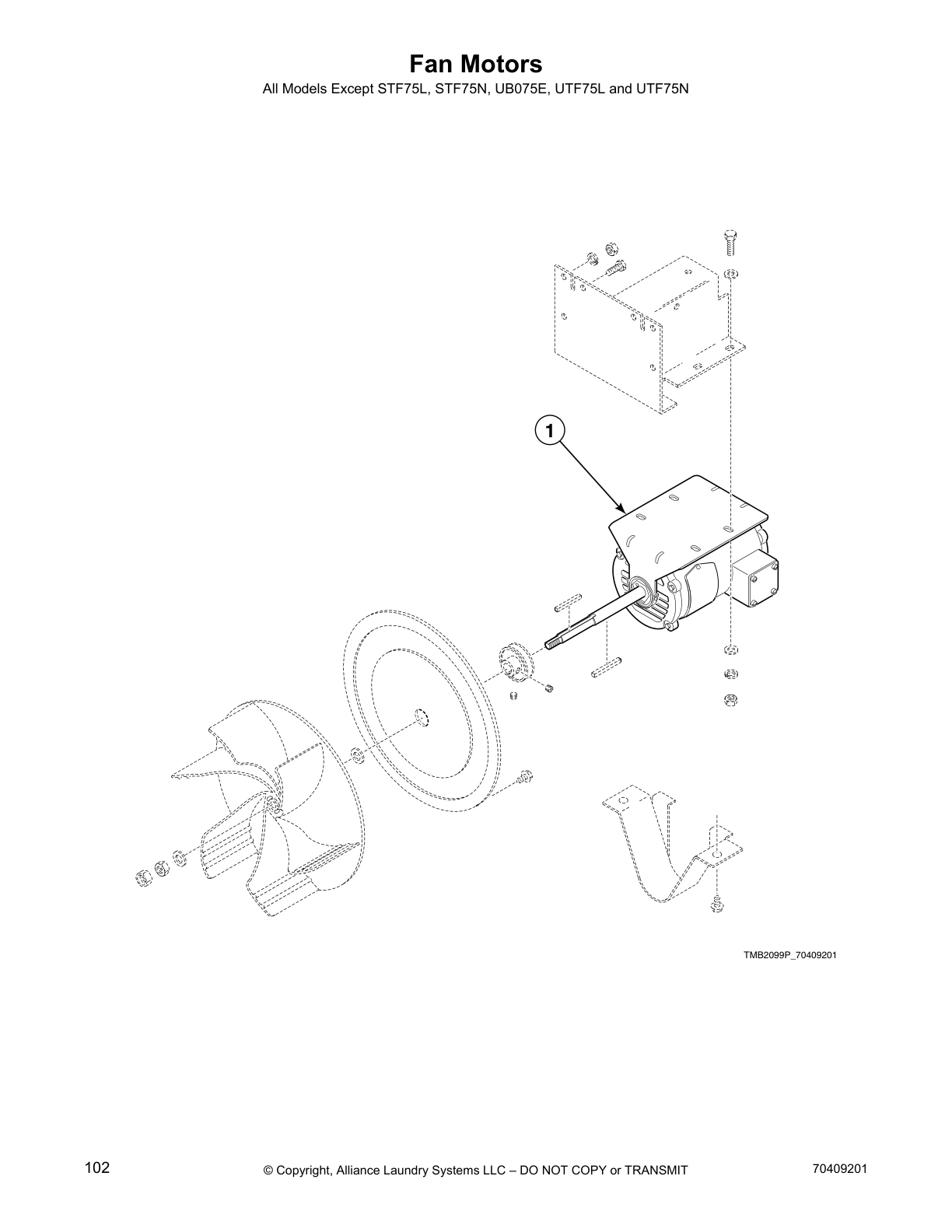

Fan Motors

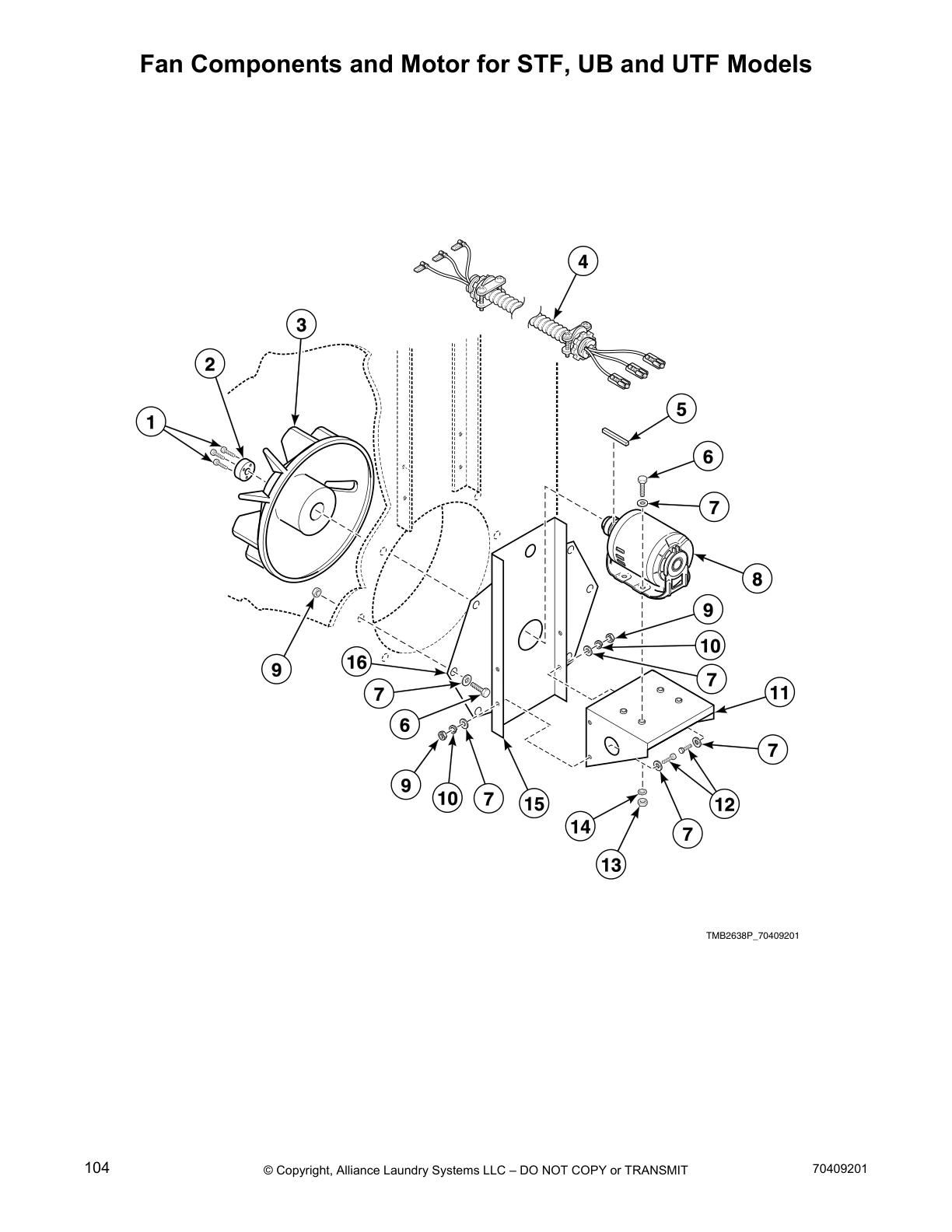

Fan Components and Motor for STF, UB and UTF Models
Gas Heater Components for

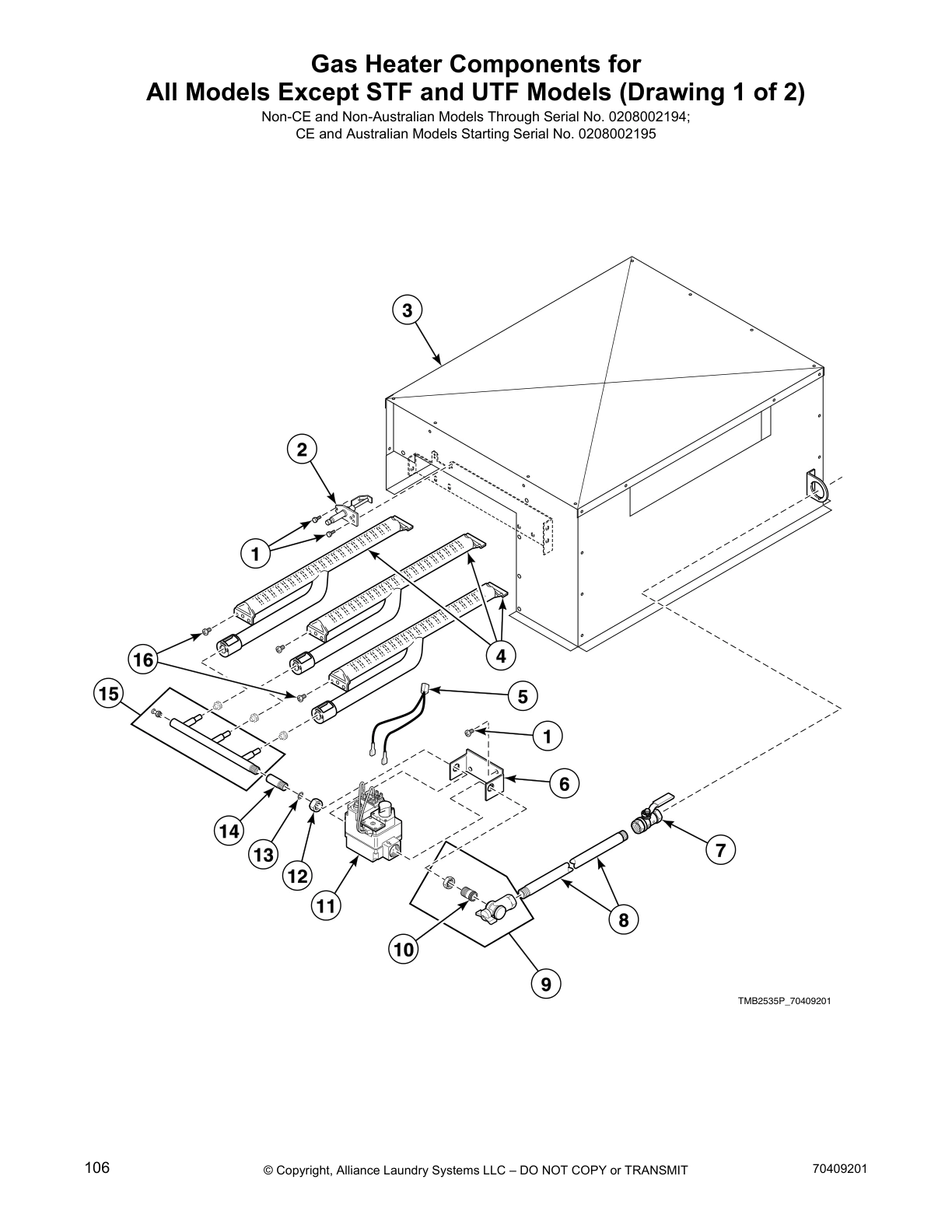

All Models Except STF and UTF Models (Drawing 1 of 2)
Gas Heater Components for

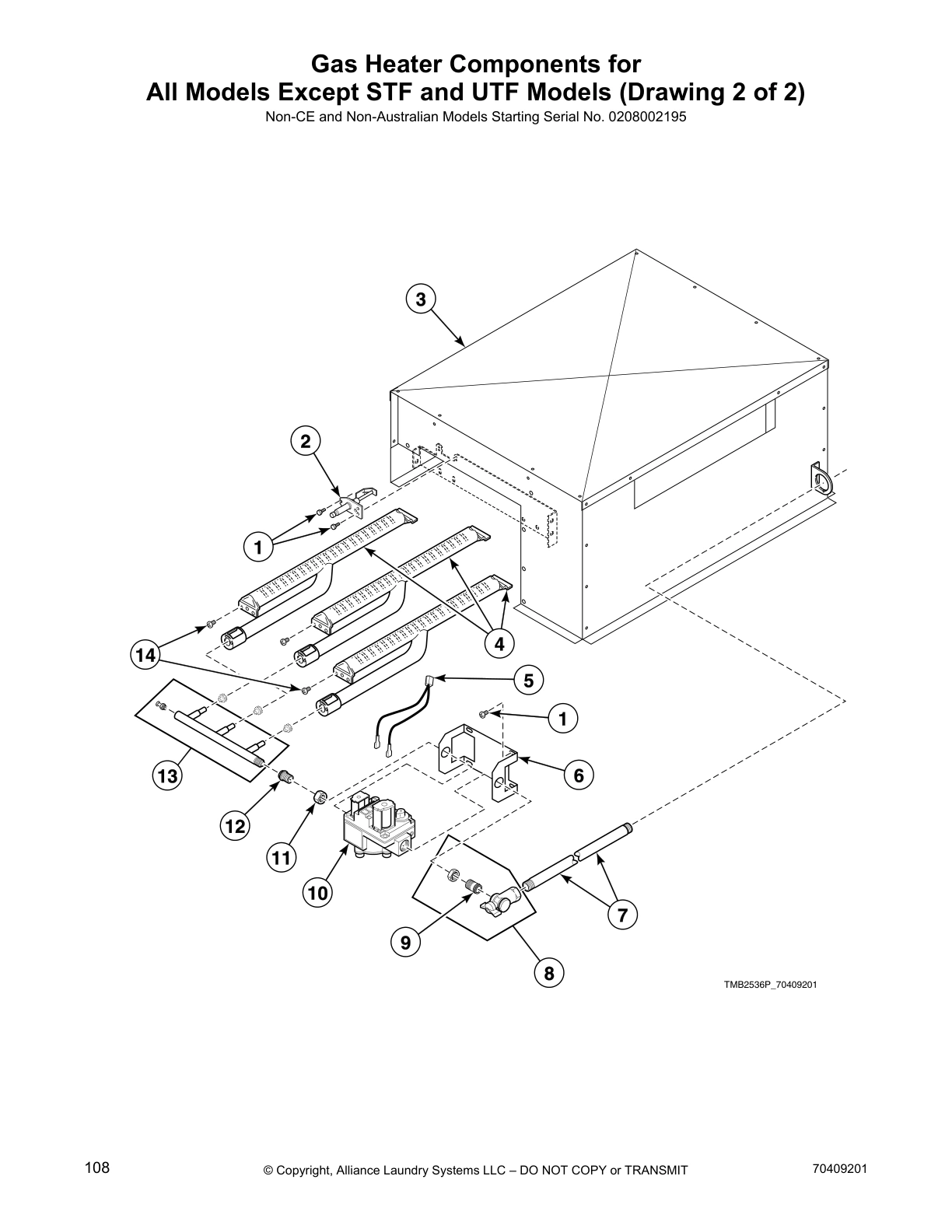

All Models Except STF and UTF Models (Drawing 2 of 2)

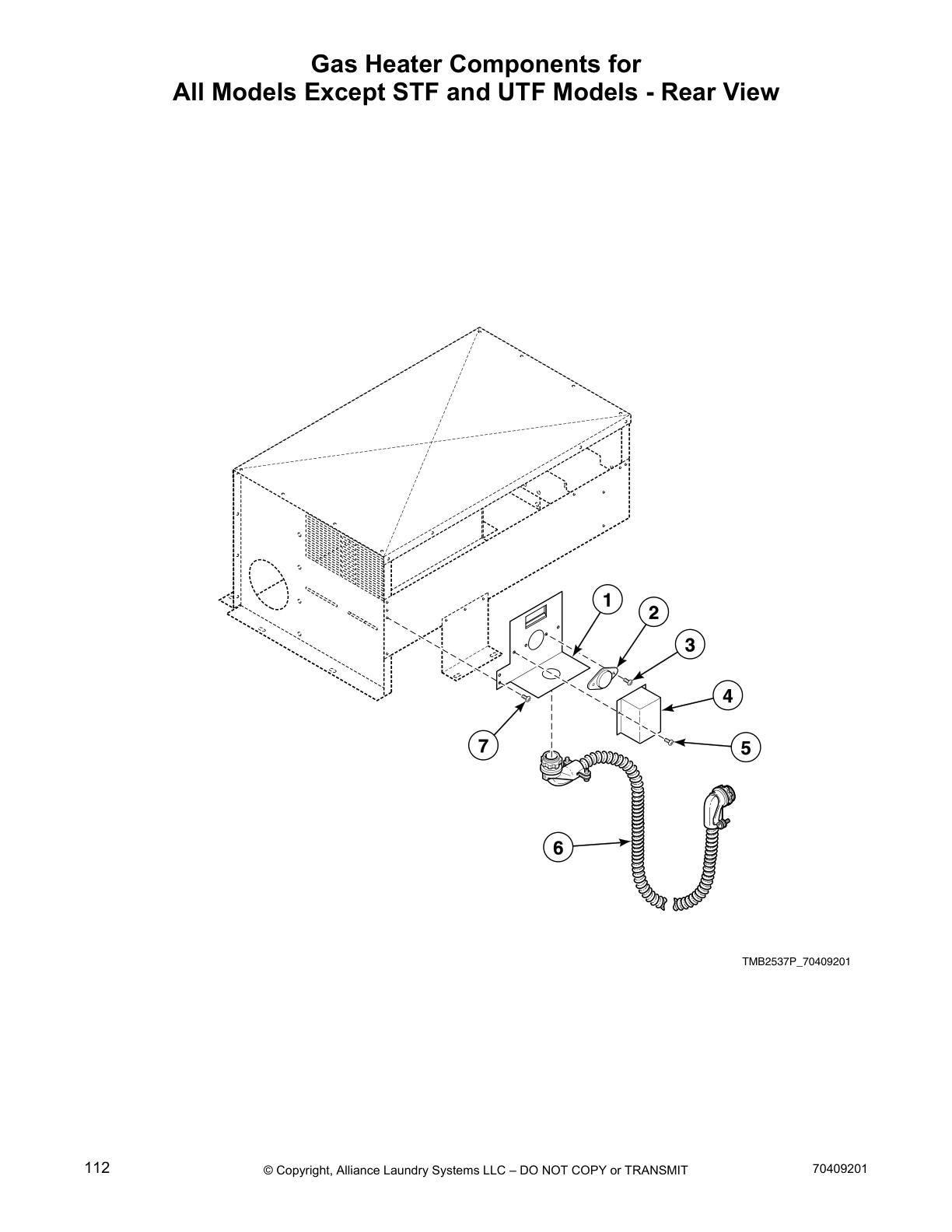

Gas Heater Components for
All Models Except STF and UTF Models - Rear View

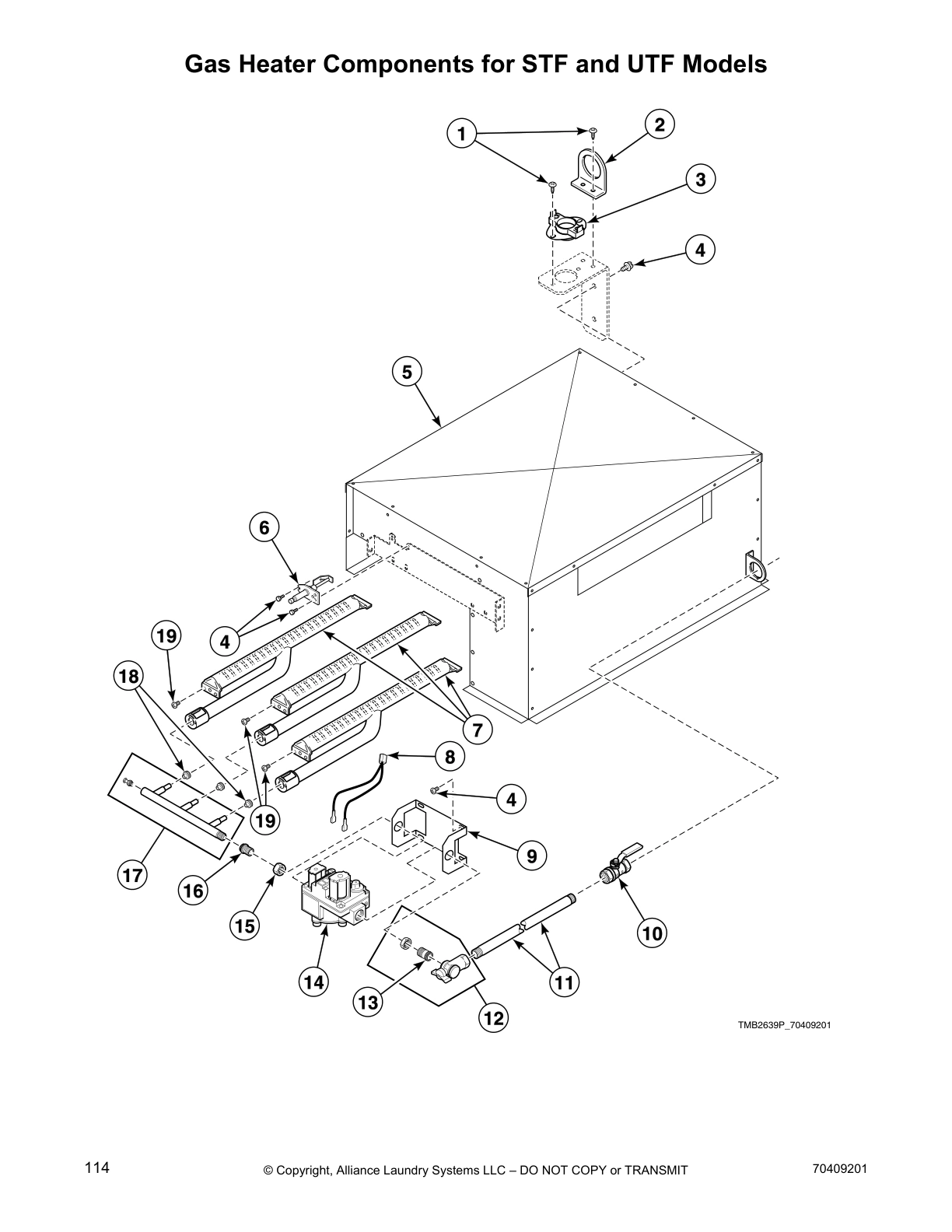

Gas Heater Components for STF and UTF Models

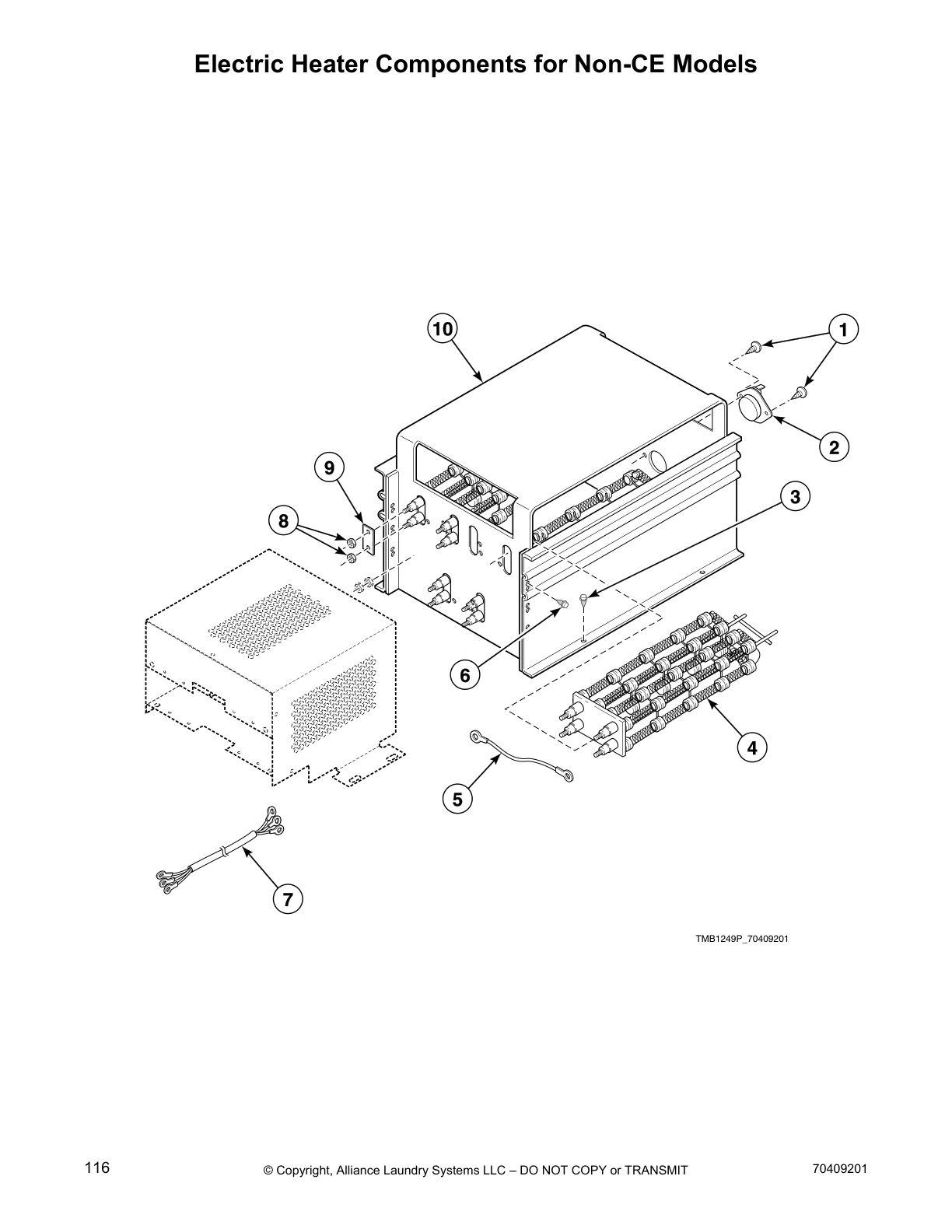

Electric Heater Components for Non-CE Models

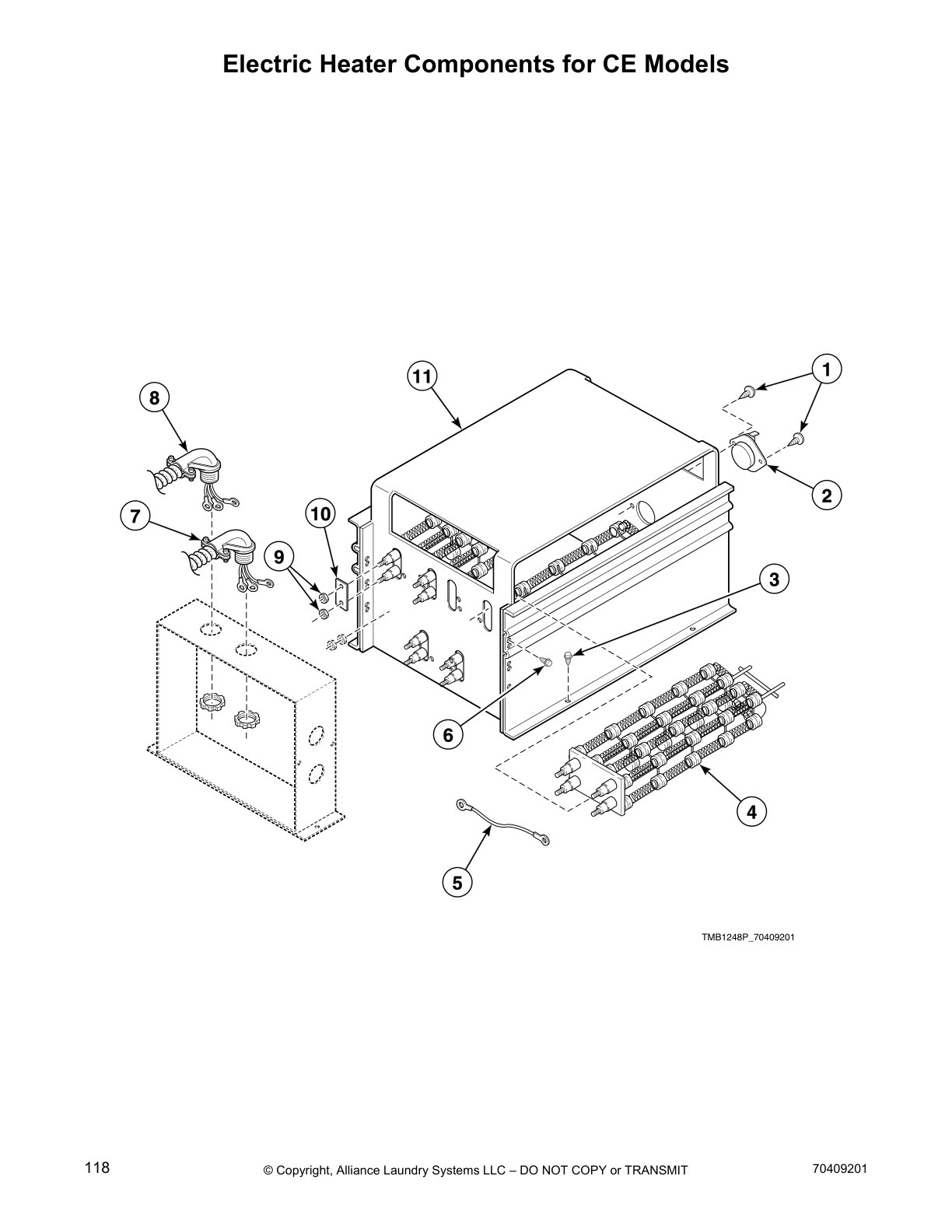

Electric Heater Components for CE Models

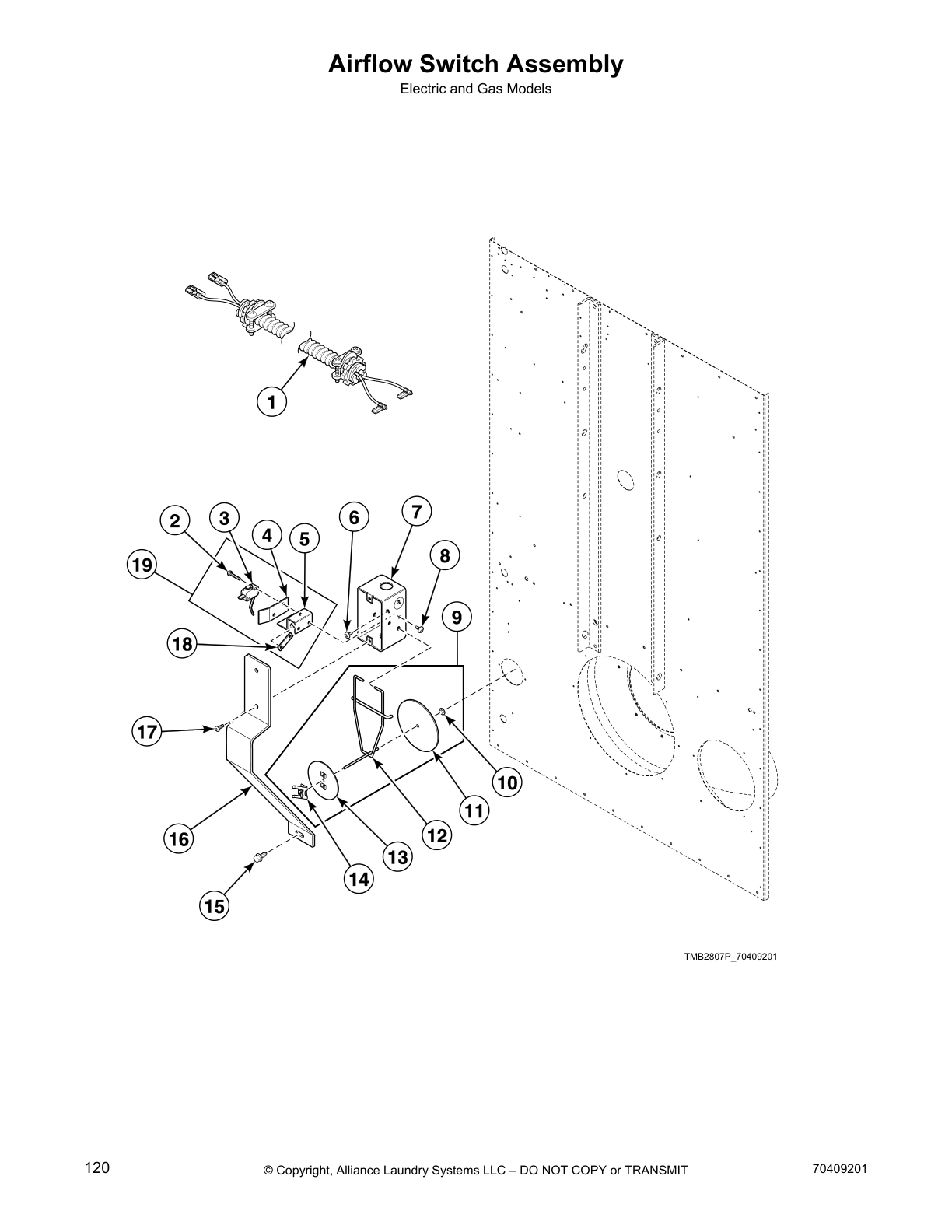

Airflow Switch Assembly

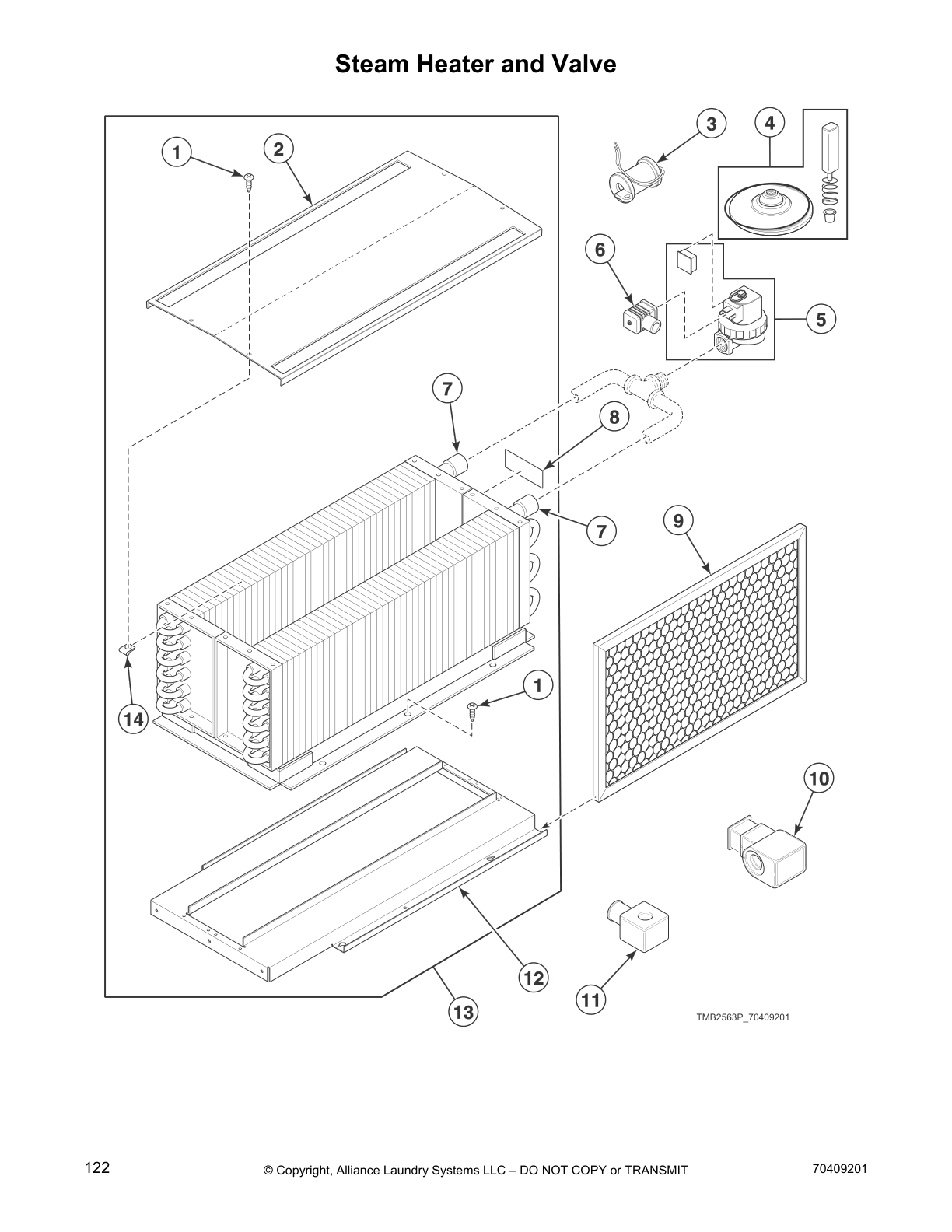

Steam Heater and Valve

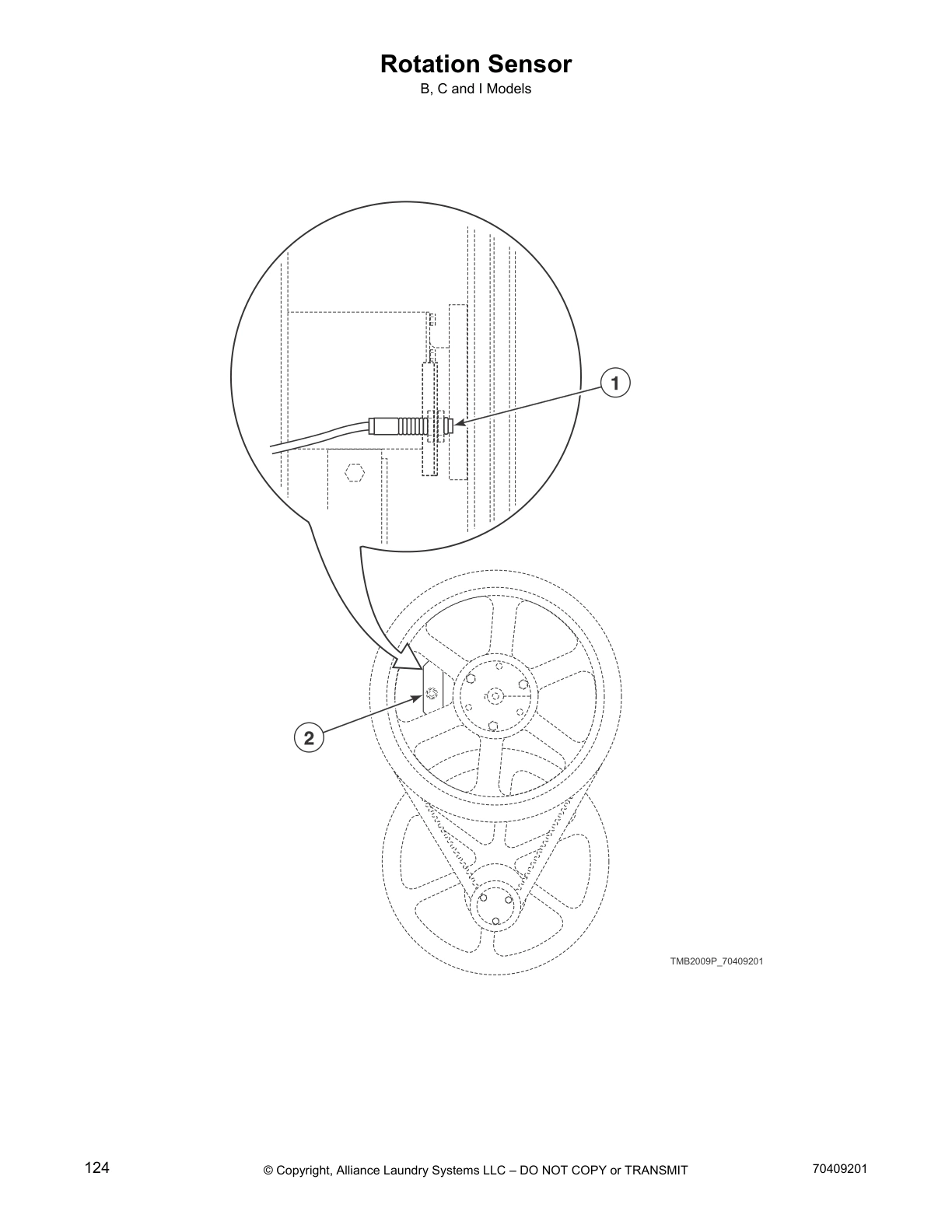

Rotation Sensor

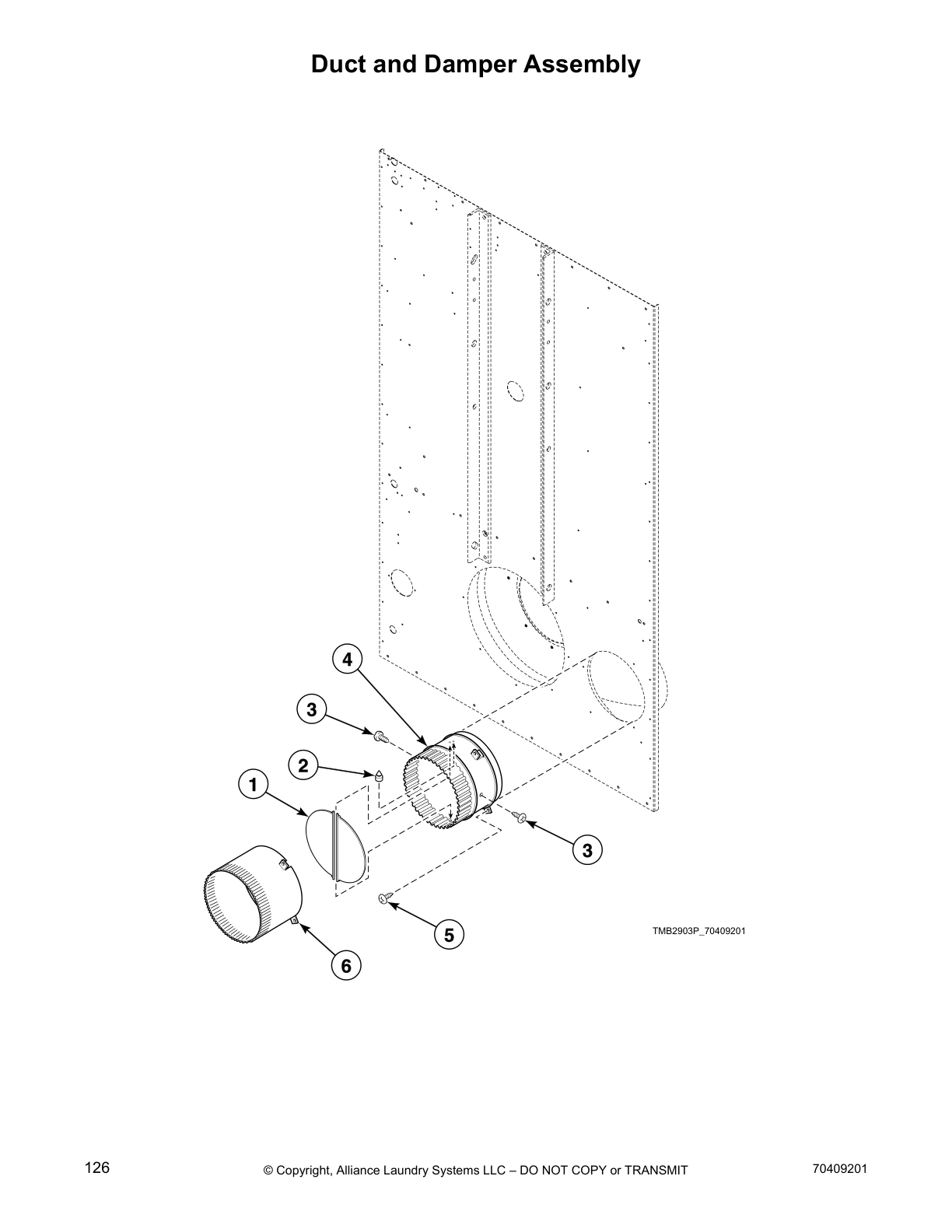

Duct and Damper Assembly

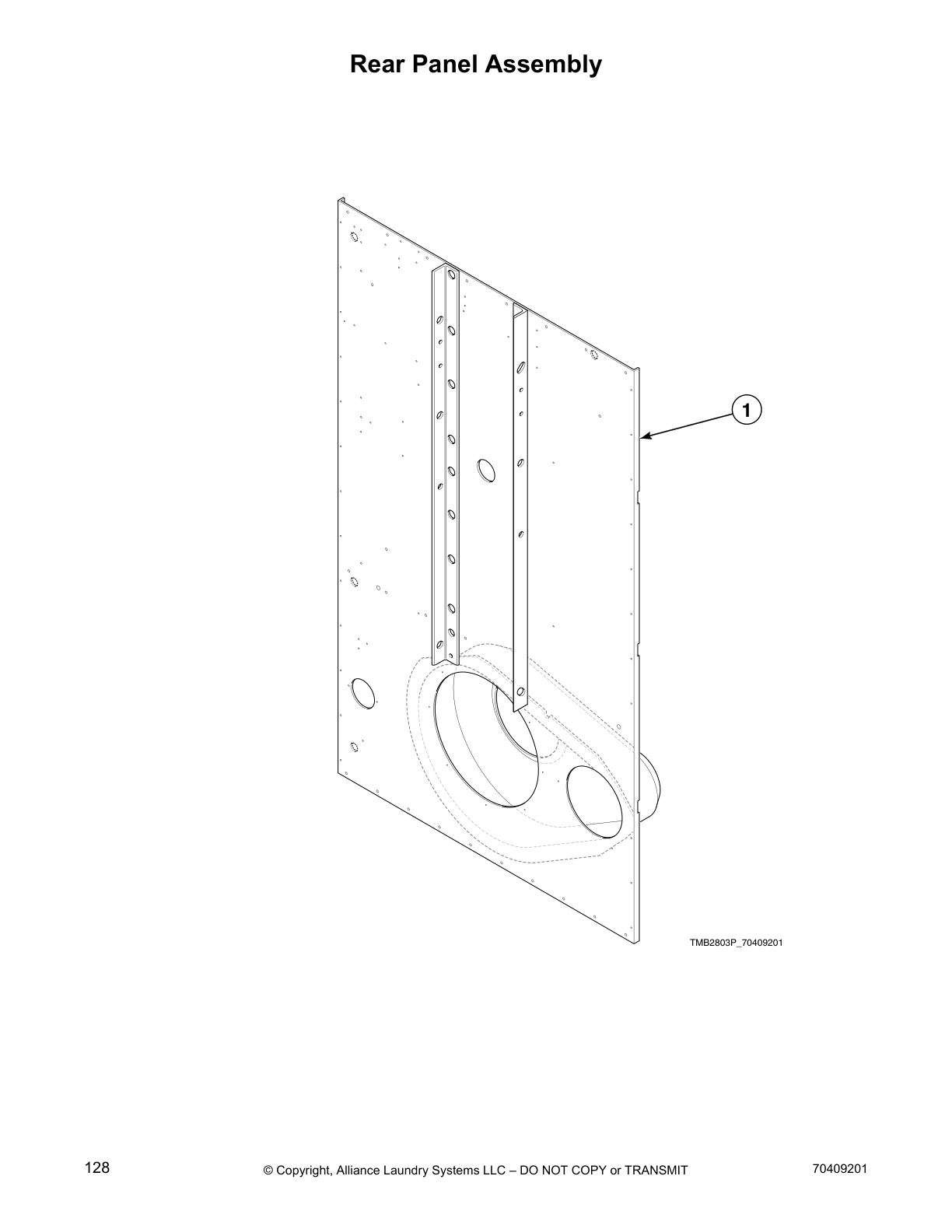

Rear Panel Assembly

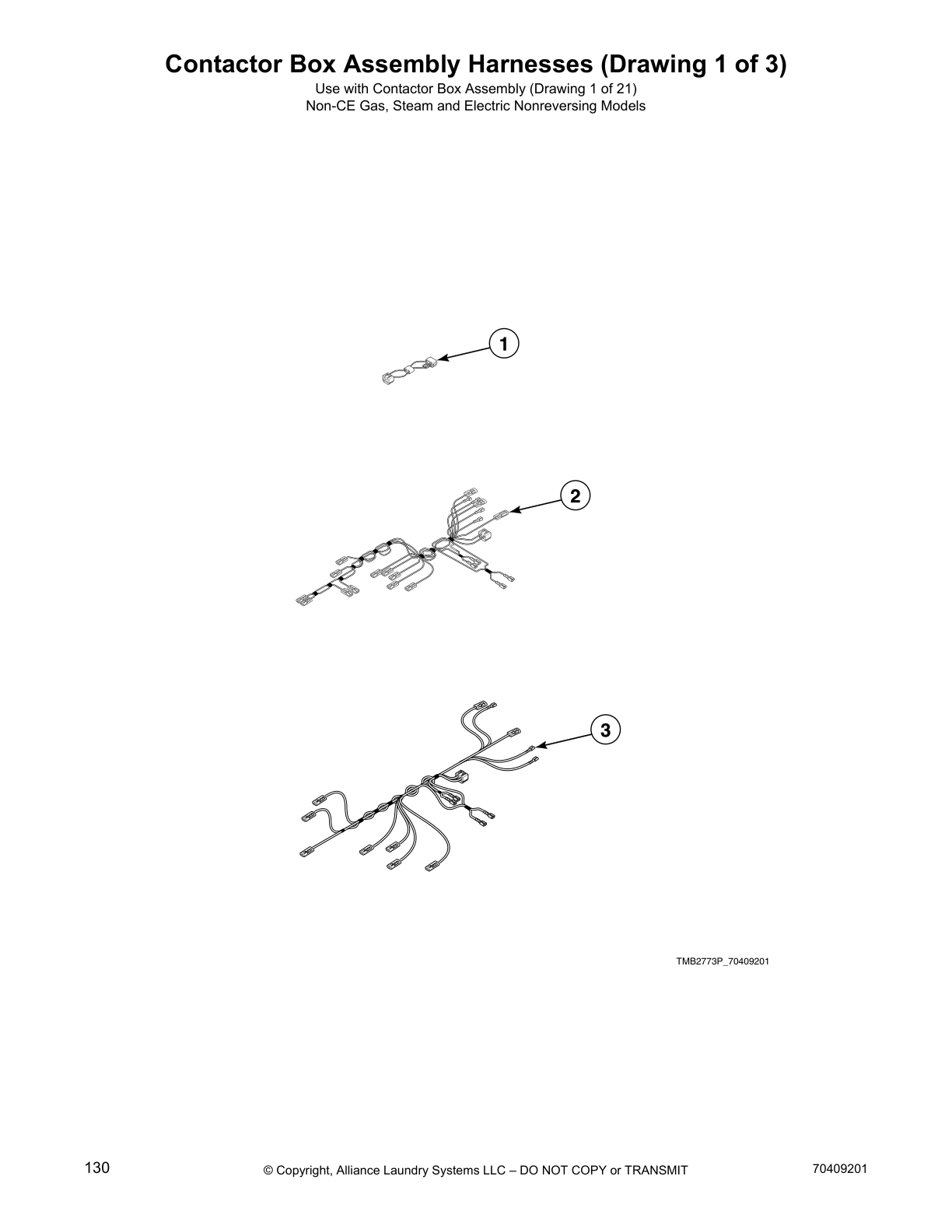

Contactor Box Assembly Harnesses (Drawing 1 of 3)

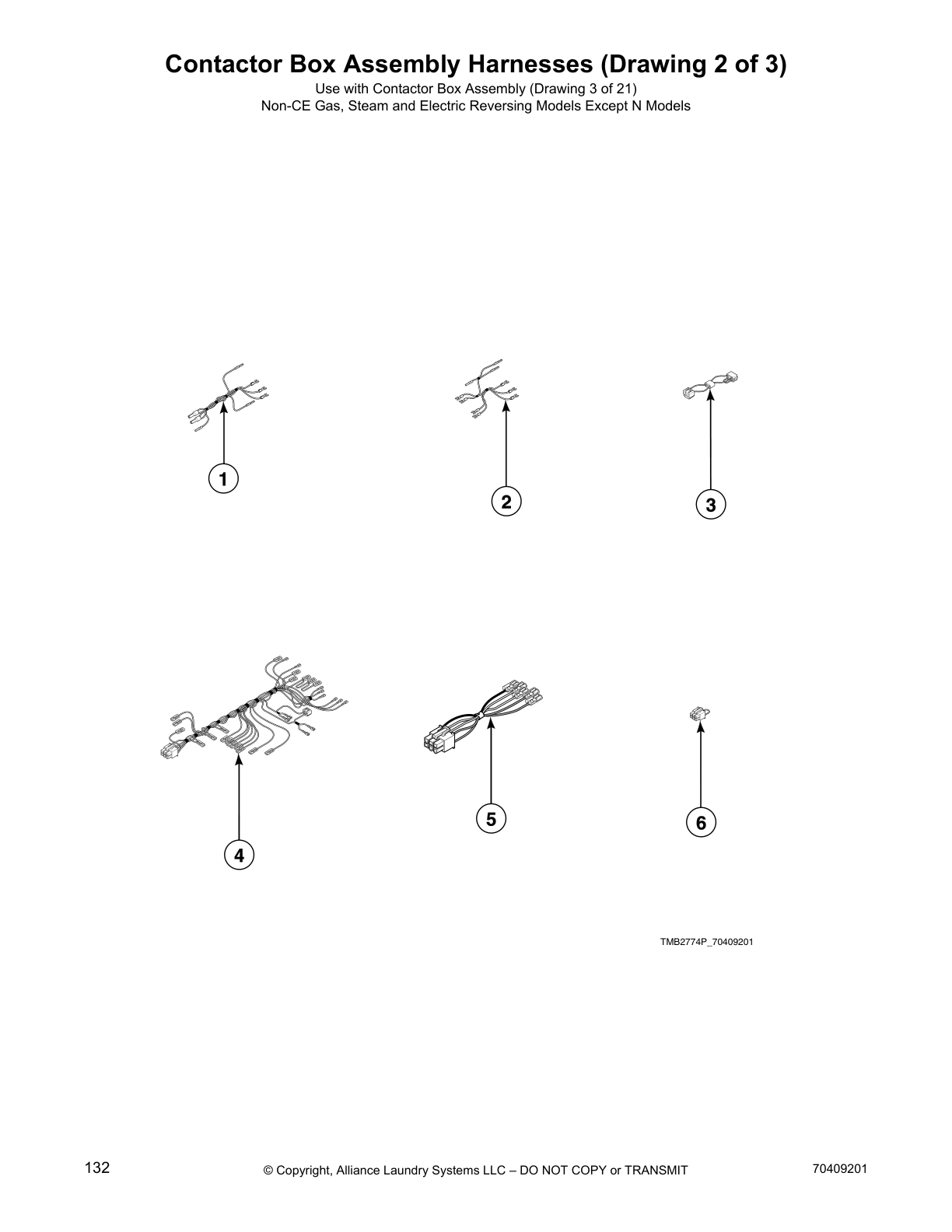

Contactor Box Assembly Harnesses (Drawing 2 of 3)

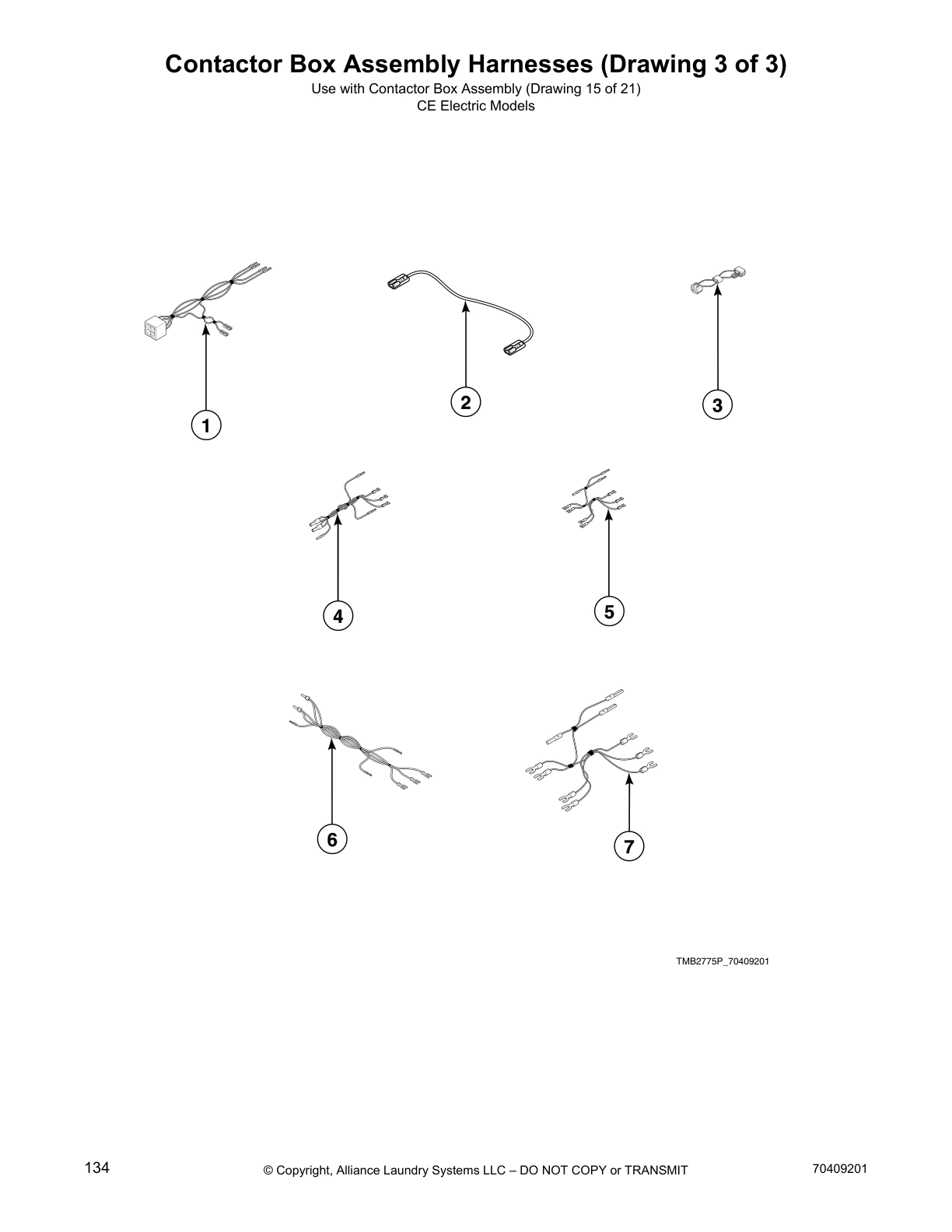

Contactor Box Assembly Harnesses (Drawing 3 of 3)

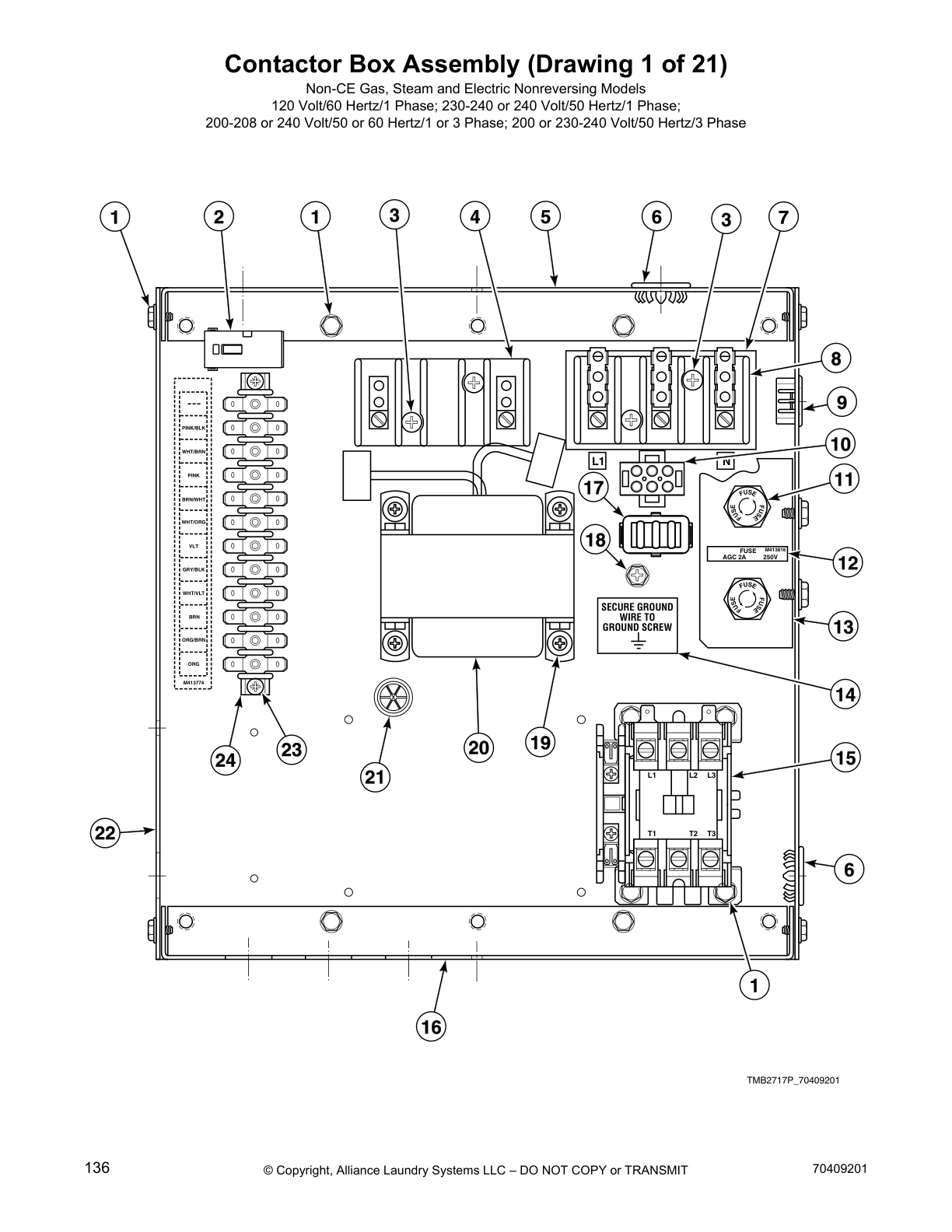

Contactor Box Assembly (Drawing 1 of 21)

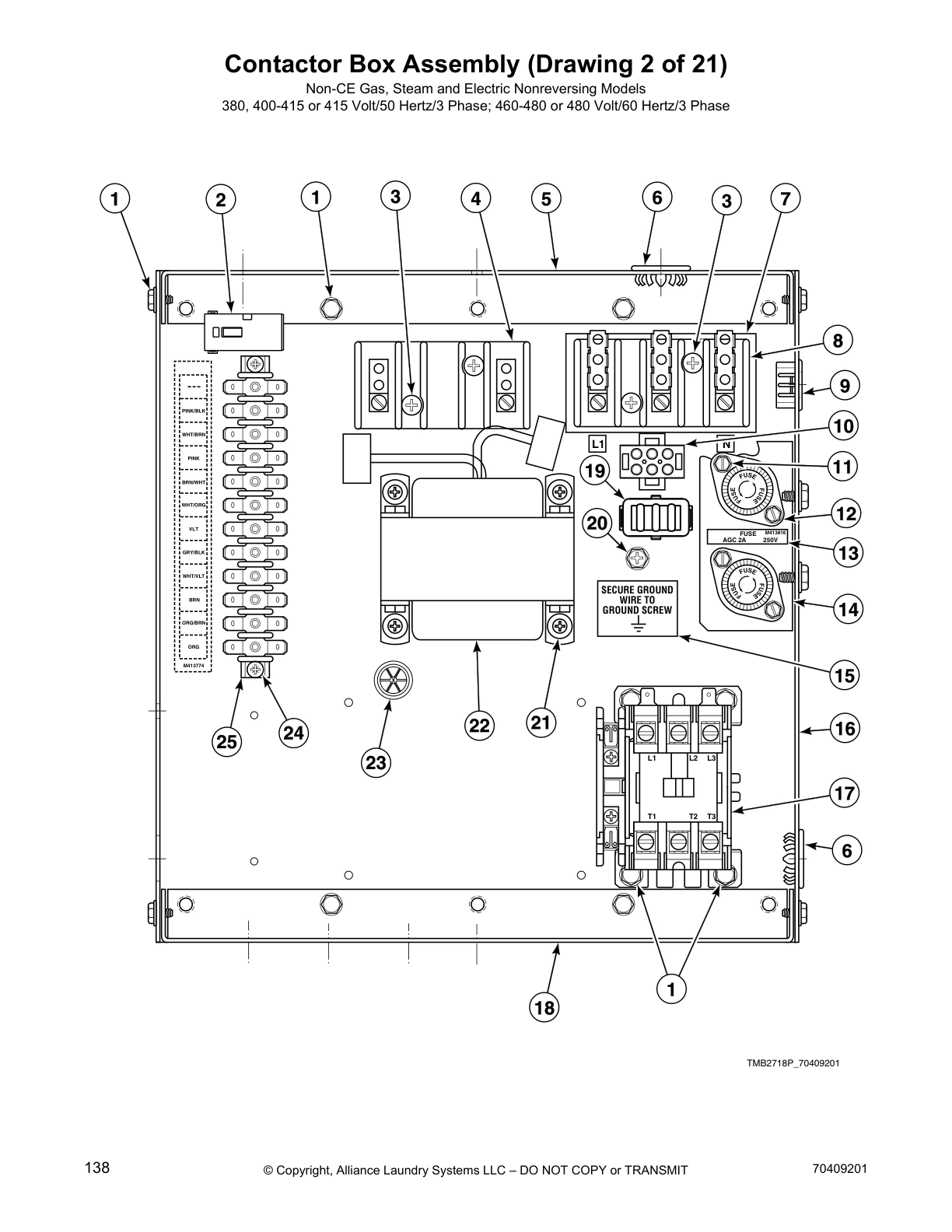

Contactor Box Assembly (Drawing 2 of 21)

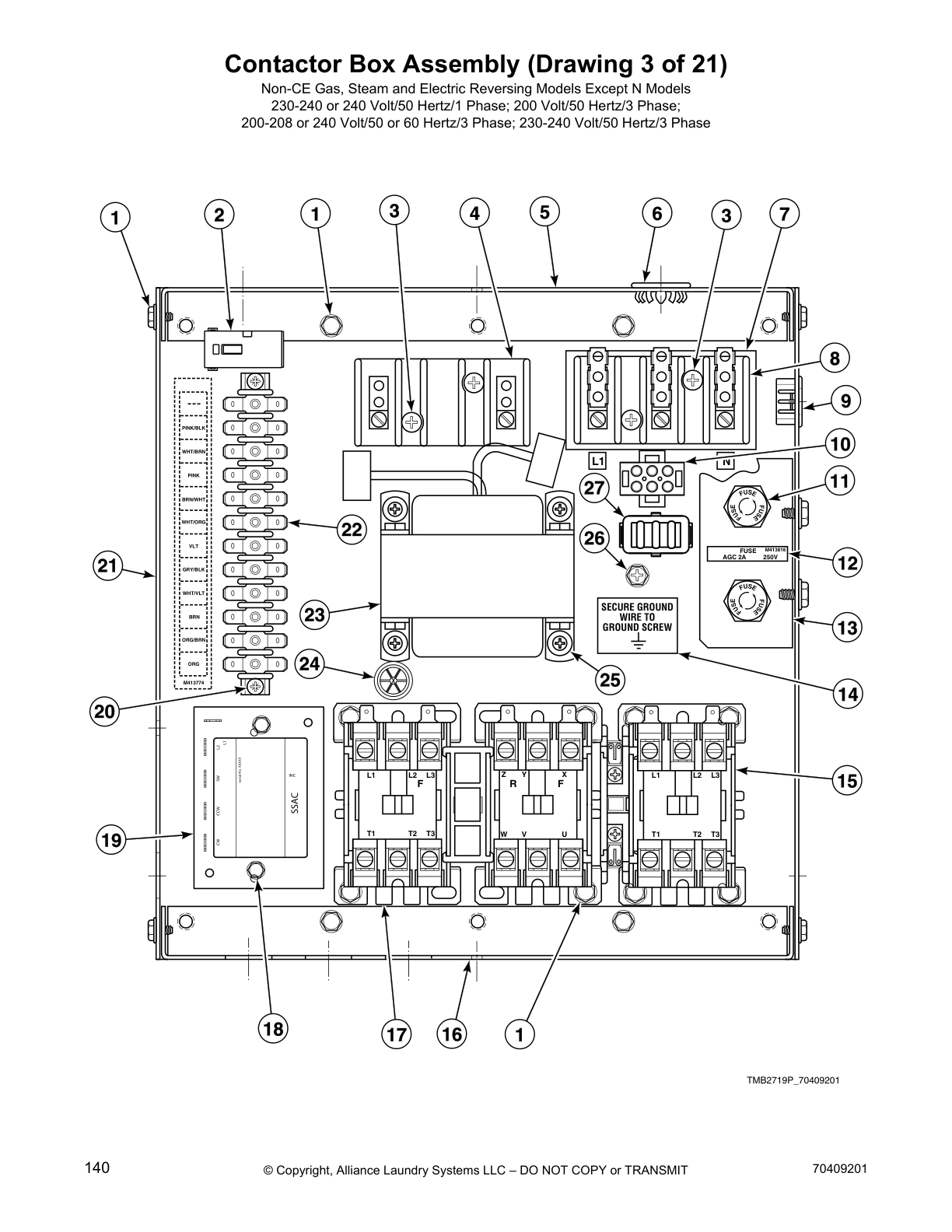

Contactor Box Assembly (Drawing 3 of 21)

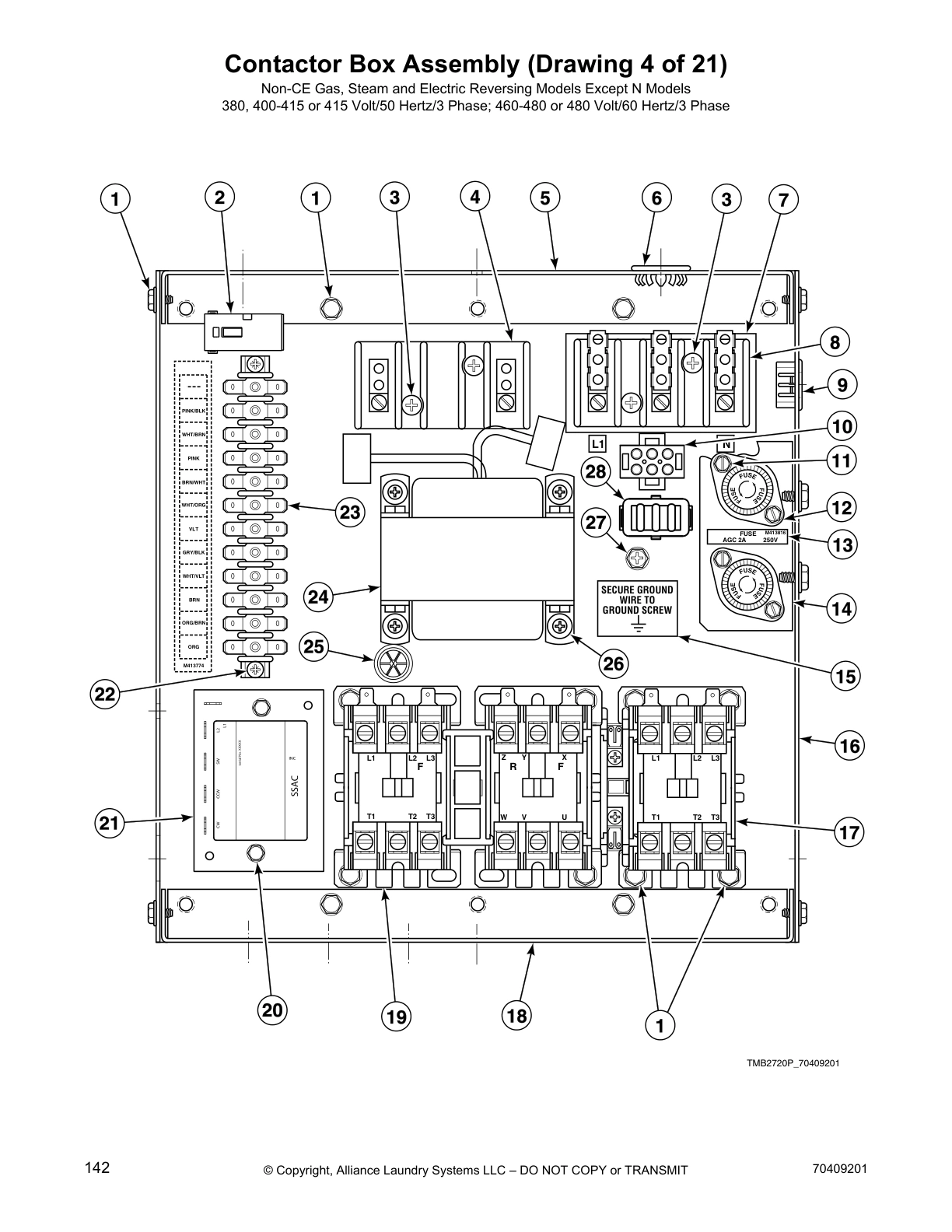

Contactor Box Assembly (Drawing 4 of 21)

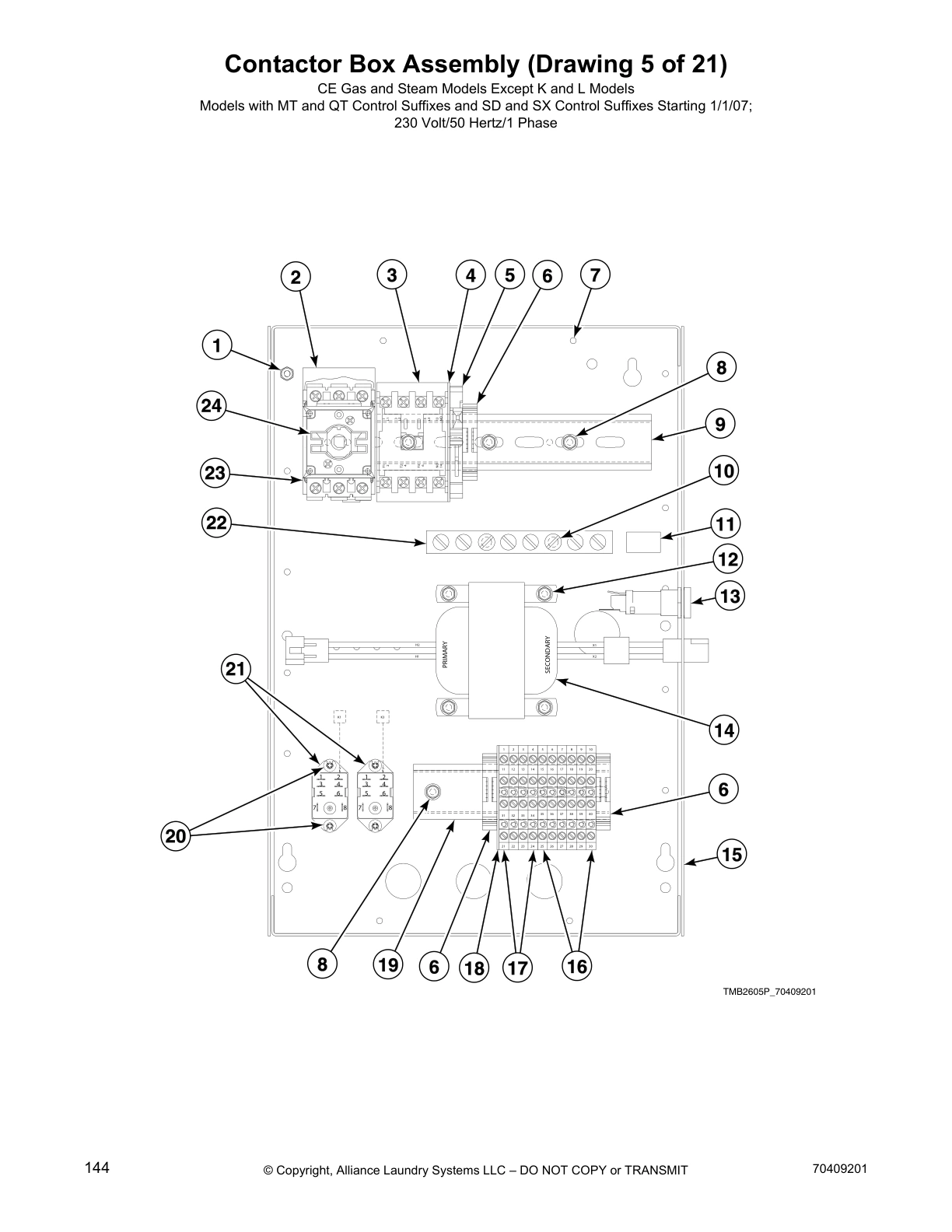

Contactor Box Assembly (Drawing 5 of 21)

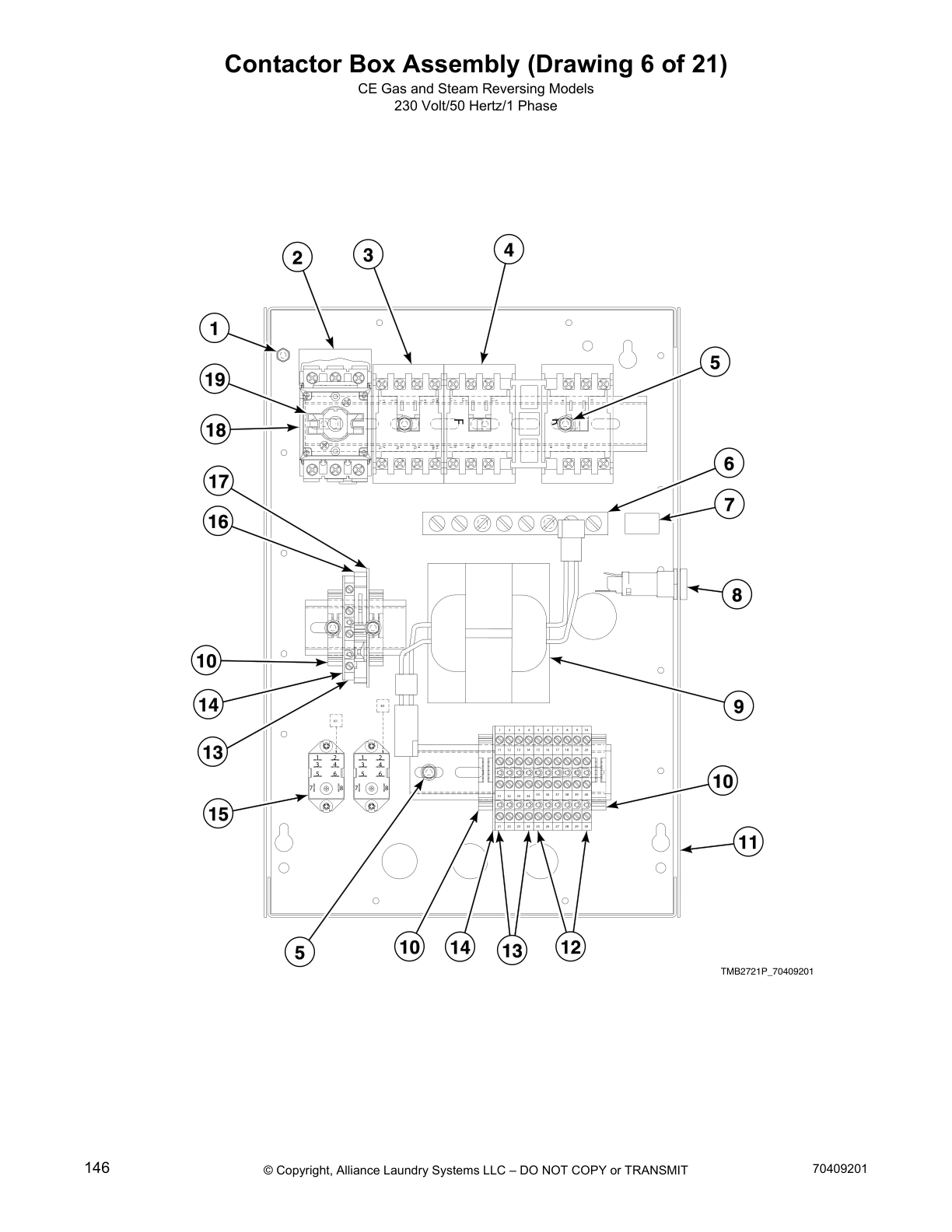

Contactor Box Assembly (Drawing 6 of 21)

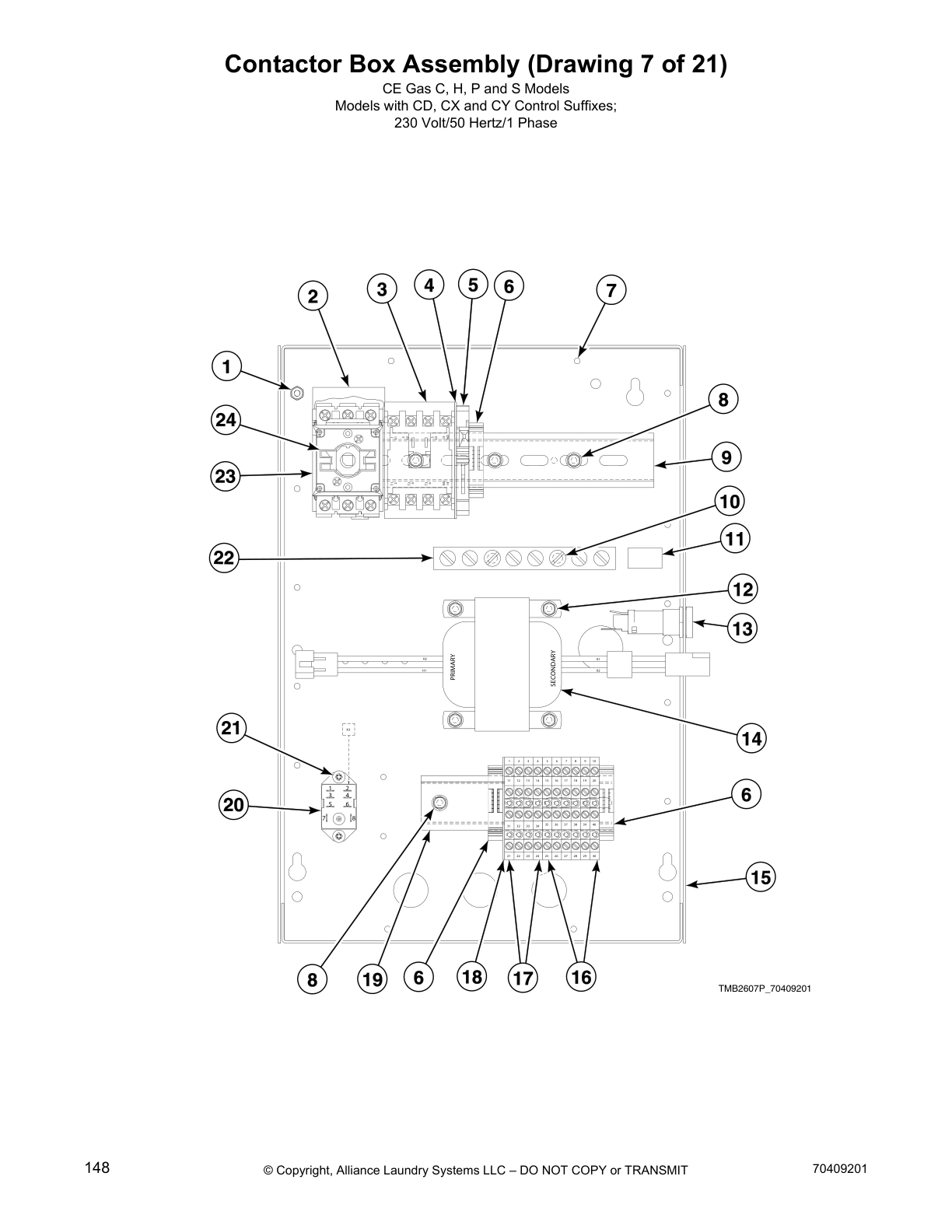

Contactor Box Assembly (Drawing 7 of 21)

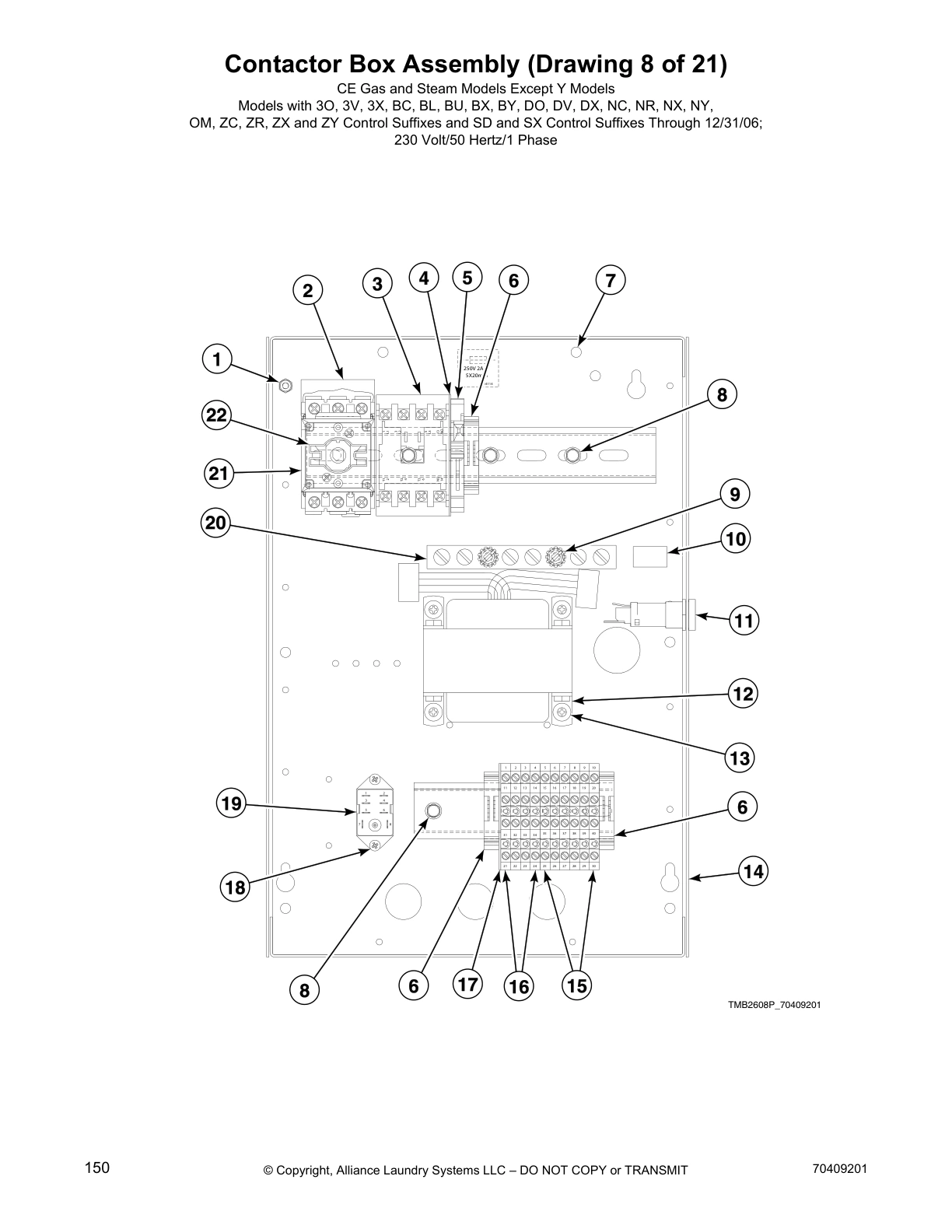

Contactor Box Assembly (Drawing 8 of 21)

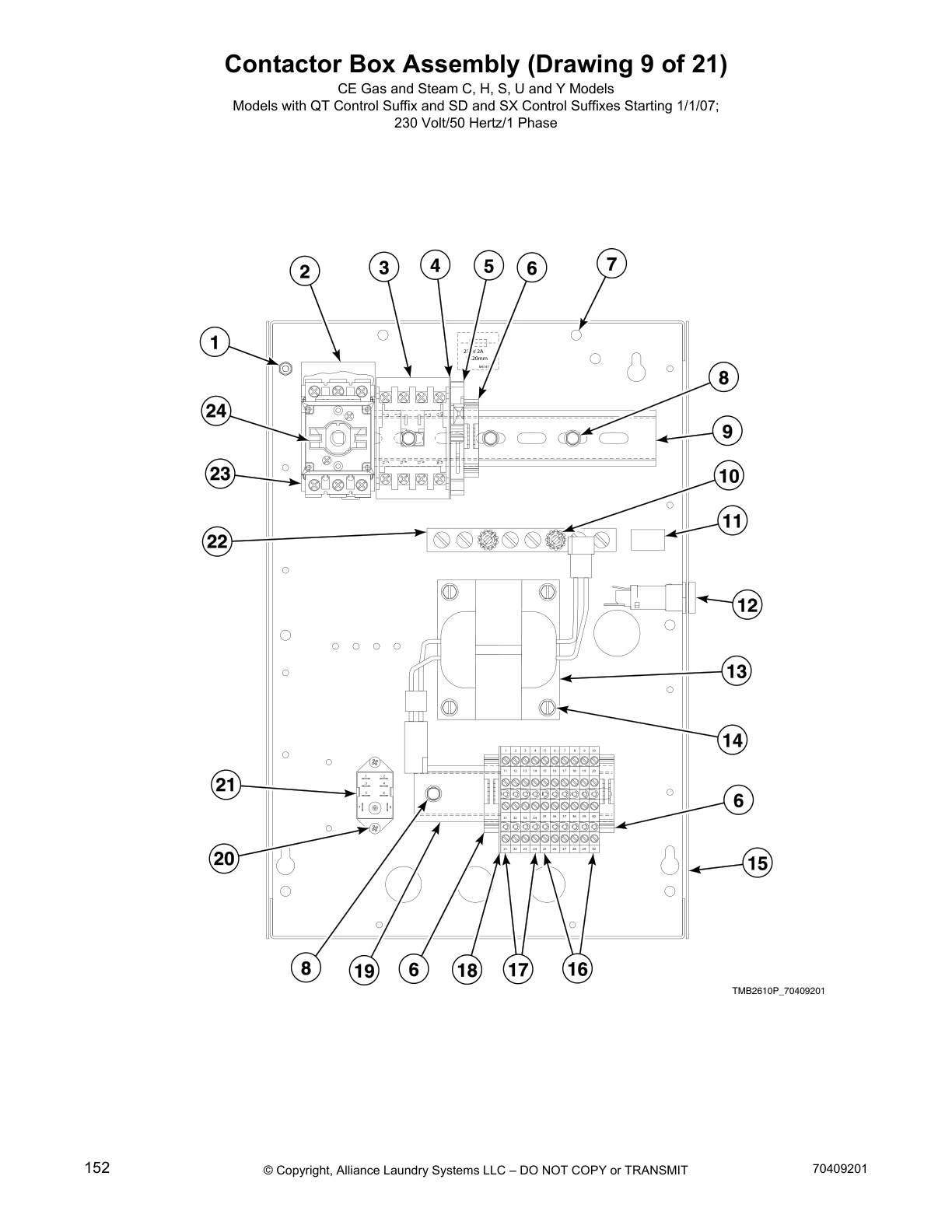

Contactor Box Assembly (Drawing 9 of 21)

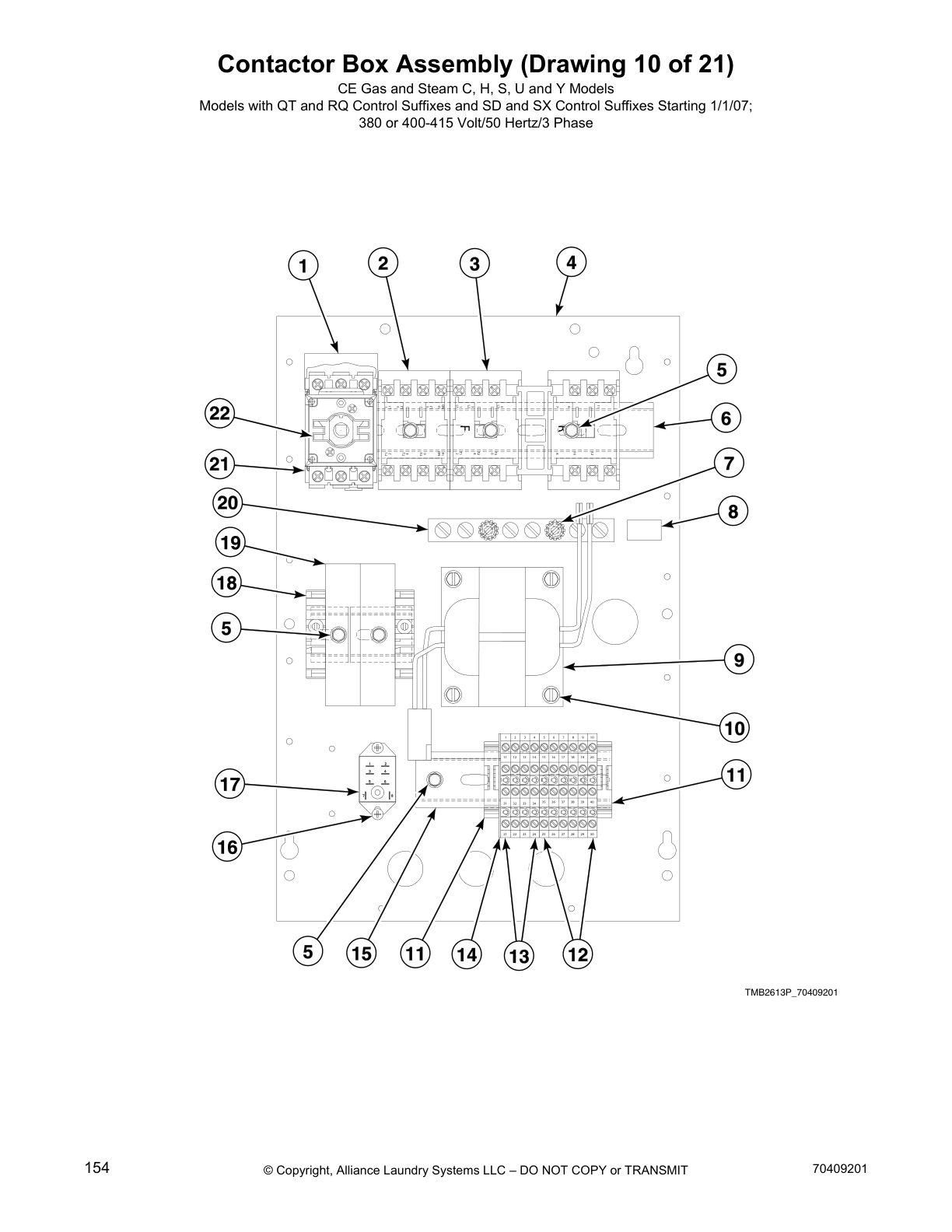

Contactor Box Assembly (Drawing 10 of 21)

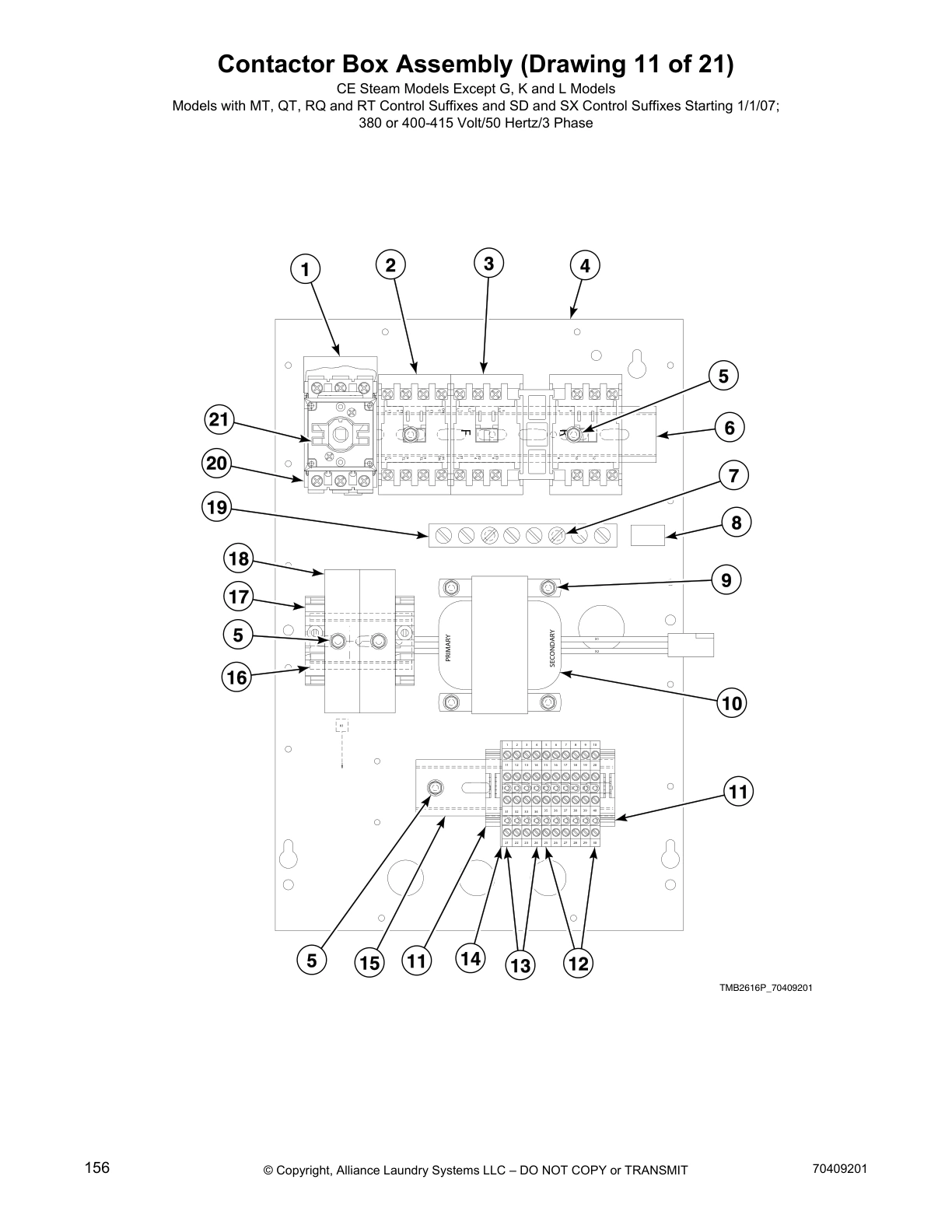

Contactor Box Assembly (Drawing 11 of 21)

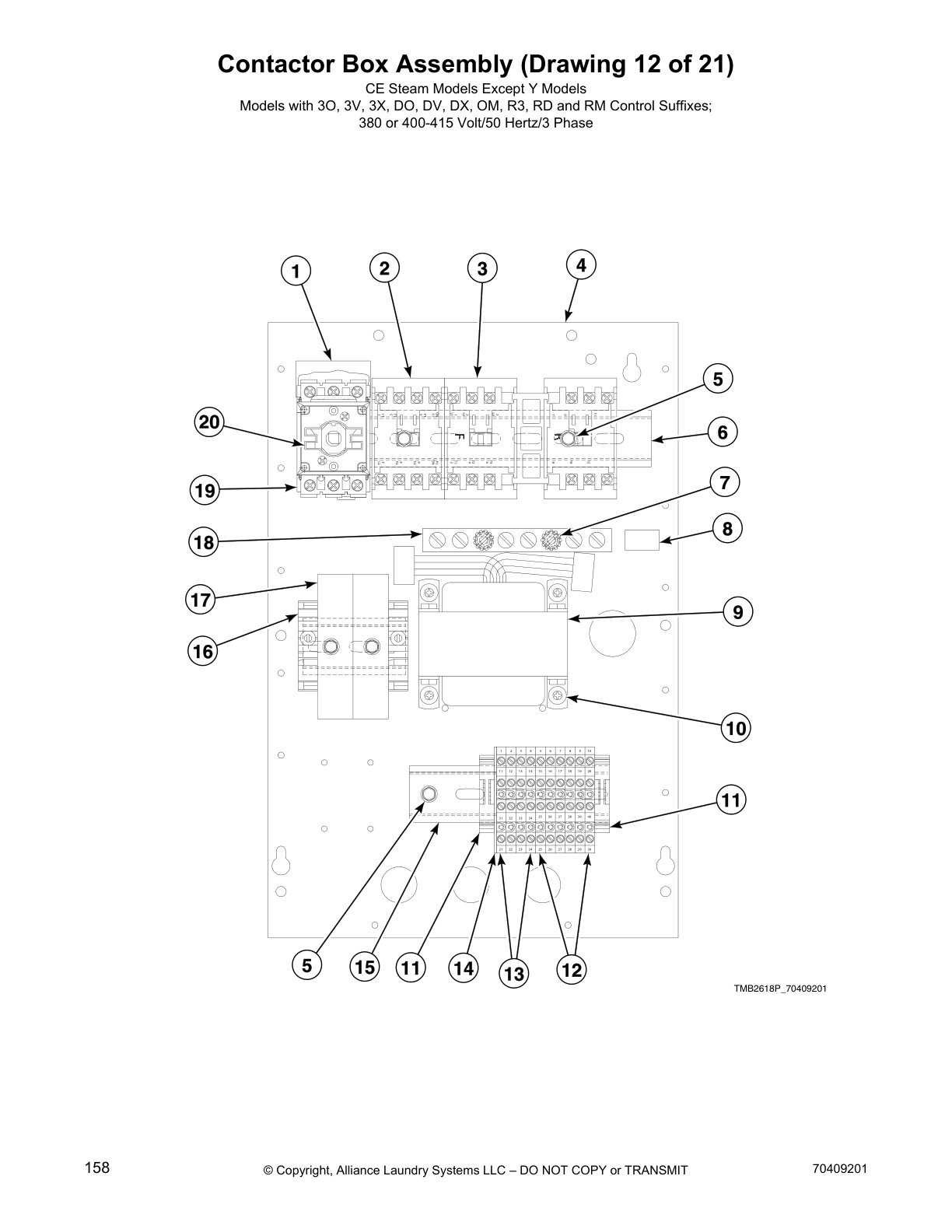

Contactor Box Assembly (Drawing 12 of 21)

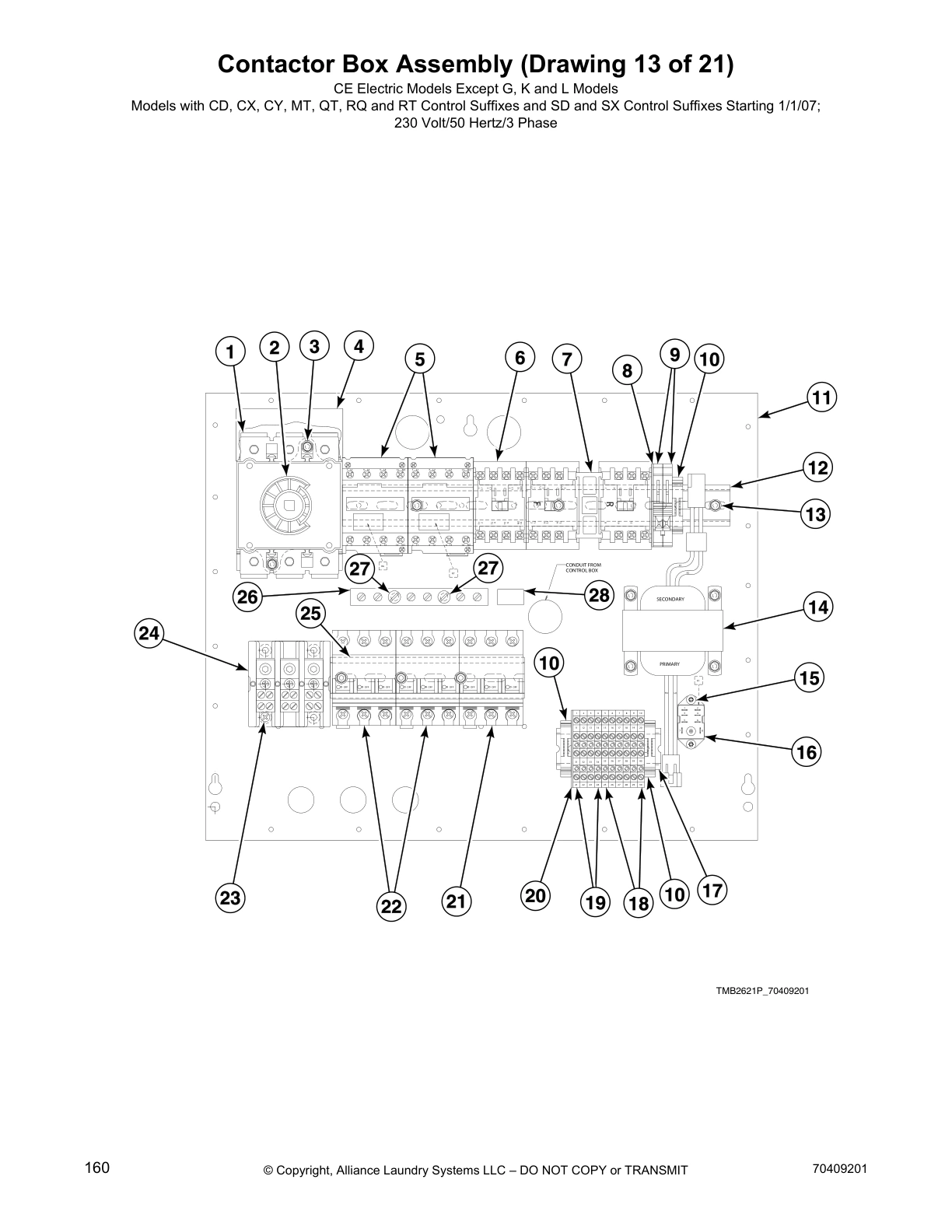

Contactor Box Assembly (Drawing 13 of 21)

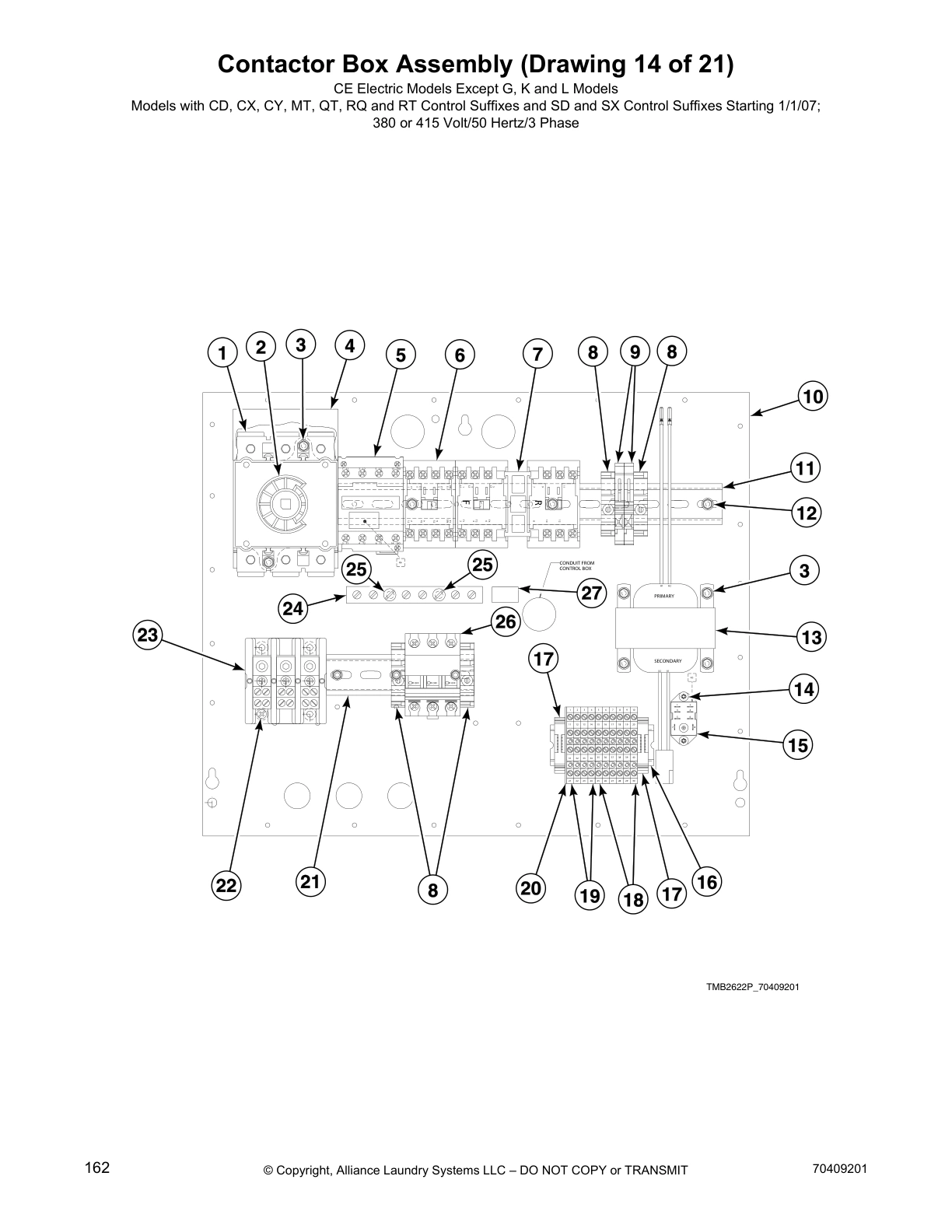

Contactor Box Assembly (Drawing 14 of 21)

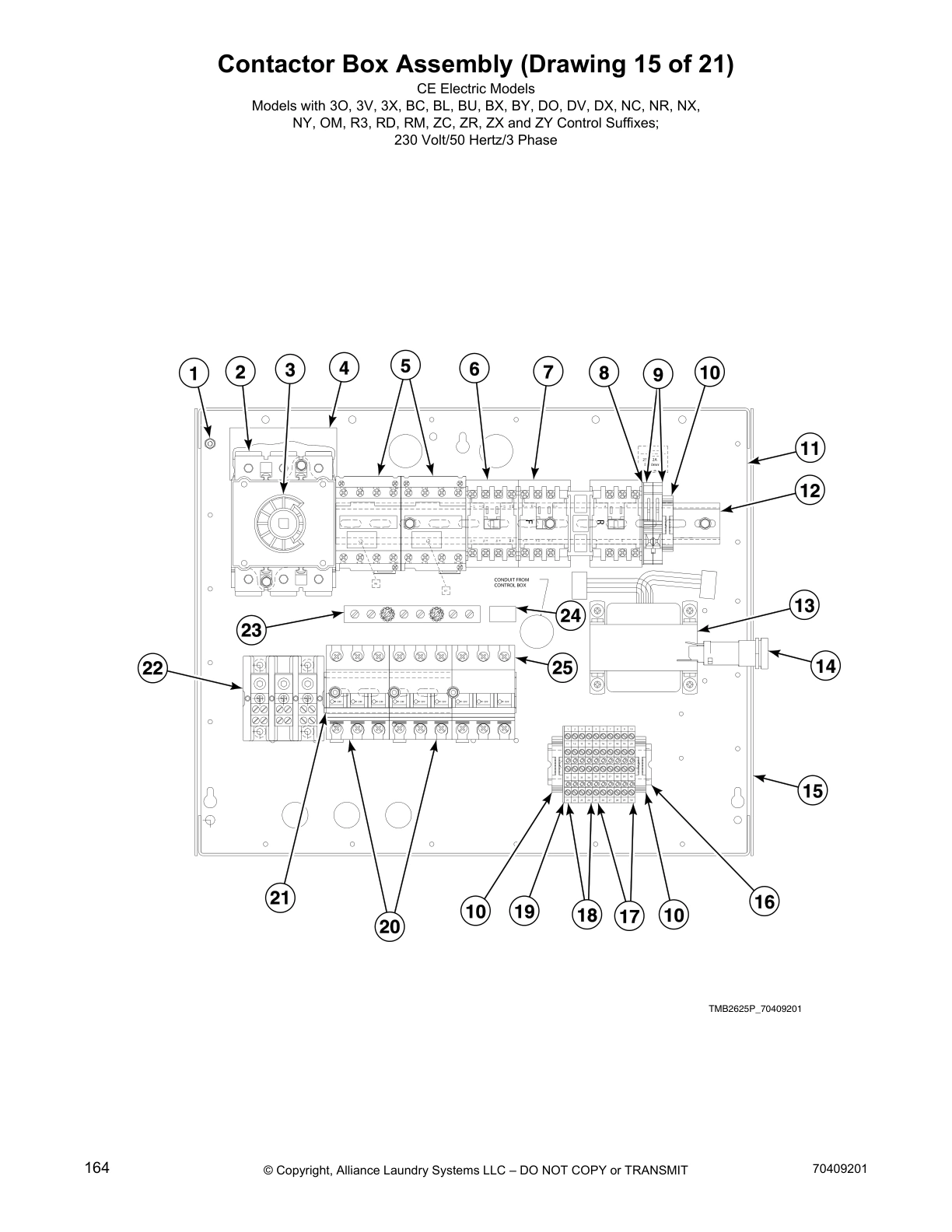

Contactor Box Assembly (Drawing 15 of 21)

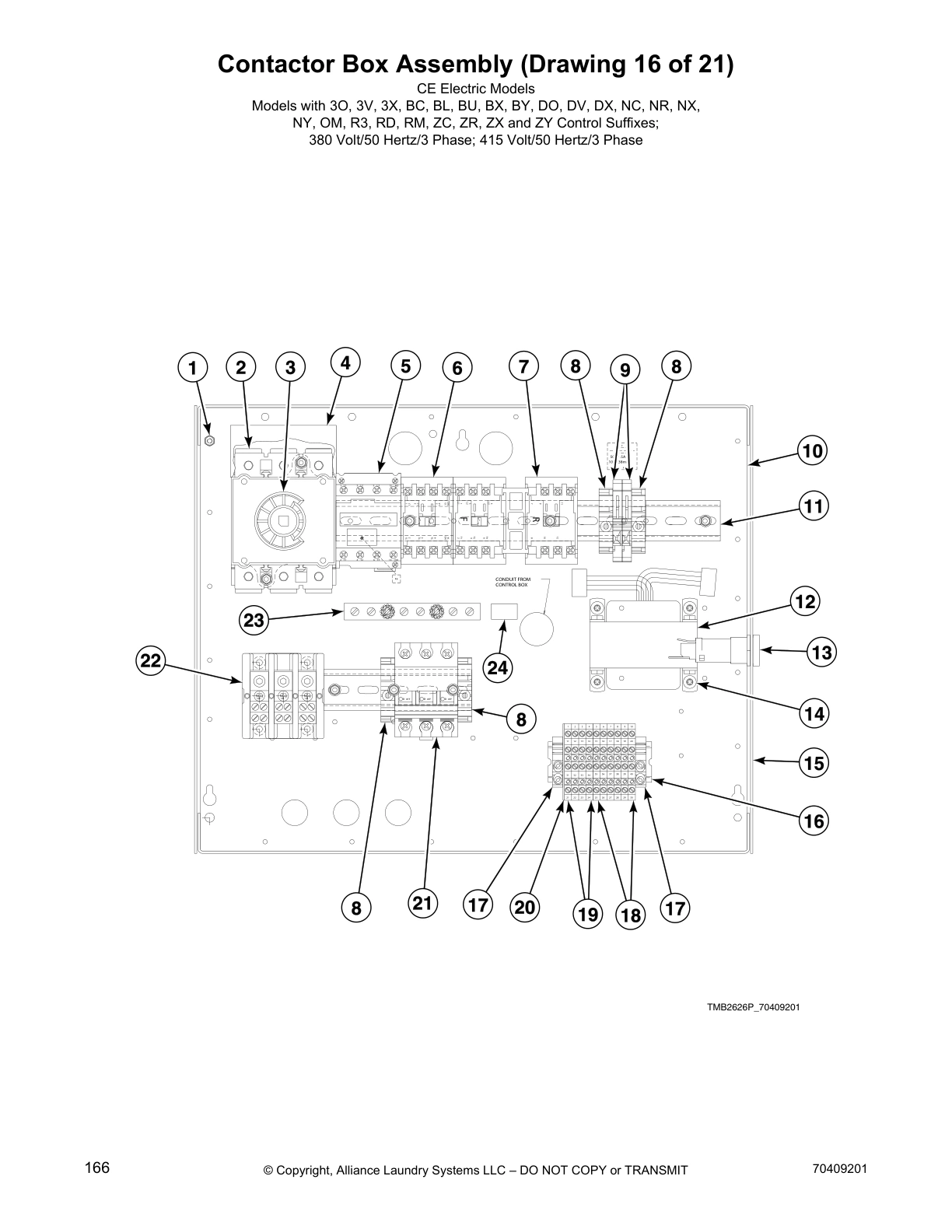

Contactor Box Assembly (Drawing 16 of 21)

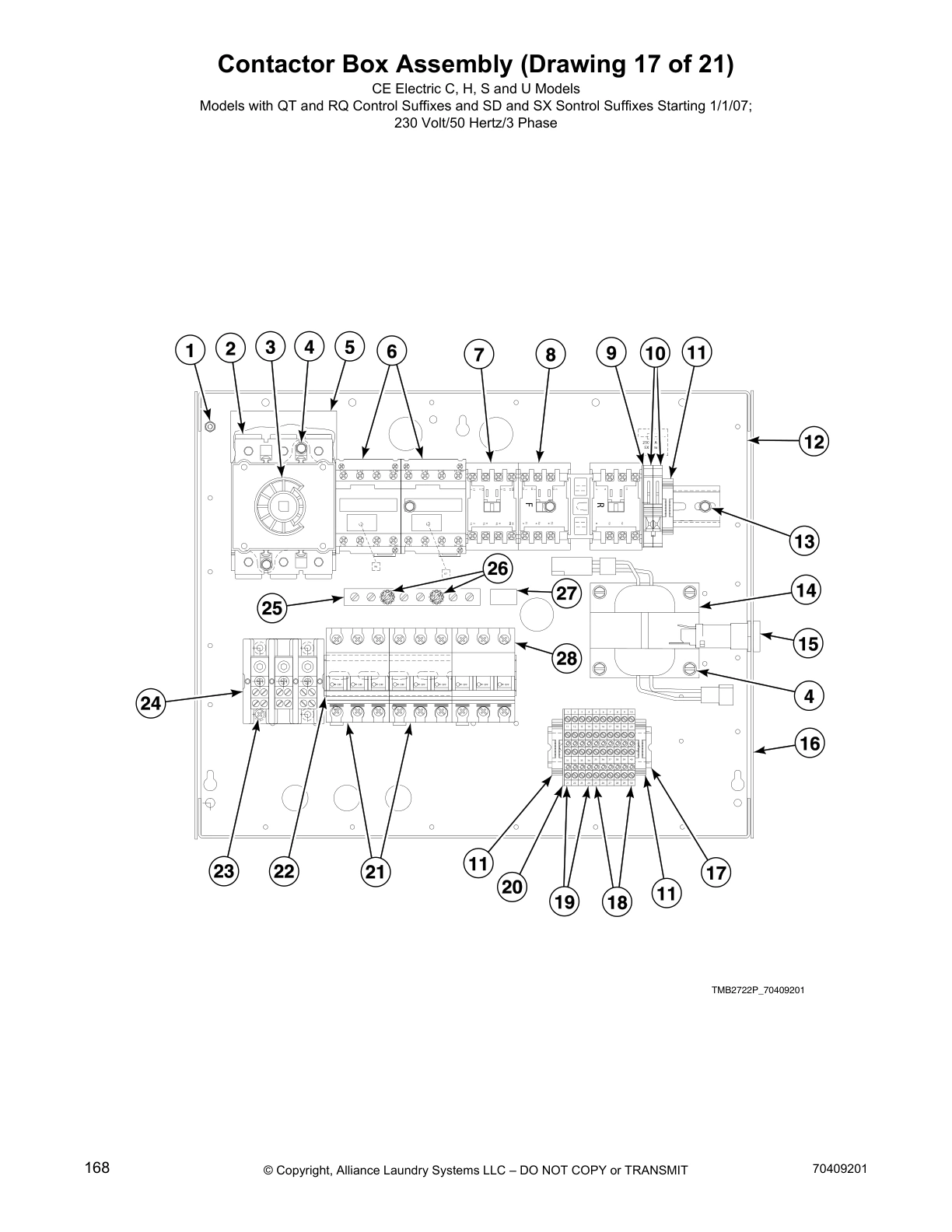

Contactor Box Assembly (Drawing 17 of 21)
Contactor Box Assembly (Drawing 18 of 21)

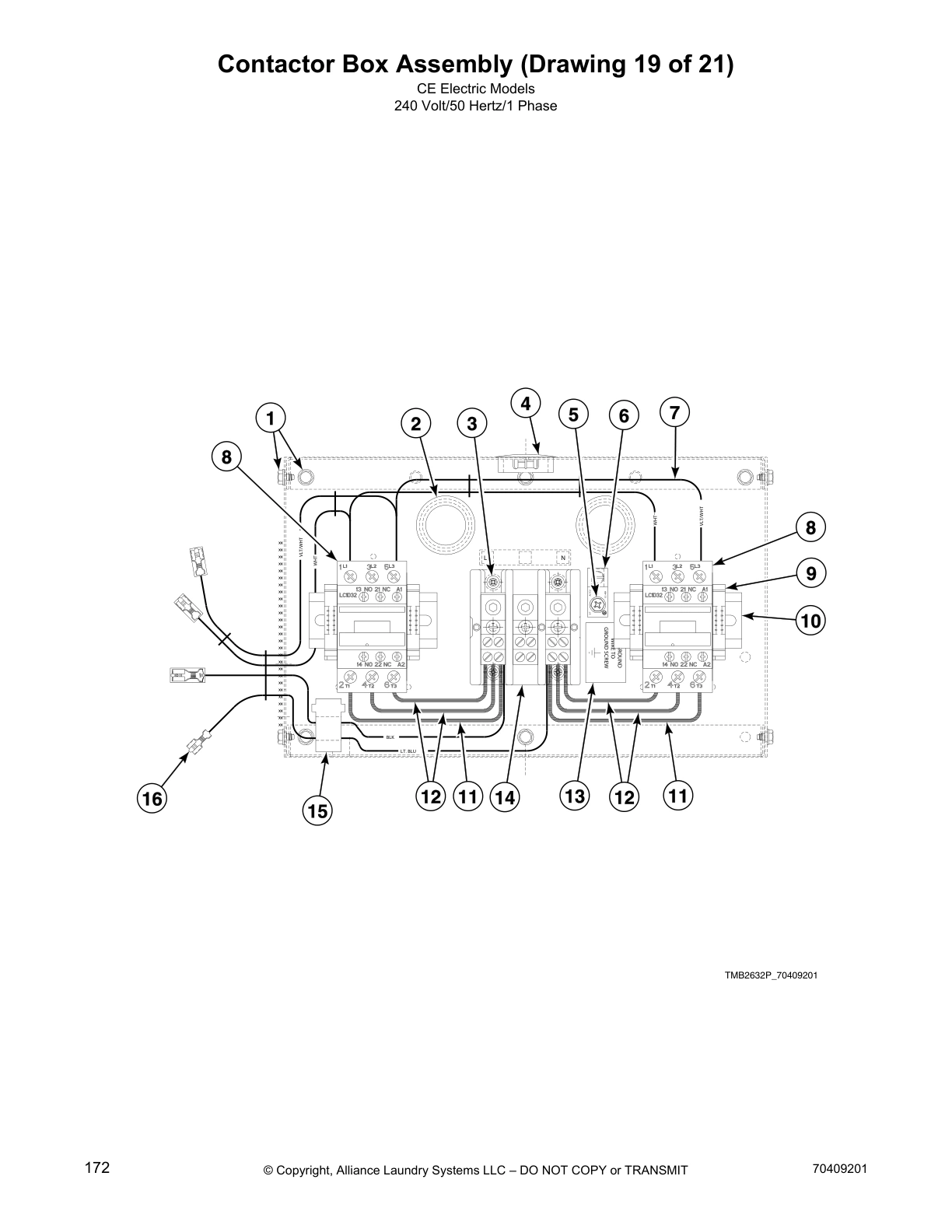

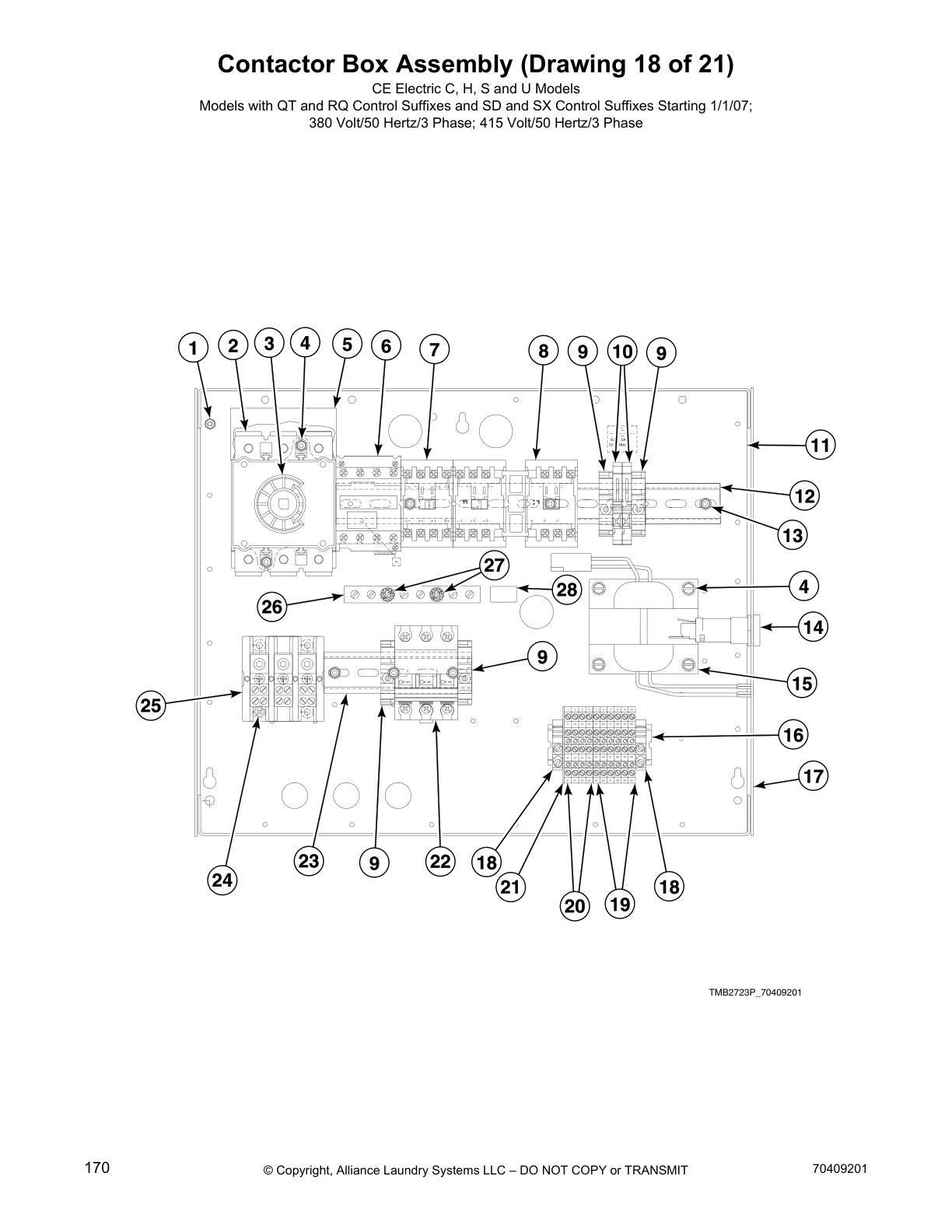

Contactor Box Assembly (Drawing 19 of 21)

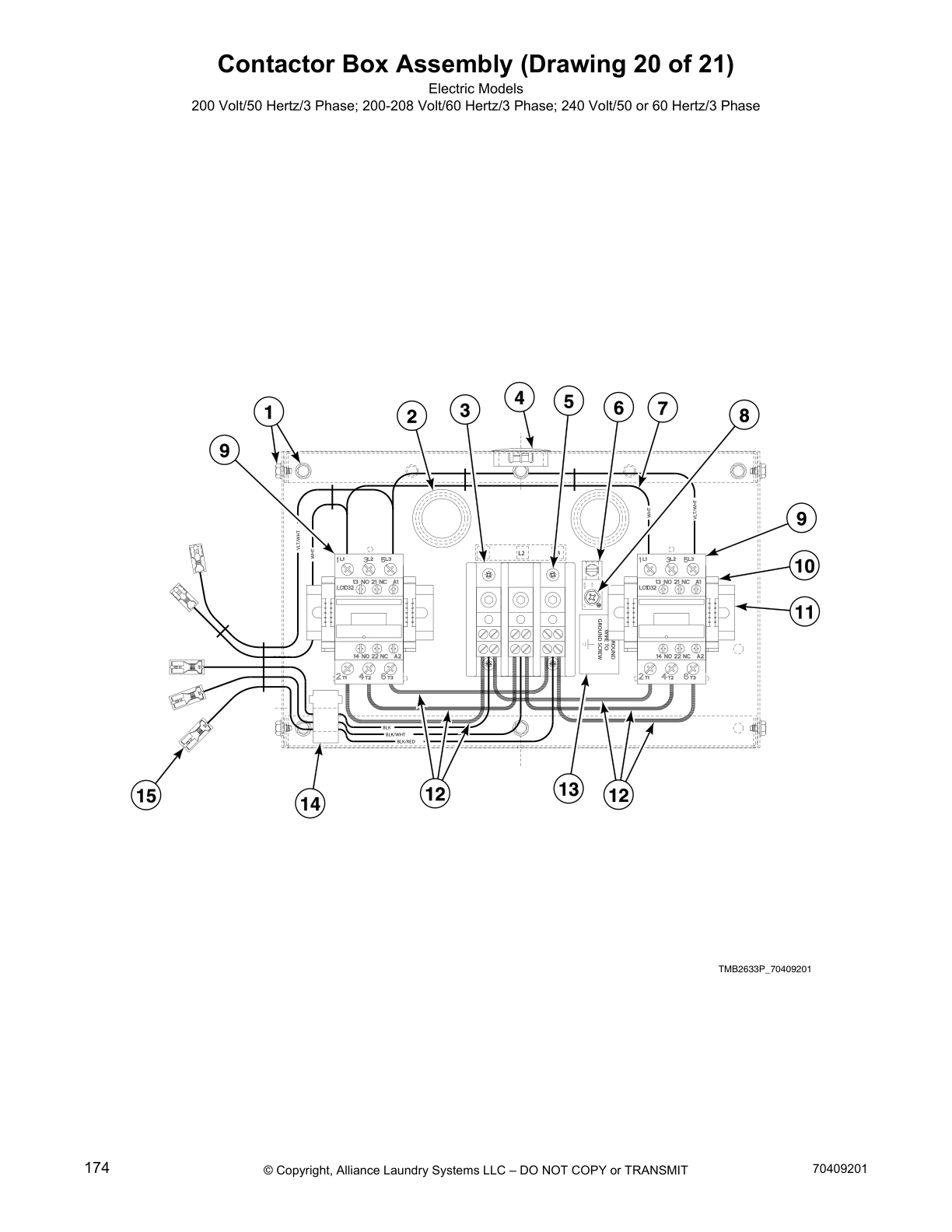

Contactor Box Assembly (Drawing 20 of 21)

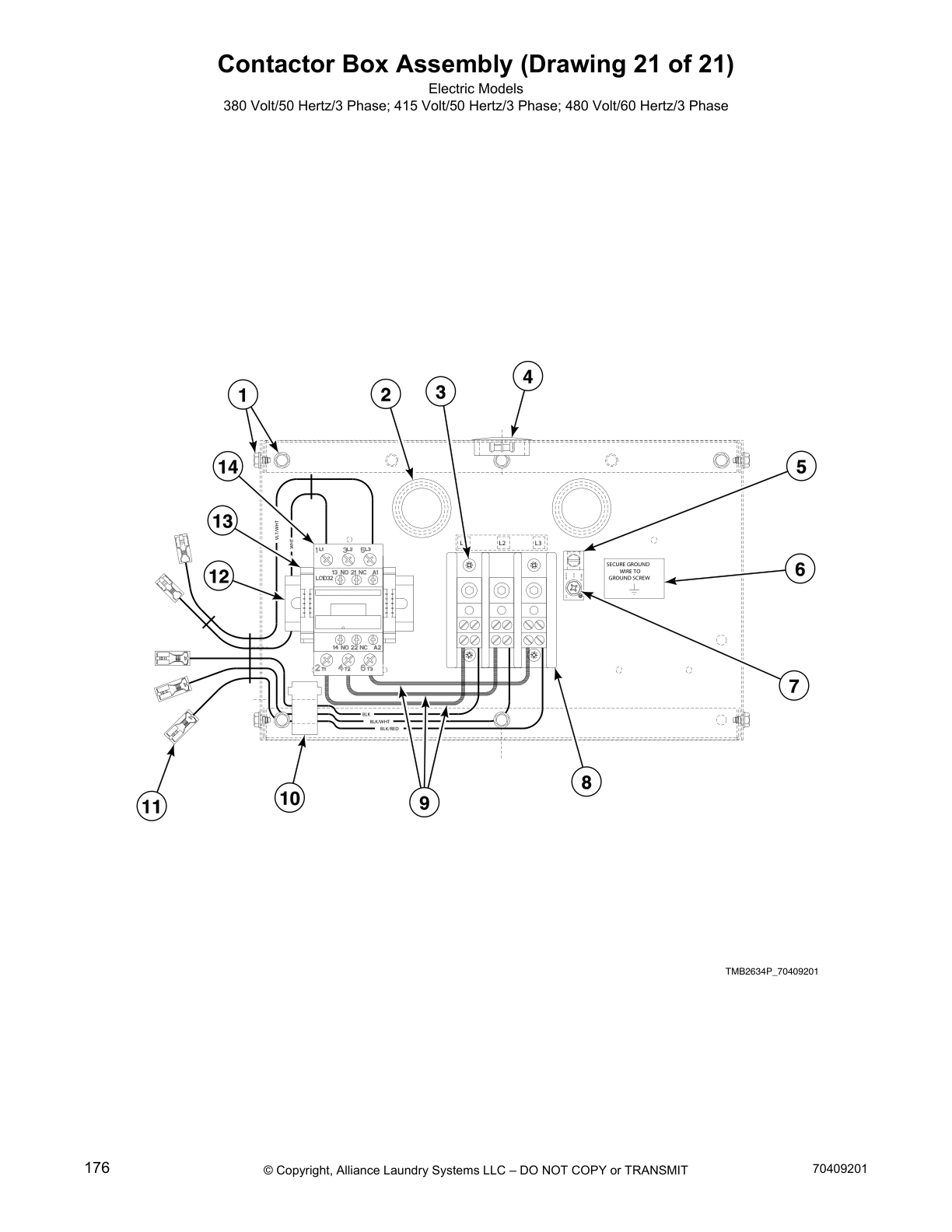

Contactor Box Assembly (Drawing 21 of 21)
Common parts from model Ipso IT075S Dryer
Fan Motor SPQ 44046001P Contact Us For Availability
SPQ CK101 SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK116 SPQ CK116 Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ 215P4P SPQ 215P4P Contact Us For Availability
Rib Rod SPQ M401402 Contact Us For Availability
Trunnion and Bearing Assembly SPQ 44057501P Contact Us For Availability
SPQ M4644P3 SPQ M4644P3 Contact Us For Availability
Motor Kit SPQ 44045701P Contact Us For Availability
DIN Valve Adapter Kit SPQ 902303 Contact Us For Availability
SPQ 44172001 SPQ 44172001 Contact Us For Availability
SPQ M413760 SPQ M413760 Contact Us For Availability
SPQ M413510 SPQ M413510 Contact Us For Availability
SPQ M413509 SPQ M413509 Contact Us For Availability
1
Belt SPQ M412981 Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Nameplate SPQ 44046801 Contact Us For Availability
1
Front Panel Assembly SPQ 44077914 Contact Us For Availability
1
Front Panel Assembly SPQ 44077904P Contact Us For Availability
1
Snap Bushing SPQ M411826 Contact Us For Availability
1
Handle and Caps Assembly SPQ 70154405P Contact Us For Availability
1
Baffle SPQ 44005301P Contact Us For Availability
1
Rear Panel Assembly SPQ M414747 Contact Us For Availability
1
Door Assembly SPQ 44046701 Contact Us For Availability
1
Door Assembly SPQ 44112101 Contact Us For Availability
1
Cylinder Kit SPQ 44057301P Contact Us For Availability
1
Key SPQ M405232 Contact Us For Availability
1
Key SPQ M400008 Contact Us For Availability
1
Cylinder, Trunnion and Bearing Housing Kit SPQ M4818P3 Contact Us For Availability
1
Cylinder Motor Harness Assembly SPQ M413687 Contact Us For Availability
1
Idler Shaft SPQ M412223P Contact Us For Availability
1
Fan Motor Harness SPQ 44006201P Contact Us For Availability
1
Motor SPQ 44048801P Contact Us For Availability
1
Rotation Sensor Kit SPQ 7009P Contact Us For Availability
1
Thimble Vane Assembly SPQ M400503 Contact Us For Availability
2
Screw SPQ 44041901P Contact Us For Availability
2
Coin Vault Switch Harness SPQ 44057801W Contact Us For Availability
2
Control Panel SPQ 44040004 Contact Us For Availability
2
Door Handle SPQ M414215 Contact Us For Availability
2
Cylinder SPQ 44057201P Contact Us For Availability
2
Cylinder and Trunnion Assembly SPQ M406906P Contact Us For Availability
2
Motor SPQ M413541 Contact Us For Availability
2
Key SPQ M414405 Contact Us For Availability
2
Fan Kit SPQ M401362 Contact Us For Availability
2
Steam Valve Coil SPQ M400828 Contact Us For Availability
2
Proximity Bracket SPQ 44044501 Contact Us For Availability
2
Ferrite Core Assembly SPQ M413615P Contact Us For Availability
3
SPQ M412090 SPQ M412090 Contact Us For Availability
3
Idler Housing Kit SPQ 943P3P Contact Us For Availability
3
Door Hinge SPQ 70296801 Contact Us For Availability
3
SPQ M414567 SPQ M414567 Contact Us For Availability
3
Control Plate Assembly SPQ 70497201 Contact Us For Availability
3
Nut SPQ 44057801Q Contact Us For Availability
3
Insulation SPQ 44040002 Contact Us For Availability
3
Front Panel SPQ 44052521 Contact Us For Availability
3
Switch Assembly SPQ 44118601 Contact Us For Availability
3
Nut SPQ 44000002P Contact Us For Availability
3
Pop Rivet SPQ 70015701 Contact Us For Availability
3
Felt Pad SPQ M401985P Contact Us For Availability
3
Washer SPQ M400063 Contact Us For Availability
3
Cylinder and Trunnion Assembly SPQ 44057502 Contact Us For Availability
3
Valve Coil SPQ M412258 Contact Us For Availability
4
Limit Thermostat SPQ M410542 Contact Us For Availability
4
Screw SPQ D501524 Contact Us For Availability
4
Control Trim SPQ 44057801B Contact Us For Availability
4
Front Panel Harness Assembly SPQ 44077906P Contact Us For Availability
4
Pushbutton Switch SPQ 70413401 Contact Us For Availability
4
Cam and Hinge Kit SPQ M400661 Contact Us For Availability
4
Trunnion Assembly SPQ M402144 Contact Us For Availability
4
Nut SPQ M400015 Contact Us For Availability
4
SPQ M414565 SPQ M414565 Contact Us For Availability
4
SPQ M412885P SPQ M412885P Contact Us For Availability
4
SPQ M400399 SPQ M400399 Contact Us For Availability
4
SPQ M400035 SPQ M400035 Contact Us For Availability
4
Idler Housing SPQ M401370 Contact Us For Availability
4
Resilient Ring Kit SPQ M414566 Contact Us For Availability
4
Key SPQ M413686 Contact Us For Availability
4
Valve Rebuild Kit SPQ 70205701P Contact Us For Availability
4
Exhaust Thimble Assembly SPQ M412288 Contact Us For Availability
5
SPQ M401182P SPQ M401182P Contact Us For Availability
5
Ball Bearing SPQ M412612 Contact Us For Availability
5
Bolt SPQ 70261401 Contact Us For Availability
5
Screw SPQ 70413301 Contact Us For Availability
5
SPQ M411072 SPQ M411072 Contact Us For Availability
5
Screw SPQ M401223 Contact Us For Availability
5
Panel Locator SPQ 70072801 Contact Us For Availability
5
Rear Panel Assembly SPQ 431318 Contact Us For Availability
5
Door Glass Installation Tool SPQ 70115902 Contact Us For Availability
5
Trunnion Assembly SPQ M413836 Contact Us For Availability
5
SPQ M412086P SPQ M412086P Contact Us For Availability
5
SPQ M401327 SPQ M401327 Contact Us For Availability
5
Drum Idler Wheel Assembly SPQ M405535 Contact Us For Availability
5
Motor Hardware Kit SPQ M414564 Contact Us For Availability
5
SPQ H8752006H SPQ H8752006H Contact Us For Availability
5
Valve Kit SPQ F8514801 Contact Us For Availability
5
Ground Lug Connector SPQ M411283 Contact Us For Availability
6
Loading Spring SPQ M401375P Contact Us For Availability
6
Nut SPQ 44261801 Contact Us For Availability
6
Jumper Wire Assembly SPQ M412645 Contact Us For Availability
6
Panel Locator SPQ 70117502 Contact Us For Availability
6
Roller Catch Wheel SPQ 70030201 Contact Us For Availability
6
SPQ 70215001P SPQ 70215001P Contact Us For Availability
6
SPQ M400994P SPQ M400994P Contact Us For Availability
6
Steam Valve SPQ F8379502 Contact Us For Availability
6
Contactor Box Harness Assembly SPQ M405824 Contact Us For Availability
7
Fuse Receptacle SPQ 44061603 Contact Us For Availability
7
Solenoid Valve DIN Connector SPQ F8521701 Contact Us For Availability
7
Porcelain Touch-Up Paint SPQ M400003 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 44023001 Contact Us For Availability
7
Lint Panel Harness Assembly SPQ 44001201 Contact Us For Availability
7
Roller Bracket Assembly SPQ 70132301 Contact Us For Availability
7
Thermistor Bracket Assembly SPQ 44051201 Contact Us For Availability
7
SPQ 44075208B SPQ 44075208B Contact Us For Availability
7
SPQ M400650 SPQ M400650 Contact Us For Availability
7
SPQ M411483 SPQ M411483 Contact Us For Availability
7
Idler Shaft SPQ M400401 Contact Us For Availability
7
Jumper Configuration Assembly SPQ M405364 Contact Us For Availability
7
SPQ M402917 SPQ M402917 Contact Us For Availability
8
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
8
Temperature Sensor Assembly SPQ B12308601 Contact Us For Availability
8
SPQ 44075204 SPQ 44075204 Contact Us For Availability
8
SPQ M412520P SPQ M412520P Contact Us For Availability
8
SPQ M400061 SPQ M400061 Contact Us For Availability
8
SPQ 44117201 SPQ 44117201 Contact Us For Availability
8
Idler Housing Kit SPQ M414241 Contact Us For Availability
8
Harness Assembly SPQ M412997 Contact Us For Availability
8
Steam Coil SPQ F8322903 Contact Us For Availability
8
Jumper Harness Assembly SPQ M400985 Contact Us For Availability
9
SPQ M414320P SPQ M414320P Contact Us For Availability
9
SPQ D512218P SPQ D512218P Contact Us For Availability
9
Door Catch Kit SPQ 44016401 Contact Us For Availability
9
SPQ 44001801 SPQ 44001801 Contact Us For Availability
9
SPQ 70297601 SPQ 70297601 Contact Us For Availability
9
SPQ 44003201 SPQ 44003201 Contact Us For Availability
9
SPQ 70442101 SPQ 70442101 Contact Us For Availability
9
SPQ 70265901 SPQ 70265901 Contact Us For Availability
9
Steam Pressure Label SPQ F8322902 Contact Us For Availability
9
Reversing Timer Harness SPQ M413862 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Screw SPQ 70033502 Contact Us For Availability
10
Nut SPQ M400977 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Roller Catch Arm SPQ 70030301 Contact Us For Availability
10
Thermistor Cable SPQ 44319901P Contact Us For Availability
10
Nut SPQ 70142 Contact Us For Availability
10
Bolt SPQ M412119 Contact Us For Availability
10
Motor Harness SPQ 44250101 Contact Us For Availability
10
Steam Solenoid SPQ 70351012 Contact Us For Availability
10
Ferrite Core Assembly SPQ M413930P Contact Us For Availability
11
Ball Bearing SPQ M413826 Contact Us For Availability
11
Extension Spring SPQ M412120 Contact Us For Availability
11
Washer SPQ 430782 Contact Us For Availability
11
Idler Arm SPQ 44102701 Contact Us For Availability
11
Steam Stand Box SPQ 70351011P Contact Us For Availability
11
Fuse SPQ M413118 Contact Us For Availability
12
Kickplate SPQ 70117607 Contact Us For Availability
12
Screw SPQ 70247701 Contact Us For Availability
12
Pop Rivet SPQ 44035002 Contact Us For Availability
12
Motor Switch SPQ M413565 Contact Us For Availability
12
Screw SPQ 22688 Contact Us For Availability
12
Belt Guard Assembly SPQ 44132404 Contact Us For Availability
12
Steam Heater Assembly SPQ 44007501 Contact Us For Availability
12
Fuse SPQ M413544P Contact Us For Availability
12
Transformer SPQ M414229P Contact Us For Availability
13
Pop Rivet SPQ 70126401 Contact Us For Availability
13
Bottom Pan SPQ 44000701 Contact Us For Availability
13
Nut SPQ 02428 Contact Us For Availability
13
Motor Mount Assembly SPQ M414563 Contact Us For Availability
13
Key SPQ M400993 Contact Us For Availability
13
Clip SPQ 44020401P Contact Us For Availability
13
Transformer SPQ M414228P Contact Us For Availability
13
Fuse Receptacle SPQ 91024P Contact Us For Availability
14
Support Bearing SPQ 70448701 Contact Us For Availability
14
Mounting Plate SPQ 70208801 Contact Us For Availability
14
Shadow Box Clip SPQ 70182601 Contact Us For Availability
14
Contactor SPQ M400044 Contact Us For Availability
14
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
14
Fan Motor Harness Assembly SPQ M400013 Contact Us For Availability
14
Tension Plate Assembly SPQ 44132405 Contact Us For Availability
14
Key SPQ 44132301 Contact Us For Availability
14
Low Pressure Steam Cover SPQ M400974 Contact Us For Availability
15
Door Glass SPQ 70211902P Contact Us For Availability
15
Pulley SPQ M412884 Contact Us For Availability
15
Temperature Knob SPQ 44099601 Contact Us For Availability
15
Door Glass SPQ M400784P Contact Us For Availability
15
Coin Chute Assembly SPQ 44065601P Contact Us For Availability
15
Screw SPQ M400077 Contact Us For Availability
15
Washer SPQ 70270301 Contact Us For Availability
15
Fuse Holder Bracket SPQ M413575 Contact Us For Availability
16
Coin Vault Switch Harness SPQ 70155602 Contact Us For Availability
16
Door Glass Installation Tool SPQ 44008401P Contact Us For Availability
16
Washer SPQ M413617 Contact Us For Availability
16
Micro V Pulley SPQ M411466P Contact Us For Availability
17
Door Switch SPQ 44089302P Contact Us For Availability
17
Coin Vault Assembly SPQ 44005001P Contact Us For Availability
17
Nut SPQ M4221P4 Contact Us For Availability
17
Guide Rail SPQ M412917P Contact Us For Availability
17
Cover Plate SPQ M413008 Contact Us For Availability
17
Fan Contactor SPQ M413576 Contact Us For Availability
18
Temperature Selector Switch SPQ 44104601 Contact Us For Availability
18
Door Latch SPQ 02788 Contact Us For Availability
18
Baffle Gasket SPQ 70296401 Contact Us For Availability
18
Fan Motor Harness Assembly SPQ M410059 Contact Us For Availability
18
Contactor Box End SPQ M413614P Contact Us For Availability
19
Shadow Box Clip SPQ 44001301 Contact Us For Availability
19
Door Ring Gasket SPQ 70126301 Contact Us For Availability
19
Screw SPQ 70180101 Contact Us For Availability
19
Ring SPQ M400026 Contact Us For Availability
19
Ring SPQ M412627 Contact Us For Availability
19
Reversing Contactor SPQ M413758 Contact Us For Availability
20
Door Ring and Handle Assembly SPQ 44008201P Contact Us For Availability
20
Pulley SPQ M400991 Contact Us For Availability
20
Control Door Latch SPQ 70030401 Contact Us For Availability
20
Door Ring and Handle Assembly SPQ 44043501 Contact Us For Availability
20
Idler Housing Kit SPQ M412476 Contact Us For Availability
20
Micro V Belt SPQ M412156 Contact Us For Availability
21
Transformer SPQ M414312P Contact Us For Availability
21
Door Switch Actuator Kit SPQ 44007901 Contact Us For Availability
21
Idler/Belt Assembly Kit SPQ M412188 Contact Us For Availability
22
Door Hinge Assembly SPQ 44112001 Contact Us For Availability
22
SPQ H88412101 SPQ H88412101 Contact Us For Availability
22
Motor Bracket SPQ M400022 Contact Us For Availability
22
Transformer SPQ M412105 Contact Us For Availability
22
Din Rail SPQ M412693 Contact Us For Availability
23
Bolt SPQ M4936P3 Contact Us For Availability
23
SPQ 44086901P SPQ 44086901P Contact Us For Availability
23
Bushing SPQ M414230P Contact Us For Availability
24
Bushing SPQ 51778 Contact Us For Availability
26
Terminal Block SPQ 44074401 Contact Us For Availability
27
Plug SPQ M411537 Contact Us For Availability
30
SPQ M412916 SPQ M412916 Contact Us For Availability
31
SPQ M412931 SPQ M412931 Contact Us For Availability
NI
SPQ 44245502 SPQ 44245502 Contact Us For Availability
NI
SPQ F100136P SPQ F100136P Contact Us For Availability
NI
Reversing Contactor Jumper Assembly SPQ 430642 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
Coin Drop SPQ 70283102 Contact Us For Availability
NI
Coin Drop Switch SPQ 70256402P Contact Us For Availability
NI
SPQ 38475 SPQ 38475 Contact Us For Availability
NI
SPQ 38464P SPQ 38464P Contact Us For Availability
NI
SPQ 210195 SPQ 210195 Contact Us For Availability
NI
SPQ 70286101P SPQ 70286101P Contact Us For Availability
NI
SPQ 44039705 SPQ 44039705 Contact Us For Availability
NI
SPQ 44039702 SPQ 44039702 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
Front Panel Harness Assembly SPQ 44063201P Contact Us For Availability
NI
Tumbler Dolly Kit SPQ 70275801 Contact Us For Availability
NI
SPQ 70033504 SPQ 70033504 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 44020601 SPQ 44020601 Contact Us For Availability
NI
Front Panel Assembly SPQ 44077910 Contact Us For Availability
NI
SPQ 44077806P SPQ 44077806P Contact Us For Availability
NI
SPQ 44063101P SPQ 44063101P Contact Us For Availability
NI
SPQ 44047801 SPQ 44047801 Contact Us For Availability
NI
SPQ M400770 SPQ M400770 Contact Us For Availability
NI
SPQ 44048101P SPQ 44048101P Contact Us For Availability
NI
SPQ 70404001 SPQ 70404001 Contact Us For Availability
NI
SPQ 70114001 SPQ 70114001 Contact Us For Availability
NI
SPQ 297P4 SPQ 297P4 Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ M404992 SPQ M404992 Contact Us For Availability
NI
Trunnion Housing Assembly SPQ M409090P Contact Us For Availability
NI
Housing and Trunnion Assembly SPQ 44057503P Contact Us For Availability
NI
SPQ 44057504P SPQ 44057504P Contact Us For Availability
NI
SPQ M4645P3 SPQ M4645P3 Contact Us For Availability
NI
SPQ M4641P3 SPQ M4641P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ M401393 SPQ M401393 Contact Us For Availability
NI
SPQ 917P3 SPQ 917P3 Contact Us For Availability
NI
SPQ 430648 SPQ 430648 Contact Us For Availability
NI
SPQ 942P3P SPQ 942P3P Contact Us For Availability
NI
Motor SPQ 44046201P Contact Us For Availability
NI
Fan Motor SPQ 44045901P Contact Us For Availability
NI
Air Filter SPQ 70370301P Contact Us For Availability
NI
Filter SPQ M400637P Contact Us For Availability
NI
SPQ 44104201 SPQ 44104201 Contact Us For Availability
NI
SPQ F8382301 SPQ F8382301 Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413506 Contact Us For Availability
NI
SPQ M413683P SPQ M413683P Contact Us For Availability
NI
Control Box Harness SPQ 44005901 Contact Us For Availability
NI
SPQ 44005801 SPQ 44005801 Contact Us For Availability
NI
SPQ M413624 SPQ M413624 Contact Us For Availability
NI
SPQ M413684P SPQ M413684P Contact Us For Availability
NI
SPQ 44008001 SPQ 44008001 Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413863 Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
× ![]()
