Model Whirlpool IJU58663 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
Common parts from model Whirlpool IJU58663 UNDERCOUNTER DISHWASHER
1
Seal, Tube WPL 9742953 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
7

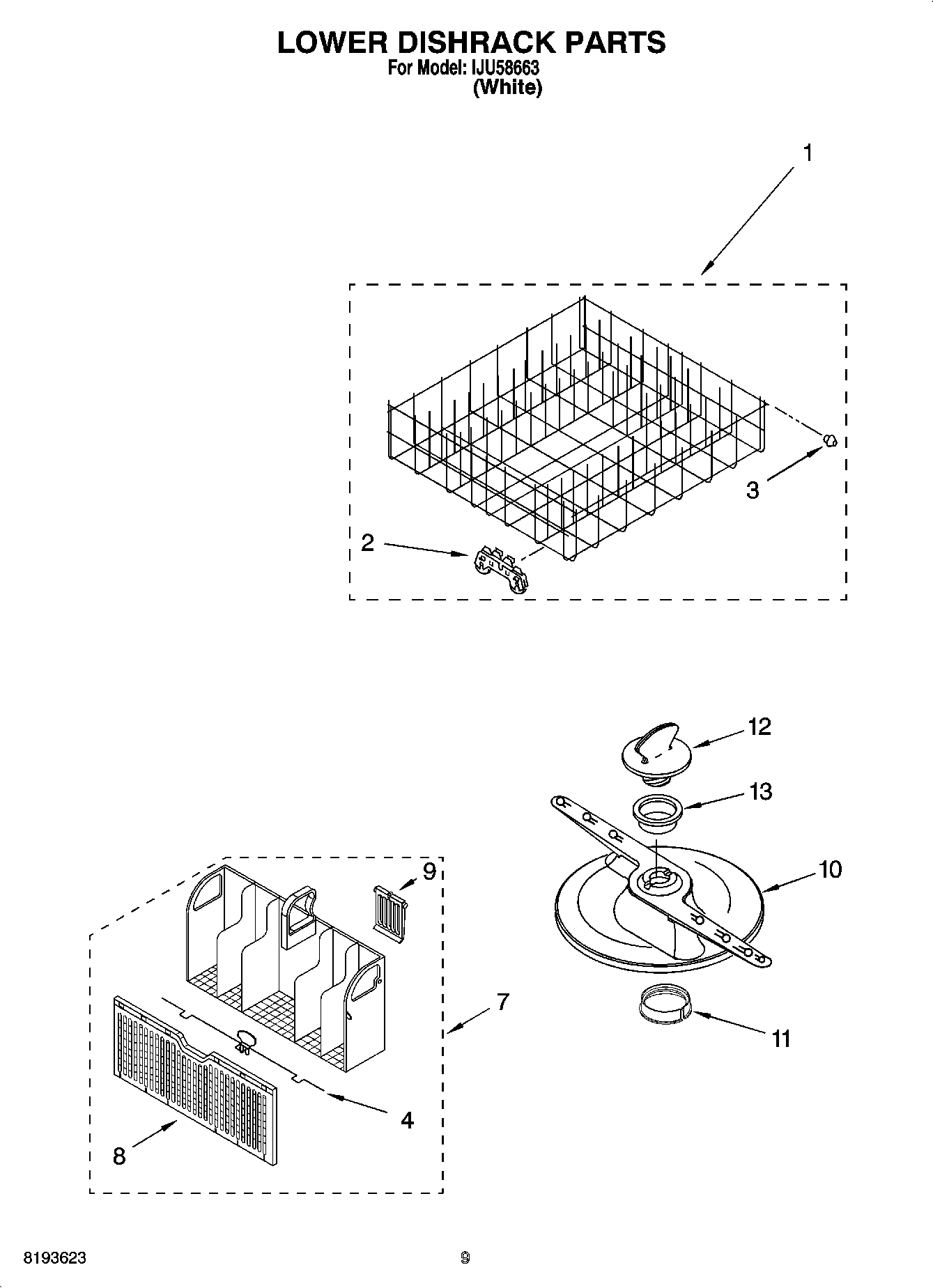

Silverware Basket Asembly WPL 8268884 Contact Us For Availability
7
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
8
Plate, Latch WPL 3378149 Contact Us For Availability
8
Door, Silverware Basket WPL 8519540 Contact Us For Availability
9
Filter Assembly WPL 3384593 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
16
Cover, Drip Door Retainer WPL 3371569 Contact Us For Availability
17

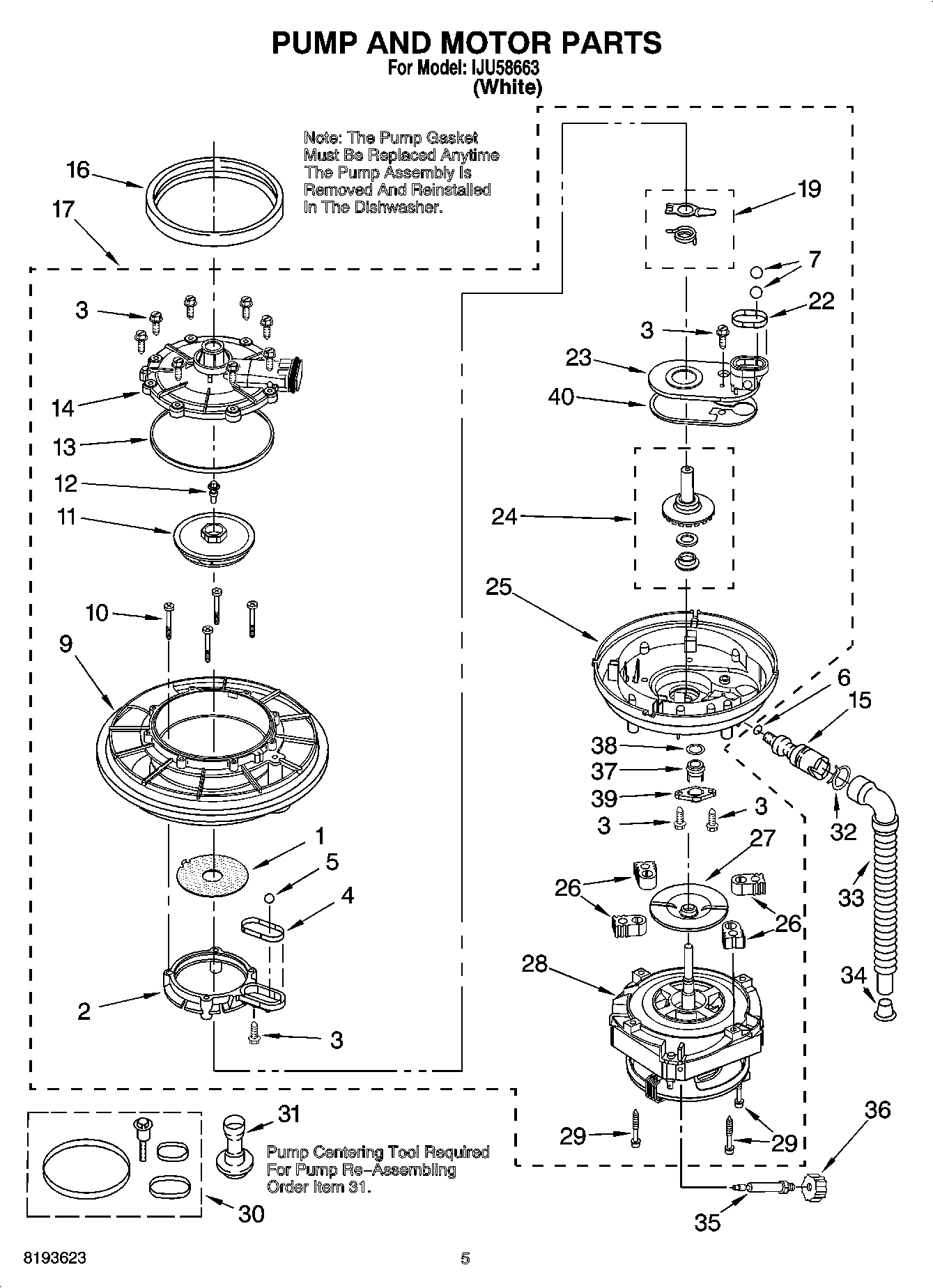

Motor, Dual WPL 3374501 Contact Us For Availability
19
Panel Front (White) WPL 3379376 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 3376845 Contact Us For Availability
24
Tube, Feed WPL 9743958 Contact Us For Availability
26
Insulation, Toe & Access Panel WPL 3374767 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access (White) WPL 3379918 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Clip, Grounding WPL 3378123 Contact Us For Availability
41
Terminal Box WPL 3378131 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
56
Strain Relief WPL 3370307 Contact Us For Availability
57
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
