Model Whirlpool IFW7200TW10 AUTOMATIC WASHER – Common Parts & Diagrams

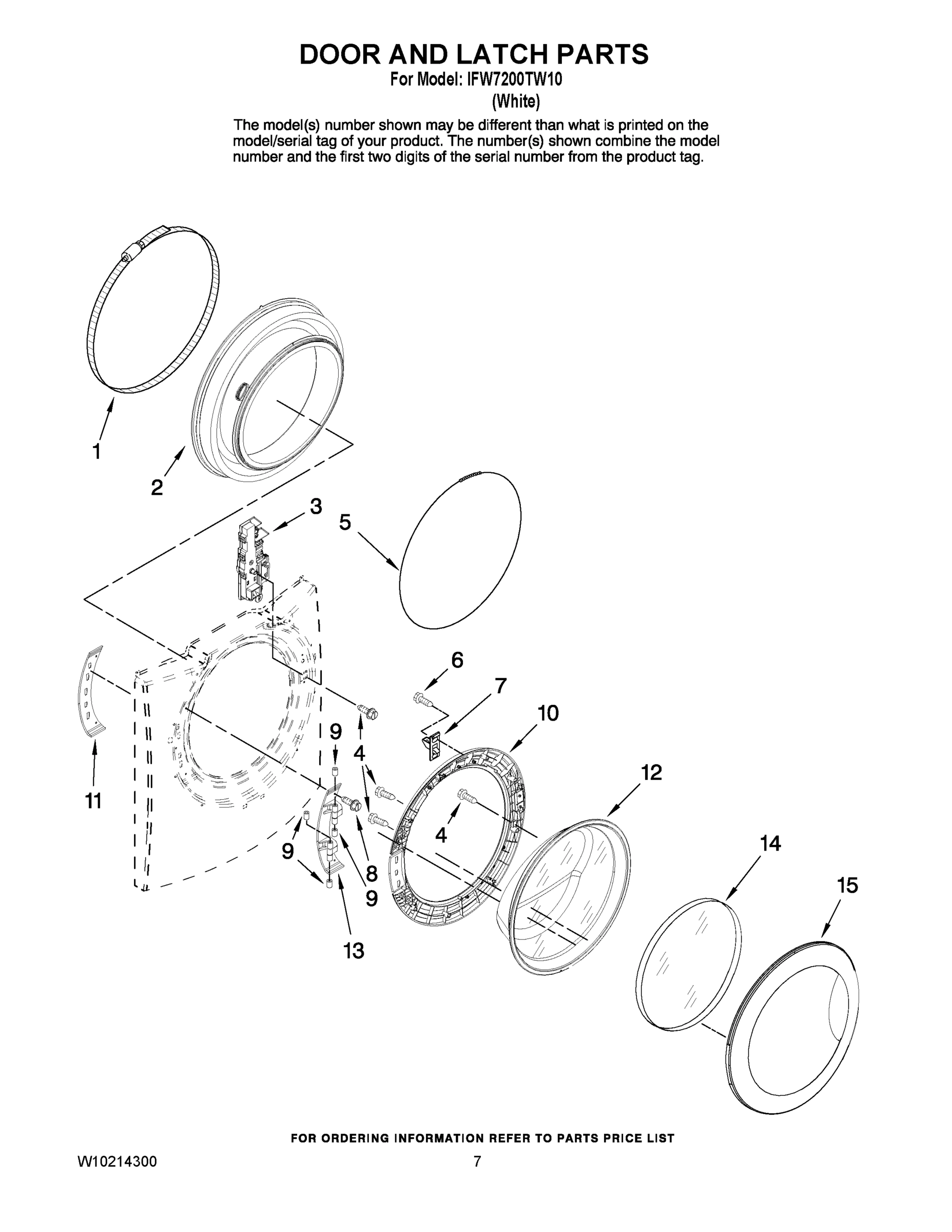

04 - DOOR AND LATCH PARTS

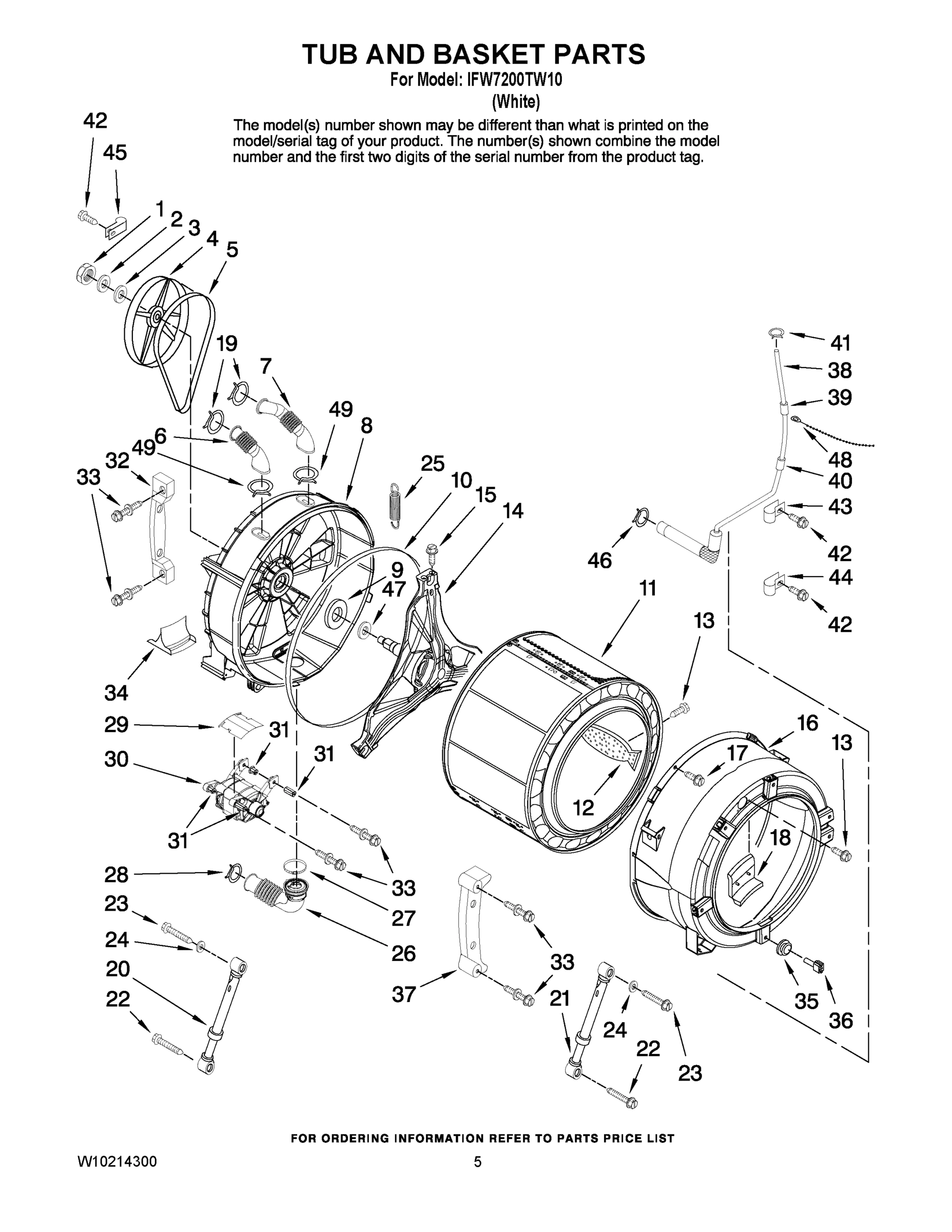

03 - TUB AND BASKET PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

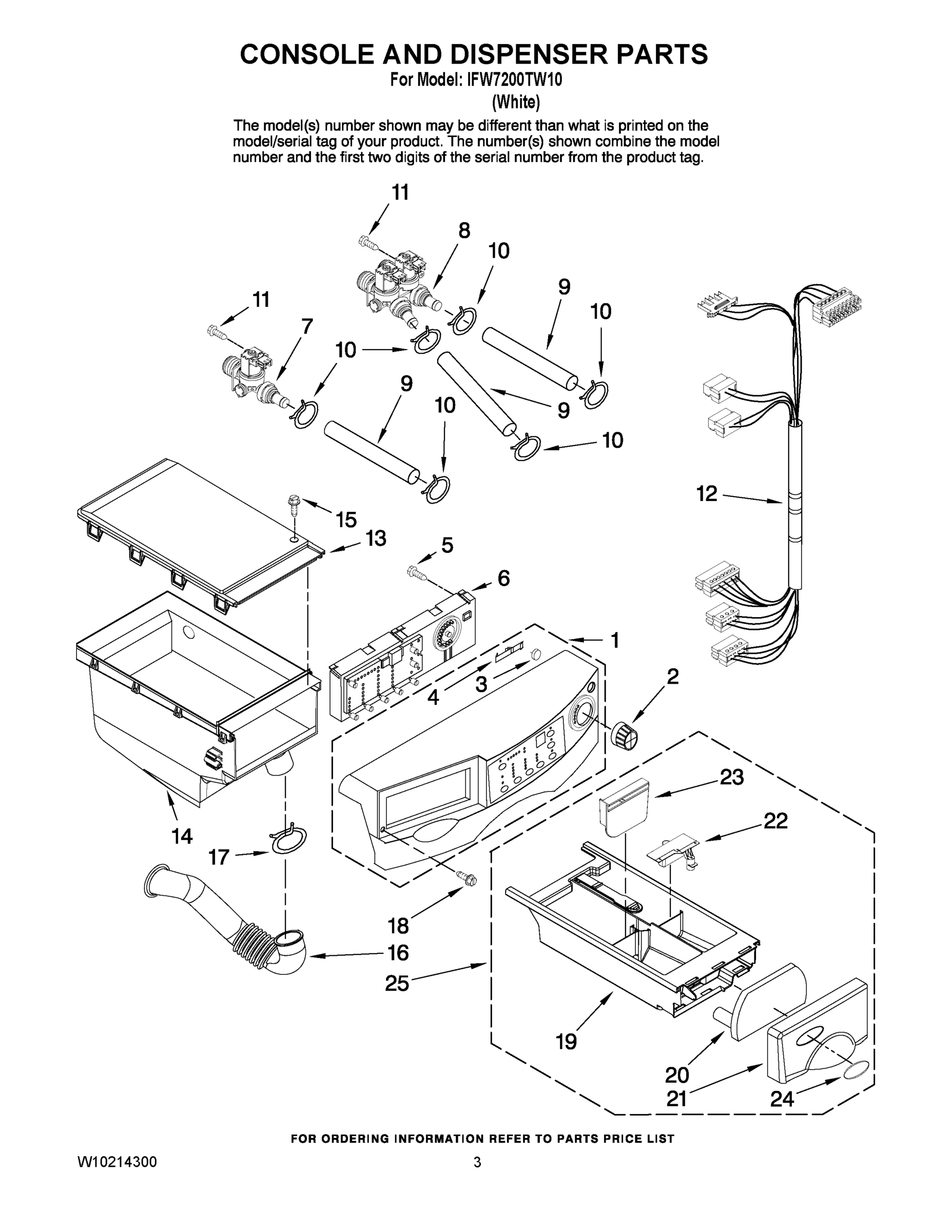

02 - CONSOLE AND DISPENSER PARTS

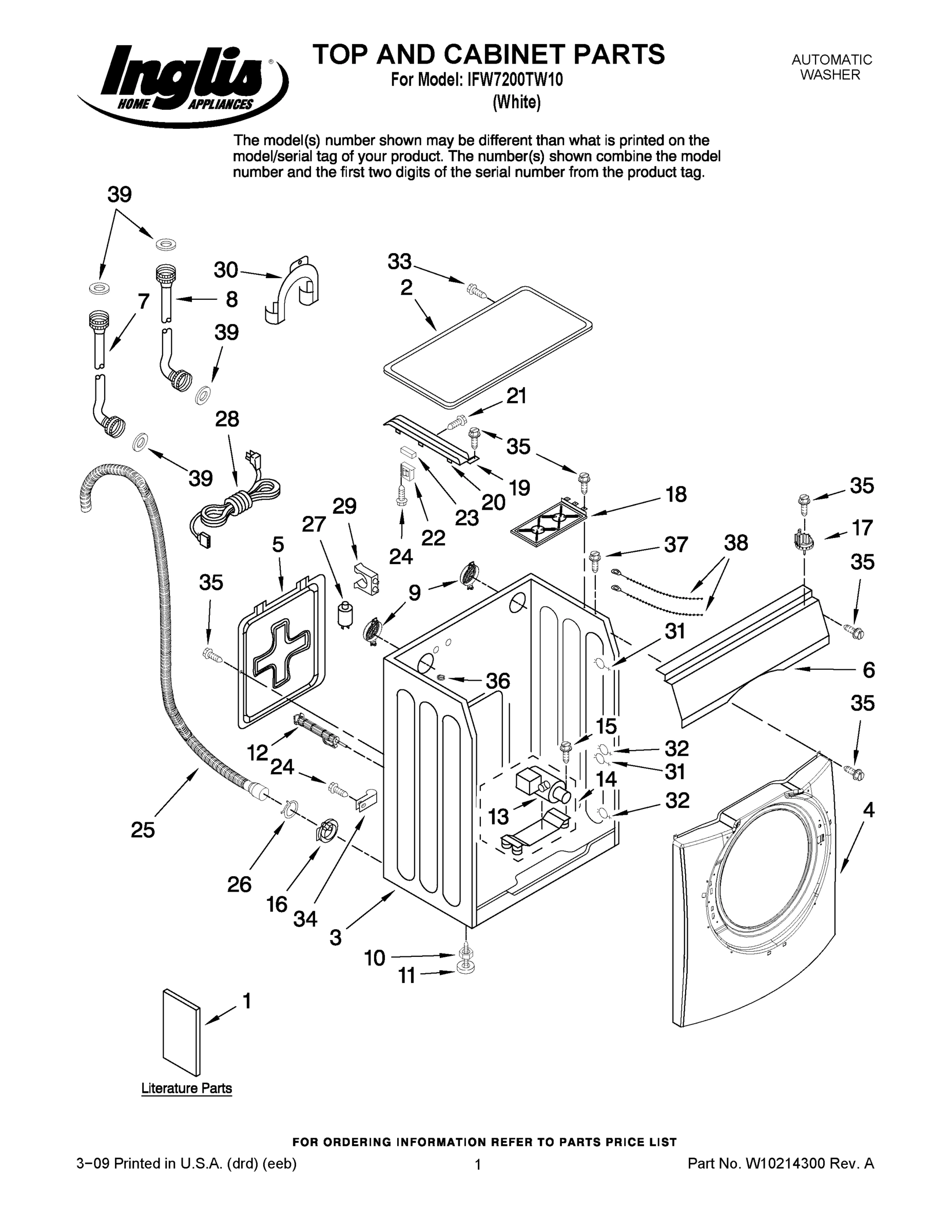

01 - TOP AND CABINET PARTS
Common parts from model Whirlpool IFW7200TW10 AUTOMATIC WASHER
1
NUT, PULLEY WPL 34001271 Contact Us For Availability
1
PANEL, CONSOLE WPL W10175951 Contact Us For Availability
1
TECH SHEET WPL W10178029 Contact Us For Availability
1
USE & CARE GUIDE WPL W10178031 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10178033 Contact Us For Availability
2
WASHER, SPRING WPL 34001273 Contact Us For Availability
2
KNOB, CONTROL WPL W10175949 Contact Us For Availability
2
TOP WPL 34001332 Contact Us For Availability
3
BUTTON, POWER WPL W10175952 Contact Us For Availability
3
CABINET WPL 34001442 Contact Us For Availability
4
PULLEY WPL 34001412 Contact Us For Availability
4
LEVER, POWER WPL 34001419 Contact Us For Availability
4
PANEL, FRONT WPL 34001427 Contact Us For Availability
5
BELT WPL 34001411 Contact Us For Availability
5
REAR PANEL WPL 34001338 Contact Us For Availability
6
HOSE EXHAUST WPL 34001295 Contact Us For Availability
6
USER INTERFACE WPL 34001499 Contact Us For Availability
6
FRAME, UPPER FRONT WPL 34001441 Contact Us For Availability
7
HOSE, EXHAUST WPL 34001293 Contact Us For Availability
7
HOSE, WATER INLET (HOT) WPL W10267649 Contact Us For Availability
8
HOSE, WATER INLET (COLD) WPL W10267650 Contact Us For Availability
9
SEAL, OIL WPL 34001408 Contact Us For Availability
9
HOSE, VALVE TO DISPENSER WPL 34001109 Contact Us For Availability
9
CAP, VENTILATION ASSEMBLY WPL 34001400 Contact Us For Availability
10
GASKET, TUB WPL 34001296 Contact Us For Availability
10
NUT, LOCK (4) WPL 34001389 Contact Us For Availability
11
BASKET WPL 34001430 Contact Us For Availability
11
SCREW (4) WPL 34001250 Contact Us For Availability
11
FOOT, LEVELING (4) WPL 34001341 Contact Us For Availability
12
HARNESS, WIRING WPL 34001444 Contact Us For Availability
12
BAFFLE, TUB (3) WPL 34001431 Contact Us For Availability
12
BOLT, SHIPPING (4) WPL 34001337 Contact Us For Availability
13
SCREW, TAPPING WPL 34001251 Contact Us For Availability
14
SCREEN, DOOR WPL 34001425 Contact Us For Availability
14
CROSSPIECE WPL 34001407 Contact Us For Availability
15
FRAME, DOOR FRONT WPL 34001424 Contact Us For Availability
15
SCREW WPL 34001277 Contact Us For Availability
15
BOLT WPL 34001388 Contact Us For Availability
16
HOSE, DISPENSER TO TUB WPL 34001434 Contact Us For Availability
16
TUB, FRONT WPL 34001435 Contact Us For Availability
16
GUIDE, DRAIN HOSE WPL 34001200 Contact Us For Availability
17
SCREW (10) WPL 34001267 Contact Us For Availability
17
CLAMP, HOSE WPL 34001305 Contact Us For Availability
17
SWITCH, PRESSURE SENSOR WPL 34001324 Contact Us For Availability
18
GUIDE, WATER WPL 34001300 Contact Us For Availability
18
SCREW WPL 6002001006 Contact Us For Availability
18
ABSORBER ASSEMBLY WPL 34001443 Contact Us For Availability
19
CLAMP, HOSE WPL 34001297 Contact Us For Availability
19
DRAWER, DETERGENT WPL 34001282 Contact Us For Availability
19
CHANNEL, HARNESS WPL 34001326 Contact Us For Availability
20
BRACKET, HANDLE WPL 34001422 Contact Us For Availability
20
BRACKET, HARNESS CHANNEL WPL 34001325 Contact Us For Availability
21
HANDLE, DRAWER WPL W10175953 Contact Us For Availability
22
BOLT (4) WPL 34001147 Contact Us For Availability
22
CAP, RINSE WPL 34001401 Contact Us For Availability
22
TRANS-REACTOR WPL 34001333 Contact Us For Availability
23
BOLT (4) WPL 34001148 Contact Us For Availability
23
SEPARATOR WPL 34001239 Contact Us For Availability
23
BRACKET, HEATER WPL 34001334 Contact Us For Availability
24
WASHER, FLAT (4) WPL 34001272 Contact Us For Availability
24
SCREW WPL 34001231 Contact Us For Availability
24
BADGE WPL W10267350 Contact Us For Availability
25
SPRING, SUSPENSION (2) WPL 34001274 Contact Us For Availability
25
DRAWER, DISPENSER (COMPLETE) WPL W10267648 Contact Us For Availability
25
HOSE, DRAIN WPL 34001095 Contact Us For Availability
27
CLAMP, HOSE WPL 34001289 Contact Us For Availability
27
FILTER, EMI WPL 34001330 Contact Us For Availability
28
CORD, POWER WPL 34001204 Contact Us For Availability
29
COVER, MOTOR WPL 34001415 Contact Us For Availability
29
CLIP, OUTER HOSE HOLDER WPL 34001331 Contact Us For Availability
30
MOTOR, DRIVE WPL 34001437 Contact Us For Availability
30
U-BEND, DRAIN HOSE WPL 34001336 Contact Us For Availability
31
BUSHING, MOTOR WPL 34001157 Contact Us For Availability
31
CLIP, HARNESS WPL 35001004 Contact Us For Availability
32
COUNTERWEIGHT, REAR WPL 34001413 Contact Us For Availability
32
CLIP, HARNESS WPL 34001329 Contact Us For Availability
33
BOLT ASSEMBLY WPL 34001158 Contact Us For Availability
33
SCREW (2) WPL 34001328 Contact Us For Availability
34
BRACKET, REAR WPL 34001463 Contact Us For Availability
34
CLAMP, DRAIN HOSE RETAINER WPL 34001299 Contact Us For Availability
35
SEAL, RUBBER WPL 34001162 Contact Us For Availability
35
SCREW WPL 34001252 Contact Us For Availability
36
THERMISTOR WPL 34001202 Contact Us For Availability
36
GUIDE, SPRING-WASHER ONLY WPL 34001097 Contact Us For Availability
37
COUNTERWEIGHT, FRONT (2) WPL 34001276 Contact Us For Availability
37
SCREW, SPECIAL WPL 34001317 Contact Us For Availability
38
HOSE, PRESSURE SWITCH WPL 34001436 Contact Us For Availability
39
SLEEVE, PRESSURE SWITCH HOSE WPL 34001301 Contact Us For Availability
39
WASHER WPL W10267651 Contact Us For Availability
40
SLEEVE, HARNESS WPL 34001307 Contact Us For Availability
41
CLAMP, HOSE WPL 34001169 Contact Us For Availability
44
CLAMP, HARNESS RETAINER WPL 34001433 Contact Us For Availability
45
CLAMP, HARNESS RETAINER WPL 34001438 Contact Us For Availability
47
WASHER WPL 34001409 Contact Us For Availability
49
CLAMP, HOSE WPL 34001298 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
STACK KIT, 27`` (WRENCH, SPANNER) WPL 34001223 Contact Us For Availability
NI
STACK KIT, 27`` (CAP, FIXER) WPL 34001395 Contact Us For Availability
NI
STACK KIT, 27`` (ELECTRIC DRYER) WPL MALE027AXX Contact Us For Availability
NI
STACK KIT, 27`` (GAS DRYER) WPL MALG027AXX Contact Us For Availability
NI
HARNESS- W WPL 34001485 Contact Us For Availability
× ![]()
