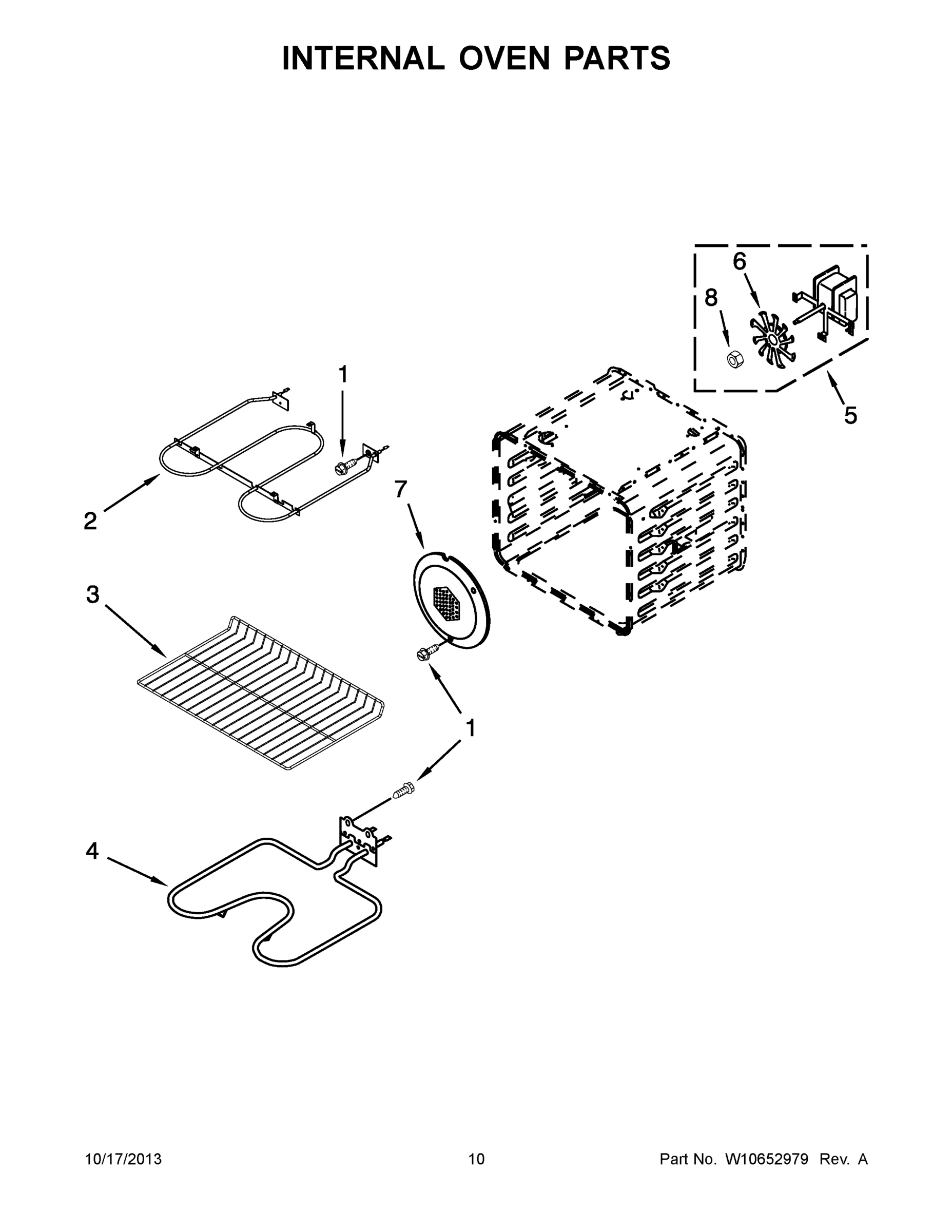

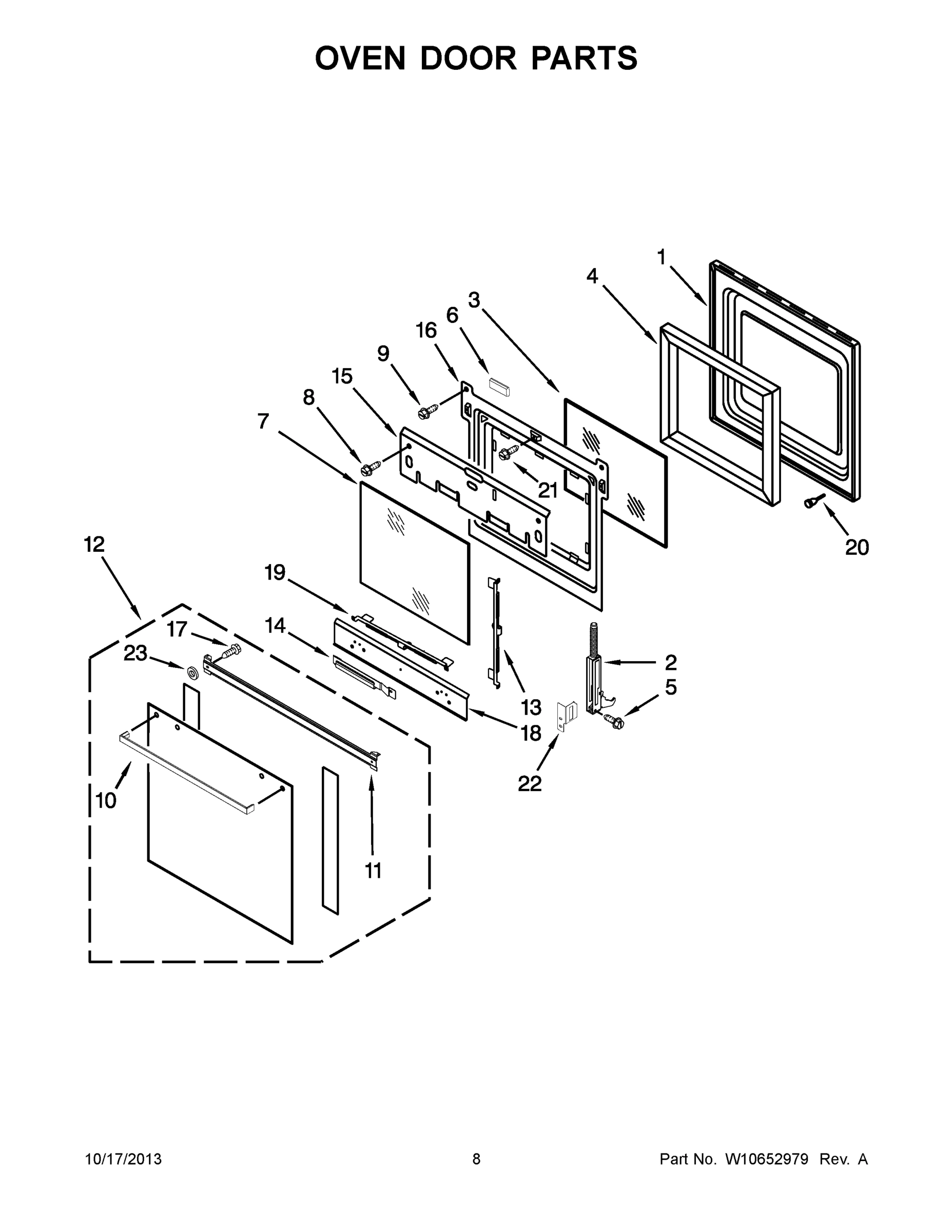

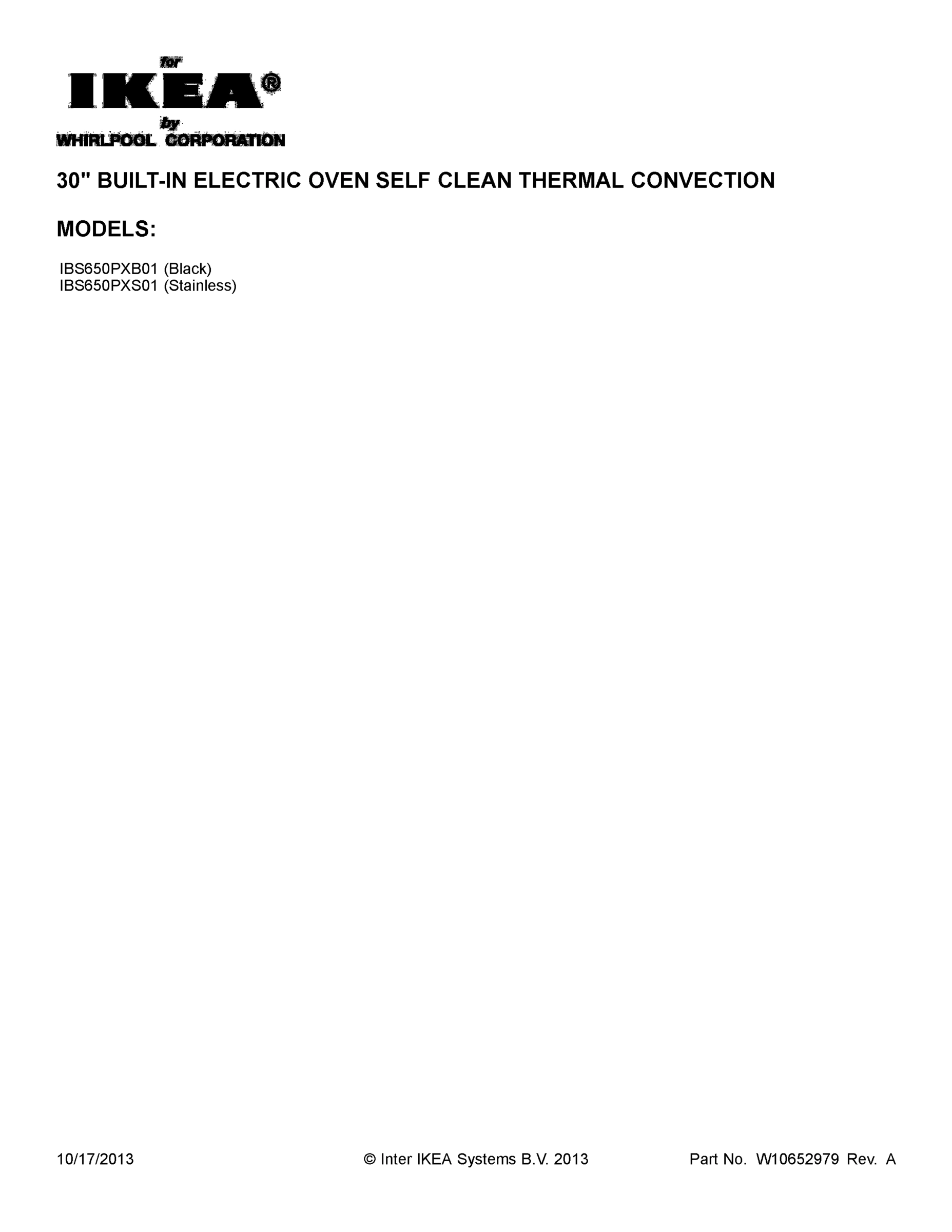

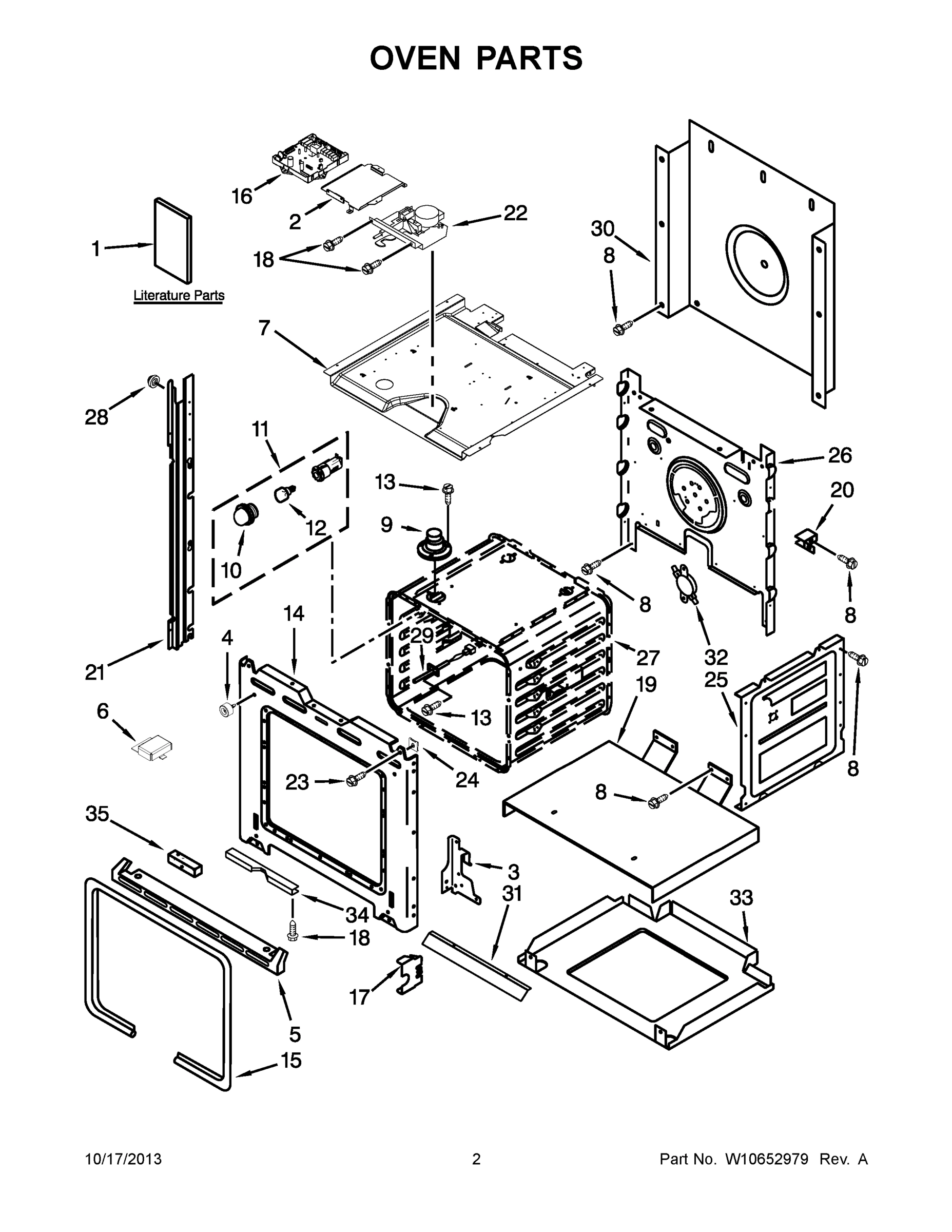

Model Whirlpool IBS650PXS01 ELECTRIC OVEN – Common Parts &amp; Diagrams

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP9760577 Whirlpool Oven Right Door Hinge Backorder WPL WP9760577 $39.95

2

WP9760578 Whirlpool Oven Left Door Hinge In Stock WPL WP9760578 $41.78

2

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $71.24

2

WPW10158961 Whirlpool Push Button Switch Backorder WPL WPW10158961 $45.33

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $144.86

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WP8303093 Whirlpool Oven Control Backorder WPL WP8303093 $160.11

3

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

W10794022 Whirlpool Oven Cooktop Fan Motor In Stock WPL W10794022 $144.46

5

WP4452999 Whirlpool Display Assembly Backorder WPL WP4452999 $116.66

6

W10758272 Whirlpool Convection Fan Backorder WPL W10758272 $4.25

6

Transformer, Control WPL 9760587 Contact Us For Availability

6

Spacer, Door Glass WPL 9759635 Contact Us For Availability

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

7

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

8

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

8

SCREW WPL 7101P42660 Contact Us For Availability

9

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

9

Screw WPL 4449040 Contact Us For Availability

Screw WPL 3400080 Contact Us For Availability

SWITCH, CANCEL WPL W10158962 Contact Us For Availability

Lens, Light WPL W10067870 Contact Us For Availability

HANDLE, DOOR WPL W10308271 Contact Us For Availability

11

BRACKET, DOOR HANDLE WPL W10159515 Contact Us For Availability

12

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

12

ASSEMBLY, DOOR WPL W10308380 Contact Us For Availability

13

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

14

Bracket, Central WPL 9759230 Contact Us For Availability

15

SHIELD, HEAT TOP WPL 4457104 Contact Us For Availability

16

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

16

Control WPL 8304381 Contact Us For Availability

17

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

17

SCREW WPL 7101P54460 Contact Us For Availability

18

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

18

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

19

BRACKET-BOTTOM (BLACK) WPL W10308245 Contact Us For Availability

19

BRACKET-BOTTOM (STAINLESS) WPL W10308272 Contact Us For Availability

20

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

21

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $2.51

22

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $143.63

22

COVER,HINGE (LEFT) WPL W10137043 Contact Us For Availability

22

COVER,HINGE (RIGHT) WPL W10137044 Contact Us For Availability

23

WASHER WPL W10169568 Contact Us For Availability

28

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

31

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

32

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

34

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

35

Spacer, Foam WPL 4452490 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
