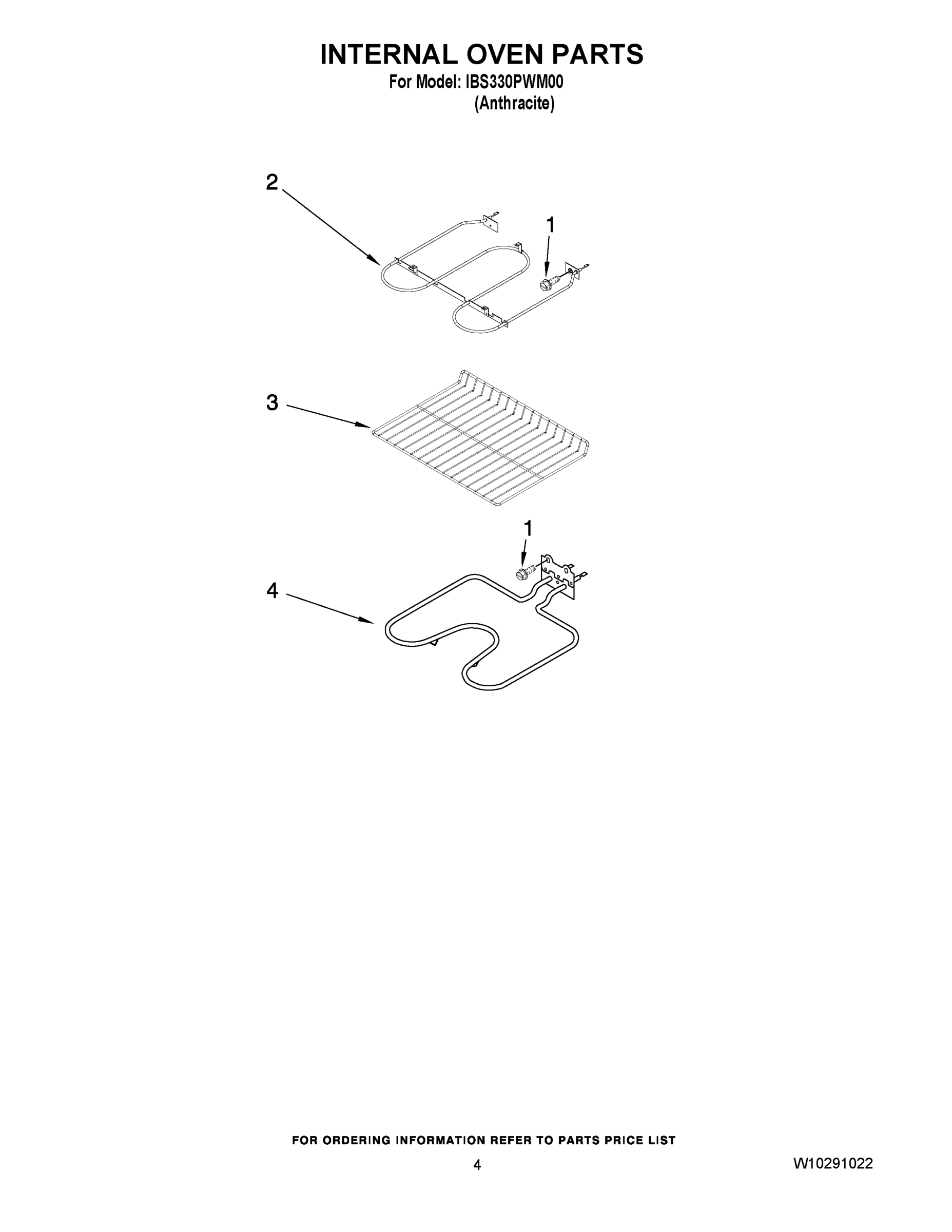

Model Whirlpool IBS330PWM00 30`` BUILT-IN ELECTRIC OVEN SELF CLEAN – Common Parts & Diagrams

1

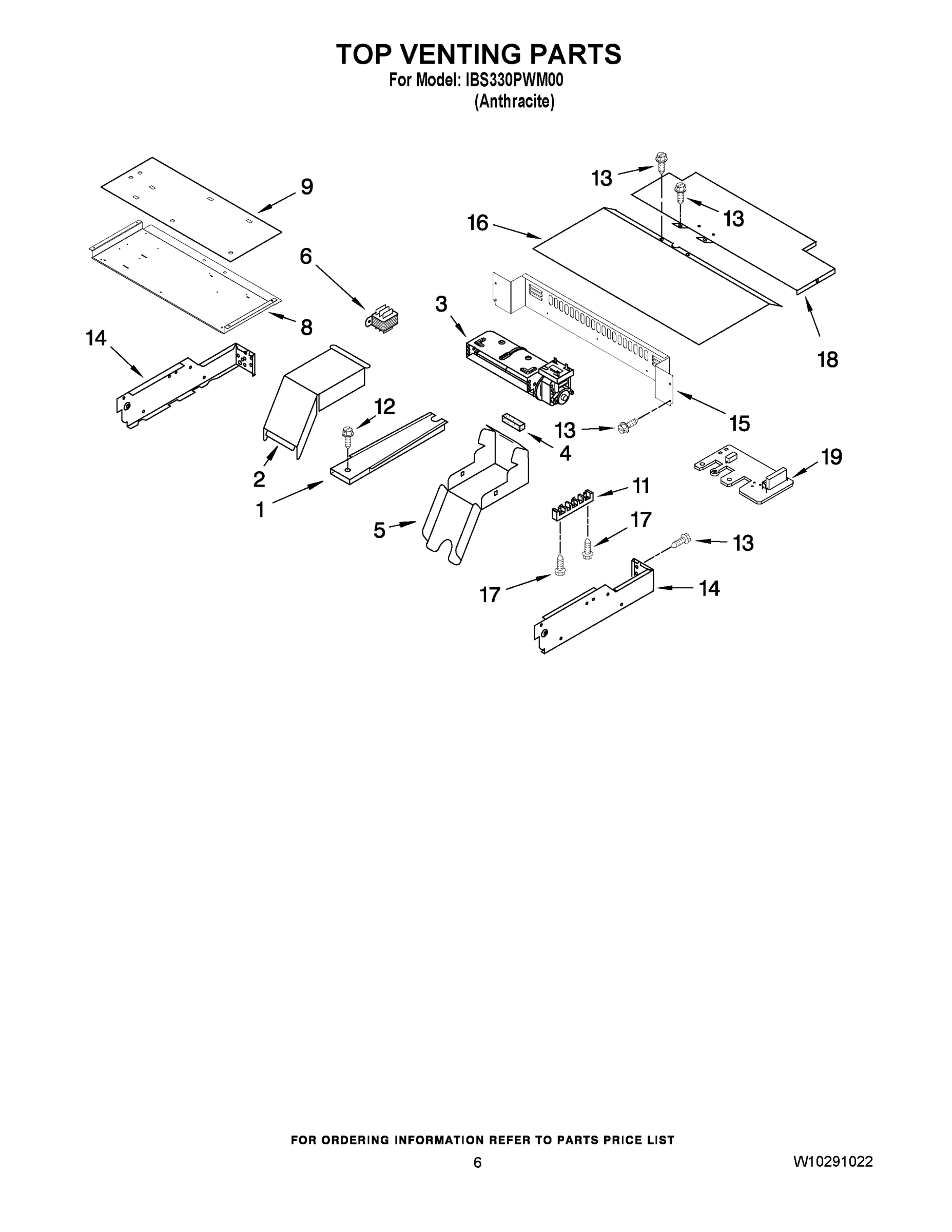

Vent, Exhaust
Vent, Exhaust WPL 4451759 Contact Us For Availability
View on Model
1
Instructions Installation
Instructions Installation WPL 8303102 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 8303103 Contact Us For Availability
View on Model
1
INSTALLATION/UNDERCOUNTER
INSTALLATION/UNDERCOUNTER WPL 8304572 Contact Us For Availability
View on Model
1
INSTRUCTION, INSTALLER
INSTRUCTION, INSTALLER WPL W10075750 Contact Us For Availability
View on Model
1
OWNERS MANUAL
OWNERS MANUAL WPL W10270528 Contact Us For Availability
View on Model
2
Switch (Cancel)
Switch (Cancel) WPL 8303091 Contact Us For Availability
View on Model
2
Switch (Enter)
Switch (Enter) WPL 8303089 Contact Us For Availability
View on Model
2
ELBOW, VENT TOP
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
View on Model
2
Trim, Side (Right)
Trim, Side (Right) WPL W10158952 Contact Us For Availability
View on Model
2
Trim, Side (Left)
Trim, Side (Left) WPL W10158953 Contact Us For Availability
View on Model
4
Bumper, Door (2)
Bumper, Door (2) WPL W10105790 Contact Us For Availability
View on Model
5
ELBOW, VENT BOTTOM
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
View on Model
6
Transformer, Control
Transformer, Control WPL 9760587 Contact Us For Availability
View on Model
7

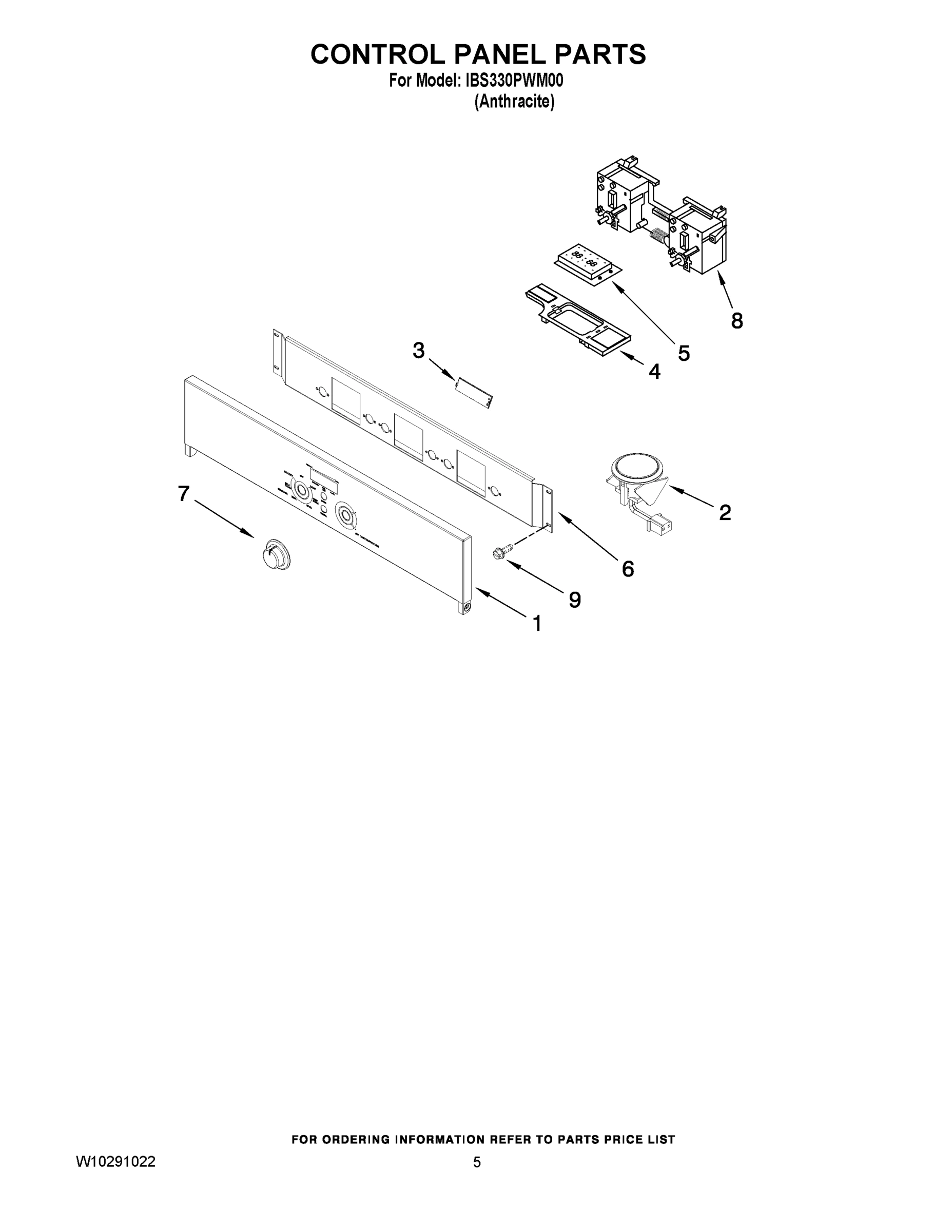

Knob, Control
Knob, Control WPL W10158948 Contact Us For Availability
View on Model
7
Top Chassis
Top Chassis WPL 8303099 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL W10067870 Contact Us For Availability
View on Model
12

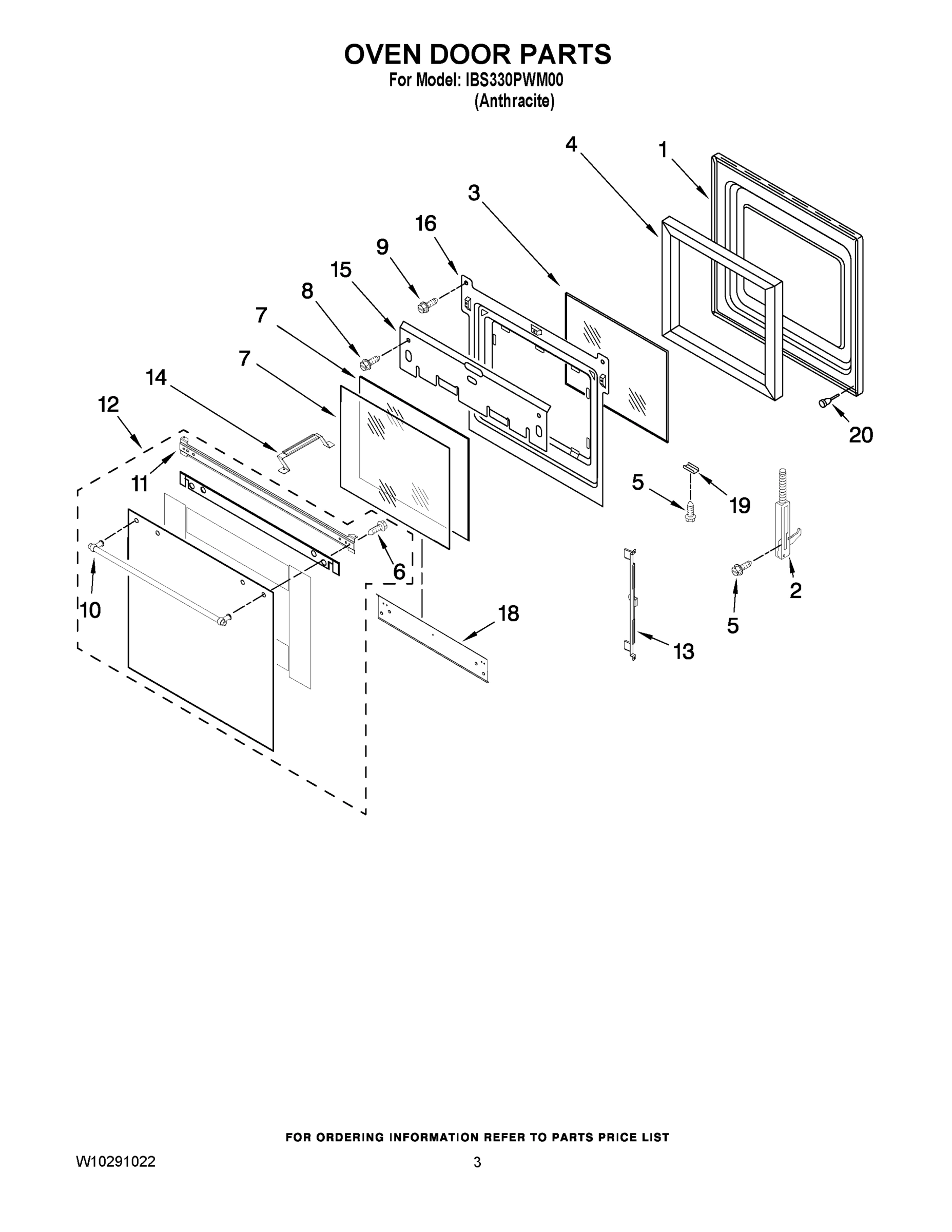

ASSEMBLY, DOOR GLASS
ASSEMBLY, DOOR GLASS WPL W10275832 Contact Us For Availability
View on Model
12
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
16
Control, Taurus
Control, Taurus WPL 8304380 Contact Us For Availability
View on Model
17
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
17
Bracket, Mounting
Bracket, Mounting WPL 4452152 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4451478 Contact Us For Availability
View on Model
20
Bumper, Door (3)
Bumper, Door (3) WPL 4448520 Contact Us For Availability
View on Model
20
Cap, Spacer
Cap, Spacer WPL 4451605 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL W10161110 Contact Us For Availability
View on Model
27
LINER, OVEN (NOT SERVICEABLE)
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
View on Model
30
Deflector, Vent
Deflector, Vent WPL 9760677 Contact Us For Availability
View on Model
33
Base, Chassis
Base, Chassis WPL 9759713 Contact Us For Availability
View on Model
36
Support, Bracket
Support, Bracket WPL 4449845 Contact Us For Availability
View on Model
37
Trim, Bottom Vent
Trim, Bottom Vent WPL W10163669 Contact Us For Availability
View on Model
38
Cover, Wire
Cover, Wire WPL 8285593 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (Citrine White)
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
View on Model
NI
Lead, Ground Strap
Lead, Ground Strap WPL 4452400 Contact Us For Availability
View on Model
NI
Clamp
Clamp WPL 4448664 Contact Us For Availability
View on Model
NI
Screw, Ground
Screw, Ground WPL 4450800 Contact Us For Availability
View on Model
NI
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
NI
Nut, Terminal Block
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
View on Model
NI
Harness, Latch
Harness, Latch WPL 8303865 Contact Us For Availability
View on Model
NI
Harness, Main
Harness, Main WPL 8303867 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ.) (ANTHRACITE)
PAINT, TOUCH-UP (1/2OZ.) (ANTHRACITE) WPL W10225138 Contact Us For Availability
View on Model
NI
Insulation, Back
Insulation, Back WPL 4450365 Contact Us For Availability
View on Model
