Model Hotpoint HTS22GBPCRWW Refrigerator – Common Parts & Diagrams

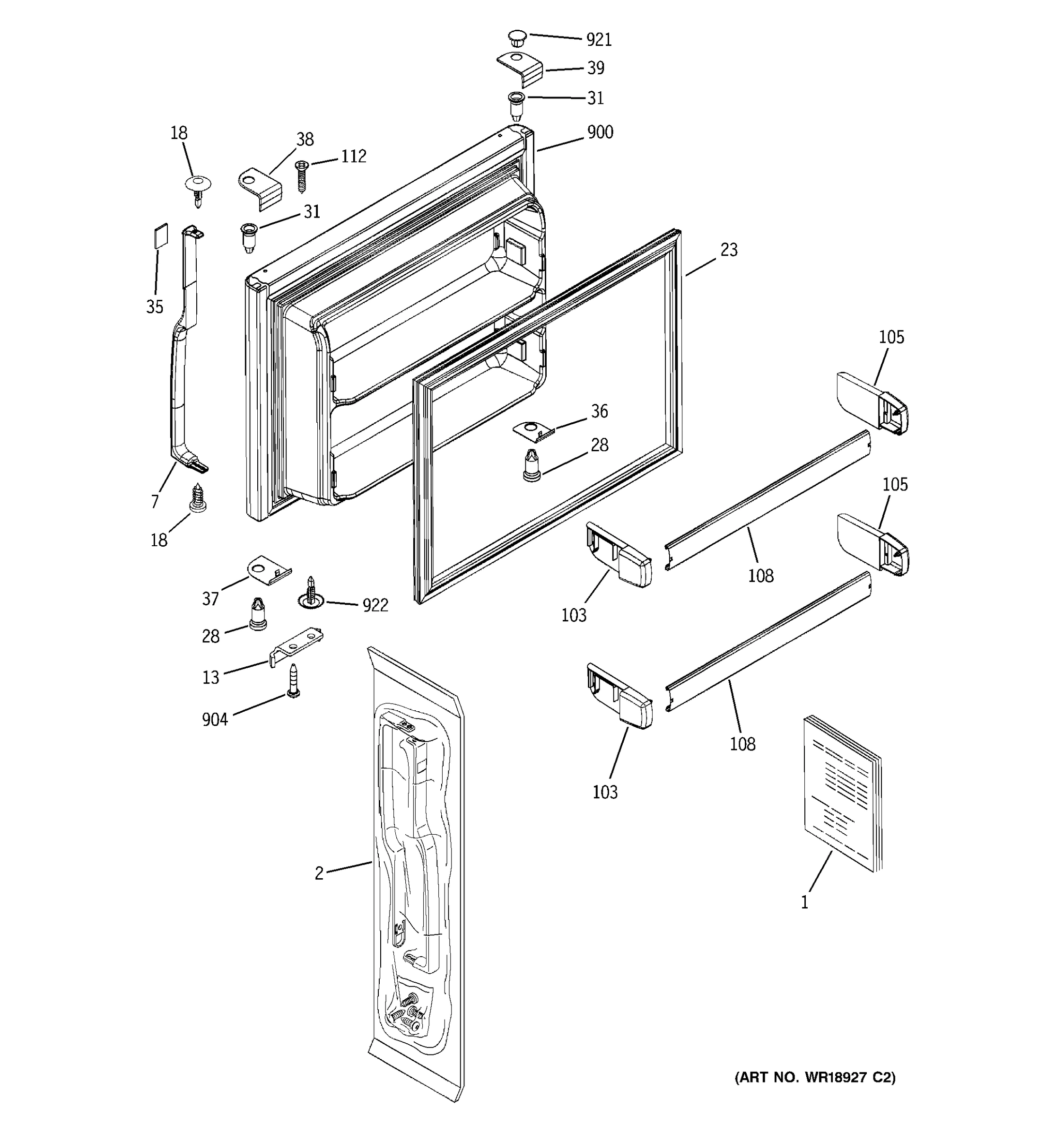

FREEZER DOOR

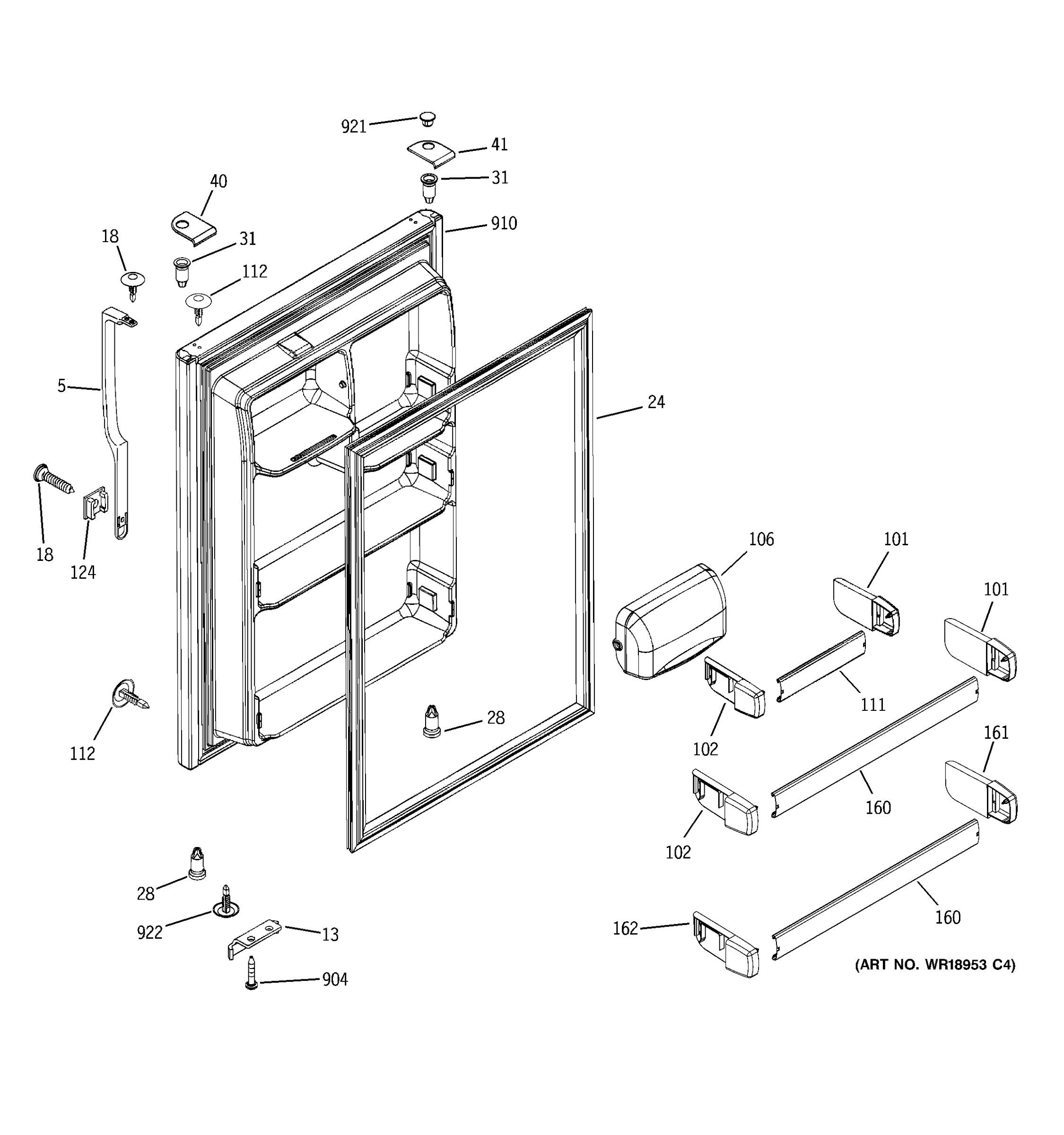

FRESH FOOD DOOR
FREEZER SECTION
EVAPORATOR INSTRUCTIONS
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model Hotpoint HTS22GBPCRWW Refrigerator
5
HANDLE DOOR FF WHITE GEN WR12X10502 Contact Us For Availability
7
HANDLE ASSY FZ WHITE GEN WR12X10503 Contact Us For Availability
13
STOP DOOR FF/FZ WHITE GEN WR01X10248 Contact Us For Availability
28
THIMBLE DOOR BTM WHITE GEN WR02X10896 Contact Us For Availability
38
CAP CORNER TOP WHITE GEN WR02X10868 Contact Us For Availability
40
CAP CORNER TOP WHITE GEN WR02X10866 Contact Us For Availability
41
CAP CORNER TOP WHITE GEN WR02X10865 Contact Us For Availability
101
CAP SHELF FRONT FF GEN WR02X10964 Contact Us For Availability
102
CAP SHELF FRONT FF GEN WR02X10965 Contact Us For Availability
103
CAP SHELF FRONT FZ GEN WR02X10962 Contact Us For Availability
105
CAP SHELF FRONT FZ GEN WR02X10963 Contact Us For Availability
106
DOOR DAIRY FIXED GEN WR22X10029 Contact Us For Availability
108
SHELF FRONT DOOR FZ GEN WR71X10345 Contact Us For Availability
111
SHELF FRONT DOOR FF GEN WR71X10346 Contact Us For Availability
160
SHELF FRONT DOOR FF GEN WR71X10344 Contact Us For Availability
161
CAP SHELF FRONT FF 2LT GEN WR02X10986 Contact Us For Availability
162
CAP SHELF FRONT FF 2LT GEN WR02X10987 Contact Us For Availability
201
COVER EVAP ASSY GEN WR17X10968 Contact Us For Availability
202
GRILLE ICE SERVICE GEN WR72X10071 Contact Us For Availability
205
FOAM STRIP SE ADH GEN WR02X11573 Contact Us For Availability
206
FOAM STRIP SE ADH GEN WR14X10123 Contact Us For Availability
207
FAN EVAP HOUSING GEN WR17X11511 Contact Us For Availability
225
SHELF FZ GEN WR71X10662 Contact Us For Availability
228
BEARING SLIDE CENTER GEN WR02X10864 Contact Us For Availability
229
LATCH SLIDE CENTER GEN WR02X10882 Contact Us For Availability
236
PAN SNACK GEN WR32X10531 Contact Us For Availability
237
FRAME COVER VP GEN WR32X10533 Contact Us For Availability
238
DAMPER VP GEN WR17X10970 Contact Us For Availability
239
SLIDE ASM CENTER GEN WR17X11970 Contact Us For Availability
240
PAN VEG 22 GEN WR32X10530 Contact Us For Availability
242
SHELF CANT GLASS GEN WR32X10589 Contact Us For Availability
247
BAR REINFORCEMENT GEN WR17X10971 Contact Us For Availability
279
PIN HINGE CENTER GEN WR13X10179 Contact Us For Availability
282
HINGE BTM & PIN ASSY WHI GEN WR13X10176 Contact Us For Availability
288
GRILLE BASE WHITE GEN WR74X10072 Contact Us For Availability
289
CLIP GRILLE GEN WR02X12264 Contact Us For Availability
290
GRILLE CAP WHITE GEN WR02X10880 Contact Us For Availability
302
KNOBTHUMB CON FZ DAMPER GEN WR02X11566 Contact Us For Availability
304
NOZZLE CONTROL FOAM GEN WR02X10723 Contact Us For Availability
318
HARNESS CNTRL MODUL.E GEN WR23X10334 Contact Us For Availability
473
SLIDE PAN LH GEN WR72X10073 Contact Us For Availability
607
BRACKET EVAP FAN GEN WR02X11571 Contact Us For Availability
622
TROUGH DRAIN ASSY GEN WR17X10988 Contact Us For Availability
626
HARNESS MACH GEN WR23X10343 Contact Us For Availability
643
INSET AIR FZ GEN WR17X11171 Contact Us For Availability
660
SWITCH LIGHT FF GEN WR23X10244 Contact Us For Availability
695
TOWER AIR FZ ASM GEN WR17X11846 Contact Us For Availability
734
COVER RELAY SNAP EMBRACO GEN WR02X11436 Contact Us For Availability
735
OVERLOAD GEN WR08X10063 Contact Us For Availability
751
BASEPLATE HIGH SIDE GEN WR17X10966 Contact Us For Availability
× ![]()
