Model GE HE4203-4588 General Electric Model HE4203-4588 – Common Parts & Diagrams
Cabinet, Exhaust Duct and Base

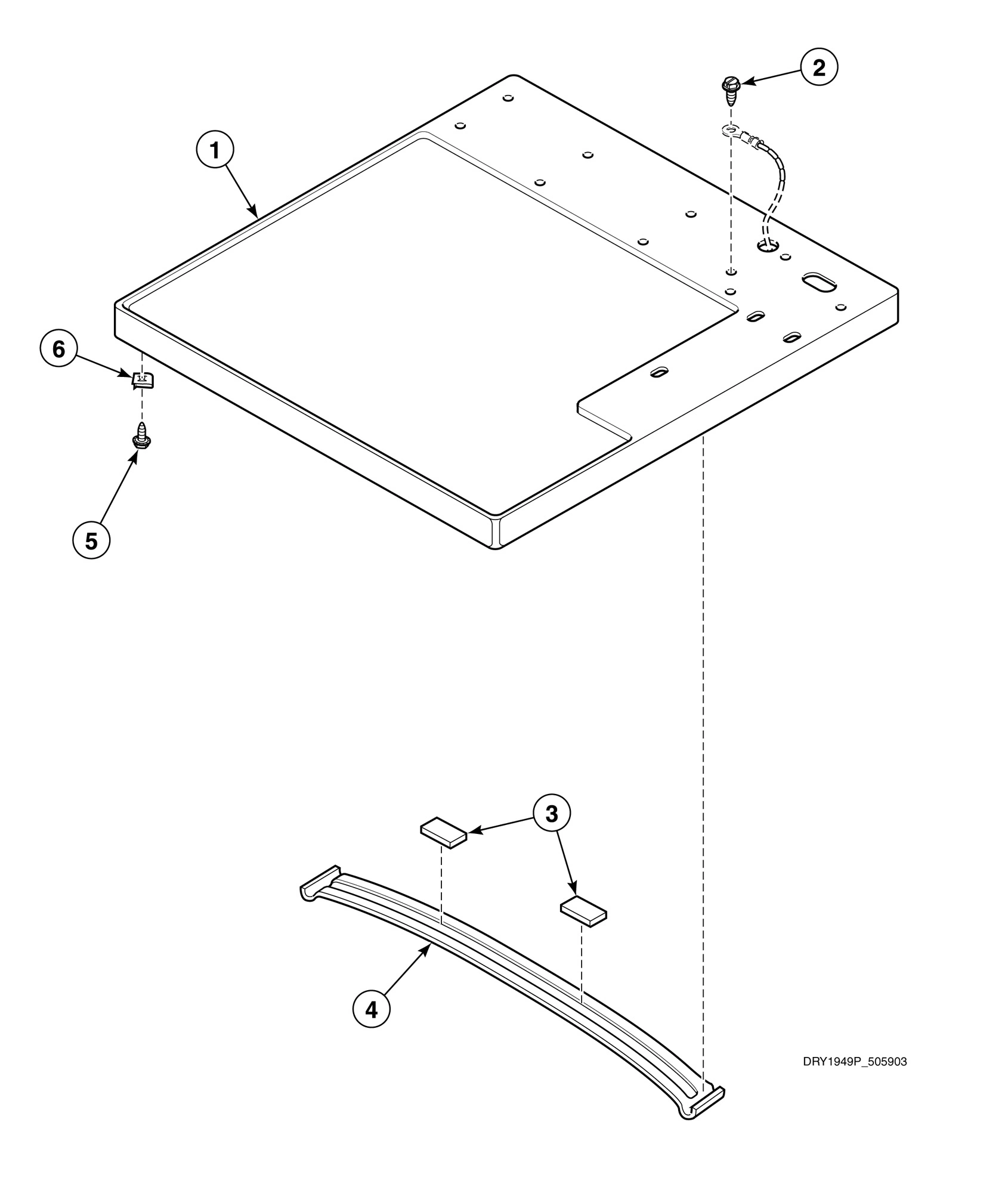

Cabinet Top

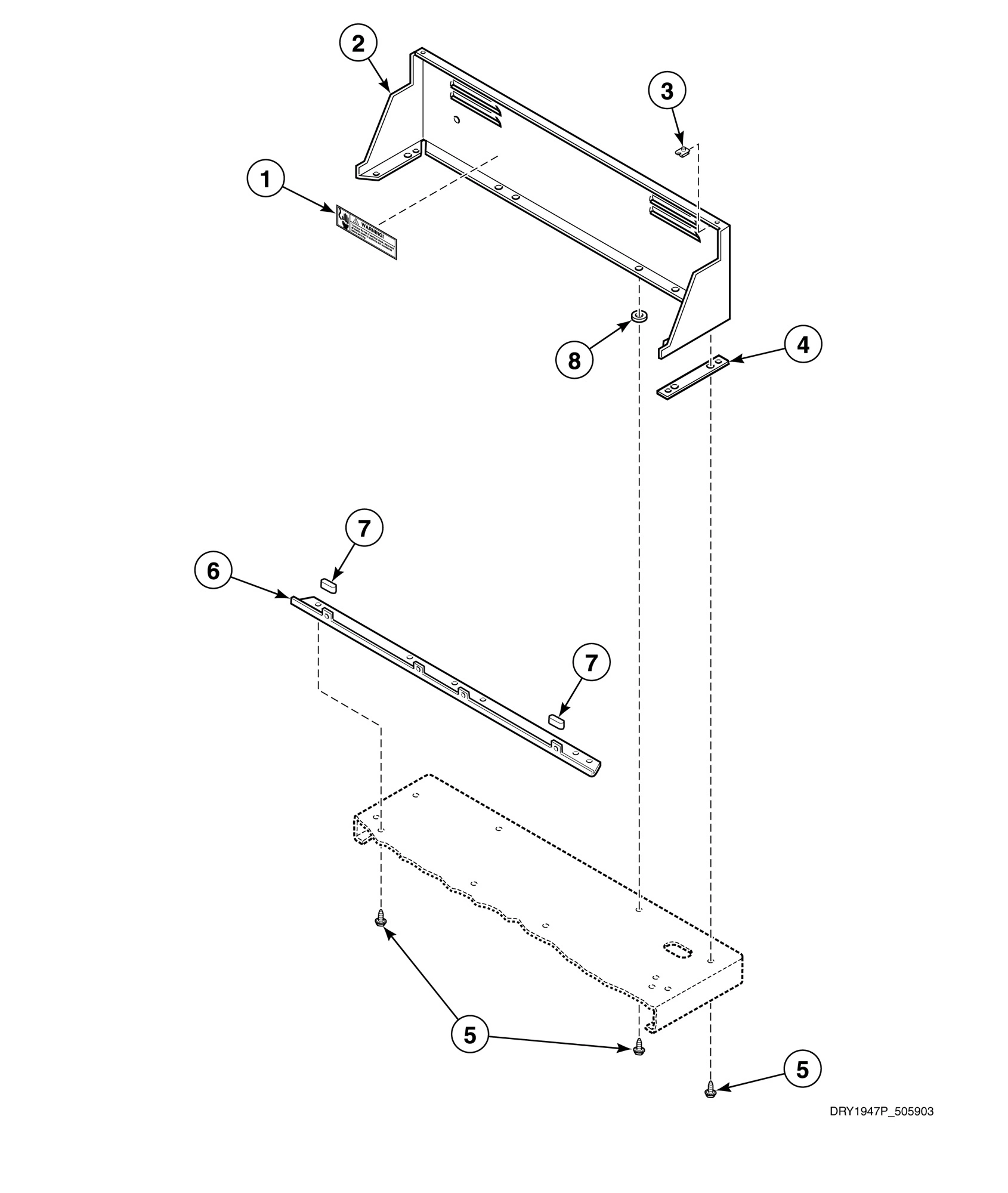

Control Hood

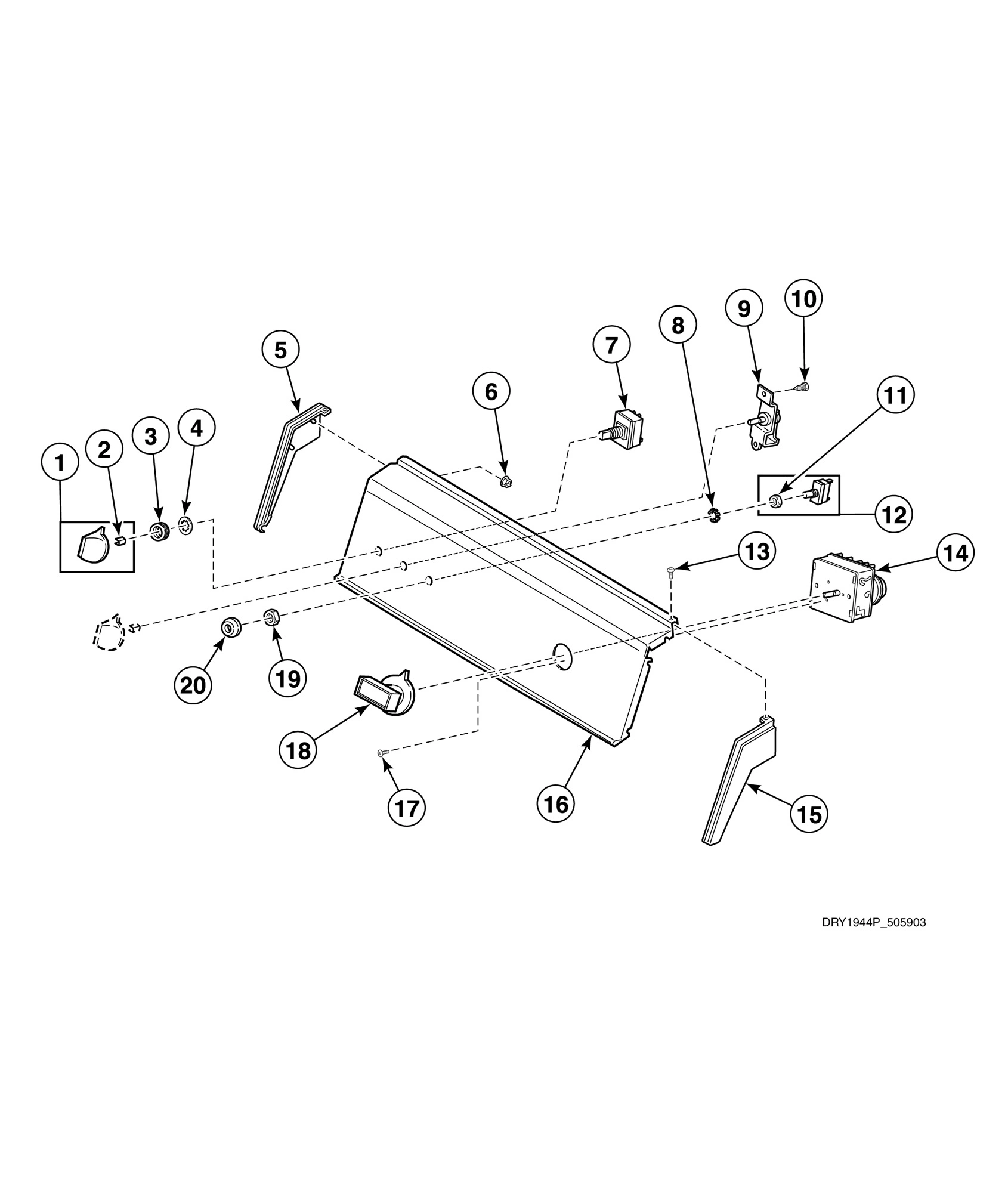

Control Panel and Controls (Drawing 2 of 3)

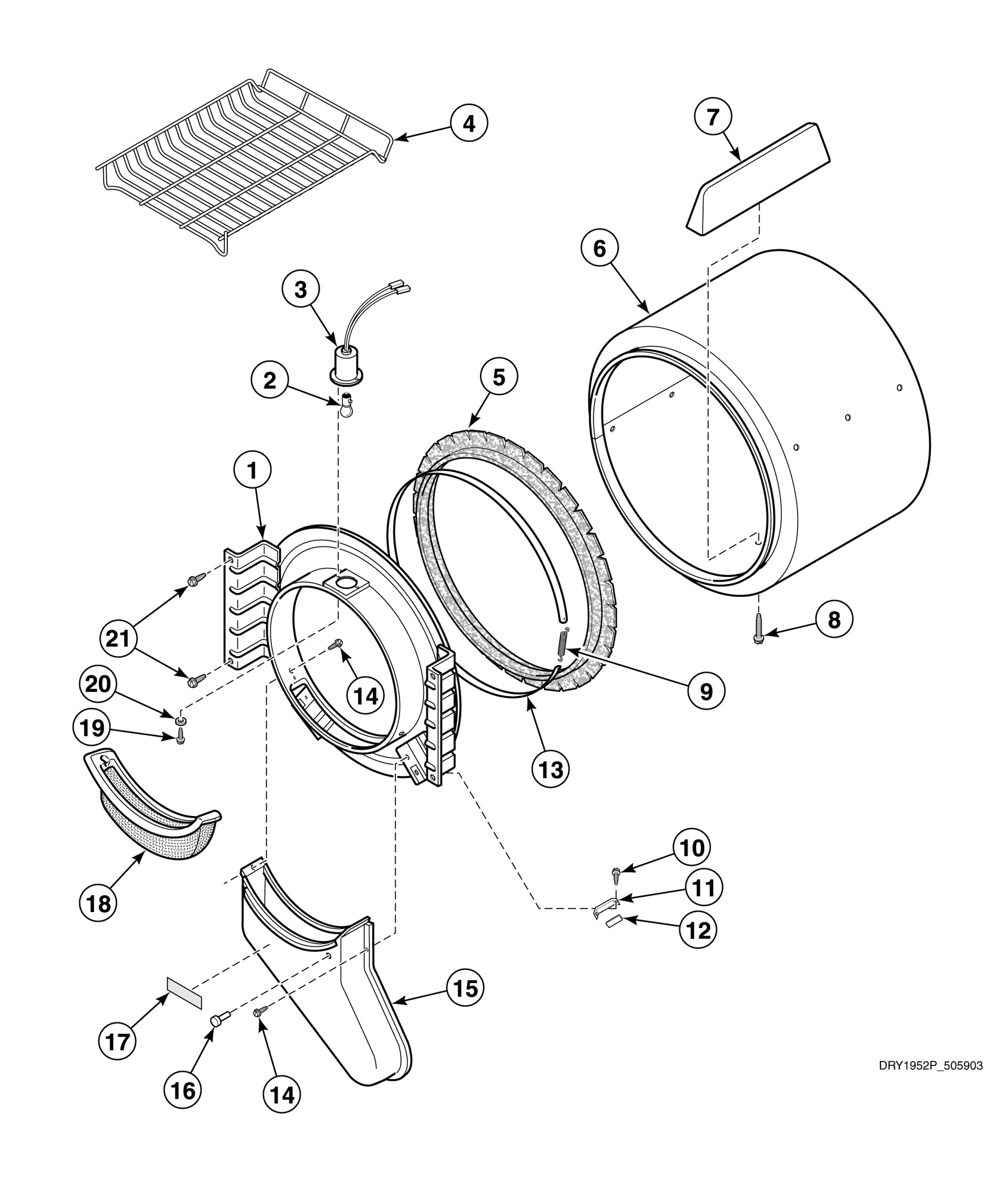

Front Bulkhead, Air Duct, Felt Seal and Cylinder

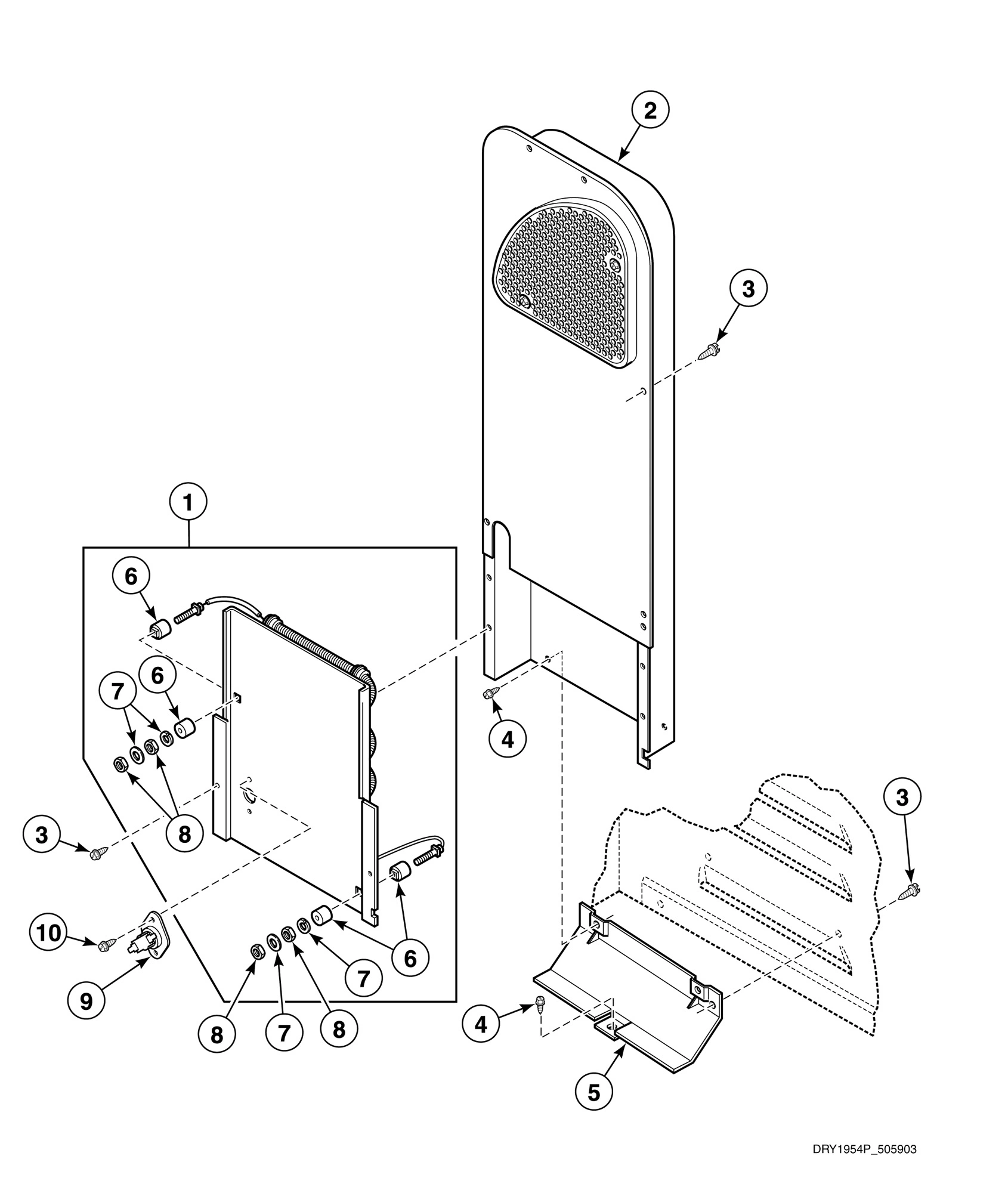

Heater Duct and Element Assembly

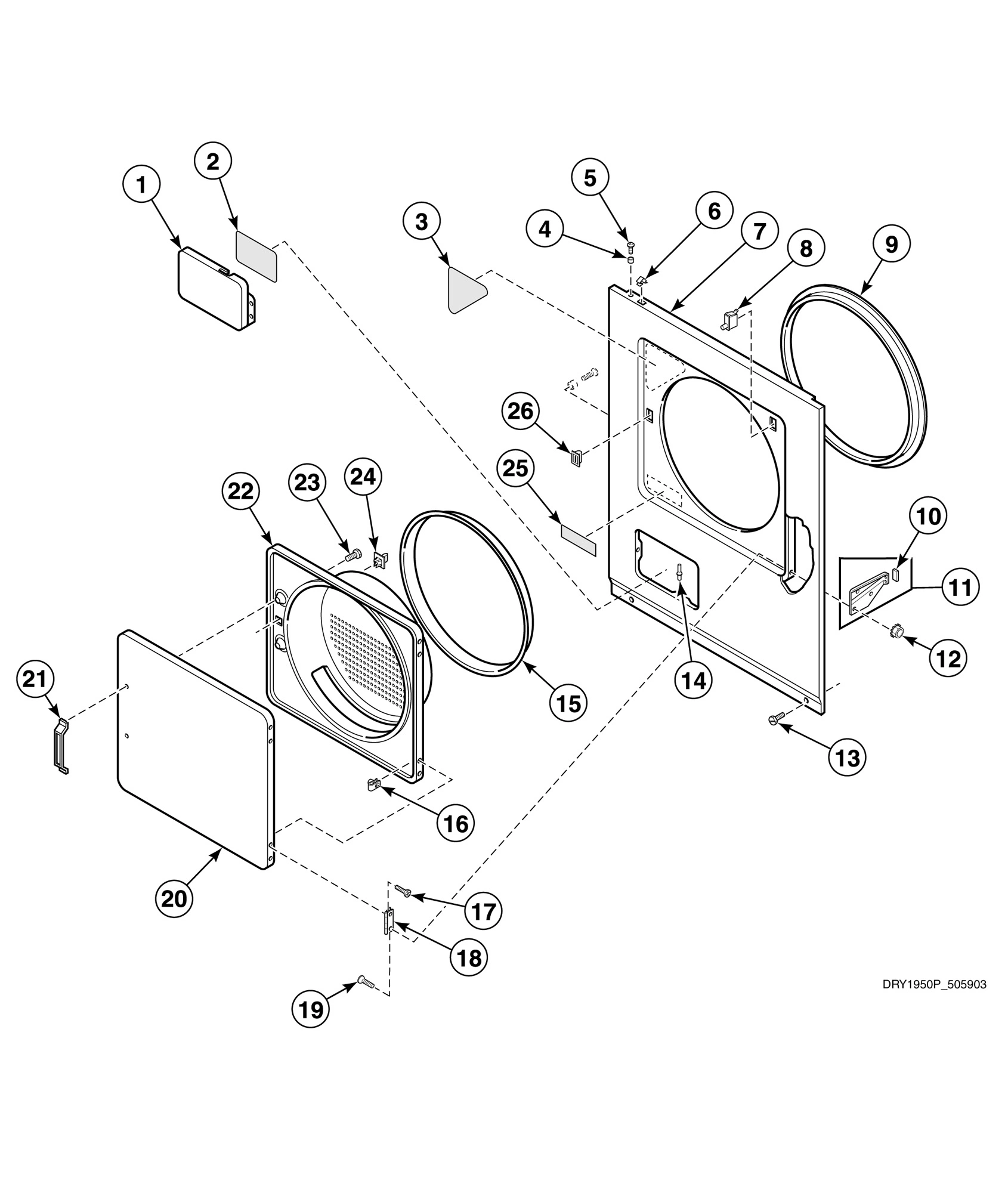

Loading Door, Front Panel and Seals
Common parts from model GE HE4203-4588 General Electric Model HE4203-4588
1
NOT ON YOUR MODEL GEN - Contact Us For Availability
1
Heater Kit Assembly (Comment: 230 or 240 Volt GEN 61927 Contact Us For Availability
1
Heater Kit Assembly (Comment: 208 Volt, 4.75 GEN 61928 Contact Us For Availability
1
Heater Kit Assembly (Comment: 240 Volt/50 Her GEN 61929 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Screw GEN 52909 Contact Us For Availability
2
Heater Duct and Screw Assembly GEN D510025P Contact Us For Availability
2
Gas Clearance Label GEN D511004 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
Foam Pad (Comment: Use with 56213 Top Brace) GEN 32670 Contact Us For Availability
3
Nut GEN 24522 Contact Us For Availability
3
Nut GEN 24205 Contact Us For Availability
4
Nut GEN 23951 Contact Us For Availability
4
Washer GEN 91176 Contact Us For Availability
4
Screw GEN 51780 Contact Us For Availability
5
Screw GEN 23008 Contact Us For Availability
5
Seal Assembly GEN 56088P Contact Us For Availability
5
Heat Duct Shield GEN 60952 Contact Us For Availability
6
Nut GEN 36020 Contact Us For Availability
6
Cylinder Assembly (Comment: Includes item 7) GEN 60645P Contact Us For Availability
7
Cylinder Baffle (Comment: White) GEN 61399 Contact Us For Availability
7
Washer GEN 56552 Contact Us For Availability
8
Access Cover Plate GEN 60821 Contact Us For Availability
8
Washer GEN 25820 Contact Us For Availability
8
Screw GEN 62588 Contact Us For Availability
8
Nut GEN Q6163 Contact Us For Availability
9
Spring GEN 52310 Contact Us For Availability
9
Limit Thermostat GEN 56082 Contact Us For Availability
10
Bumper Pad GEN 56128 Contact Us For Availability
10
Screw GEN D501086 Contact Us For Availability
10
Screw GEN 23222 Contact Us For Availability
11
Nut GEN 52947 Contact Us For Availability
11
Cylinder Glide GEN 61448 Contact Us For Availability
12
Start Switch Assembly (Comment: Includes item GEN 57349 Contact Us For Availability
12
Felt Pad GEN 56058 Contact Us For Availability
12
Nut GEN 51236 Contact Us For Availability
13
Screw GEN D503661 Contact Us For Availability
13
Nut GEN 20274 Contact Us For Availability
13
Screw GEN 25232 Contact Us For Availability
13
Seal Strap GEN 56090P Contact Us For Availability
14
Screw GEN 52696 Contact Us For Availability
14
Support Barrel (Comment: Models starting Seri GEN 56534 Contact Us For Availability
15
Rubber Foot GEN 34318 Contact Us For Availability
15
Air Duct Assembly GEN 60786 Contact Us For Availability
15
Door Seal (Comment: White) GEN 61379P Contact Us For Availability
16
Nut GEN 23407 Contact Us For Availability
17
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
17
Screw GEN 52864 Contact Us For Availability
18
Lint Filter GEN 61376P Contact Us For Availability
18
Hinge GEN 56045 Contact Us For Availability
19
Nut GEN 24206 Contact Us For Availability
19
Screw GEN 22649 Contact Us For Availability
20
Washer GEN 51345 Contact Us For Availability
21
Door Pull GEN 61925 Contact Us For Availability
22
Door Liner GEN 62152P Contact Us For Availability
23
Screw GEN D502535 Contact Us For Availability
24
Door Strike GEN D510181 Contact Us For Availability
25
Dryer Door Label GEN N/A Contact Us For Availability
NA
Transformer Kit GEN D511658P Contact Us For Availability
× ![]()
