Model Hotpoint HDA3640R20SA Dishwasher – Common Parts & Diagrams

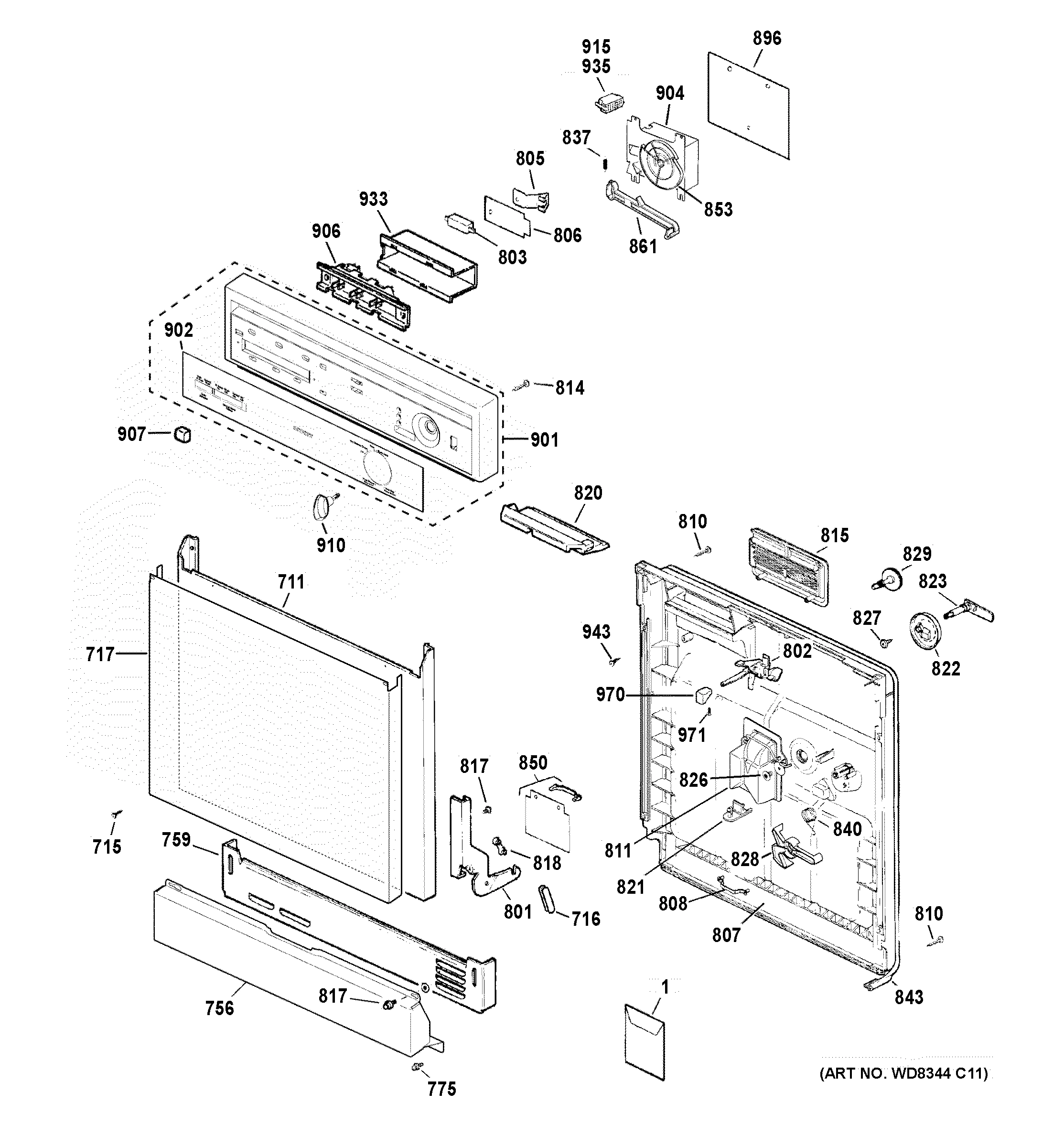

ESCUTCHEON & DOOR ASSEMBLY

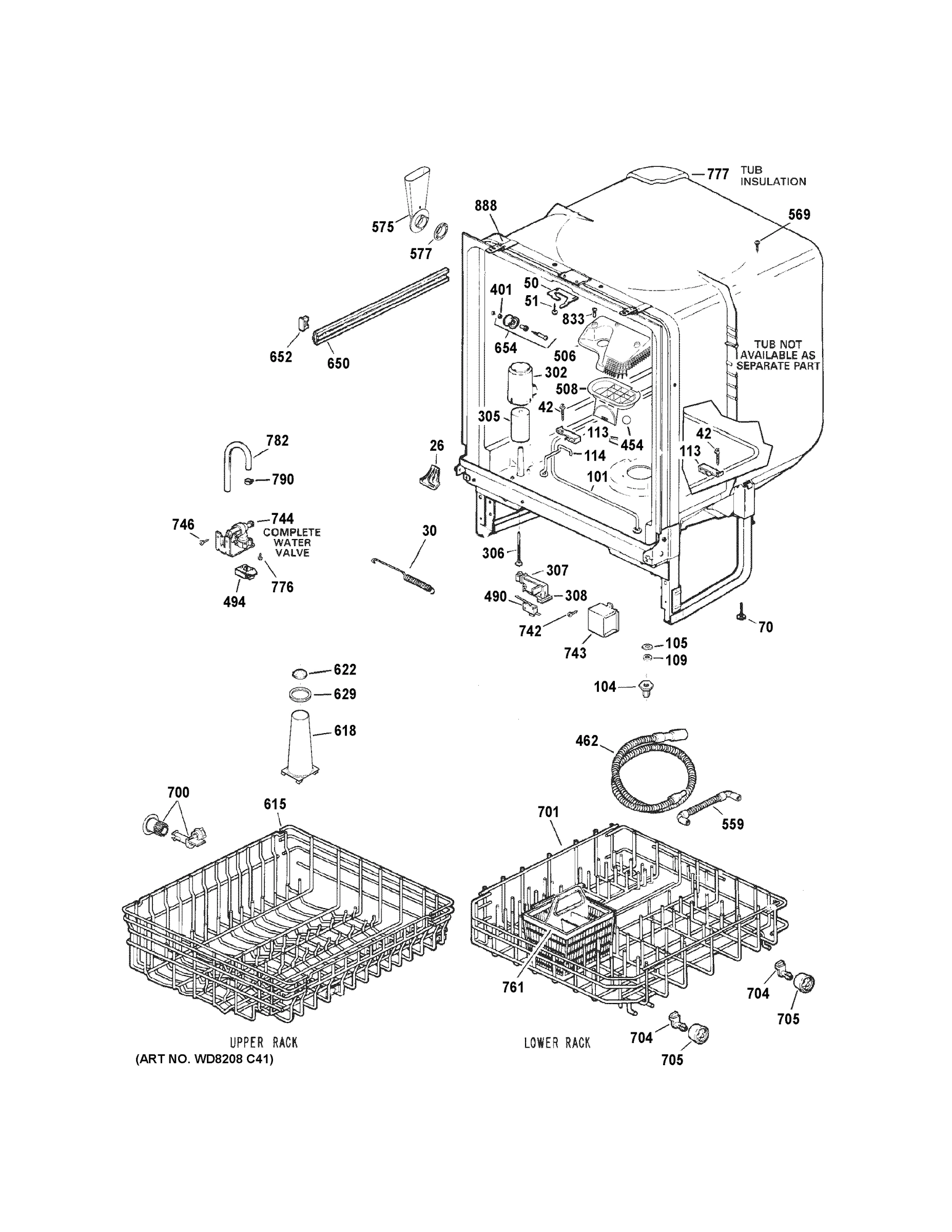

BODY PARTS
MOTOR-PUMP MECHANISM
Common parts from model Hotpoint HDA3640R20SA Dishwasher
30
SPRING DOOR BK 20 LB GEN WD03X10006 Contact Us For Availability
51
SCREW 10-24X1/2 TT TRR S GEN WD02X10066 Contact Us For Availability
104
NUT TOWER HEATER GEN WD01X10070 Contact Us For Availability
113
SUPPORT CALROD ASSY GEN WD01X10086 Contact Us For Availability
307
BRACKET FLOOD SWITCH GEN WD12X10023 Contact Us For Availability
310
MECHANISM S/S ASM GEN WD26X10051 Contact Us For Availability
311
HOUSING PUMP ASSY GEN WD19X10020 Contact Us For Availability
430
KIT - IMPELLER ASM GEN WD19X10038 Contact Us For Availability
450
COUPLER GEN WD01X10342 Contact Us For Availability
451
BASE SPRAY ARM GEN WD12X10244 Contact Us For Availability
453
BEARING SPRAY ARM GEN WD01X10340 Contact Us For Availability
458
CLAMP GEN WD01X10341 Contact Us For Availability
459
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
462
HOSE DRAIN GEN WD24X10014 Contact Us For Availability
494
HSNG SPECIAL-WATER VALVE GEN WD21X10355 Contact Us For Availability
495
HSNG SPECIAL-DRAIN SOLEN GEN WD21X10356 Contact Us For Availability
501
SPRAY ARM WELD GEN WD22X10055 Contact Us For Availability
505
SUMP INLET GEN WD18X10039 Contact Us For Availability
506
COVER INLET GEN WD12X10242 Contact Us For Availability
507
FINE FILTER ASM GEN WD12X10243 Contact Us For Availability
508
CAP SUMP GEN WD12X10247 Contact Us For Availability
510
CHAMBER COLLECTION GEN WD12X10245 Contact Us For Availability
559
HOSE CHAMBER GEN WD24X10041 Contact Us For Availability
618
TOWER UPPER RACK GEN WD28X10203 Contact Us For Availability
622
CAP TOWER UPPER GEN WD28X10202 Contact Us For Availability
629
SEAL CAP TOWER UPPER GEN WD01X10339 Contact Us For Availability
652
RACK SLIDE END CAP GEN WD12X10304 Contact Us For Availability
700
ROLLER & STUD ASM - 4 PA GEN WD12X10327 Contact Us For Availability
711
PANEL FRONT FINISHED WM GEN WD31X10080 Contact Us For Availability
716
LINK HINGE ARM GEN WD14X10009 Contact Us For Availability
717
COVER PANEL - LONG WM GEN WD27X10195 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X448 Contact Us For Availability
759
PANEL TOE KICK BLACK GEN WD27X10068 Contact Us For Availability
775
SCR 10-16 HXW 3/8 S GEN WD02X10126 Contact Us For Availability
776
SCR 10-32 C HX 7/16 S GEN WD02X10159 Contact Us For Availability
790
CLAMP HOSE GEN WD01X10065 Contact Us For Availability
801
ARM HINGE RH GEN WD14X10030 Contact Us For Availability
801
ARM HINGE LH GEN WD14X10029 Contact Us For Availability
802
LATCH ASM GEN WD13X10003 Contact Us For Availability
803
SWITCH INTERLOCK GEN WD21X10261 Contact Us For Availability
807
DOOR INNER GEN WD31X10004 Contact Us For Availability
810
SCR 8-18 AB TR 7/8S GEN WD02X10106 Contact Us For Availability
811
KIT RINSE AID DISPENSER GEN WD12X10264 Contact Us For Availability
814
SCR 8-10 PL TRP 1/2 S GEN WD02X10104 Contact Us For Availability
815
VENT GEN WD12X10026 Contact Us For Availability
817
SCR 8-32 HXP 1/4 S GEN WD02X10162 Contact Us For Availability
818
BEARING HINGE ARM GEN WD12X10313 Contact Us For Availability
819
SCR 10-32 TT HEX .575S GEN WD02X10141 Contact Us For Availability
821
CLIP RINSE AID TANK GEN WD01X10415 Contact Us For Availability
828
LATCH DETERGENT CUP GEN WD16X10011 Contact Us For Availability
829
CAP FILL GEN WD12X10284 Contact Us For Availability
843
DOOR GASKET GEN WD08X10057 Contact Us For Availability
853
CAM TIMER GEN WD16X10012 Contact Us For Availability
907
PUSHBUTTON GEN WD09X10047 Contact Us For Availability
915
HOUSING TERMINAL GEN WD01X10349 Contact Us For Availability
× ![]()
