Model Huebsch HCU040ZYV Washer – Common Parts & Diagrams

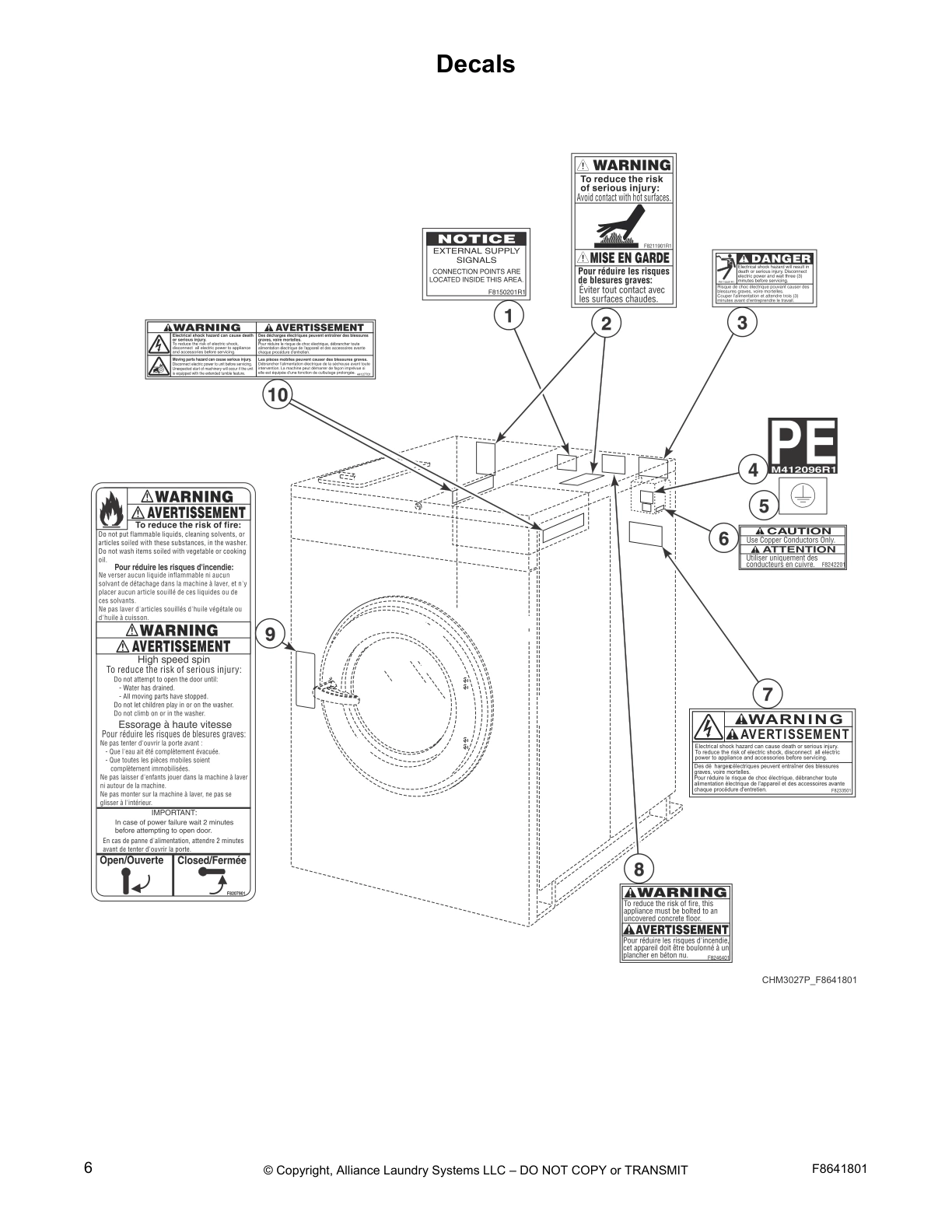

Decals

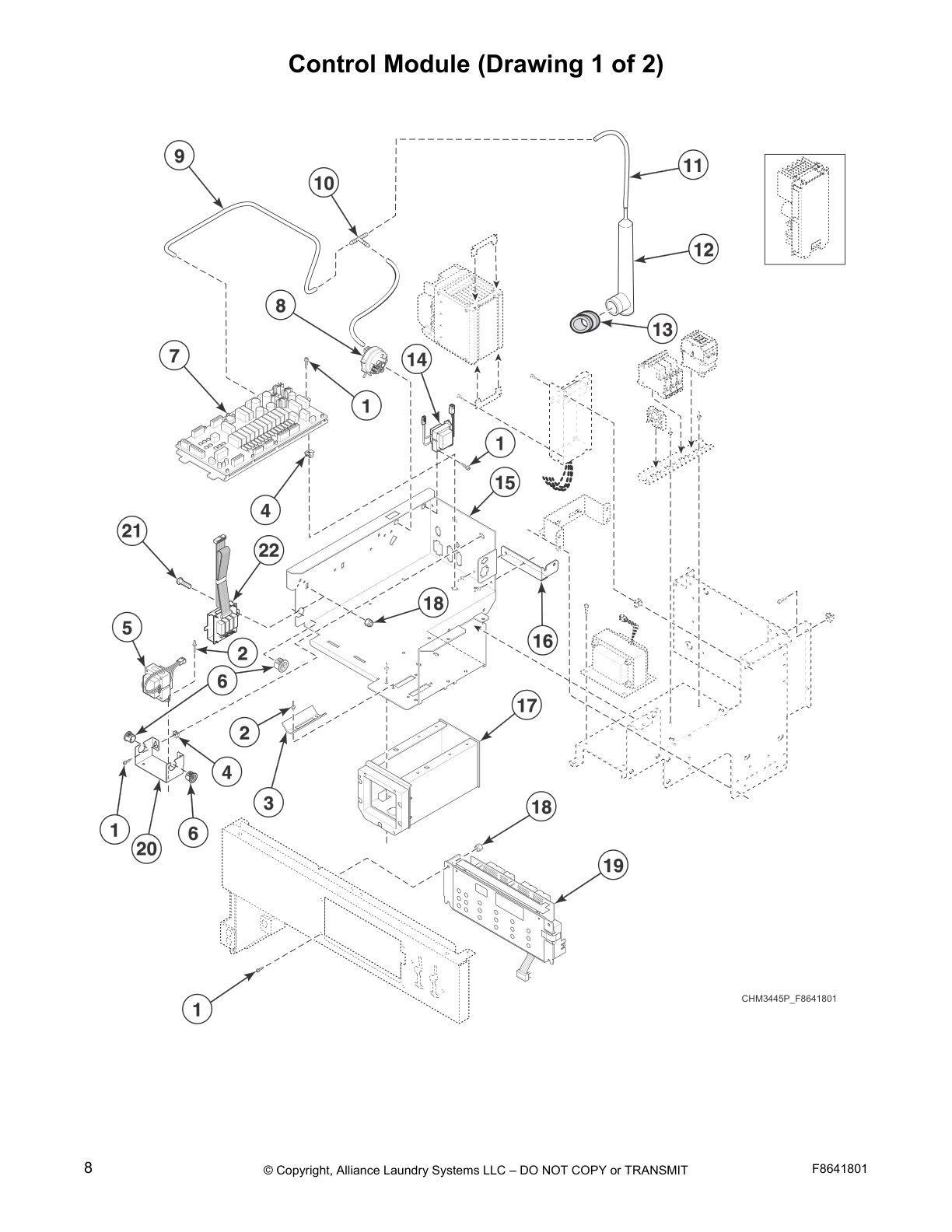

Control Module (Drawing 1 of 2)
Control Module (Drawing 2 of 2)
Network Controls
Flush Mount Coin Meter Assembly - Single Drop
Flush Mount Coin Meter Assembly - Dual Drop
Electronic Coin Meter Assembly
Card Reader
Optional Coin Box
Front Panels and Control Panel -
Coin and Remote/Central Pay Models
Front Panel, Control Panel and Control Panel Overlays -
Card Ready Models
Panels
Door - 20 and 30 Pound Models
Door - 40 and 60 Pound Models
Door Lock
Shell Front and Basket
Bearing Housing
Shell and Frame
Drain Plumbing
Drain Valve Assembly - 20 and 30 Pound Models
Drain Valve Assembly - 40 and 60 Pound Models
Steam Filter (Optional) and Water Supply Hose
Fill Plumbing Assembly
Double Check Valve
Motor, Pulley and Belt (Drawing 1 of 3)
Motor, Pulley and Belt (Drawing 2 of 3)
Motor, Pulley and Belt (Drawing 3 of 3)
Electric Heat Option
Steam Heat Option
Common parts from model Huebsch HCU040ZYV Washer
DIN Valve Adapter Kit SPQ F380984P Contact Us For Availability
SPQ 70281102 SPQ 70281102 Contact Us For Availability
SPQ CK121 SPQ CK121 Contact Us For Availability
SPQ 70482401 SPQ 70482401 Contact Us For Availability
SPQ 70294120 SPQ 70294120 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ 70295301 SPQ 70295301 Contact Us For Availability
SPQ F430533 SPQ F430533 Contact Us For Availability
SPQ F8507701 SPQ F8507701 Contact Us For Availability
Basket Tool Kit SPQ F460129P Contact Us For Availability
SPQ F8608502P SPQ F8608502P Contact Us For Availability
SPQ F8197701 SPQ F8197701 Contact Us For Availability
SPQ F8382301 SPQ F8382301 Contact Us For Availability
1
Network Wire Harness Assembly SPQ 44088501P Contact Us For Availability
1
Vault/FBS Jumper Harness SPQ F8191402 Contact Us For Availability
1
Coin Drawer Assembly SPQ F8182001 Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement K SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229601 Contact Us For Availability
1
Bearing SPQ F100137P Contact Us For Availability
1
Screw SPQ F8621601 Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Double Check Valve SPQ F8301201 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Water Pressure Switch SPQ F8404401 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Network Harness SPQ 44141801P Contact Us For Availability
2
Coin Drop Assembly SPQ 38464P Contact Us For Availability
2
Card Plate Assembly SPQ F8201501 Contact Us For Availability
2
Overlay SPQ F8173102P Contact Us For Availability
2
Pushbutton Switch SPQ F8399404 Contact Us For Availability
2
Reed Switch Assembly SPQ F431223 Contact Us For Availability
2
Spacer SPQ F430225 Contact Us For Availability
2
Bearing Housing SPQ F8271801P Contact Us For Availability
2
Drain Tee SPQ F8464701 Contact Us For Availability
2
Nut SPQ F8454401 Contact Us For Availability
2
Basket Pulley
30 and 40 pound models SPQ F150269 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
3
Door Lock Splash Shield SPQ F200203200 Contact Us For Availability
3
Communication Board SPQ 210095P Contact Us For Availability
3
Coin Drop SPQ 70256402P Contact Us For Availability
3
Mounting Plate SPQ 70208801 Contact Us For Availability
3
Expansion Clip SPQ F8173108 Contact Us For Availability
3
Top Cover SPQ F8230501 Contact Us For Availability
3
Nut SPQ F8513501 Contact Us For Availability
3
Seal Scupper Pad SPQ F8249902 Contact Us For Availability
3
Shell Weldment SPQ F8402701 Contact Us For Availability
3
Bolt SPQ F8367201 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
Washer SPQ F8382804 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
4
SPQ F8199501 SPQ F8199501 Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Nut SPQ 39157 Contact Us For Availability
4
Electronic Coin Drop Assembly SPQ CK109 Contact Us For Availability
4
Card Reader Overlay SPQ 70438201 Contact Us For Availability
4
Control Panel Assembly SPQ F8443803 Contact Us For Availability
4
SPQ F8230601 SPQ F8230601 Contact Us For Availability
4
Door Assembly SPQ F190216P Contact Us For Availability
4
Door Lock Plate Assembly SPQ F431901 Contact Us For Availability
4
Washer SPQ F8350302 Contact Us For Availability
4
Nut SPQ F8360801 Contact Us For Availability
4
Stud SPQ F200165100 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
5
Communication Connector SPQ 210099 Contact Us For Availability
5
Opto Coupler SPQ 210196 Contact Us For Availability
5
Coin Drop Assembly SPQ CK101 Contact Us For Availability
5
SPQ F8091701 SPQ F8091701 Contact Us For Availability
5
Screw SPQ F320200 Contact Us For Availability
5
Clamp Ring Bracket SPQ F8302701 Contact Us For Availability
5
Screw SPQ F430339 Contact Us For Availability
5
Frame Weldment SPQ F8442702 Contact Us For Availability
5
Drain Valve SPQ F8602602 Contact Us For Availability
5
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
5
Street Elbow SPQ 70263801 Contact Us For Availability
6
SPQ F8048101 SPQ F8048101 Contact Us For Availability
6
Snap Bushing SPQ M400770 Contact Us For Availability
6
Pop Rivet SPQ F8186702 Contact Us For Availability
6
Door Lock Plate Shim SPQ F8223202 Contact Us For Availability
6
Screw SPQ F8302401 Contact Us For Availability
6
Triple Lip Seal SPQ F8368801 Contact Us For Availability
6
SPQ F150398 SPQ F150398 Contact Us For Availability
6
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
6
Motor Isolation Kit
40 and 60 pound models SPQ M400077 Contact Us For Availability
6
Pipe Insulation SPQ F410300 Contact Us For Availability
6
Steam Bracket SPQ H86070034 Contact Us For Availability
7
Circuit Breaker SPQ F8310101 Contact Us For Availability
7
Communication Harness SPQ 70338301P Contact Us For Availability
7
Washer SPQ F8038704 Contact Us For Availability
7
SPQ F8544701 SPQ F8544701 Contact Us For Availability
7
External Door Lock Harness SPQ F430977 Contact Us For Availability
7
Retaining Ring SPQ F8203803 Contact Us For Availability
7
Concrete Kit SPQ F8249001 Contact Us For Availability
7
SPQ F8047801 SPQ F8047801 Contact Us For Availability
7
Includes F85350 and F8535201 Isolator SPQ F8362501 Contact Us For Availability
7
Plug SPQ F200202600 Contact Us For Availability
8
Water Pressure Switch SPQ F980P3 Contact Us For Availability
8
Jumper Configuration Assembly SPQ F8327301P Contact Us For Availability
8
SPQ F8201001 SPQ F8201001 Contact Us For Availability
8
SPQ F431916 SPQ F431916 Contact Us For Availability
8
SPQ F8344401 SPQ F8344401 Contact Us For Availability
8
Basket Assembly SPQ F8537803 Contact Us For Availability
8
Nut SPQ F8337801 Contact Us For Availability
8
SPQ 70334702 SPQ 70334702 Contact Us For Availability
8
SPQ F8043404 SPQ F8043404 Contact Us For Availability
8
Use with 2 hp moto SPQ H8752006H Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
DIN Valve Kit SPQ F8490301 Contact Us For Availability
9
SPQ 70412601 SPQ 70412601 Contact Us For Availability
9
SPQ F8040301 SPQ F8040301 Contact Us For Availability
9
SPQ F8535501 SPQ F8535501 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8391703 Contact Us For Availability
9
Basket Puller Tool SPQ F100134 Contact Us For Availability
9
SPQ F200213 SPQ F200213 Contact Us For Availability
9
Motor Harness
30 and 40 pound models SPQ F8562502 Contact Us For Availability
9
Steam Heat Kit SPQ F8322801P Contact Us For Availability
10
Gusset Plate SPQ F8186701 Contact Us For Availability
10
Top Cabinet Brace SPQ F8043801 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8337001 Contact Us For Availability
10
Dowel Pin SPQ F8388201 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Rear Drain Hose SPQ F200201 Contact Us For Availability
10
Vacuum Breaker Hose SPQ F8047402 Contact Us For Availability
10
Motor
20, 30 and 40 pound models SPQ F8335001P Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
11
DIN Rail SPQ F8385301 Contact Us For Availability
11
Door Bezel SPQ F0170426-30 Contact Us For Availability
11
Top Cover Hinge SPQ F8258601 Contact Us For Availability
11
Door Gasket SPQ F431041 Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Washer SPQ F8337002 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271802 Contact Us For Availability
11
Bracket SPQ F8231904 Contact Us For Availability
11
Hose Clamp SPQ F0200244-02 Contact Us For Availability
11
Screw SPQ 23222 Contact Us For Availability
11
Motor Rod Plate SPQ F8441101 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
11
Coupling SPQ F8362701 Contact Us For Availability
12
Front Cabinet Brace SPQ F430174 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Washer SPQ F8434601 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
12
Valve Panel SPQ 36811 Contact Us For Availability
12
Motor Conduit Mounting Bracket SPQ 70321701 Contact Us For Availability
13
Transformer SPQ F8401301 Contact Us For Availability
13
Front Panel SPQ F8174001 Contact Us For Availability
13
Plug SPQ M400985 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Nut SPQ M405535 Contact Us For Availability
13
Screw SPQ F8398901 Contact Us For Availability
13
Pipe Nipple SPQ 431486 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Grommet SPQ F8433001 Contact Us For Availability
14
Drive Tray Assembly SPQ F8359803 Contact Us For Availability
14
Hole Plug SPQ F8223901 Contact Us For Availability
14
Bolt SPQ F8111502 Contact Us For Availability
15
Magnet SPQ F170124 Contact Us For Availability
15
Rear Panel SPQ F8223801 Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Drain Hose SPQ 202175 Contact Us For Availability
15
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Plug SPQ F420409 Contact Us For Availability
16
Expansion Clip SPQ F8365201 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Overflow Hose SPQ F8232901 Contact Us For Availability
16
Harness SPQ F8230001 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Spring Plate SPQ F8525801 Contact Us For Availability
16
Flanged Bushing SPQ F8333302 Contact Us For Availability
16
Screw SPQ 20253 Contact Us For Availability
17
Pop Rivet SPQ F430974 Contact Us For Availability
17
Filter SPQ F8177001 Contact Us For Availability
17
Shell Weldment SPQ F8360802 Contact Us For Availability
18
Blind Rivet SPQ F8390801 Contact Us For Availability
18
Terminal Block SPQ F8206901 Contact Us For Availability
18
Left Side Panel SPQ F8399403 Contact Us For Availability
18
Blind Rivet SPQ F8508101 Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
19
Panel Lock SPQ F8399401 Contact Us For Availability
19
Basket Pulley
30 and 40 pound models SPQ F8387601 Contact Us For Availability
19
Siphon Cover SPQ F8454601 Contact Us For Availability
19
Motor Bracket Weldment
40 and 60 pound models SPQ F8441604 Contact Us For Availability
20
Door Hinge Shim Kit SPQ F431222 Contact Us For Availability
20
Ground Lug Connector SPQ 430642 Contact Us For Availability
20
Bolt SPQ F8399402 Contact Us For Availability
20
Rod SPQ F8245101 Contact Us For Availability
20
Flanged Isolator SPQ F8535202 Contact Us For Availability
21
Lid Clamp SPQ 44089303P Contact Us For Availability
21
3-Way Valve SPQ F8047901 Contact Us For Availability
21
Use with 2 a SPQ F8441901 Contact Us For Availability
22
Dispenser Lid SPQ 70413301 Contact Us For Availability
22
Washer SPQ F430232 Contact Us For Availability
22
O-Ring SPQ F8333301 Contact Us For Availability
22
Eye Bolt SPQ F8319503 Contact Us For Availability
23
Washer SPQ F602813-3 Contact Us For Availability
23
Hose SPQ M411283 Contact Us For Availability
24
Door Mount SPQ F200131000P Contact Us For Availability
24
P-Trap Hose SPQ F430909 Contact Us For Availability
25
Door Hinge SPQ F430536 Contact Us For Availability
25
Manifold SPQ F8286402P Contact Us For Availability
26
Door Handle SPQ F430215 Contact Us For Availability
26
Dispenser Gasket SPQ F8286401P Contact Us For Availability
27
Door Handle Spacer Kit SPQ F150271 Contact Us For Availability
27
Door SPQ F431929 Contact Us For Availability
28
Dispenser Overflow Hose SPQ F8232002 Contact Us For Availability
29
Vacuum Supply Hose SPQ F8042204 Contact Us For Availability
30
Cap SPQ F8333201 Contact Us For Availability
31
Diaphragm and Guide Kit SPQ F200222 Contact Us For Availability
32
SPQ F8308301 SPQ F8308301 Contact Us For Availability
NI
SPQ F8567501 SPQ F8567501 Contact Us For Availability
NI
Communication Harness SPQ F937P3 Contact Us For Availability
NI
Control Tray Harness SPQ F8028701 Contact Us For Availability
NI
SPQ F8028104P SPQ F8028104P Contact Us For Availability
NI
SPQ F8261501P SPQ F8261501P Contact Us For Availability
NI
USB Gateway Kit SPQ NK330 Contact Us For Availability
NI
SPQ F200010000P SPQ F200010000P Contact Us For Availability
NI
Pop Rivet SPQ 210195 Contact Us For Availability
NI
Coin Drop Kit SPQ CK100 Contact Us For Availability
NI
Pulse Expander Assembly SPQ CK099 Contact Us For Availability
NI
SPQ 70294104 SPQ 70294104 Contact Us For Availability
NI
SPQ CK122 SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ 70294121 SPQ 70294121 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ F8034701P SPQ F8034701P Contact Us For Availability
NI
SPQ 70295101 SPQ 70295101 Contact Us For Availability
NI
SPQ CK500 SPQ CK500 Contact Us For Availability
NI
Jumper Harness SPQ 70334201 Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
SPQ F8201101 SPQ F8201101 Contact Us For Availability
NI
SPQ F602842-2 SPQ F602842-2 Contact Us For Availability
NI
SPQ F8507702 SPQ F8507702 Contact Us For Availability
NI
SPQ F8187406 SPQ F8187406 Contact Us For Availability
NI
SPQ F8187403 SPQ F8187403 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
Basket Puller Tool SPQ F8391701P Contact Us For Availability
NI
Basket Rental Tool Kit SPQ F8343906P Contact Us For Availability
NI
SPQ 390P4-1 SPQ 390P4-1 Contact Us For Availability
NI
SPQ F8388003 SPQ F8388003 Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
Basket Rental Tool Kit SPQ F8387701 Contact Us For Availability
NI
SPQ F8433501 SPQ F8433501 Contact Us For Availability
NI
SPQ 1111P SPQ 1111P Contact Us For Availability
NI
Drain Seal Kit SPQ F8562001 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F8042804 SPQ F8042804 Contact Us For Availability
NI
SPQ F8048601 SPQ F8048601 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
Q and X-voltage SPQ F8384901 Contact Us For Availability
NI
Motor Harness
30 and 40 pound models N and P- SPQ F8396601 Contact Us For Availability
NI
Jumper Wire SPQ F8056001 Contact Us For Availability
NI
Steam Valve Repair Kit SPQ F8521501 Contact Us For Availability
NI
Coil SPQ F953P3 Contact Us For Availability
NI
Valve Kit SPQ F8514601P Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
