Model Huebsch HCU040KXF Washer – Common Parts & Diagrams
Decals
Control Module - 2 Speed OPL Models

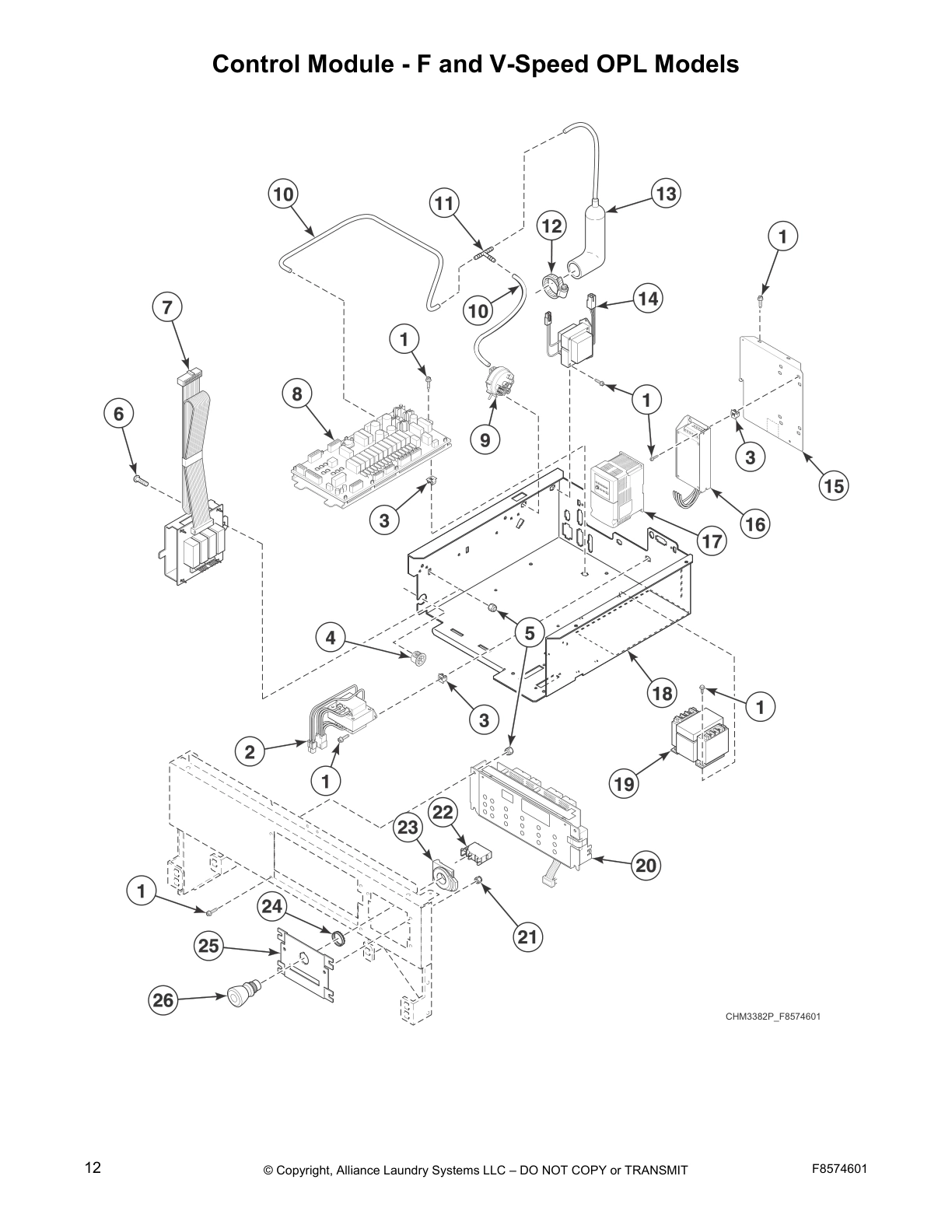

Control Module - F and V-Speed OPL Models

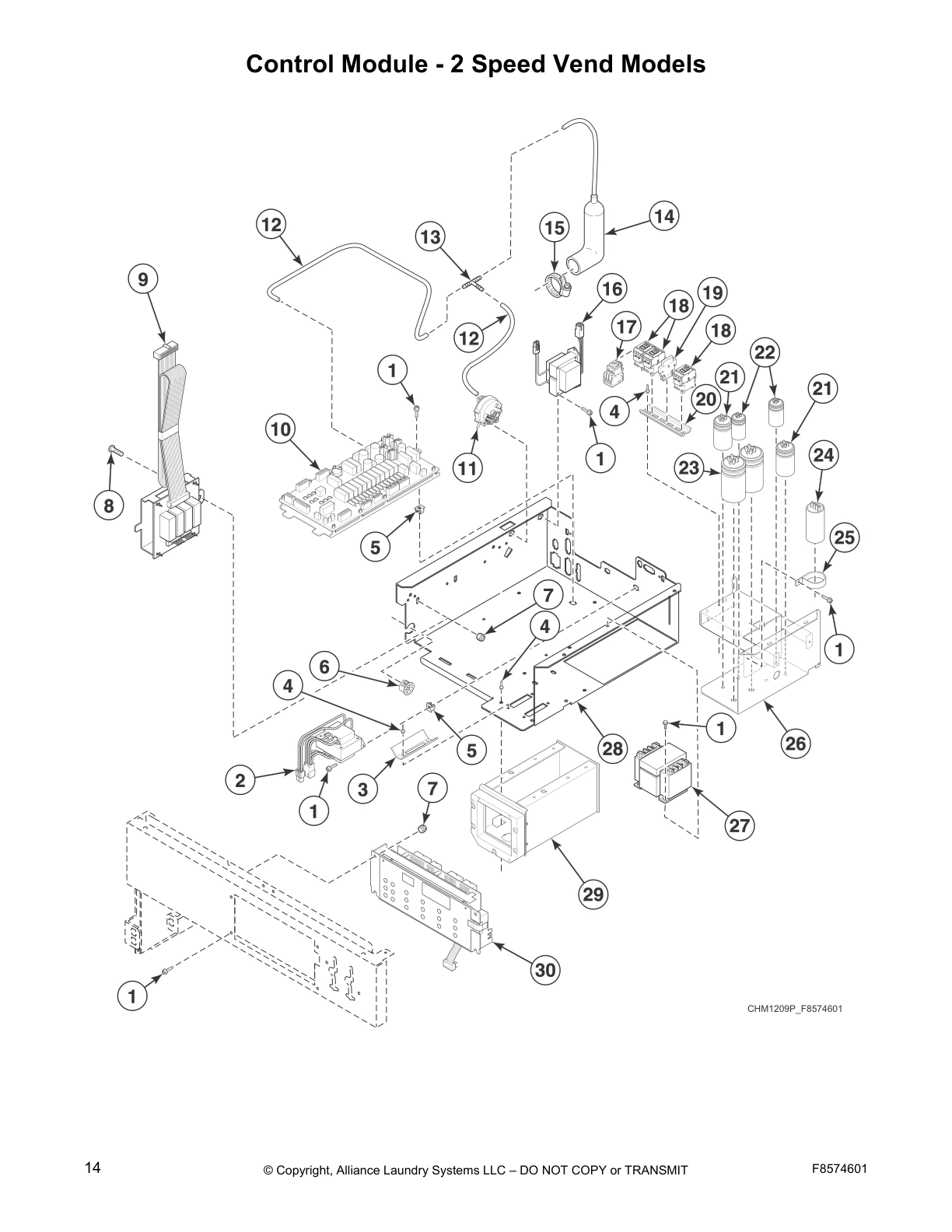

Control Module - 2 Speed Vend Models

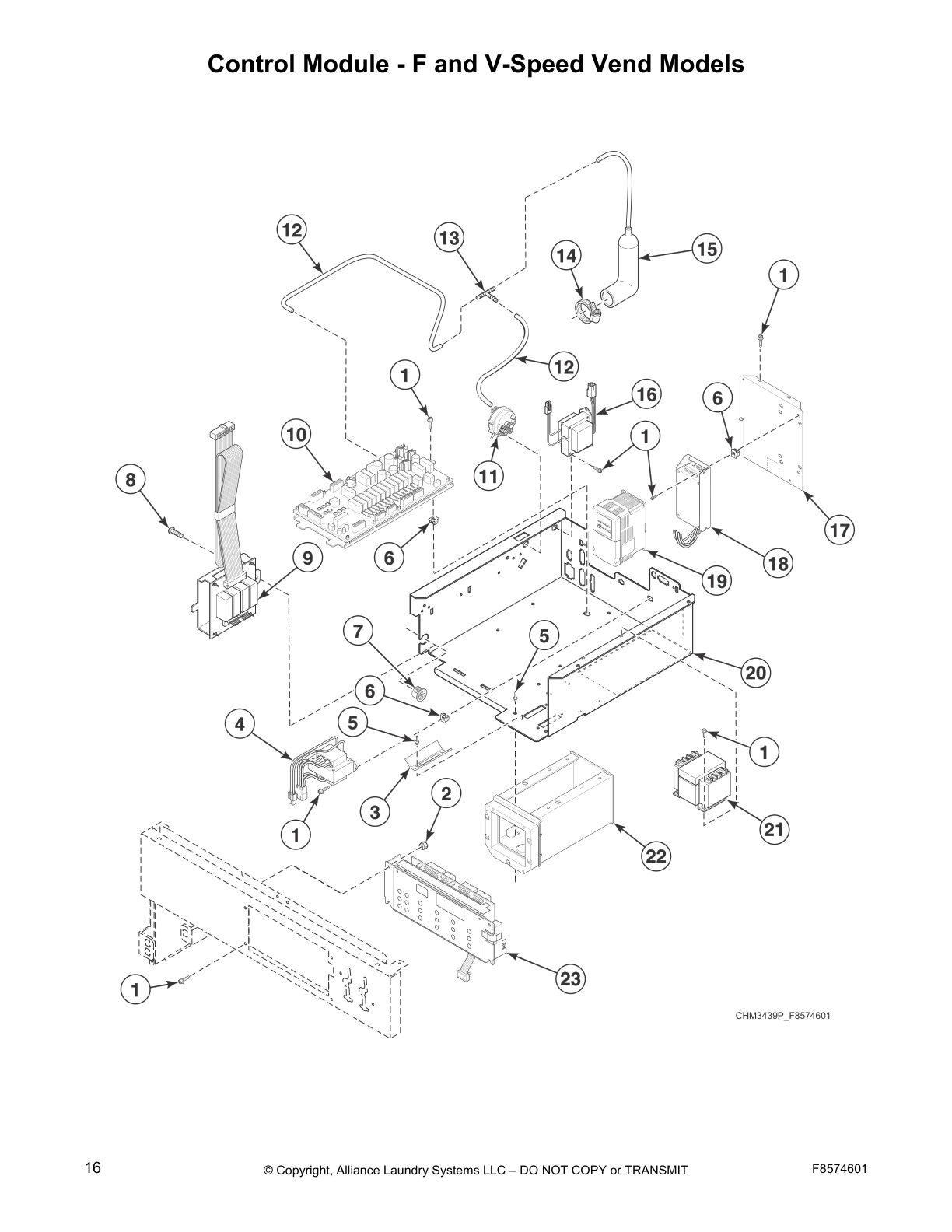

Control Module - F and V-Speed Vend Models

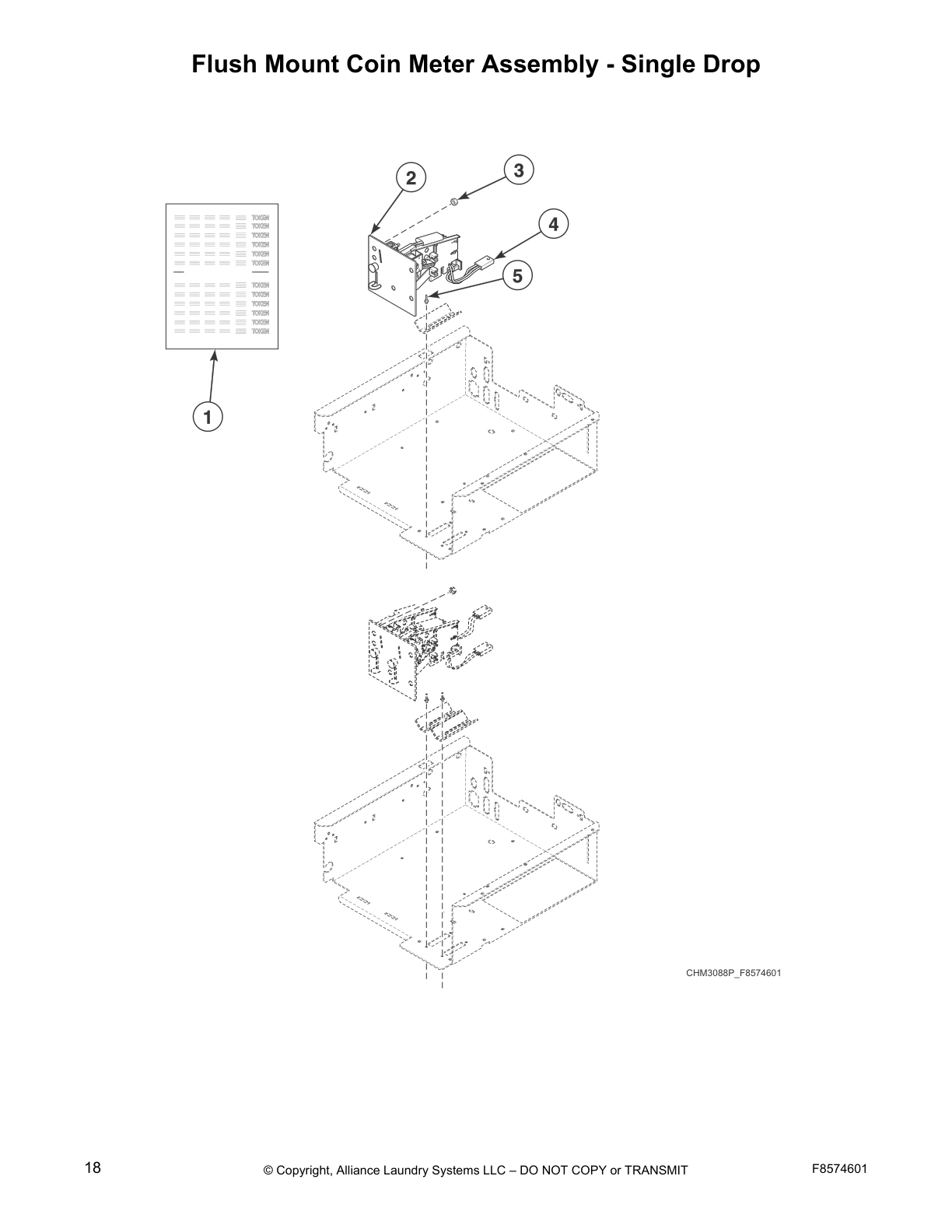

Flush Mount Coin Meter Assembly - Single Drop

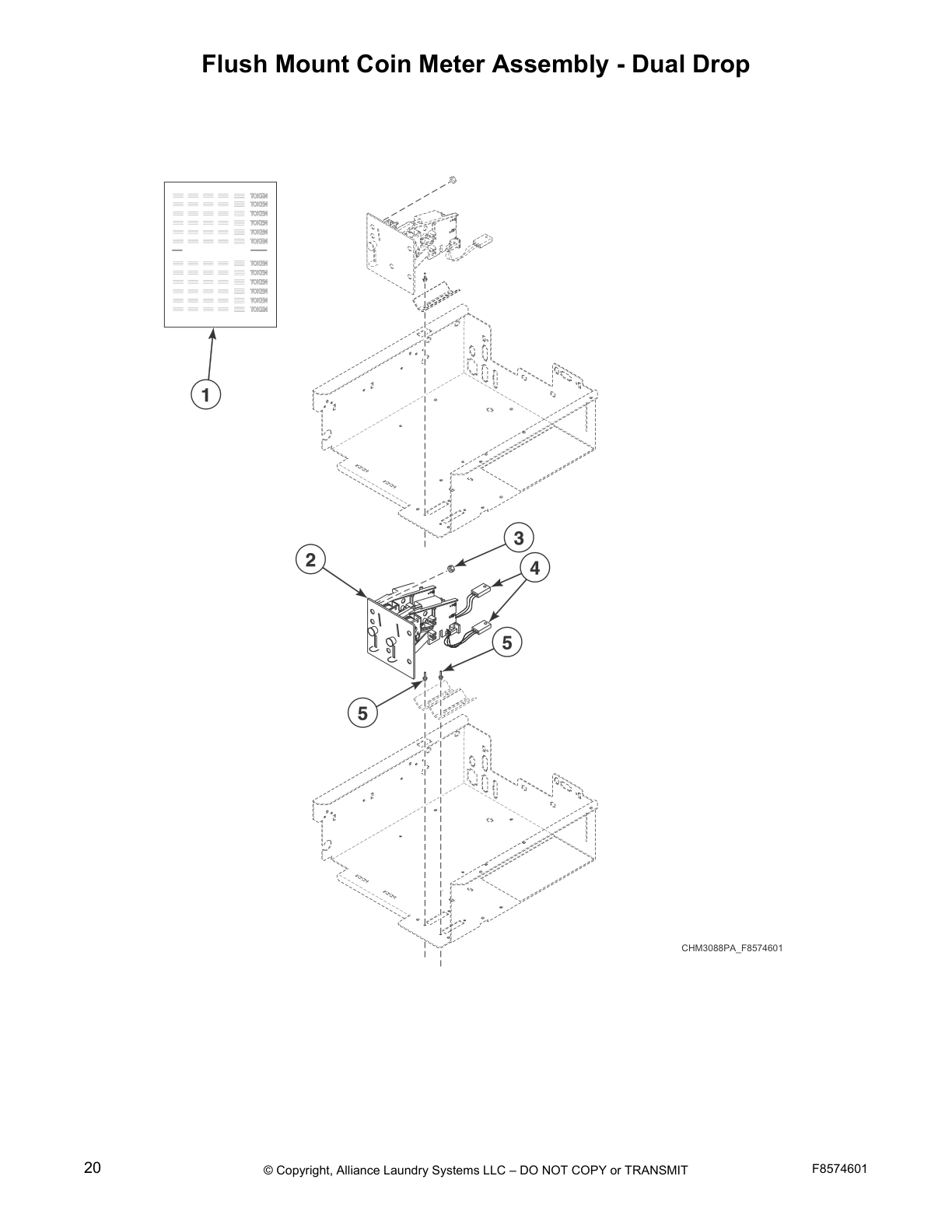

Flush Mount Coin Meter Assembly - Dual Drop

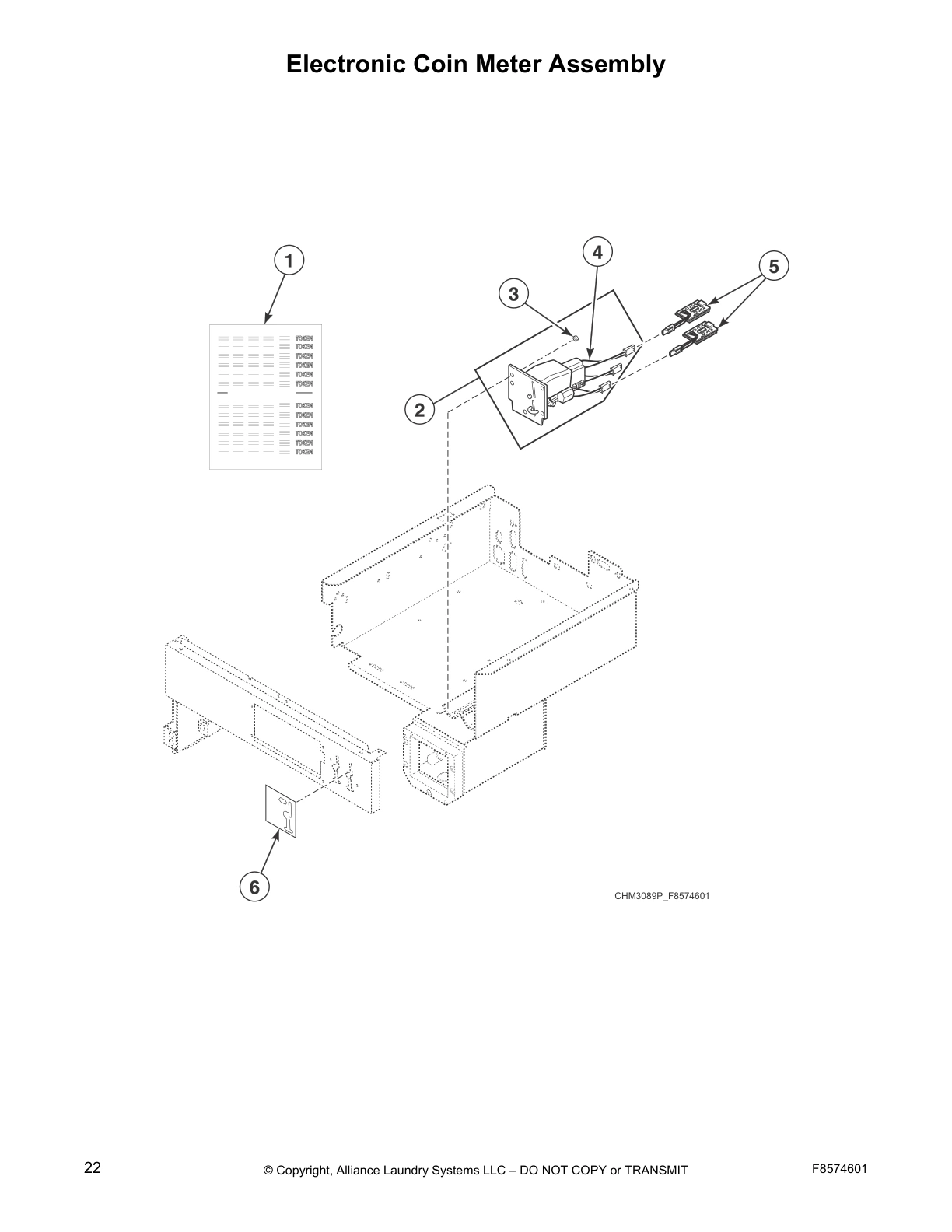

Electronic Coin Meter Assembly

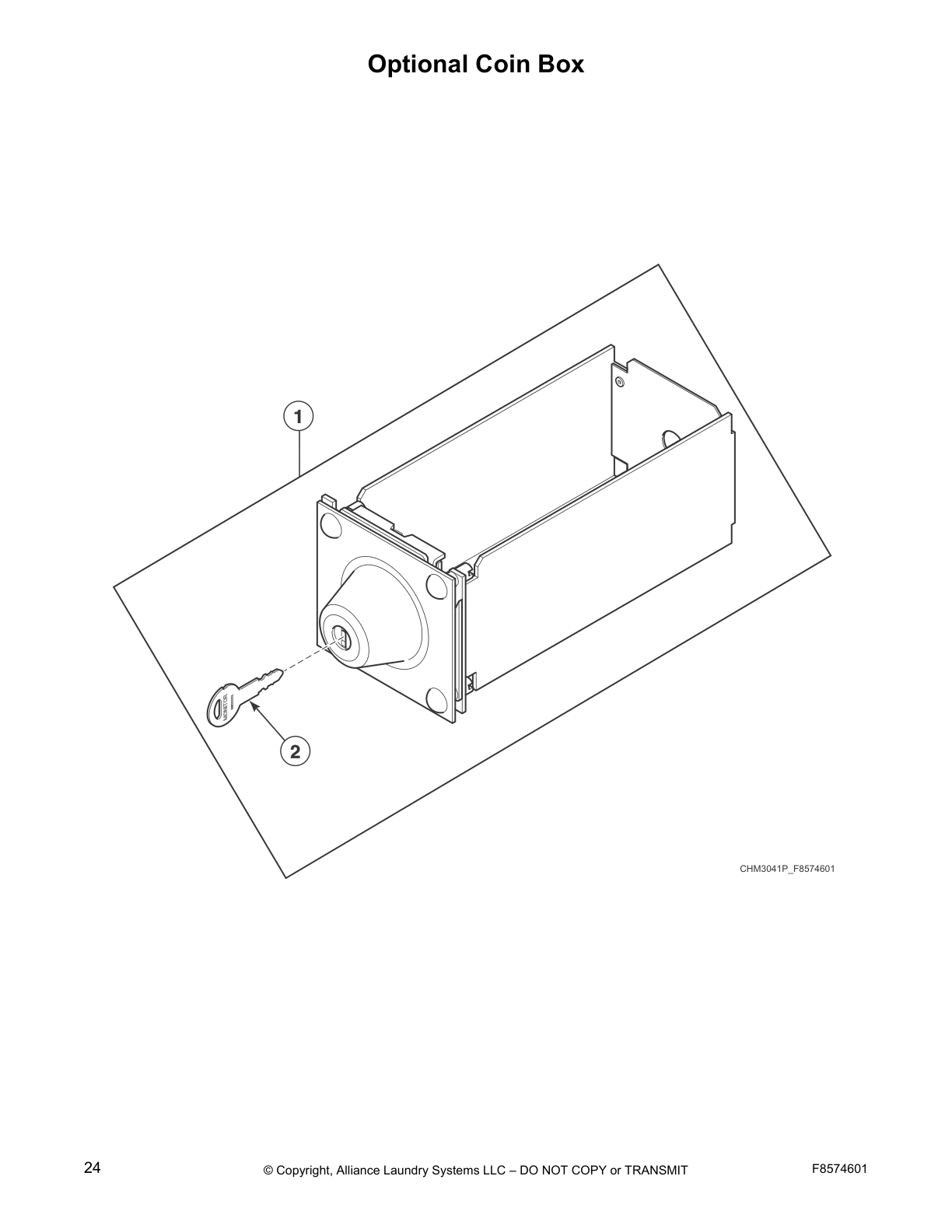

Optional Coin Box

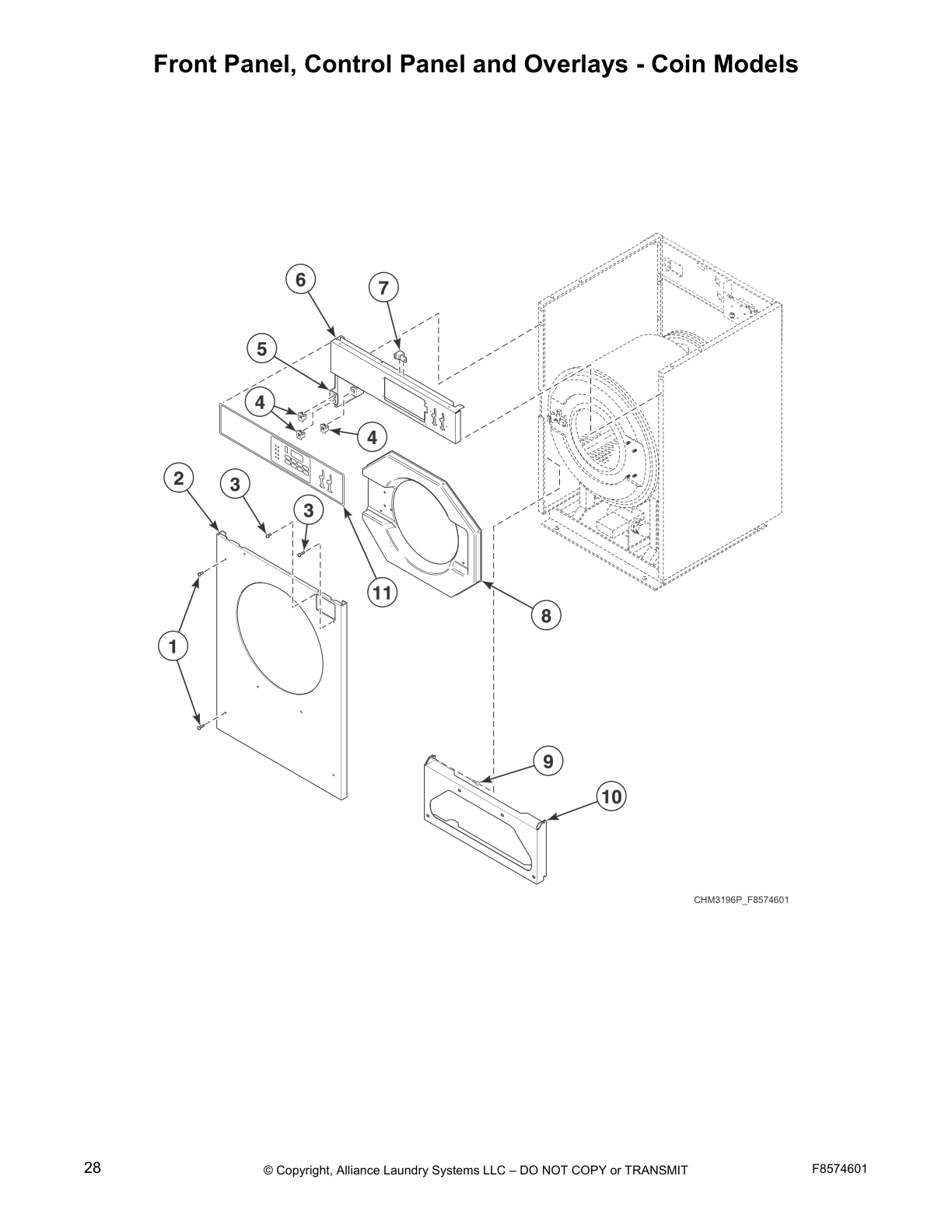

Front Panel, Control Panel and Overlays - Coin Models

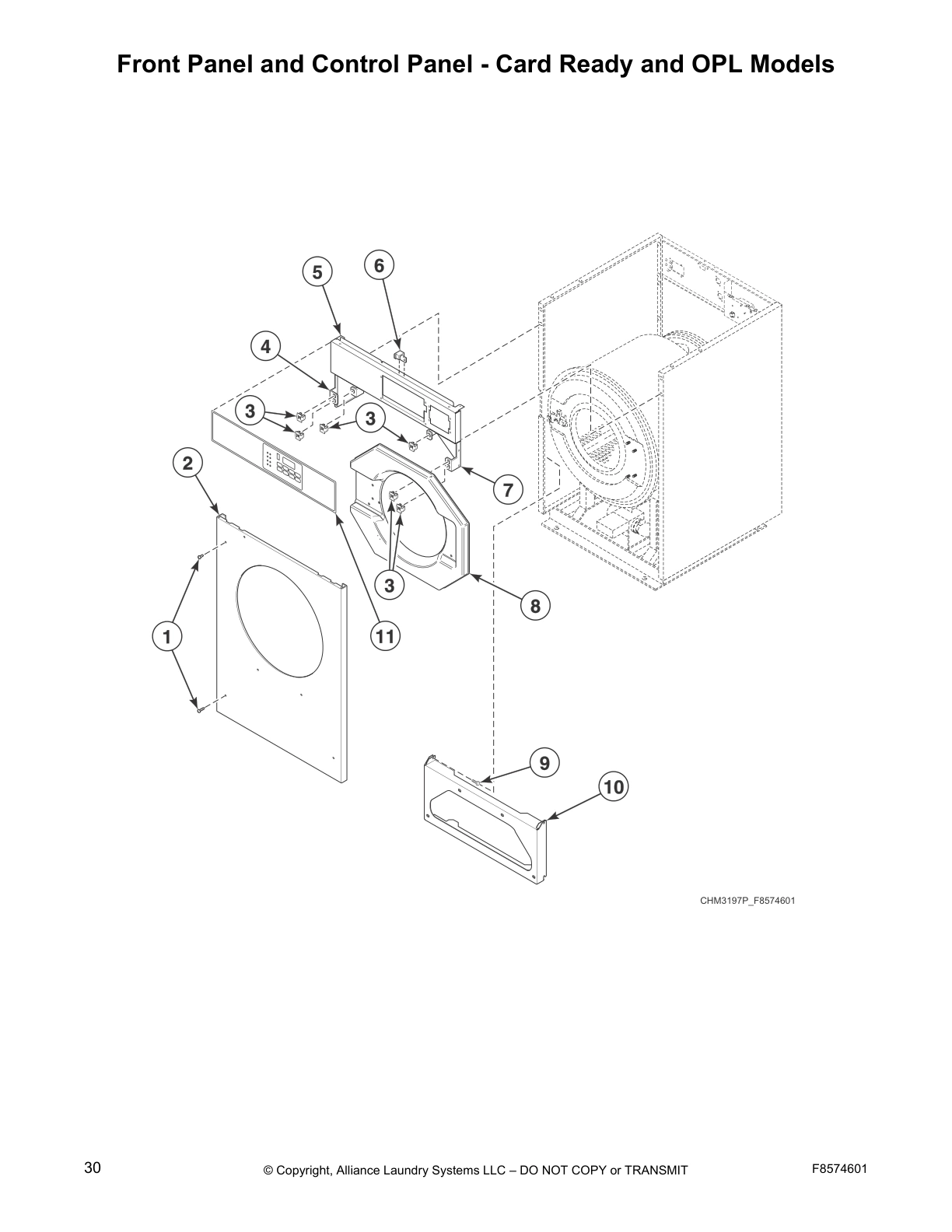

Front Panel and Control Panel - Card Ready and OPL Models

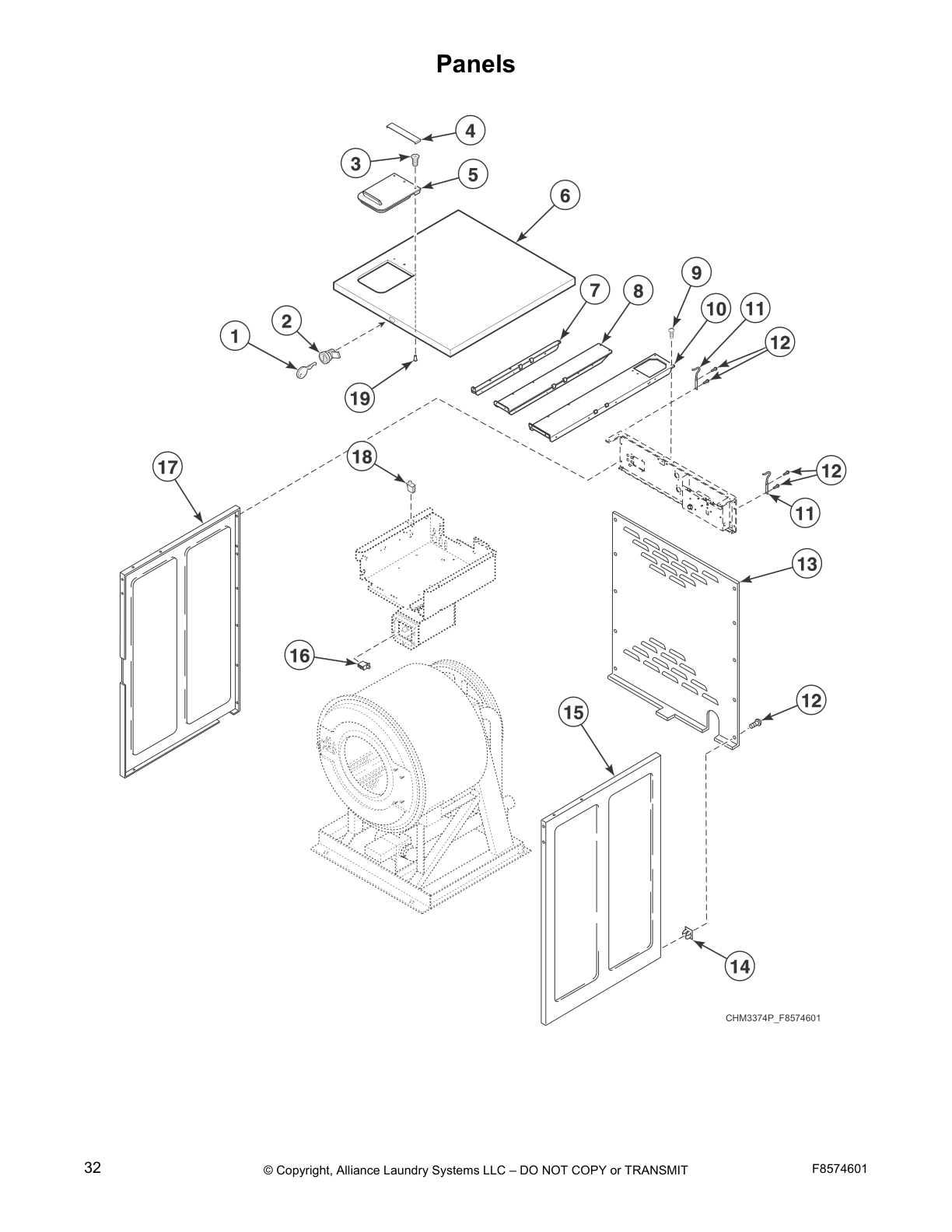

Panels

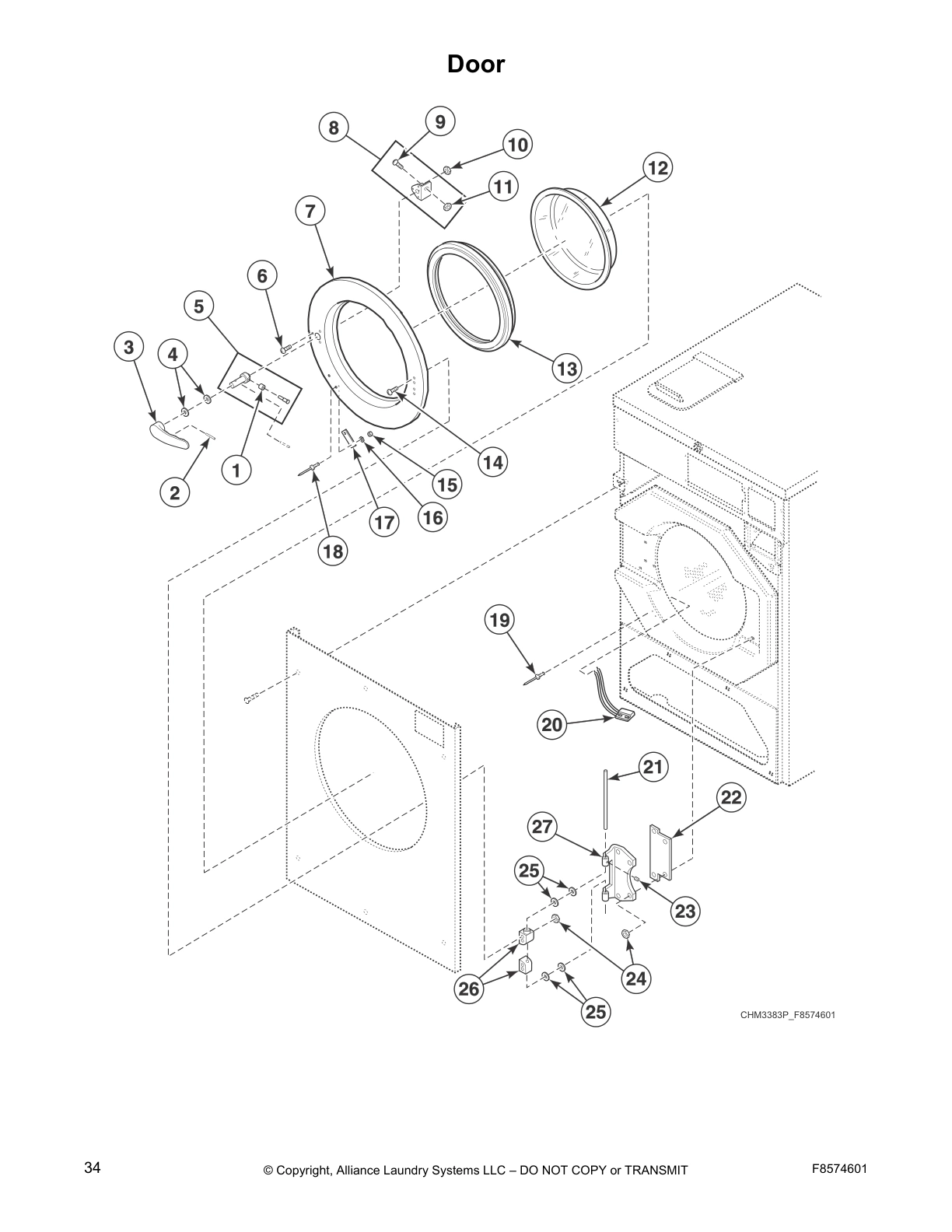

Door

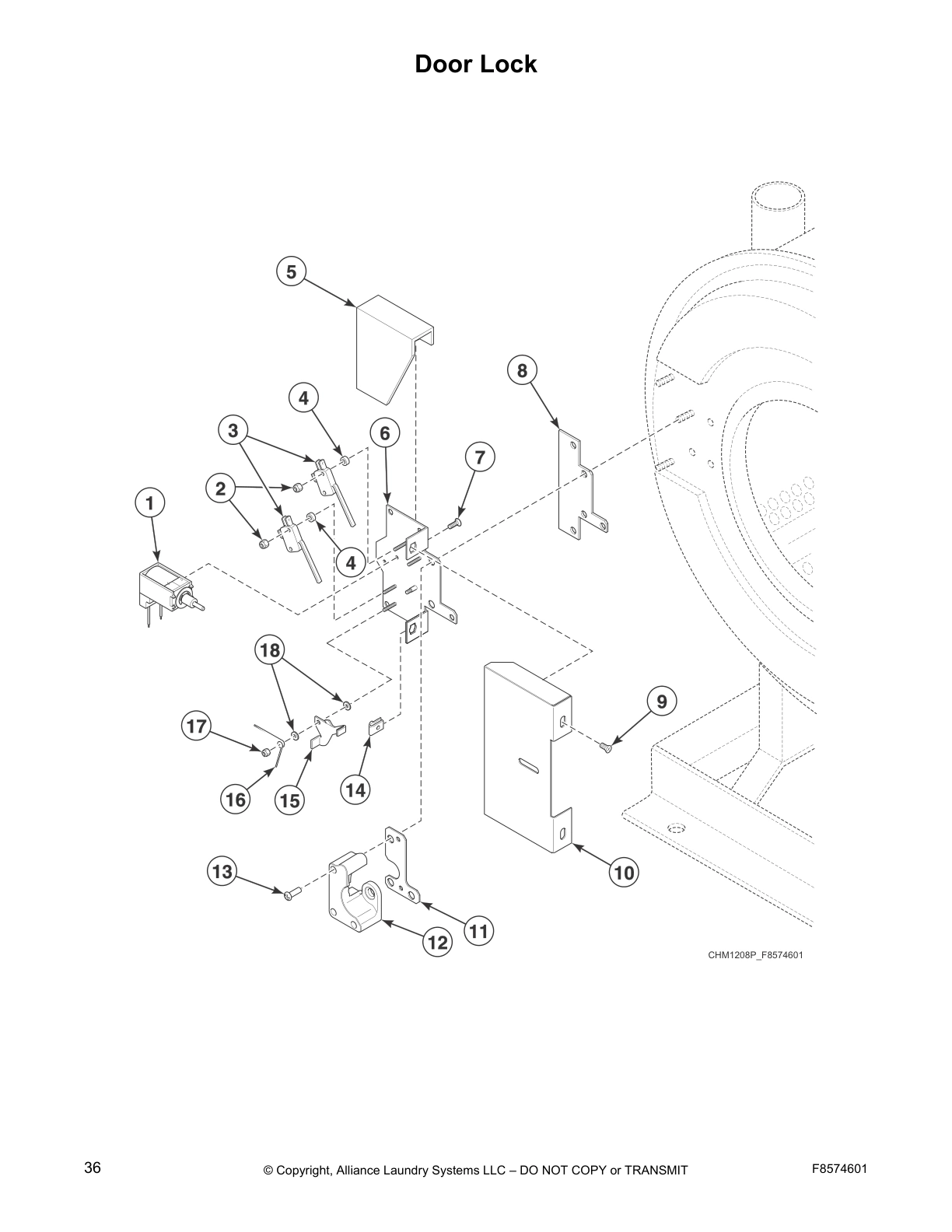

Door Lock

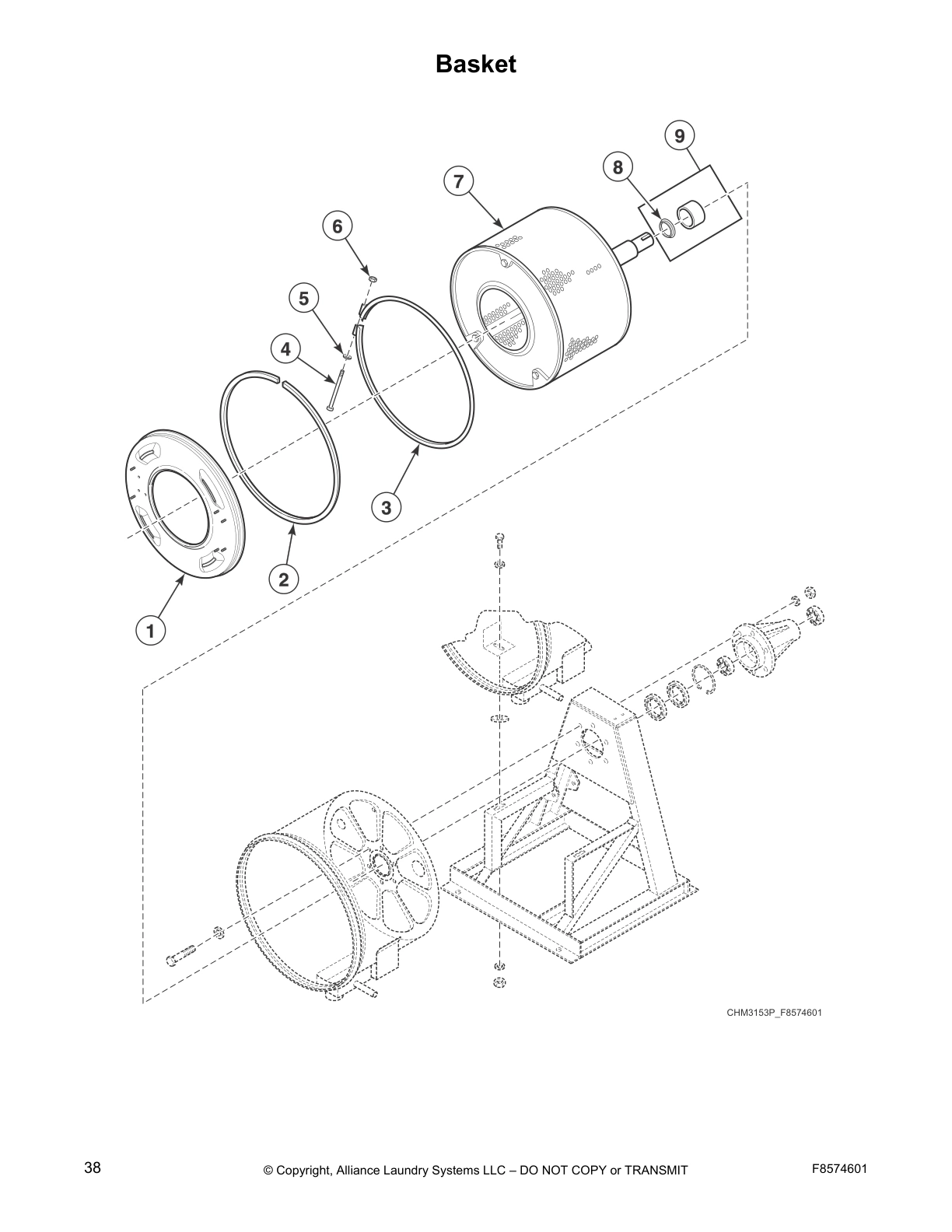

Basket

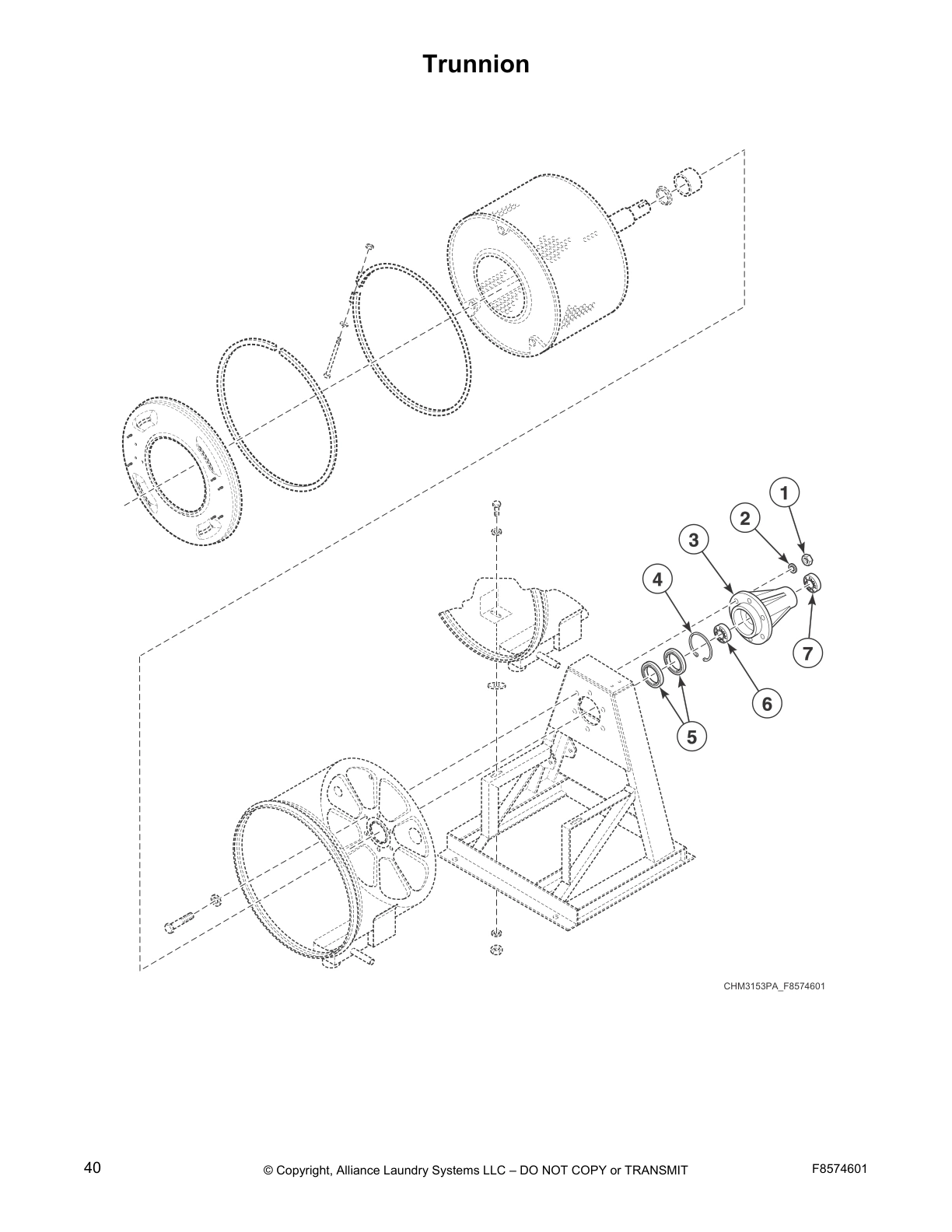

Trunnion

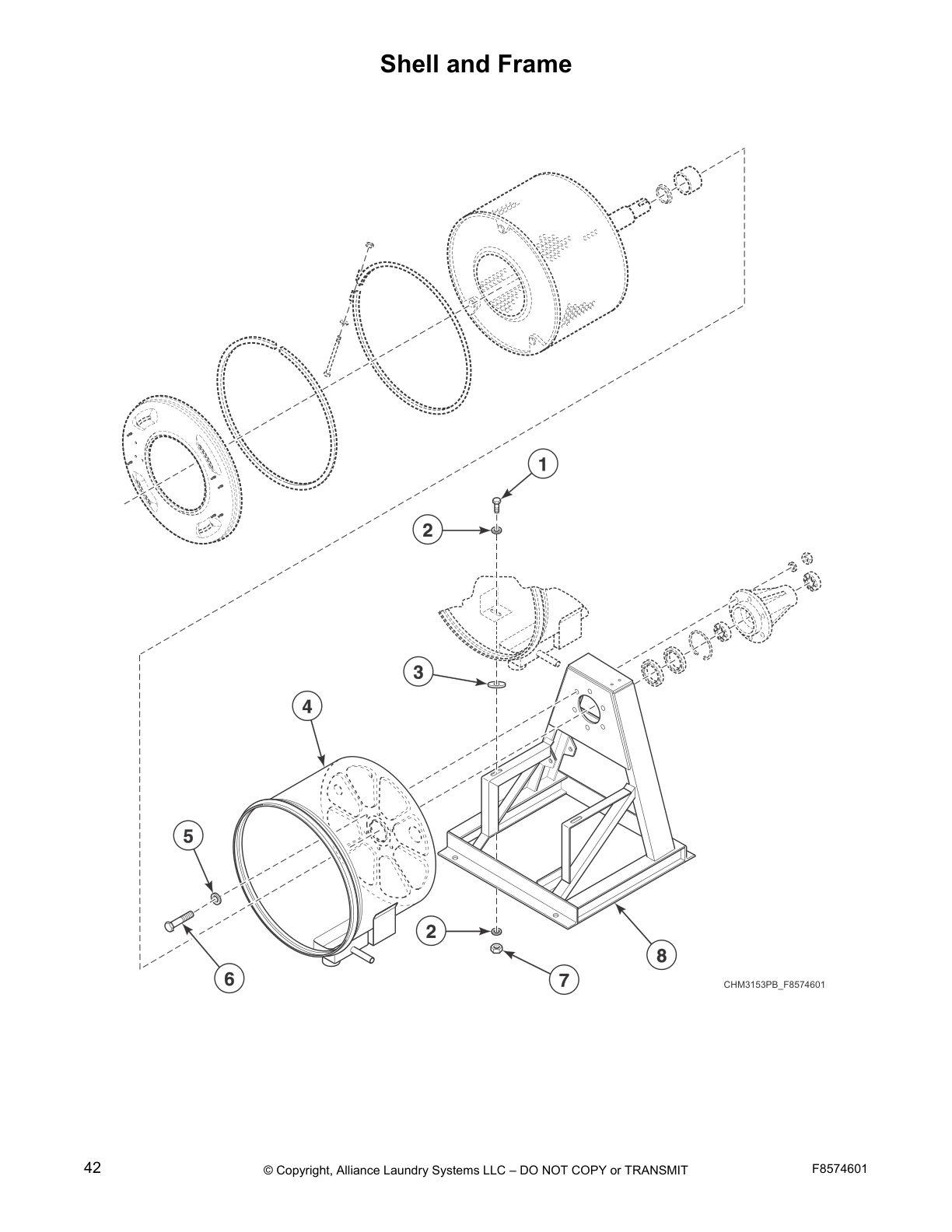

Shell and Frame

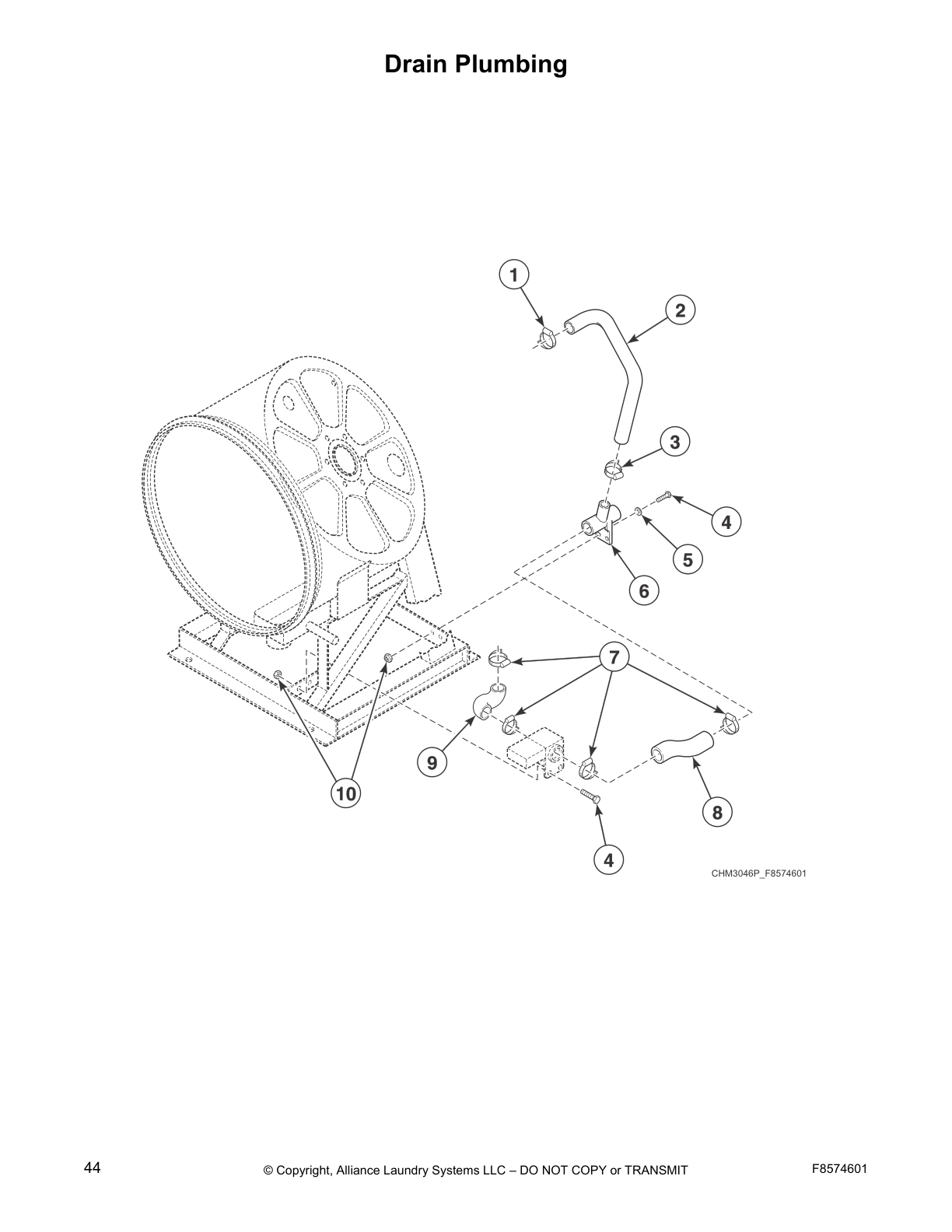

Drain Plumbing

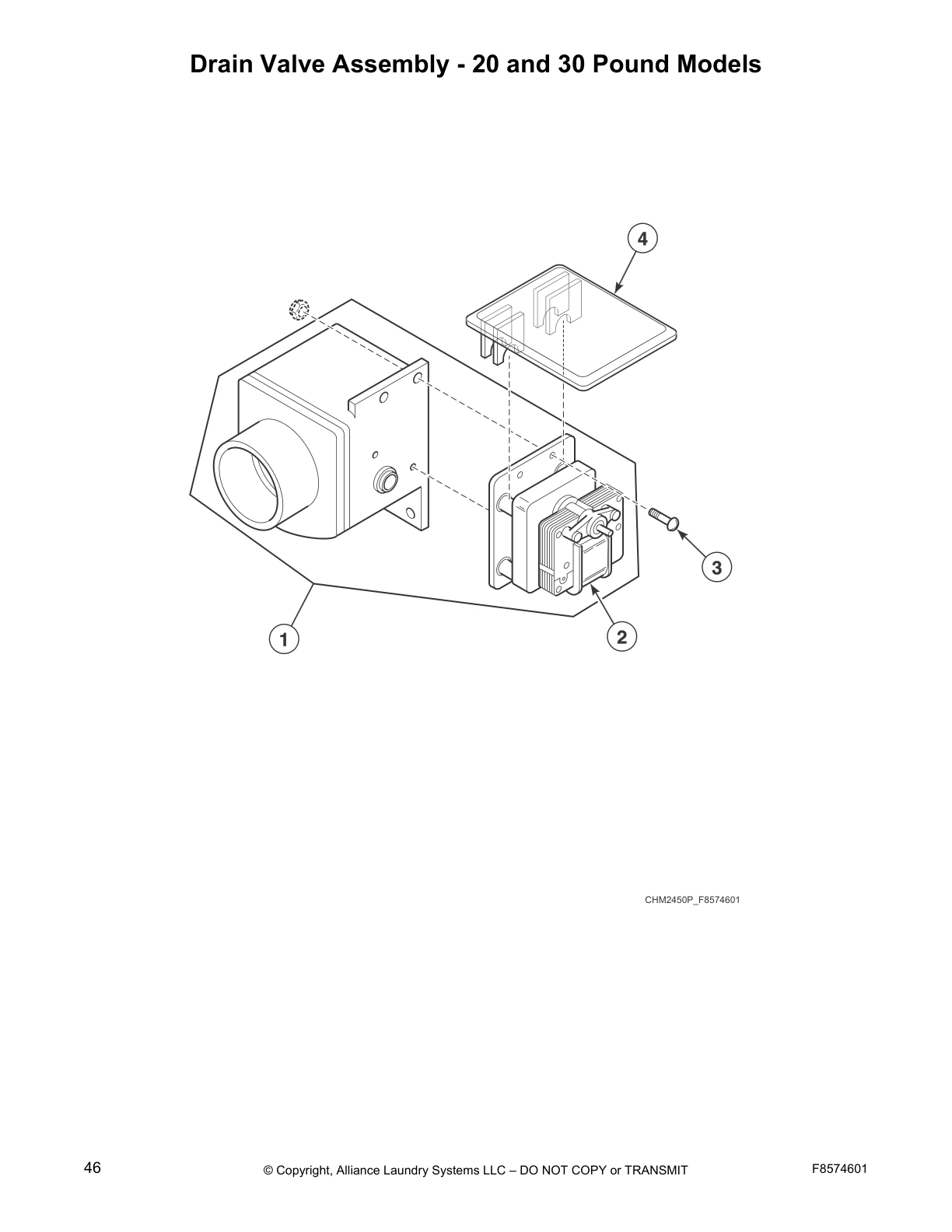

Drain Valve Assembly - 20 and 30 Pound Models

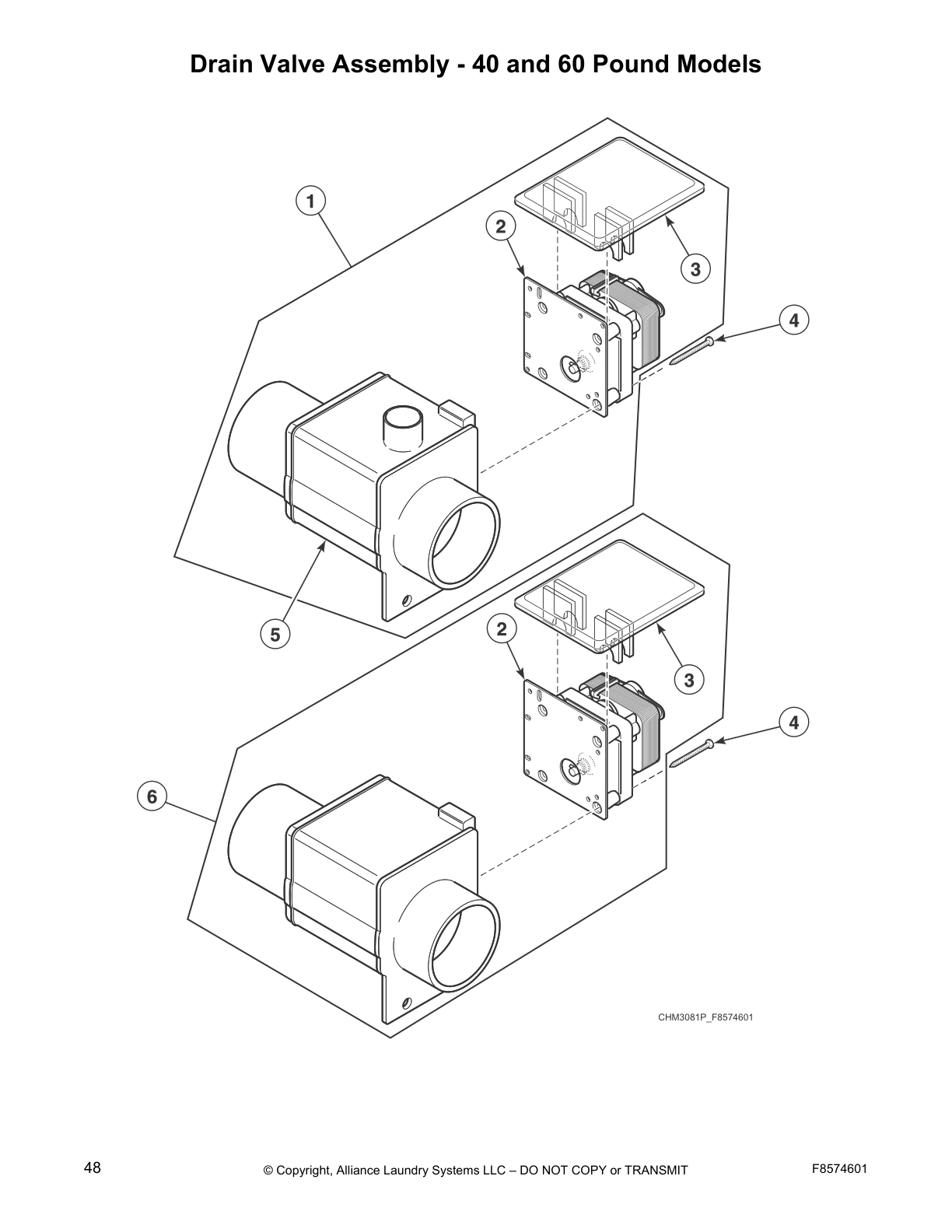

Drain Valve Assembly - 40 and 60 Pound Models

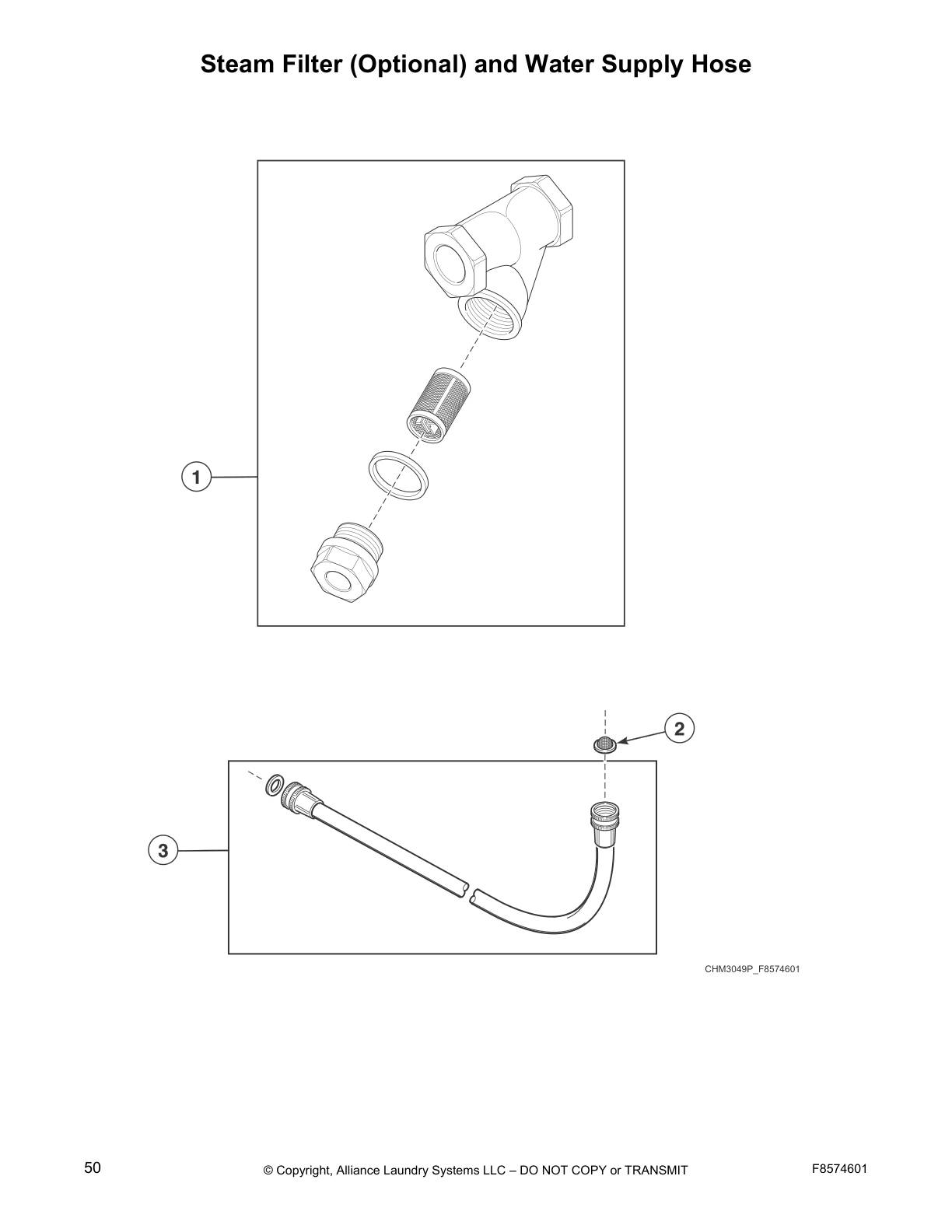

Steam Filter (Optional) and Water Supply Hose

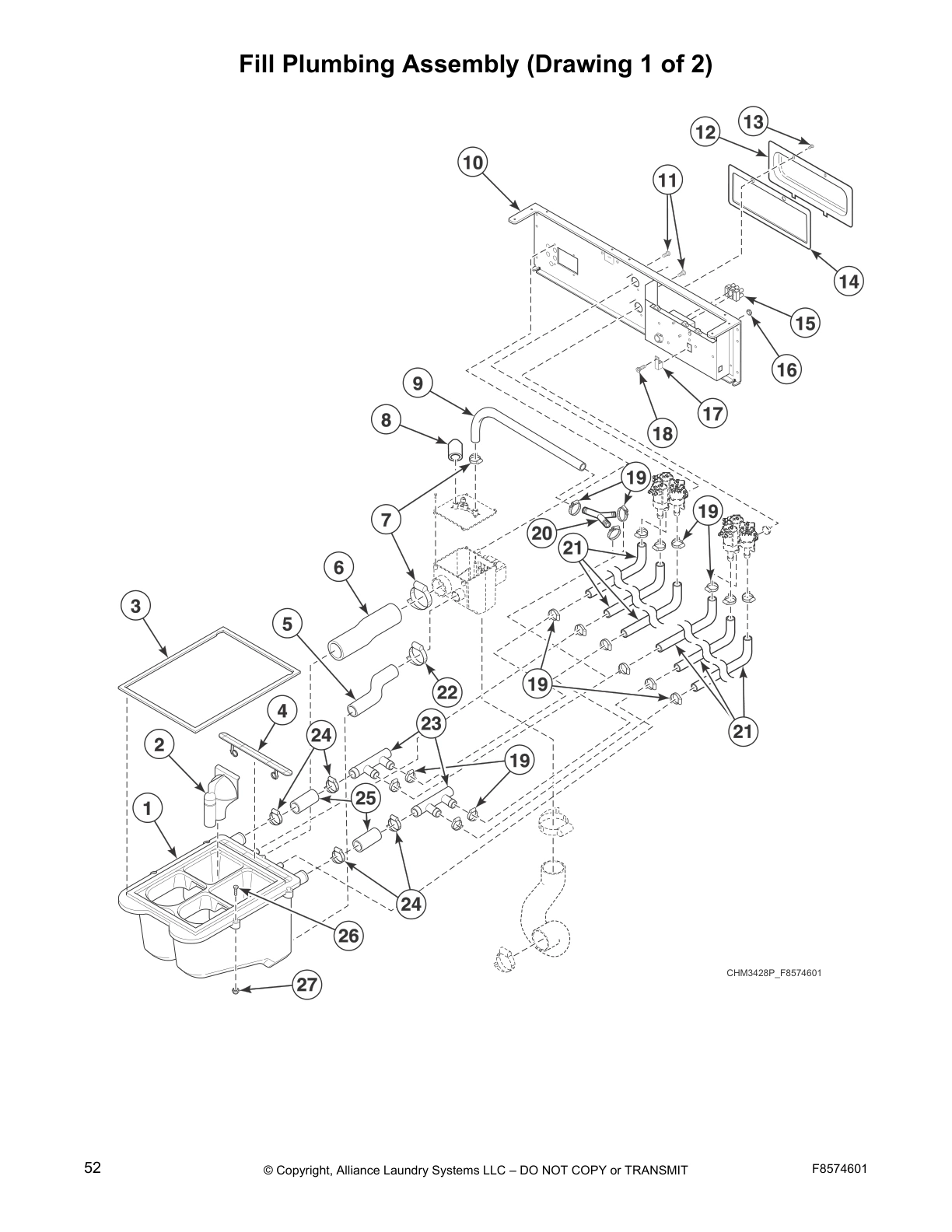

Fill Plumbing Assembly (Drawing 1 of 2)

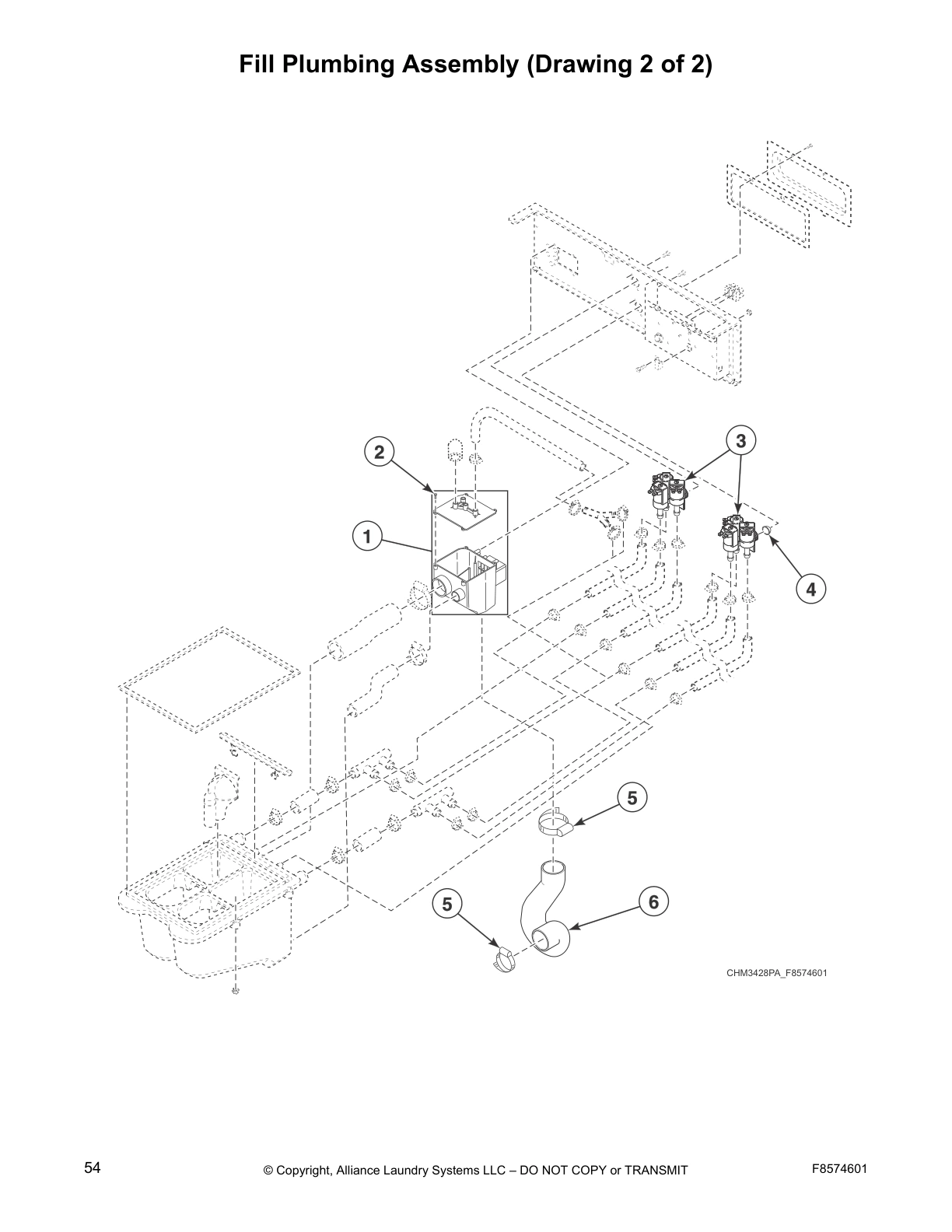

Fill Plumbing Assembly (Drawing 2 of 2)

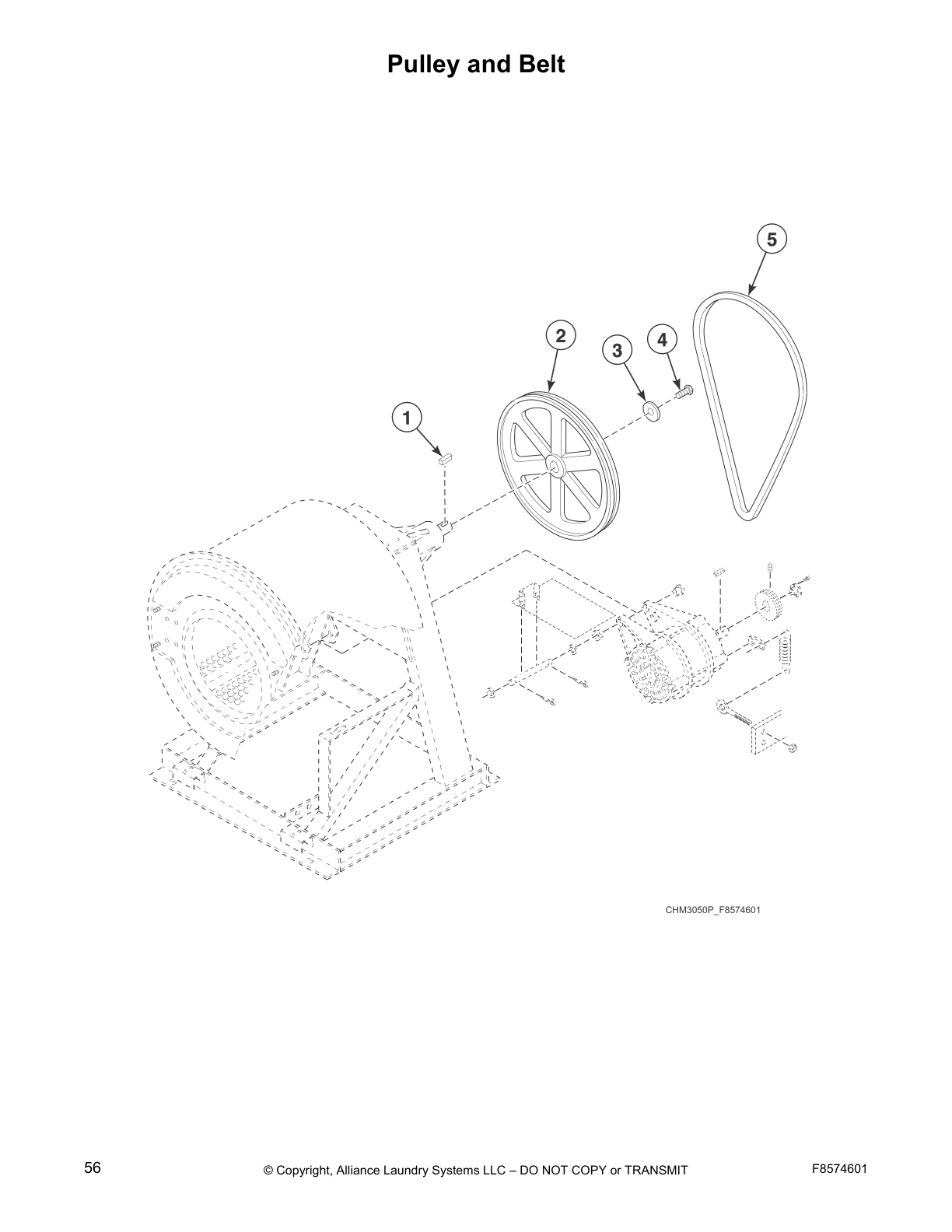

Pulley and Belt

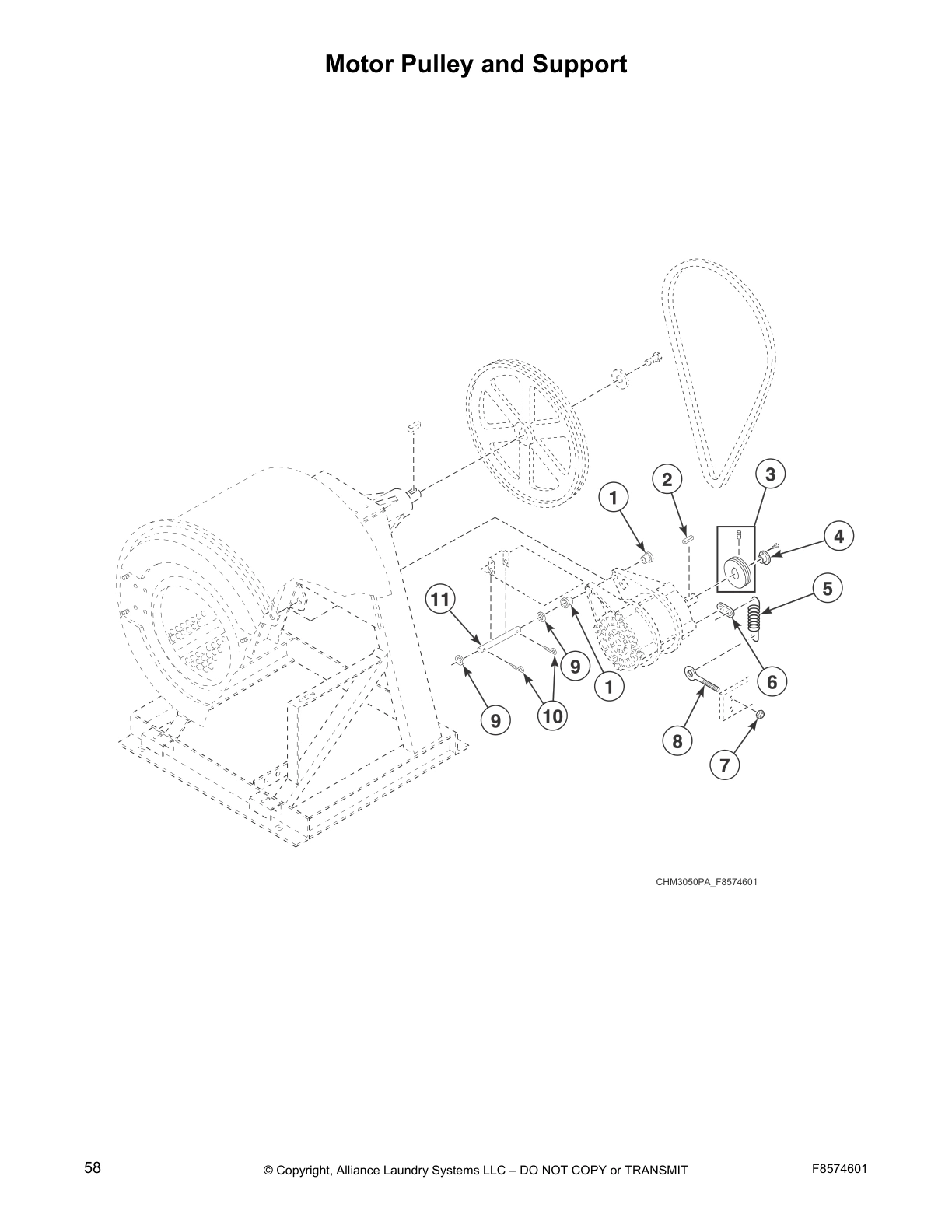

Motor Pulley and Support

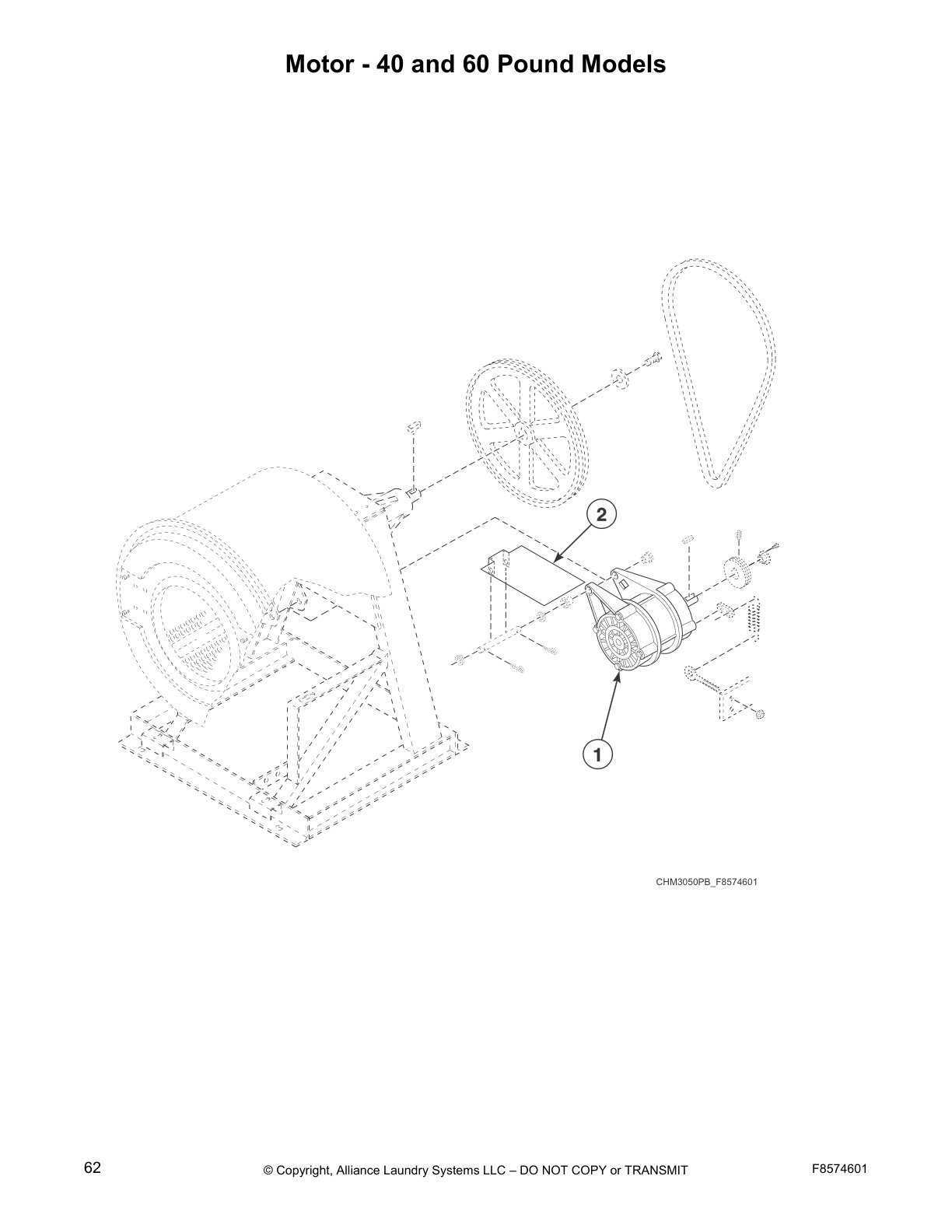

Motor - 40 and 60 Pound Models

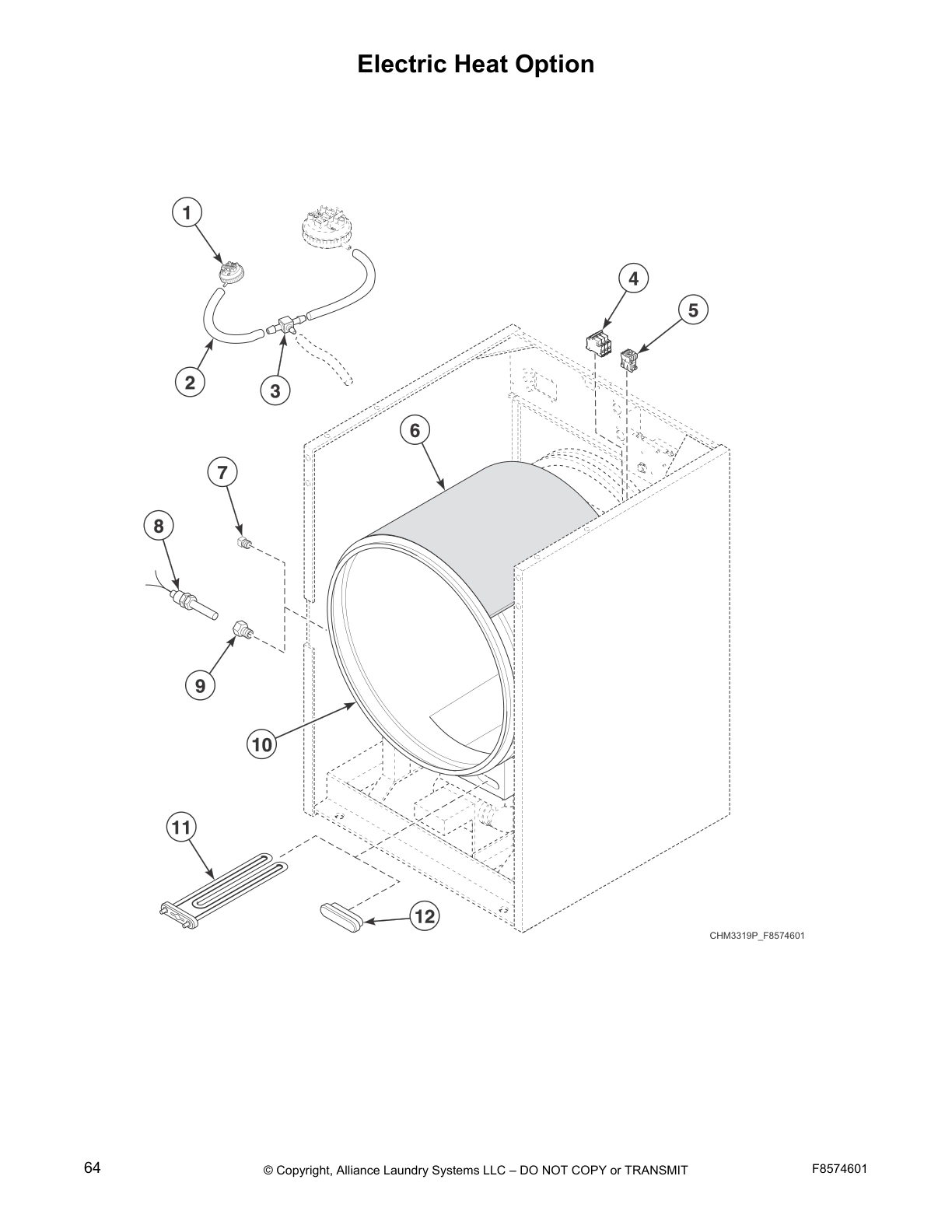

Electric Heat Option

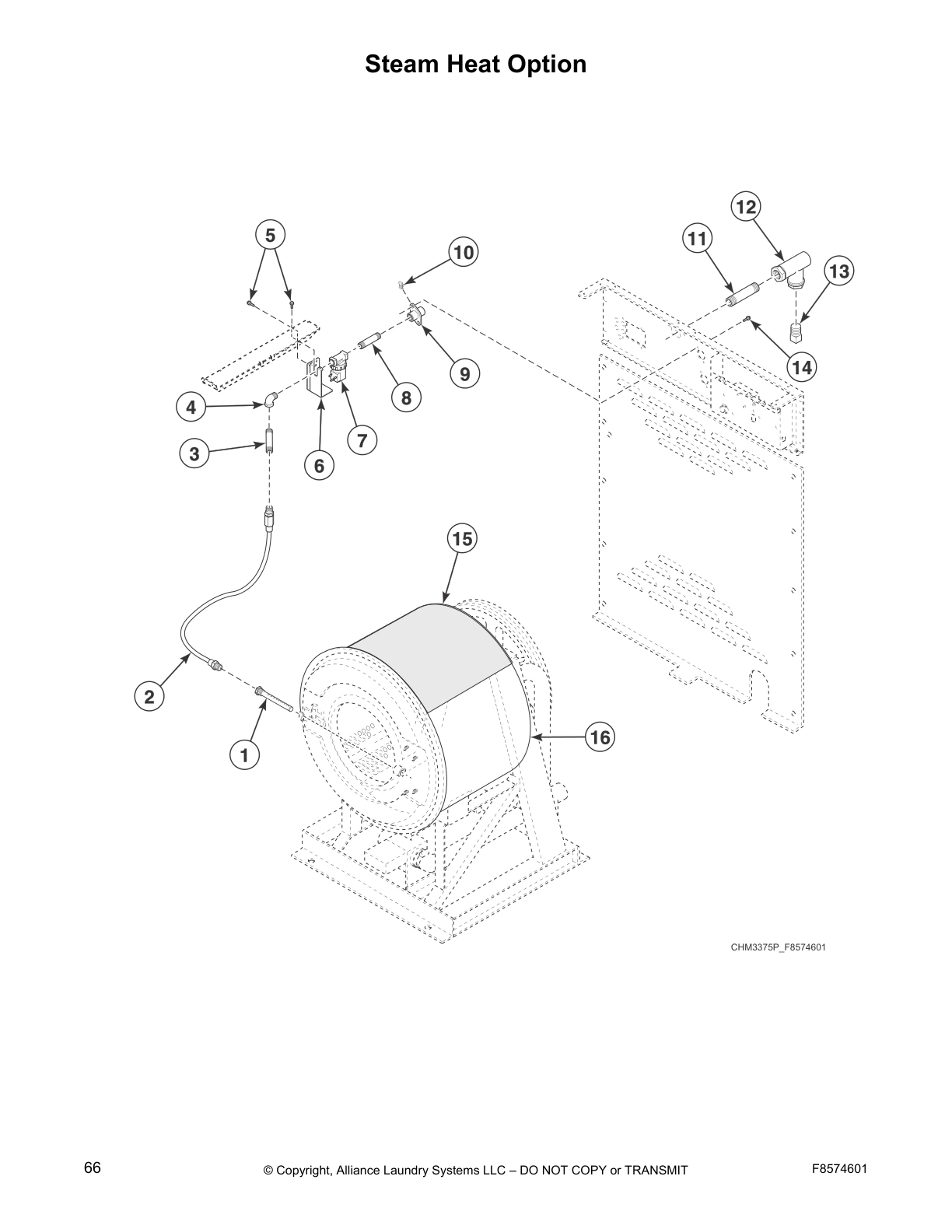

Steam Heat Option
Common parts from model Huebsch HCU040KXF Washer
DIN Valve Adapter Kit SPQ F380984P Contact Us For Availability
Machine Size Configuration Harness SPQ F8189401P Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ F8191201P SPQ F8191201P Contact Us For Availability
SPQ F8028104P SPQ F8028104P Contact Us For Availability
External Supply Harness SPQ 44071501 Contact Us For Availability
Electronic Coin Drop Assembly SPQ 70294107 Contact Us For Availability
Overlay SPQ 70294104 Contact Us For Availability
SPQ CK121 SPQ CK121 Contact Us For Availability
SPQ 70482401 SPQ 70482401 Contact Us For Availability
SPQ 70294120 SPQ 70294120 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ 70295301 SPQ 70295301 Contact Us For Availability
SPQ F8658701 SPQ F8658701 Contact Us For Availability
SPQ F430532 SPQ F430532 Contact Us For Availability
Basket Rental Tool Kit SPQ 390P4-1 Contact Us For Availability
SPQ F200108P SPQ F200108P Contact Us For Availability
SPQ F8382301 SPQ F8382301 Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Coin Drawer Assembly SPQ F8182001 Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229601 Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Screw SPQ F430942 Contact Us For Availability
1
Drain Valve Kit SPQ F200166400 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
1
Motor Support Bushing SPQ F200186100 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
EMI Filter SPQ F8053902 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
Coin Drop Assembly SPQ 38464P Contact Us For Availability
2
Coin Drop Assembly SPQ 70281102 Contact Us For Availability
2
Front Panel SPQ F8295701 Contact Us For Availability
2
Lid Clamp SPQ F8230601 Contact Us For Availability
2
Reed Switch Assembly SPQ F431223 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Overflow Hose SPQ F8337701 Contact Us For Availability
2
Drain Valve Cover SPQ F8577201 Contact Us For Availability
2
Key SPQ F430802 Contact Us For Availability
2
Motor Drip Shield SPQ F200280700 Contact Us For Availability
2
Steam Hose SPQ F200197 Contact Us For Availability
3
Door SPQ F150271 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
3
Coin Vault Assembly SPQ F8169438 Contact Us For Availability
3
Coin Drop SPQ 70256402P Contact Us For Availability
3
Expansion Clip SPQ F8173101P Contact Us For Availability
3
Dispenser Lid SPQ F8091701 Contact Us For Availability
3
Door Lock Splash Shield SPQ F431902 Contact Us For Availability
3
Shell Band Kit SPQ F8537803 Contact Us For Availability
3
Trunnion Kit SPQ F747003 Contact Us For Availability
3
Shell Weldment SPQ F430303 Contact Us For Availability
3
Screw SPQ F200215 Contact Us For Availability
3
Bolt SPQ F200133600 Contact Us For Availability
3
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
3
3-Way Valve SPQ F8286402P Contact Us For Availability
3
Pulley SPQ F430801 Contact Us For Availability
3
Washer SPQ F431115 Contact Us For Availability
4
Top Cover SPQ F8048101 Contact Us For Availability
4
Nut SPQ 39157 Contact Us For Availability
4
Gusset Plate SPQ F8186702 Contact Us For Availability
4
Door Handle Spacer Kit SPQ F190216P Contact Us For Availability
4
Spacer SPQ F430225 Contact Us For Availability
4
Screw SPQ F430518 Contact Us For Availability
4
Retaining Ring SPQ F8337801 Contact Us For Availability
4
Washer SPQ F430107 Contact Us For Availability
4
Drain Valve SPQ F200182700 Contact Us For Availability
4
SPQ F8308301 SPQ F8308301 Contact Us For Availability
4
Washer SPQ F8286401P Contact Us For Availability
4
Bushing SPQ F280197 Contact Us For Availability
4
Screw SPQ F430100 Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Street Elbow SPQ H86070034 Contact Us For Availability
5
Door Lock Plate Assembly SPQ F200203200 Contact Us For Availability
5
Spring SPQ F8406303 Contact Us For Availability
5
Door Assembly SPQ F8199501 Contact Us For Availability
5
Pop Rivet SPQ F8205903 Contact Us For Availability
5
Opto Coupler SPQ 210196 Contact Us For Availability
5
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
5
SPQ F8040301 SPQ F8040301 Contact Us For Availability
5
Drain Tee SPQ F430317 Contact Us For Availability
5
Triple Lip Seal SPQ F8203803 Contact Us For Availability
5
SPQ F8179401 SPQ F8179401 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Belt SPQ F280369P Contact Us For Availability
5
Tension Spring SPQ M412995P Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
Expansion Clip SPQ F360157P Contact Us For Availability
6
Electronic Coin Drop Assembly SPQ CK101 Contact Us For Availability
6
Top Cover Latch SPQ F8201001 Contact Us For Availability
6
SPQ F430174 SPQ F430174 Contact Us For Availability
6
SPQ F431916 SPQ F431916 Contact Us For Availability
6
Screw SPQ F320200 Contact Us For Availability
6
SPQ F431131 SPQ F431131 Contact Us For Availability
6
Bearing SPQ F100137P Contact Us For Availability
6
P-Trap Hose SPQ F200213 Contact Us For Availability
6
Drain Hose SPQ F150398 Contact Us For Availability
6
SPQ F200166402 SPQ F200166402 Contact Us For Availability
6
SPQ F8043404 SPQ F8043404 Contact Us For Availability
6
Valve SPQ F8490301 Contact Us For Availability
7
Pressfit Upgrade Kit SPQ F938P3 Contact Us For Availability
7
Snap Bushing SPQ F8182601 Contact Us For Availability
7
Door Bezel SPQ F8038702 Contact Us For Availability
7
SPQ F8221403 SPQ F8221403 Contact Us For Availability
7
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
7
SPQ F100134 SPQ F100134 Contact Us For Availability
7
SPQ F8442702 SPQ F8442702 Contact Us For Availability
7
SPQ F200201 SPQ F200201 Contact Us For Availability
7
SPQ F8042804 SPQ F8042804 Contact Us For Availability
7
Extension Spring SPQ F310148 Contact Us For Availability
7
Plug SPQ F421507 Contact Us For Availability
7
DIN Valve Kit SPQ F8322801P Contact Us For Availability
8
Auxiliary Control Assembly SPQ F8170801 Contact Us For Availability
8
Door Bezel SPQ F170417-1 Contact Us For Availability
8
SPQ F8535501 SPQ F8535501 Contact Us For Availability
8
External Door Lock Harness SPQ F8223202 Contact Us For Availability
8
Basket Assembly SPQ F8391701P Contact Us For Availability
8
SPQ F8231901 SPQ F8231901 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Coupling SPQ F8521501 Contact Us For Availability
9
SPQ F0170426-30 SPQ F0170426-30 Contact Us For Availability
9
SPQ F602842-2 SPQ F602842-2 Contact Us For Availability
9
Door Lock Assembly Kit SPQ F430977 Contact Us For Availability
9
Excluder Seal SPQ F8337001 Contact Us For Availability
9
SPQ F8232901 SPQ F8232901 Contact Us For Availability
9
SPQ F8197701 SPQ F8197701 Contact Us For Availability
9
Nut SPQ F310124 Contact Us For Availability
9
Reducer Bushing SPQ F421936 Contact Us For Availability
9
Steam Heat Kit SPQ 70263801 Contact Us For Availability
10
Control Assembly Kit SPQ F980P3 Contact Us For Availability
10
Front Cabinet Brace SPQ F8174001 Contact Us For Availability
10
Top Cabinet Brace SPQ F8043801 Contact Us For Availability
10
Nut SPQ F430215 Contact Us For Availability
10
Door Lock Assembly Kit SPQ F8626501 Contact Us For Availability
10
Shaft Seal Sleeve Kit SPQ F8343906P Contact Us For Availability
10
Valve Panel SPQ F8047402 Contact Us For Availability
10
Cotter Pin SPQ F430401 Contact Us For Availability
10
Nut SPQ 70030401 Contact Us For Availability
11
Control Panel Overlay SPQ F8295702 Contact Us For Availability
11
Top Cover Hinge SPQ F8258601 Contact Us For Availability
11
Door Glass SPQ F431041 Contact Us For Availability
11
Door Lock Cover SPQ F8245001 Contact Us For Availability
11
Screw SPQ F8039601 Contact Us For Availability
11
Motor Support Rod SPQ F603059 Contact Us For Availability
11
Element SPQ F360205P Contact Us For Availability
11
Pipe Nipple SPQ 431486 Contact Us For Availability
12
Door Glass SPQ F8485405 Contact Us For Availability
12
Door Shim SPQ F8453401 Contact Us For Availability
12
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
12
Heating Element Plug SPQ F360202 Contact Us For Availability
13
Terminal Tray Cover Gasket SPQ F8206901 Contact Us For Availability
13
Rear Panel SPQ F8177701P Contact Us For Availability
13
Door Gasket SPQ F8485401P Contact Us For Availability
13
Door Lock Catch SPQ F8344501 Contact Us For Availability
13
Plug SPQ F420409 Contact Us For Availability
14
Bolt SPQ F8111502 Contact Us For Availability
14
Bolt SPQ F8223601 Contact Us For Availability
14
Terminal Block SPQ F8177001 Contact Us For Availability
14
Screw SPQ 20253 Contact Us For Availability
15
Hose Barb Connector SPQ F8431001 Contact Us For Availability
15
Right Side Panel SPQ F8043201P Contact Us For Availability
15
Magnet SPQ F430974 Contact Us For Availability
15
Nut SPQ F8270701 Contact Us For Availability
15
Nut SPQ F8230001 Contact Us For Availability
15
Pipe Insulation SPQ F410300 Contact Us For Availability
16
Ground Lug Connector SPQ 430642 Contact Us For Availability
16
Door Lock Switch Lever SPQ F430264 Contact Us For Availability
16
Pushbutton Switch SPQ 70413301 Contact Us For Availability
16
Shell Weldment SPQ F8179402 Contact Us For Availability
17
Hose Clamp SPQ F430232 Contact Us For Availability
17
Left Side Panel SPQ F8043202P Contact Us For Availability
17
Pop Rivet SPQ F8508101 Contact Us For Availability
17
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
18
Air Trap Hose SPQ F020014200 Contact Us For Availability
18
Bolt SPQ F8230501 Contact Us For Availability
18
Blind Rivet SPQ F431022 Contact Us For Availability
18
Washer SPQ F8070301 Contact Us For Availability
18
Siphon Cover SPQ M411283 Contact Us For Availability
19
Spring Pin SPQ F8390801 Contact Us For Availability
19
Panel Lock SPQ 44089303P Contact Us For Availability
19
Y Connector SPQ F430909 Contact Us For Availability
20
PowerFlex 40 Drive SPQ F8053901P Contact Us For Availability
20
Rod SPQ F8245101 Contact Us For Availability
20
Manifold SPQ F8047901 Contact Us For Availability
21
Door Hinge Shim Kit SPQ F431222 Contact Us For Availability
21
Nut SPQ F8169406 Contact Us For Availability
21
Dispenser Gasket SPQ F422816 Contact Us For Availability
22
Control Tray Assembly SPQ F8169405 Contact Us For Availability
22
Screw SPQ F8066802 Contact Us For Availability
22
Access Cover SPQ F8232002 Contact Us For Availability
23
Washer SPQ F602813-3 Contact Us For Availability
24
Door Mount SPQ F200131000P Contact Us For Availability
24
Vacuum Supply Hose SPQ F8333201 Contact Us For Availability
25
Cap SPQ F200222 Contact Us For Availability
25
Door Hinge SPQ F430536 Contact Us For Availability
26
Vacuum Breaker Hose SPQ F606816-1 Contact Us For Availability
27
Door Latch Arm Assembly SPQ F431929 Contact Us For Availability
27
SPQ F8535601 SPQ F8535601 Contact Us For Availability
NI
SPQ F8567501 SPQ F8567501 Contact Us For Availability
NI
SPQ F8261501P SPQ F8261501P Contact Us For Availability
NI
SPQ F937P3 SPQ F937P3 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
Output/Logic Harness SPQ F430903 Contact Us For Availability
NI
SPQ F200010000P SPQ F200010000P Contact Us For Availability
NI
Pop Rivet SPQ 210195 Contact Us For Availability
NI
SPQ F200010005P SPQ F200010005P Contact Us For Availability
NI
Coin Drop Kit SPQ CK100 Contact Us For Availability
NI
Coin Drop Assembly SPQ CK099 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ 70294121 SPQ 70294121 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ F8034701P SPQ F8034701P Contact Us For Availability
NI
SPQ 70295101 SPQ 70295101 Contact Us For Availability
NI
SPQ CK500 SPQ CK500 Contact Us For Availability
NI
SPQ F8659101 SPQ F8659101 Contact Us For Availability
NI
SPQ F8507701 SPQ F8507701 Contact Us For Availability
NI
SPQ F8187403 SPQ F8187403 Contact Us For Availability
NI
SPQ F8344401 SPQ F8344401 Contact Us For Availability
NI
SPQ F8059701 SPQ F8059701 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
Shaft Seal Sleeve SPQ F8312006P Contact Us For Availability
NI
Basket Puller Tool SPQ F460129P Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ F8504701 SPQ F8504701 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F0200244-02 SPQ F0200244-02 Contact Us For Availability
NI
Regulator SPQ F8042202 Contact Us For Availability
NI
Diaphragm and Guide Kit SPQ F8402201 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
SPQ 901690 SPQ 901690 Contact Us For Availability
NI
Jumper Wire SPQ F8056001 Contact Us For Availability
NI
Steam Valve Repair Kit SPQ F8154501 Contact Us For Availability
NI
Coil SPQ F953P3 Contact Us For Availability
NI
Valve Kit SPQ F8514601P Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
