Model Huebsch HCL060ZCF Washer – Common Parts & Diagrams
Decals
Control Module (Drawing 1 of 2)

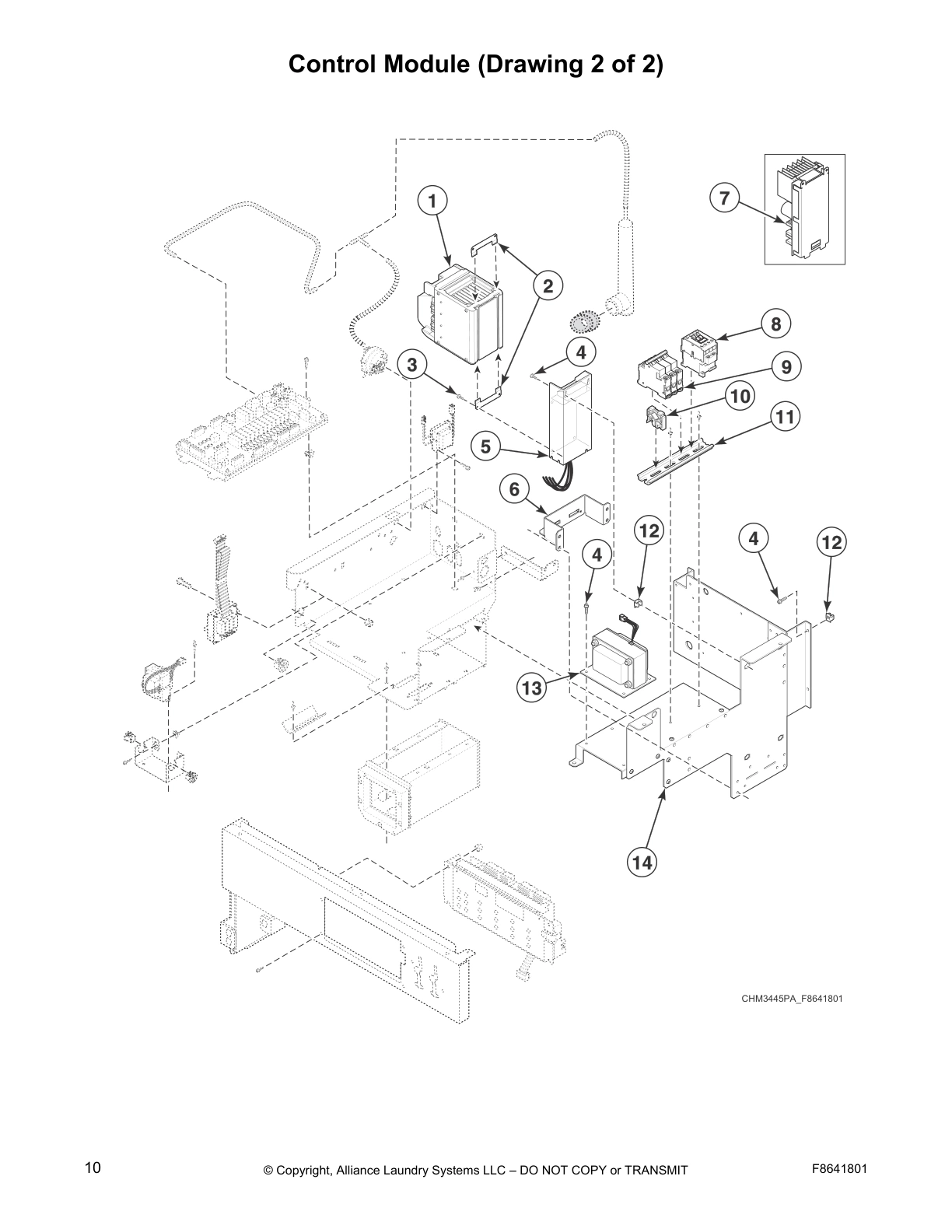

Control Module (Drawing 2 of 2)

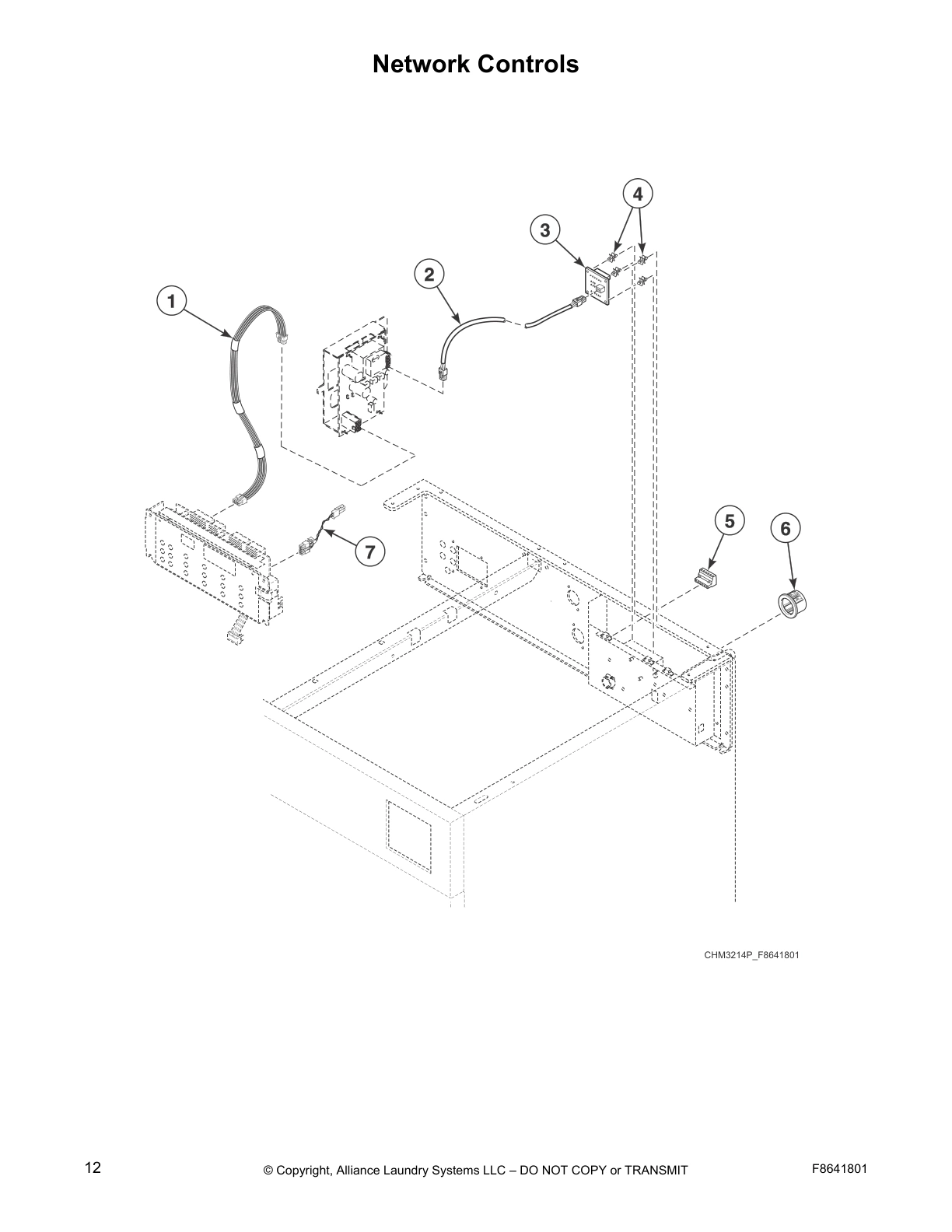

Network Controls

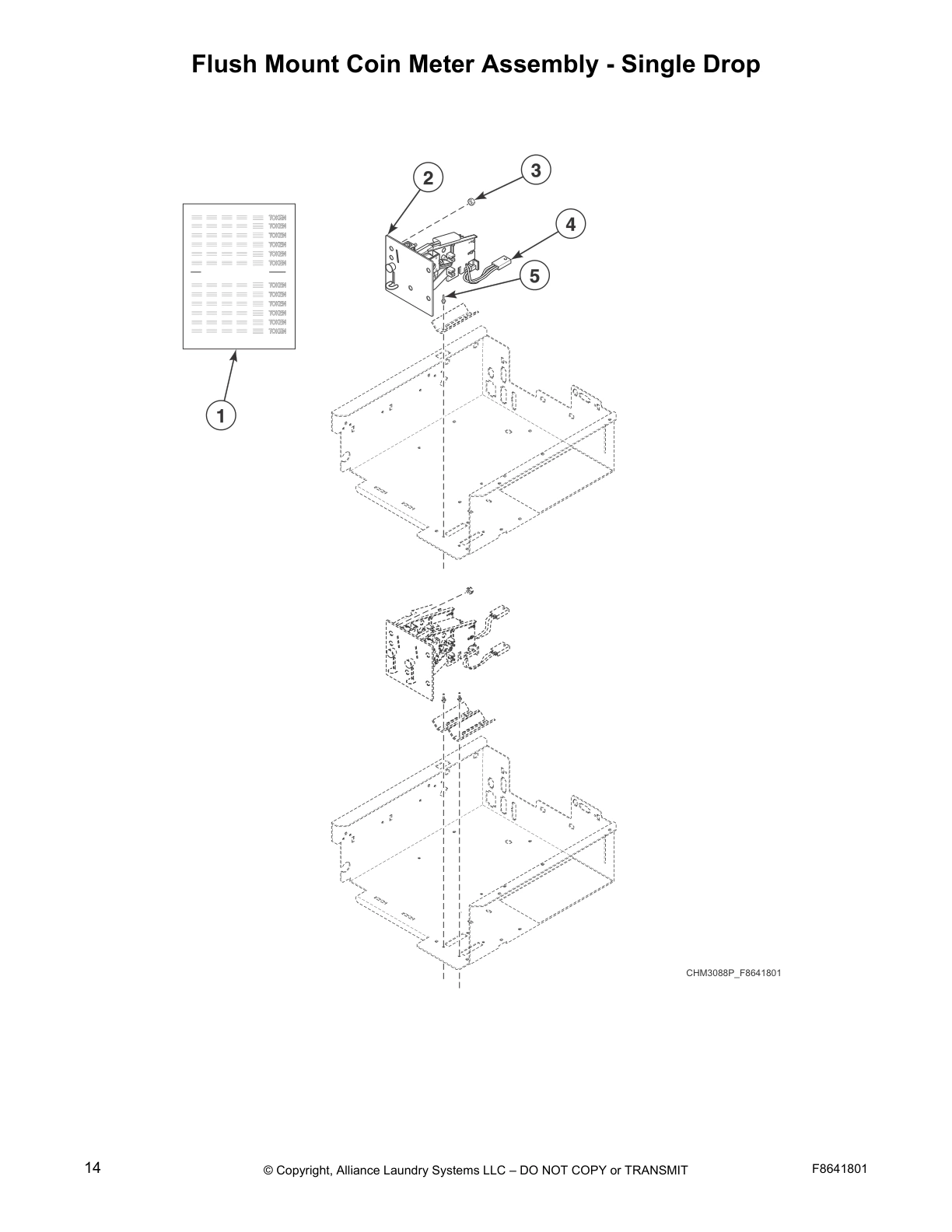

Flush Mount Coin Meter Assembly - Single Drop

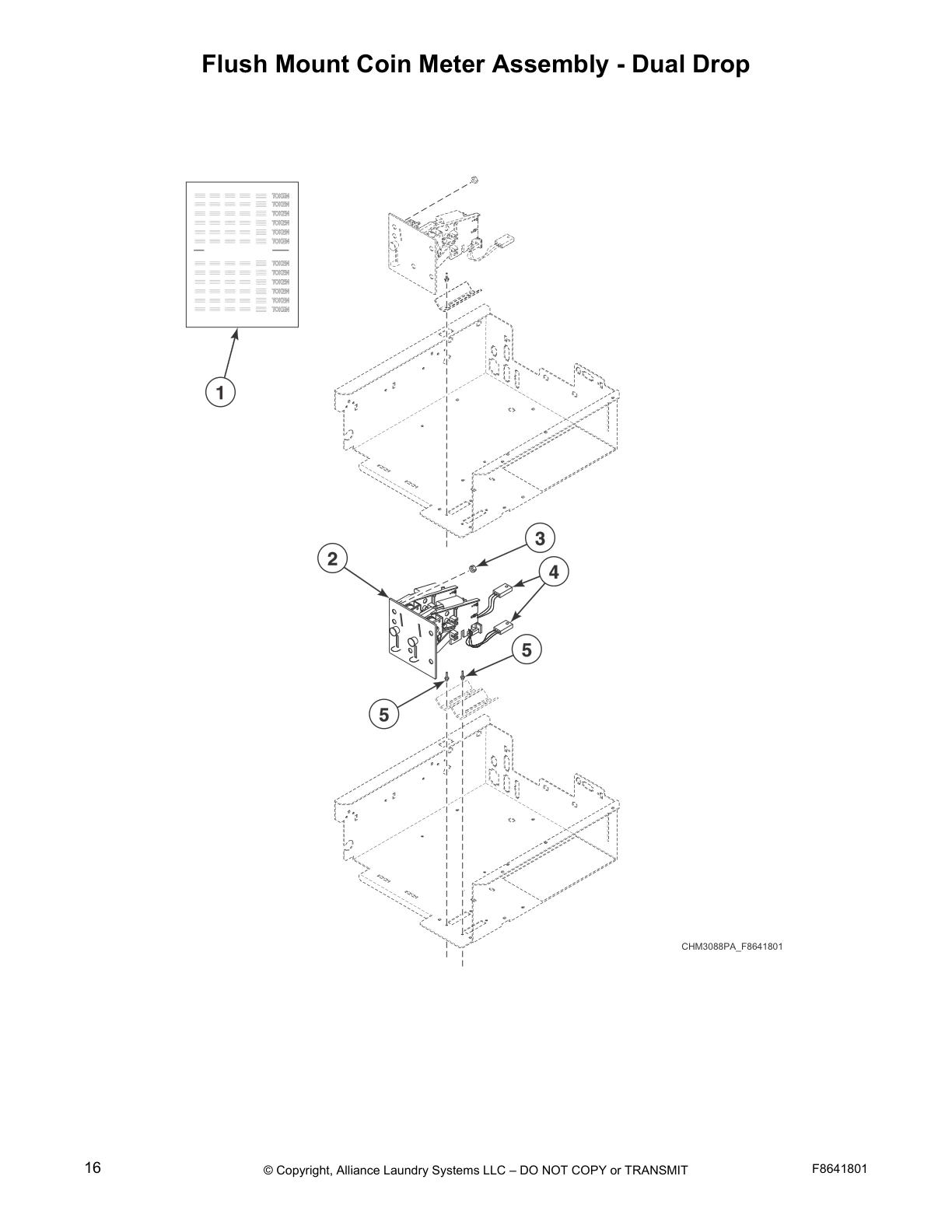

Flush Mount Coin Meter Assembly - Dual Drop

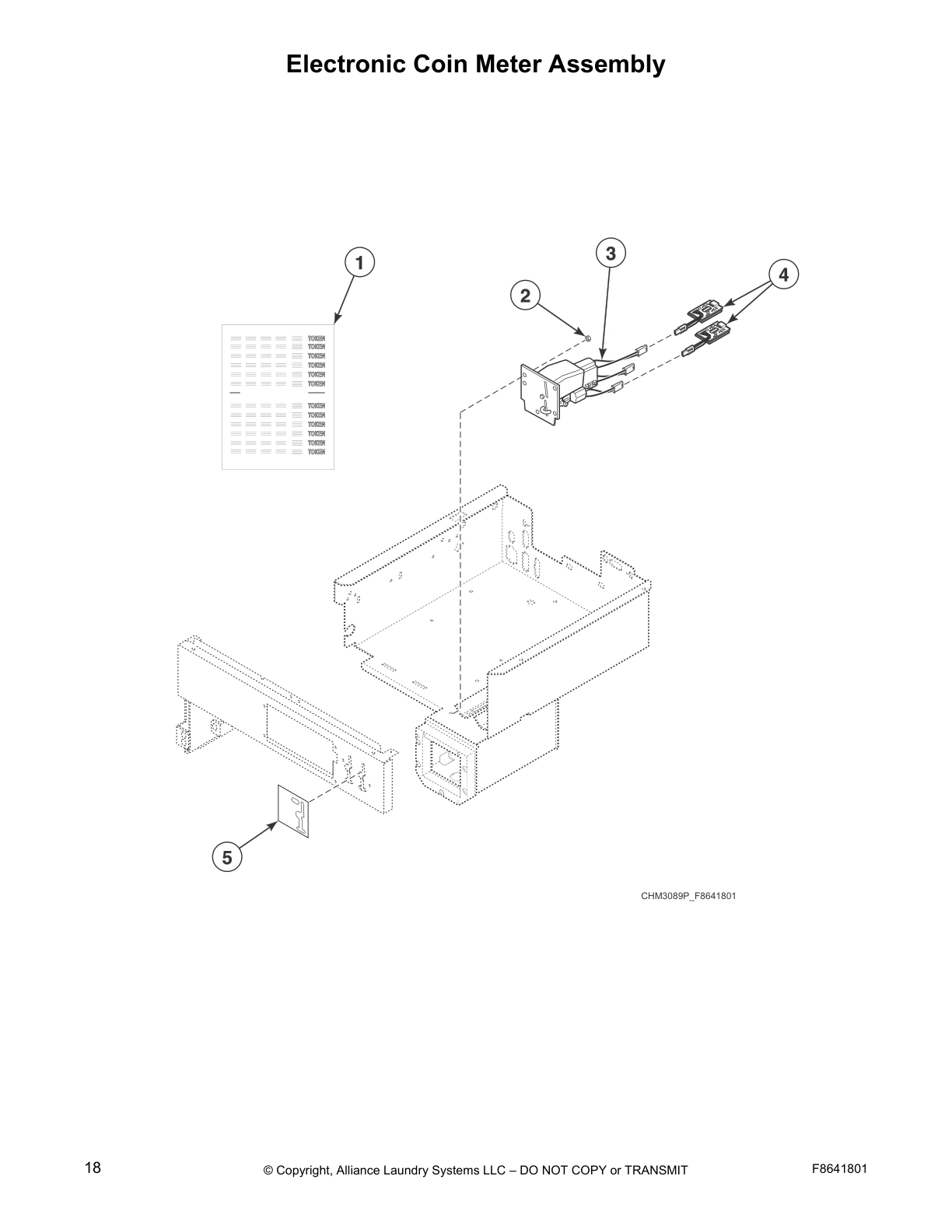

Electronic Coin Meter Assembly
Optional Coin Box

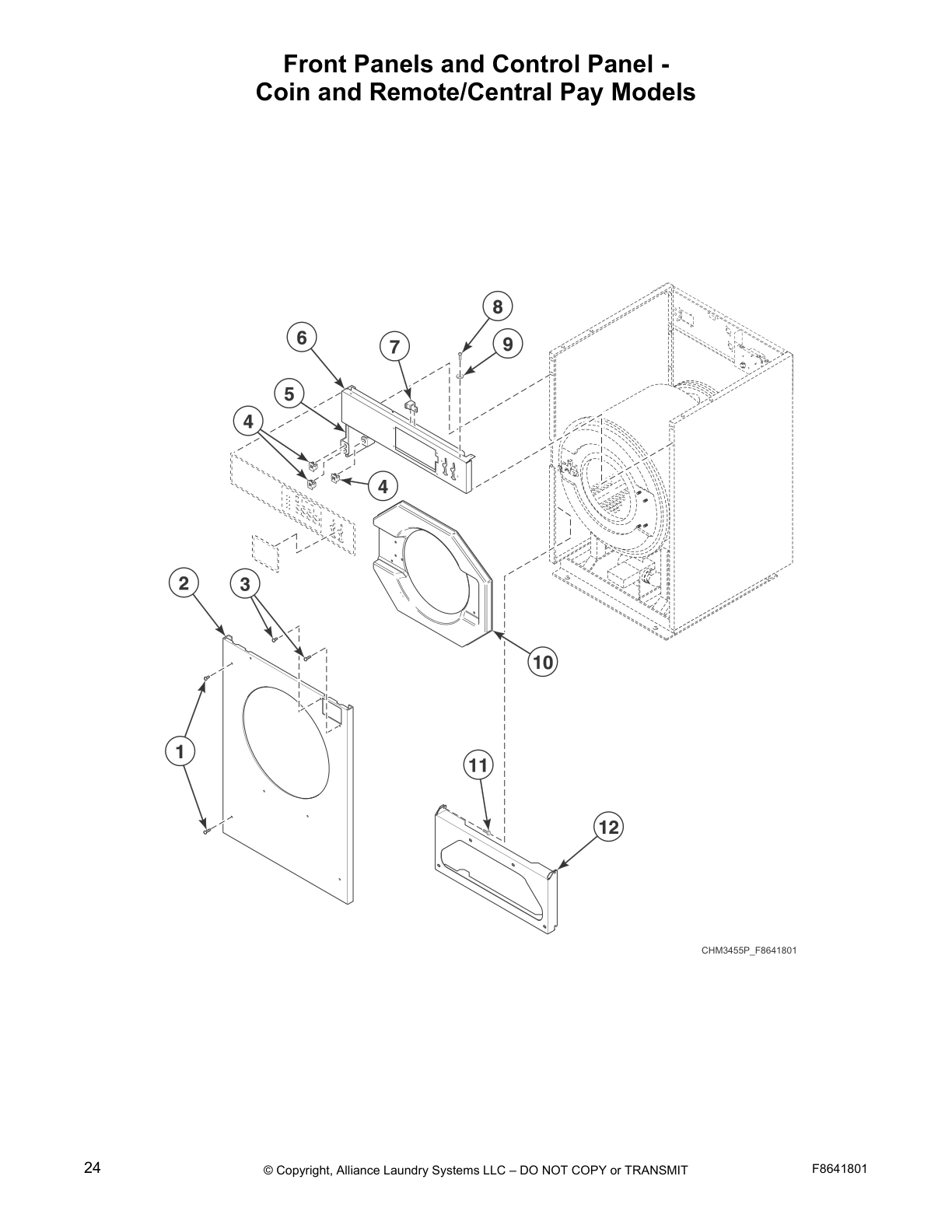

Front Panels and Control Panel -
Coin and Remote/Central Pay Models

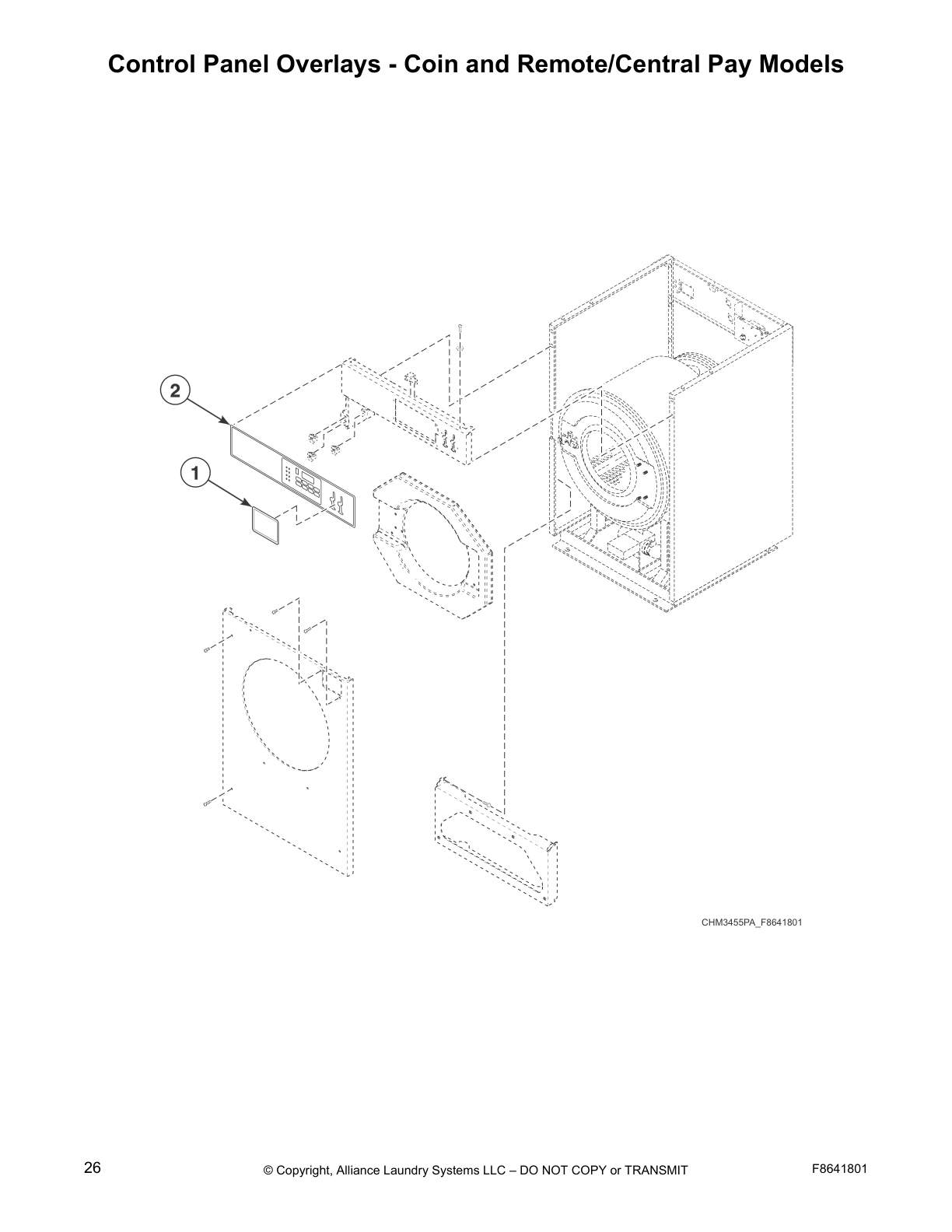

Control Panel Overlays - Coin and Remote/Central Pay Models

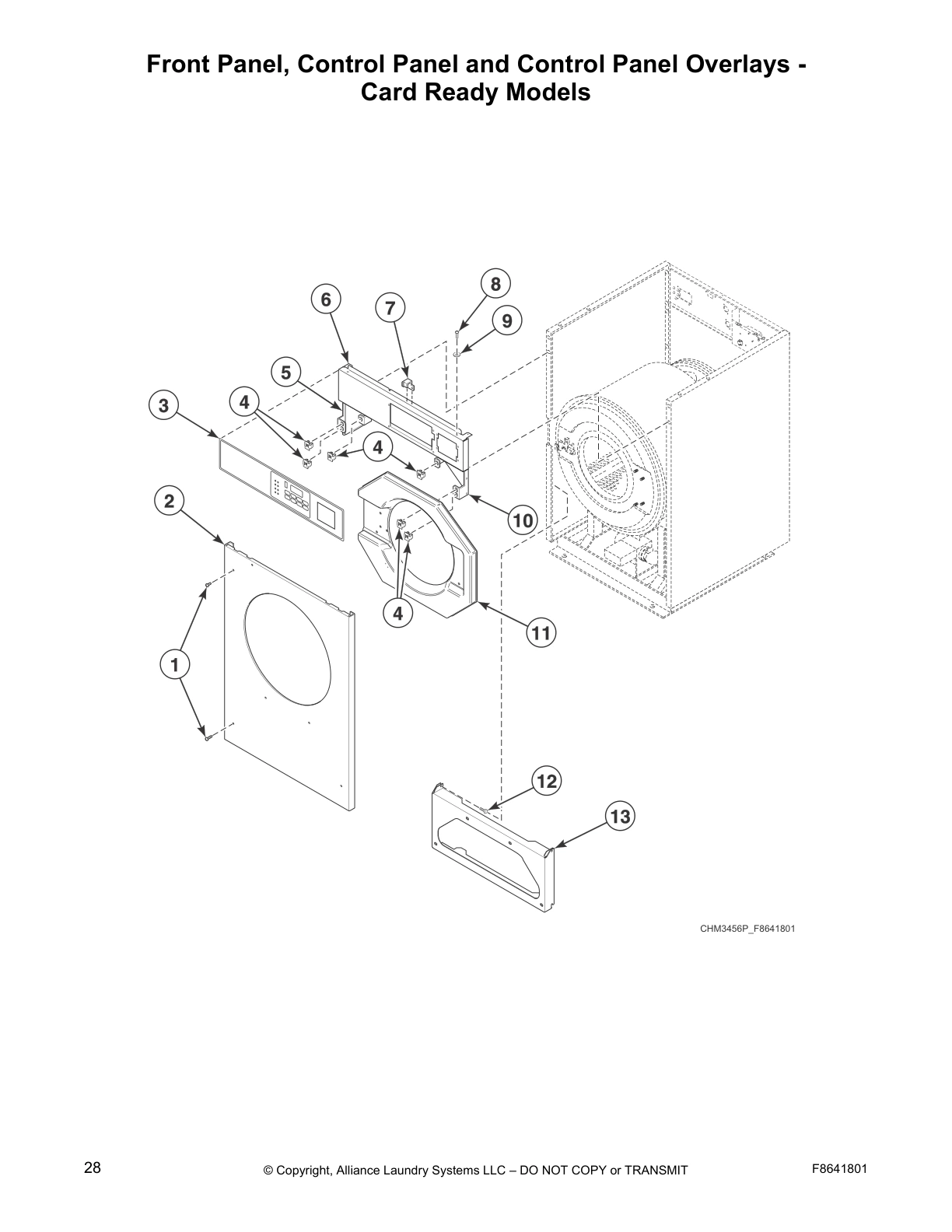

Front Panel, Control Panel and Control Panel Overlays -
Card Ready Models

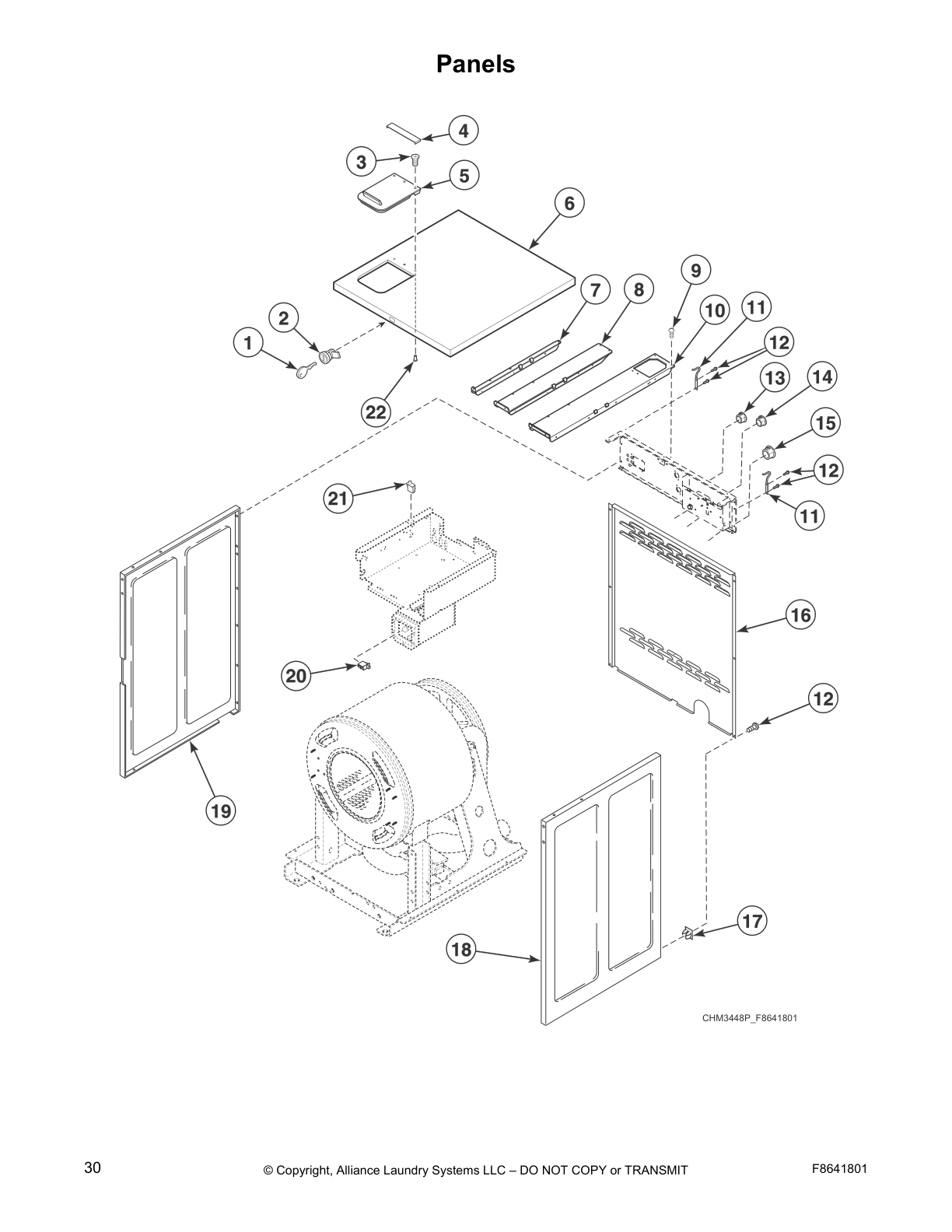

Panels
Door - 20 and 30 Pound Models

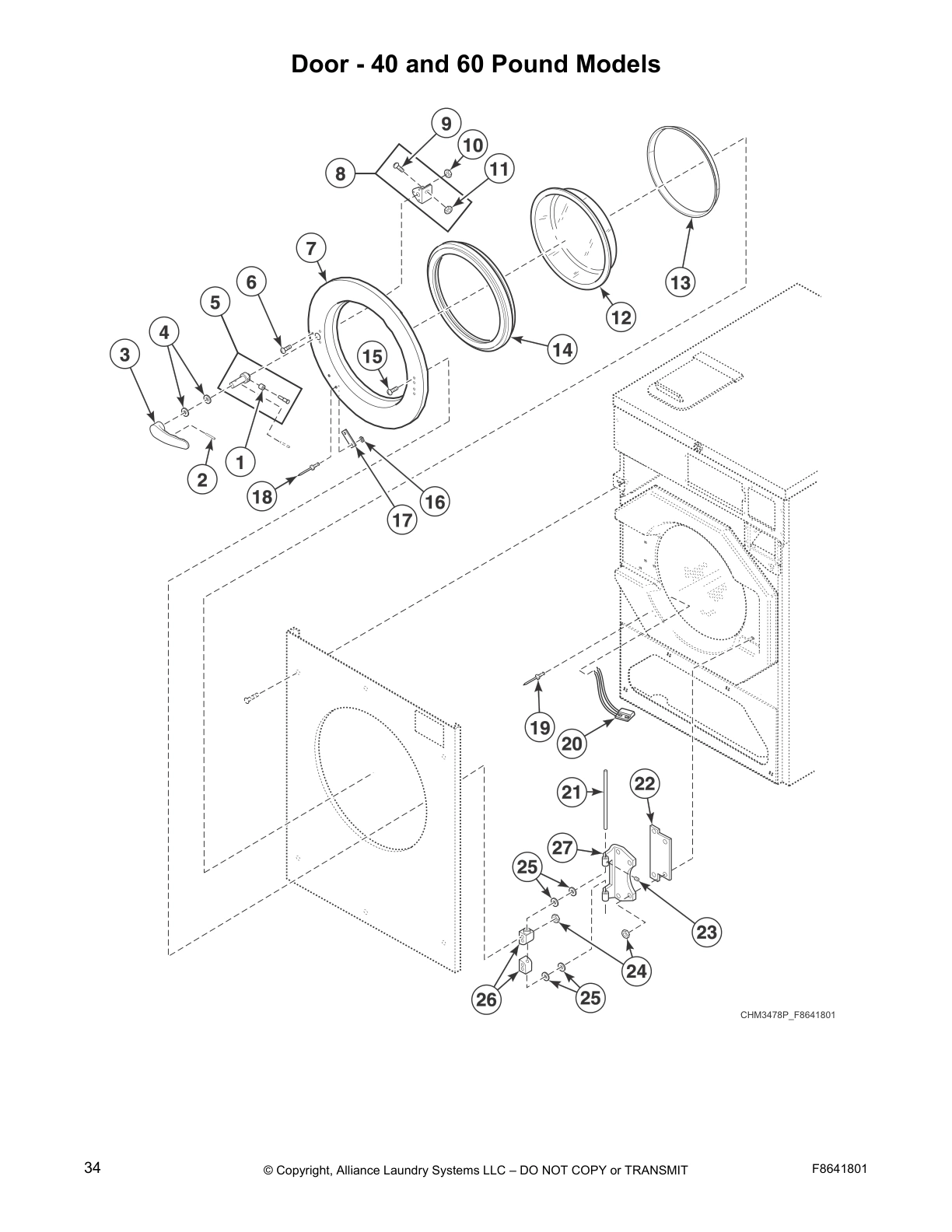

Door - 40 and 60 Pound Models

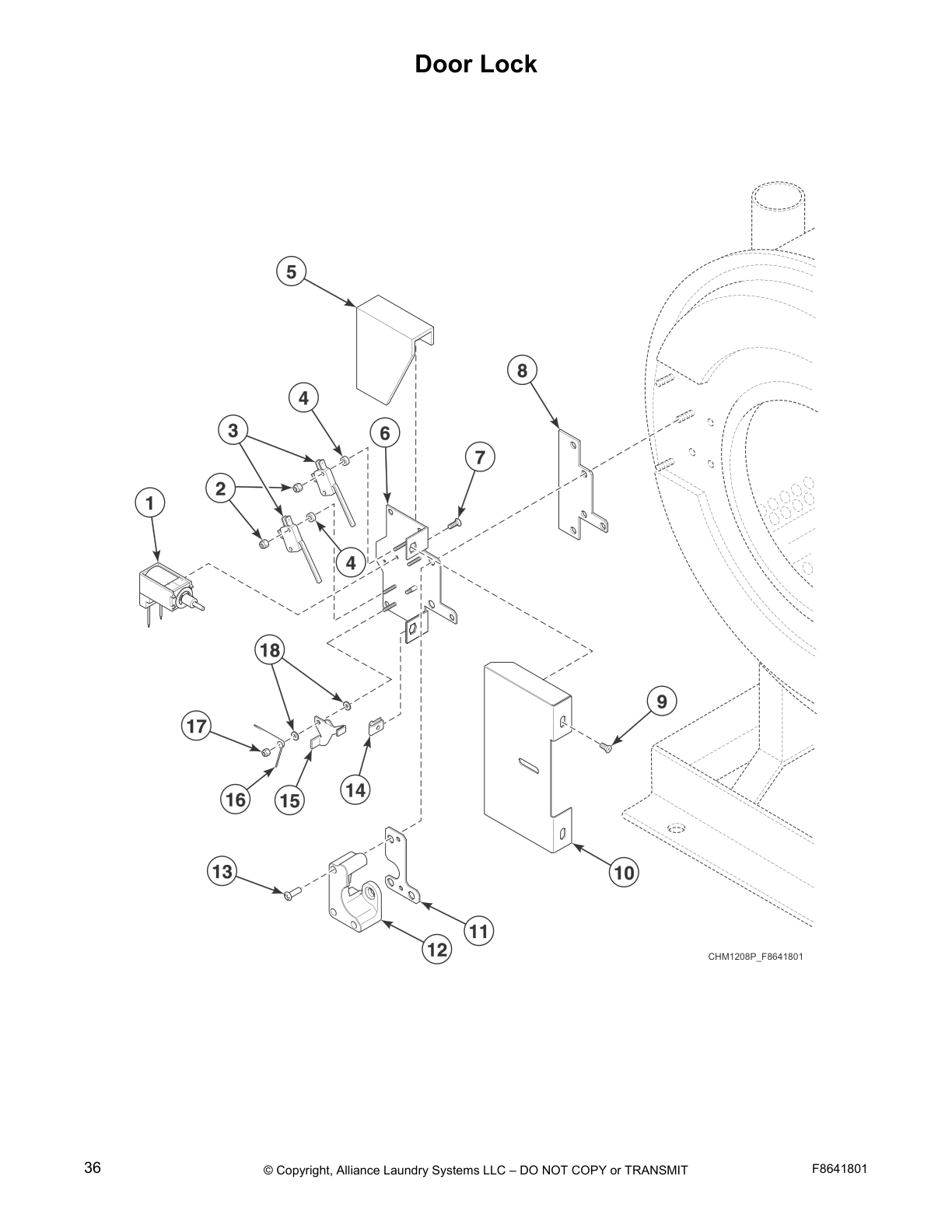

Door Lock

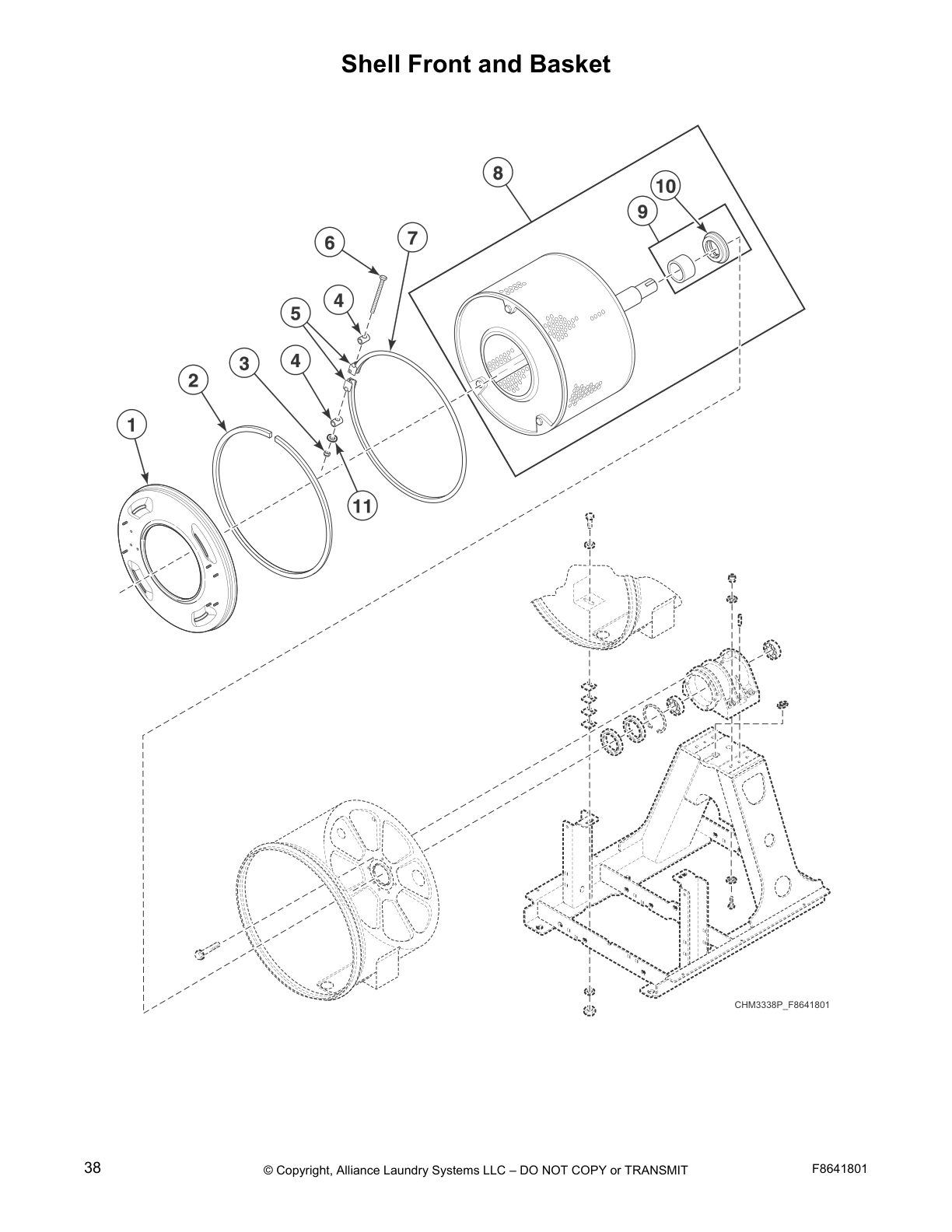

Shell Front and Basket

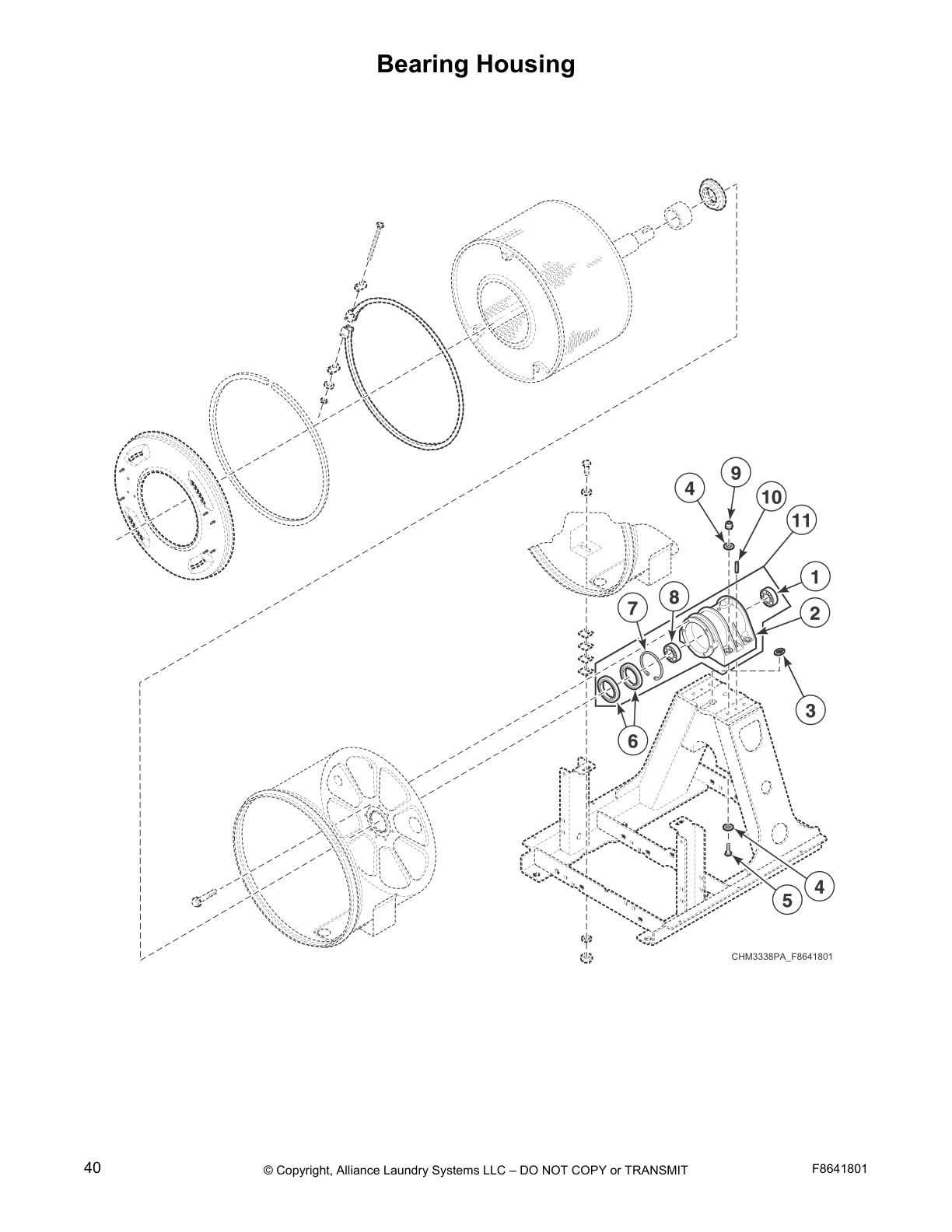

Bearing Housing

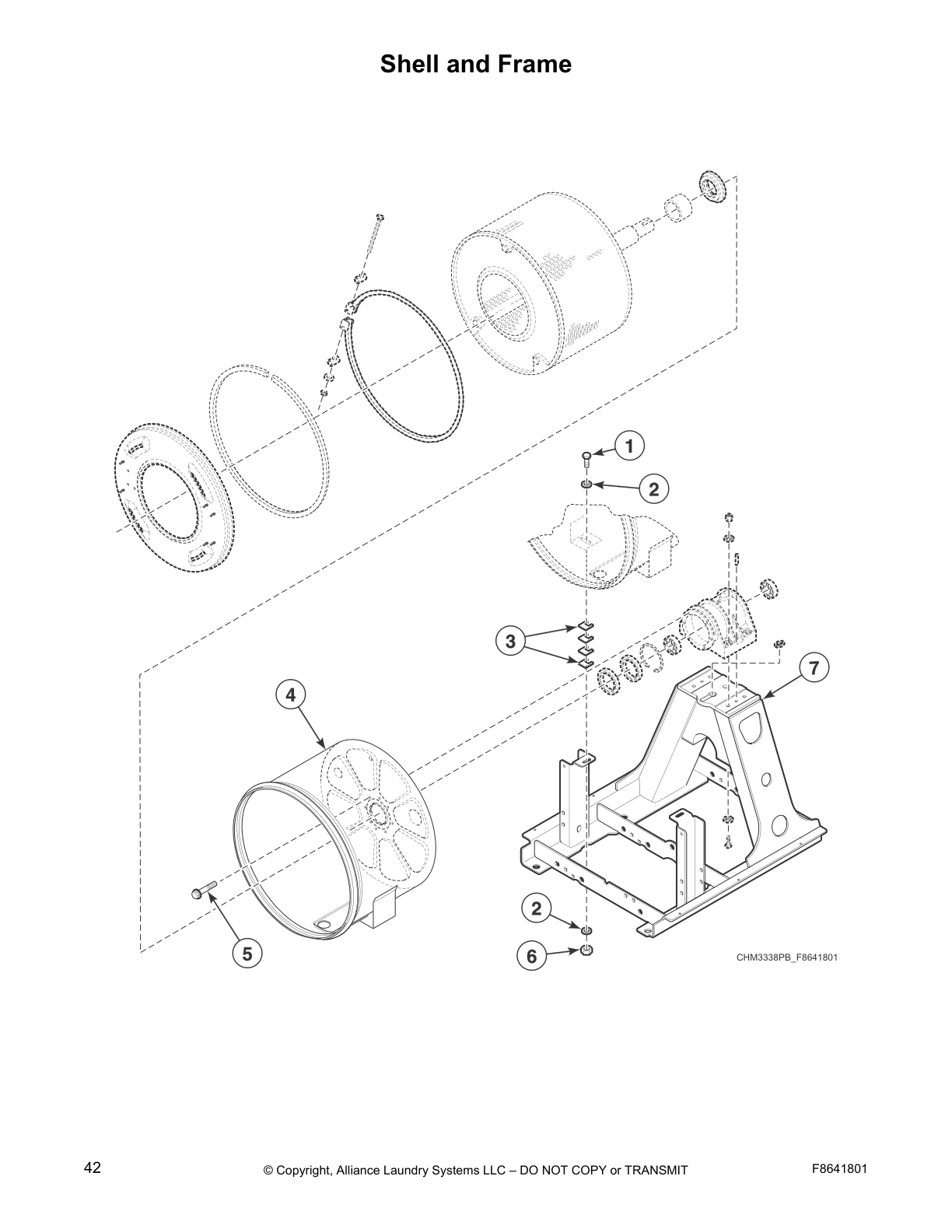

Shell and Frame

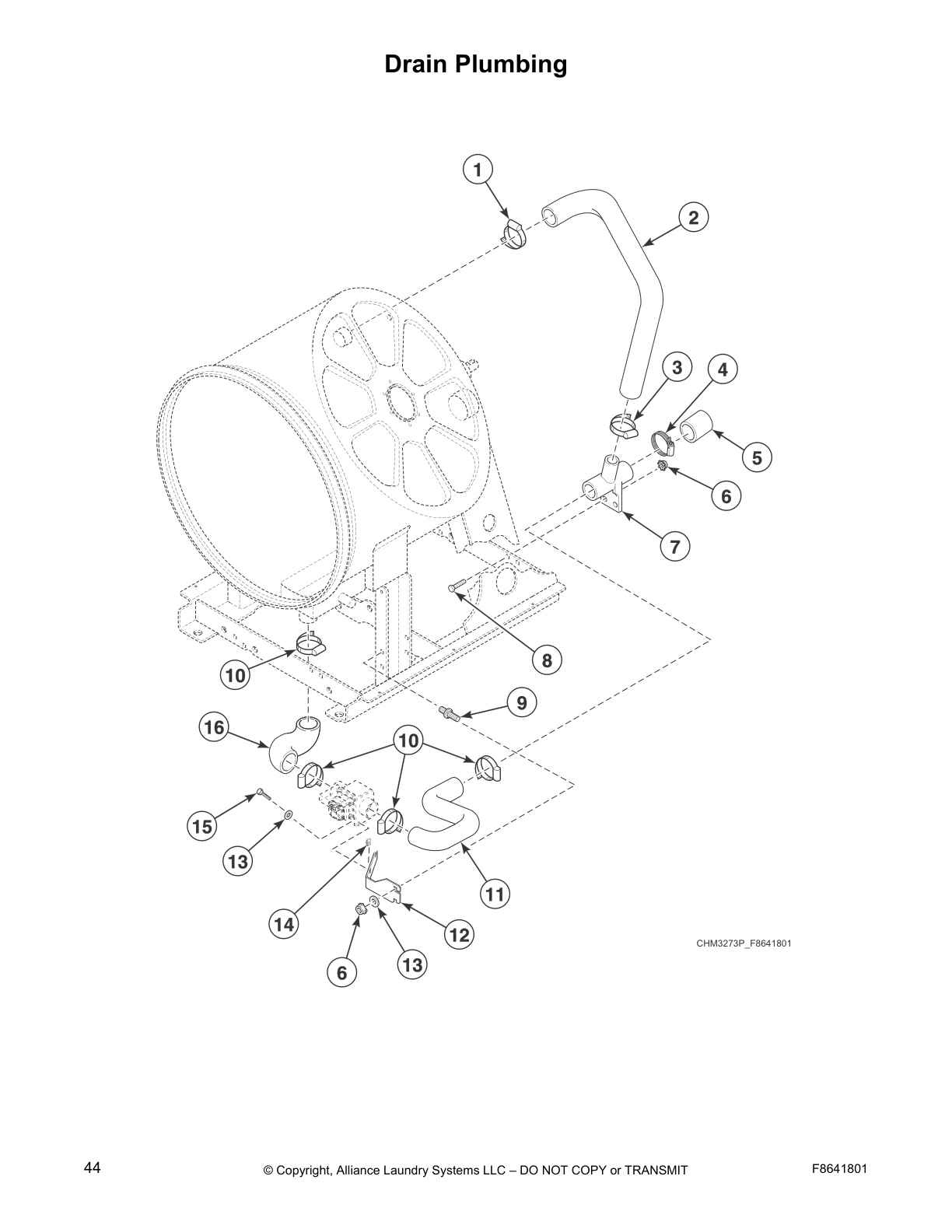

Drain Plumbing

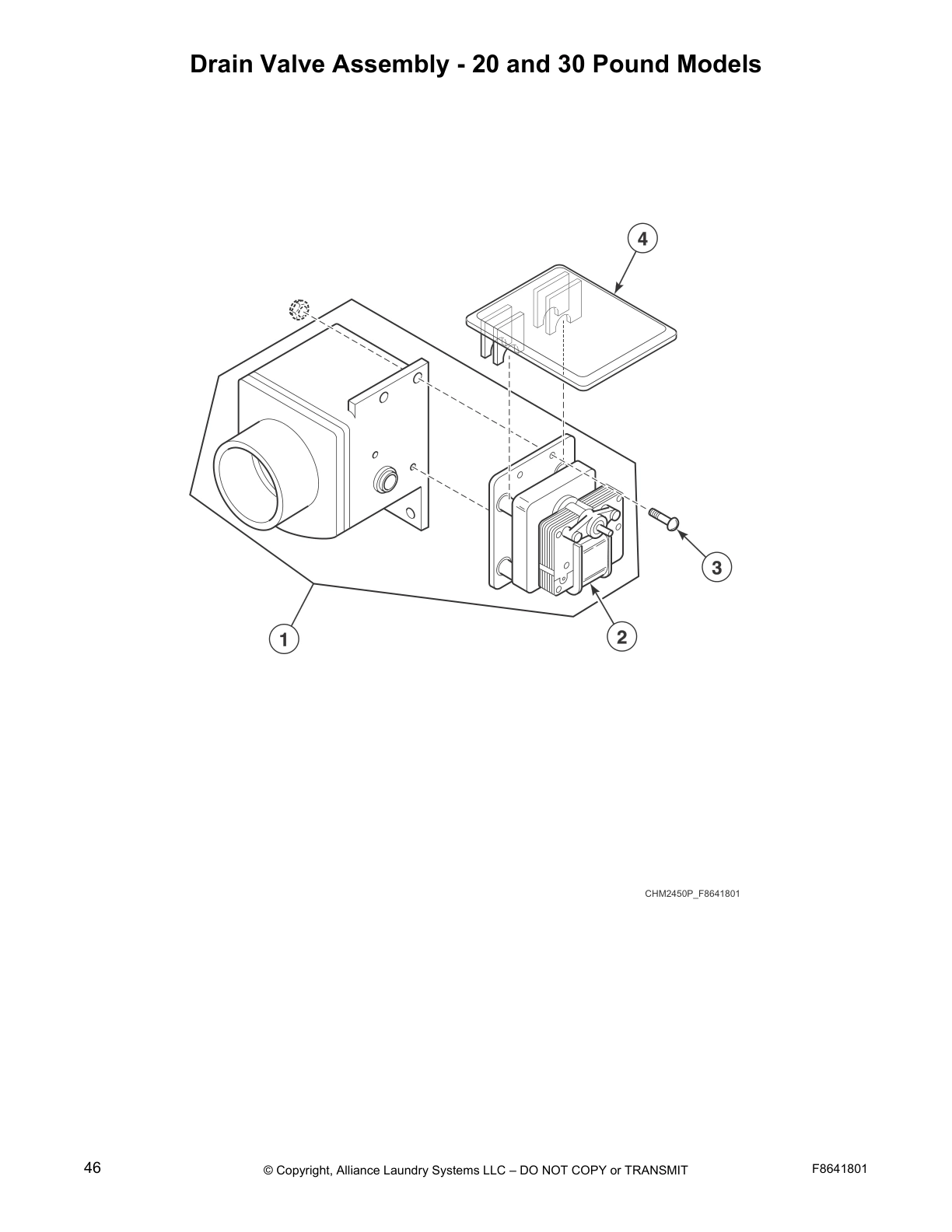

Drain Valve Assembly - 20 and 30 Pound Models

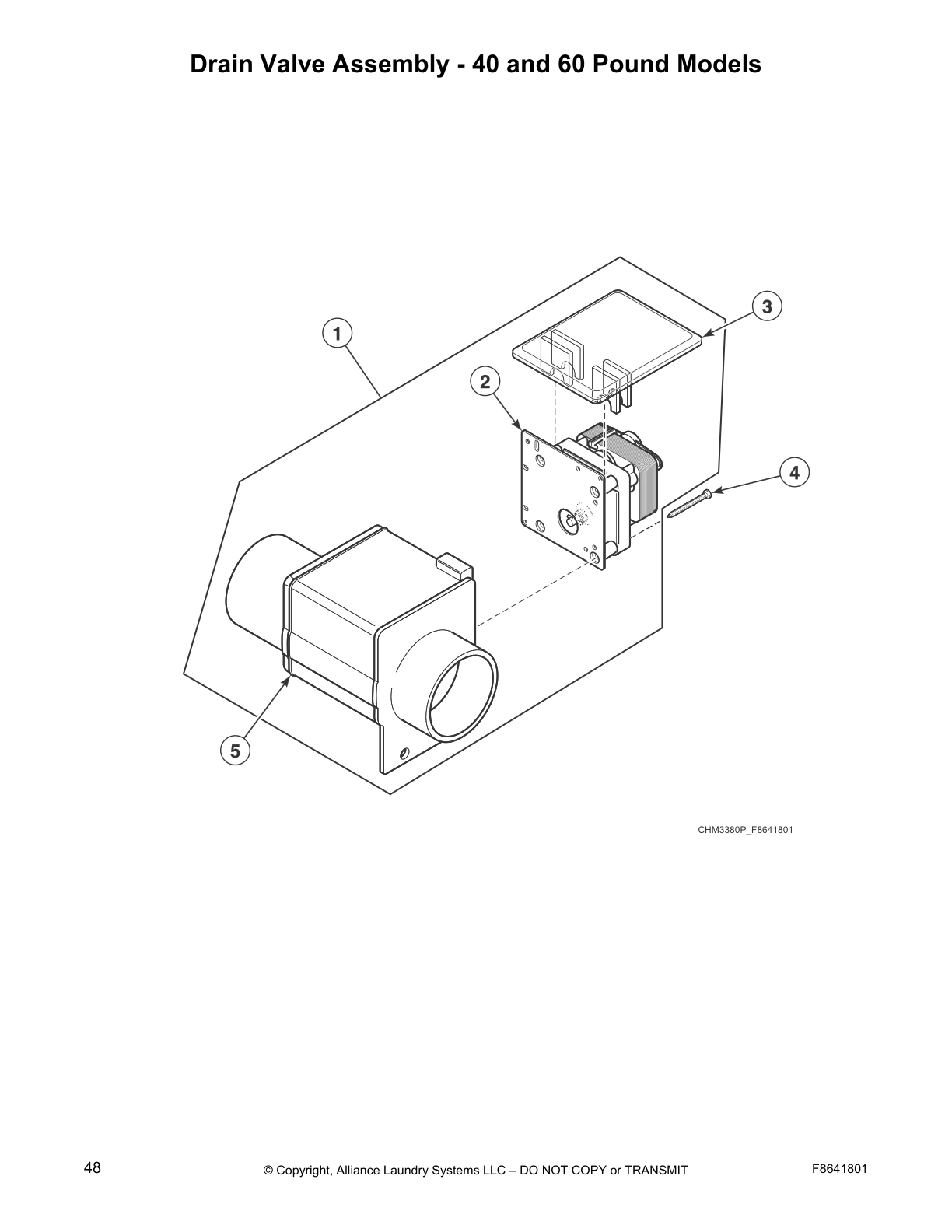

Drain Valve Assembly - 40 and 60 Pound Models

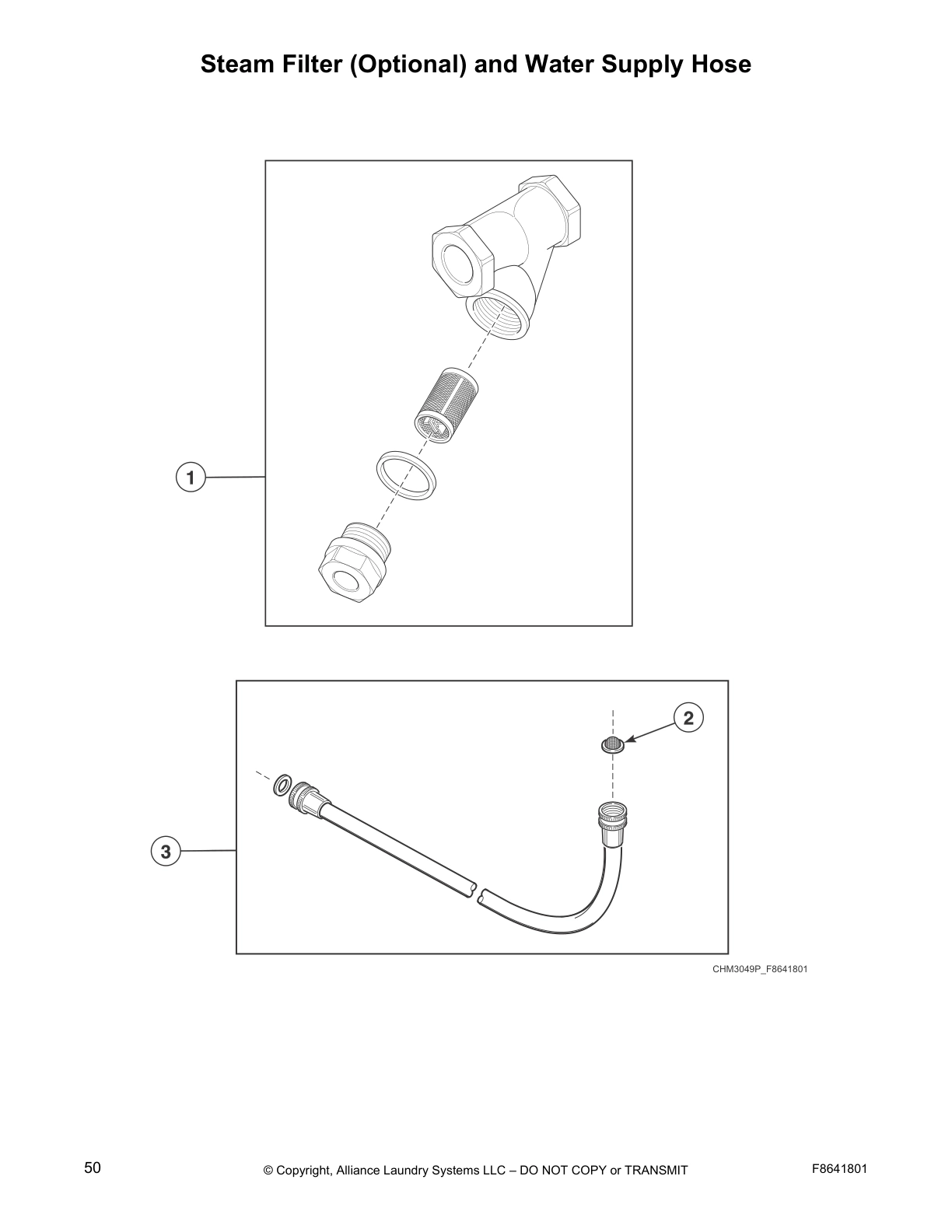

Steam Filter (Optional) and Water Supply Hose

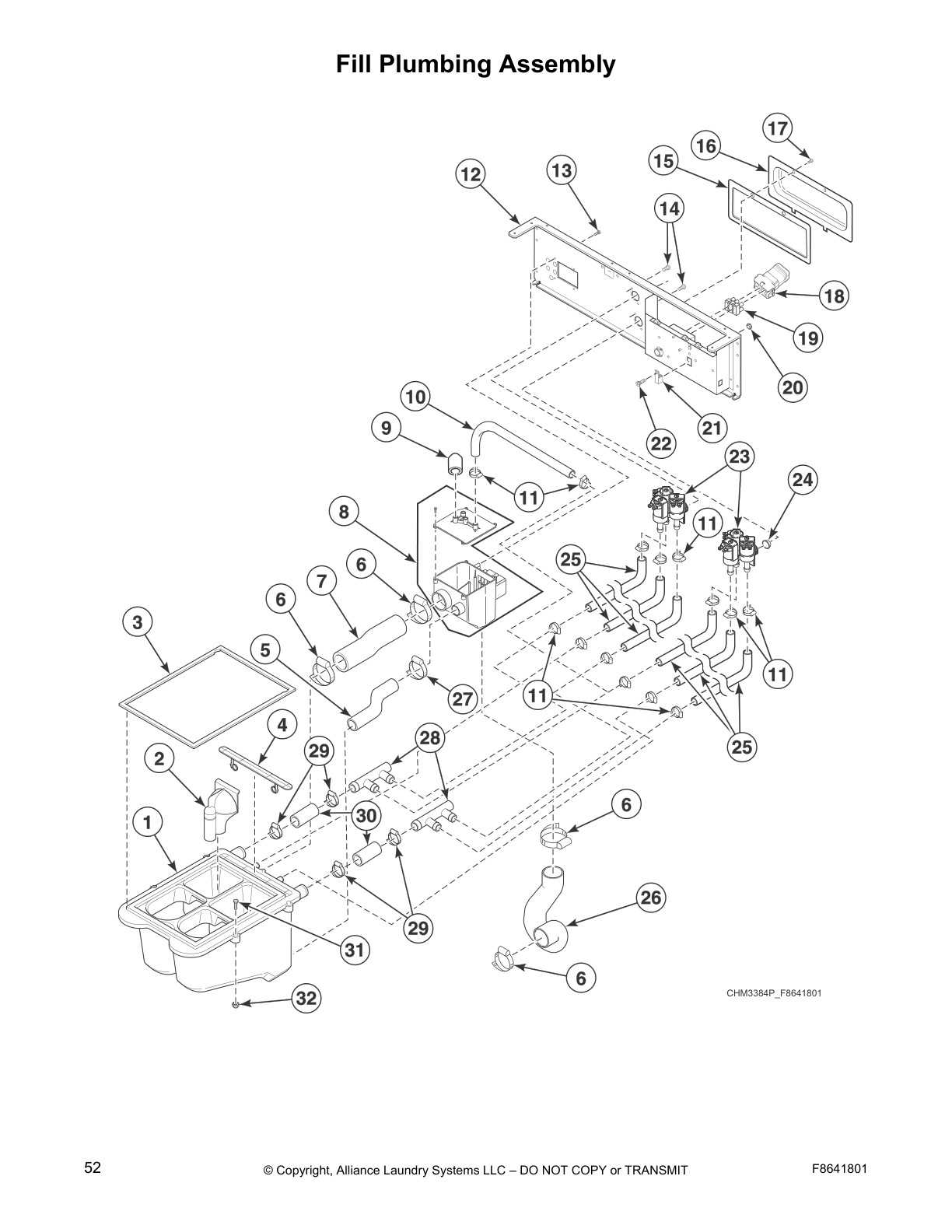

Fill Plumbing Assembly

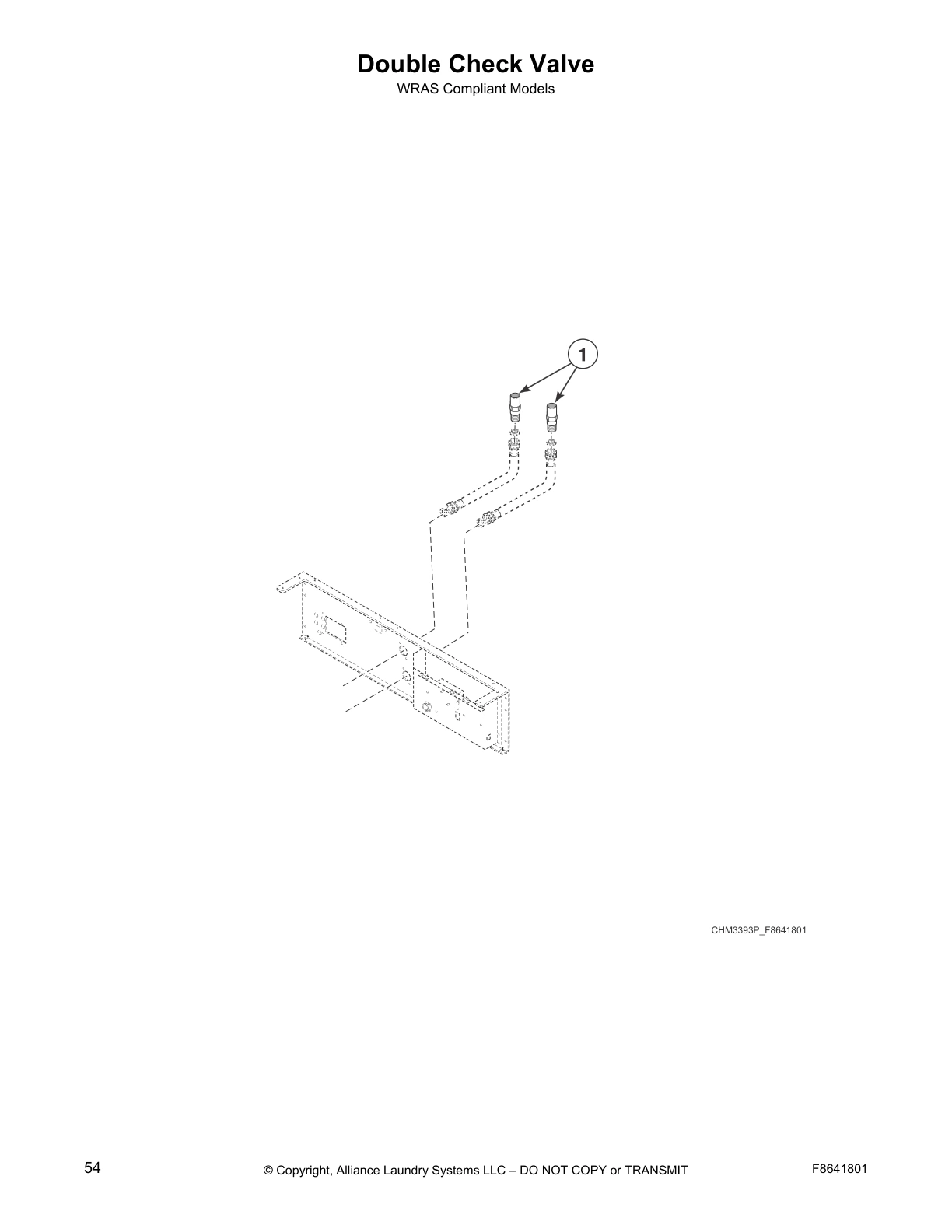

Double Check Valve

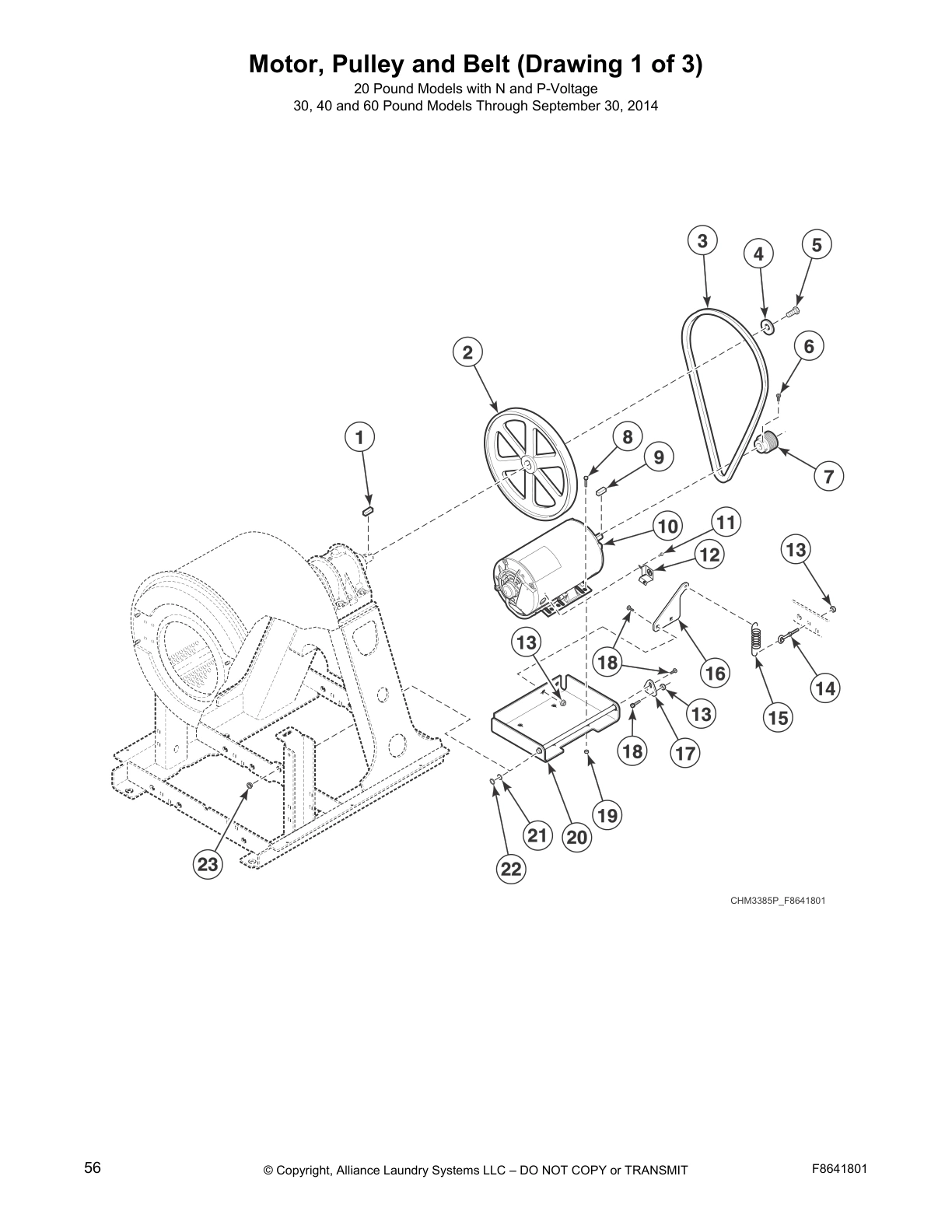

Motor, Pulley and Belt (Drawing 1 of 3)

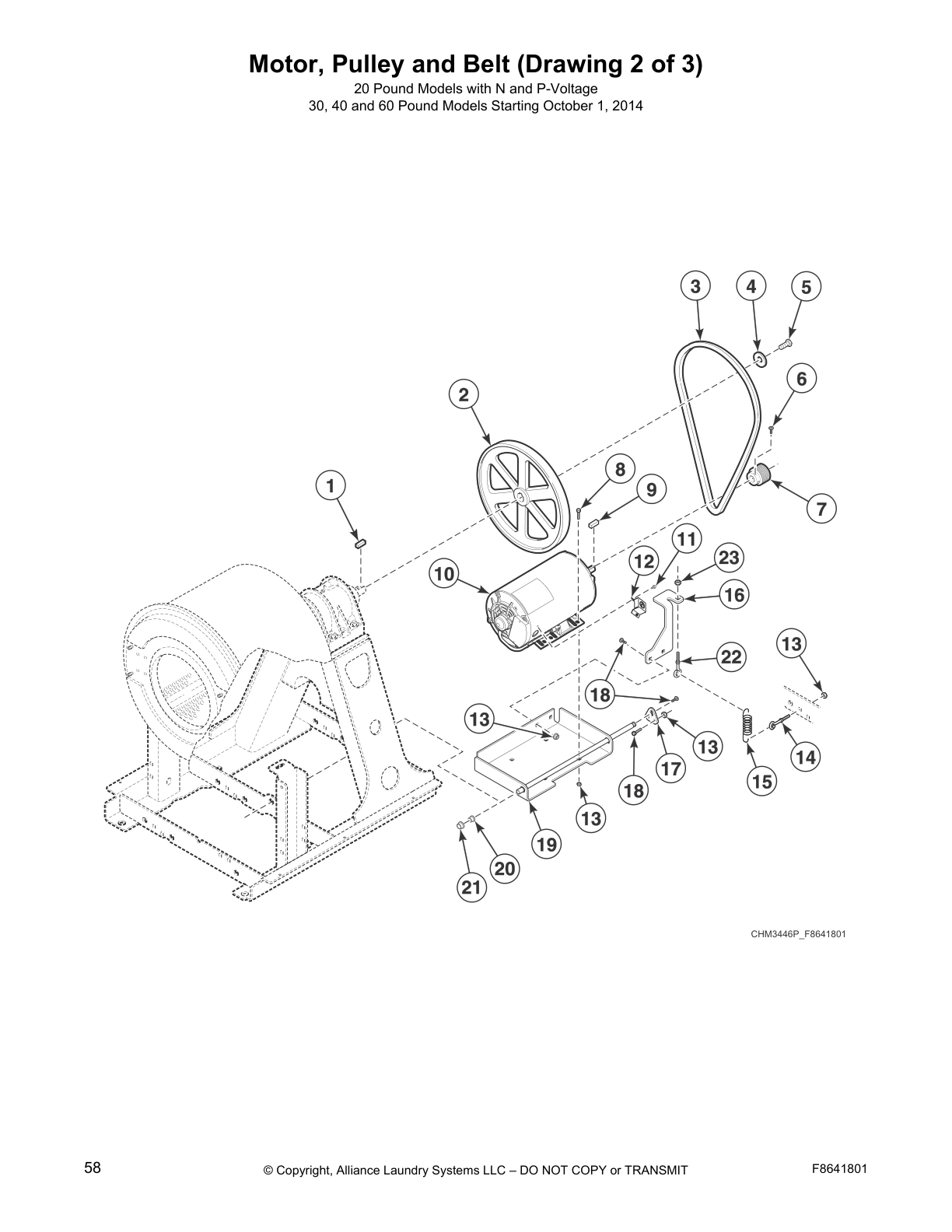

Motor, Pulley and Belt (Drawing 2 of 3)

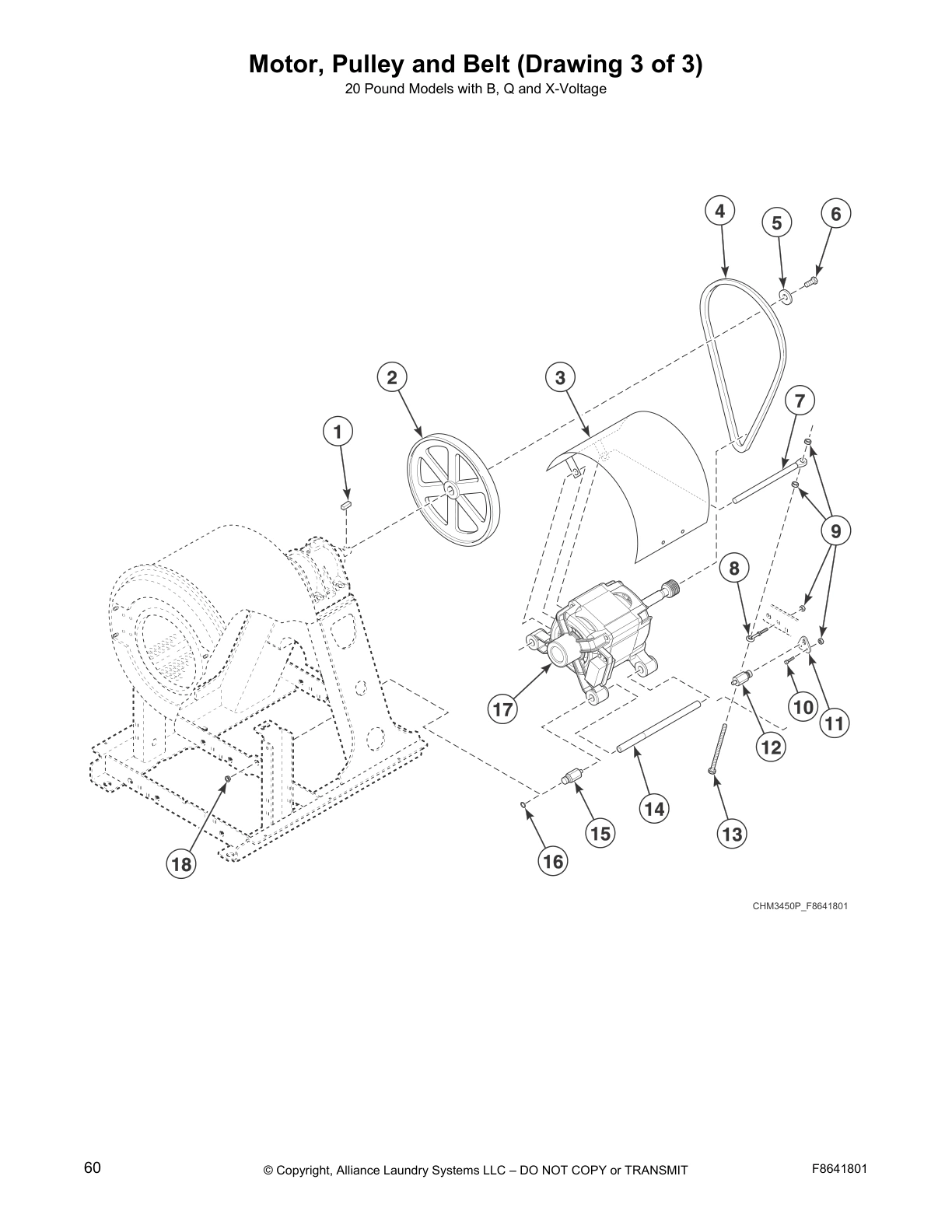

Motor, Pulley and Belt (Drawing 3 of 3)

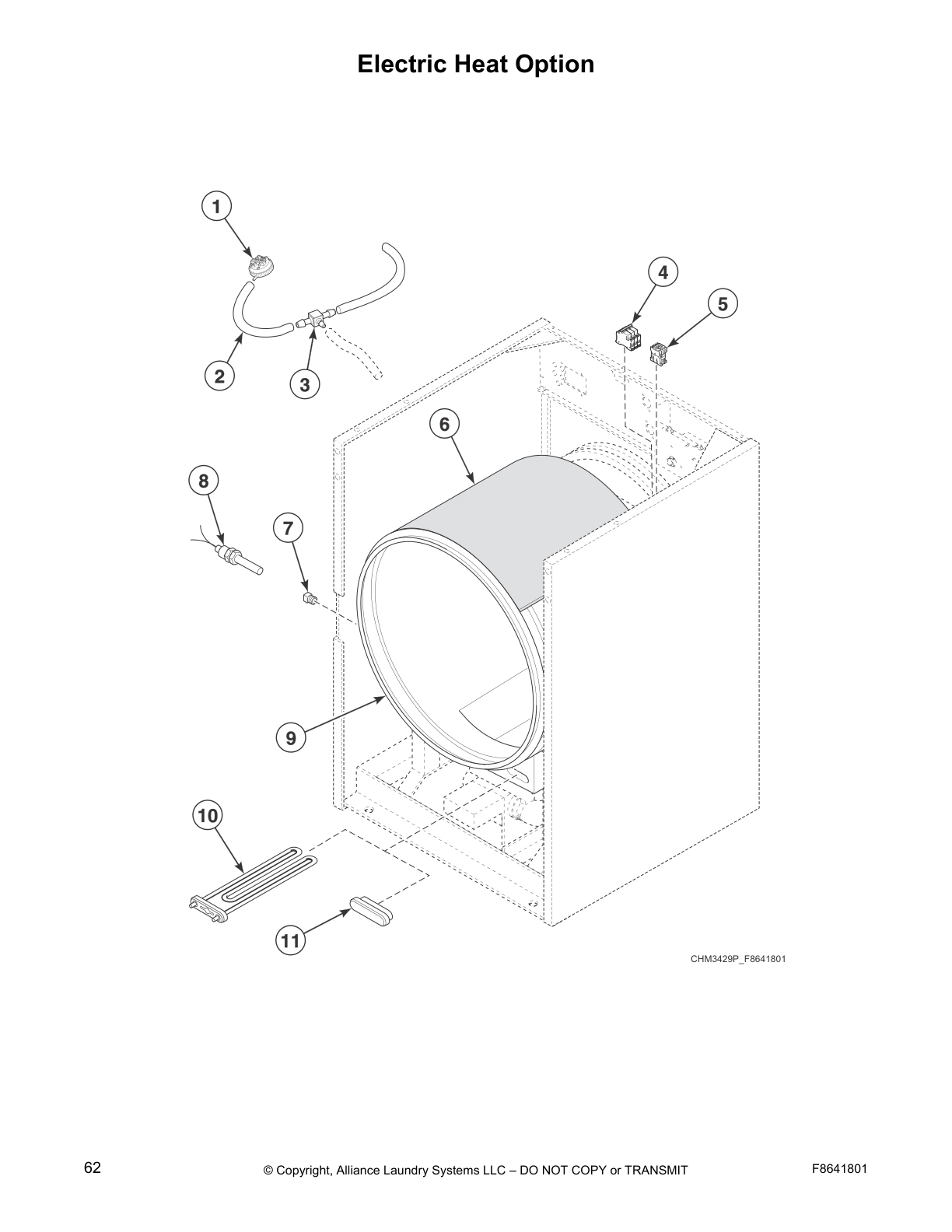

Electric Heat Option

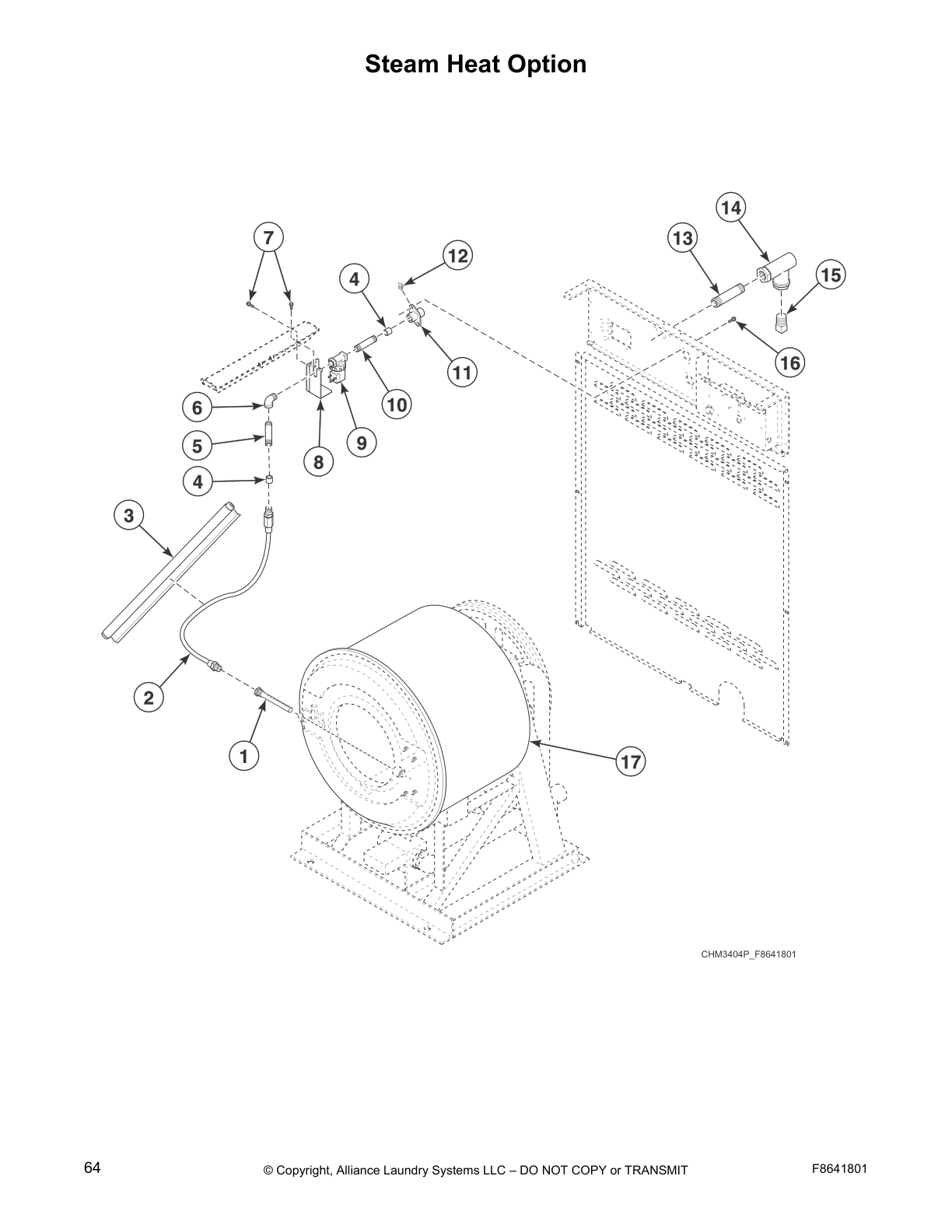

Steam Heat Option
Common parts from model Huebsch HCL060ZCF Washer
Valve Kit SPQ F380984P Contact Us For Availability
SPQ 70281102 SPQ 70281102 Contact Us For Availability
SPQ CK121 SPQ CK121 Contact Us For Availability
SPQ 70482401 SPQ 70482401 Contact Us For Availability
SPQ 70294120 SPQ 70294120 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ 70295301 SPQ 70295301 Contact Us For Availability
SPQ F430533 SPQ F430533 Contact Us For Availability
SPQ F8507701 SPQ F8507701 Contact Us For Availability
SPQ 390P4-1 SPQ 390P4-1 Contact Us For Availability
SPQ F8197701 SPQ F8197701 Contact Us For Availability
SPQ F8382301 SPQ F8382301 Contact Us For Availability
1
Network Wire Harness Assembly SPQ 44088501P Contact Us For Availability
1
Coin Drawer Assembly SPQ F8182001 Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement K SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229701 Contact Us For Availability
1
Bearing SPQ F100135 Contact Us For Availability
1
Screw SPQ F8621601 Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Double Check Valve SPQ F8301201 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Water Pressure Switch SPQ F8404401 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Network Harness SPQ 44141801P Contact Us For Availability
2
Coin Drop Assembly SPQ 38464P Contact Us For Availability
2
Expansion Clip SPQ F8173201P Contact Us For Availability
2
Control Panel Overlay SPQ F8443802 Contact Us For Availability
2
Panel Lock SPQ F8399502P Contact Us For Availability
2
Reed Switch Assembly SPQ F431223 Contact Us For Availability
2
Spacer SPQ F430225 Contact Us For Availability
2
Bearing Housing SPQ F8271901P Contact Us For Availability
2
Drain Tee SPQ F8464701 Contact Us For Availability
2
Nut SPQ F8454401 Contact Us For Availability
2
Motor
60 pound models SPQ F8335101P Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
Steam Hose SPQ F200197 Contact Us For Availability
3
Door Lock Splash Shield SPQ F200203200 Contact Us For Availability
3
Door Handle Spacer Kit SPQ F150271 Contact Us For Availability
3
Communication Board SPQ 210095P Contact Us For Availability
3
Coin Drop SPQ 70256402P Contact Us For Availability
3
Gusset Plate SPQ F8173207 Contact Us For Availability
3
Dispenser Lid SPQ F8230501 Contact Us For Availability
3
Nut SPQ F8513501 Contact Us For Availability
3
Seal Scupper Pad SPQ F8250902 Contact Us For Availability
3
Shell Weldment SPQ F8402701 Contact Us For Availability
3
Bolt SPQ F8367201 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Nut SPQ 39157 Contact Us For Availability
4
Electronic Coin Drop Assembly SPQ CK109 Contact Us For Availability
4
Top Cover SPQ F8230601 Contact Us For Availability
4
Door Assembly SPQ F190216P Contact Us For Availability
4
Door Lock Plate Assembly SPQ F431901 Contact Us For Availability
4
Washer SPQ F8350303 Contact Us For Availability
4
Nut SPQ F8360901 Contact Us For Availability
4
Stud SPQ F200165100 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
4
Washer SPQ F8382805 Contact Us For Availability
4
Street Elbow SPQ F8116301 Contact Us For Availability
5
Communication Connector SPQ 210099 Contact Us For Availability
5
Opto Coupler SPQ 210196 Contact Us For Availability
5
Coin Drop Assembly SPQ CK101 Contact Us For Availability
5
Top Cover Latch SPQ F8186702 Contact Us For Availability
5
SPQ F8091701 SPQ F8091701 Contact Us For Availability
5
Screw SPQ F320200 Contact Us For Availability
5
Clamp Ring Bracket SPQ F8302701 Contact Us For Availability
5
Screw SPQ F430339 Contact Us For Availability
5
Frame Template SPQ F8442702 Contact Us For Availability
5
Drain Valve SPQ F8602602 Contact Us For Availability
5
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
5
Steam Bracket SPQ 70263801 Contact Us For Availability
6
SPQ F8048101 SPQ F8048101 Contact Us For Availability
6
SPQ F8199501 SPQ F8199501 Contact Us For Availability
6
Snap Bushing SPQ M400770 Contact Us For Availability
6
Door Lock Plate Shim SPQ F8223202 Contact Us For Availability
6
Screw SPQ F8302401 Contact Us For Availability
6
Triple Lip Seal SPQ F8368801 Contact Us For Availability
6
SPQ F150398 SPQ F150398 Contact Us For Availability
6
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
6
Pipe Insulation SPQ F410300 Contact Us For Availability
6
Valve SPQ H86070034 Contact Us For Availability
7
Communication Harness SPQ 70338301P Contact Us For Availability
7
Washer SPQ F8038802 Contact Us For Availability
7
Pop Rivet SPQ F8201001 Contact Us For Availability
7
SPQ F8544701 SPQ F8544701 Contact Us For Availability
7
External Door Lock Harness SPQ F430977 Contact Us For Availability
7
Radial Seal SPQ F8203806 Contact Us For Availability
7
SPQ F8047801 SPQ F8047801 Contact Us For Availability
7
Motor Isolation Kit
40 and 60 pound models SPQ M400077 Contact Us For Availability
7
Plug SPQ F200202600 Contact Us For Availability
8
Water Pressure Switch SPQ F980P3 Contact Us For Availability
8
Circuit Breaker SPQ F8053901P Contact Us For Availability
8
Washer SPQ 70412601 Contact Us For Availability
8
SPQ F431916 SPQ F431916 Contact Us For Availability
8
SPQ F8344401 SPQ F8344401 Contact Us For Availability
8
Basket Assembly SPQ F8537804 Contact Us For Availability
8
Retaining Ring SPQ F8203808 Contact Us For Availability
8
SPQ 70334702 SPQ 70334702 Contact Us For Availability
8
SPQ F8043405 SPQ F8043405 Contact Us For Availability
8
Includes F85350 and F8535201 Isolator SPQ F8362501 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Jumper Configuration Assembly SPQ F8310101 Contact Us For Availability
9
SPQ F8201101 SPQ F8201101 Contact Us For Availability
9
SPQ F8040401P SPQ F8040401P Contact Us For Availability
9
SPQ F8535501 SPQ F8535501 Contact Us For Availability
9
Shaft Seal Sleeve SPQ F8502804 Contact Us For Availability
9
Nut SPQ F8337901 Contact Us For Availability
9
SPQ F200213 SPQ F200213 Contact Us For Availability
9
Use with 2 hp moto SPQ H8752006H Contact Us For Availability
9
Steam Valve Repair Kit SPQ F8322801P Contact Us For Availability
10
End Stop SPQ F8204701P Contact Us For Availability
10
Top Cabinet Brace SPQ F8043901 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8337101 Contact Us For Availability
10
Dowel Pin SPQ F8388201 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Rear Drain Hose SPQ F200201 Contact Us For Availability
10
Vacuum Breaker Hose SPQ F8047402 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
11
DIN Rail SPQ F8449801 Contact Us For Availability
11
Door Bezel SPQ F0170426-30 Contact Us For Availability
11
Top Cover Hinge SPQ F8258601 Contact Us For Availability
11
Door Gasket SPQ F431041 Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Washer SPQ F8527701 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271902 Contact Us For Availability
11
Bracket SPQ F8231905 Contact Us For Availability
11
Hose Clamp SPQ F0200244-01 Contact Us For Availability
11
Screw SPQ 23222 Contact Us For Availability
11
Motor Rod Plate SPQ F8441101 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
11
Coupling SPQ F8362701 Contact Us For Availability
12
Expansion Clip SPQ F8385301 Contact Us For Availability
12
Lower Cabinet Brace SPQ F430174 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Washer SPQ F8434701 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
12
Valve Panel SPQ 36811 Contact Us For Availability
12
Motor Conduit Mounting Bracket SPQ 70321701 Contact Us For Availability
13
Expansion Clip SPQ F8174101 Contact Us For Availability
13
Plug SPQ M400985 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Nut SPQ M405535 Contact Us For Availability
13
Screw SPQ F8399001 Contact Us For Availability
13
Pipe Nipple SPQ 431486 Contact Us For Availability
14
Grommet SPQ F8433001 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Drive Tray Assembly SPQ F8401301 Contact Us For Availability
14
Hole Plug SPQ F8223901 Contact Us For Availability
14
Bolt SPQ F8111502 Contact Us For Availability
15
Magnet SPQ F170124 Contact Us For Availability
15
Rear Panel SPQ F8223801 Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Drain Hose SPQ 202175 Contact Us For Availability
15
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Plug SPQ F420409 Contact Us For Availability
16
Expansion Clip SPQ F8367101 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Overflow Hose SPQ F8232901 Contact Us For Availability
16
Harness SPQ F8230001 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Spring Plate SPQ F8525801 Contact Us For Availability
16
Flanged Bushing SPQ F8333302 Contact Us For Availability
16
Screw SPQ 20253 Contact Us For Availability
17
Pop Rivet SPQ F430974 Contact Us For Availability
17
Filter SPQ F8177001 Contact Us For Availability
17
Shell Weldment SPQ F8360902 Contact Us For Availability
18
Terminal Block SPQ F8206901 Contact Us For Availability
18
Right Side Panel SPQ F8399503 Contact Us For Availability
18
Blind Rivet SPQ F8508101 Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
19
Spring Pin SPQ F8390801 Contact Us For Availability
19
Left Side Panel SPQ F8399501 Contact Us For Availability
19
Basket Pulley
60 pound models SPQ F8387601 Contact Us For Availability
19
Siphon Cover SPQ F8454601 Contact Us For Availability
19
Motor Bracket Weldment
40 and 60 pound models SPQ F8441604 Contact Us For Availability
20
Ground Lug Connector SPQ 430642 Contact Us For Availability
20
Pushbutton Switch SPQ F8399504 Contact Us For Availability
20
Rod SPQ F8245101 Contact Us For Availability
20
Basket Pulley
60 pound models SPQ F200299700 Contact Us For Availability
21
Bolt SPQ 44089303P Contact Us For Availability
21
Door Hinge Shim Kit SPQ F431222 Contact Us For Availability
21
3-Way Valve SPQ F8047901 Contact Us For Availability
21
Use with 2 a SPQ F8441901 Contact Us For Availability
21
Flanged Isolator SPQ F8535202 Contact Us For Availability
22
Lid Clamp SPQ 70413301 Contact Us For Availability
22
Washer SPQ F430232 Contact Us For Availability
22
Screw SPQ F8066802 Contact Us For Availability
22
O-Ring SPQ F8333301 Contact Us For Availability
23
Washer SPQ F602813-3 Contact Us For Availability
23
Hose SPQ M411283 Contact Us For Availability
23
Eye Bolt SPQ F8319503 Contact Us For Availability
24
Door Mount SPQ F200131000P Contact Us For Availability
24
P-Trap Hose SPQ F430909 Contact Us For Availability
25
Door Hinge SPQ F430536 Contact Us For Availability
25
Manifold SPQ F8286402P Contact Us For Availability
26
Door Handle SPQ F430215 Contact Us For Availability
26
Dispenser Gasket SPQ F8286401P Contact Us For Availability
27
Door SPQ F431929 Contact Us For Availability
28
Supply Overflow Hose SPQ F8232002 Contact Us For Availability
29
Vacuum Supply Hose SPQ F8042301 Contact Us For Availability
30
Cap SPQ F8333201 Contact Us For Availability
31
Diaphragm and Guide Kit SPQ F200222 Contact Us For Availability
32
SPQ F8308301 SPQ F8308301 Contact Us For Availability
NI
SPQ F8567501 SPQ F8567501 Contact Us For Availability
NI
Output/Logic Harness SPQ M413506 Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8191201P Contact Us For Availability
NI
SPQ F8385102 SPQ F8385102 Contact Us For Availability
NI
SPQ F8261501P SPQ F8261501P Contact Us For Availability
NI
USB Gateway Kit SPQ NK330 Contact Us For Availability
NI
SPQ F200010000P SPQ F200010000P Contact Us For Availability
NI
Pop Rivet SPQ 210195 Contact Us For Availability
NI
Coin Drop Kit SPQ CK100 Contact Us For Availability
NI
Pulse Expander Assembly SPQ CK099 Contact Us For Availability
NI
SPQ 70294104 SPQ 70294104 Contact Us For Availability
NI
SPQ CK122 SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ 70294121 SPQ 70294121 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ F8034701P SPQ F8034701P Contact Us For Availability
NI
SPQ 70295101 SPQ 70295101 Contact Us For Availability
NI
SPQ CK500 SPQ CK500 Contact Us For Availability
NI
SPQ F8443801 SPQ F8443801 Contact Us For Availability
NI
SPQ F602842-2 SPQ F602842-2 Contact Us For Availability
NI
SPQ F8507702 SPQ F8507702 Contact Us For Availability
NI
SPQ F8187406 SPQ F8187406 Contact Us For Availability
NI
SPQ F8187403 SPQ F8187403 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
Basket Tool Kit SPQ F460129P Contact Us For Availability
NI
SPQ F8608502P SPQ F8608502P Contact Us For Availability
NI
Shaft Seal Sleeve Kit SPQ F8343914 Contact Us For Availability
NI
Basket Puller Tool SPQ F8343909P Contact Us For Availability
NI
Basket Tool Kit SPQ F8388004 Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
Basket Puller Tool SPQ F100134 Contact Us For Availability
NI
Basket Rental Tool Kit SPQ F8387701 Contact Us For Availability
NI
SPQ F8433601 SPQ F8433601 Contact Us For Availability
NI
SPQ 1111P SPQ 1111P Contact Us For Availability
NI
Drain Seal Kit SPQ F8562001 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F8042805 SPQ F8042805 Contact Us For Availability
NI
SPQ F8048601 SPQ F8048601 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
Motor Harness
30 and 40 pound models N and P- SPQ F8562502 Contact Us For Availability
NI
pound models SPQ F8396601 Contact Us For Availability
NI
Jumper Wire SPQ F8056001 Contact Us For Availability
NI
Coil SPQ F8521501 Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ F953P3 Contact Us For Availability
NI
SPQ F8514601P SPQ F8514601P Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
