Model Whirlpool GVW9959KL2 AUTOMATIC WASHER – Common Parts & Diagrams

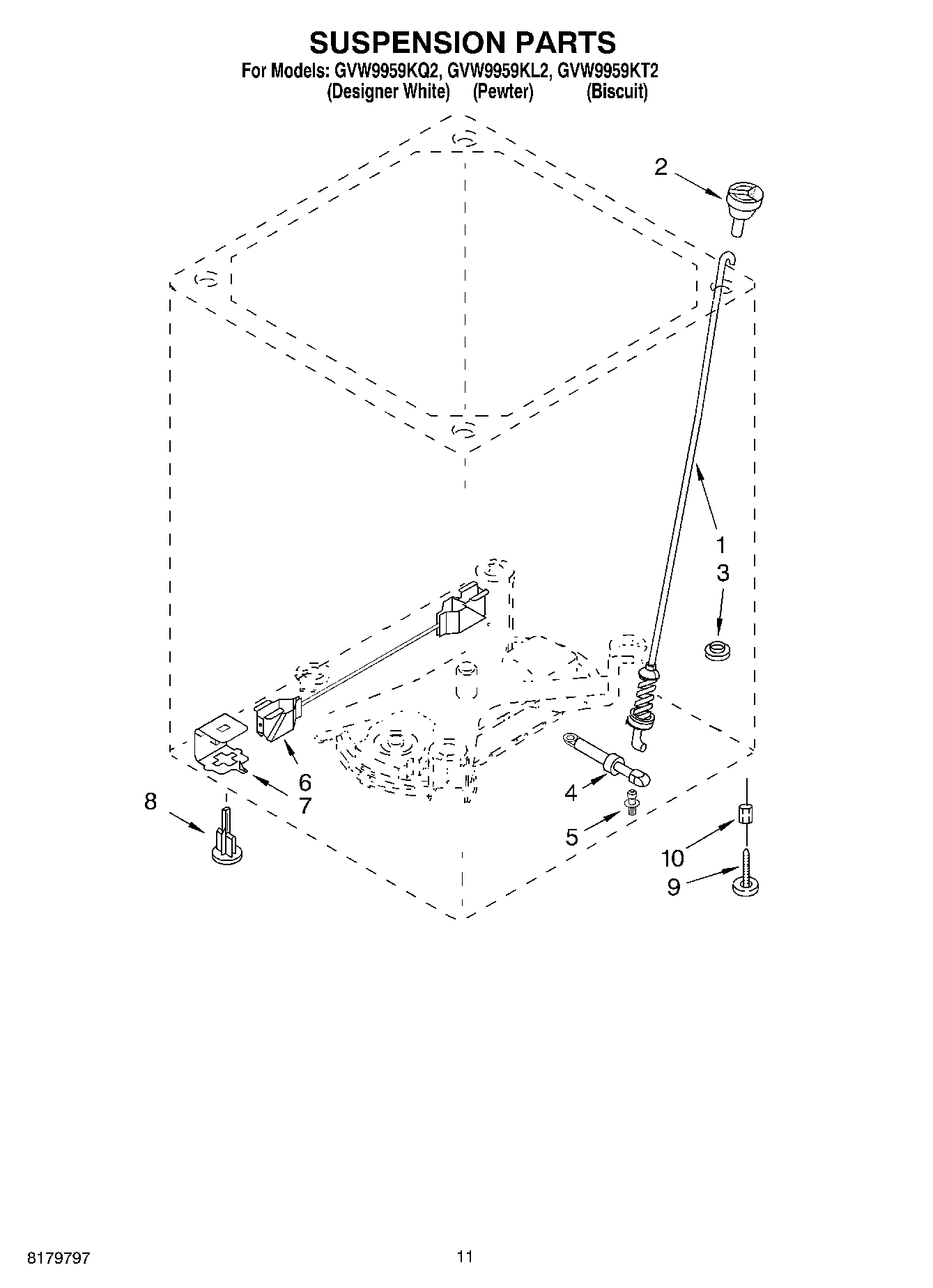

06 - SUSPENSION

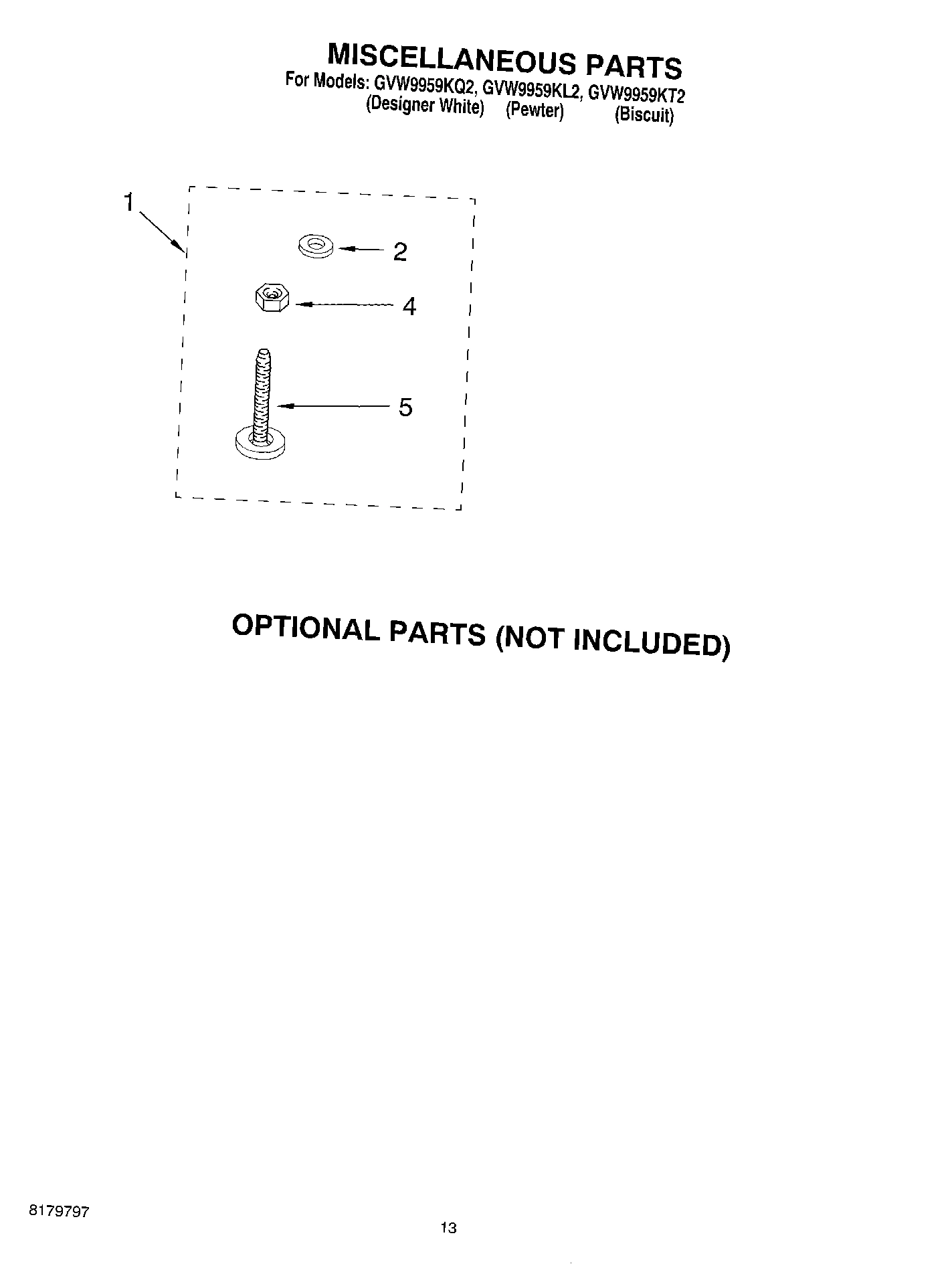

08 - MISCELLANEOUS, OPTIONAL

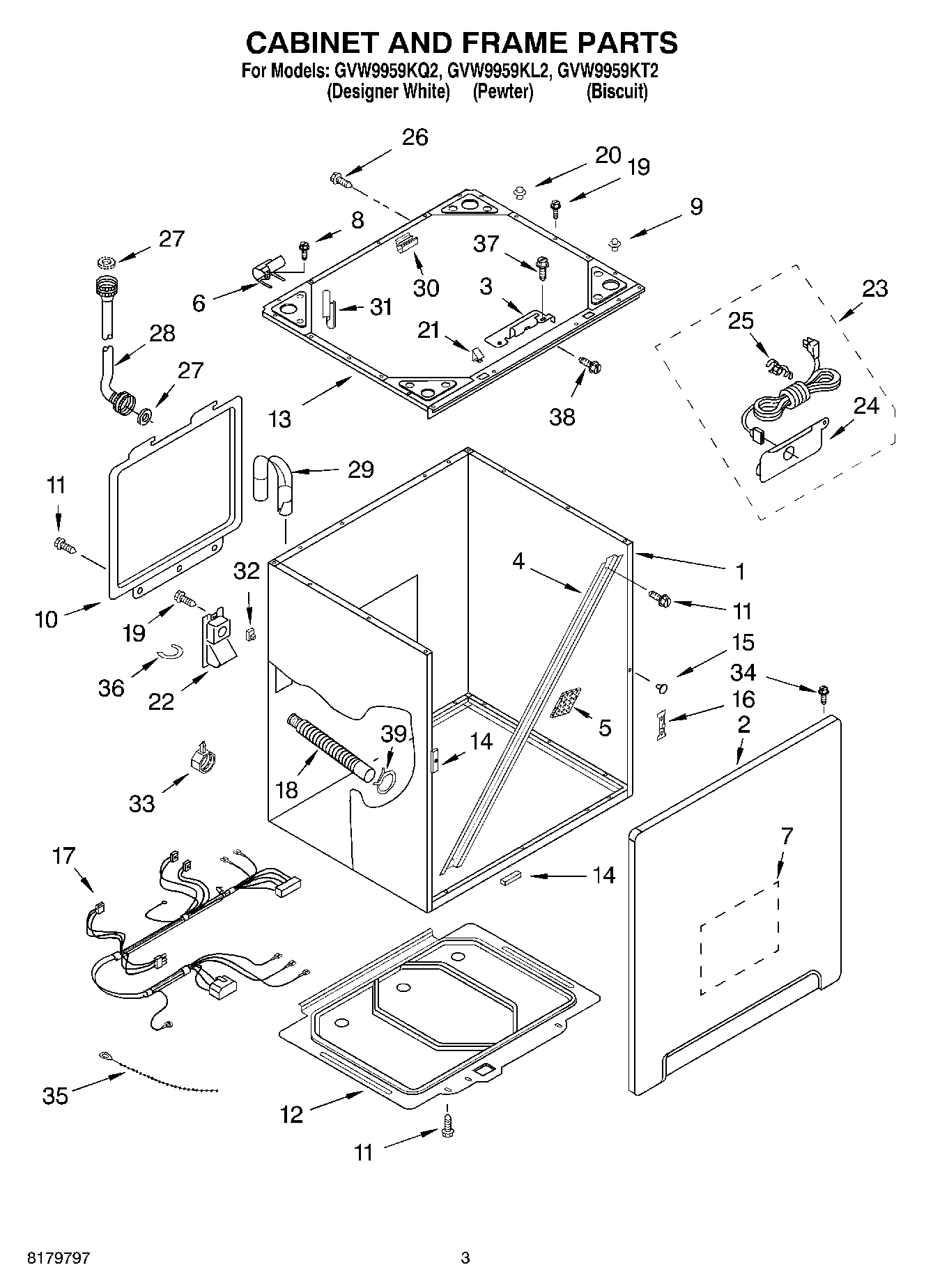

02 - CABINET AND FRAME

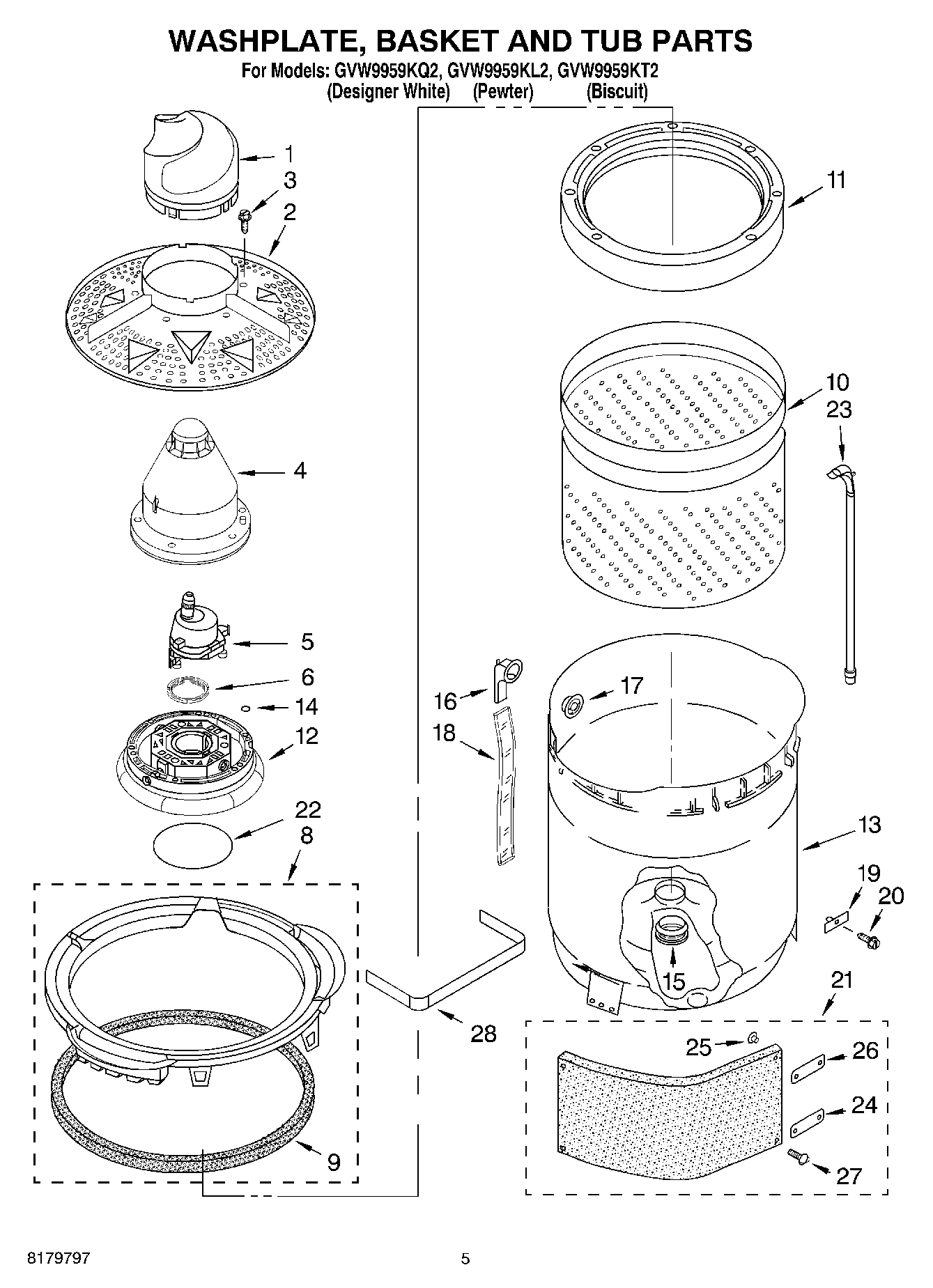

03 - WASHPLATE, BASKET AND TUB

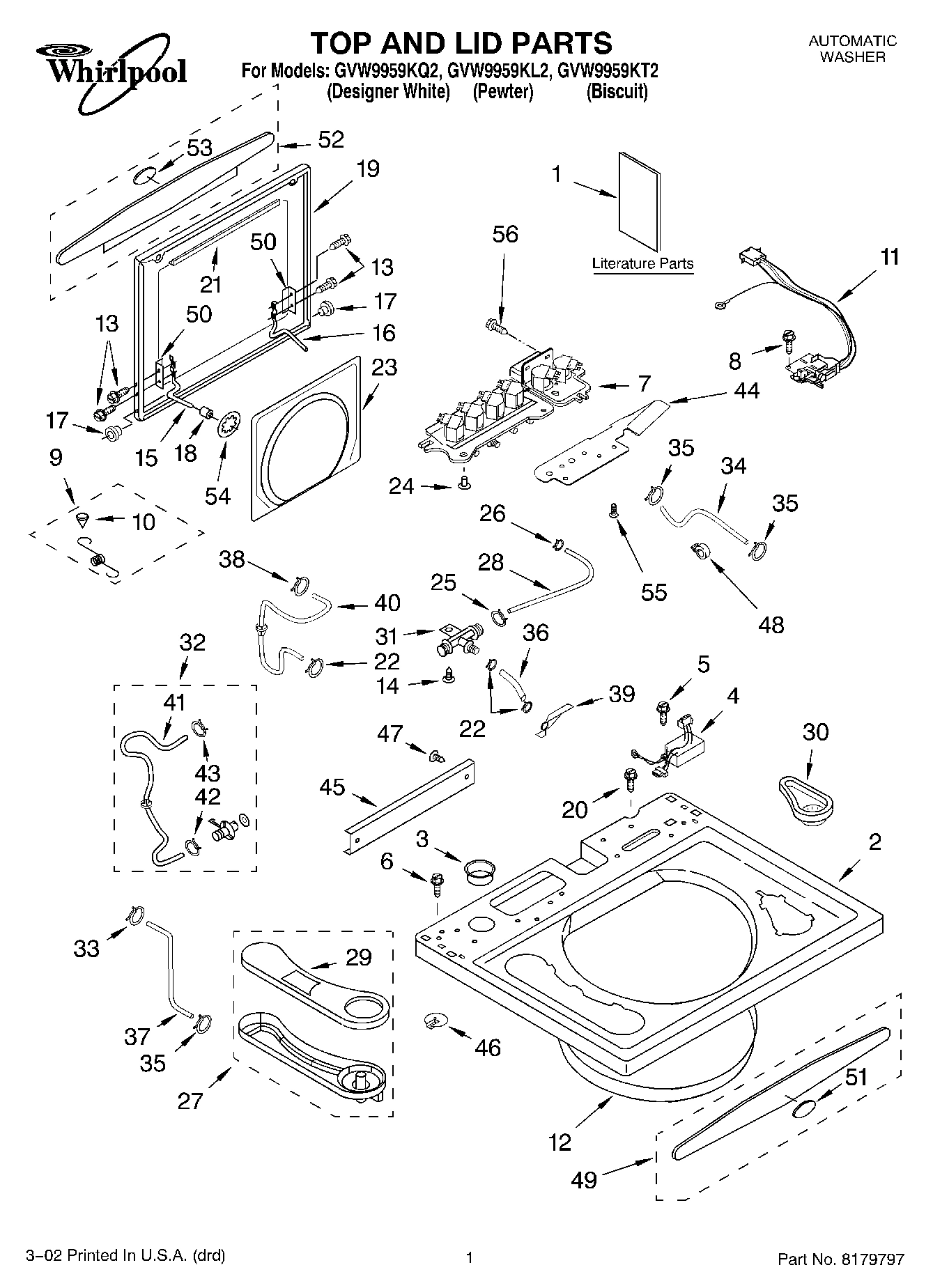

01 - TOP AND LID, LITERATURE

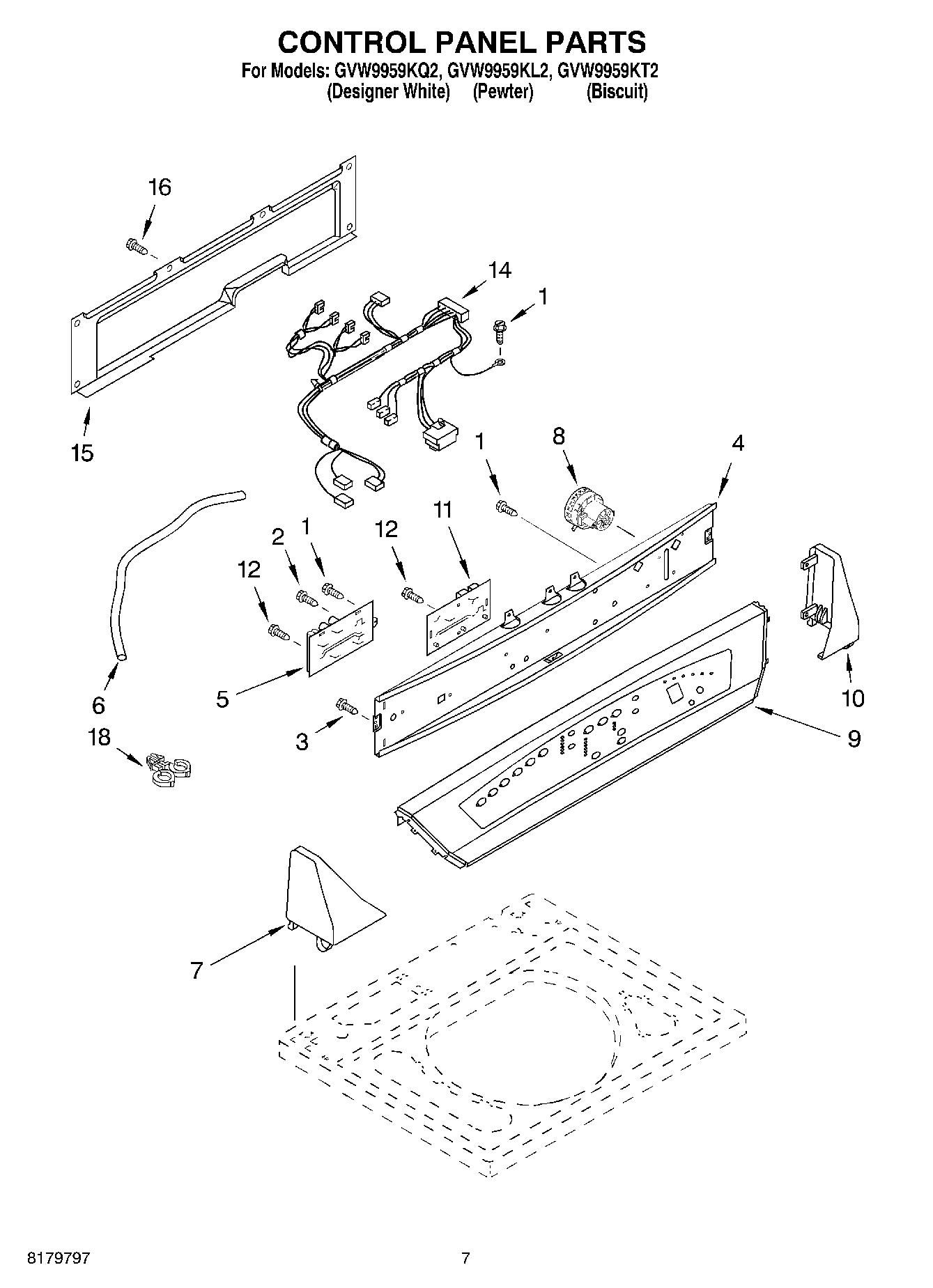

04 - CONTROL PANEL

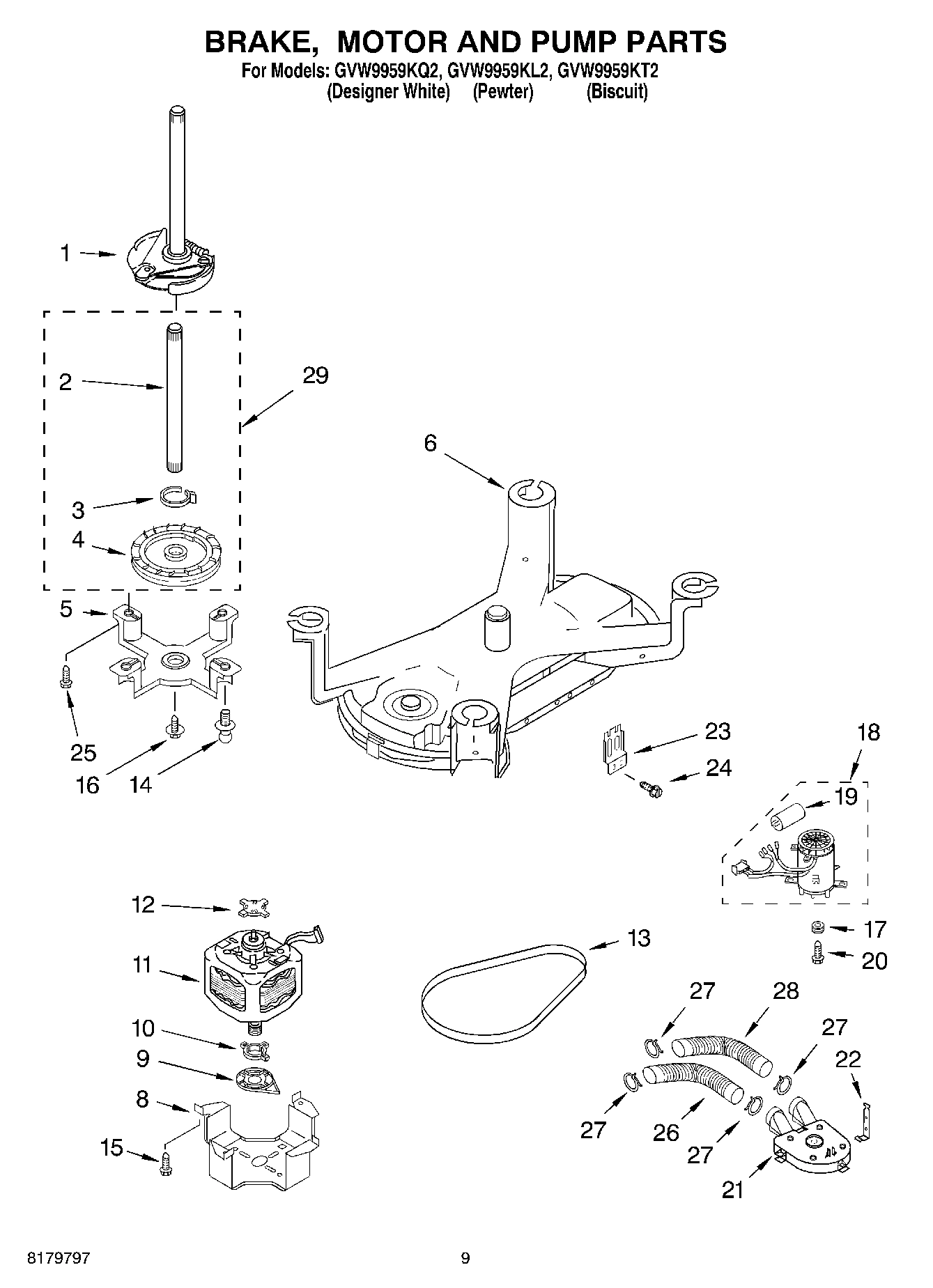

05 - BRAKE, MOTOR AND PUMP

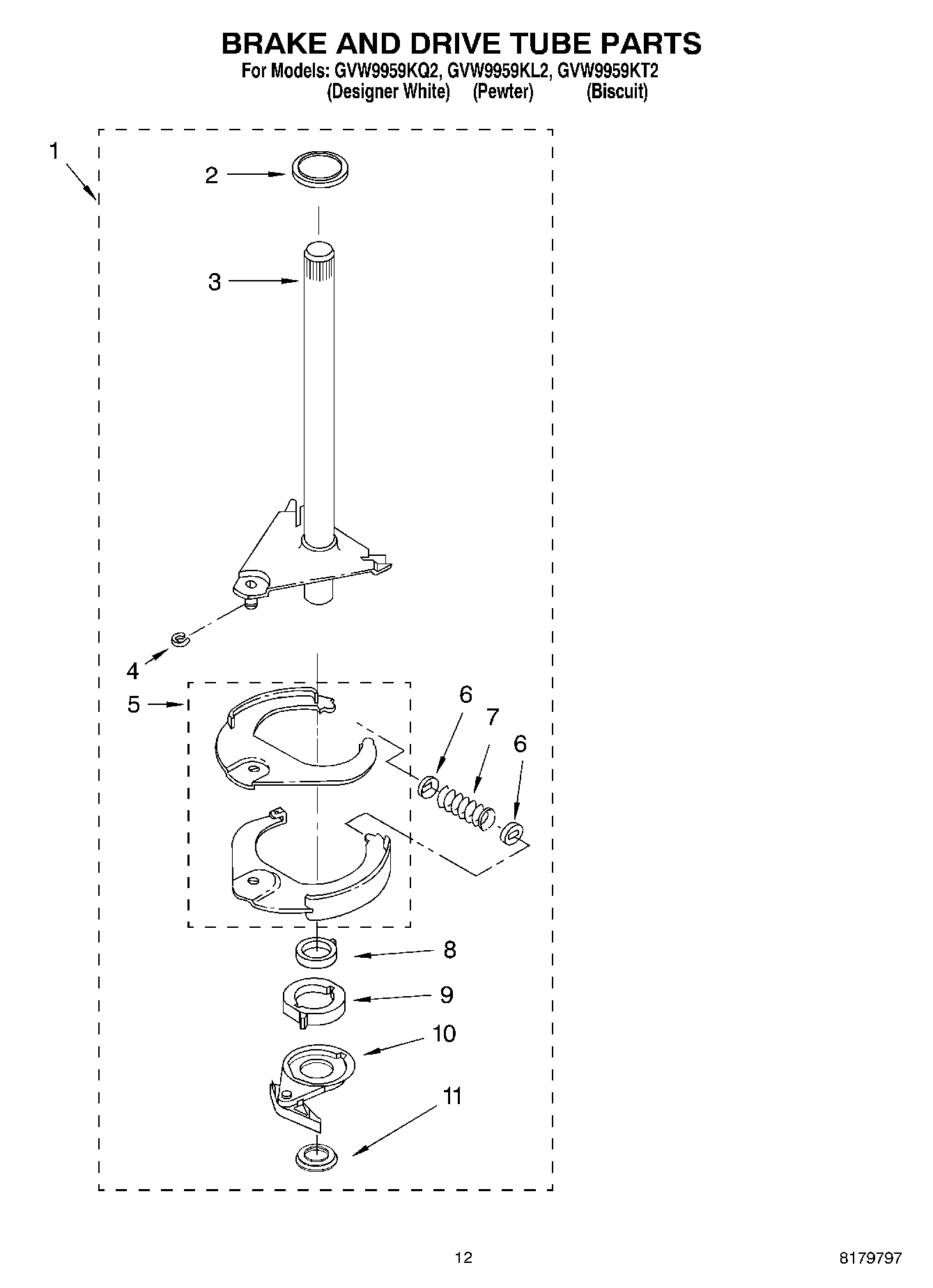

07 - BRAKE AND DRIVE TUBE
Common parts from model Whirlpool GVW9959KL2 AUTOMATIC WASHER
1
Tube Assembly (Complete) WPL 8271972 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT3955179 Contact Us For Availability
1
Literature Parts (Video - Use & Care) WPL LIT3955183 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT3955546 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8530143 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8530145 Contact Us For Availability
2
Washplate (Outer) WPL 8522194 Contact Us For Availability
2
Top (White) WPL 8318130 Contact Us For Availability
2
Top (Biscuit) WPL 8318131 Contact Us For Availability
2
Top (Pewter) WPL 8318132 Contact Us For Availability
2
Shaft, Washplate WPL 8055094 Contact Us For Availability
2
Ring, Thrust WPL 9724189 Contact Us For Availability
3
Bolt WPL 8282519 Contact Us For Availability
3
Bushing, Harness WPL 8300010 Contact Us For Availability
3
Spring Assembly (Shift) WPL 8055224 Contact Us For Availability
3
Tube, Spin WPL 8318243 Contact Us For Availability
4
Stabilizer, Suspension WPL 9723335 Contact Us For Availability
4
Washplate (Inner) WPL 8318489 Contact Us For Availability
4
Filter, Line WPL 8055146 Contact Us For Availability
4
Bracket, Control WPL 8299690 Contact Us For Availability
4
Pulley, Drive WPL 8282498 Contact Us For Availability
5
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Leveler WPL 8519518 Contact Us For Availability
5
Control, Motor (Electronic) WPL 661646 Contact Us For Availability
5
Bearing Plate, Lower Drive WPL 8055091 Contact Us For Availability
5
Shoe, Brake WPL 8271887 Contact Us For Availability
6
Support, Tub WPL 8054942 Contact Us For Availability
6
Nut, Lock WPL 8520855 Contact Us For Availability
6
Cap, Brake Spring (2) WPL 8055260 Contact Us For Availability
7
Valve, Water Inlet WPL 9724754 Contact Us For Availability
7
Cap, End (L.H.) (White) WPL 8299683 Contact Us For Availability
7
Cap, End (L.H.) (Biscuit) WPL 8299684 Contact Us For Availability
7
Cap, End (L.H.) (Pewter) WPL 8299685 Contact Us For Availability
7
Spring, Brake WPL 8271969 Contact Us For Availability
8
Foot, Rear (2) WPL 8054747 Contact Us For Availability
8
Tub Ring Assembly WPL 8317383 Contact Us For Availability
8
Screw, Lid Switch WPL 3400611 Contact Us For Availability
8
Switch, Pressure (Operating - Marked ``OPR``) WPL 8054766 Contact Us For Availability
8
Plate, Motor WPL 8283349 Contact Us For Availability
8
Sleeve, Cam WPL 8055314 Contact Us For Availability
9
Seal, Tub Ring WPL 8054355 Contact Us For Availability
9
Lid Spring (Includes No. 10) WPL 384463 Contact Us For Availability
9
Panel, Console (Pearl) WPL 8299672 Contact Us For Availability
9
Panel, Console (Pewter) WPL 8299673 Contact Us For Availability
9
Socket, Isolator WPL 8054912 Contact Us For Availability
9
Cam, Brake Release WPL 8055263 Contact Us For Availability
10
BASKET WPL 8529754 Contact Us For Availability
10
Plug, Button WPL 54690 Contact Us For Availability
10
Cap, End (R.H.) (White) WPL 8299686 Contact Us For Availability
10
Cap, End (R.H.) (Biscuit) WPL 8299687 Contact Us For Availability
10
Cap, End (R.H.) (Pewter) WPL 8299688 Contact Us For Availability
10
Isolator, Motor (Lower) WPL 8054996 Contact Us For Availability
10
Driver, Brake Cam WPL 8054992 Contact Us For Availability
11
Switch, Lid WPL 8272124 Contact Us For Availability
11
Balance Ring WPL 9724323 Contact Us For Availability
11
Control, Machine (Electronic) WPL 661640 Contact Us For Availability
11
Motor, Main Drive WPL 9724551 Contact Us For Availability
11
Bearing, Thrust (Upper) WPL 8282568 Contact Us For Availability
12
U-Joint WPL 8532052 Contact Us For Availability
12
Screw WPL 1166054 Contact Us For Availability
12
Splash Shield Assembly WPL 8055191 Contact Us For Availability
12
Isolator, Motor (Upper) WPL 8054913 Contact Us For Availability
13
Tub WPL 8529943 Contact Us For Availability
13
Belt, Drive WPL 9724037 Contact Us For Availability
14
Clip, Pine Tree WPL 8282566 Contact Us For Availability
14
Harness, Wiring WPL 8529923 Contact Us For Availability
14
Stud, Ball (2) WPL 8272127 Contact Us For Availability
15
Hinge, Lid (Left) WPL 8055257 Contact Us For Availability
15
Gasket Centerpost WPL 8055288 Contact Us For Availability
15
Panel, Rear (Console) WPL 8299987 Contact Us For Availability
15
Screw WPL 3400214 Contact Us For Availability
16
Tube, Overflow WPL 8283307 Contact Us For Availability
16
Hinge, Lid (Right) WPL 8055256 Contact Us For Availability
16
Screw, 1/4 x 3/4 WPL 8055225 Contact Us For Availability
17
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
17
Plug, Overflow WPL 8283308 Contact Us For Availability
17
Isolator, Pump Motor (3) WPL 8283536 Contact Us For Availability
18
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
18
Hose, Drain WPL 9724100 Contact Us For Availability
18
Bag, Overflow WPL 8055135 Contact Us For Availability
18
Clip, Pressure Hose WPL 8055297 Contact Us For Availability
18
Motor, Pump (Includes No. 19) WPL 8054968 Contact Us For Availability
19
Clip, Tub Retainer (4) WPL 9724609 Contact Us For Availability
19
Lid Assembly (Includes Items 13, 14, 15, 16, WPL 8318136 Contact Us For Availability
19
Lid Assembly (Includes Items 13, 14, 15, 16, WPL 8318137 Contact Us For Availability
19
Lid Assembly (Includes Items 13, 14, 15, 16, WPL 8318138 Contact Us For Availability
19
Capacitor, Pump Motor WPL 9724548 Contact Us For Availability
20
Screw WPL 3400206 Contact Us For Availability
21
Seal, Lid WPL 8054939 Contact Us For Availability
21
Absorber, Sound (Tub) WPL 8055279 Contact Us For Availability
21
Pump (Complete) WPL 8527775 Contact Us For Availability
22
Retainer, Pump (2) WPL 8054967 Contact Us For Availability
23
Tube, Water Recirculation WPL 8054989 Contact Us For Availability
23
Lid, Inner WPL 8316688 Contact Us For Availability
23
Bracket, Motor Connector WPL 9725000 Contact Us For Availability
24
Strap, Absorber (Lower) WPL 8055280 Contact Us For Availability
24
Clip, Two Stage WPL 8299698 Contact Us For Availability
25
Clip, Absorber WPL 8055272 Contact Us For Availability
25
Screw WPL 3400215 Contact Us For Availability
26
Hose, Tub to Pump (Inner) WPL 8054944 Contact Us For Availability
26
Strap, Absorber (Upper) WPL 8055273 Contact Us For Availability
27
Dispenser, Bleach & Fabric Softener WPL 8055022 Contact Us For Availability
27
Retainer, Push-In WPL 3351189 Contact Us For Availability
28
Hose, Tub to Pump (Outer) WPL 8054988 Contact Us For Availability
28
Hose, Diverter to Venturi WPL 8054366 Contact Us For Availability
28
Shield, Splash (Tub Ring) WPL 8318231 Contact Us For Availability
29
Cover, Dispenser WPL 8272009 Contact Us For Availability
29
Pulley Assembly- Drive (Complete) WPL 8055089 Contact Us For Availability
30
Dispenser, Detergent WPL 8055010 Contact Us For Availability
31
Gusset, Harness WPL 8528279 Contact Us For Availability
31
Venturi WPL 8055168 Contact Us For Availability
32
Nozzle Assembly (Bleach) WPL 8300021 Contact Us For Availability
33
Clip, Drain Hose WPL 9724675 Contact Us For Availability
34
Hose, Detergent WPL 8530273 Contact Us For Availability
36
Retainer, Drain Hose WPL 8318208 Contact Us For Availability
36
Hose, Venturi to Bleach WPL 8055014 Contact Us For Availability
37
Hose, Fab WPL 8054365 Contact Us For Availability
38
Screw, 8-18 x 1.187 WPL 3400811 Contact Us For Availability
39
WPL 8271943 WPL 8271943 Contact Us For Availability
40
WPL 8316761 WPL 8316761 Contact Us For Availability
41
WPL 8316762 WPL 8316762 Contact Us For Availability
44
WPL 8529937 WPL 8529937 Contact Us For Availability
45
WPL 8318189 WPL 8318189 Contact Us For Availability
46
WPL 8519201 WPL 8519201 Contact Us For Availability
47
WPL 8280537 WPL 8280537 Contact Us For Availability
49
WPL 8527686 WPL 8527686 Contact Us For Availability
49
WPL 8527687 WPL 8527687 Contact Us For Availability
51
WPL 8316751 WPL 8316751 Contact Us For Availability
52
WPL 8520850 WPL 8520850 Contact Us For Availability
52
WPL 8520851 WPL 8520851 Contact Us For Availability
53
WPL 8519764 WPL 8519764 Contact Us For Availability
54
WPL 3955659 WPL 3955659 Contact Us For Availability
55
WPL 8530271 WPL 8530271 Contact Us For Availability
× ![]()
