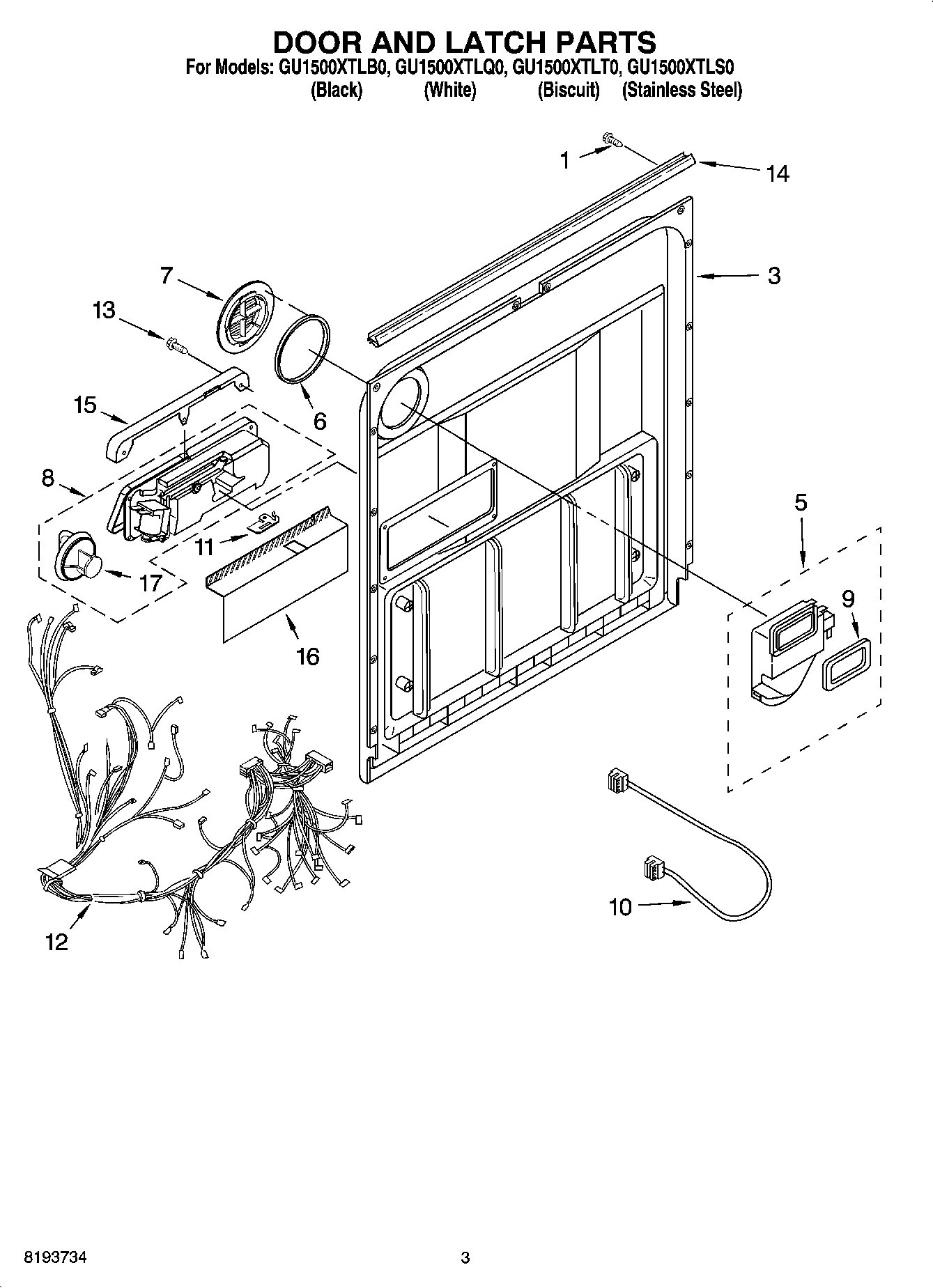

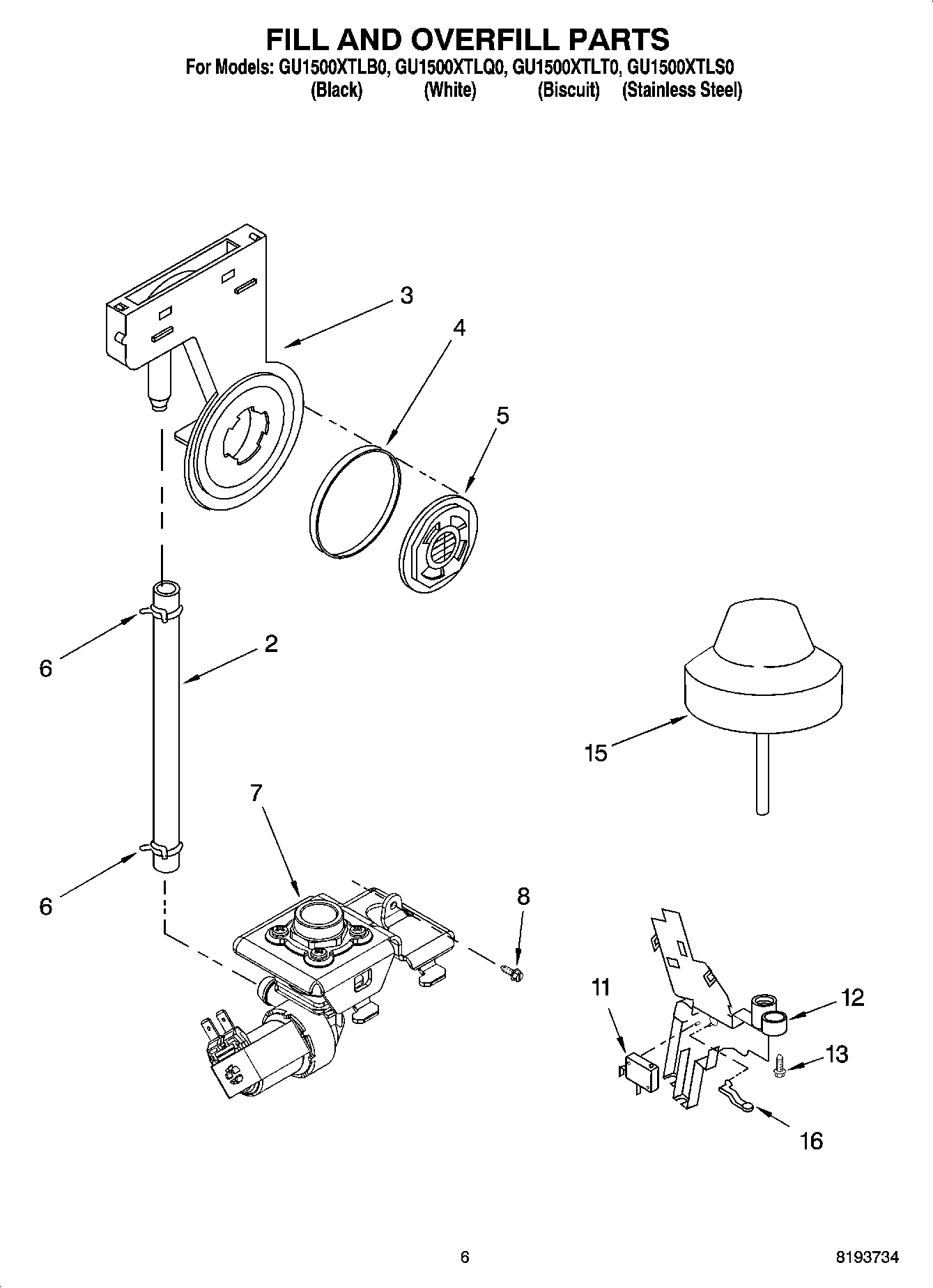

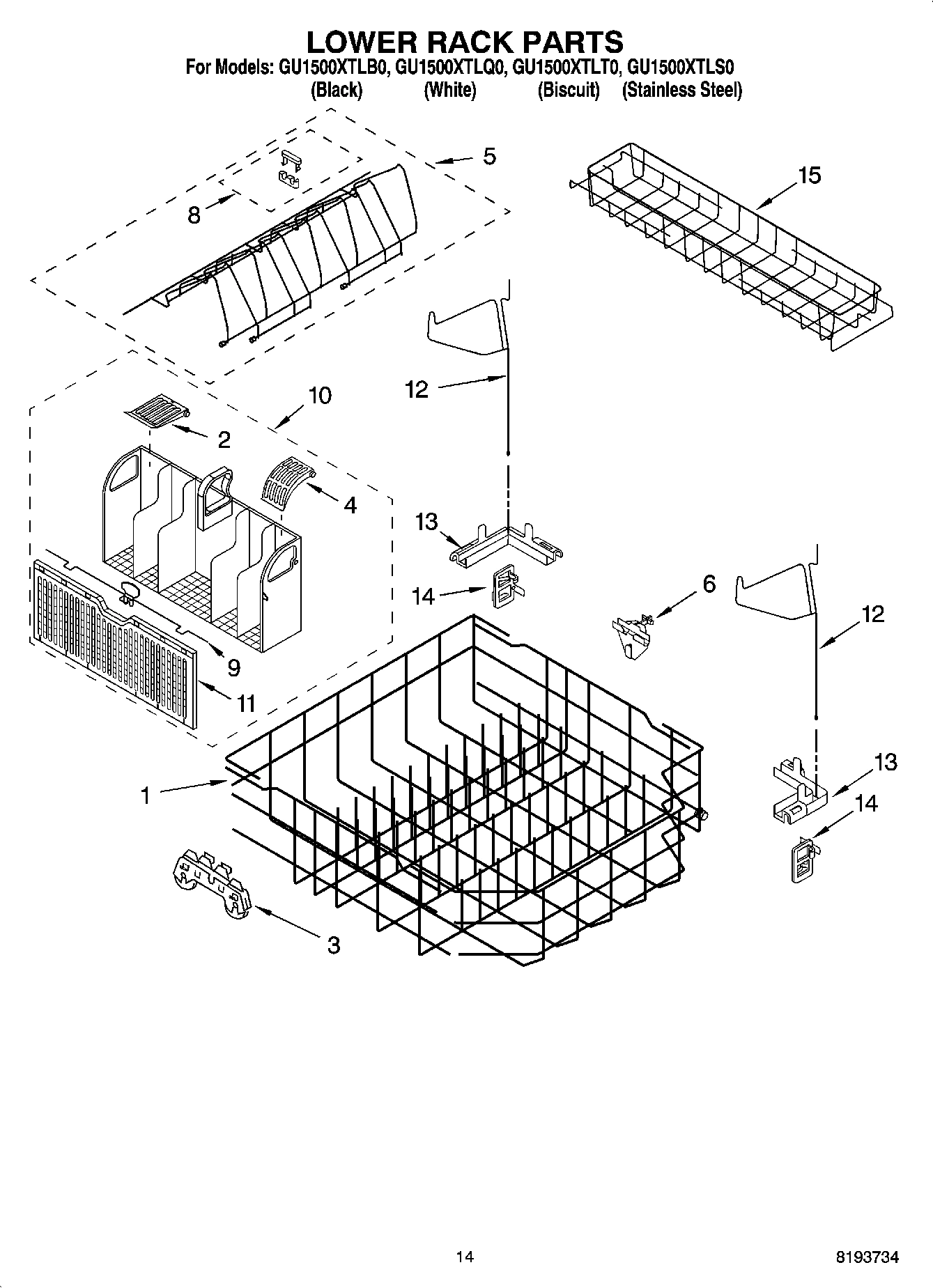

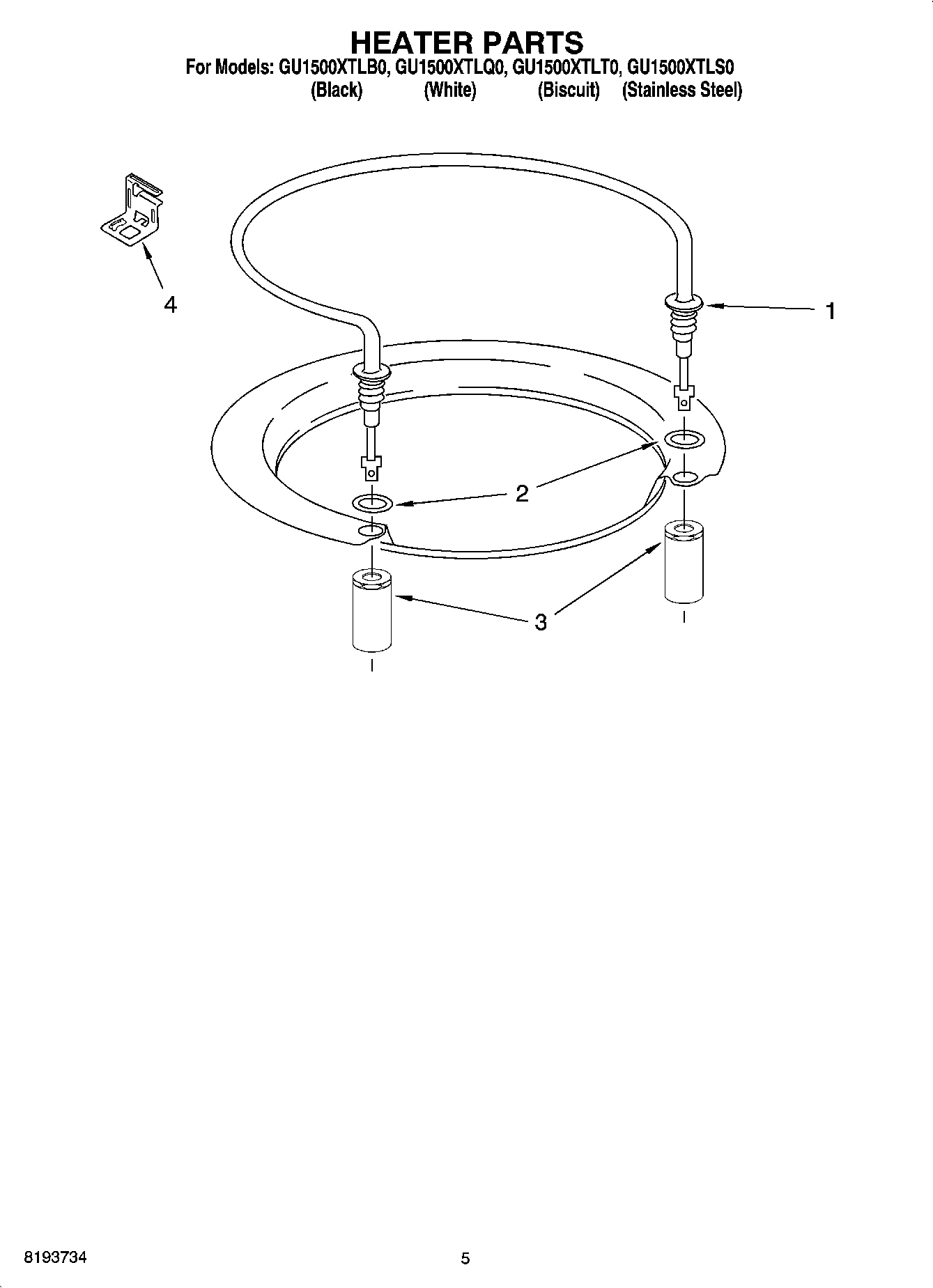

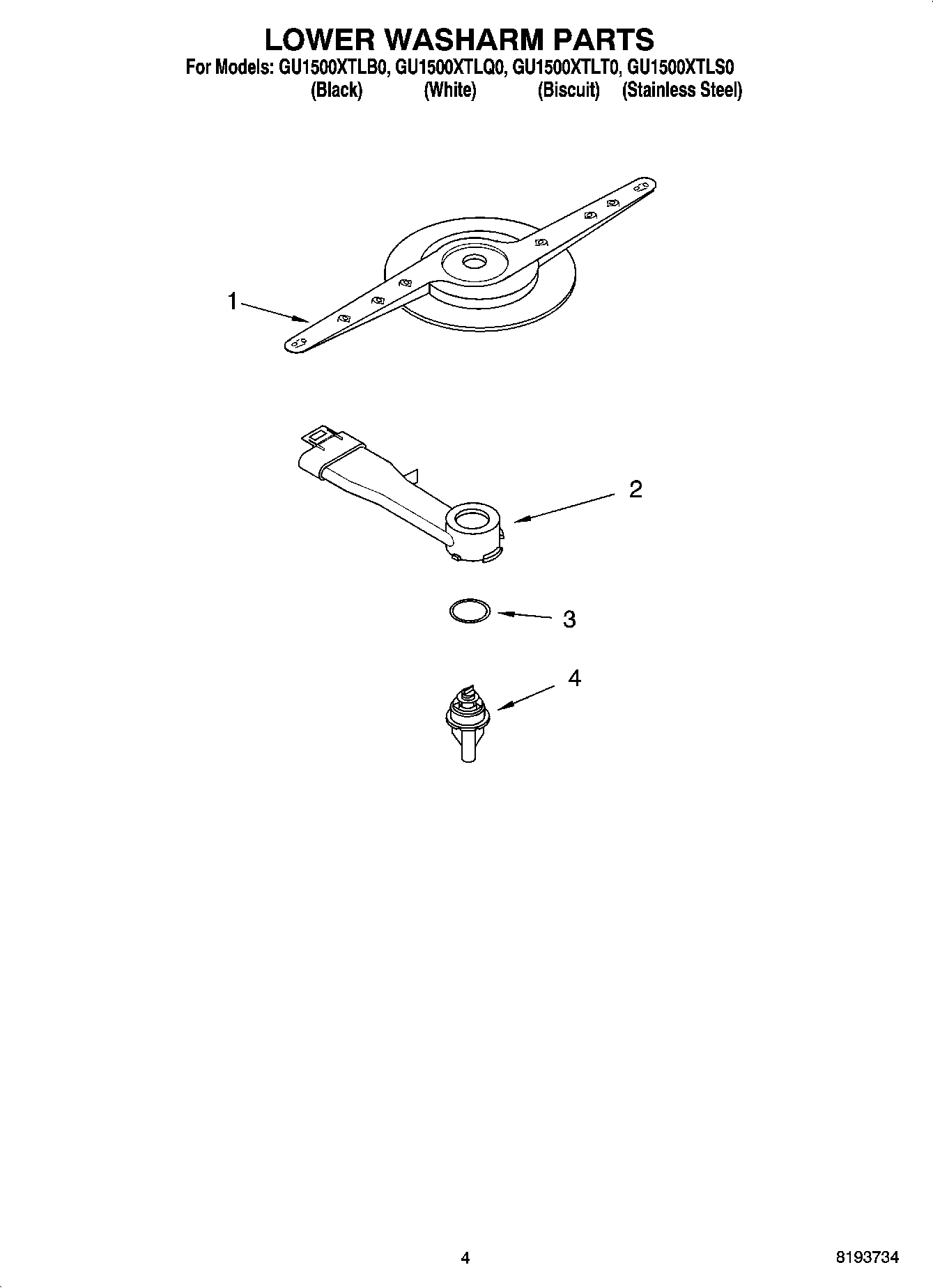

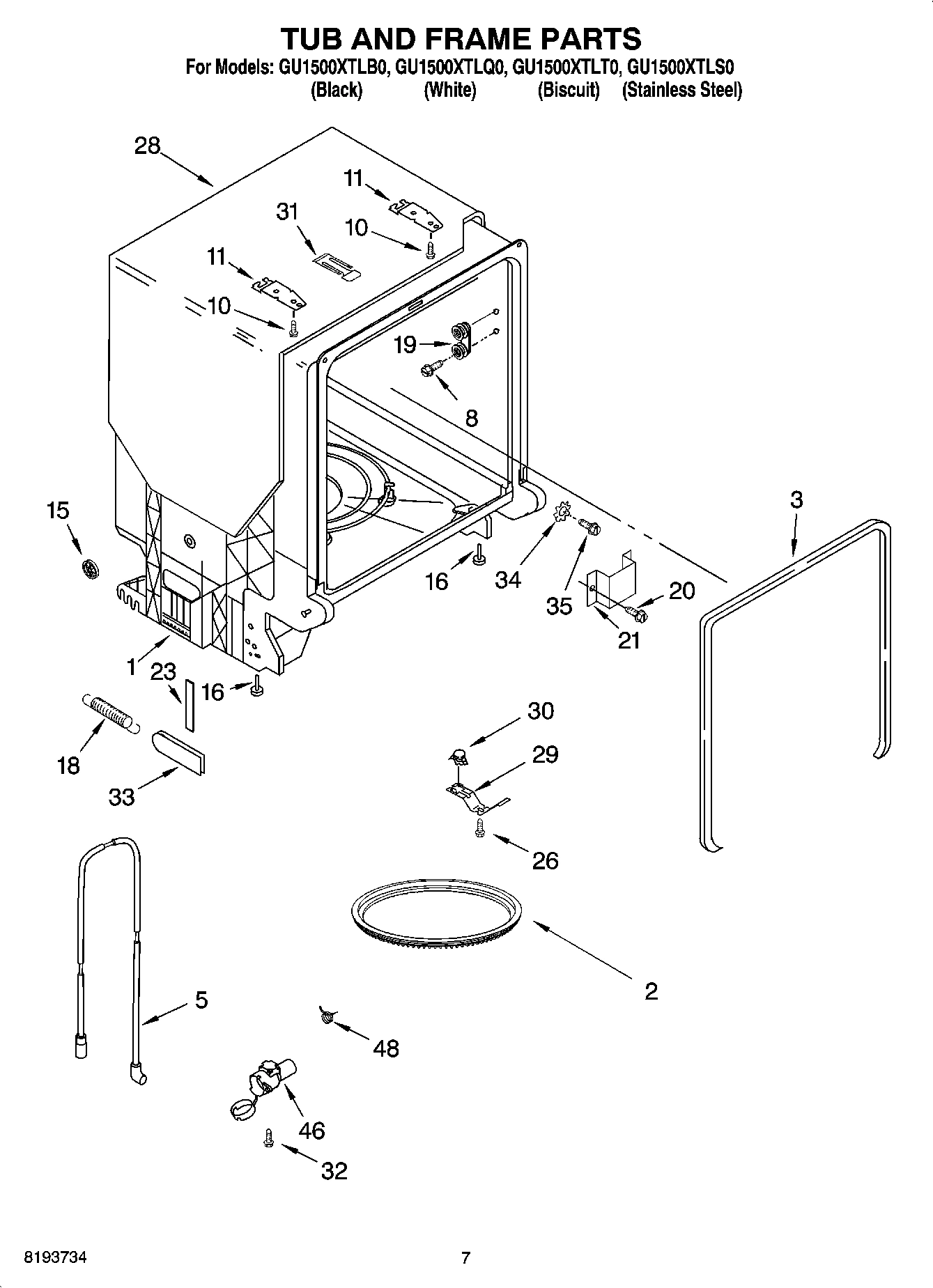

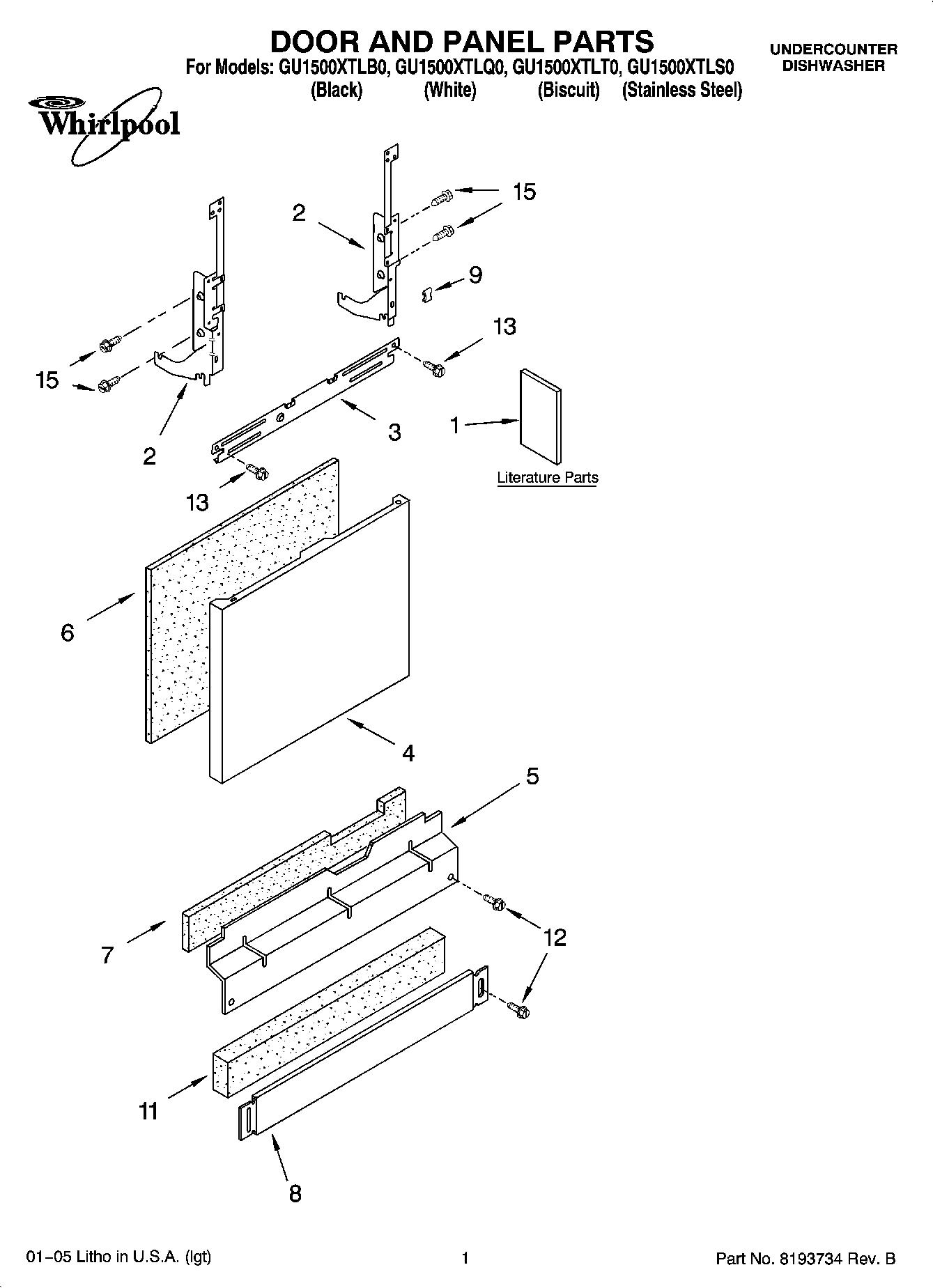

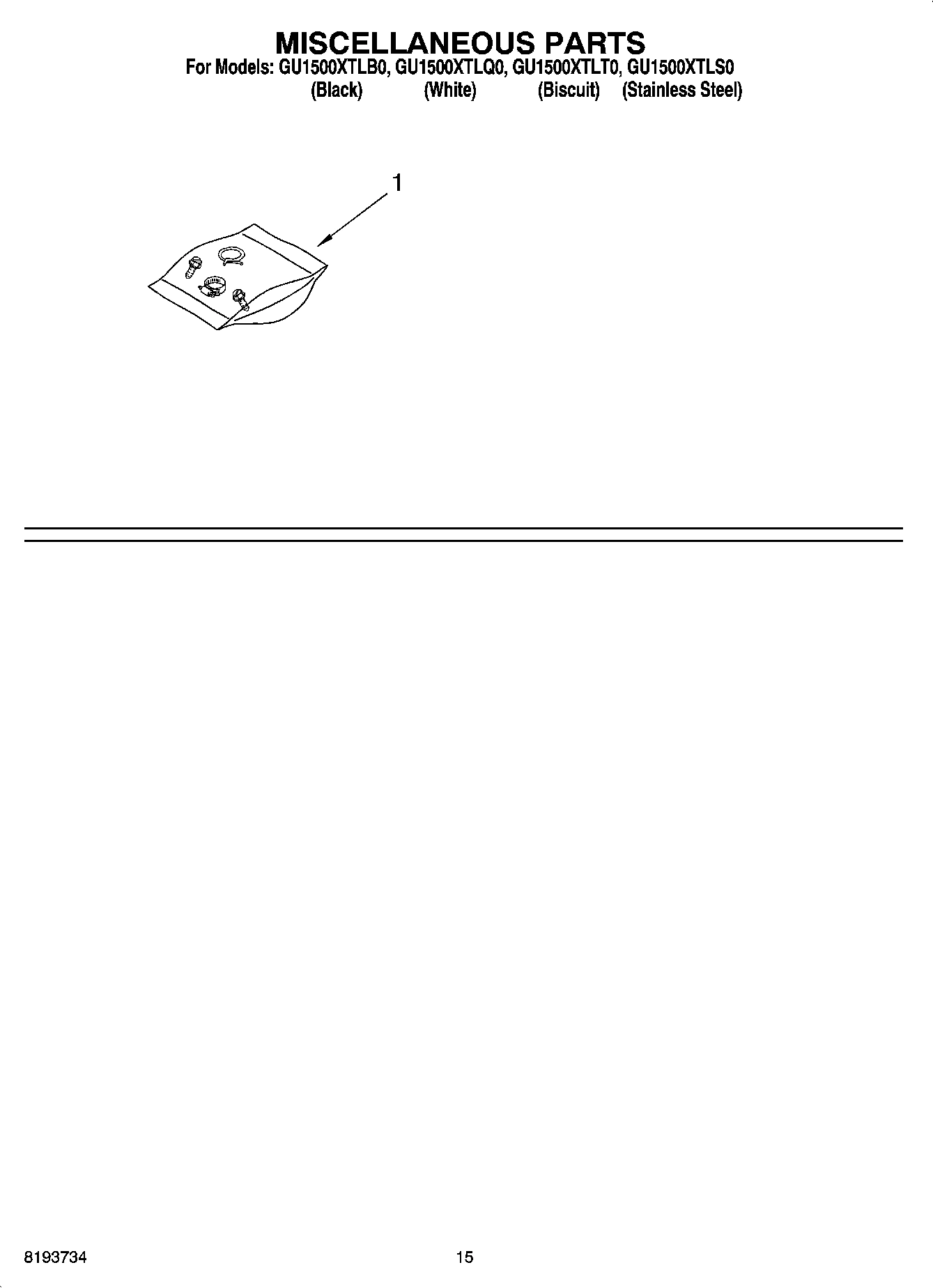

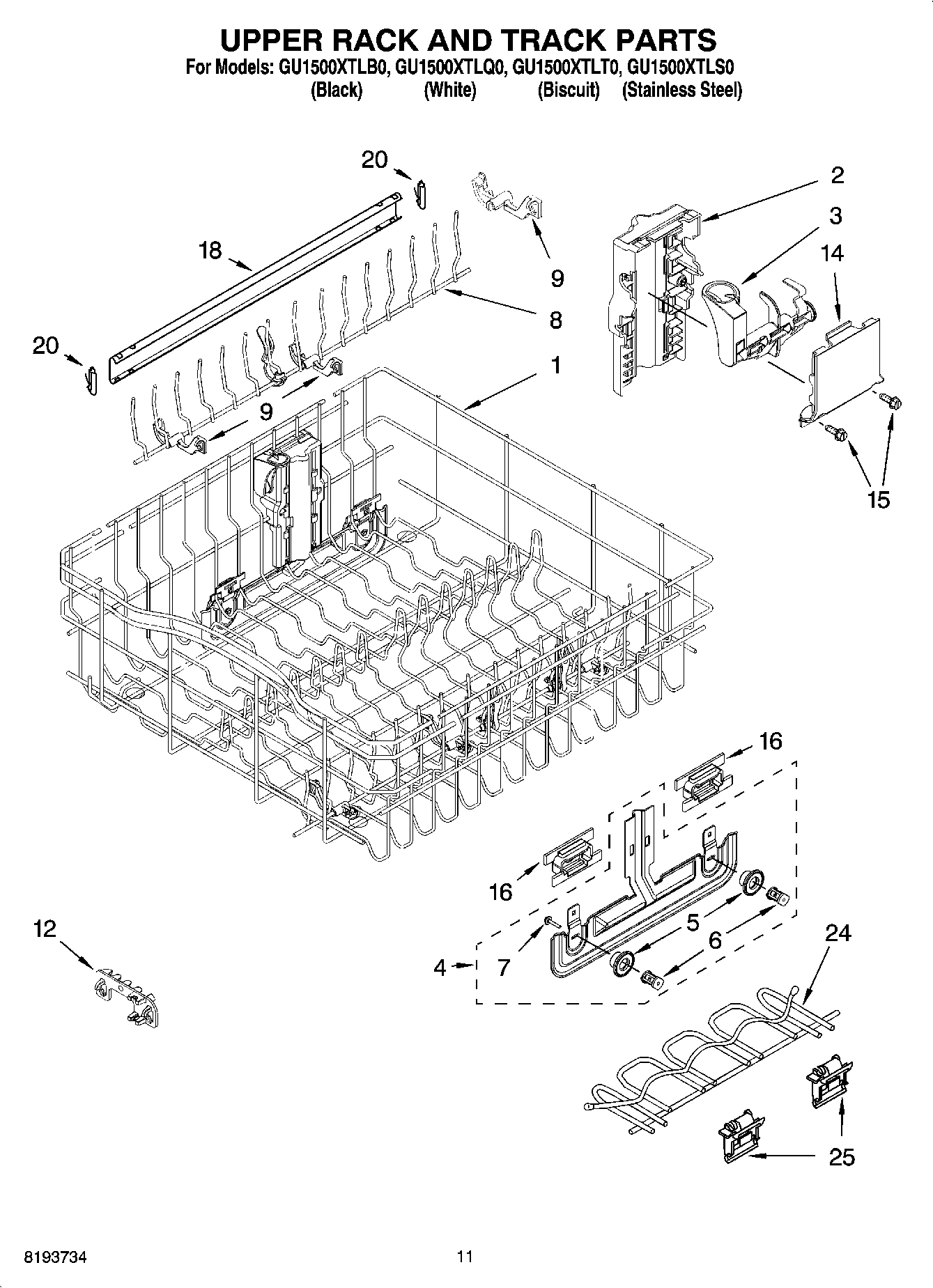

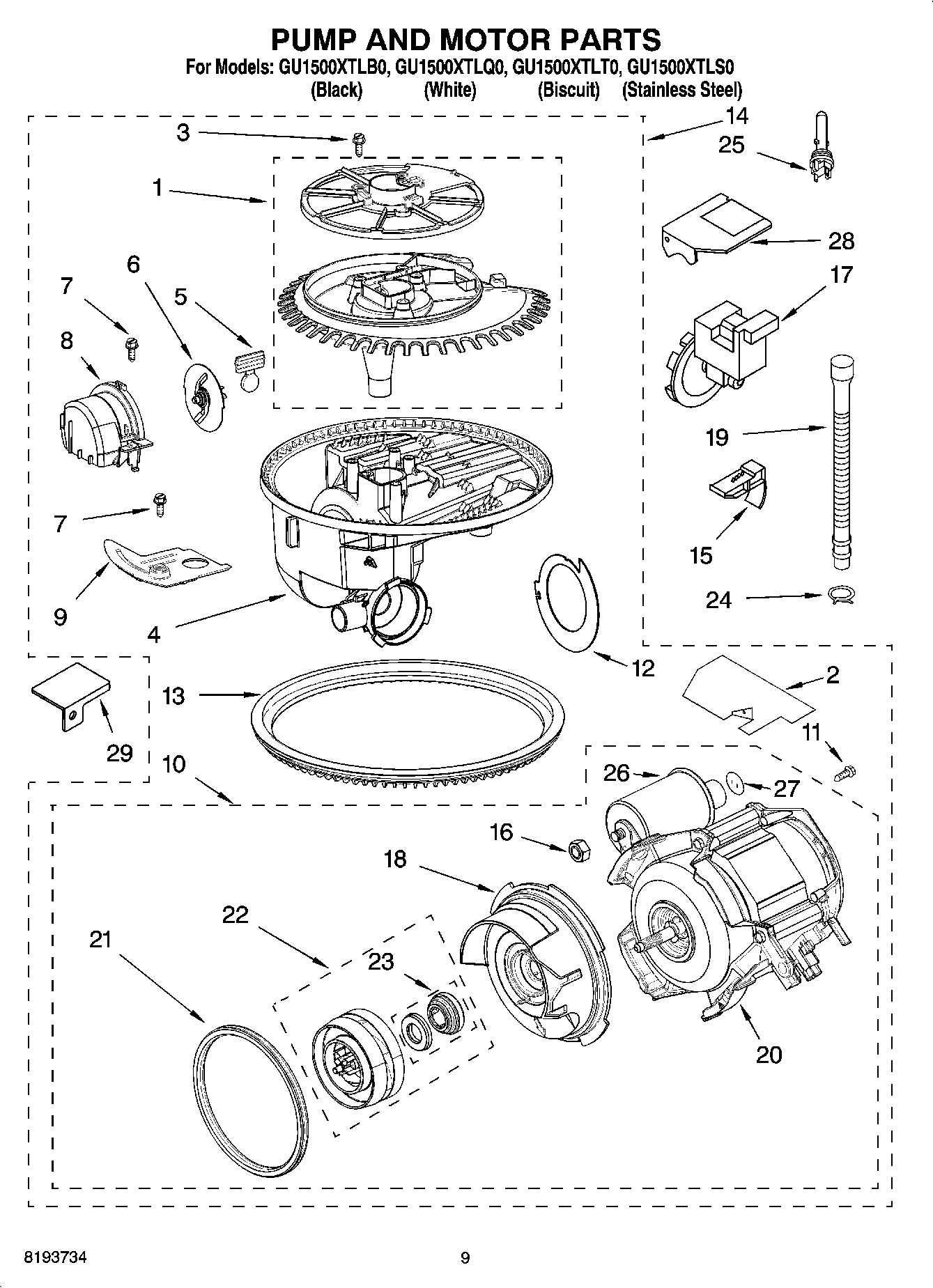

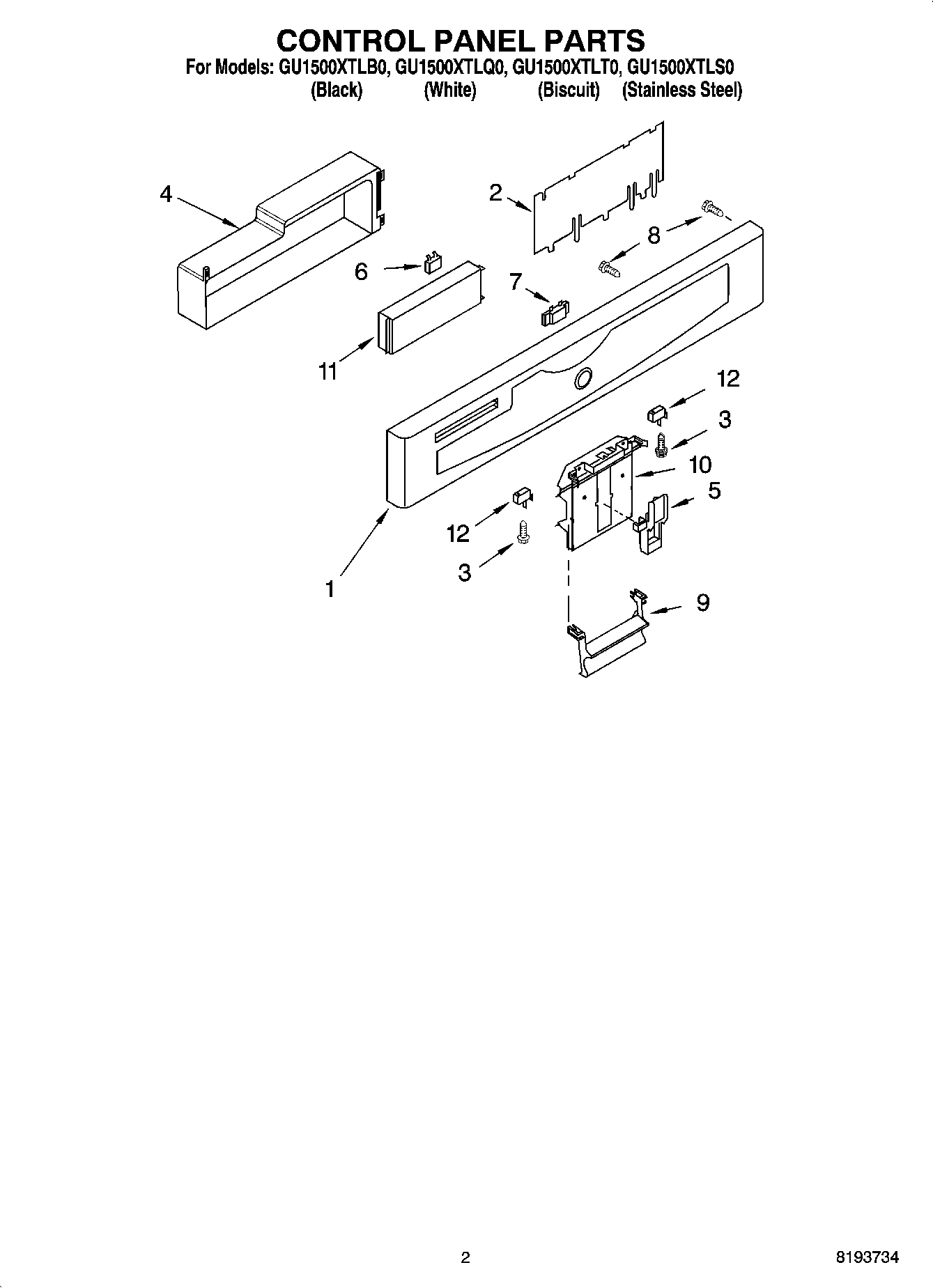

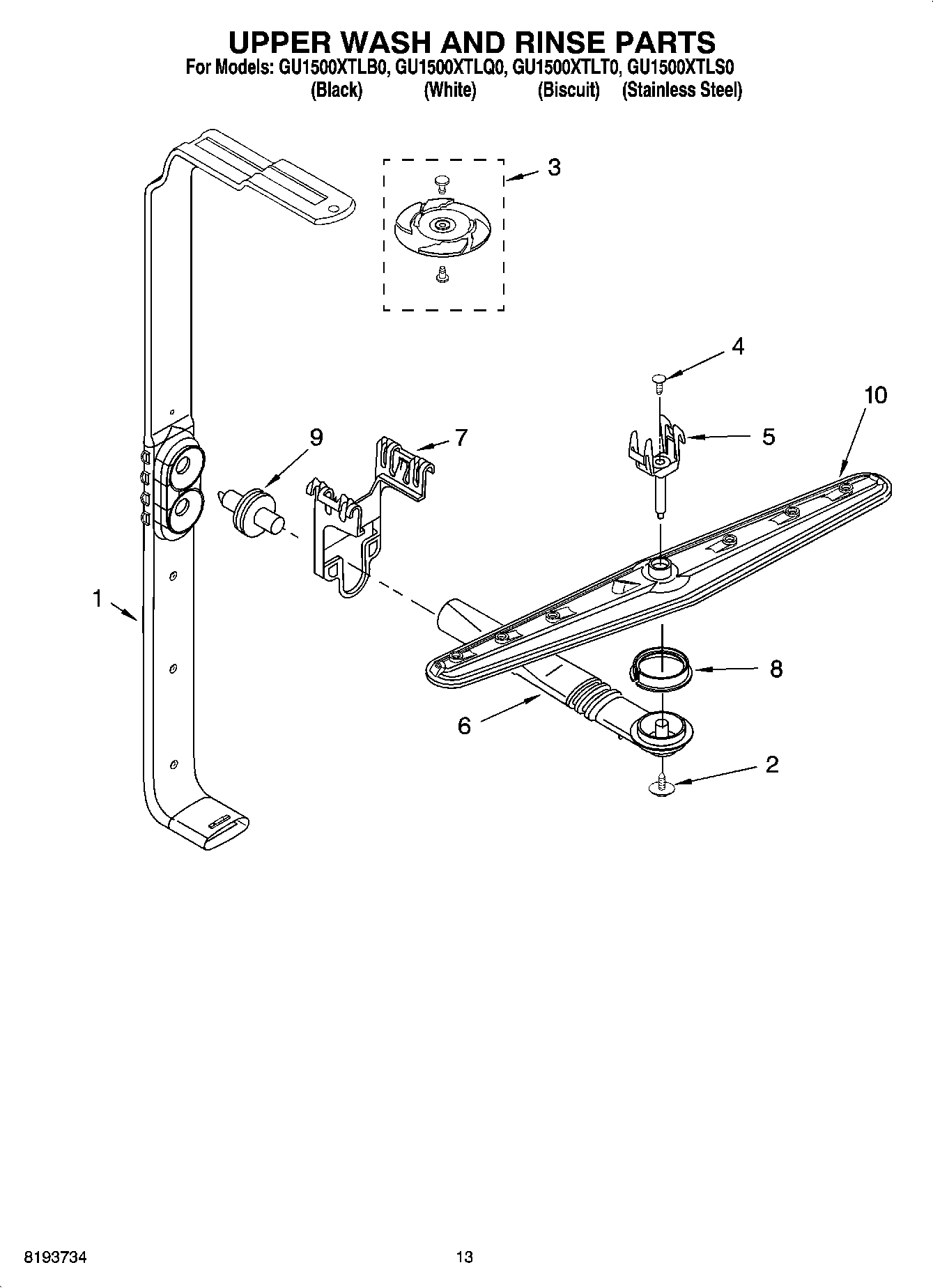

Model Whirlpool GU1500XTLT0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

WPW10292170 Whirlpool Dishwasher Miscellaneou Backorder WPL WPW10292170 $32.83

1

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

1

Wash Arm Assembly WPL 8268332 Contact Us For Availability

1

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

Floor Mount Kit WPL 4396194 Contact Us For Availability

1

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

1

Custom Panel & Trim Kit (Black) WPL 4396199 Contact Us For Availability

1

Custom Panel Kits (White) WPL 4396200 Contact Us For Availability

1

Custom Panel Kits (Biscuit) WPL 4396201 Contact Us For Availability

1

Side Panel Kits (Biscuit) WPL 8171658 Contact Us For Availability

1

PAINT, BULK (1 qt.) (Almond (Uncut)) WPL 978883 Contact Us For Availability

1

POWER CORD KIT WPL ARI73521A2 Contact Us For Availability

1

ANTI-TIP KIT WPL ARI73522A1 Contact Us For Availability

1

ACCESSORIES WPL ARI73523A6 Contact Us For Availability

1

Cabinet Seal Kit WPL ARI73524A6 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8534827 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8534828 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8534829 Contact Us For Availability

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8269242 Whirlpool Dishwasher Fill Hose Backorder WPL WP8269242 $32.56

2

Shield, Display WPL 8269427 Contact Us For Availability

3

WP3400412 Whirlpool Dishwasher Screw Backorder WPL WP3400412 $2.51

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268645 Whirlpool Dishwasher Lower Dishrack In Stock WPL WP8268645 $29.96

3

WP8269311 Whirlpool Dishwasher Inner Door Backorder WPL WP8269311 $107.21

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Water Inlet Assembly (Includes Items 4 & 5) WPL 8269240 Contact Us For Availability

4

W11027055 Whirlpool Dishwasher Heater Support Backorder WPL W11027055 $12.81

4

WP3400919 Whirlpool Dishwasher Screw Cover Backorder WPL WP3400919 $4.43

4

WP8268316 Whirlpool Dishwasher Support Arm Backorder WPL WP8268316 $30.78

4

Gasket WPL 8269241 Contact Us For Availability

4

Cover Control Shield Assembly WPL 8269447 Contact Us For Availability

5

WP3385088 Whirlpool Dishwasher Upper Wheel In Stock WPL WP3385088 $4.70

5

WP8268321 Whirlpool Dishwasher Mount Backorder WPL WP8268321 $34.28

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $24.96

5

WP8545533 Whirlpool Dishwasher Vent Backorder WPL WP8545533 $84.85

5

Bezel, Inlet WPL 8269243 Contact Us For Availability

6

8193762 Whirlpool Fuse Kit In Stock WPL 8193762 $33.60

6

8269308 Whirlpool Dishwasher Clip Backorder WPL 8269308 $30.29

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP8268703 Whirlpool Dishwasher Rack Axle In Stock WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

7

WP8269206 Whirlpool Dishwasher Display Backorder WPL WP8269206 $44.08

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $28.99

7

WP8558991 Whirlpool Dishwasher Deflector Backorder WPL WP8558991 $12.68

7

Hanger WPL 8268325 Contact Us For Availability

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

Dispenser, Assembly WPL 8270034 Contact Us For Availability

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $28.80

9

WP8269323 Whirlpool Dishwasher Handle Backorder WPL WP8269323 $44.91

9

WP8519651 Whirlpool Dishwasher Pivot Tine Backorder WPL WP8519651 $1.32

9

Clip, Grounding WPL 8269740 Contact Us For Availability

8193882 Whirlpool Dishwasher Primary Latch Bo In Stock WPL 8193882 $38.89

WP8269024 Whirlpool Dishwasher Spray Arm Backorder WPL WP8269024 $27.21

Silverware Basket Assembly WPL 8269307 Contact Us For Availability

Dispenser, Wiring Harness WPL 8269190 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

WP8533381 Whirlpool Dishwasher Sensor Backorder WPL WP8533381 $28.80

Control, Electronic WPL 8528874 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

WPW10175383 Whirlpool Dishwasher Standpipe Backorder WPL WPW10175383 $28.80

Wiring Harness Main WPL 8534931 Contact Us For Availability

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.46

Seal, Sump WPL 8268395 Contact Us For Availability

Pivot, Support Top WPL 3385109 Contact Us For Availability

14

WP8269296 Whirlpool Dishwasher Seal Backorder WPL WP8269296 $57.96

14

Pivot, Support Lower WPL 3385110 Contact Us For Availability

15

WP8268913 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268913 $42.31

15

WP8269831 Whirlpool Dishwasher Wheel Backorder WPL WP8269831 $3.70

15

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

16

Positioner, Arm WPL 8268704 Contact Us For Availability

16

Shield, Dispenser WPL 8268541 Contact Us For Availability

17

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $12.68

17

Pump, Drain WPL 661658 Contact Us For Availability

18

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

WP8270016 Whirlpool Dishwasher Tub Wheel In Stock WPL WP8270016 $40.35

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

23

WP8268961 Whirlpool Friction Pad In Stock WPL WP8268961 $3.29

25

Thermister WPL 8269208 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

33

WP8268990 Whirlpool Dishwasher Door Spring Bu In Stock WPL WP8268990 $45.46

34

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

35

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
