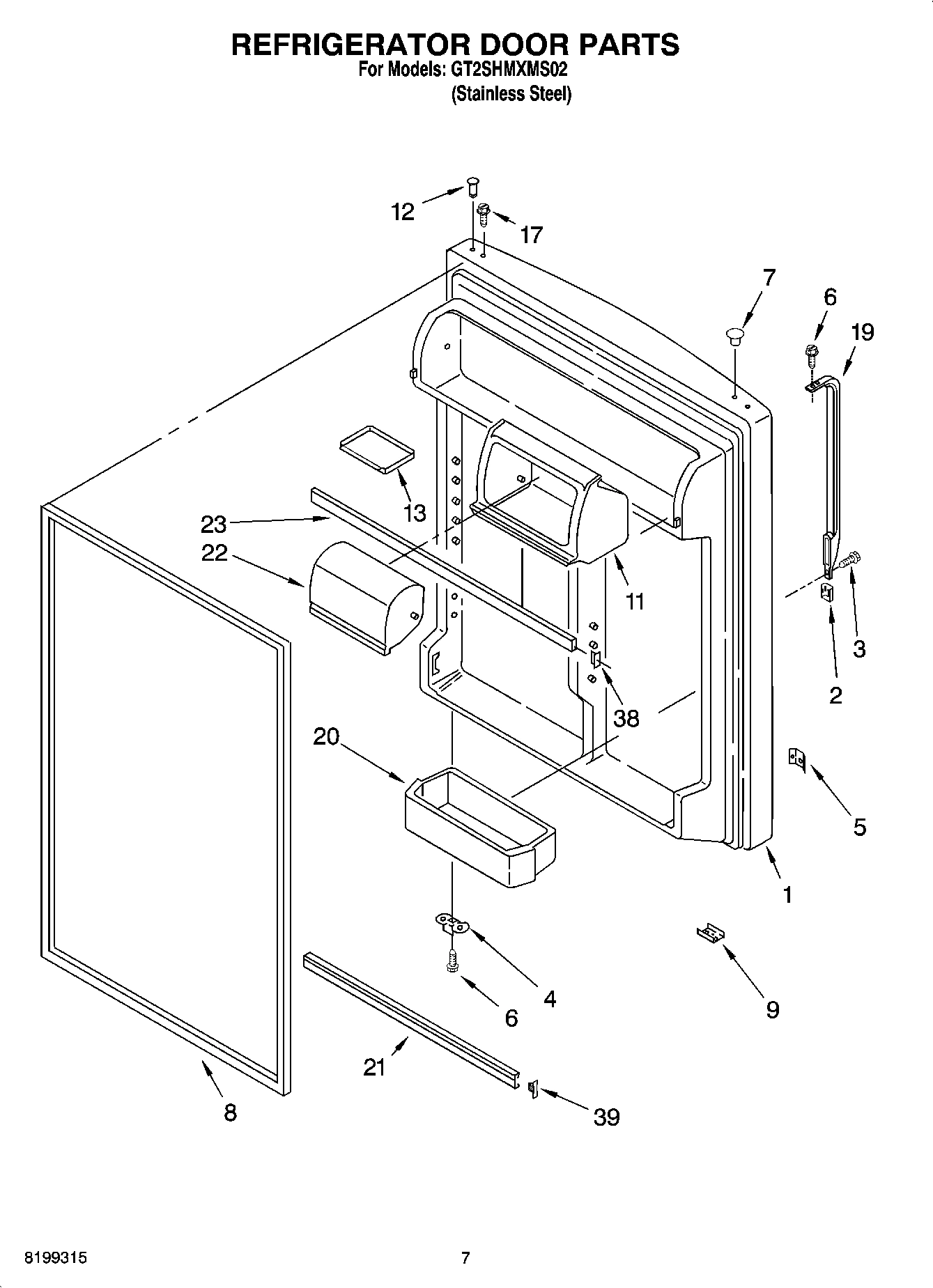

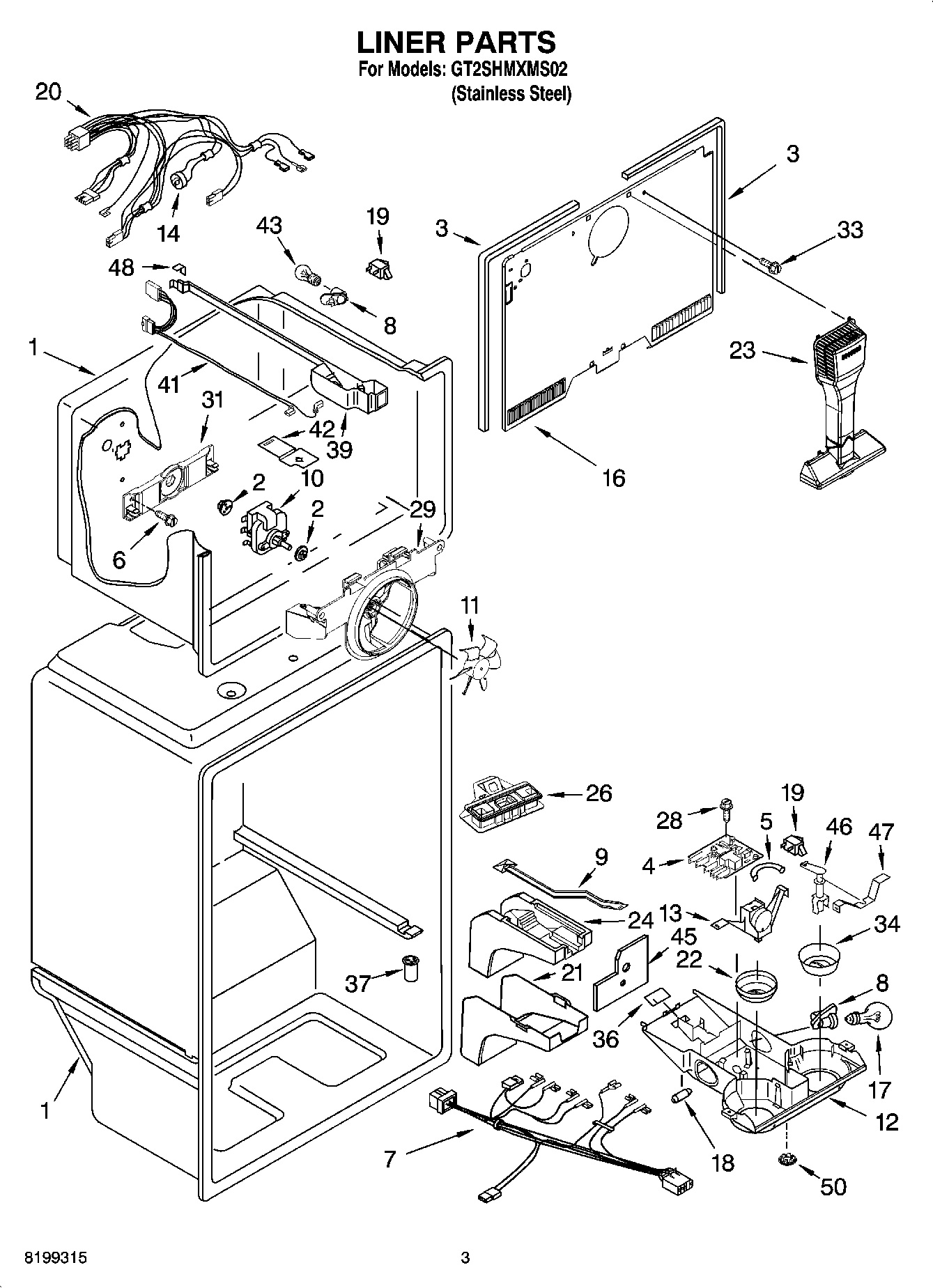

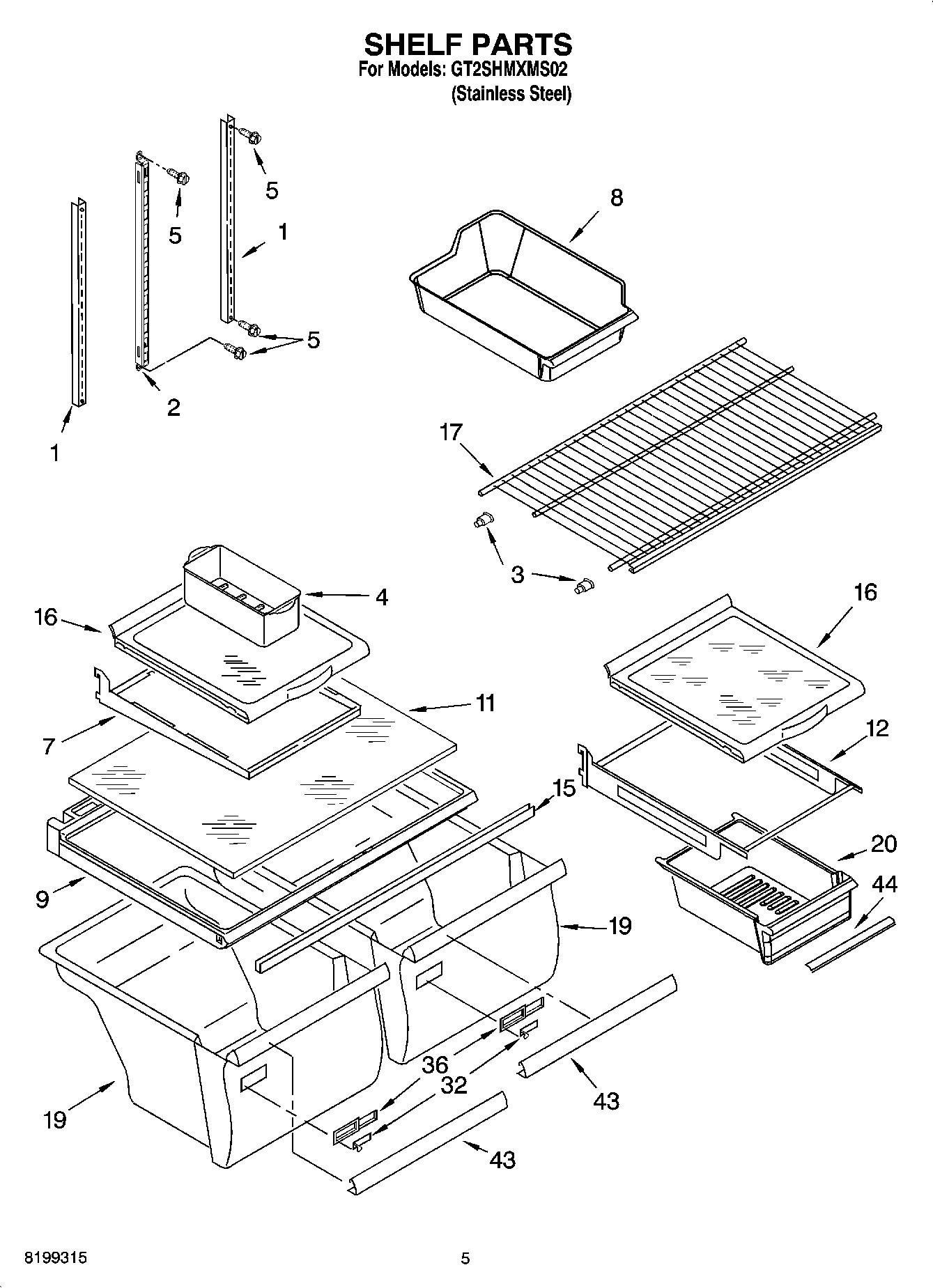

Model Whirlpool GT2SHMXMS02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI73076A2 WPL ARI73076A2 Contact Us For Availability

WPL ARI73077A9 WPL ARI73077A9 Contact Us For Availability

WPL ARI73078A2 WPL ARI73078A2 Contact Us For Availability

WPL ARI73079A8 WPL ARI73079A8 Contact Us For Availability

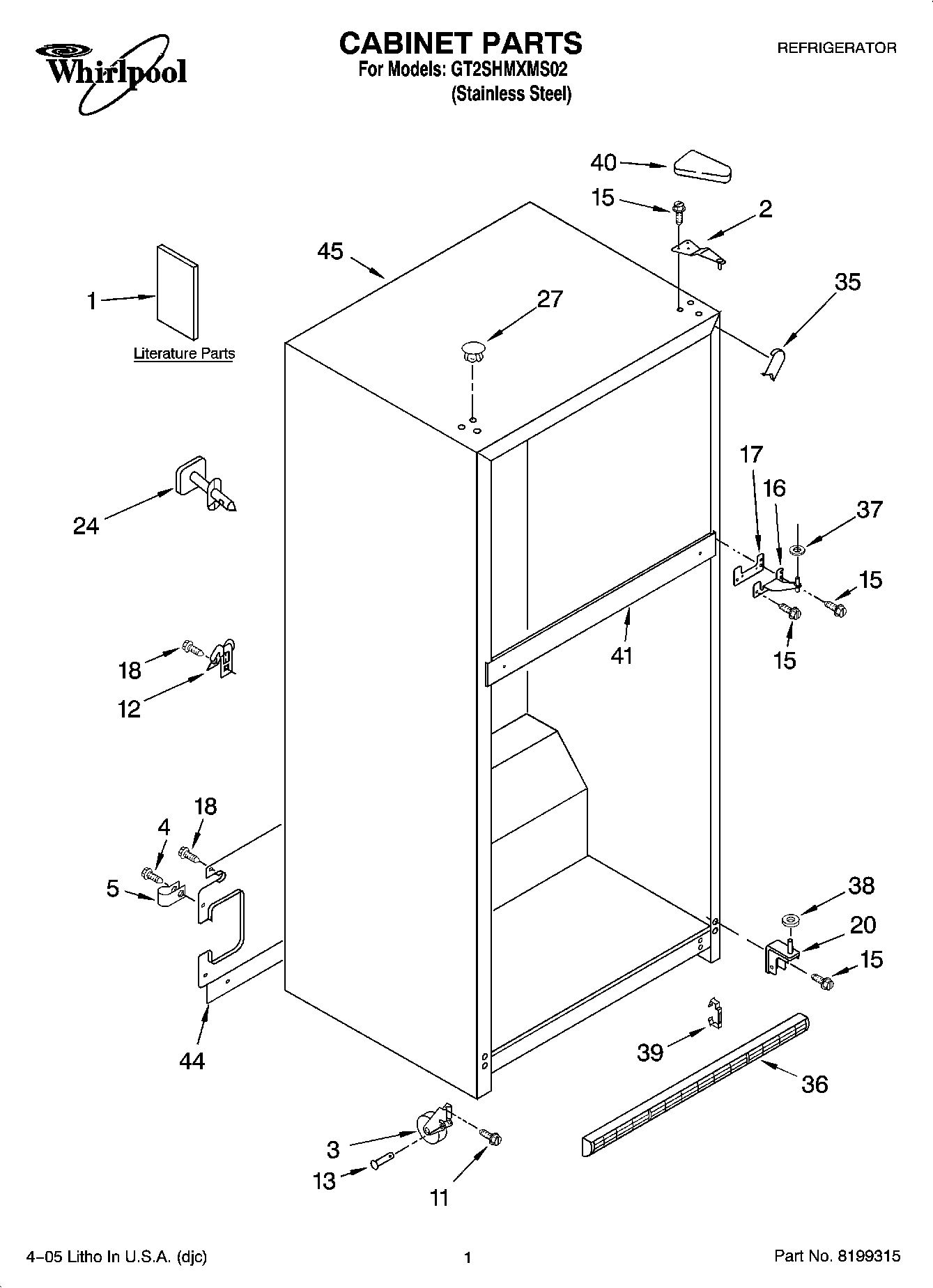

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Customer Instruct Sheet WPL 2225413 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Service & Wiring Sheet WPL 2225762 Contact Us For Availability

1

Use & Care Guide WPL 2302037 Contact Us For Availability

1

Energy Label WPL 2302187 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI73069A8 Contact Us For Availability

1

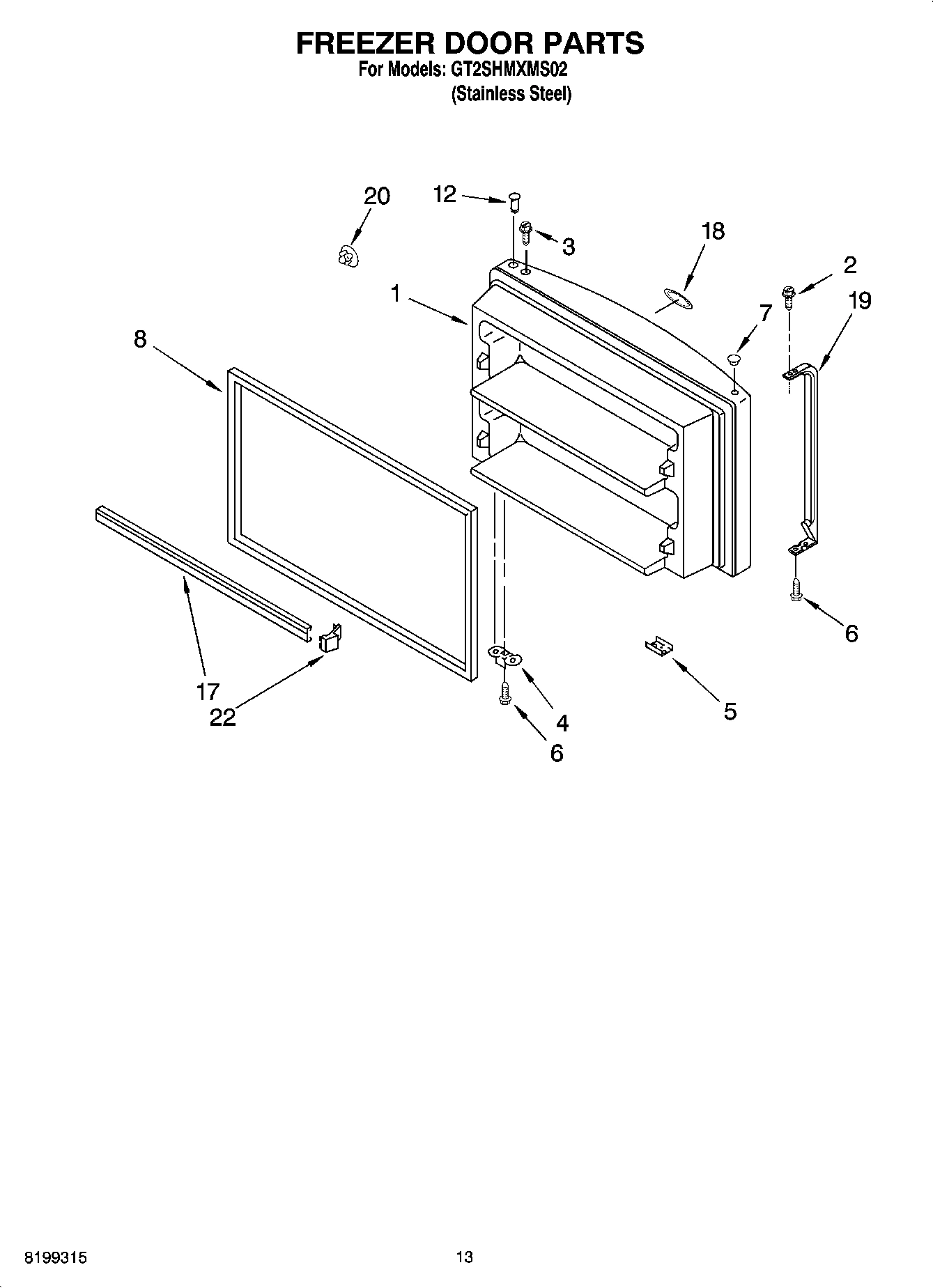

Freezer Door (Includes Illus. 5,8 & 12) WPL 2218678 Contact Us For Availability

2

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $33.49

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

3

Condenser WPL 2214960 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

5

Tap Plate WPL 2183000 Contact Us For Availability

6

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Illus. 5 & 18) WPL 2200859 Contact Us For Availability

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $54.64

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Nameplate WPL 2220214 Contact Us For Availability

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $133.29

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

Support Block WPL 2201185 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Fitting, Water Tube (Not Serviced) WPL ARI73070A7 Contact Us For Availability

27

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $33.38

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

36

Grille (Includes Illus. 39) WPL 2254315 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

Housing Base WPL 2300418 Contact Us For Availability

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

40

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

Rail Center (Not Serviced) WPL ARI73071A9 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $115.98

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

44

Cover, Unit WPL 2302358 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI73072A3 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

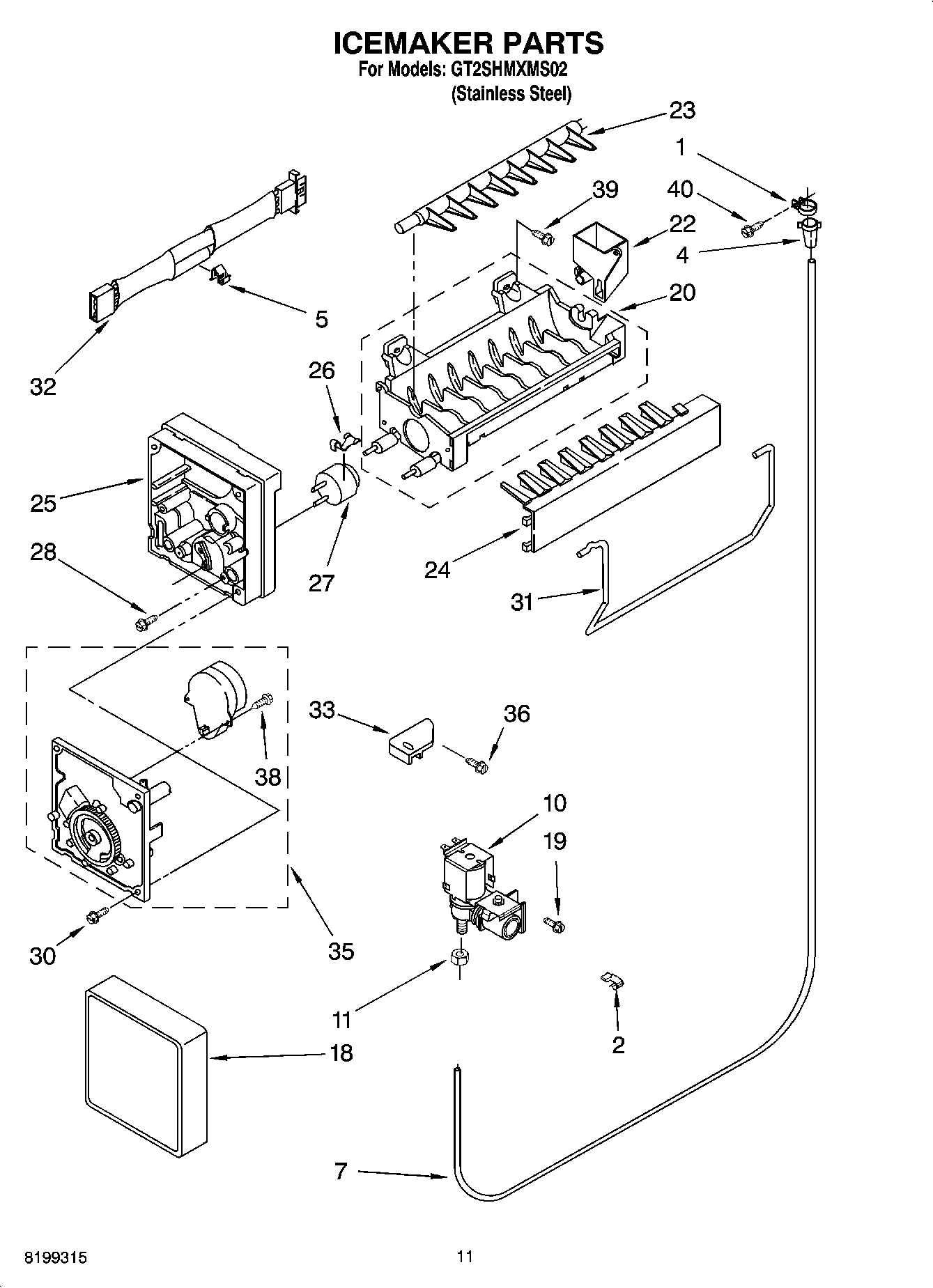

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
