Model Whirlpool GT2SHMXLS00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI73032A9 WPL ARI73032A9 Contact Us For Availability

WPL ARI73033A2 WPL ARI73033A2 Contact Us For Availability

WPL ARI73034A5 WPL ARI73034A5 Contact Us For Availability

WPL ARI73035A3 WPL ARI73035A3 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

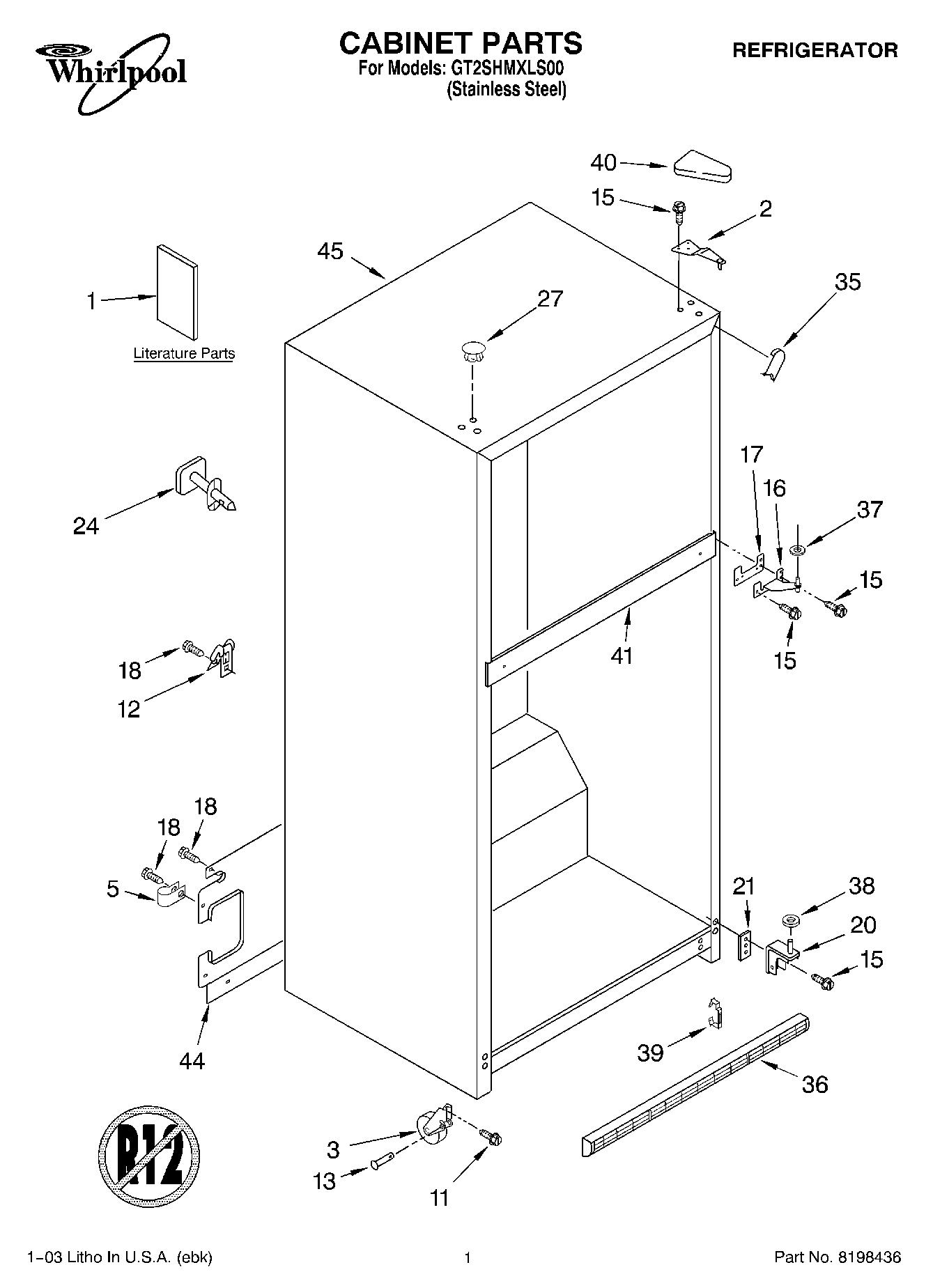

Plate, Unit Mounting WPL 2205340 Contact Us For Availability

1

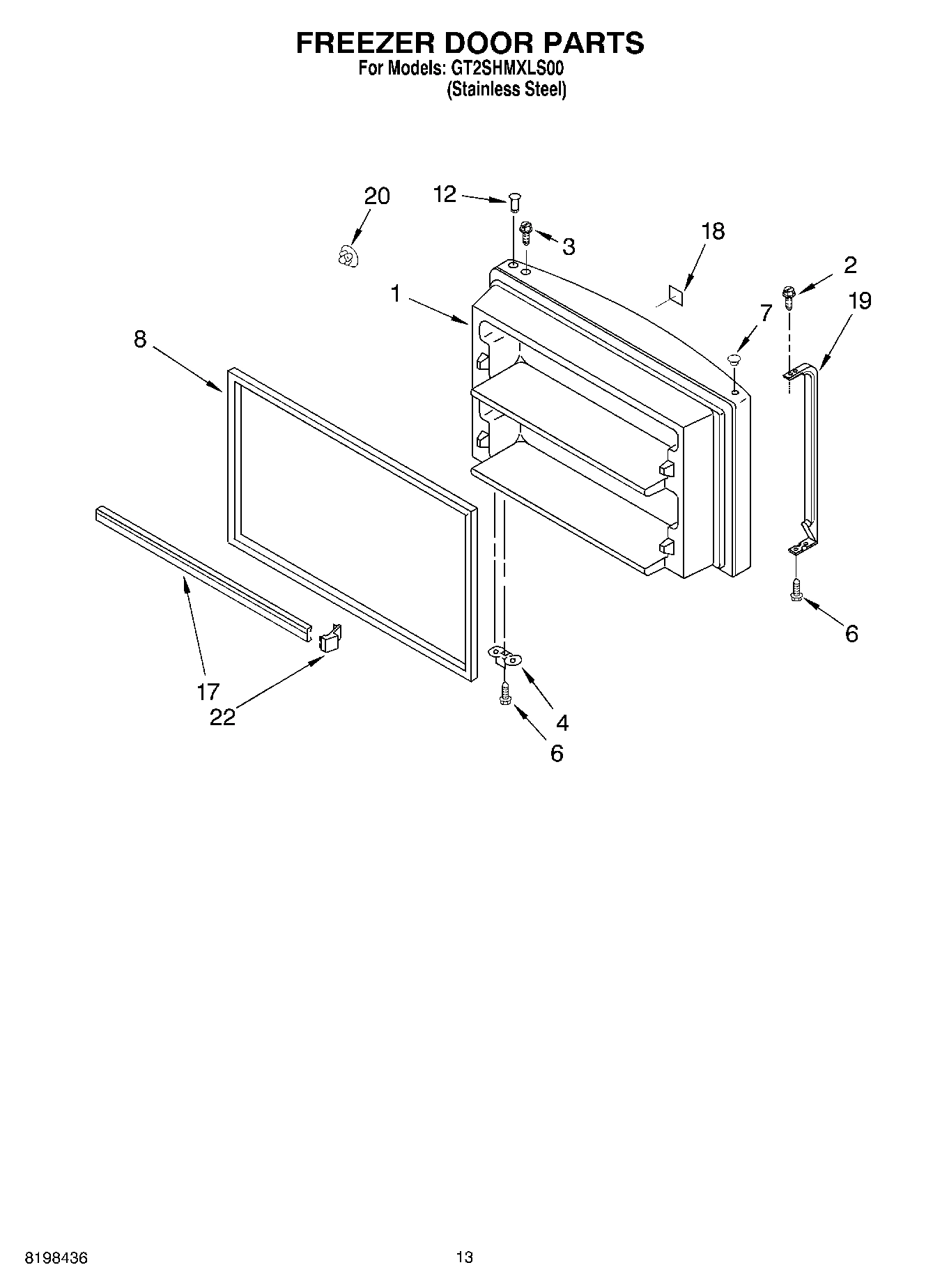

Freezer Door (Includes 8& 12) (Stainless Stee WPL 2218678 Contact Us For Availability

2

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $33.49

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $63.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

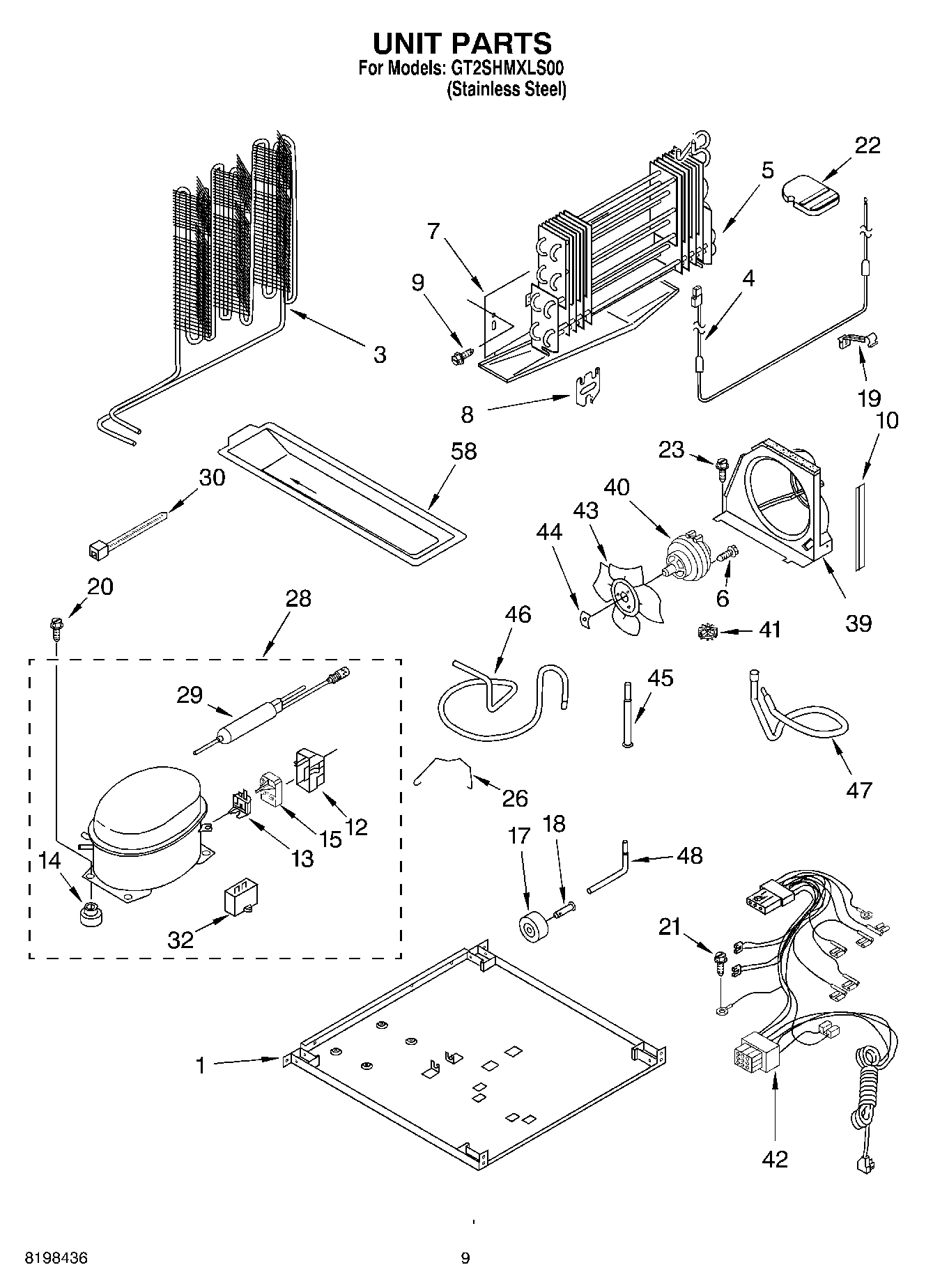

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Wire Assembly, Control Box WPL 2187352 Contact Us For Availability

7

Drain Pan WPL 2172620 Contact Us For Availability

8

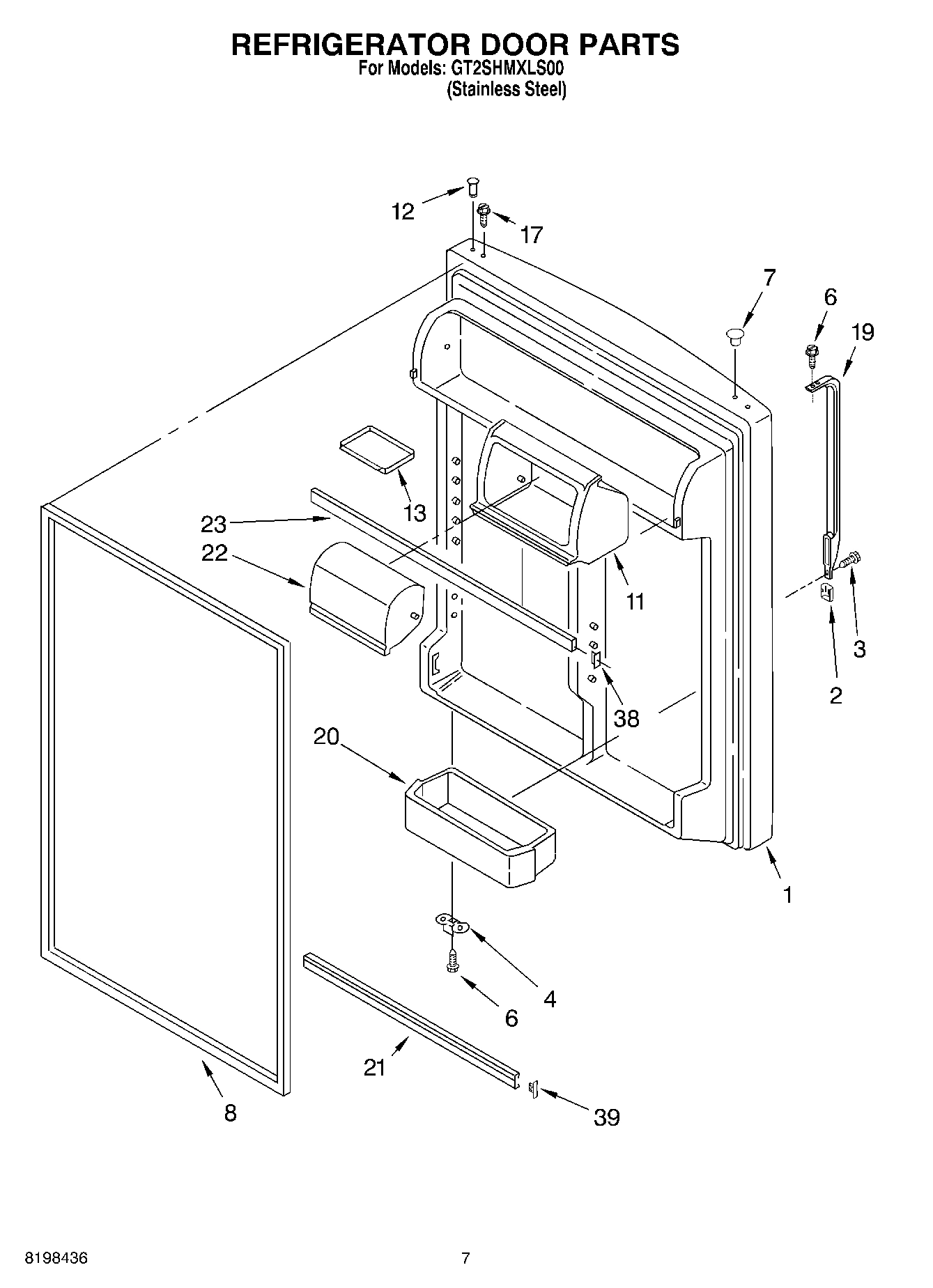

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

Bracket, Heater WPL 2176301 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

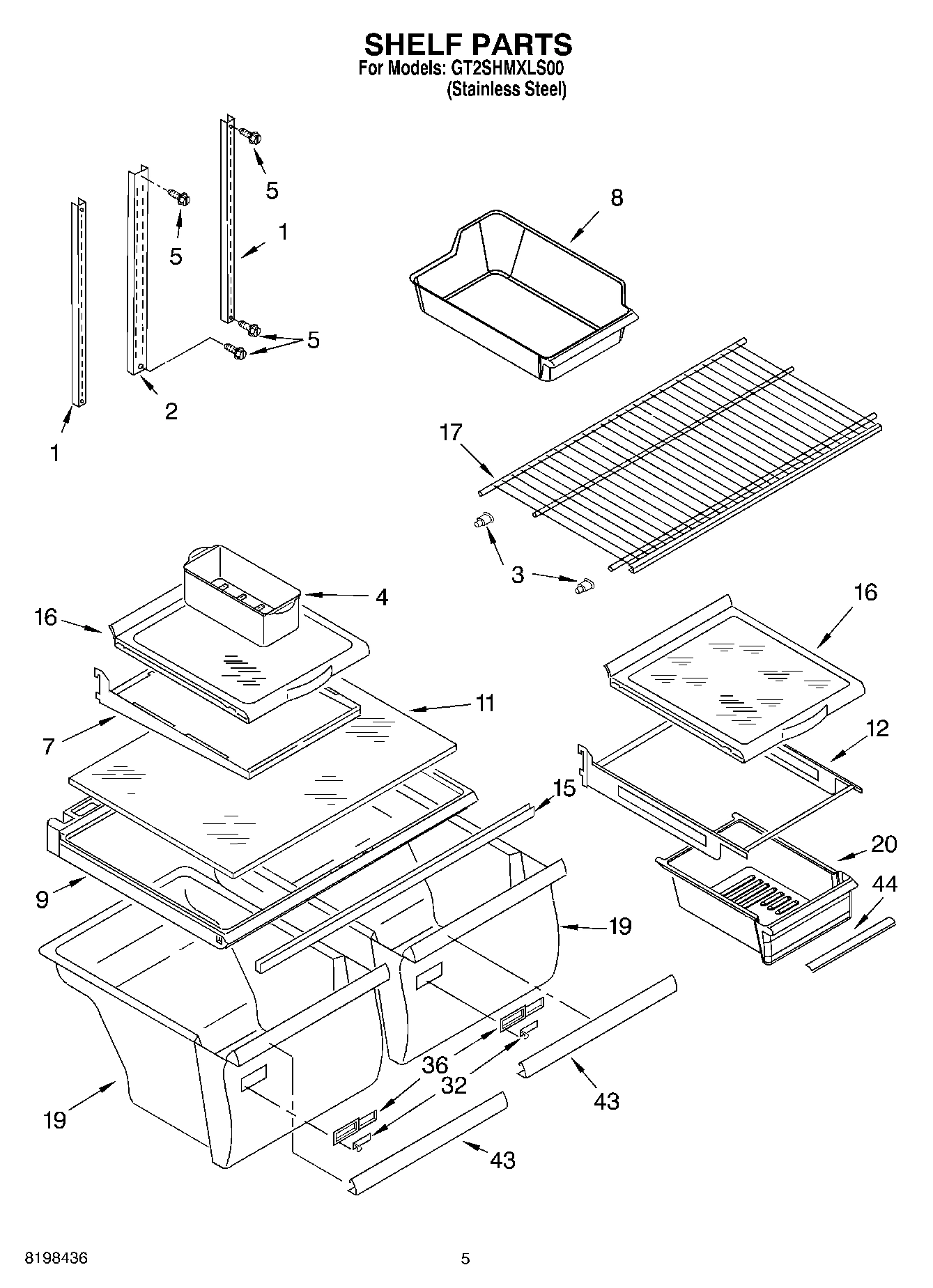

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $54.64

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Nameplate WPL 2220214 Contact Us For Availability

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $133.29

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

21

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

Support Block WPL 2201185 Contact Us For Availability

23

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

23

Air Tower WPL 2182340 Contact Us For Availability

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

26

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

41

Grommet WPL 531933 Contact Us For Availability

42

Wire Assy. Unit WPL 2187384 Contact Us For Availability

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Evaporator Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI73030A8 Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI73031A8 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
