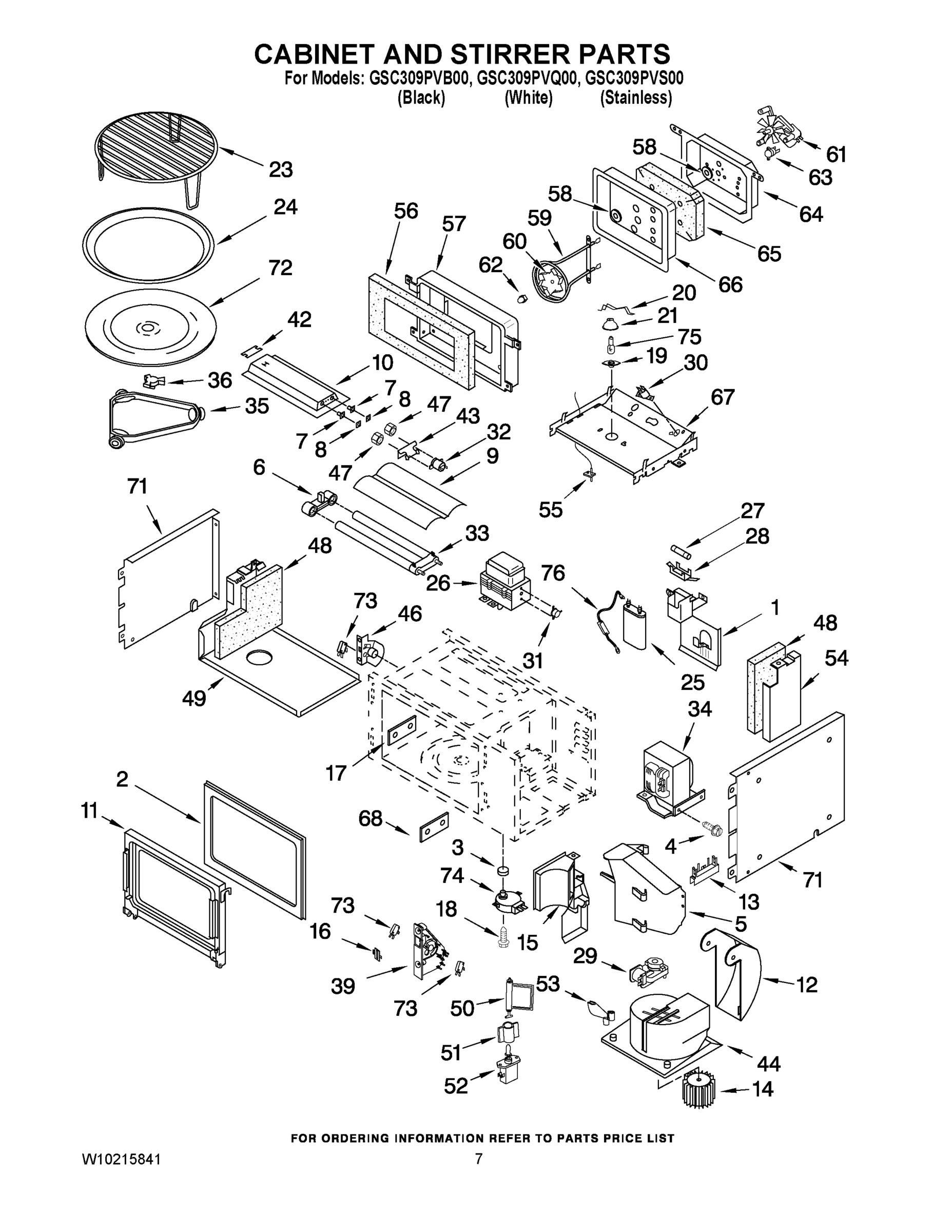

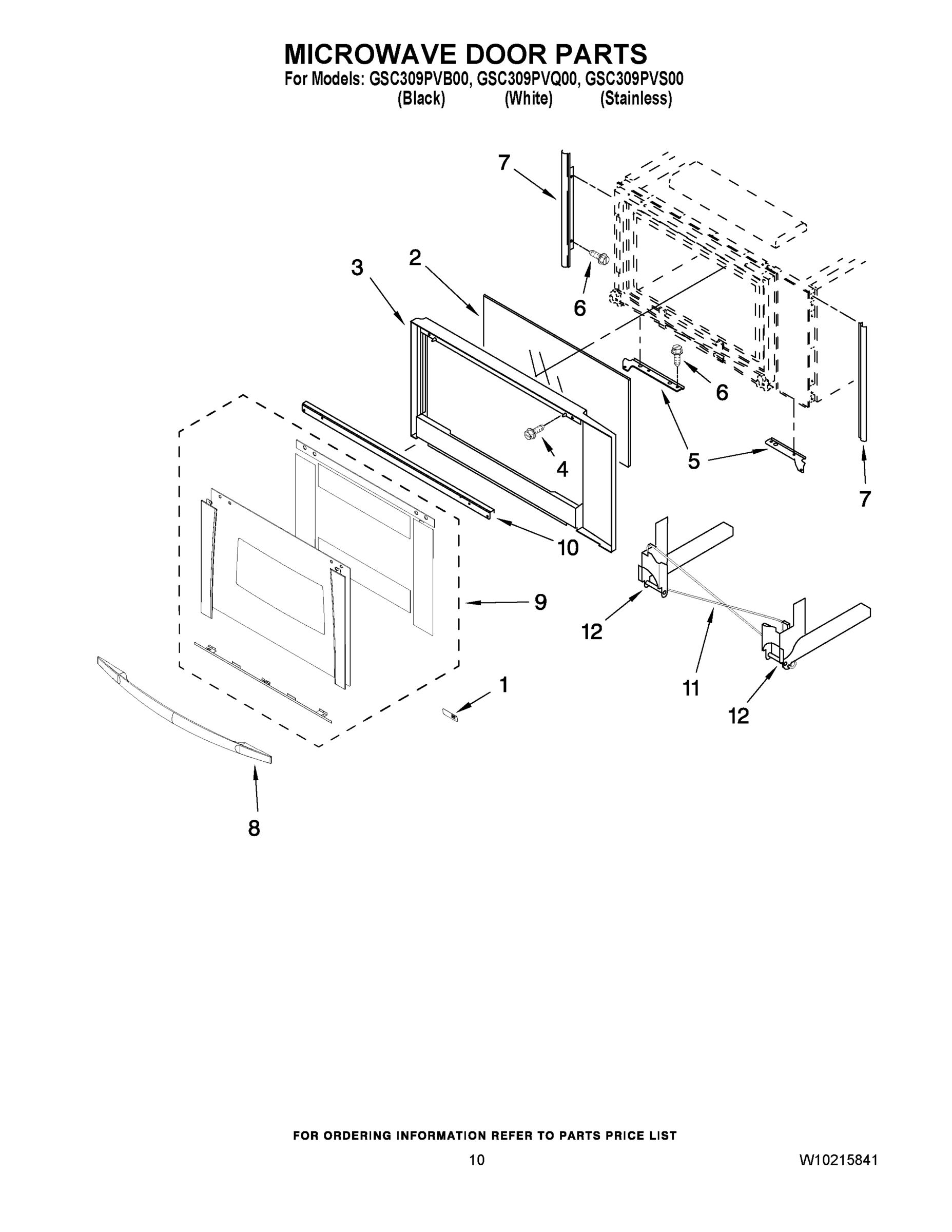

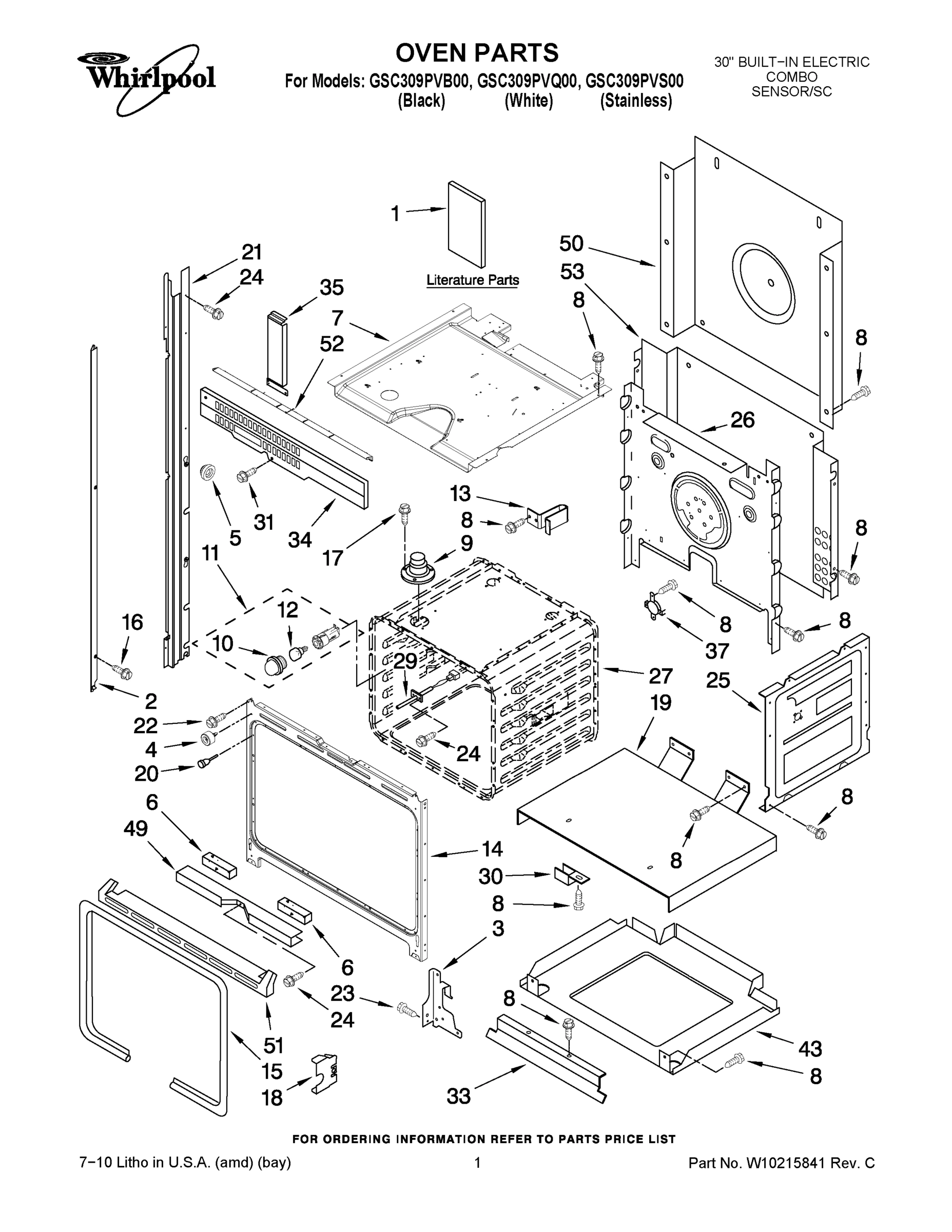

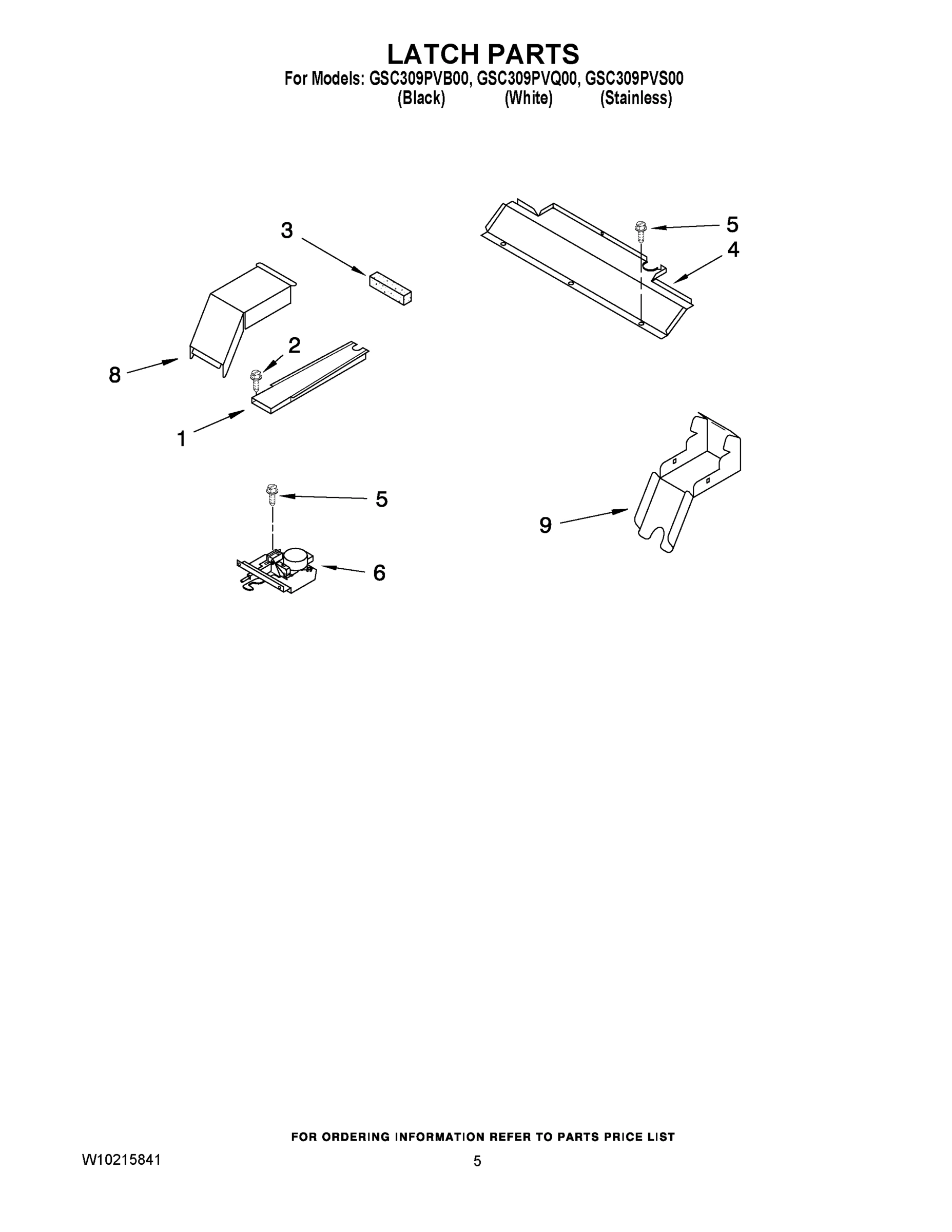

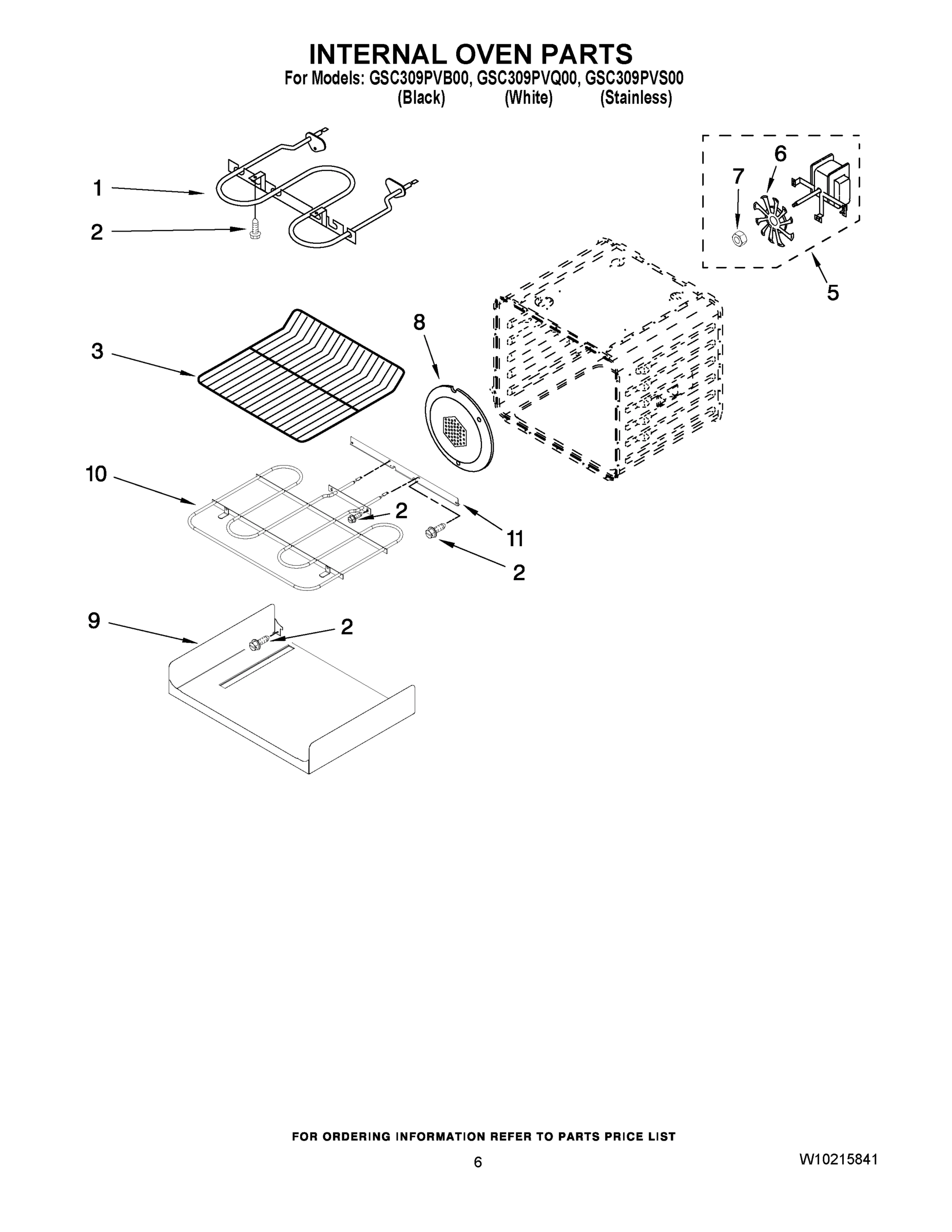

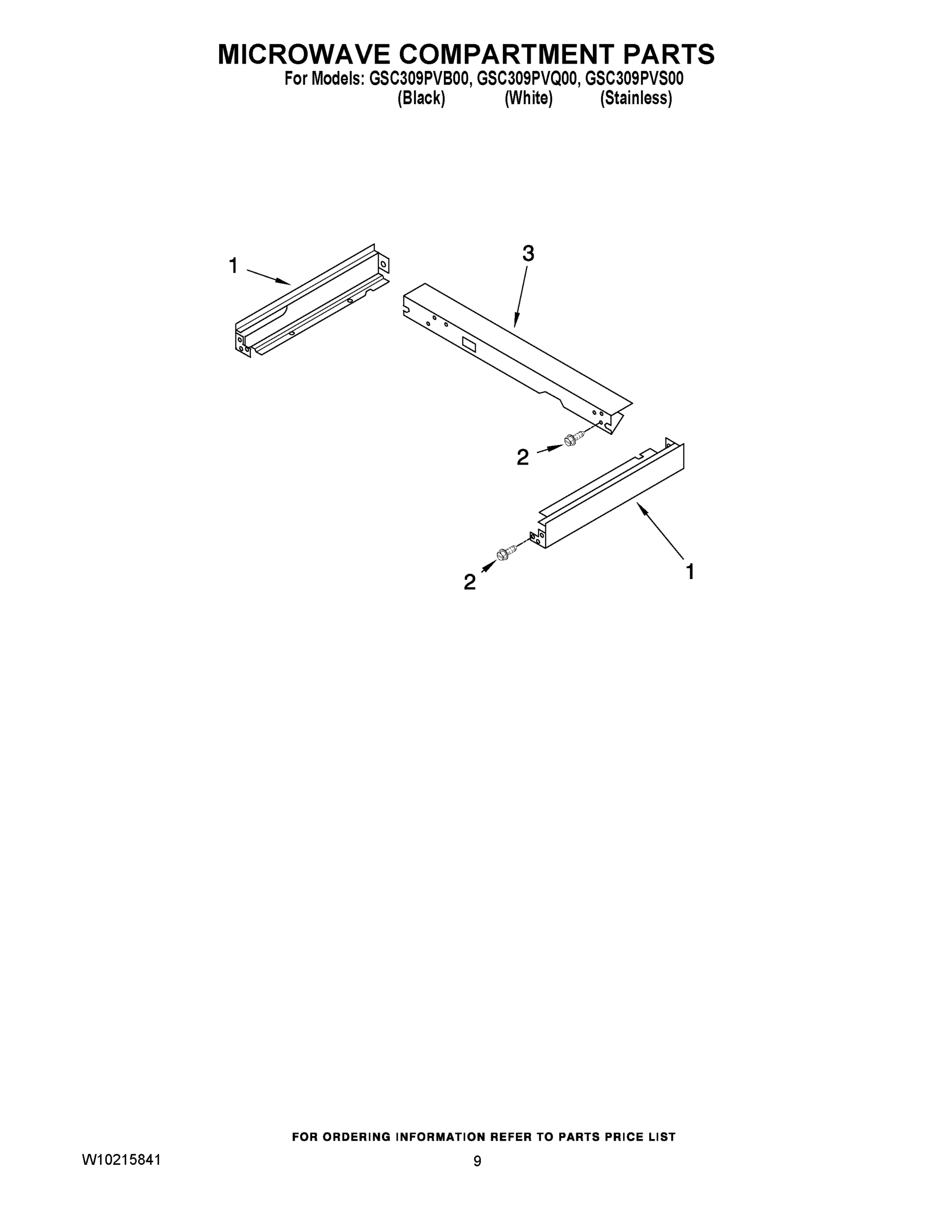

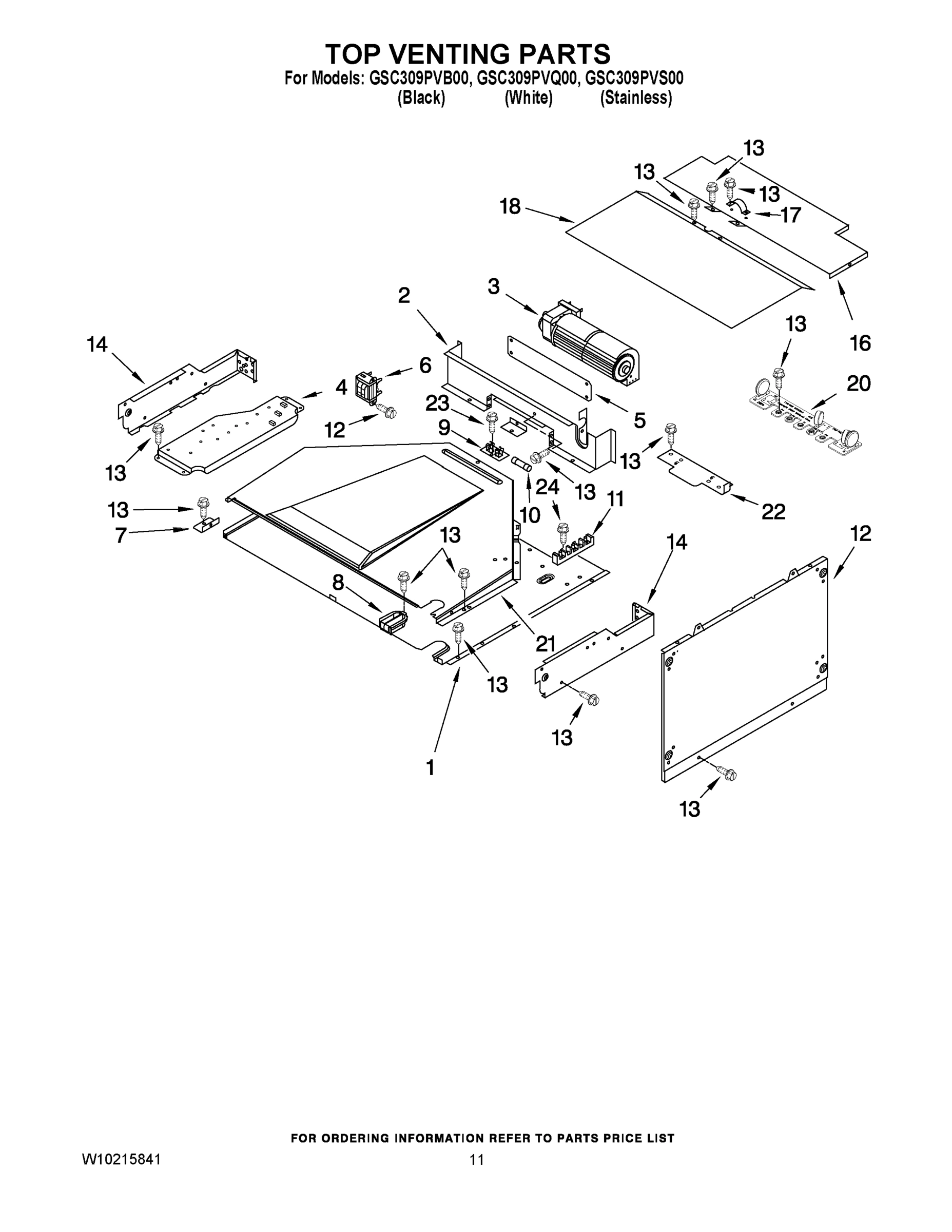

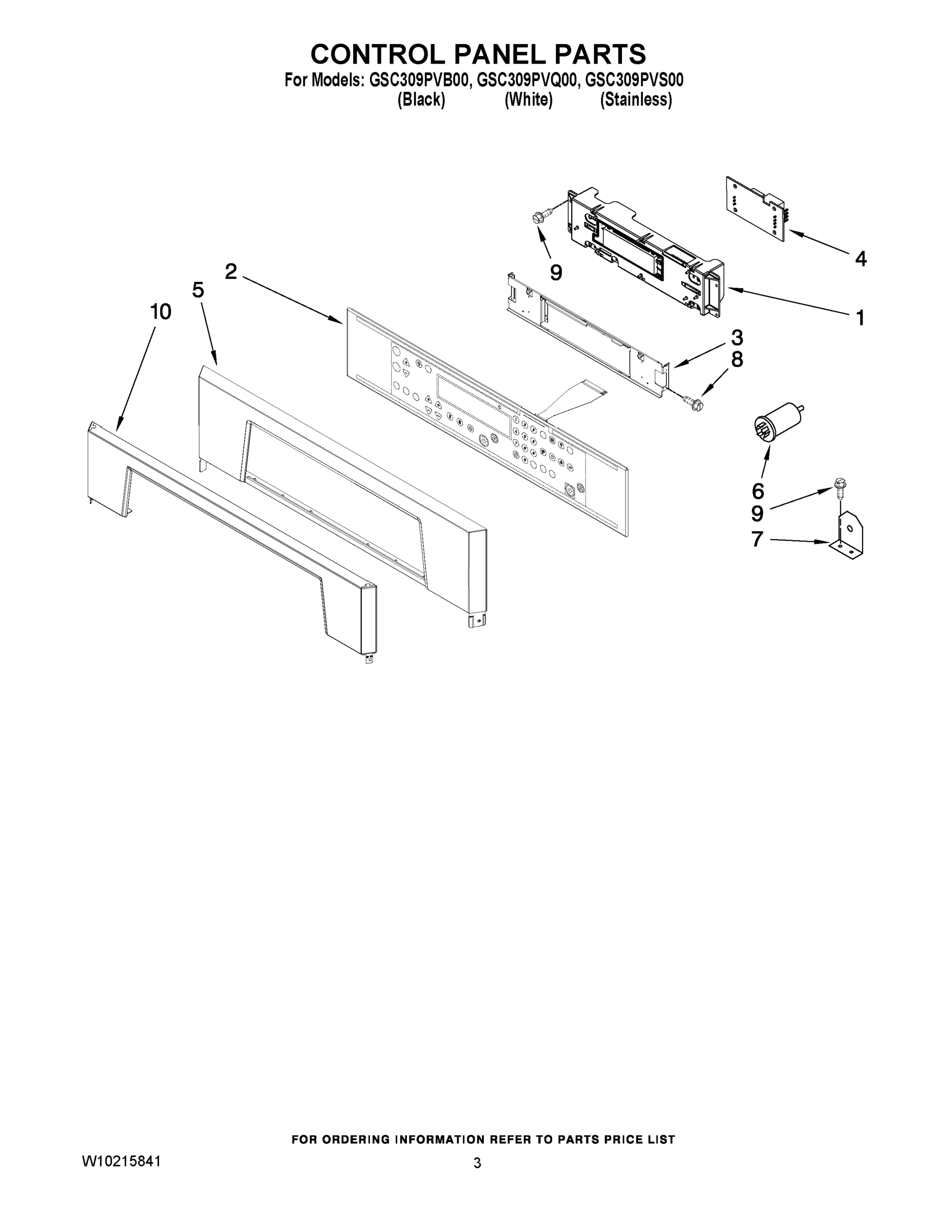

Model Whirlpool GSC309PVS00 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts &amp; Diagrams

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

1

NAMEPLATE WPL W10175320 Contact Us For Availability

1

Assembly, Control WPL 8301991 Contact Us For Availability

1

Cover, Top WPL 4450378 Contact Us For Availability

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $40.68

2

WP9760576 Whirlpool Door Hinge (Left) In Stock WPL WP9760576 $38.30

2

Frame, Inner WPL 4375340 Contact Us For Availability

2

Glass, Middle WPL 4448937 Contact Us For Availability

2

Trim, Side Right (Stainless) WPL W10145006 Contact Us For Availability

2

Trim, Side Left (Stainless) WPL W10145007 Contact Us For Availability

2

Screw WPL 4449040 Contact Us For Availability

2

Assembly, Switch (Black) WPL W10172516 Contact Us For Availability

2

Assembly, Switch (White) WPL W10172517 Contact Us For Availability

2

Baffle, Blower WPL 4448935 Contact Us For Availability

3

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

3

Rubber Ring WPL 4375252 Contact Us For Availability

3

Backer, Control WPL W10222959 Contact Us For Availability

3

Blower (1200RPM) WPL 4450920 Contact Us For Availability

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Baffle, Rear WPL 4450408 Contact Us For Availability

4

Plate, Mounting WPL 4451789 Contact Us For Availability

5

W10794022 Whirlpool Oven Cooktop Fan Motor In Stock WPL W10794022 $144.46

5

WP8302848 Whirlpool Control Panel Backorder WPL WP8302848 $115.86

5

WP8302849 Whirlpool Control Panel Backorder WPL WP8302849 $122.78

5

Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability

5

Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability

5

Plate, Cover WPL 4452247 Contact Us For Availability

6

W10758272 Whirlpool Convection Fan Backorder WPL W10758272 $4.25

6

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $143.63

6

Transformer, Control WPL 9760589 Contact Us For Availability

6

Filter WPL 4451592 Contact Us For Availability

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

7

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

7

Filler, Side (Right) WPL 4449083 Contact Us For Availability

7

Filler, Side (Left) WPL 4449086 Contact Us For Availability

7

Bracket, Filter WPL 4451632 Contact Us For Availability

7

Bracket, Duct WPL 4450027 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

8

Handle, Door (Black) WPL W10169801 Contact Us For Availability

8

Handle, Door (White) WPL W10169803 Contact Us For Availability

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

9

WPW10199428 Whirlpool Door Glass Assembly Backorder WPL WPW10199428 $143.31

9

Glass, Inner Door WPL 9759228 Contact Us For Availability

9

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

9

GLASS, OUTER (WHITE) WPL W10199429 Contact Us For Availability

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

WPW10172165 Whirlpool Trim Panel Backorder WPL WPW10172165 $46.34

WPW10172167 Whirlpool Trim Panel Backorder WPL WPW10172167 $45.48

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $84.06

Bracket, Handle WPL 4452331 Contact Us For Availability

Trim, Control Panel (White) WPL W10172168 Contact Us For Availability

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

SPRINGS, TORSION (LEFT) WPL 4375325 Contact Us For Availability

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability

Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability

Side, Combo WPL 4452559 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

BRACKET, HANDLE (RIGHT) WPL 4455804 Contact Us For Availability

15

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

18

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

20

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

20

Suppressor WPL 4451934 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

21

Duct, Exhaust WPL 4451634 Contact Us For Availability

22

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

23

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $60.64

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

24

Screw WPL 3400080 Contact Us For Availability

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $273.49

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

32

Thermostat WPL 4375281 Contact Us For Availability

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

34

Vent, Center WPL 8302592 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 9759713 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

51

WPW10207689 Whirlpool Trim Kit Backorder WPL WPW10207689 $63.06

52

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

61

Motor, Fan WPL 4375429 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

68

Cover Plate WPL 4375338 Contact Us For Availability

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8303838 Whirlpool Oven Wire Harness Backorder WPL 8303838 $138.00

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP9752759 Whirlpool Relay In Stock WPL WP9752759 $78.61
