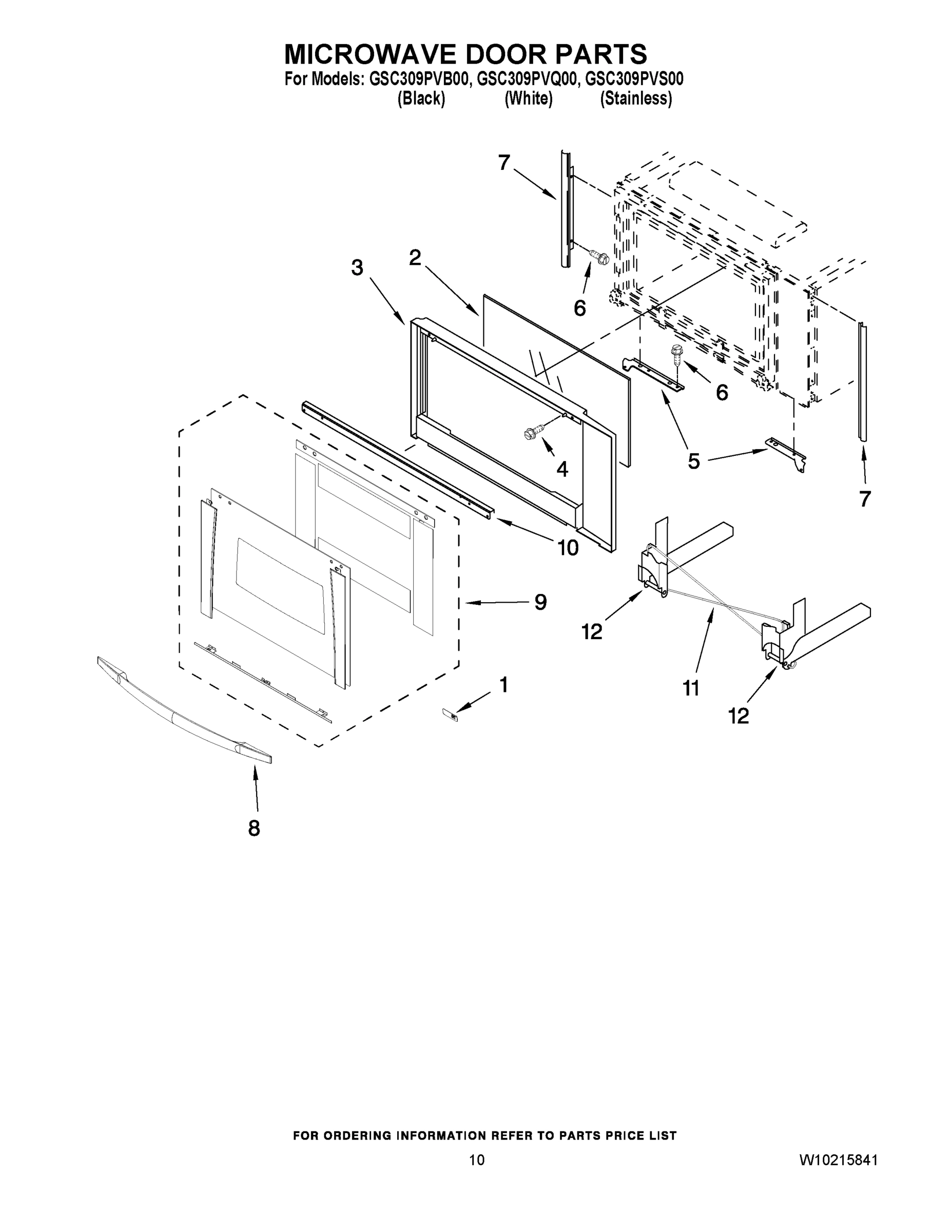

Model Whirlpool GSC309PVQ00 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts &amp; Diagrams

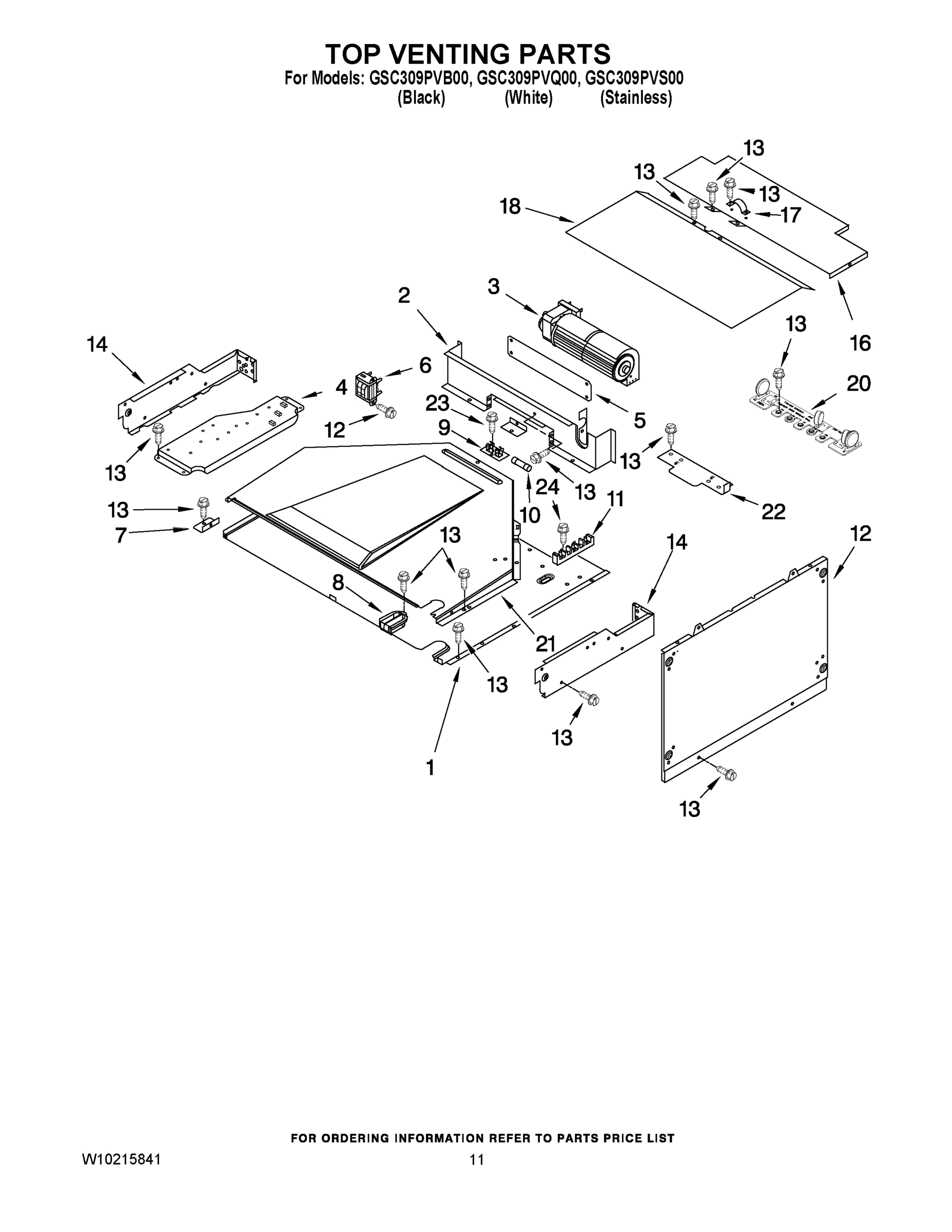

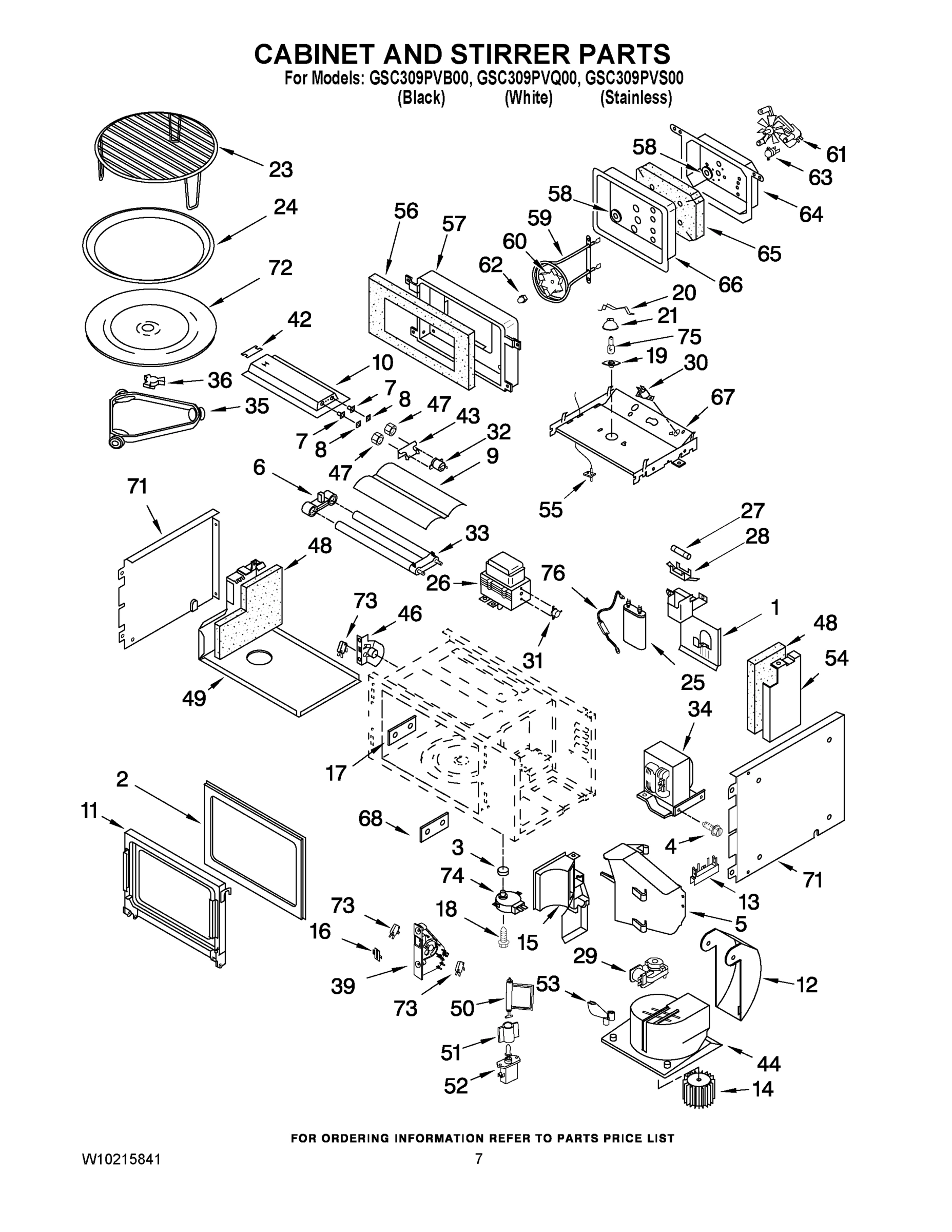

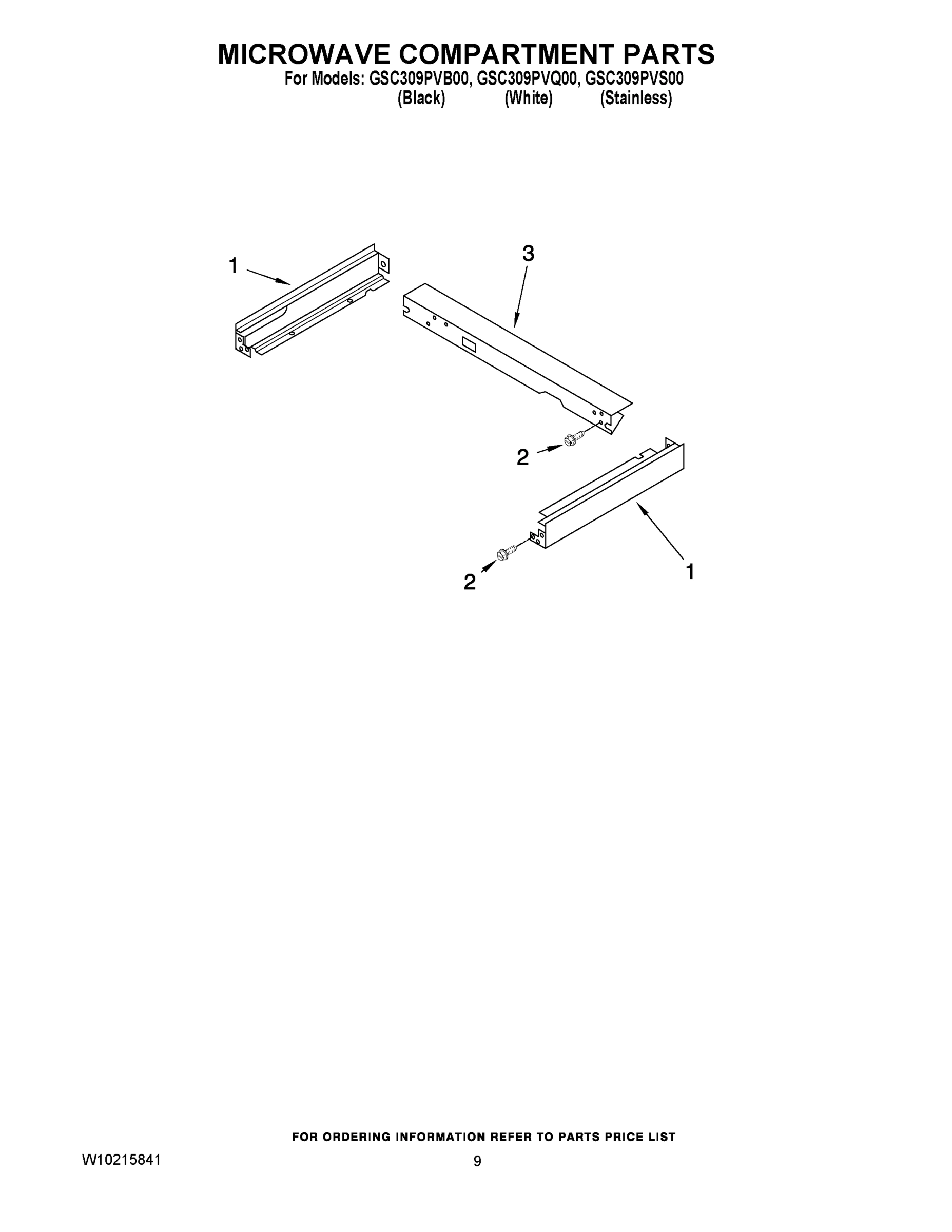

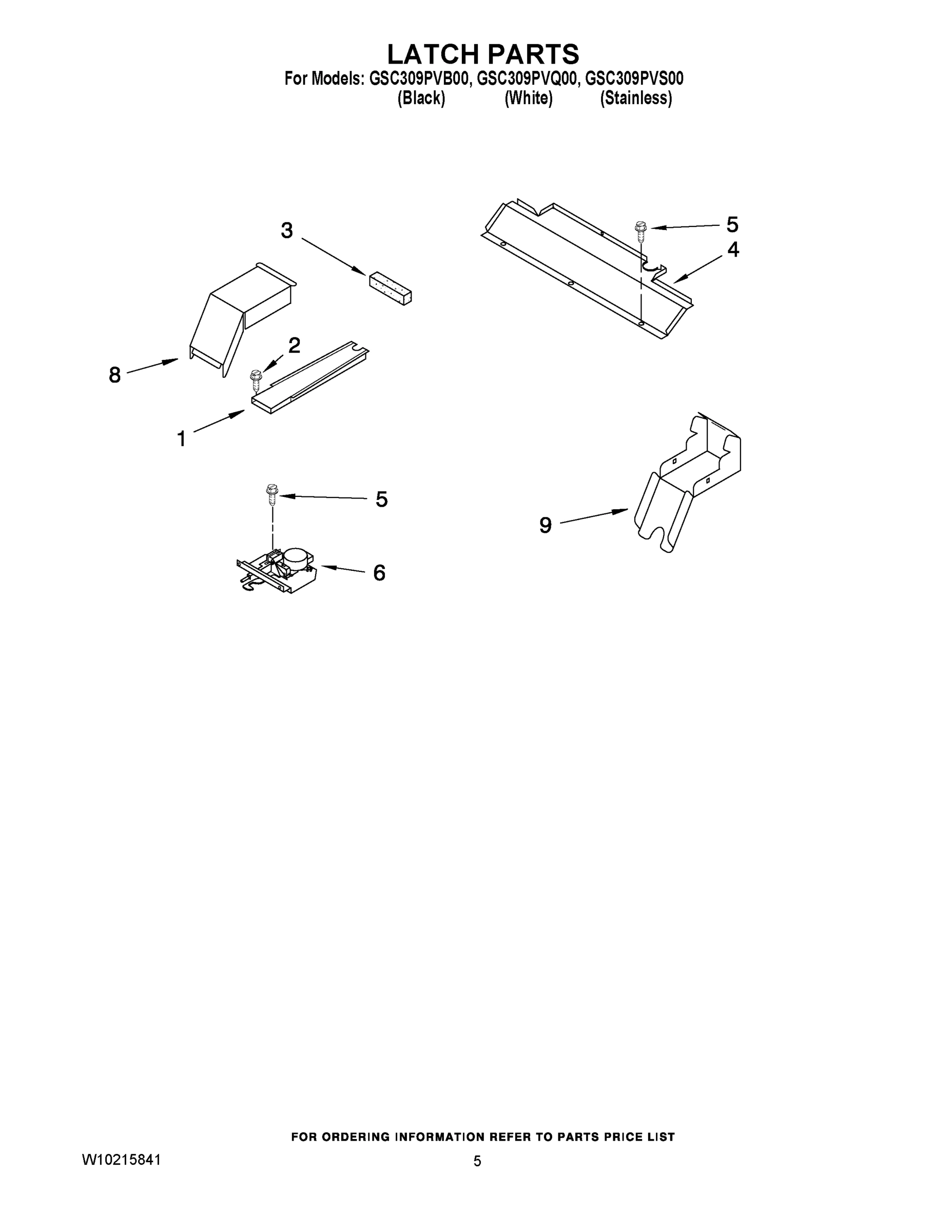

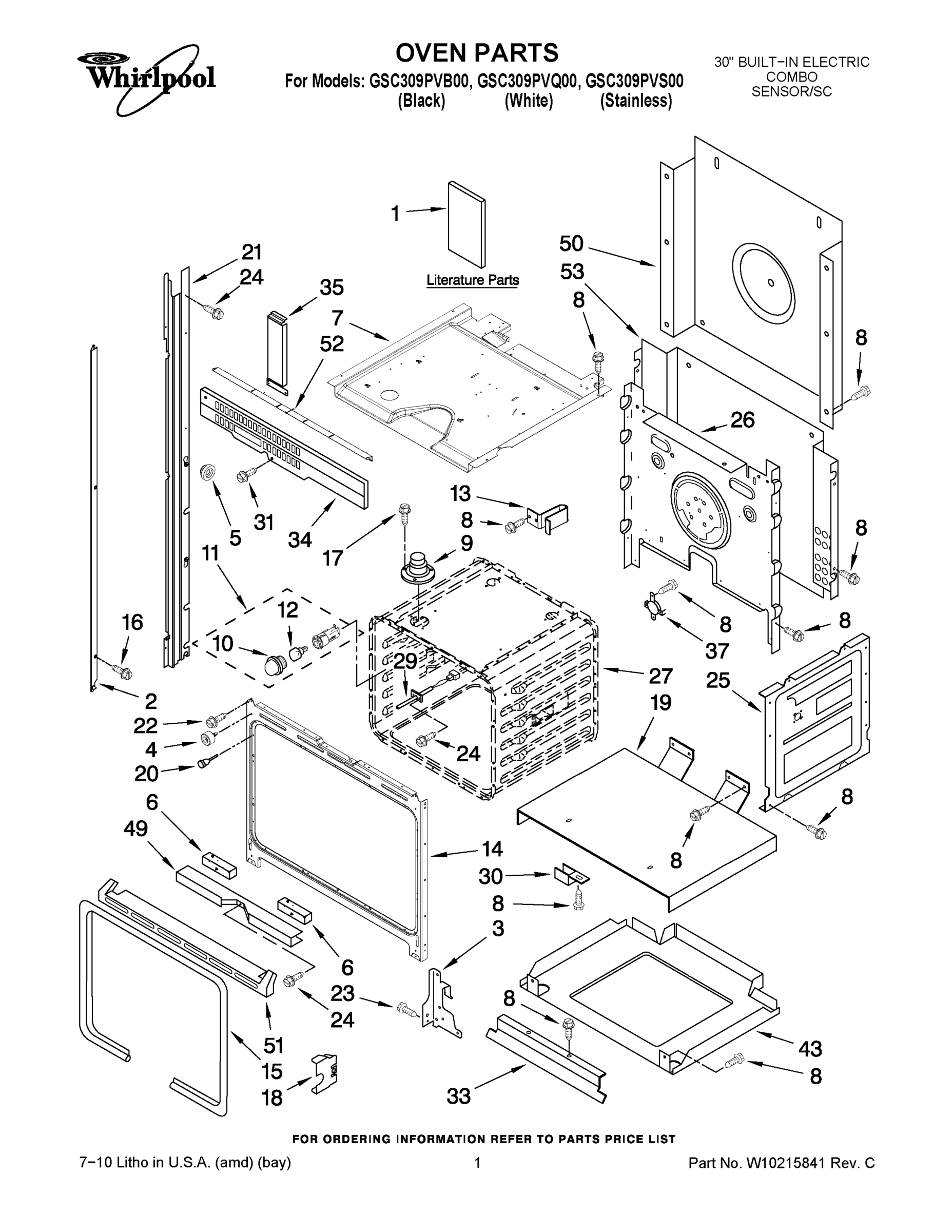

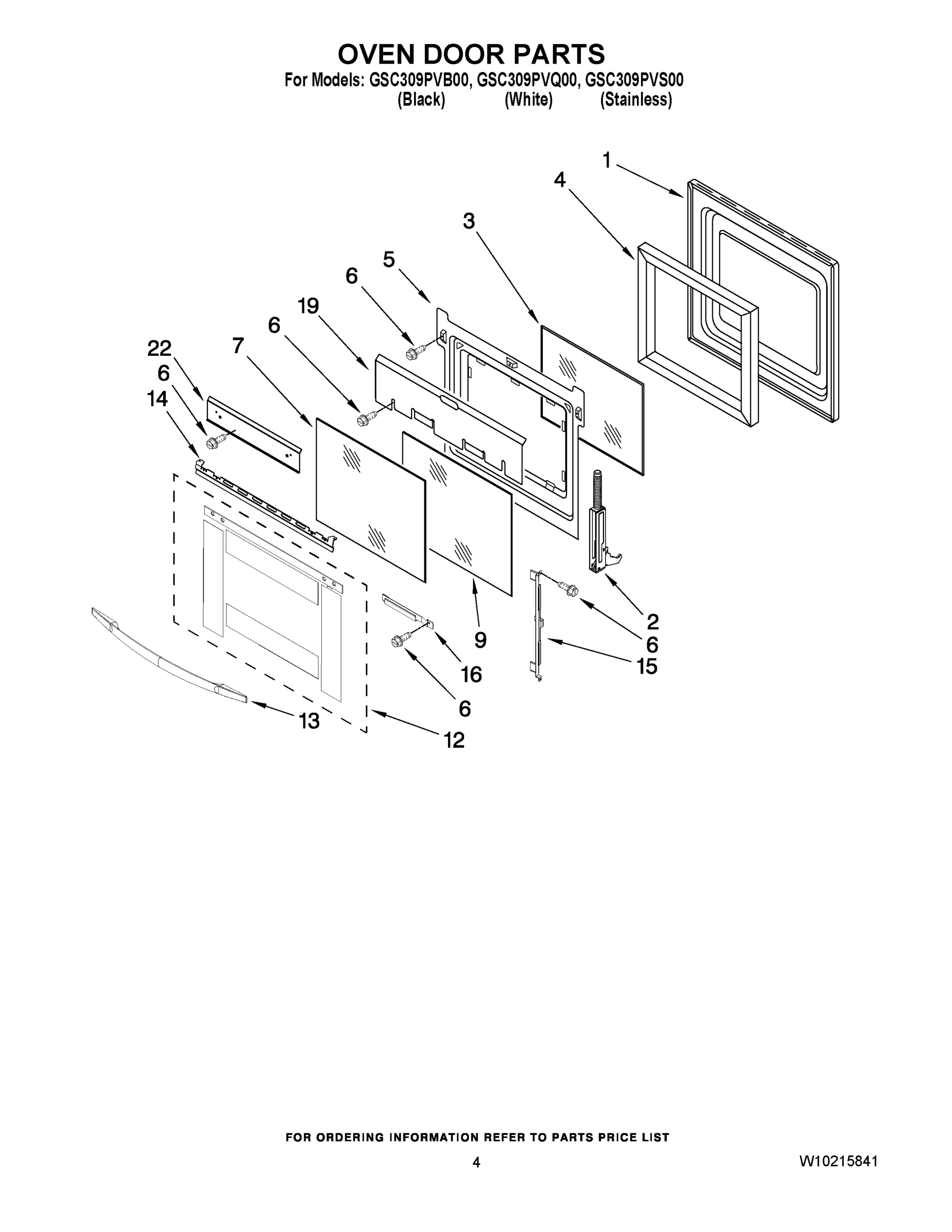

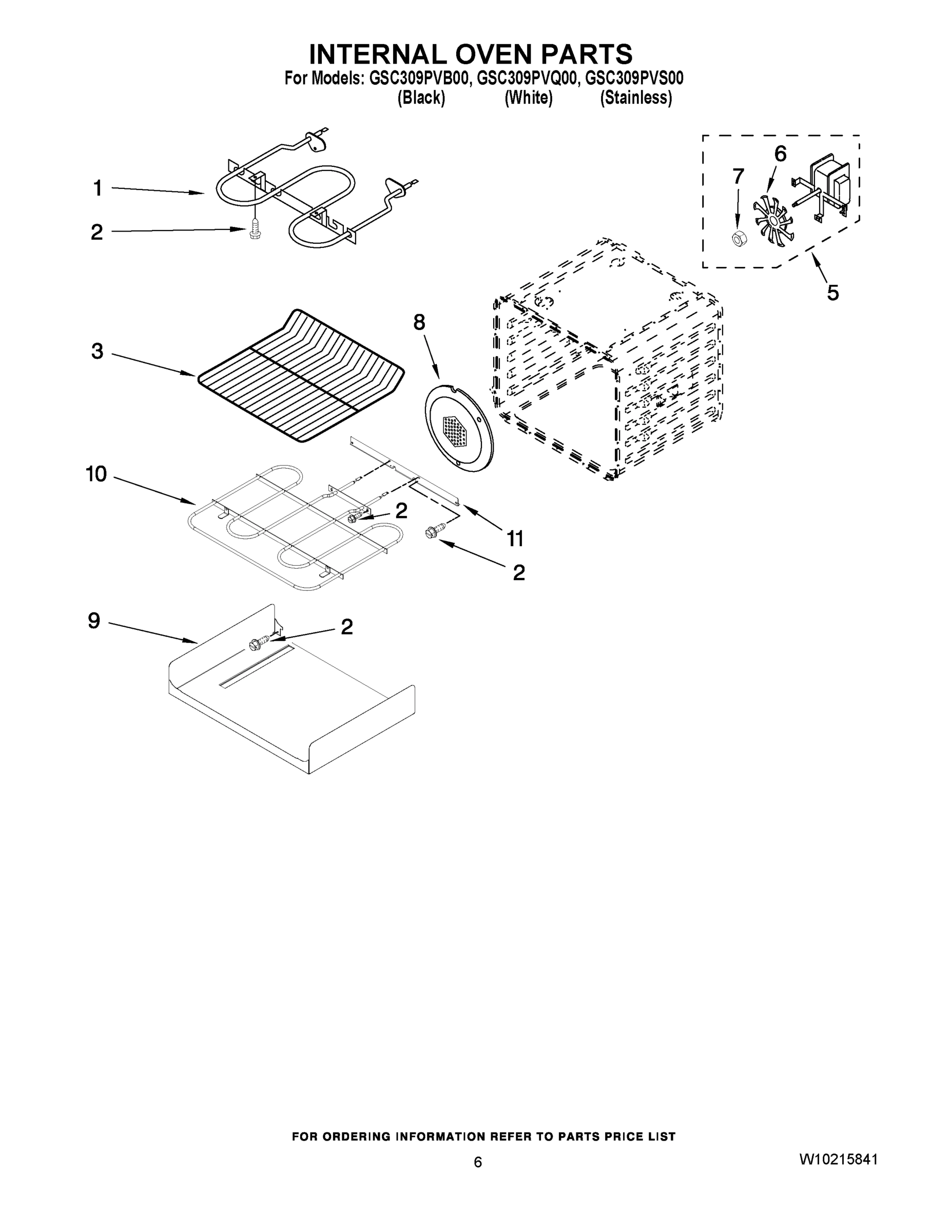

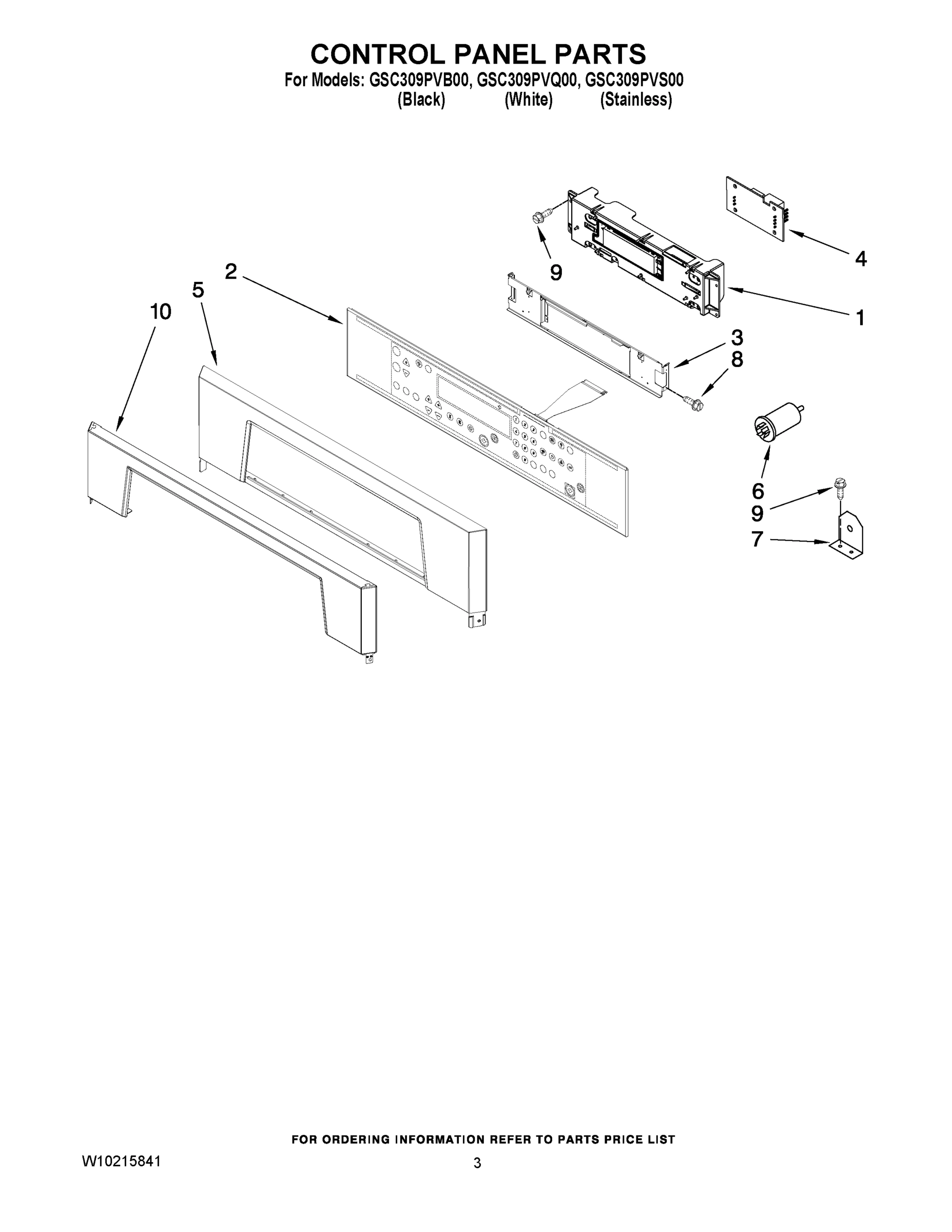

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

1

NAMEPLATE WPL W10175320 Contact Us For Availability

1

Support Rails (Right) WPL 4452551 Contact Us For Availability

1

Support Rails (Left) WPL 4452552 Contact Us For Availability

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $40.68

2

WP9760576 Whirlpool Door Hinge (Left) In Stock WPL WP9760576 $38.30

2

Frame, Inner WPL 4375340 Contact Us For Availability

2

Glass, Middle WPL 4448937 Contact Us For Availability

2

Trim, Side Right (Stainless) WPL W10145006 Contact Us For Availability

2

Trim, Side Left (Stainless) WPL W10145007 Contact Us For Availability

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

3

Rubber Ring WPL 4375252 Contact Us For Availability

3

Rear Channel WPL 4452548 Contact Us For Availability

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

5

WP8302848 Whirlpool Control Panel Backorder WPL WP8302848 $115.86

5

WP8302849 Whirlpool Control Panel Backorder WPL WP8302849 $122.78

5

Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability

5

Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability

5

RETAINER, GLASS WPL NP Contact Us For Availability

6

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $143.63

6

Transformer, Control WPL 9760589 Contact Us For Availability

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

7

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

7

Filler, Side (Right) WPL 4449083 Contact Us For Availability

7

Filler, Side (Left) WPL 4449086 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

Glass, Inner Door WPL 9759228 Contact Us For Availability

9

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

WPW10172165 Whirlpool Trim Panel Backorder WPL WPW10172165 $46.34

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $84.06

Bracket, Handle WPL 4452331 Contact Us For Availability

11

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability

Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability

13

Handle, Door (Stainless) WPL W10169798 Contact Us For Availability

13

Handle, Door (Black) WPL W10169801 Contact Us For Availability

13

Handle, Door (White) WPL W10169803 Contact Us For Availability

14

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

14

BRACKET, HANDLE (RIGHT) WPL 4455804 Contact Us For Availability

15

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

16

BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability

18

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Shield, Heat WPL 4457104 Contact Us For Availability

20

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

20

Suppressor WPL 4451934 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

21

Rail, Side (Right) WPL 8303117 Contact Us For Availability

21

Rail, Side (Left) WPL 8303118 Contact Us For Availability

22

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

22

Screw WPL 4449040 Contact Us For Availability

23

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $60.64

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

24

Screw WPL 3400080 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $273.49

26

Back, Chassis WPL W10161110 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Thermostat WPL 4375279 Contact Us For Availability

30

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

31

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

32

Thermostat WPL 4375281 Contact Us For Availability

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

34

Vent, Center WPL 8302592 Contact Us For Availability

35

EXT Filler WPL 4449906 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 9759713 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

WPW10207689 Whirlpool Trim Kit Backorder WPL WPW10207689 $63.06

51

Trim, Vent Bottom (Stainless) WPL W10151131 Contact Us For Availability

52

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

52

Vent, Control WPL 8303502 Contact Us For Availability

53

Chassis, Back WPL 4451756 Contact Us For Availability

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

61

Motor, Fan WPL 4375429 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

68

Cover Plate WPL 4375338 Contact Us For Availability

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

16515 Whirlpool Clip Backorder WPL 16515 $11.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8301909 Whirlpool Oven Wire Harness Backorder WPL 8301909 $65.34

8303838 Whirlpool Oven Wire Harness Backorder WPL 8303838 $138.00

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

W10204609 Whirlpool Wire Harness Backorder WPL W10204609 $116.07

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP9752759 Whirlpool Relay In Stock WPL WP9752759 $78.61

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Insulation, Back WPL 4450365 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
