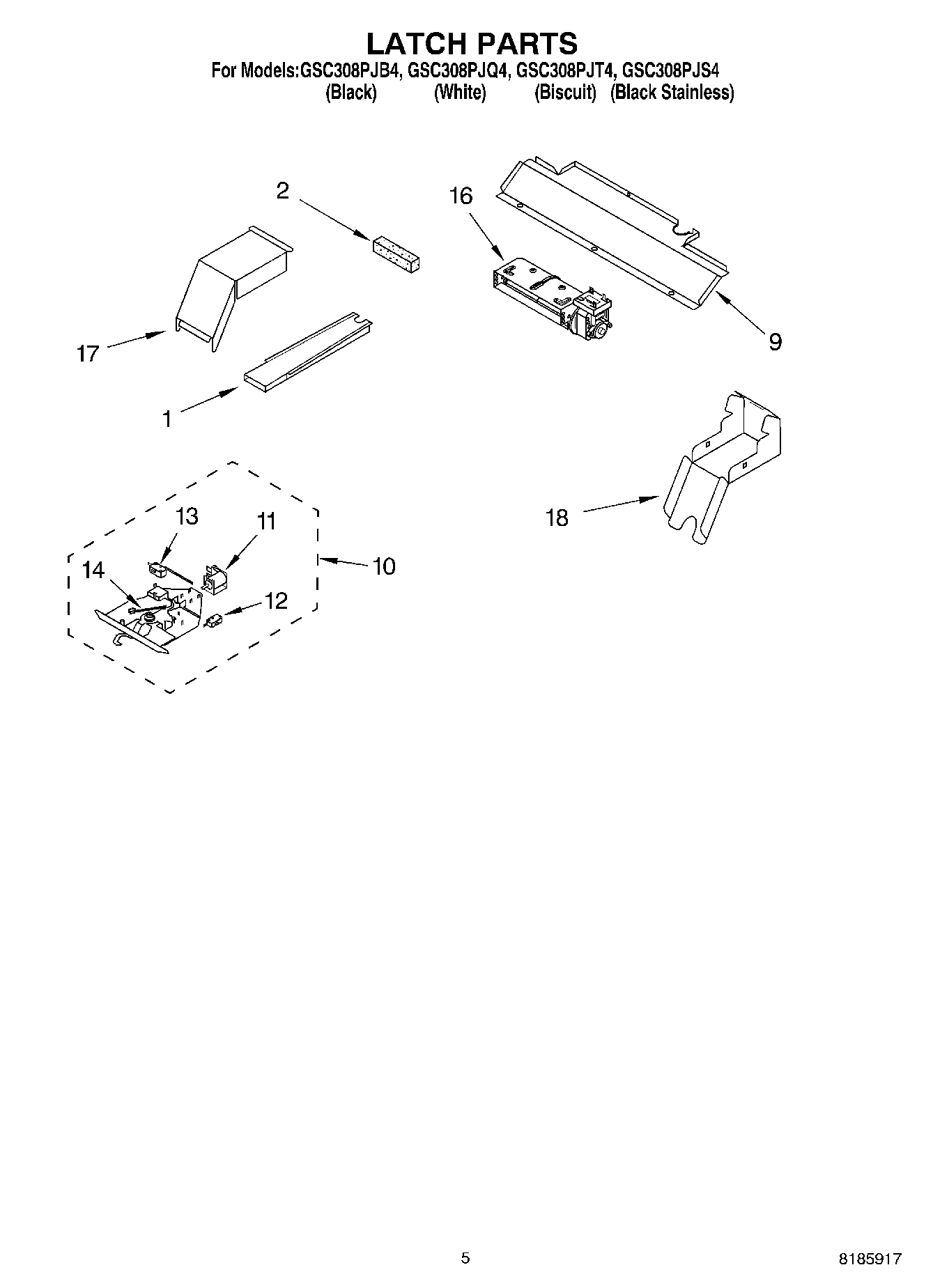

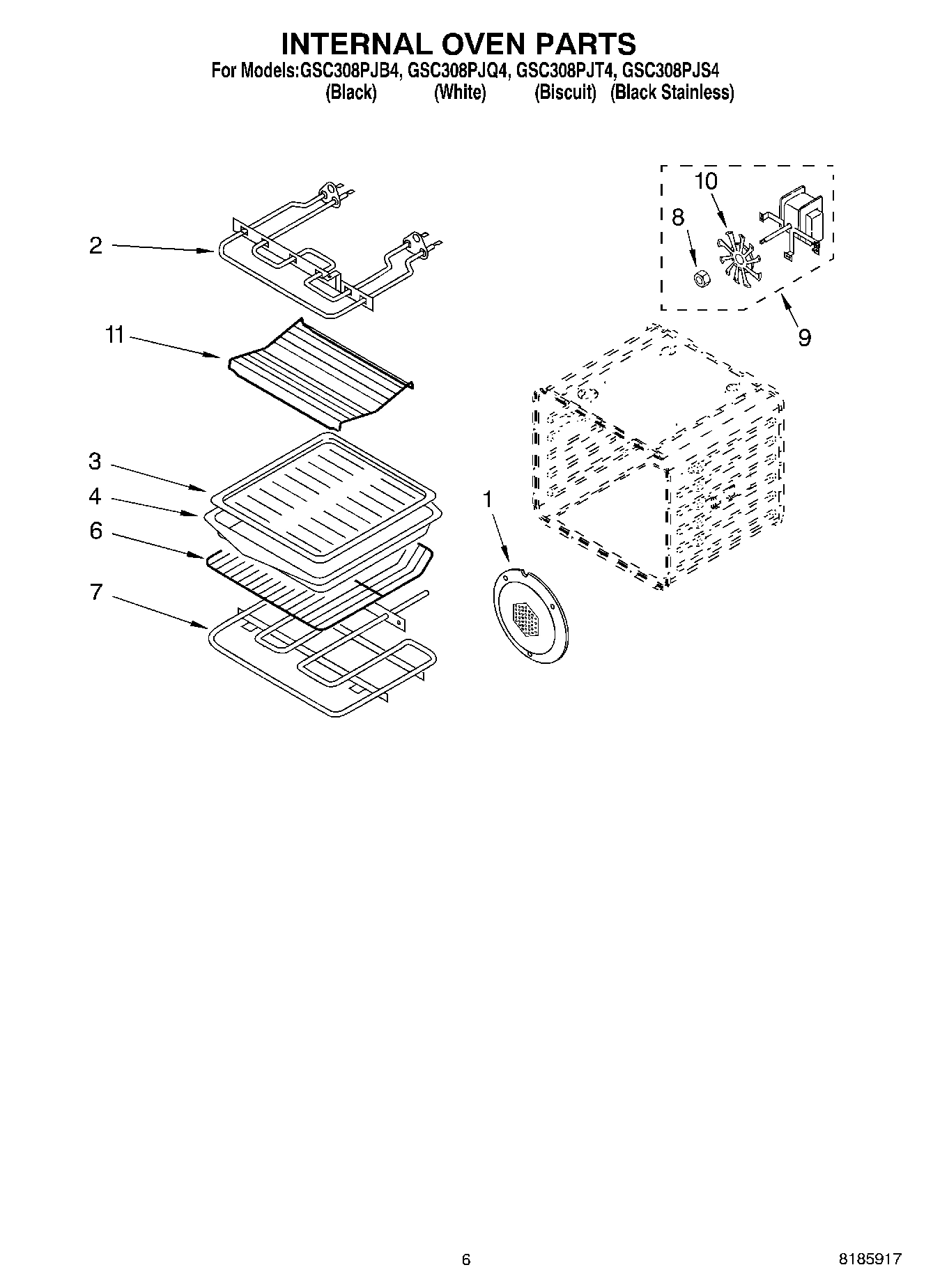

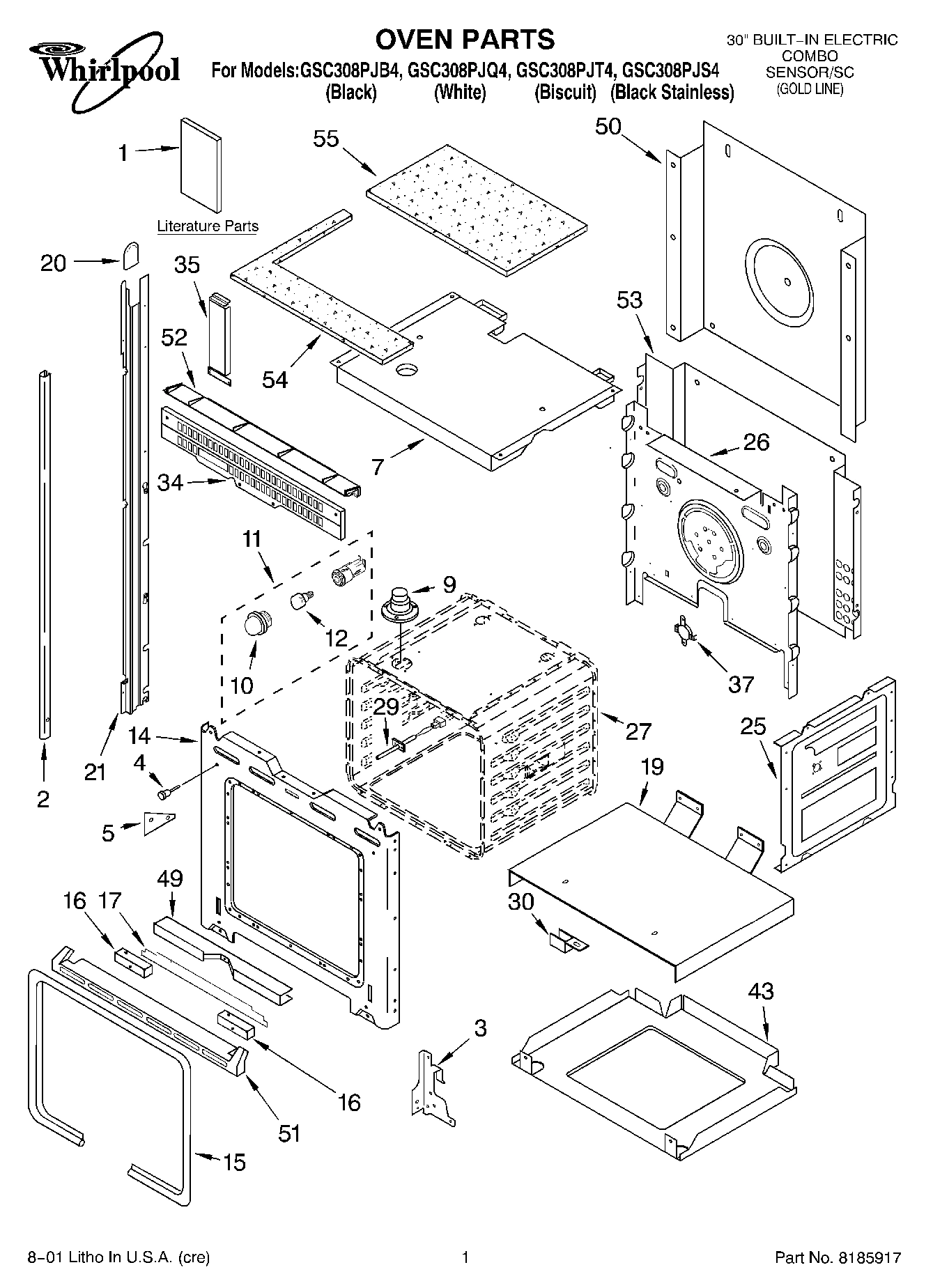

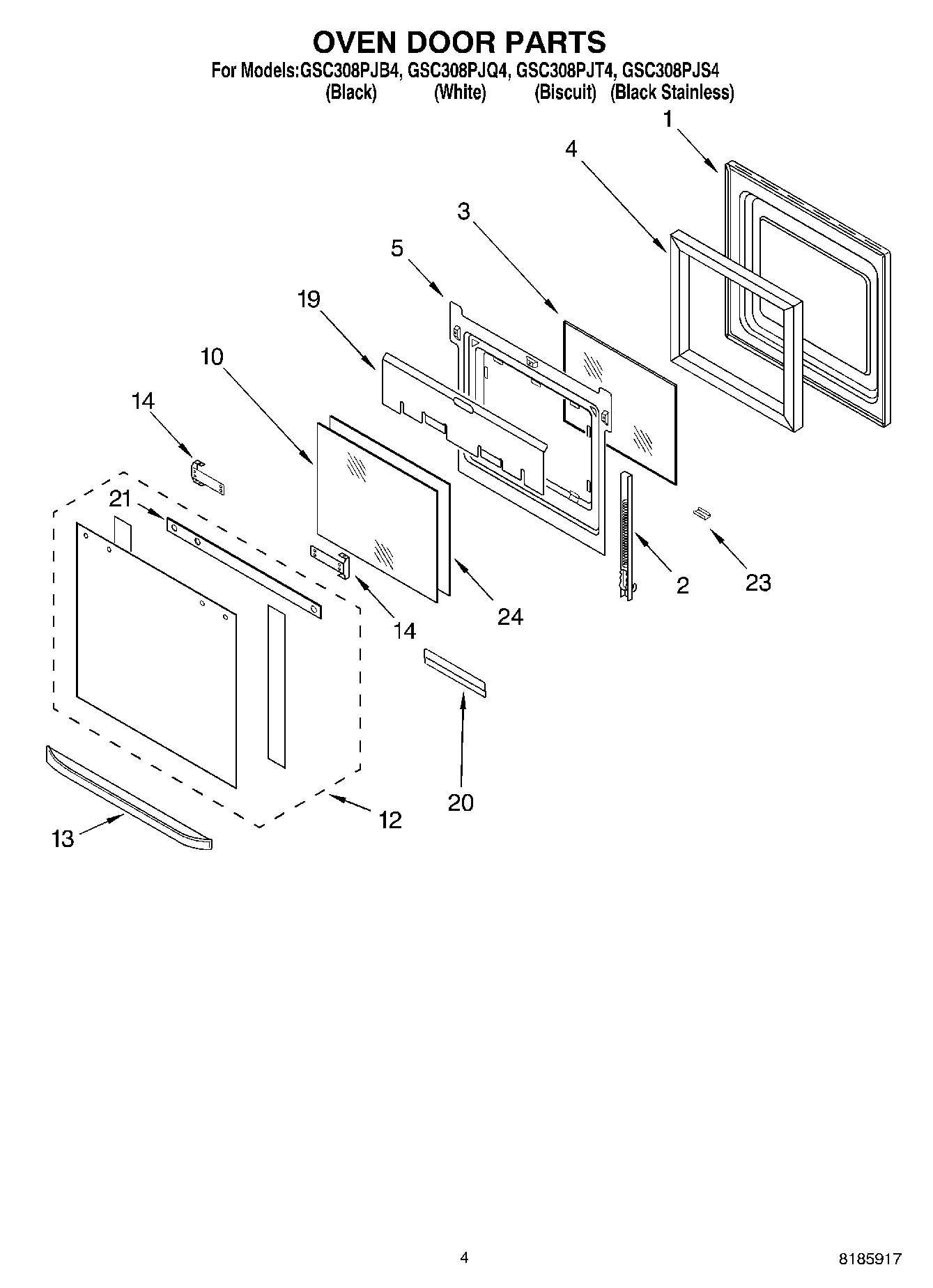

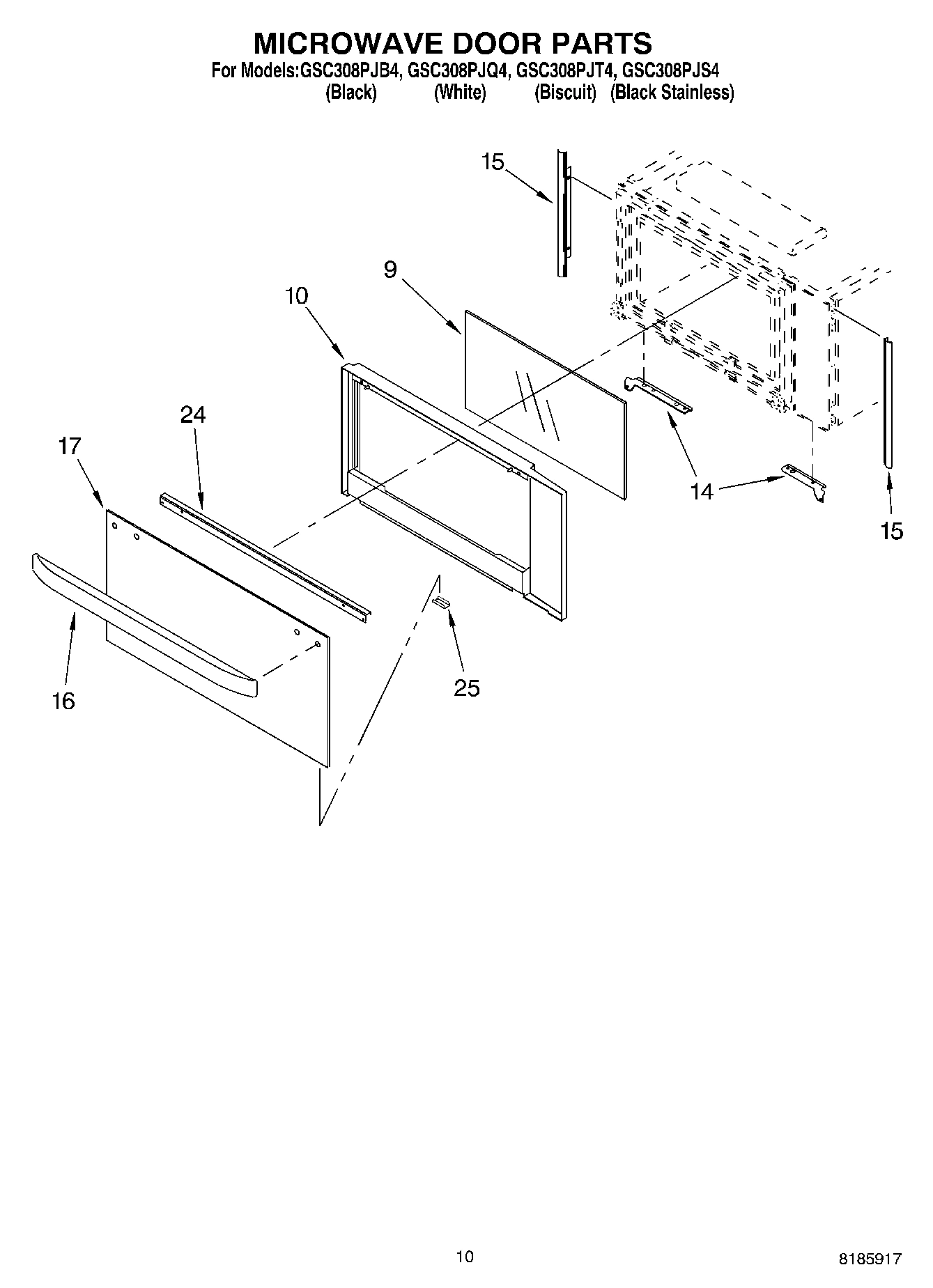

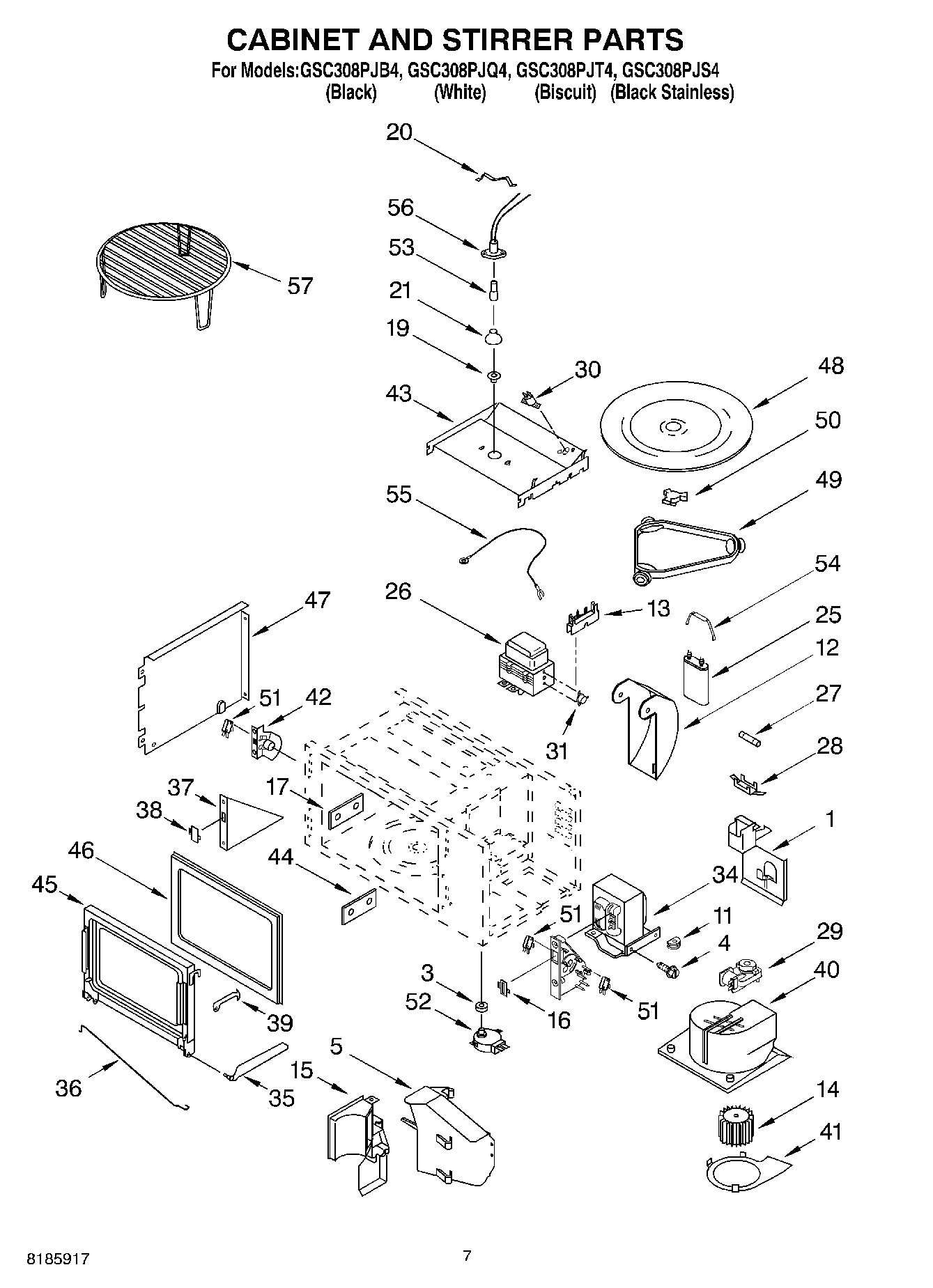

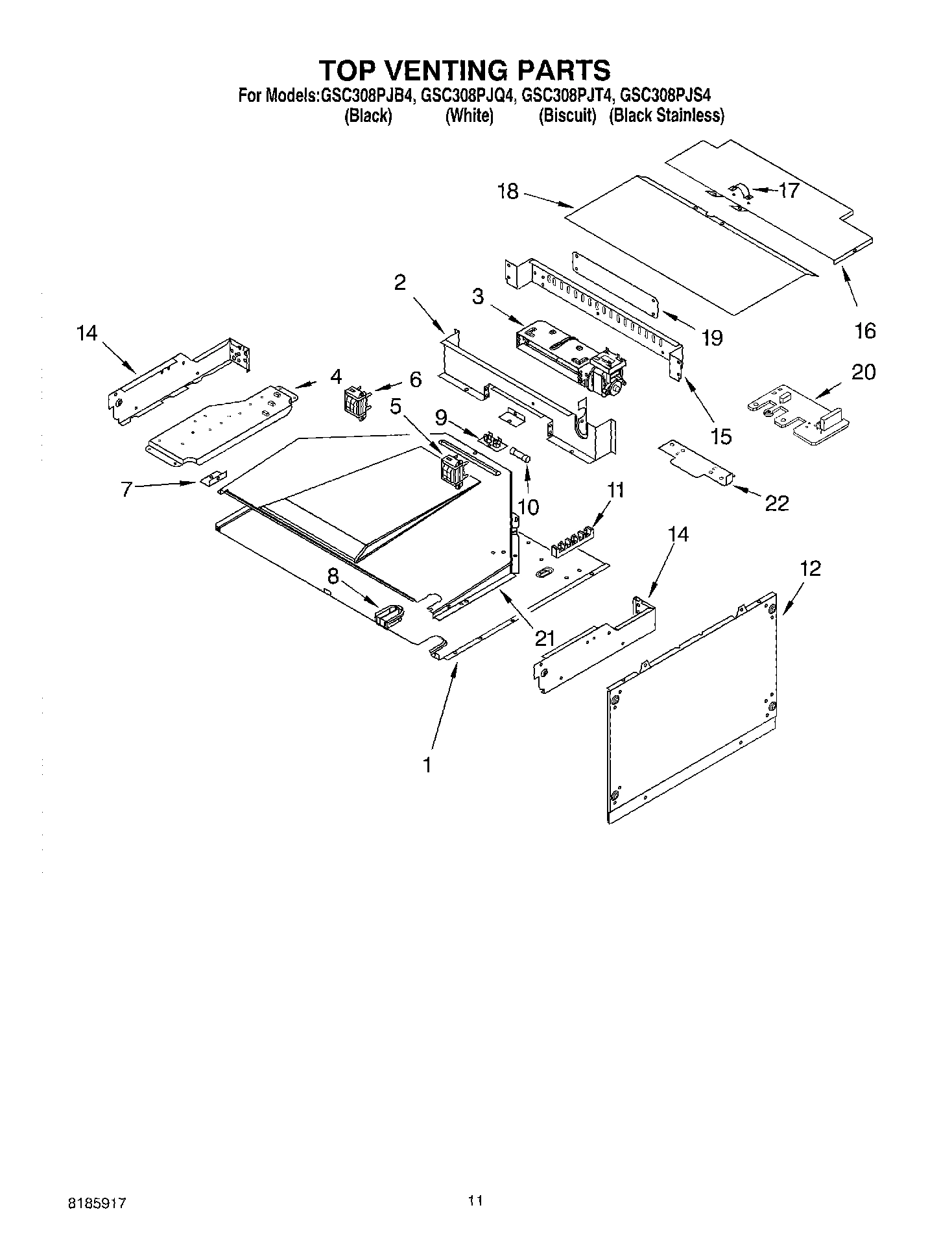

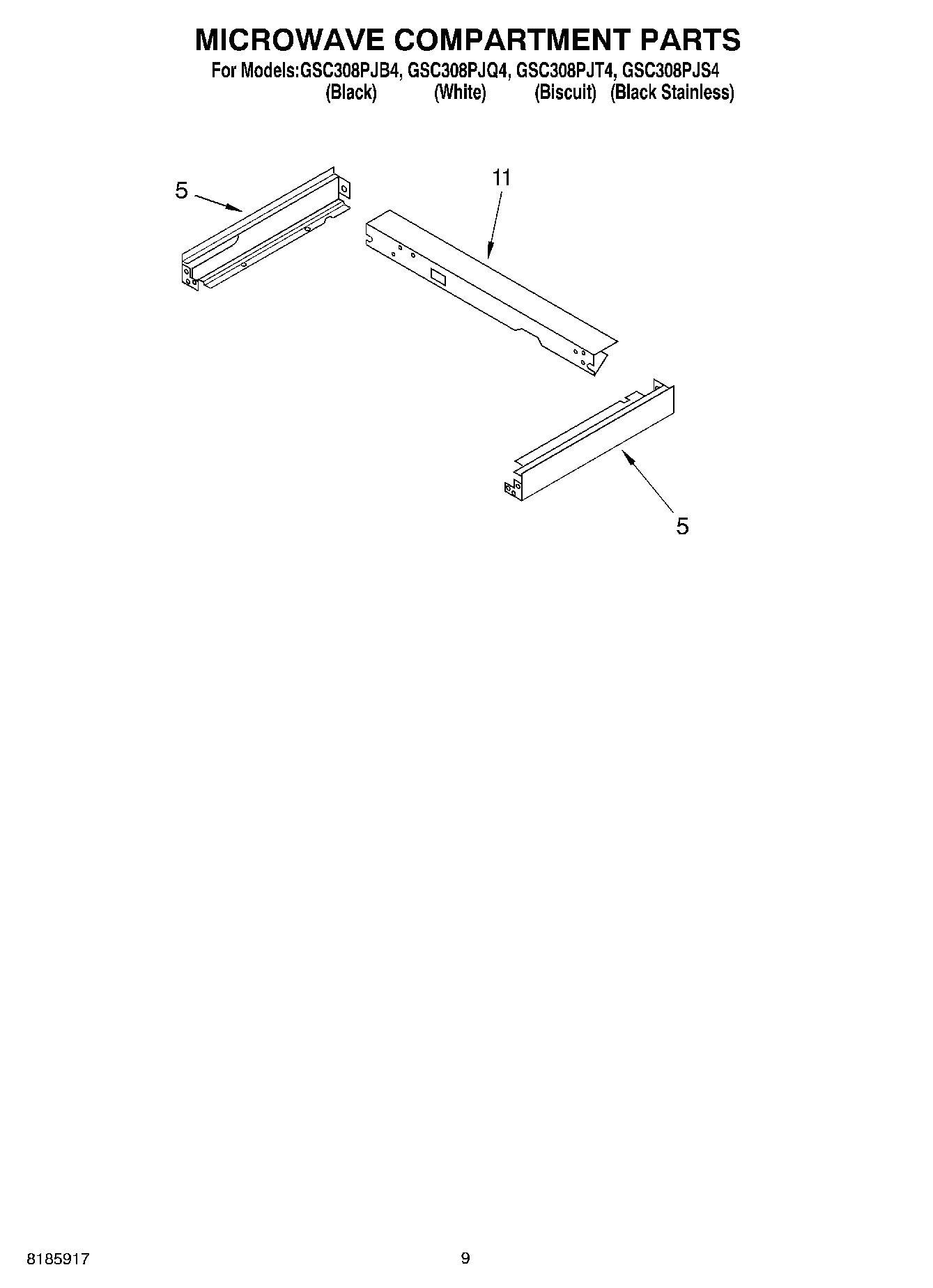

Model Whirlpool GSC308PJQ4 COOKTOP – Common Parts &amp; Diagrams

1

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

1

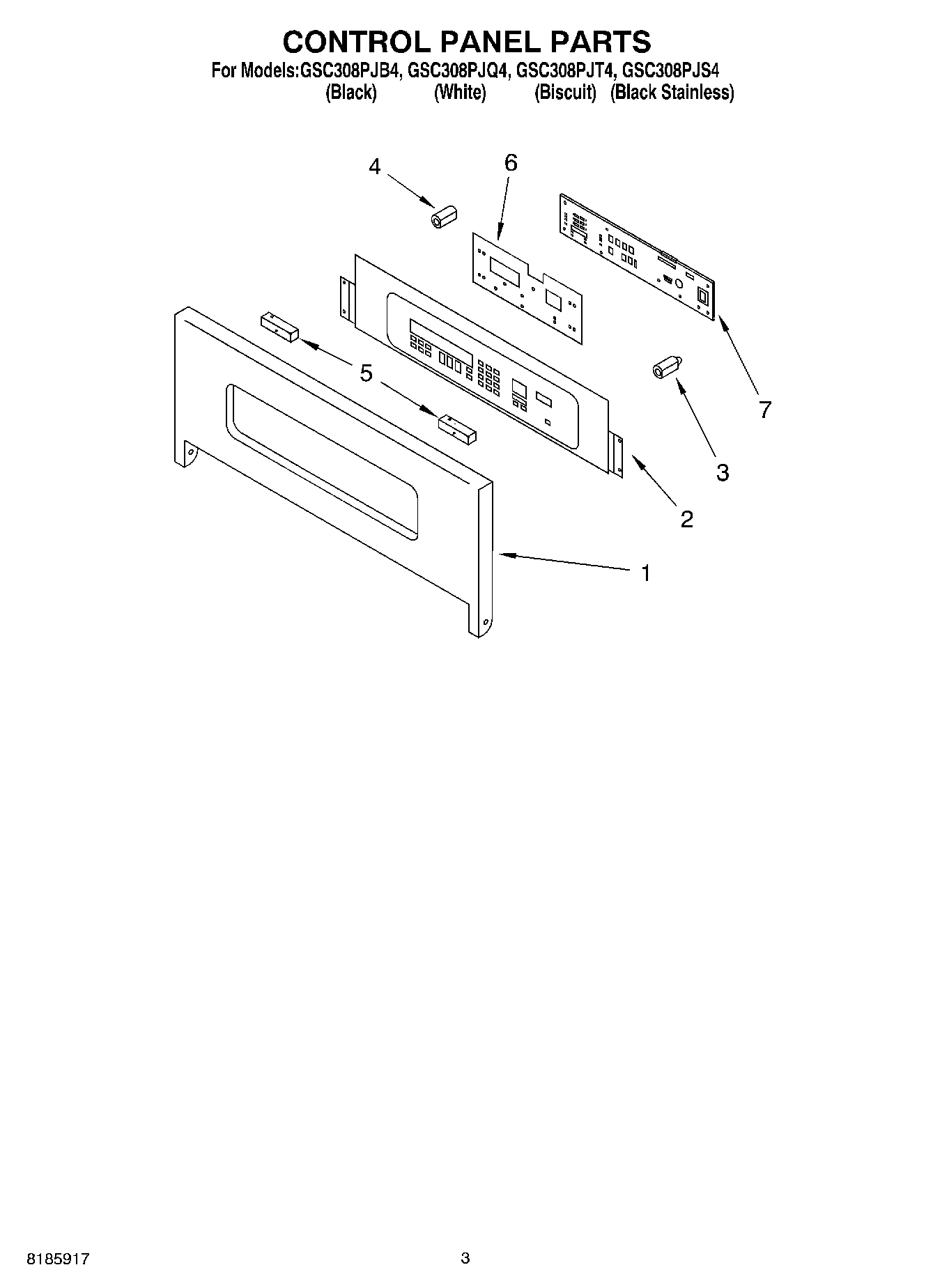

Control Panel Assy (Black Stainless) WPL 4451791 Contact Us For Availability

1

Cover, Top WPL 4450378 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Cookbook WPL LIT4449237 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Tech She WPL LIT8300283 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Microwav WPL LIT8300346 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Oven) WPL LIT8300348 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Microwav WPL LIT8300349 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300653 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Oven Coo WPL LIT8300669 Contact Us For Availability

2

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Trim, Side (LH Black) WPL 4455431 Contact Us For Availability

2

Baffle, Blower WPL 4448935 Contact Us For Availability

2

Trim, Side (RH Black stainless) WPL 4452083 Contact Us For Availability

2

Trim, Side (LH Black Stainless) WPL 4452084 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4455430 Contact Us For Availability

2

Trim, Side (RH White) WPL 4455432 Contact Us For Availability

2

Trim, Side (LH White) WPL 4455433 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4455434 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4455435 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower WPL 4450920 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Plate, Mounting WPL 4451789 Contact Us For Availability

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $27.76

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Transformer, Control WPL 4455038 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Bracket, Duct WPL 4450027 Contact Us For Availability

7

Top, Chassis WPL 4455865 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

Nut WPL 4452227 Contact Us For Availability

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Glass, Middle WPL 4448937 Contact Us For Availability

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

Lens, Light WPL 4452165 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

Rack, Roasting WPL 3181534 Contact Us For Availability

Rear Channel WPL 4452548 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

Microswitch N.C. WPL 4452312 Contact Us For Availability

Duct, Inlet WPL 4375260 Contact Us For Availability

Side, Combo WPL 4452559 Contact Us For Availability

13

Door Handle (Black) WPL 4448854 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Scre WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

Filler, Side (Left) WPL 4449086 Contact Us For Availability

Back, Control WPL 4452244 Contact Us For Availability

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

16

Spacer, Foam WPL 4452490 Contact Us For Availability

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

17

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

17

Insulation Bottom Vent WPL 4452337 Contact Us For Availability

18

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Plate, Cover WPL 4452247 Contact Us For Availability

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

Suppressor WPL 4451934 Contact Us For Availability

20

Retainer, Glass-Clip WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

814375 Whirlpool Oven Rail Mount Backorder WPL 814375 $81.00

814376 Whirlpool Oven Rail Mount Backorder WPL 814376 $74.37

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Duct, Exhaust WPL 4451634 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (Bl) WPL 4378944 Contact Us For Availability

Filler Kit (Wh) WPL 4378945 Contact Us For Availability

Filler Kit (Al) WPL 4378946 Contact Us For Availability

Grown (M/W) WPL 4450831 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Latch WPL 4452239 Contact Us For Availability

WPL 4455741 WPL 4455741 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Bracket, Handle WPL 4452331 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

27

Liner, Oven (Not a Serviceable Part) WPL ARI72051A1 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Thermostat WPL 4375279 Contact Us For Availability

30

WPL 4449845 WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

34

WPL 4451667 WPL 4451667 Contact Us For Availability

35

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

35

WPL 4449906 WPL 4449906 Contact Us For Availability

36

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

36

WP4452396 Whirlpool Microwave Spring In Stock WPL WP4452396 $46.92

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

38

Inlet WPL 4375329 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

WPL 4455530 WPL 4455530 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

WPL 4455147 WPL 4455147 Contact Us For Availability

WPL 4450289 WPL 4450289 Contact Us For Availability

WPL 4455443 WPL 4455443 Contact Us For Availability

WPL 4455445 WPL 4455445 Contact Us For Availability

WPL 4455447 WPL 4455447 Contact Us For Availability

52

WPL 4450791 WPL 4450791 Contact Us For Availability

53

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

53

WPL 4451756 WPL 4451756 Contact Us For Availability

54

WPL 4452492 WPL 4452492 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

Cable WPL 4375350 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability

WPL 4452491 WPL 4452491 Contact Us For Availability

57

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $60.64
