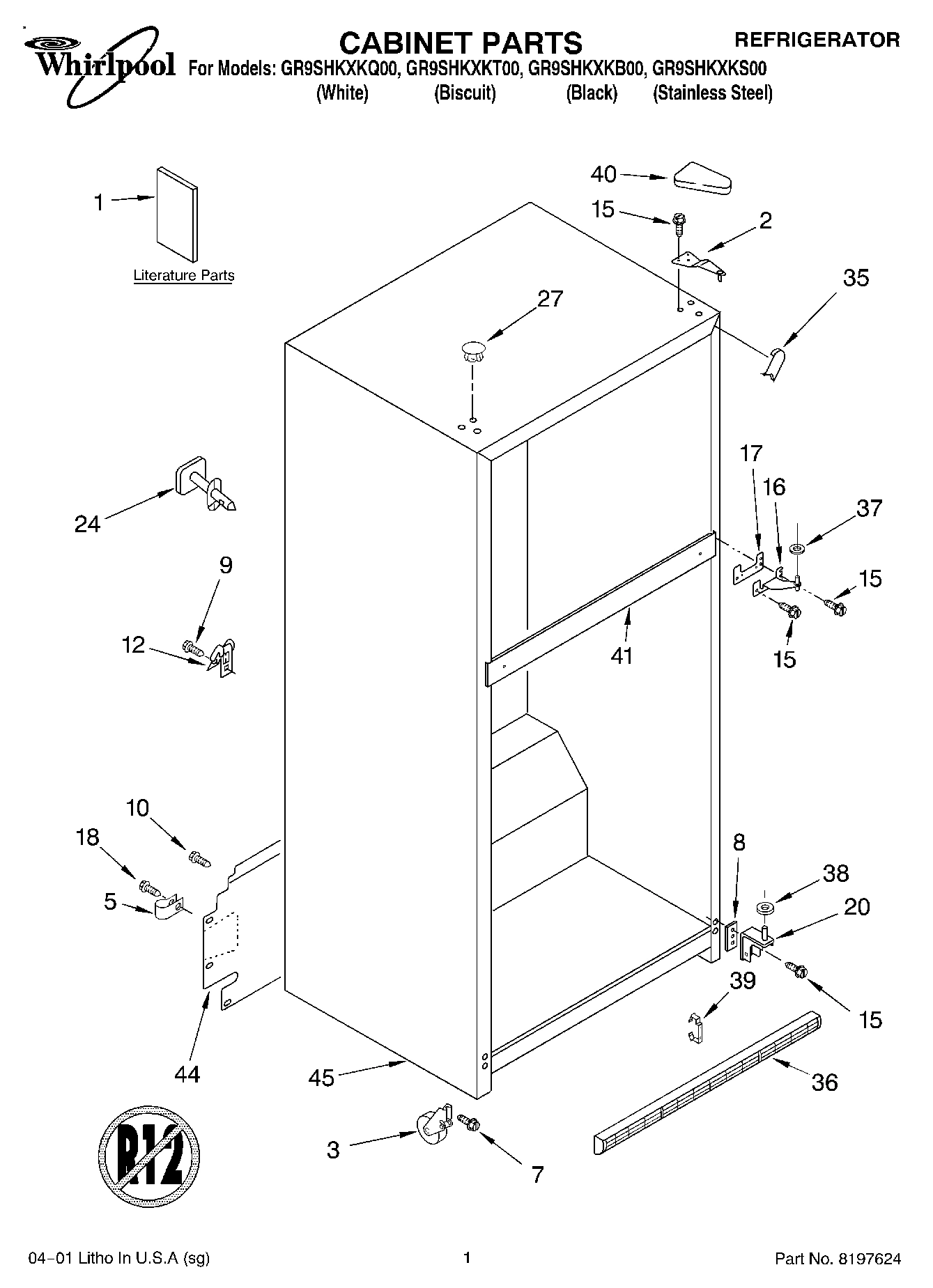

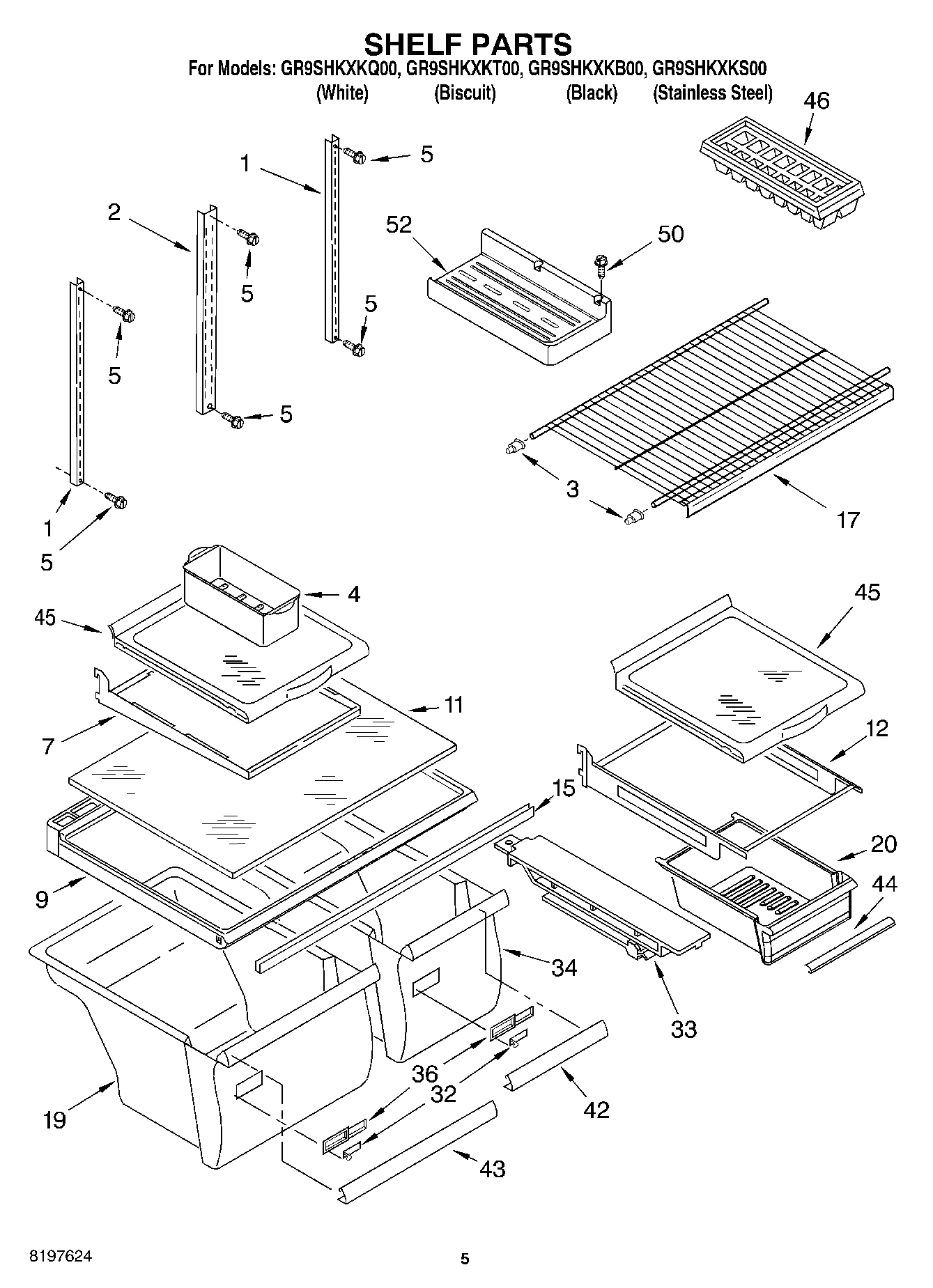

Model Whirlpool GR9SHKXKQ00 REFRIGERATOR – Common Parts & Diagrams

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI68990A1 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.6 & No.8) (Whi
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205395 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.6 & No.8) (Bis
Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205396 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.6 & No.8) (Bla
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205398 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.6 & No.8) (Sta
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2218280 Contact Us For Availability
View on Model
2
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
4
Timer, Defrost
Timer, Defrost WPL 2193084 Contact Us For Availability
View on Model
5
Thermostat Tube Barrier
Thermostat Tube Barrier WPL 2212485 Contact Us For Availability
View on Model
7
Wire Assy. Control Box
Wire Assy. Control Box WPL 2187306 Contact Us For Availability
View on Model
8
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
View on Model
9
Damper, Air
Damper, Air WPL 2179858 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 2183833 Contact Us For Availability
View on Model
11
Housing Compartment
Housing Compartment WPL 2210566 Contact Us For Availability
View on Model
12
Control Box
Control Box WPL 2200820 Contact Us For Availability
View on Model
13
Tray, Door
Tray, Door WPL 2159302 Contact Us For Availability
View on Model
13
Thermostat Assembly (Includes Items 5, 18, &
Thermostat Assembly (Includes Items 5, 18, & WPL 2200830 Contact Us For Availability
View on Model
14
Clip, Defrost Timer
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
View on Model
15
Screw
Screw WPL 489412 Contact Us For Availability
View on Model
16
Support Block
Support Block WPL 2201184 Contact Us For Availability
View on Model
16
Cover-Evaporator
Cover-Evaporator WPL 2201173 Contact Us For Availability
View on Model
17
Trim, Door Shelf (2)
Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability
View on Model
18
Nameplate
Nameplate WPL 2220214 Contact Us For Availability
View on Model
18
Weight, Thermal
Weight, Thermal WPL 2200831 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Handle (White)
Handle (White) WPL 2225090 Contact Us For Availability
View on Model
19
Handle (Biscuit)
Handle (Biscuit) WPL 2225091 Contact Us For Availability
View on Model
19
Handle (Black)
Handle (Black) WPL 2225158 Contact Us For Availability
View on Model
19
Handle (White)
Handle (White) WPL 2212689 Contact Us For Availability
View on Model
19
Handle (Biscuit)
Handle (Biscuit) WPL 2212690 Contact Us For Availability
View on Model
19
Handle (Black)
Handle (Black) WPL 2221652 Contact Us For Availability
View on Model
20
Wire Assembly, Freezer Compartment
Wire Assembly, Freezer Compartment WPL 2187301 Contact Us For Availability
View on Model
20
Bin, Door (3)
Bin, Door (3) WPL 2179605 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
22
WPL 876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
22
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
22
PAINT, BULK (1 QT.) (WHIT
PAINT, BULK (1 QT.) (WHIT WPL 799344 Contact Us For Availability
View on Model
22
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
22
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
22
WPL 799832
WPL 799832 WPL 799832 Contact Us For Availability
View on Model
22
WPL 799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
22
WPL 978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
22
Door, Compartment
Door, Compartment WPL 2188398 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
23
TRIM, DOOR SHELF
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
View on Model
24
Hole Plug, Handle (White)
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
View on Model
24
Hole Plug, Handle (Biscuit)
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
View on Model
24
Hole Plug, Handle (Black)
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
View on Model
25
Freezer Floor
Freezer Floor WPL 2204746 Contact Us For Availability
View on Model
26
Air Diffuser, Top
Air Diffuser, Top WPL 2179877 Contact Us For Availability
View on Model
27
Cover, Hole
Cover, Hole WPL 2205003 Contact Us For Availability
View on Model
29
Bracket, Fan Motor
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
View on Model
31
Shield, heat
Shield, heat WPL 2204639 Contact Us For Availability
View on Model
32
Slide, Humidity Control
Slide, Humidity Control WPL 2176222 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2176297 Contact Us For Availability
View on Model
38
Endcap, Door Trim
Endcap, Door Trim WPL 2177340 Contact Us For Availability
View on Model
39
CLIP, GRILLE
CLIP, GRILLE WPL 2189356 Contact Us For Availability
View on Model
39
Housing Base
Housing Base WPL 2201152 Contact Us For Availability
View on Model
41
Wiring Harness, Freezer Light
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
View on Model
42
Trim, Crisper Pan
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
View on Model
42
Electrical Shield, Freezer Light
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
View on Model
43
Fan, Blade
Fan, Blade WPL 2190685 Contact Us For Availability
View on Model
44
Post, Damper
Post, Damper WPL 2179859 Contact Us For Availability
View on Model
45
Bracket, Damper Knob
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
View on Model
48
Gasket, Rear
Gasket, Rear WPL 2166284 Contact Us For Availability
View on Model
49
Pullout, Freezer Floor (Includes Item 56)
Pullout, Freezer Floor (Includes Item 56) WPL 2189429 Contact Us For Availability
View on Model
50
REAR FENCE PULL-OUT FREEZER FLOOR
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
View on Model
51
Roller, Slide
Roller, Slide WPL 2176246 Contact Us For Availability
View on Model
52
Side Support, Floor Assembly
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
View on Model
53
Center Support, Floor Assembly
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
View on Model
58
Evap. Tray
Evap. Tray WPL 2210451 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
