Model Whirlpool GR9SHKXKB01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET, LITERATURE
05 - UNIT

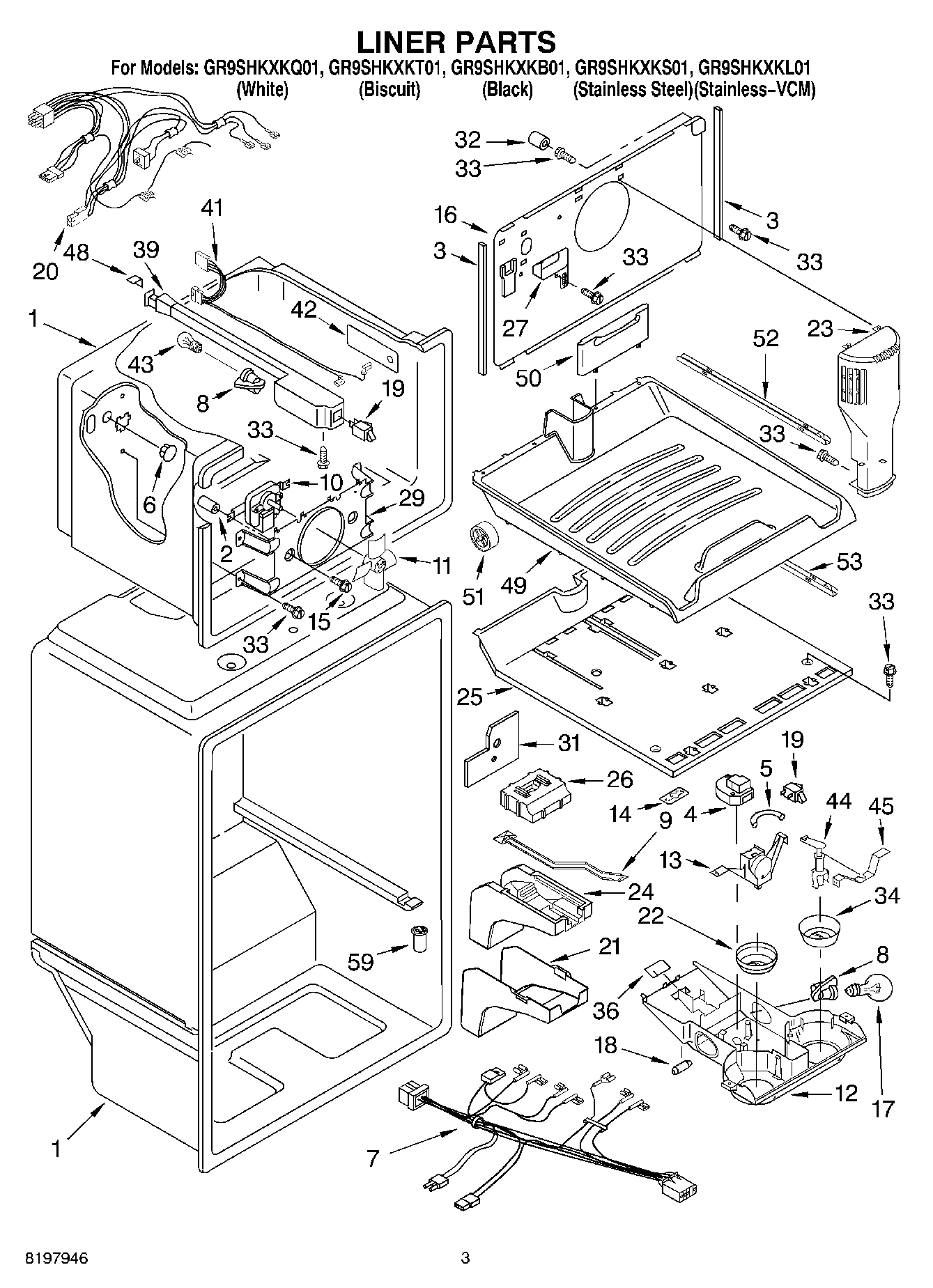

02 - LINER

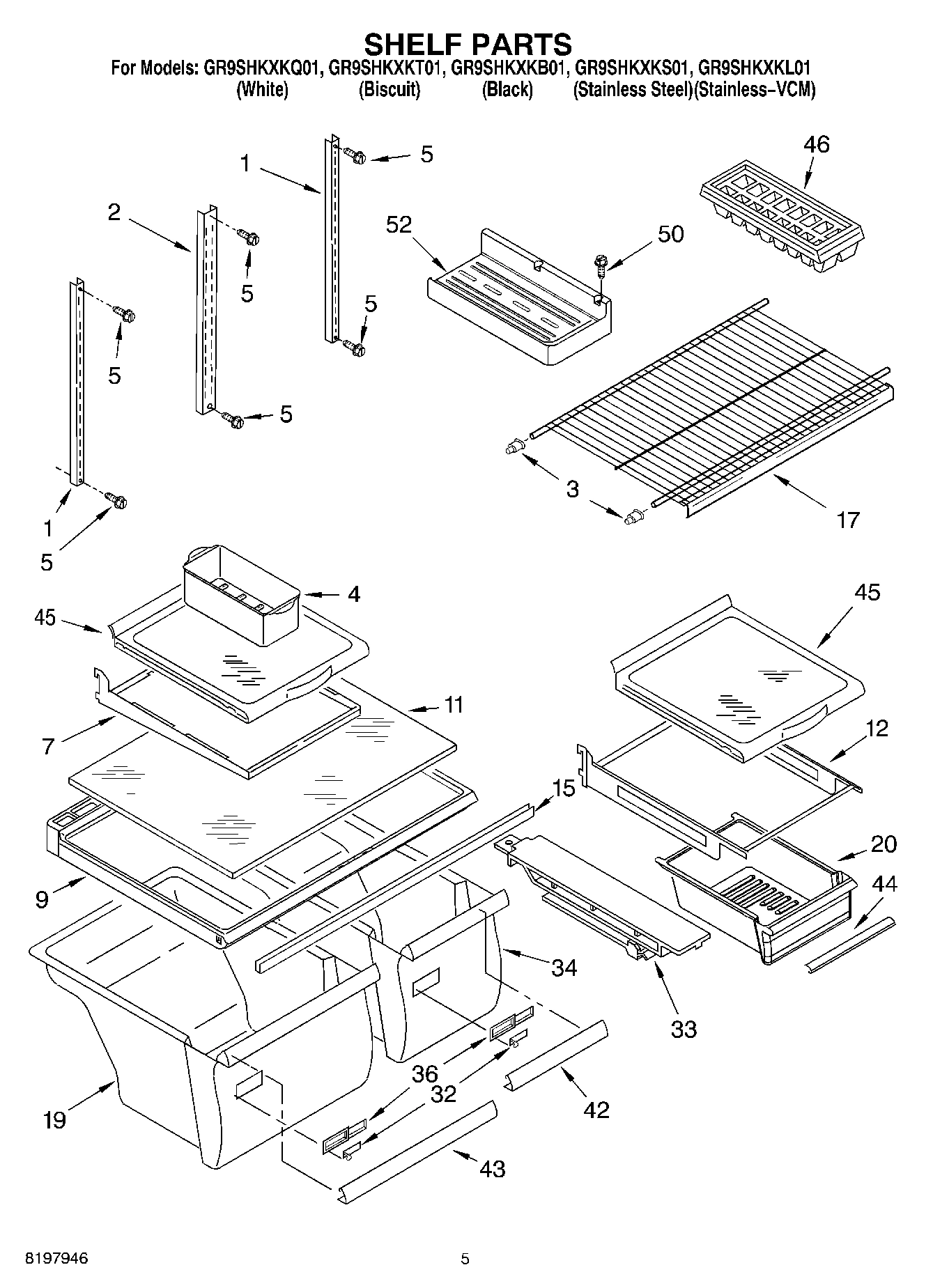

03 - SHELF

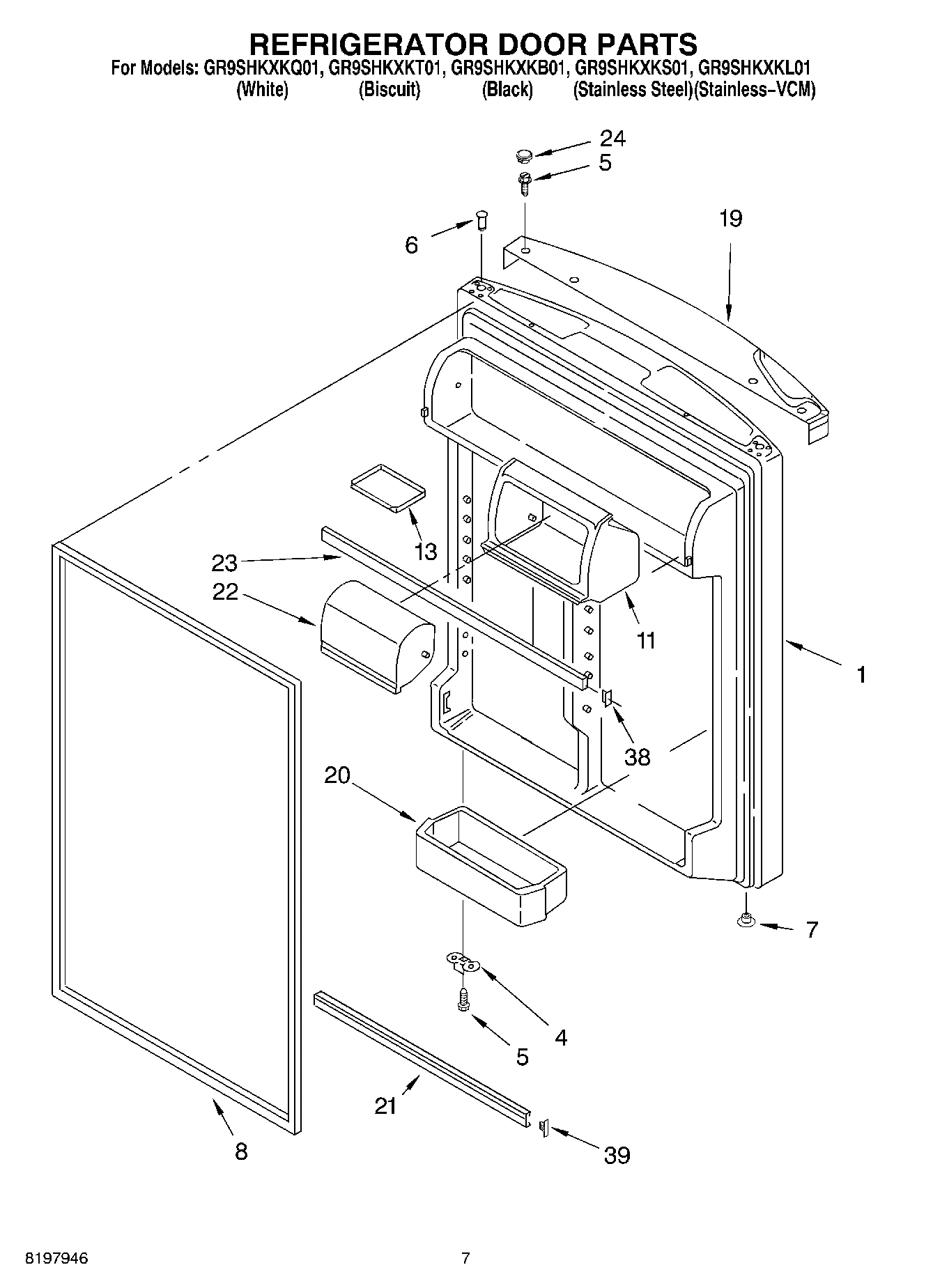

04 - REFRIGERATOR DOOR

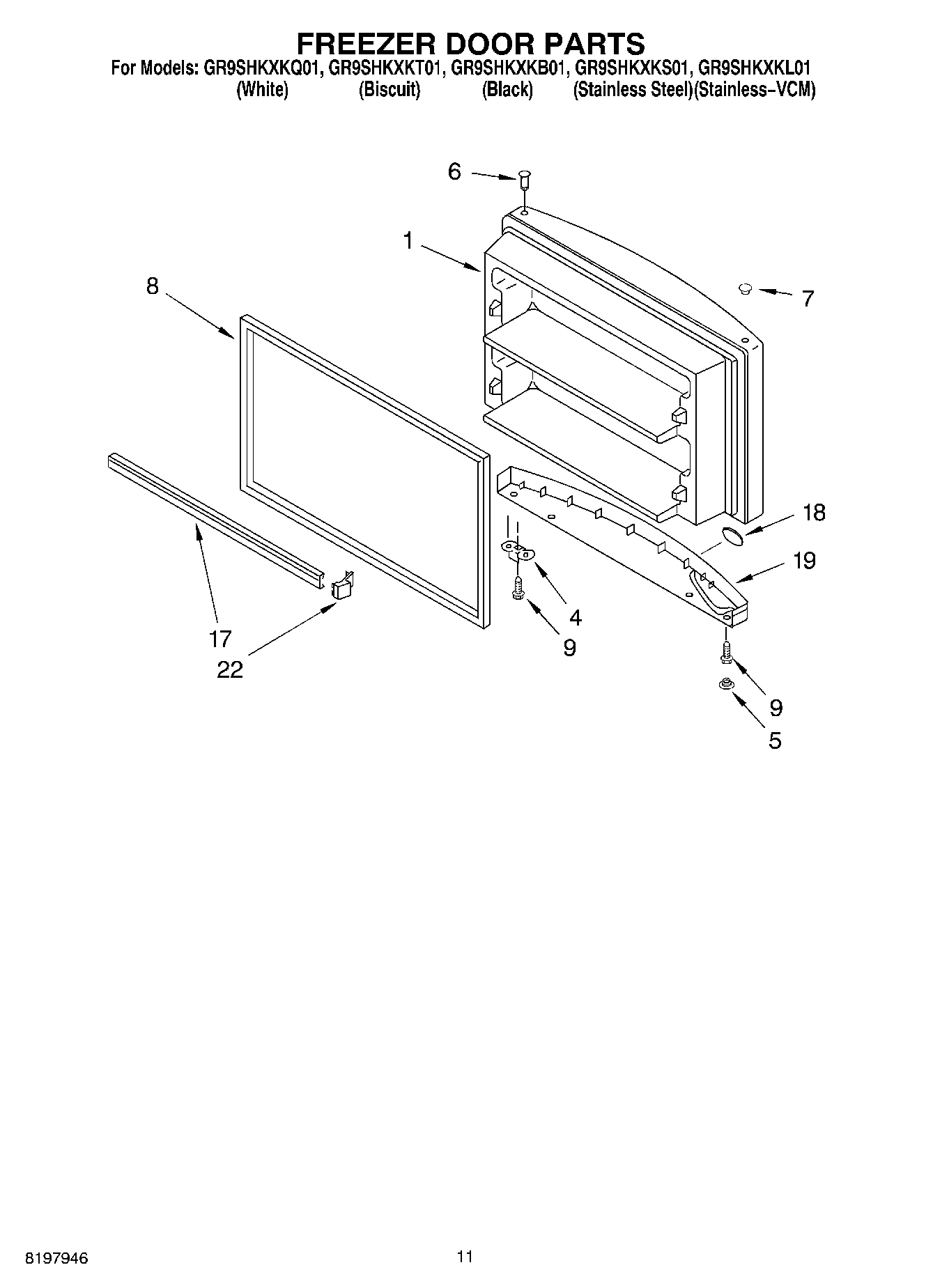

06 - FREEZER DOOR, OPTIONAL
Common parts from model Whirlpool GR9SHKXKB01 REFRIGERATOR
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205395 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205396 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205398 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2218280 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2218506 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2205399 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Biscuit) WPL 2205400 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Black) WPL 2205402 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Stainles WPL 2212495 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Stainles WPL 2218507 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
5
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
5
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
5
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
8
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
11
Housing Compartment WPL 2210566 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2205161 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
16
Support Block WPL 2201184 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability
18
Nameplate WPL 2220214 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2212689 Contact Us For Availability
19
Handle (Biscuit) WPL 2212690 Contact Us For Availability
19
Handle (Black) WPL 2221652 Contact Us For Availability
19
Handle (White) WPL 2225090 Contact Us For Availability
19
Handle (Biscuit) WPL 2225091 Contact Us For Availability
19
Handle (Black) WPL 2225158 Contact Us For Availability
20
Bin, Door (3) WPL 2179605 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
31
Shield, heat WPL 2204639 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
45
Shelf Assembly, Spillguard (2) WPL 2195346 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2212770 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
