Model Whirlpool GR9FHKXPQ01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $105.37

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI68538A8 WPL ARI68538A8 Contact Us For Availability

WPL ARI68539A7 WPL ARI68539A7 Contact Us For Availability

WPL ARI68540A1 WPL ARI68540A1 Contact Us For Availability

WPL ARI68541A3 WPL ARI68541A3 Contact Us For Availability

WPL ARI68542A1 WPL ARI68542A1 Contact Us For Availability

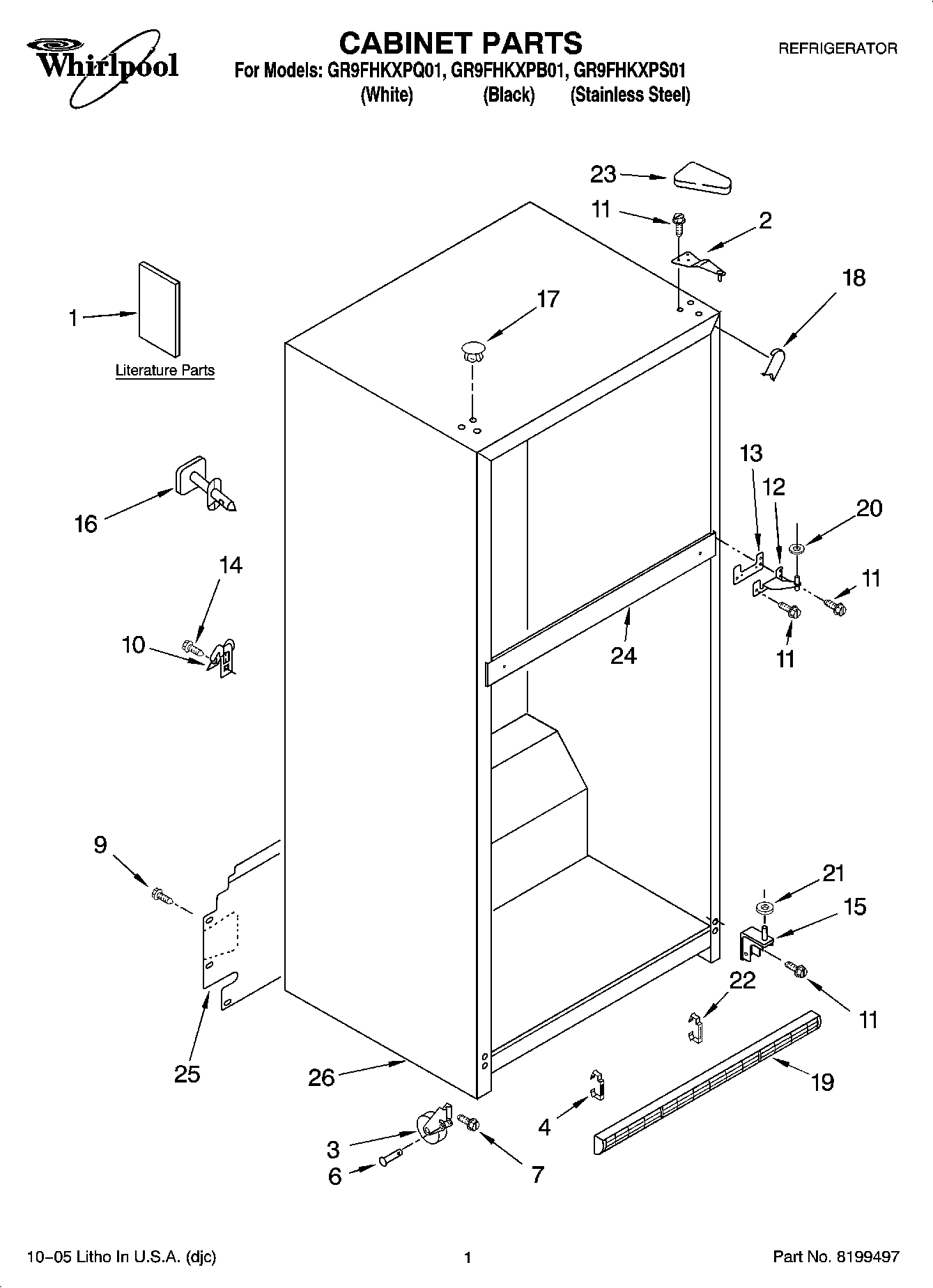

1

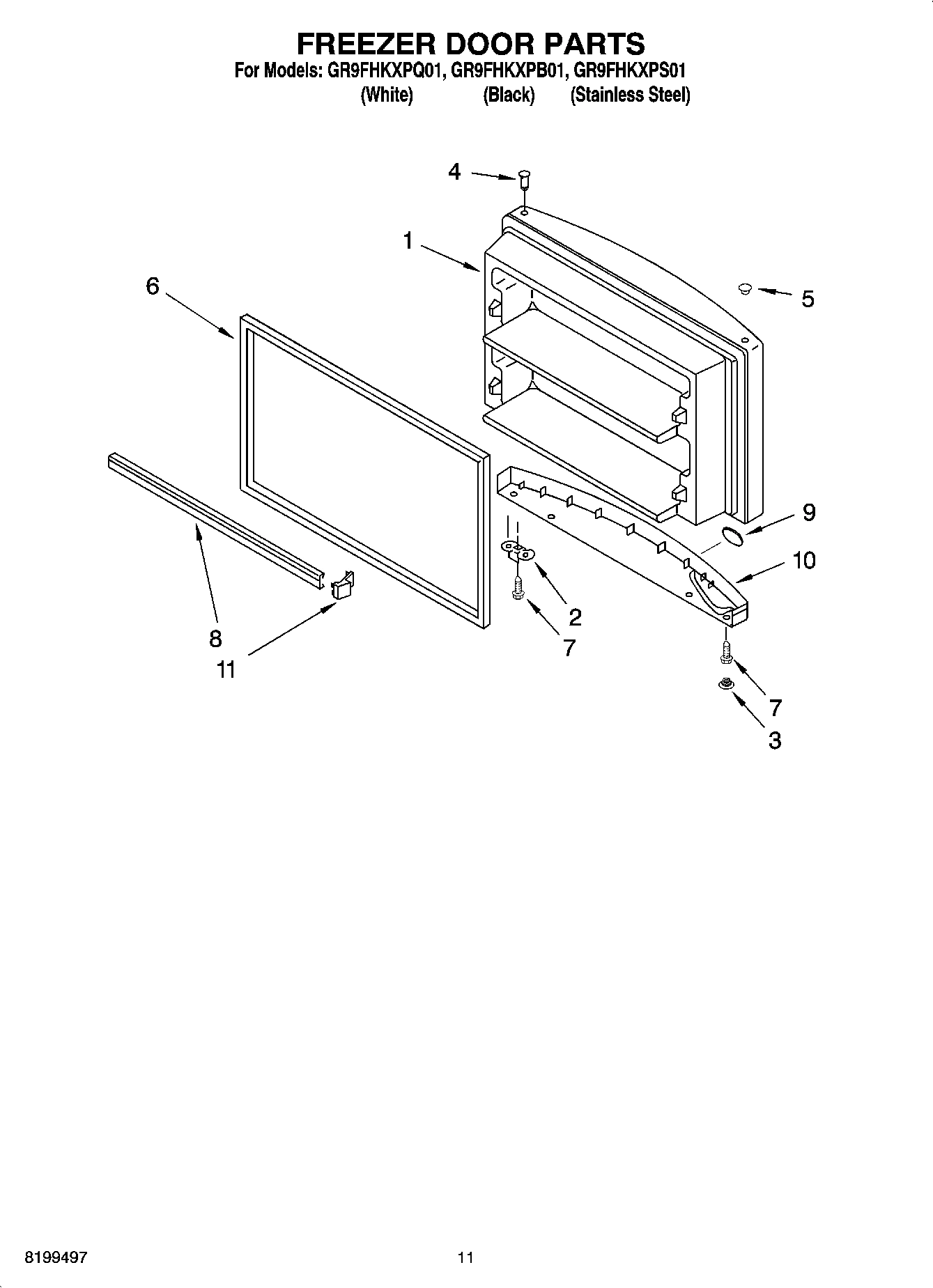

Freezer Door (Includes Illus. 4 & 6) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 4 & 6) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 4 & 6) (Stainle WPL 2212495 Contact Us For Availability

1

Customer Instructions WPL 2225413 Contact Us For Availability

1

Energy Label WPL 2300793 Contact Us For Availability

1

Service & Wiring Sheet WPL 2314273 Contact Us For Availability

1

Use & Care Guide WPL 2314472 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI68531A9 Contact Us For Availability

2

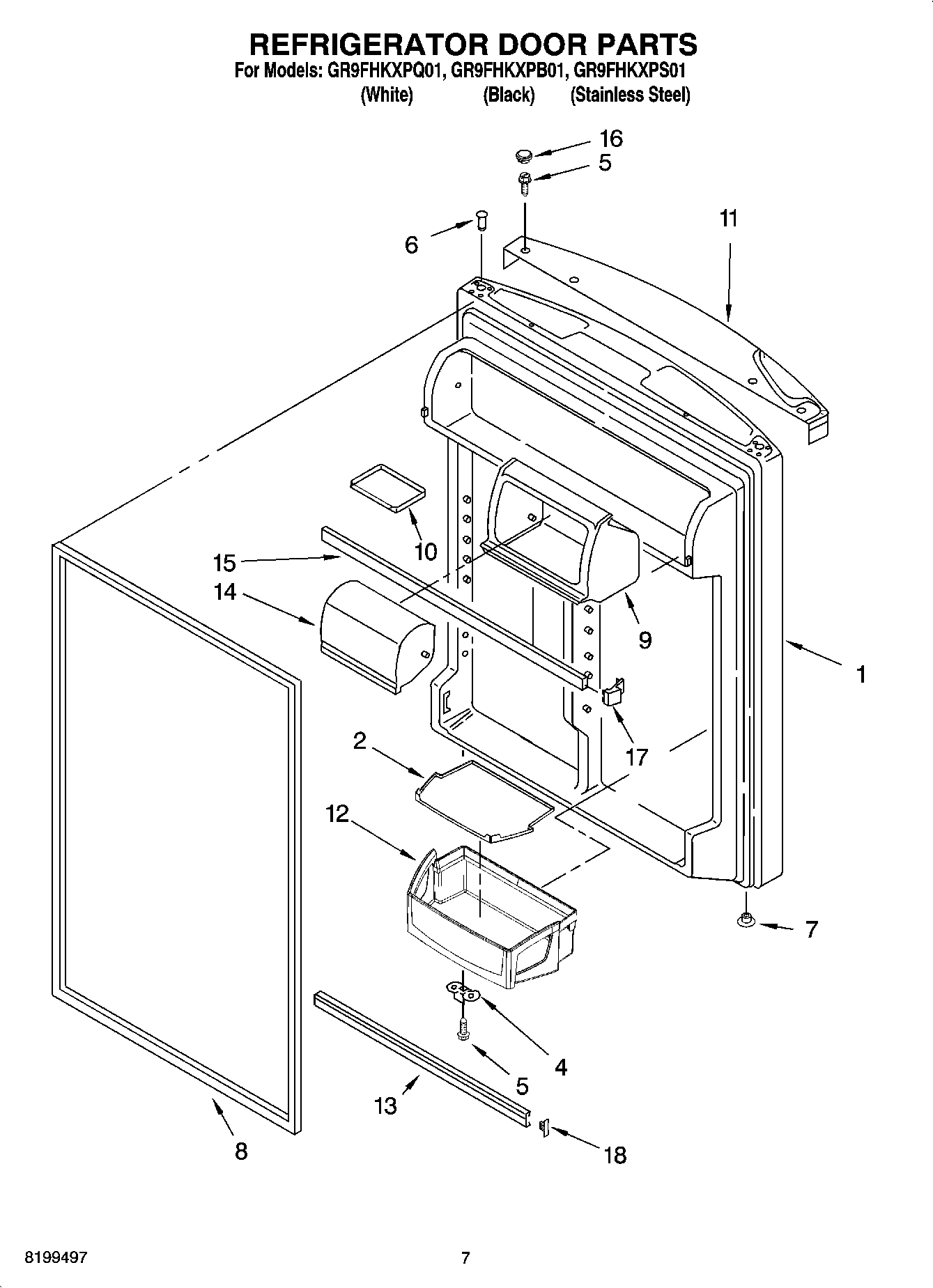

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

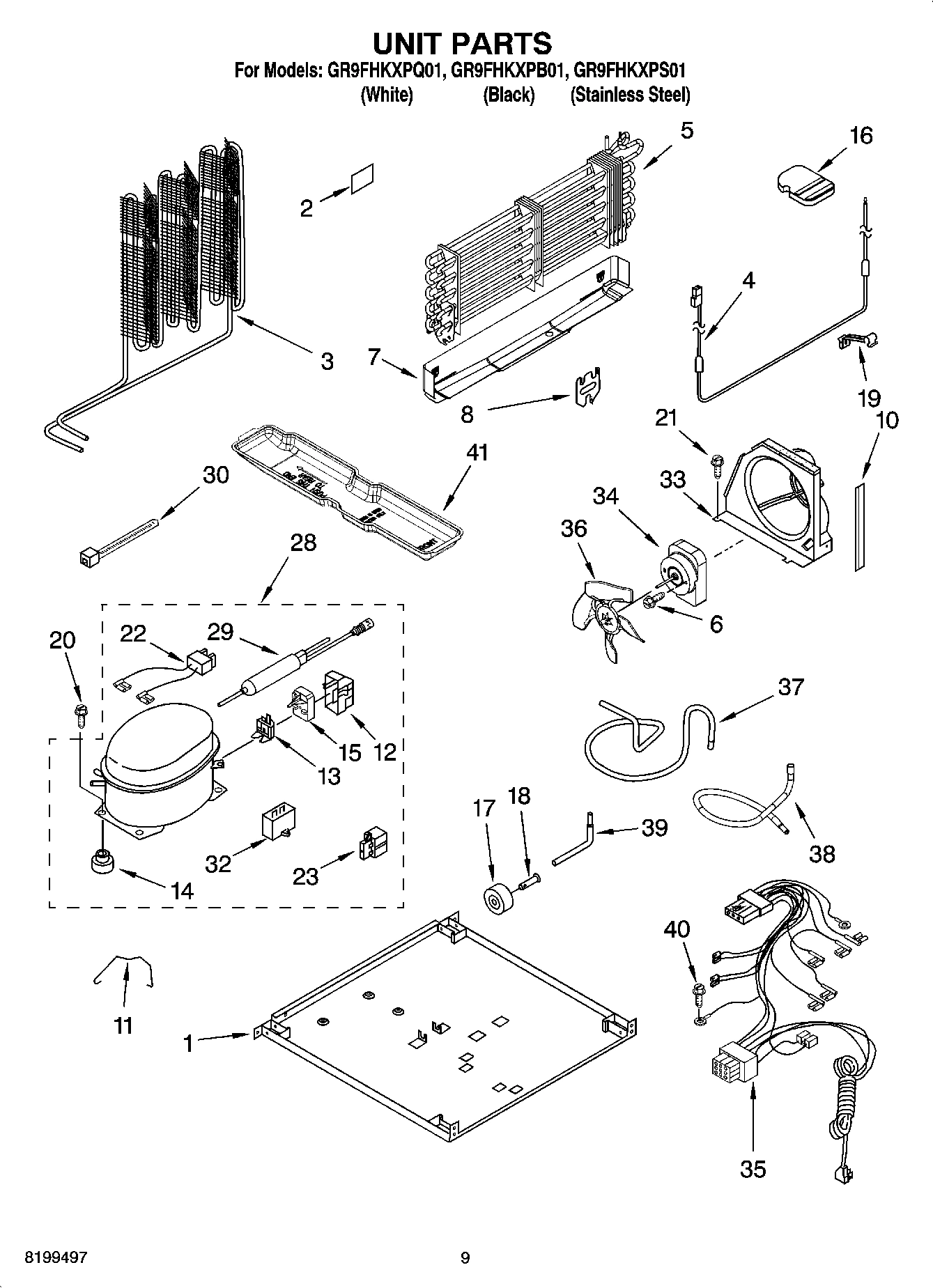

3

Condenser WPL 2214960 Contact Us For Availability

3

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

3

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

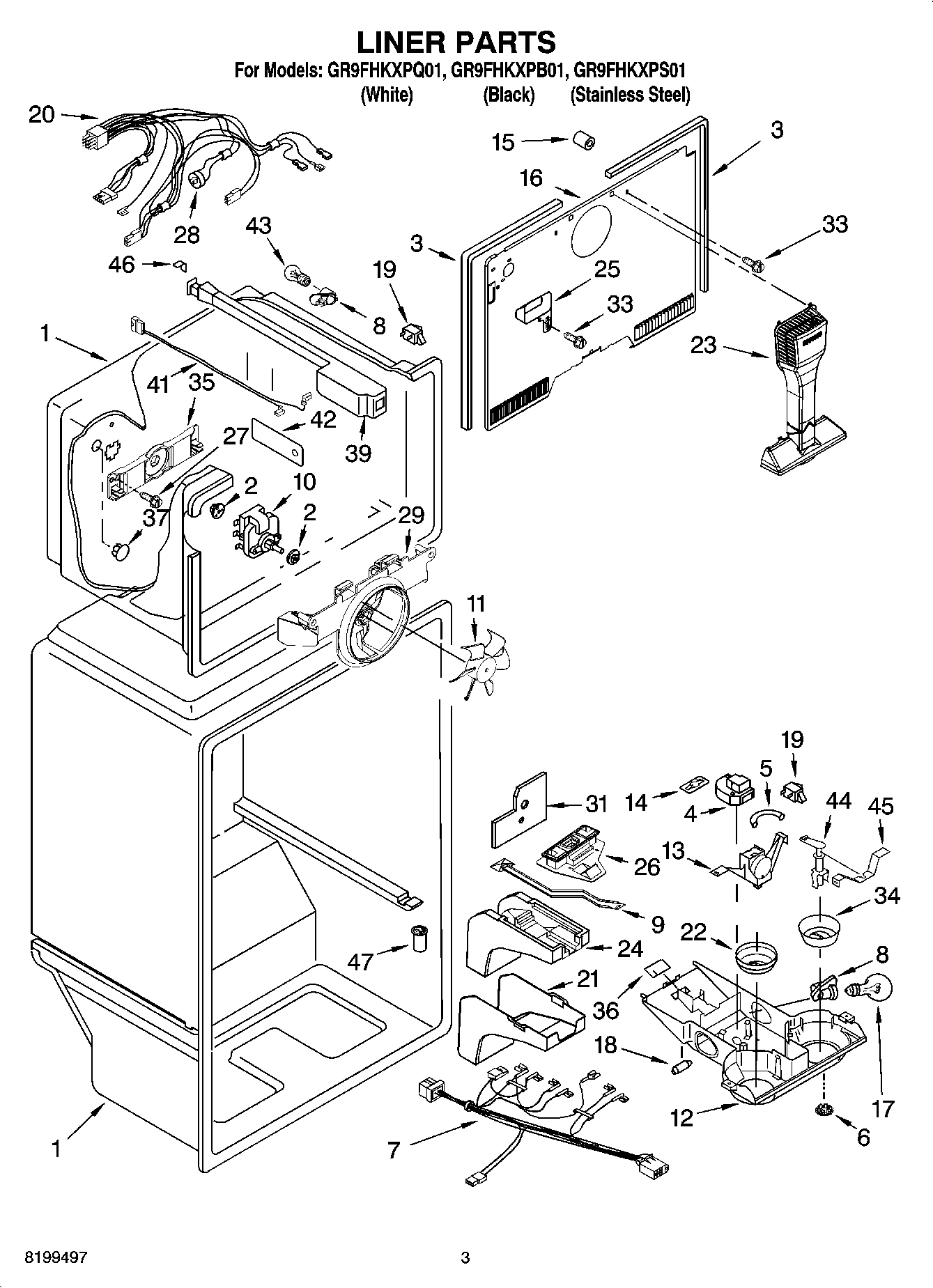

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $109.29

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $66.44

4

CLIP, GRILLE WPL 2189356 Contact Us For Availability

6

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $82.03

6

2177304 Whirlpool Refrigerator FIP Gasket In Stock WPL 2177304 $130.47

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

7

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

8

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

8

Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

9

Nameplate WPL 2220214 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Tray, Door WPL 2159302 Contact Us For Availability

Handle, Endcap (White) WPL 2225090 Contact Us For Availability

Handle, Endcap (Black) WPL 2225158 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

11

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

11

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

12

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

13

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

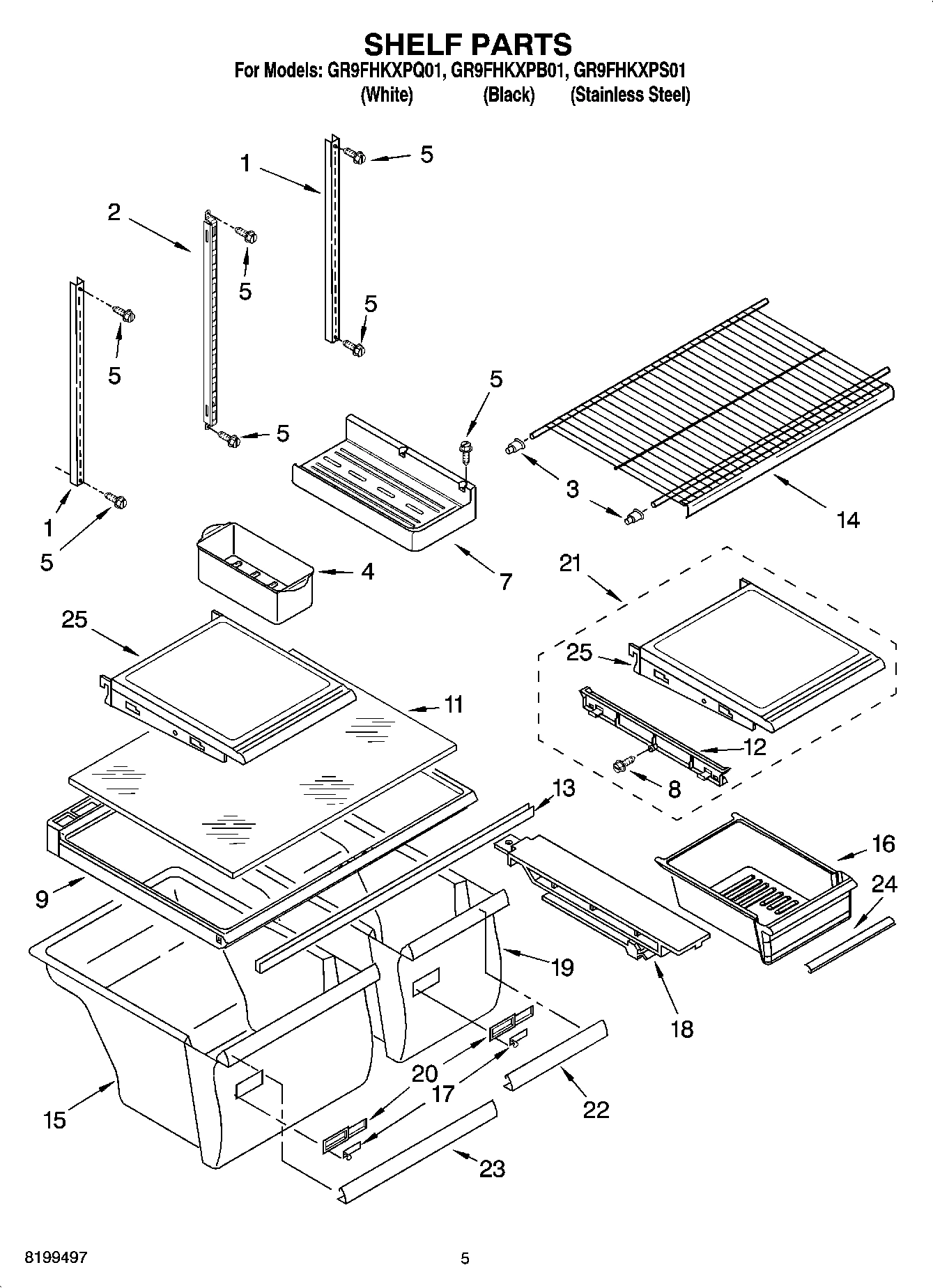

14

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

14

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

14

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $54.64

15

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

15

TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability

16

Support Block WPL 2201184 Contact Us For Availability

16

Fitting, Water Tube (Not Serviced) WPL ARI68532A7 Contact Us For Availability

17

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

17

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

17

Slide, Humidity Control WPL 2176222 Contact Us For Availability

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $33.18

Clip, Heater WPL 2182338 Contact Us For Availability

Grille (Includes Illus. 4 & 22) (Black) WPL 2254388 Contact Us For Availability

20

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

20

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

20

Wire Assembly, Frzr. Compartment (Includes Il WPL 2310041 Contact Us For Availability

21

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $32.89

22

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Rail Center (Not Serviced) WPL ARI68533A2 Contact Us For Availability

25

Cover, Hole WPL 2205003 Contact Us For Availability

25

Cover, Unit WPL 2221775 Contact Us For Availability

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

26

Cabinet (Not A Serviceable Part) WPL ARI68534A2 Contact Us For Availability

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $115.98

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $33.38

37

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

39

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

39

Housing Base WPL 2300417 Contact Us For Availability

40

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI68536A7 Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI68537A3 Contact Us For Availability

47

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80
