Model Whirlpool GR478LXPT0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

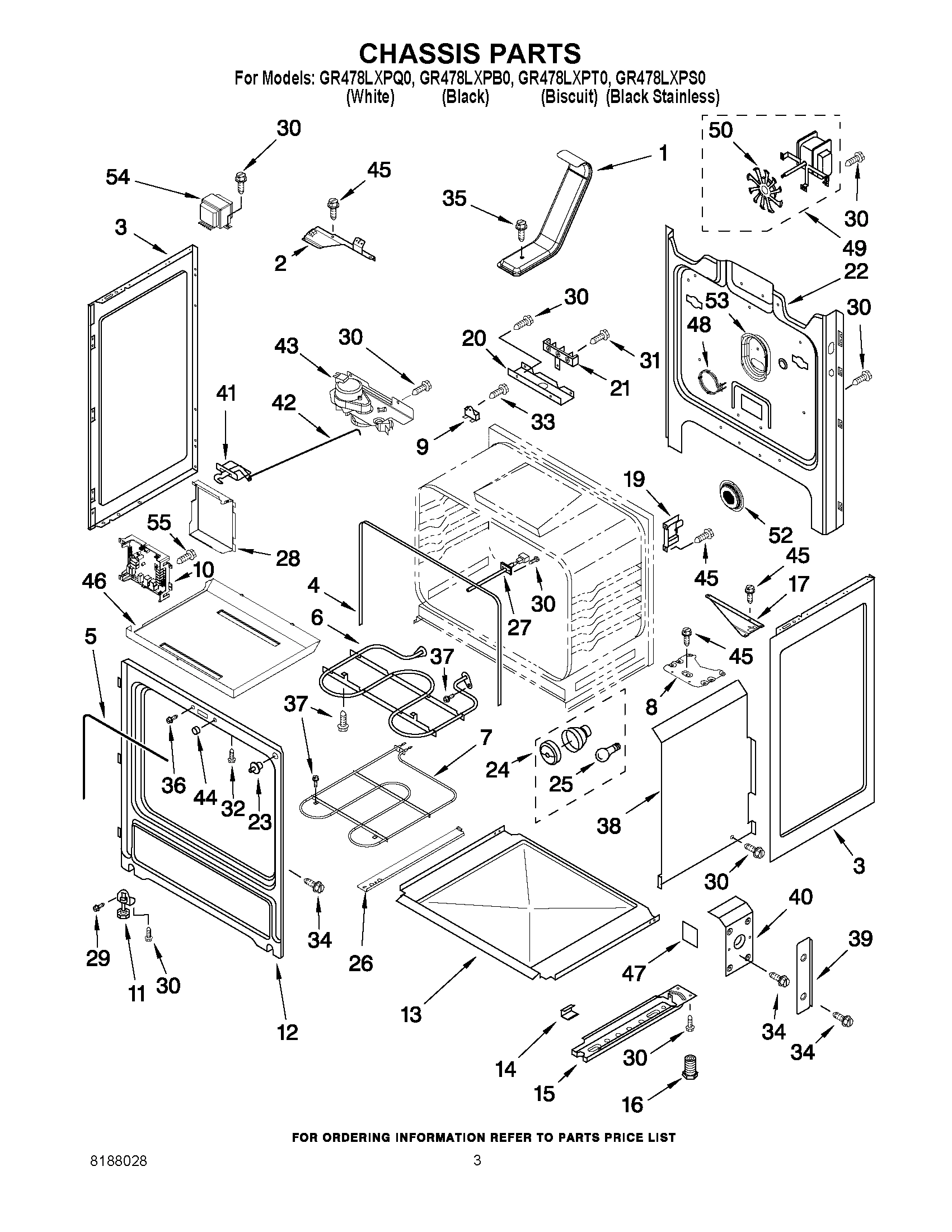

03 - CHASSIS PARTS
06 - OPTIONAL PARTS
04 - DRAWER & BROILER PARTS
05 - DOOR PARTS
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS
Common parts from model Whirlpool GR478LXPT0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Top (Stainless Model) WPL 8272243 Contact Us For Availability
1
Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability
1
Safer Cooking Tips WPL 3191638 Contact Us For Availability
1
Template, Anti-Tip (English/Spanish) WPL 8523048 Contact Us For Availability
1
Template, Anti-Tip (English/French) WPL 9756849 Contact Us For Availability
1
Use & Care Guide WPL 9758899 Contact Us For Availability
1
Tech Sheet WPL 9759783 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 9759923 Contact Us For Availability
1
Endcap (Biscuit Left Hand) WPL 9757635 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Bracket, Console WPL 9756364 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability
3
Panel, Backguard (White) WPL 9759030 Contact Us For Availability
3
Panel, Backguard (Black) WPL 9759031 Contact Us For Availability
3
Panel, Backguard (Biscuit) WPL 9759032 Contact Us For Availability
3
Panel, Backguard (Stainless Steel) WPL 9759033 Contact Us For Availability
4
Drawer, Storage WPL 8272605 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
4
Cooktop (White) WPL 9758722 Contact Us For Availability
4
Cooktop (Black) WPL 9758723 Contact Us For Availability
4
Cooktop (Biscuit) WPL 9758724 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
6
Bracket, Ind Light WPL 8523741 Contact Us For Availability
7
KNOB, INFINITE (WHITE) WPL 9757132 Contact Us For Availability
7
KNOB, INFINITE (BISCUIT) WPL 9757626 Contact Us For Availability
8
Rack, Roasting WPL 3181534 Contact Us For Availability
8
Shield, Wiring WPL 8524132 Contact Us For Availability
8
Shield, Heat WPL 8523280 Contact Us For Availability
9
Bracket, Element ((2)) WPL 8272791 Contact Us For Availability
9
Bracket, Element ((1)) WPL 8273720 Contact Us For Availability
9
Glss Swtch Membrne (White) WPL 9757624 Contact Us For Availability
9
Glss Swtch Membrne (Biscuit) WPL 9758474 Contact Us For Availability
9
Glss Swtch Membrne (Black) WPL 9758475 Contact Us For Availability
10
Hinge, Door (Stainless Model) WPL 8272822 Contact Us For Availability
10
Rail, Drawer (Right Hand) WPL 8274190 Contact Us For Availability
10
Rail, Drawer (Left Hand) WPL 8274191 Contact Us For Availability
10
Cover, Rear WPL 9756999 Contact Us For Availability
11
Spacer, Glide WPL 8522669 Contact Us For Availability
11
Glass, Outer (Biscuit) WPL 9756416 Contact Us For Availability
11
Glass, Outer (Stainless Steel) WPL 9756435 Contact Us For Availability
11
Bezel, Keep Warm (White) WPL 9757489 Contact Us For Availability
11
Bezel, Keep Warm (Biscuit) WPL 9758488 Contact Us For Availability
11
Bezel, Keep Warm (Black) WPL 9758489 Contact Us For Availability
12
Heat Shield, Drawer WPL 9756711 Contact Us For Availability
12
Control, Range WPL 9759558 Contact Us For Availability
13
Liner, Drawer WPL 8272311 Contact Us For Availability
14
Cover, Box WPL 9757972 Contact Us For Availability
15
Clip, Glass WPL 3196025 Contact Us For Availability
15
Cover, Rear (Console) WPL 9756366 Contact Us For Availability
16
STAINLESS MODEL ONLY WPL NP Contact Us For Availability
17
Panel, Stainless WPL 8053951 Contact Us For Availability
18
Button (Black) WPL 9758491 Contact Us For Availability
18
Handle WPL 9757237 Contact Us For Availability
18
Button (White) WPL 9757492 Contact Us For Availability
18
Button (Biscuit) WPL 9758490 Contact Us For Availability
21
Reflector, Light WPL 9757358 Contact Us For Availability
22
Screw (White) WPL 3196166 Contact Us For Availability
22
Screw (Biscuit) WPL 8281194 Contact Us For Availability
23
Support, Glass WPL 9757490 Contact Us For Availability
33
Screw WPL 3196172 Contact Us For Availability
46
Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability
53
Bracket, Fan WPL 9755776 Contact Us For Availability
54
Transformer WPL 9757311 Contact Us For Availability
55
Screw WPL 8533930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
Insulation, Back WPL 9755772 Contact Us For Availability
NI
Insulation, GOC WPL 9757974 Contact Us For Availability
NI
Clip, Harness WPL 3196696 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
Harness, Bake Element (Hidden) WPL 9756550 Contact Us For Availability
NI
Harness, Wire (Signal) WPL 9758420 Contact Us For Availability
NI
Harness, Wire (Main) WPL 9758438 Contact Us For Availability
NI
Harness, Wire (Console) WPL 9759001 Contact Us For Availability
NI
Harness, Wire (Cooktop Right) WPL 9759773 Contact Us For Availability
NI
Harness, Wire (Cooktop Left) WPL 9759775 Contact Us For Availability
× ![]()
