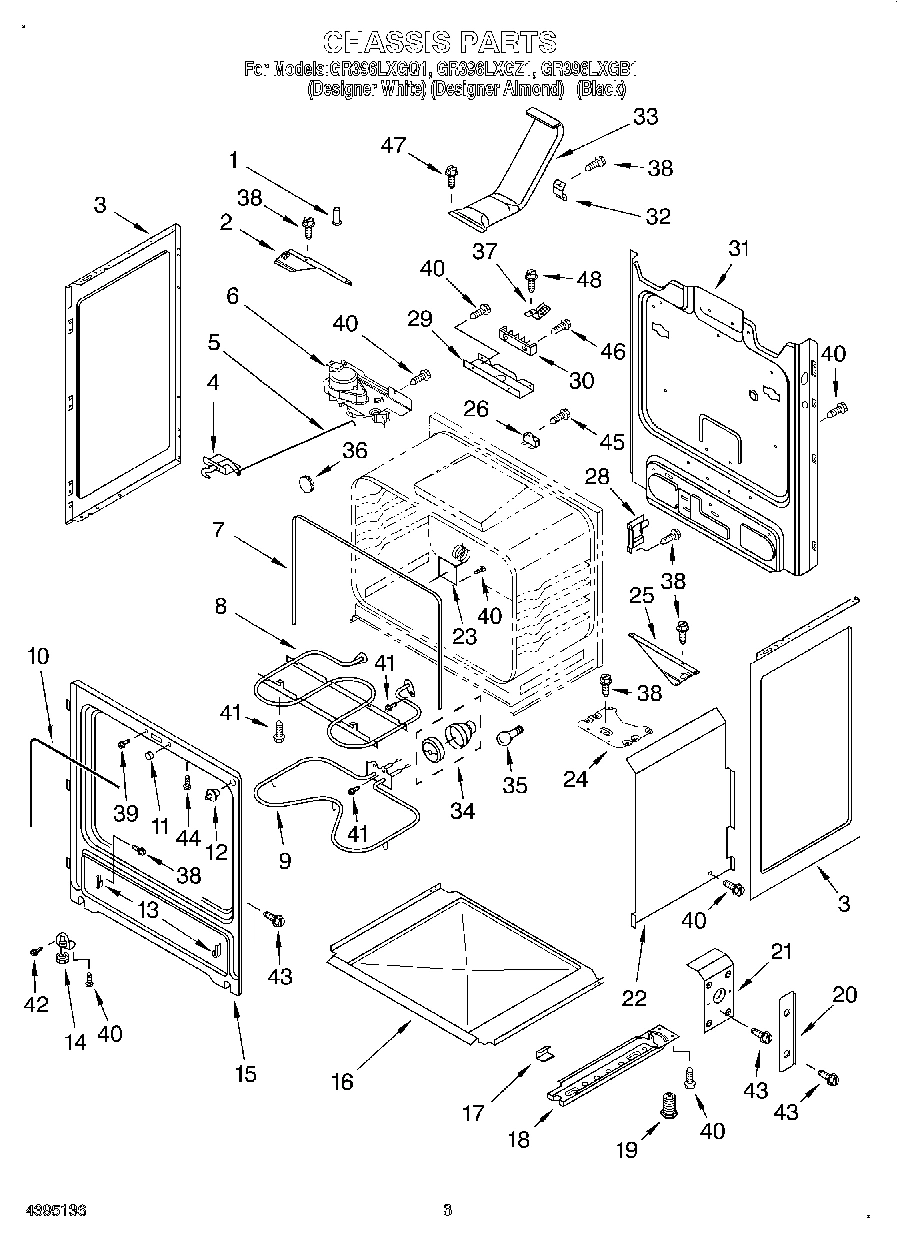

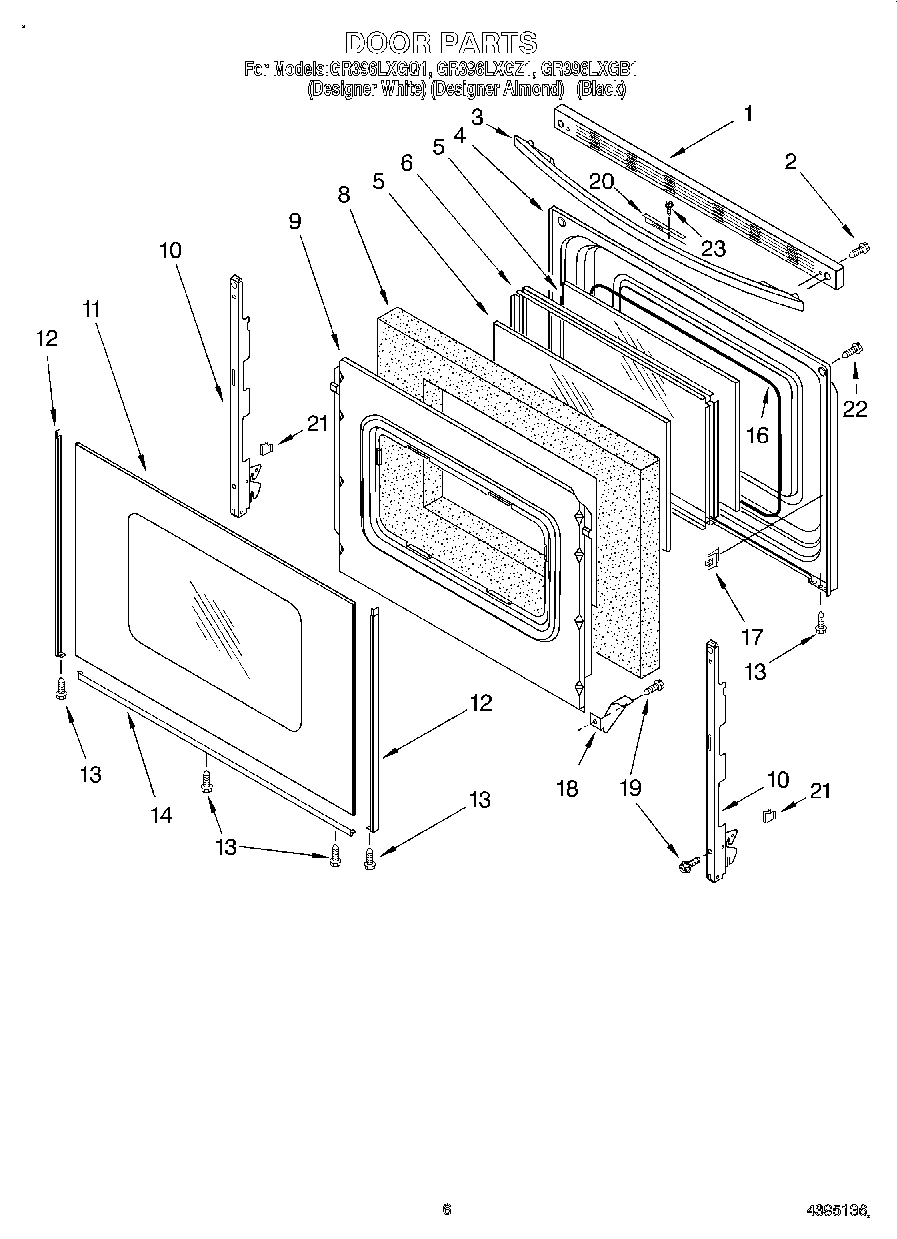

Model Whirlpool GR396LXGB1 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instr (Templat WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8053302 Contact Us For Availability

1

Literature Parts (Guide, Use & Care) WPL LIT8053402 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8053714 Contact Us For Availability

1

Endcap (Black Left Hand) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (White Left Hand) WPL 3186190 Contact Us For Availability

1

Endcap (White Right Hand) WPL 3186191 Contact Us For Availability

1

Endcap (Almond Left Hand) WPL 3186192 Contact Us For Availability

1

Endcap (Almond Right Hand) WPL 3186193 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

3

Panel, Backguard (Black) WPL 8053499 Contact Us For Availability

3

Panel, Backguard (White) WPL 8053500 Contact Us For Availability

3

Panel, Backguard (Almond) WPL 8053501 Contact Us For Availability

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

4

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

4

Liner, Door WPL 3186292 Contact Us For Availability

4

Drawer, Storage WPL 8053342 Contact Us For Availability

4

Cooktop (White) WPL 8053543 Contact Us For Availability

4

Cooktop (Almond) WPL 8053544 Contact Us For Availability

4

Cooktop (Black) WPL 8053545 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $67.09

5

Light, Ind. (Surface Unit (2)) WPL 313102 Contact Us For Availability

5

Light, Indicator (Hot Surface) WPL 8053722 Contact Us For Availability

5

Light, Indicator (Accusimmer) WPL 8053632 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

6

Bracket, Ind Light WPL 3195810 Contact Us For Availability

7

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $117.46

7

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

7

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

7

Element, Surface (Includes No. 8) (2500 W - L WPL 8053605 Contact Us For Availability

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

Limiter, Temp. All Surface Elmnts WPL 8053620 Contact Us For Availability

8

Shield, Heat WPL 8053911 Contact Us For Availability

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $80.49

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Screw WPL 4449746 Contact Us For Availability

9

Bracket, Element WPL 3196455 Contact Us For Availability

10

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

10

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $128.85

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $195.36

Glass, Outer Door (Almond) WPL 8053482 Contact Us For Availability

Knob, Accusimmer (Black) WPL 8053475 Contact Us For Availability

Knob, Accusimmer (White) WPL 8053476 Contact Us For Availability

Knob, Accusimmer (Almond) WPL 8053477 Contact Us For Availability

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

Control, Range (Black) WPL 6610169 Contact Us For Availability

Control, Range (White) WPL 6610170 Contact Us For Availability

Control, Range (Almond) WPL 6610171 Contact Us For Availability

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

13

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184858 Whirlpool Door Trim Backorder WPL 8184858 $61.47

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $48.50

8184860 Whirlpool Oven Door Trim Backorder WPL 8184860 $55.24

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

15

Selector, Accusim WPL 8053511 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

Seal, Window WPL 3195984 Contact Us For Availability

17

Clip, Glass (6) WPL 3196025 Contact Us For Availability

18

WP3196794 Whirlpool Glass Bracket Backorder WPL WP3196794 $11.53

20

Bracket, Latch WPL 3195914 Contact Us For Availability

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

22

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

3196696 Whirlpool Clip Backorder WPL 3196696 $6.61

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 G WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 3196108 WPL 3196108 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8053514 WPL 8053514 Contact Us For Availability

WPL 8053721 WPL 8053721 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59
