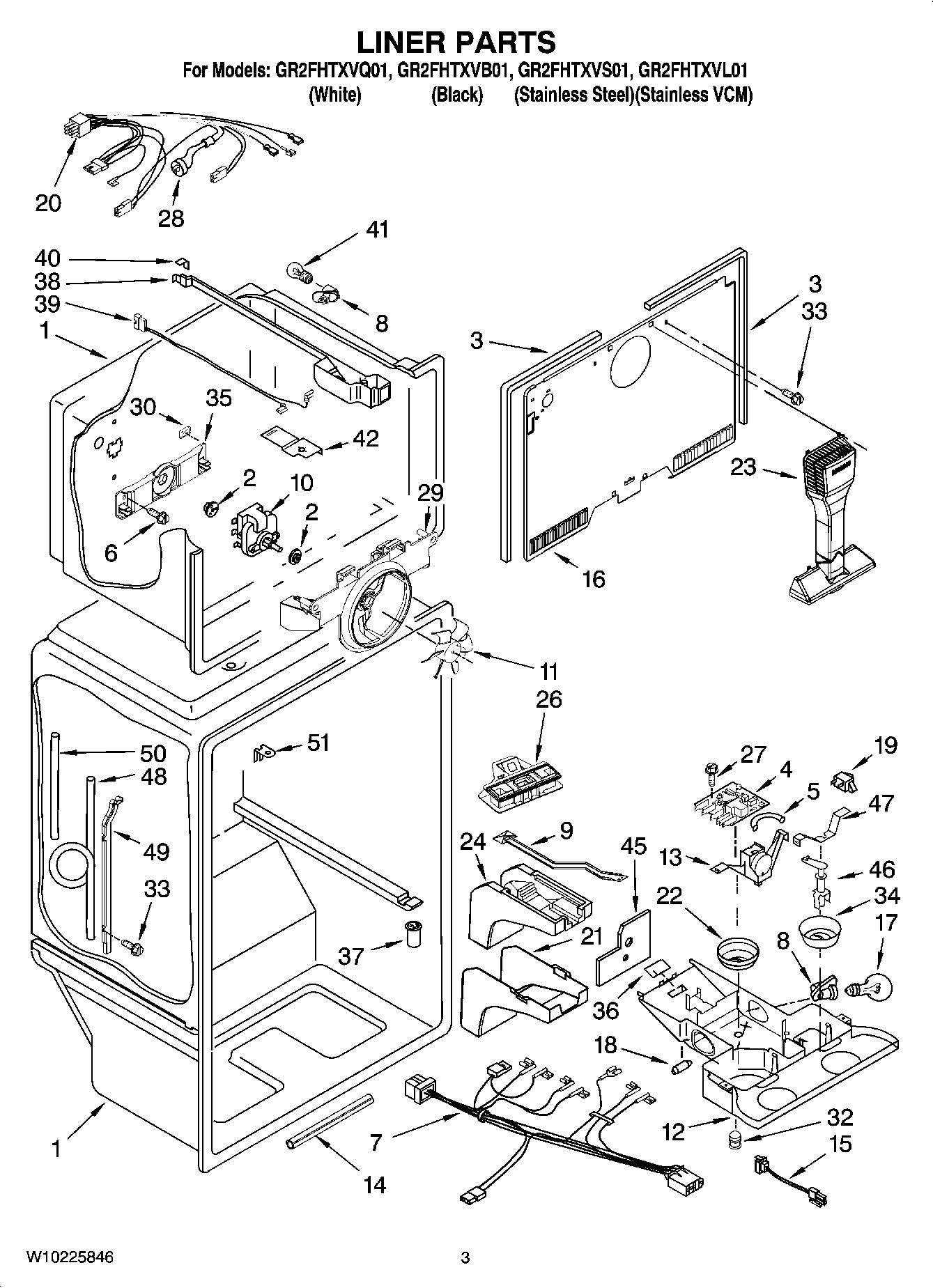

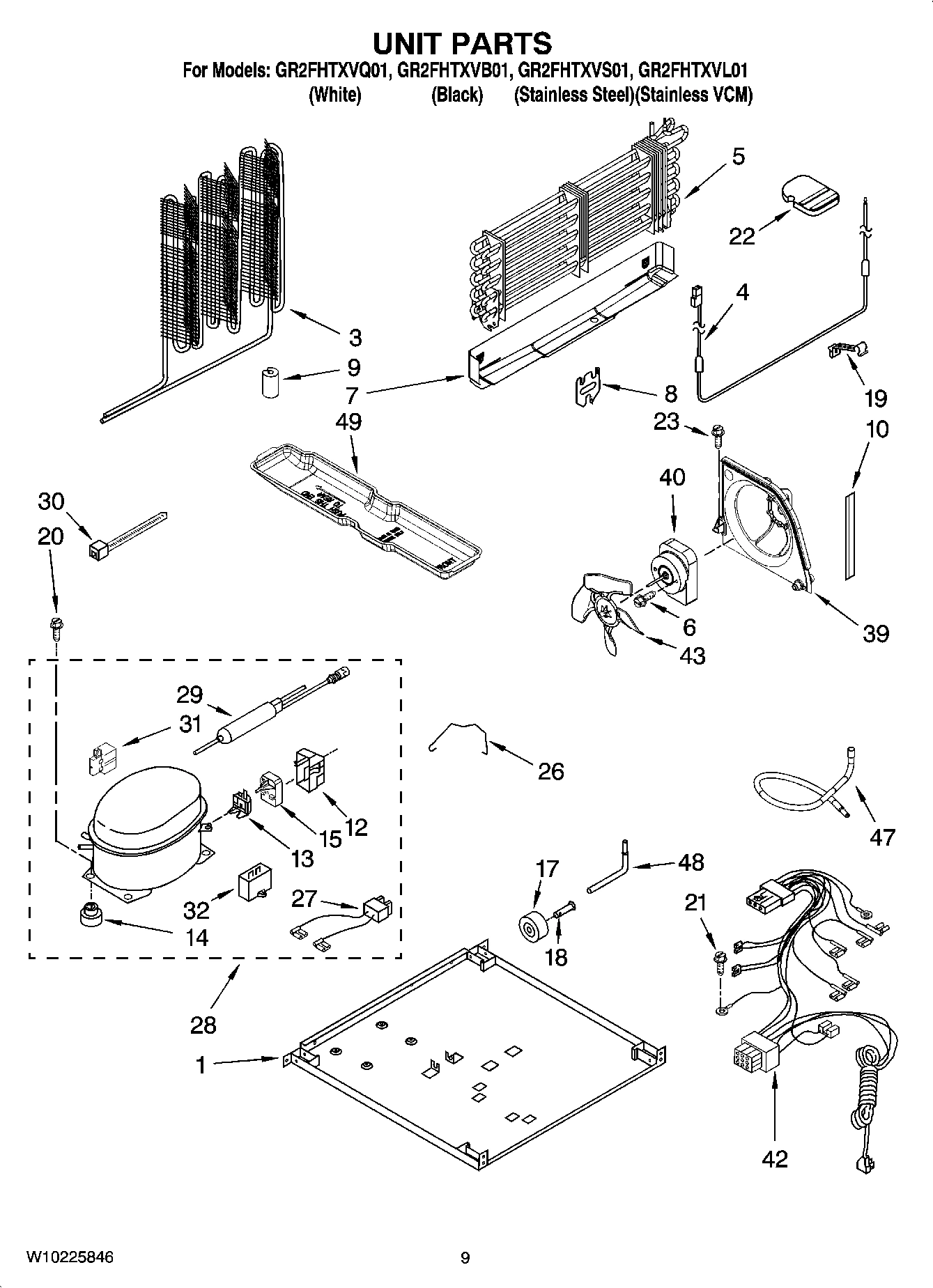

Model Whirlpool GR2FHTXVB01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Enamel, Biscuit (1 Qt. Uncut) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI67570A7 Contact Us For Availability

Customer Touch-Up Material WPL ARI67571A1 Contact Us For Availability

REFINISHING M WPL ARI67572A7 Contact Us For Availability

WPL ARI67573A1 WPL ARI67573A1 Contact Us For Availability

WPL ARI67574A3 WPL ARI67574A3 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Customer Instruct Sheet, Wtr Filter WPL 2302485 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI67563A2 Contact Us For Availability

1

Service & Wiring Sheet WPL W10142144 Contact Us For Availability

1

Energy Label WPL W10206563 Contact Us For Availability

1

Use & Care Guide (Trilingual) WPL W10208843 Contact Us For Availability

1

Use & Care Guide (Bilingual) WPL W10208844 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Button, Dispenser WPL 2210567 Contact Us For Availability

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Reservoir, Tube WPL 2320316 Contact Us For Availability

4

WP2304093 Whirlpool Refrigerator Electronic C Backorder WPL WP2304093 $230.79

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

7

Glass, Shelf WPL 2214913 Contact Us For Availability

8

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

8

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $103.84

9

Nameplate WPL 2220214 Contact Us For Availability

10

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

10

Shelf Assembly WPL 2214909K Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

Frame Assembly, Meat Shelf WPL 2214892 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

DEFLECTOR-AIR (CRISPER COVER) WPL 2254458 Contact Us For Availability

14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP2320150 Whirlpool Refrigerator Start Device Backorder WPL WP2320150 $57.49

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Bin, Door Shelf (3) WPL 2304918 Contact Us For Availability

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Cover, Evaporator WPL 2320193 Contact Us For Availability

16

Shelf Assembly, Spillguard (2) WPL 2214909 Contact Us For Availability

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $4.50

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

Shelf, Freezer WPL 2189454 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Trim, Door Shelf WPL 2159306 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Clip, Heater WPL 2182338 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $102.95

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Wire Assembly, Freezer Compartment (Includes WPL W10129803 Contact Us For Availability

21

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Fitting, Water Tube (Not Serviced) WPL ARI67564A3 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

Support Block WPL 2201185 Contact Us For Availability

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

Grille (Includes Illus. 27) (White) WPL 2301618W Contact Us For Availability

Grille (Includes Illus. 27) (Black) WPL 2301618B Contact Us For Availability

Trim, Meat Pan WPL 2176357 Contact Us For Availability

25

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

26

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

27

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

28

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

28

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

28

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $28.85

29

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Rail, Center (Not Serviced) WPL ARI67565A2 Contact Us For Availability

30

Cover, Unit WPL 2254576 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI67566A8 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

38

Housing Base WPL 2300418 Contact Us For Availability

39

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $29.74

49

WP2254574 Whirlpool Refrigerator Evaporator T In Stock WPL WP2254574 $57.83

50

Tube, Water Filter WPL 2301621 Contact Us For Availability
