Model GE GNE21FSKAFSS Refrigerator – Common Parts & Diagrams

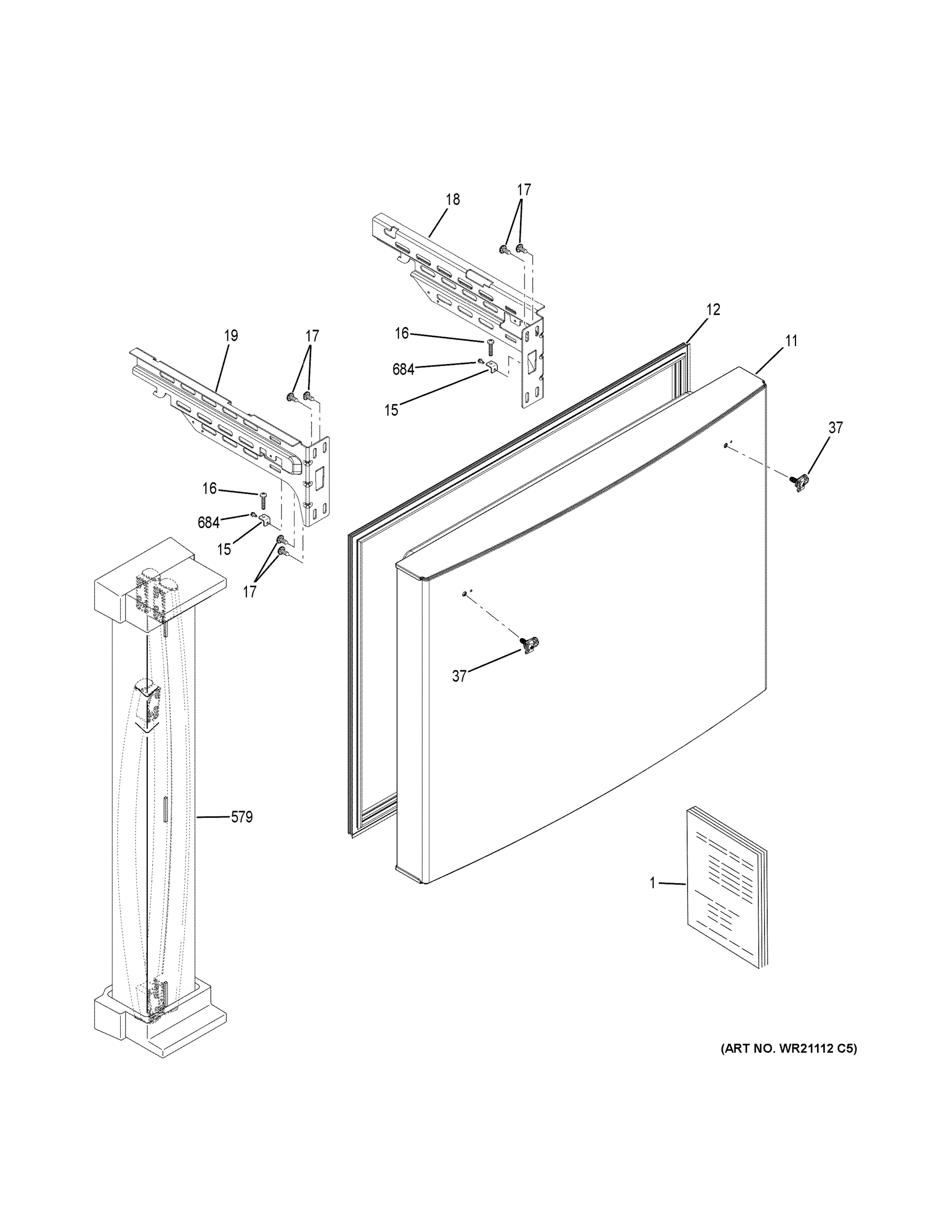

FREEZER DOOR

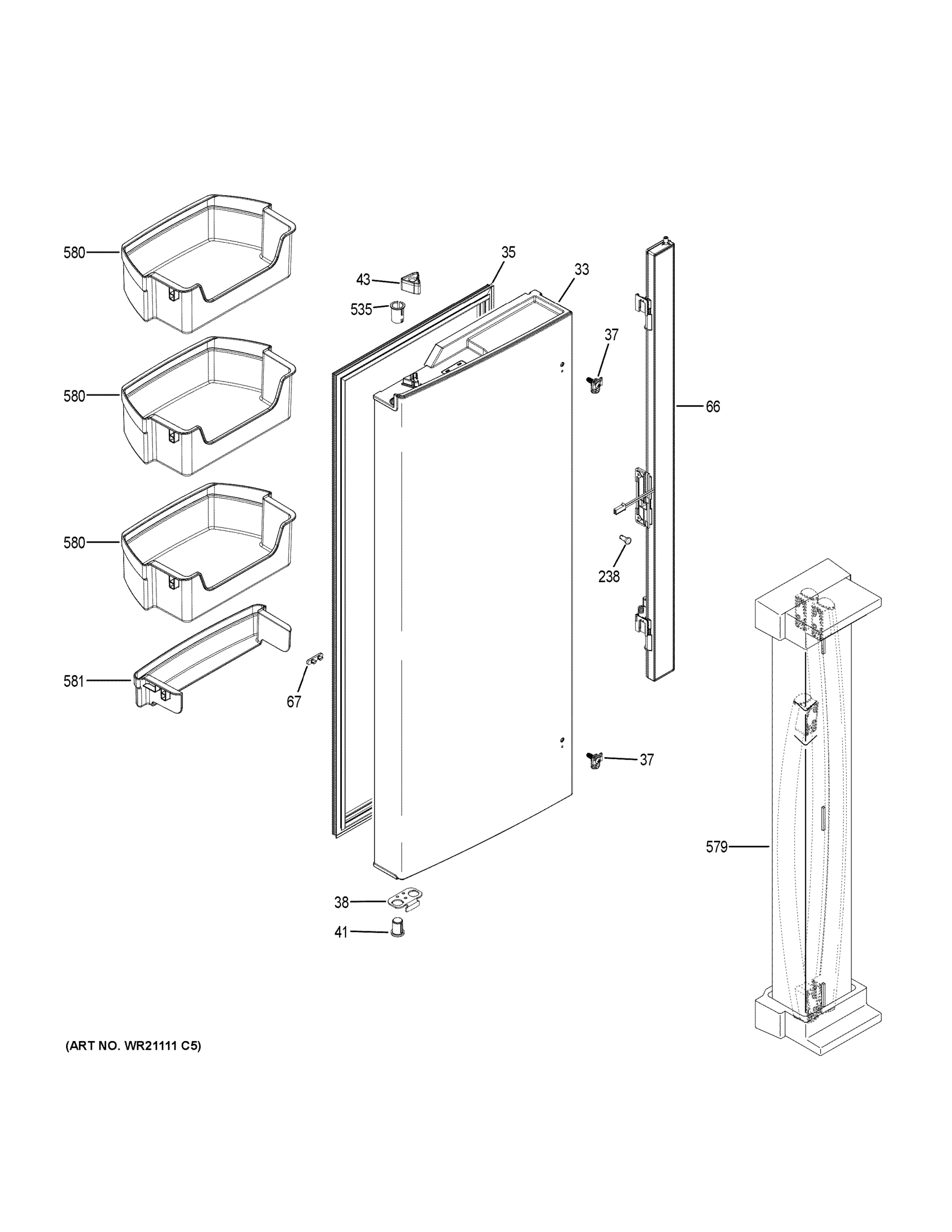

FRESH FOOD DOOR - LH
FRESH FOOD DOOR - RH
FREEZER SECTION
FREEZER SHELVES
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE GNE21FSKAFSS Refrigerator
12
GASKET DOOR FZ DG GEN WR14X25192 Contact Us For Availability
16
SCR 1/4 - 20 UNC -2A GEN WR01X10843 Contact Us For Availability
17
SCR 1/4-20 RT FLAT 3/4 S GEN WR01X10885 Contact Us For Availability
38
STOP DOOR GEN WR02X24874 Contact Us For Availability
39
BADGE GE GEN WR04X10223 Contact Us For Availability
41
HINGE BUSHING BB GEN WR02X24875 Contact Us For Availability
43
CAM CLOSURE FF DG GEN WR02X24998 Contact Us For Availability
66
ARTICULATING MULLION ASM GEN WR17X25027 Contact Us For Availability
80
HOUSING LIGHT ASM GEN WR02X24927 Contact Us For Availability
102
SUPPORT VEG PAN ASM GEN WR02X13504 Contact Us For Availability
112
SCREW HINGE COVER GEN WR01X10379 Contact Us For Availability
124
HINGE CENTER GEN WR13X24864 Contact Us For Availability
125
SCR 12-24 TT HXT20 .90 S GEN WR01X10683 Contact Us For Availability
133
STEEL PIN HINGE GEN WR02X24905 Contact Us For Availability
134
SPRING CLUSRE GEN WR02X25443 Contact Us For Availability
193
TUBE DRAIN GEN WR02X11426 Contact Us For Availability
204
FOAM STRIP SE ADH GEN WR14X24804 Contact Us For Availability
208
SCREW LEVELING GEN WR01X10850 Contact Us For Availability
215
STAND OFF GEN WR02X10663 Contact Us For Availability
217
FF AIR TOWER 30 GEN WR14X26409 Contact Us For Availability
219
DAMPER ASM GEN WR60X27396 Contact Us For Availability
223
SHUNT SENSOR GEN WR02X10668 Contact Us For Availability
224
GRILLE SENSOR GEN WR02X10647 Contact Us For Availability
227
HARNESS EVAPORATOR GEN WR55X28649 Contact Us For Availability
230
COVER HINGE TOP RH DG GEN WR13X24930 Contact Us For Availability
231
COVER HINGE TOP LH DG GEN WR13X24931 Contact Us For Availability
238
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
240
SENSOR HUMIDITY GEN WR02X12711 Contact Us For Availability
241
THERMOSTAT DEF GEN WR50X10069 Contact Us For Availability
243
SCR 8-18 AB HXW 5/4 S GEN WR01X10626 Contact Us For Availability
244
HARNESS INTERFACE GEN WR55X24897 Contact Us For Availability
245
HARNESS SWITCH GEN WR55X24933 Contact Us For Availability
247
TEMP BOARD (HMI) GEN WR55X24895 Contact Us For Availability
248
SCR 12-24 TT HX 7/8 S GEN WR01X10792 Contact Us For Availability
249
HINGE TOP ASM RH GB GEN WR13X24928 Contact Us For Availability
260
HINGE TOP ASM LH GB GEN WR13X24929 Contact Us For Availability
262
CUP FILL IM GEN WR29X24823 Contact Us For Availability
264
WATER FILTER CANISTER GEN MWFP Contact Us For Availability
270
FILTER & INSULATION ASM GEN WR17X26447 Contact Us For Availability
274
STRIKER TOP MULLION GEN WR02X24944 Contact Us For Availability
276
BOARD LED LIGHT ASM GEN WR55X24870 Contact Us For Availability
500
HINGE BUSHING BB GEN WR02X24876 Contact Us For Availability
506
GRILL AIR TOWER ASM GEN WR14X26156 Contact Us For Availability
511
GASKET TOWER FF GEN WR14X24747 Contact Us For Availability
517
GROMMET AND TUBE IM ASM GEN WR29X24766 Contact Us For Availability
520
SLIDE BASKET LOWER FZ GEN WR72X24815 Contact Us For Availability
535
HINGE BUSHING BB GEN WR02X24999 Contact Us For Availability
579
PK HANDLE KIT ASM SS GEN WR12X25194 Contact Us For Availability
684
SCR 8-32 AB IHWS 3/8 S GEN WR01X10844 Contact Us For Availability
725
COMPRESSOR KIT EGYS60 GEN WR87X10224 Contact Us For Availability
735
TSD COMBO GEN WR08X21100 Contact Us For Availability
775
COVER WATER LINE GEN WR17X13124 Contact Us For Availability
800
VALVE & GUARD ASM GEN WR57X26305 Contact Us For Availability
878
SCR 10-14 PL FLT20 3/4 S GEN WR01X10939 Contact Us For Availability
901
GEAR PINION RH GEN WR02X13387 Contact Us For Availability
902
GEAR PINION LH GEN WR02X13384 Contact Us For Availability
908
HOLDER SLIDE FZ RH GEN WR72X24767 Contact Us For Availability
909
HOLDER SLIDE FZ LH GEN WR72X24768 Contact Us For Availability
912
SLIDE BASKET UPPER RH GEN WR72X24868 Contact Us For Availability
913
SLIDE BASKET UPPER LH GEN WR72X24869 Contact Us For Availability
935
SUPPORT IM GEN WR02X24817 Contact Us For Availability
936
PANTRY ASM GEN WR71X25324 Contact Us For Availability
937
FZ BASKET UPPER GEN WR71X25323 Contact Us For Availability
943
SCR 10-16 B HXW 1/4 S GEN WR01X25308 Contact Us For Availability
945
SLIDE PANTRY LH ASM GEN WR72X25329 Contact Us For Availability
980
COND FAN & HOUSING ASM GEN WR60X25869 Contact Us For Availability
982
TUBE LEAD GEN WR02X13774 Contact Us For Availability
986
GROMMET FAN MOTOR GEN WR02X10520 Contact Us For Availability
987
BLADE CONF FAN ASM GEN WR60X24484 Contact Us For Availability
× ![]()
